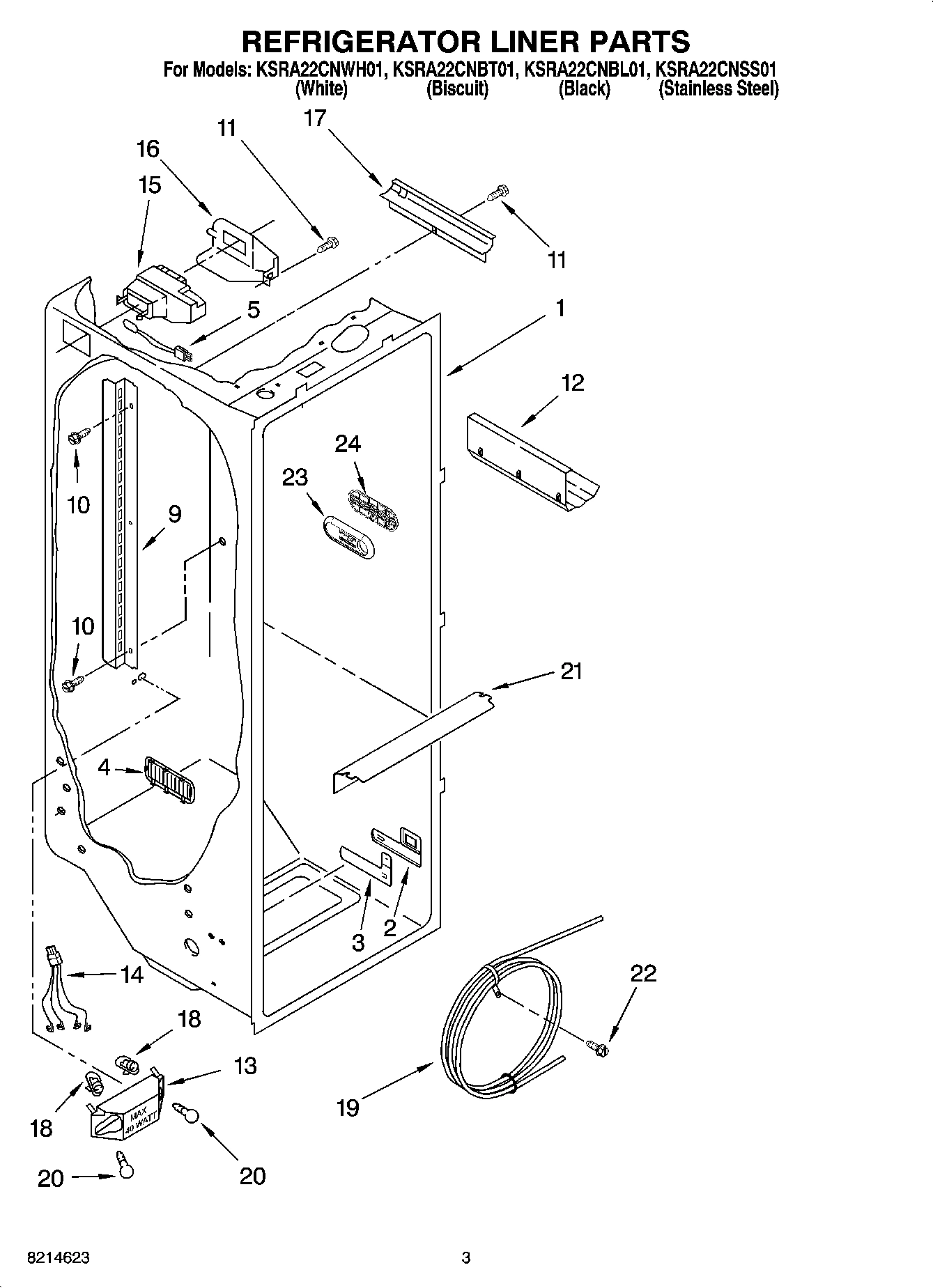

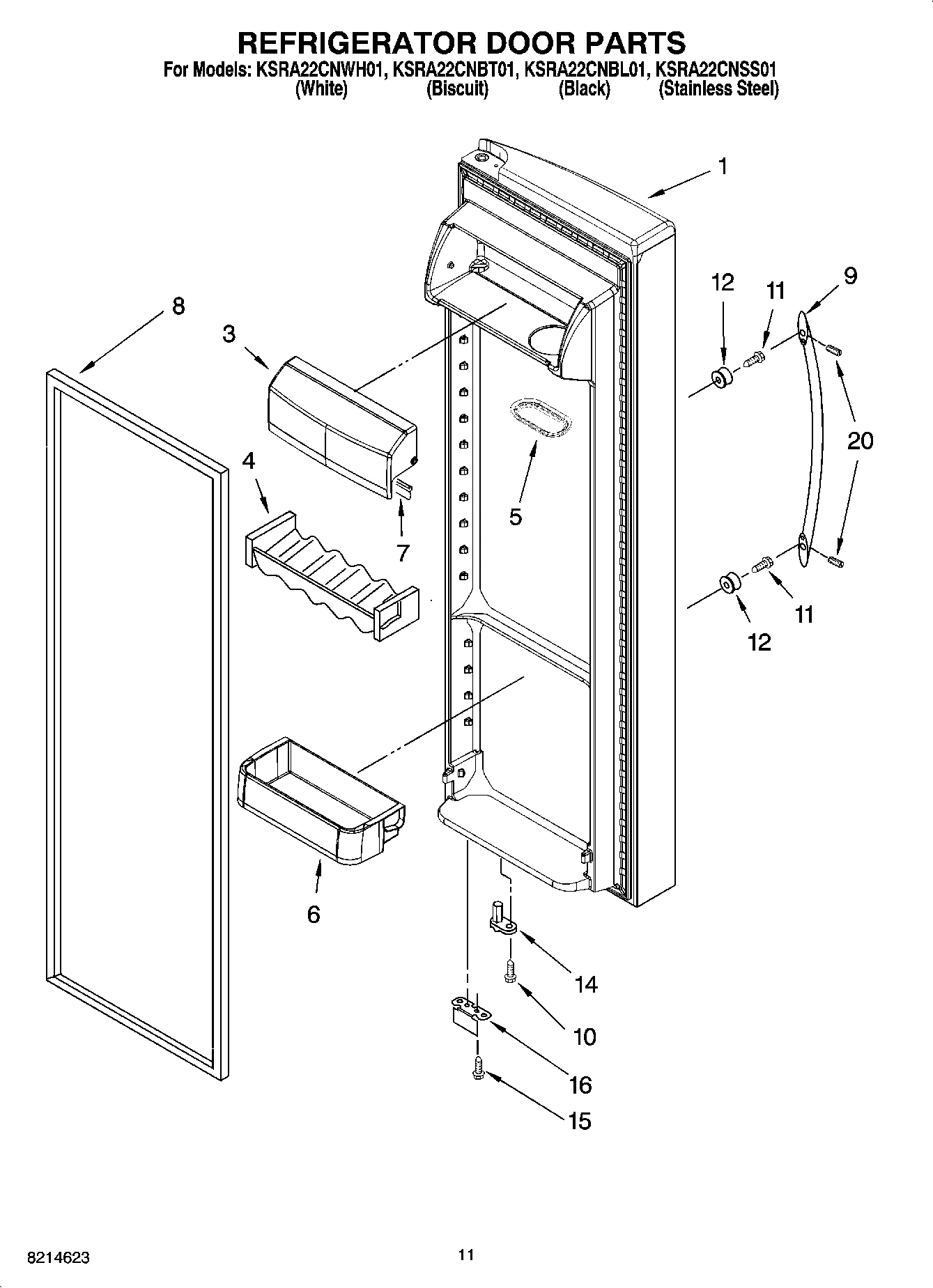

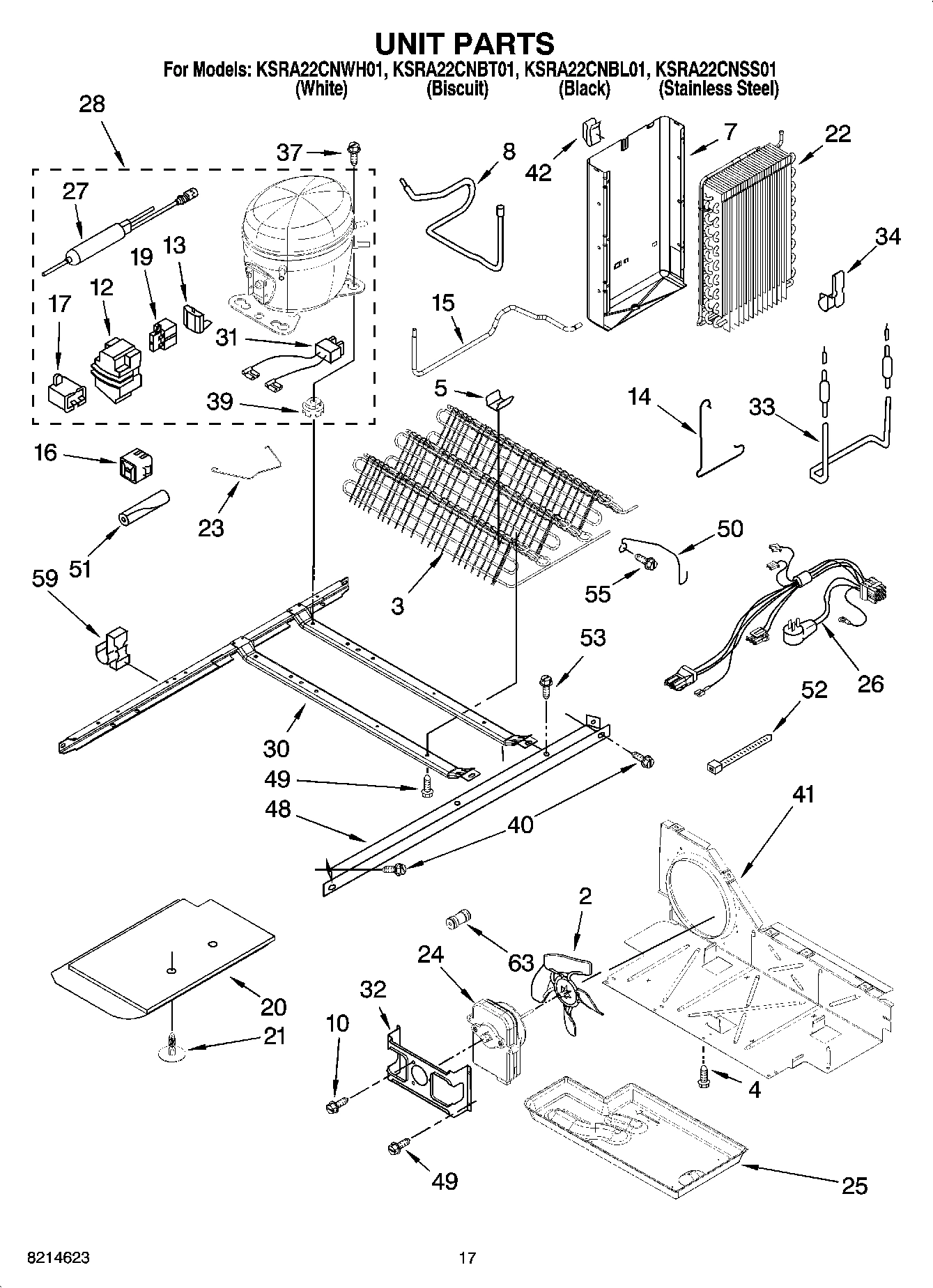

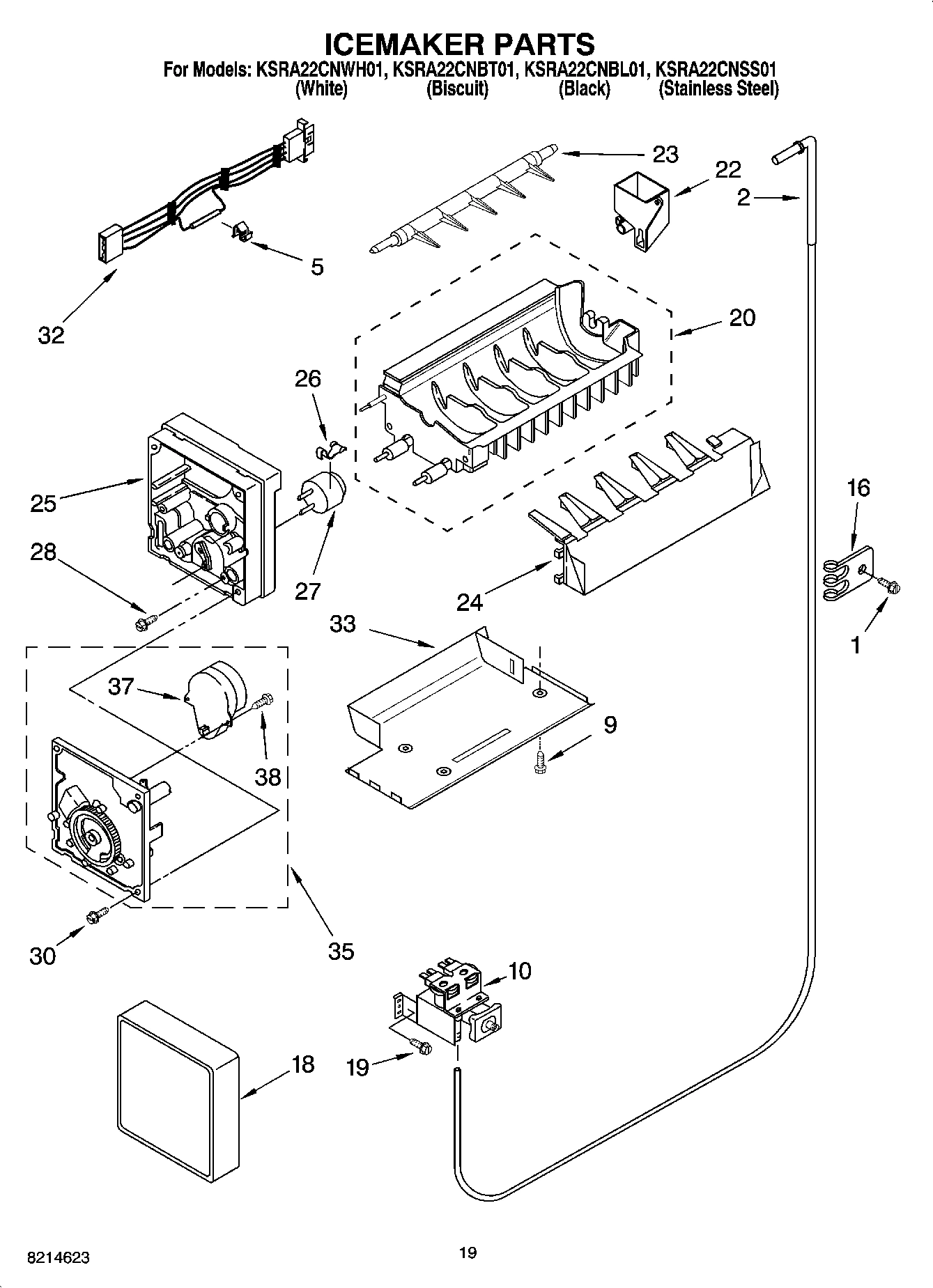

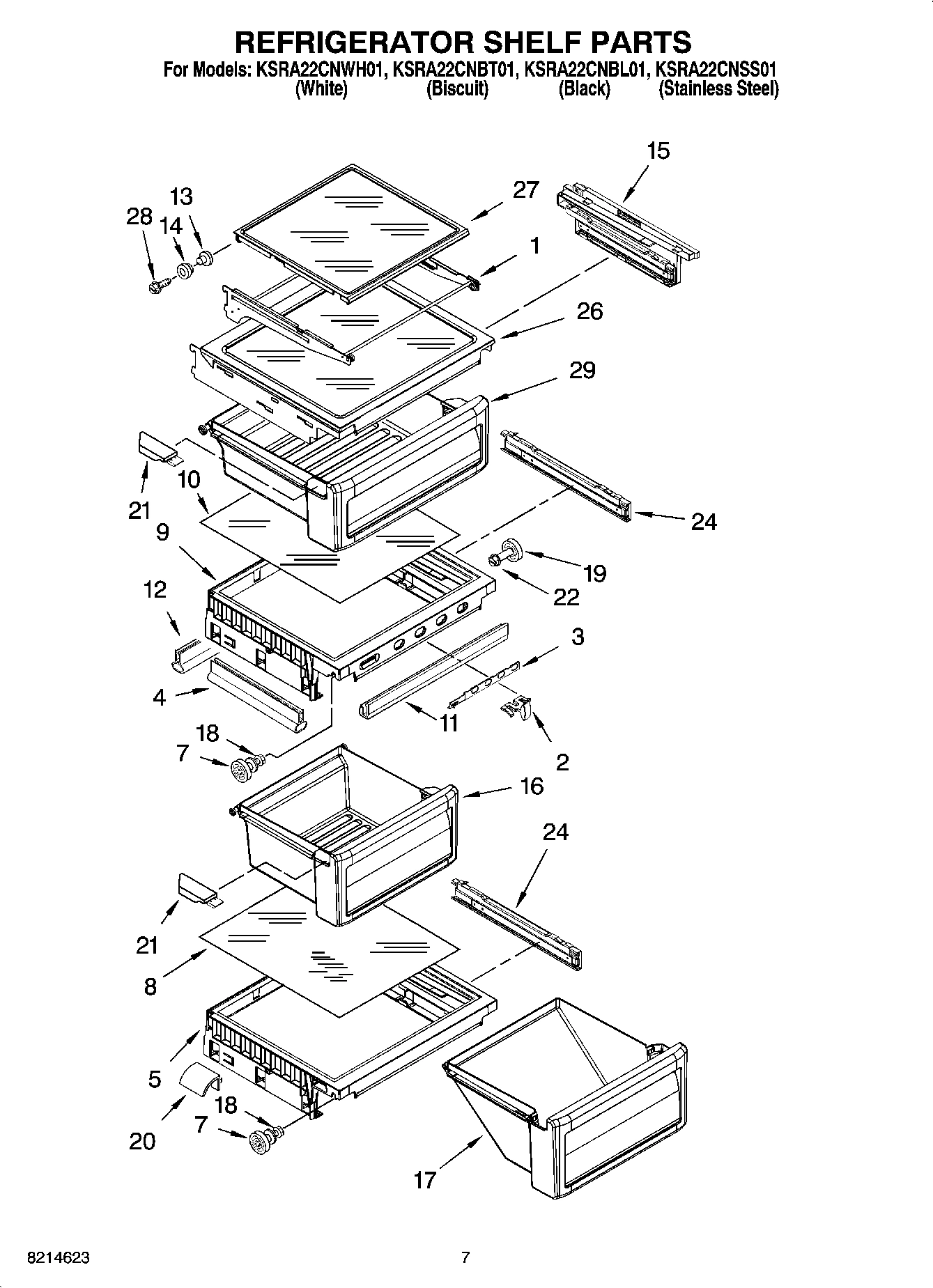

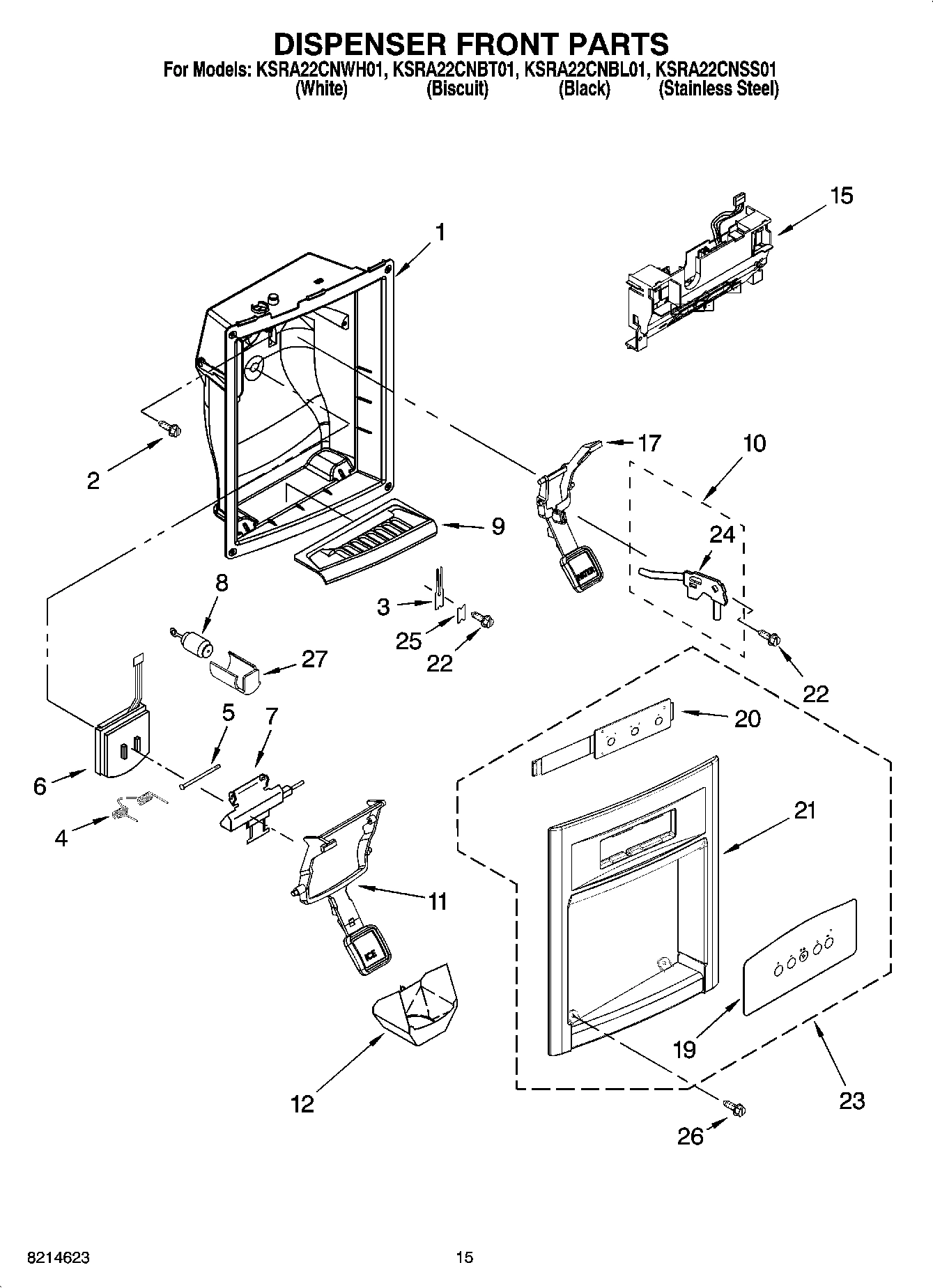

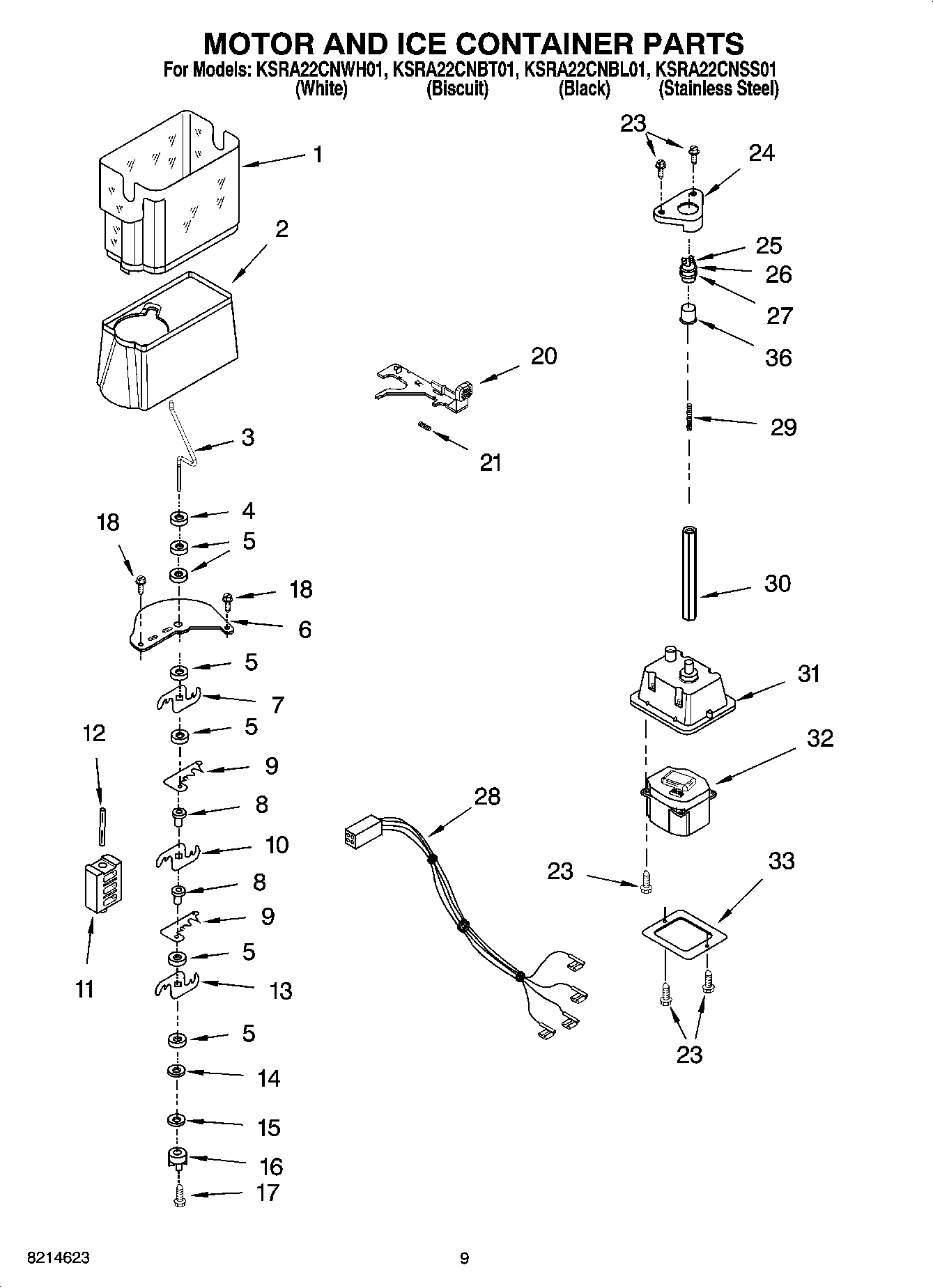

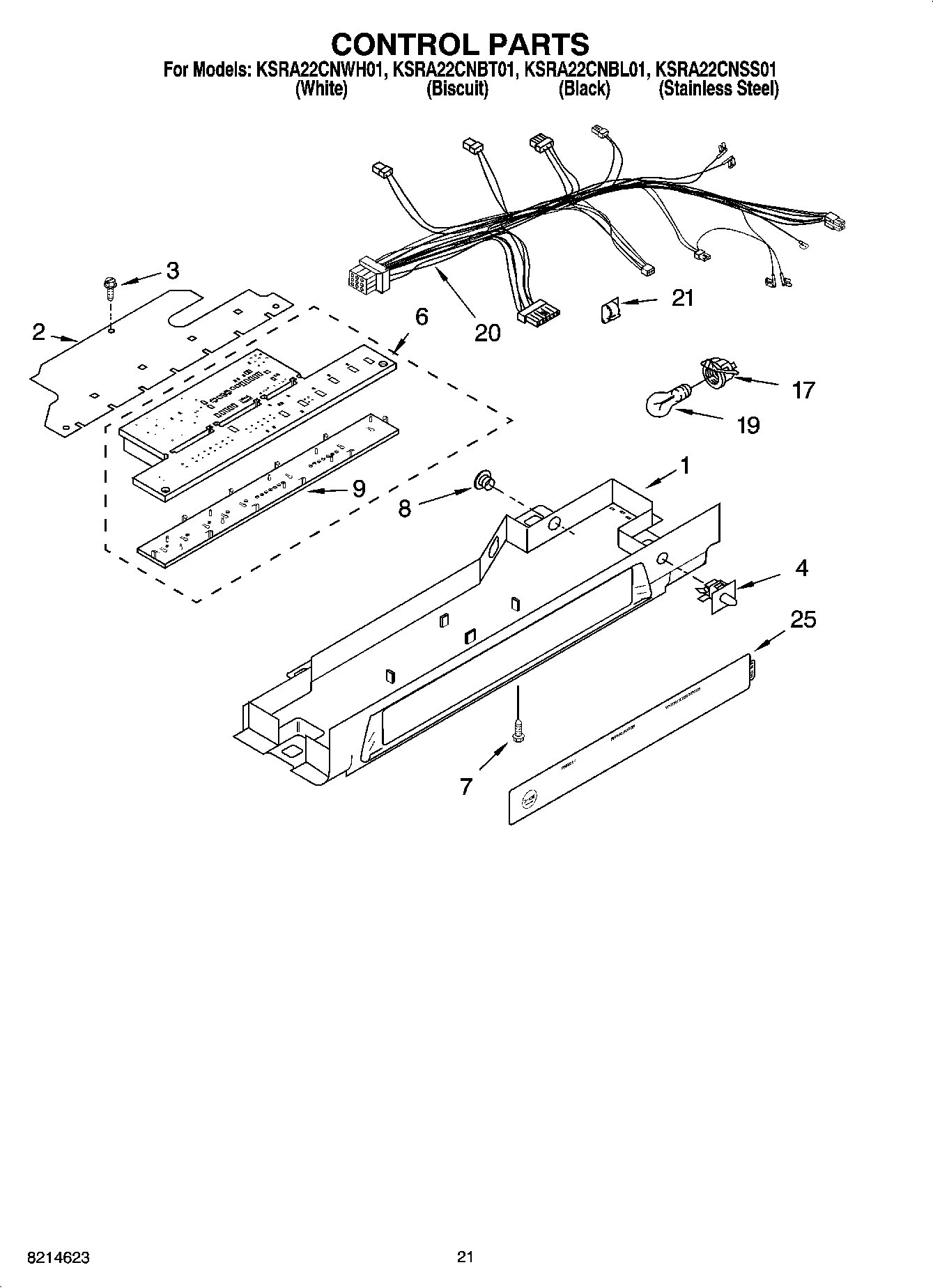

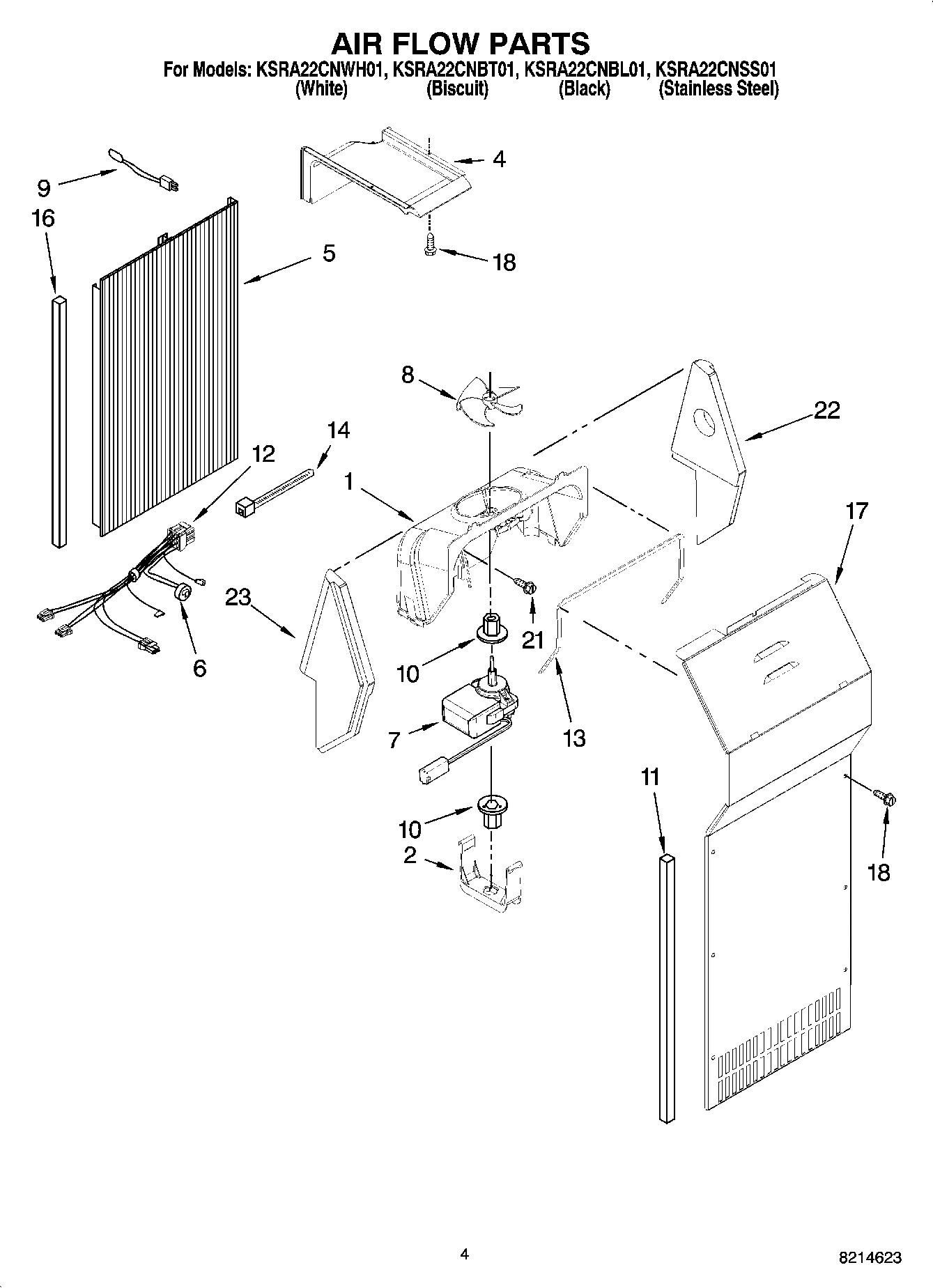

Model Whirlpool KSRA22CNBL01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

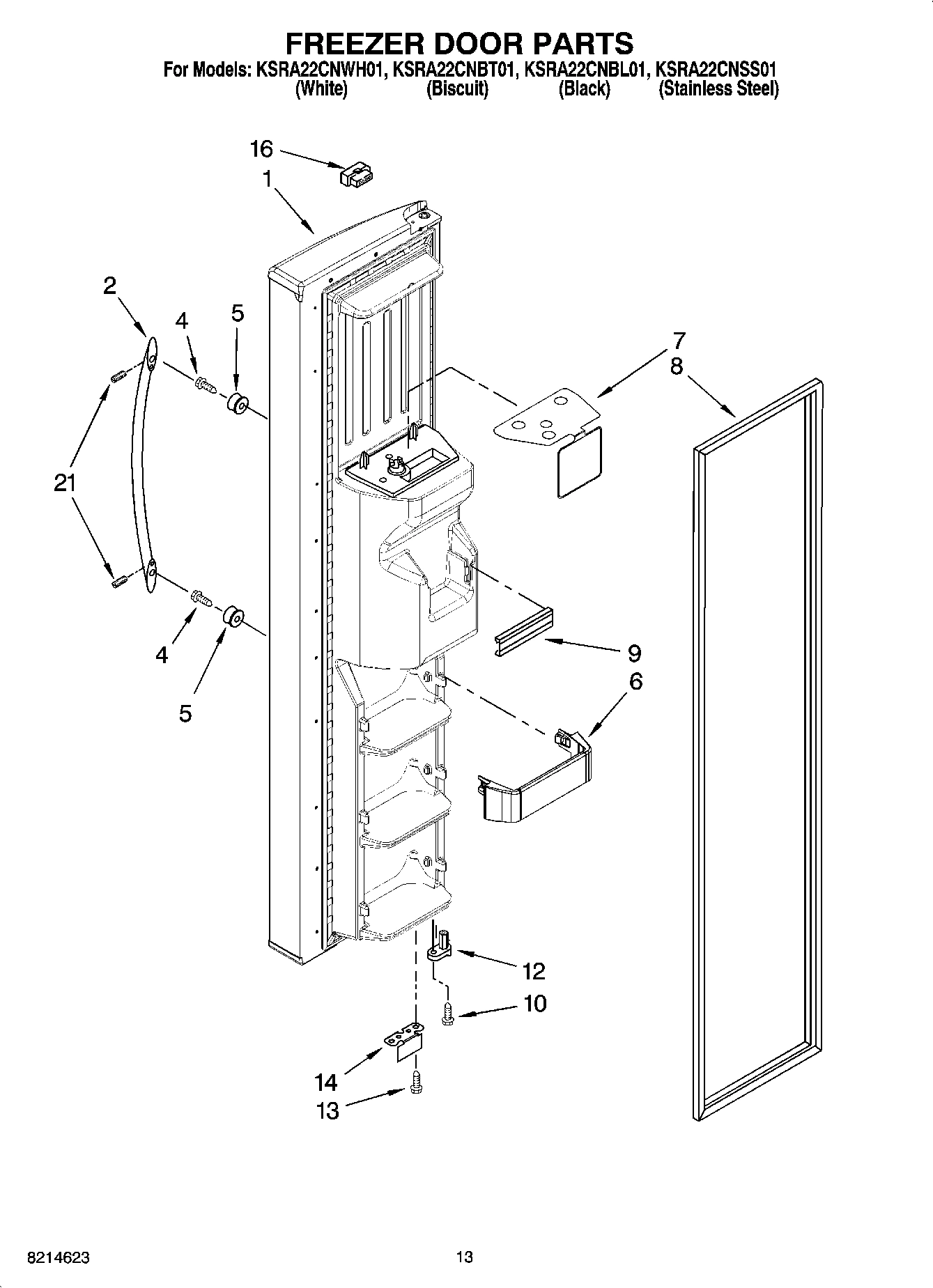

Freezer Door (Includes Item 8 And Dispenser F WPL 2301202B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2301202SB Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2301202T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2301202W Contact Us For Availability

1

Frame Assembly WPL 2301072 Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Black) WPL 2301174B Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Stainles WPL 2301174SB Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Biscuit) WPL 2301174T Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (White) WPL 2301174W Contact Us For Availability

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Knob, Humidity WPL 2301025 Contact Us For Availability

3

2301026 Whirlpool Refrigerator Slide Backorder WPL 2301026 $38.48

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Grommet WPL 2176134 Contact Us For Availability

3

Door, Compartment WPL 2301486 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Gasket, Side (2) WPL 2301117 Contact Us For Availability

4

Beverage Holder WPL 2193409K Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Support, Stud WPL 2196207 Contact Us For Availability

5

Dish, Butter WPL 2165792K Contact Us For Availability

5

Cover, Meat Pan (Includes 20 & 24) WPL 2301568 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2223434K Whirlpool Refrigerator Door Shelf In Stock WPL WP2223434K $61.75

6

Trivet, Shelf (3) WPL 2304923K Contact Us For Availability

7

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

7

Safety Barrier WPL 2304896 Contact Us For Availability

7

Gasket WPL 2159124 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.09

8

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.09

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

8

Glass, Meat Pan Cover WPL 2301028 Contact Us For Availability

9

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $113.37

9

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4,11,12 & 24) WPL 2301567 Contact Us For Availability

9

Shim (2) WPL 2209697 Contact Us For Availability

9

Grille, Overflow (Black) WPL 2207048B Contact Us For Availability

9

Handle (Black) WPL 2304832B Contact Us For Availability

9

Handle (Stainless Steel) WPL 2304832SK Contact Us For Availability

9

Handle (Biscuit) WPL 2304832T Contact Us For Availability

9

Handle (White) WPL 2304832W Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10822681 Whirlpool Refrigerator Water Inlet In Stock WPL W10822681 $92.53

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Glass, Crisper Cover WPL 2301027 Contact Us For Availability

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $52.25

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2259396SB Contact Us For Availability

Lever, Ice Dispenser (Biscuit) WPL 2259396T Contact Us For Availability

Lever, Ice Dispenser (White) WPL 2259396W Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

Harness, Fan Evaporator (Includes 6) WPL 2310239 Contact Us For Availability

Gasket, Rear WPL 2301115 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $54.68

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Eyelet, Roller WPL 2174478 Contact Us For Availability

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $108.99

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Bracket, Control WPL 2323001 Contact Us For Availability

Support Assembly (Left Side) WPL 2301570 Contact Us For Availability

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $70.92

W10916292 Whirlpool Refrigerator Crisper Pan In Stock WPL W10916292 $104.18

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Lever, Water Dispenser (Black) WPL 2259395SB Contact Us For Availability

Lever, Water Dispenser (Biscuit) WPL 2259395T Contact Us For Availability

Lever, Water Dispenser (White) WPL 2259395W Contact Us For Availability

Meat Pan (Includes 21) WPL 2301022 Contact Us For Availability

18

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Not Available, Order 23 WPL ARI92494A9 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WPW10010150 Whirlpool Refrigerator Screw Backorder WPL WPW10010150 $2.51

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $98.08

LED Assembly (Not Available Order 23) WPL ARI92495A8 Contact Us For Availability

Deflector WPL 2301126 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Front Cover, Housing (Not Available Order 23 WPL ARI92496A9 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2301016 Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2301017 Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $30.65

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 19, 20 & WPL 2252083B Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252083T Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2252083W Contact Us For Availability

W10297245 Whirlpool Refrigerator Arm Stripper Backorder WPL W10297245 $40.37

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Glide Assm-Pan (Right Side) WPL 2301548 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

Glide Assm-Pan (Left Side) WPL 2301549 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Shelf Assembly WPL 2301566 Contact Us For Availability

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Sleeve, Mechanism WPL 2252127 Contact Us For Availability

Shelf & Roller Assembly (2) WPL 2301084 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

Slide, Ice Maker WPL 2212321 Contact Us For Availability

28

Screw WPL 489439 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

29

Snack Bin WPL 2301023 Contact Us For Availability

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $121.47

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $49.52

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

35

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

Motor (Not Serviced, Order Item 35) WPL ARI92500A5 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

WPW10190961 Whirlpool Ice Maker In Stock WPL WPW10190961 $85.90
