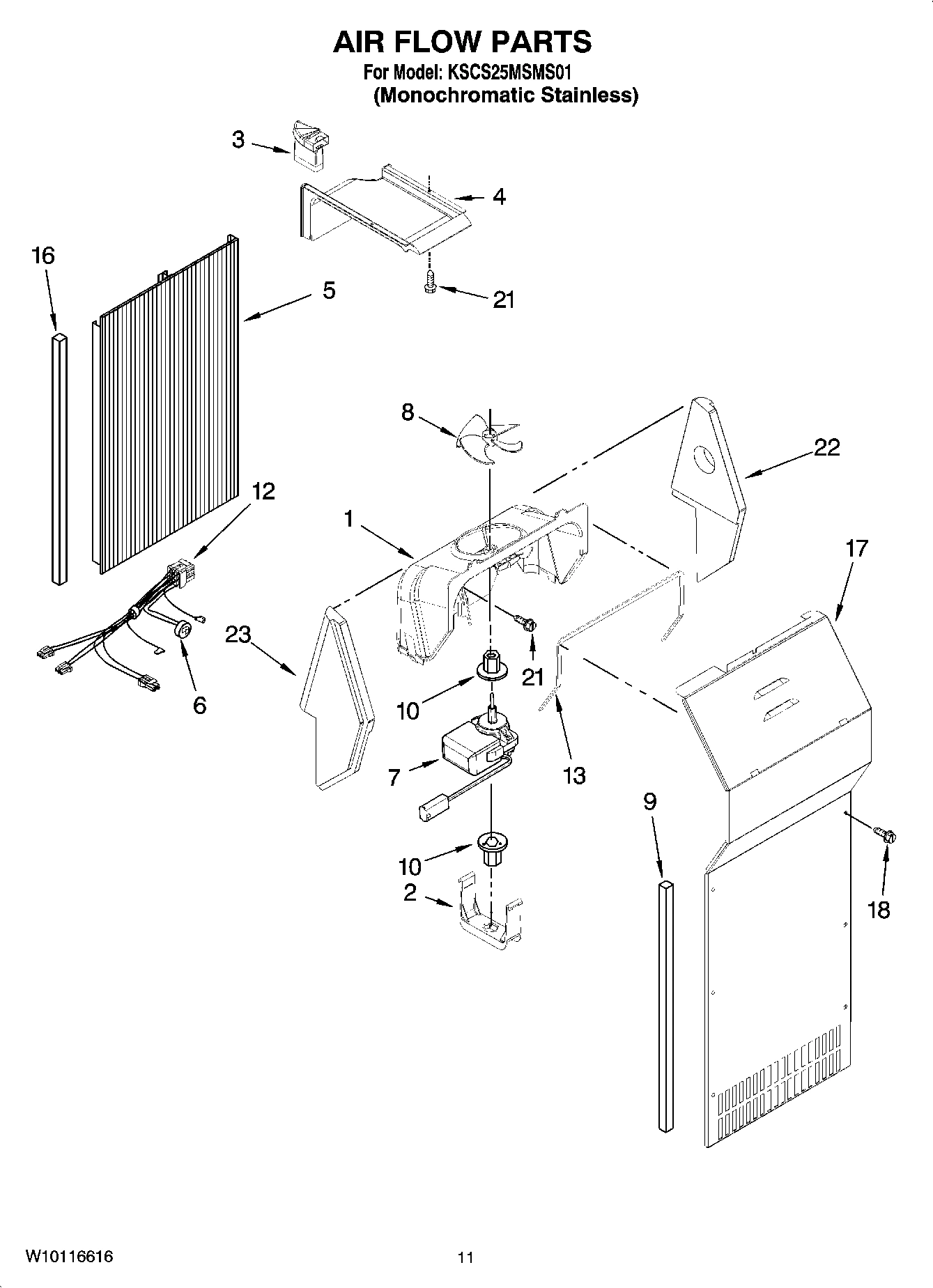

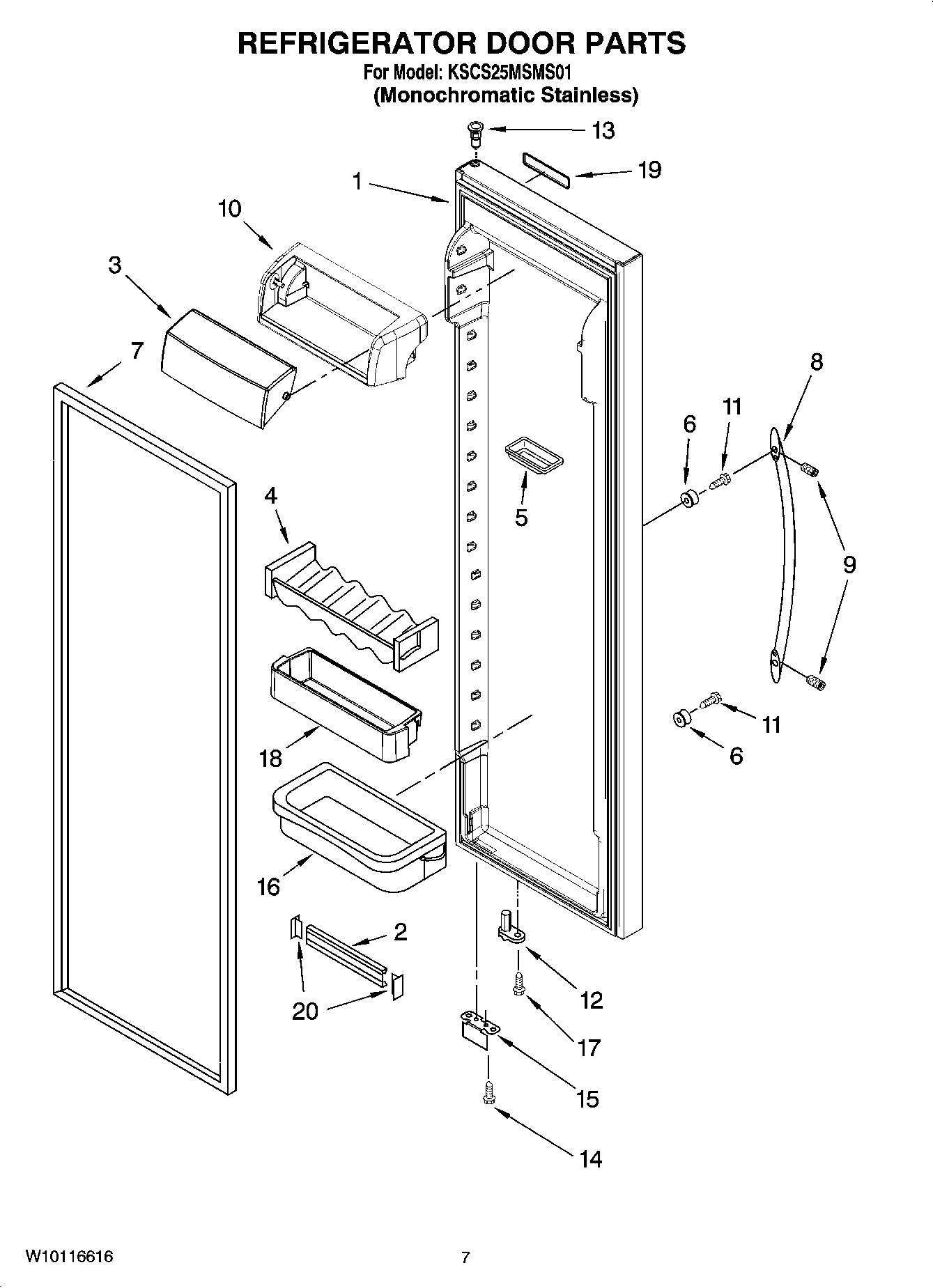

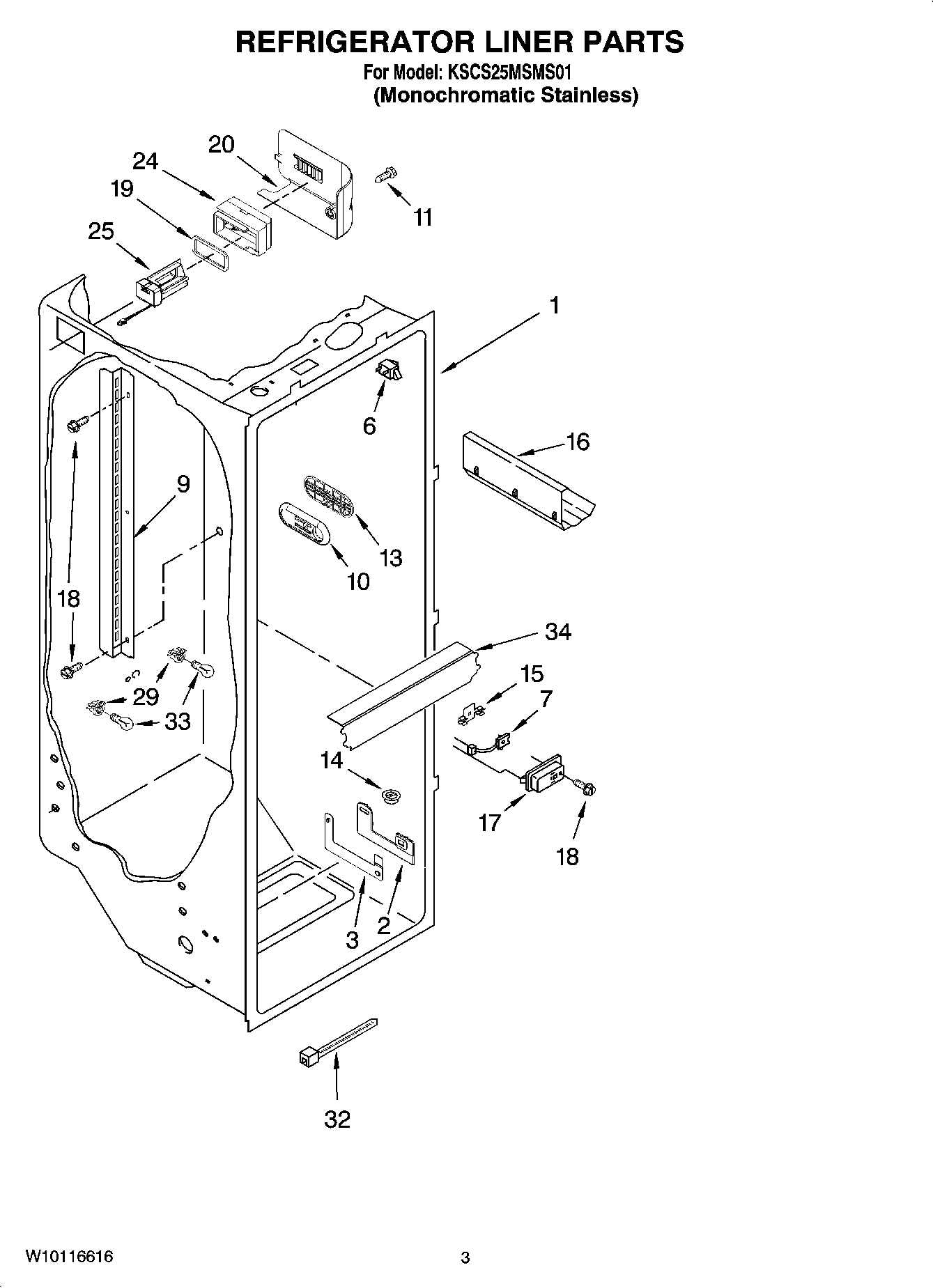

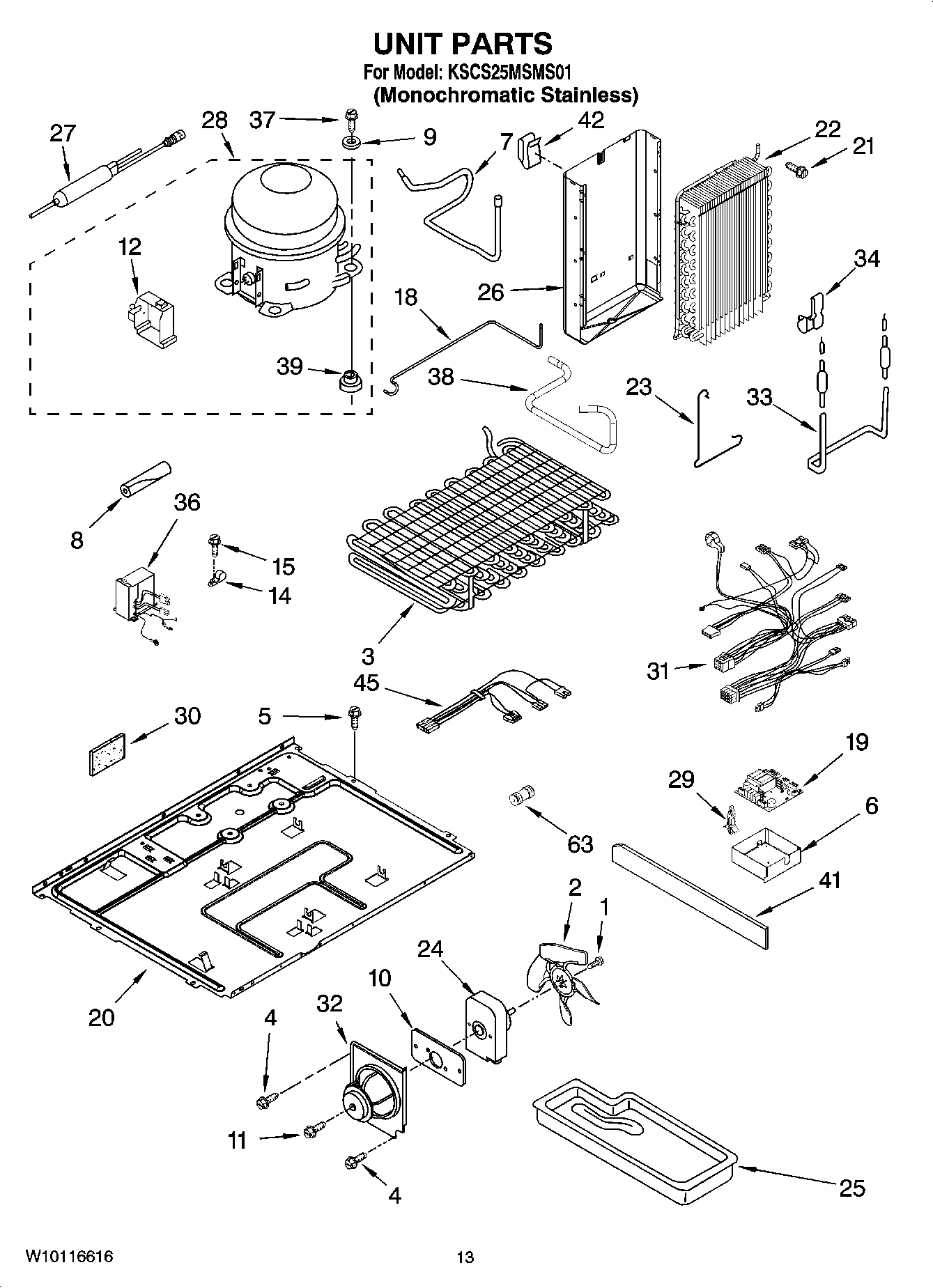

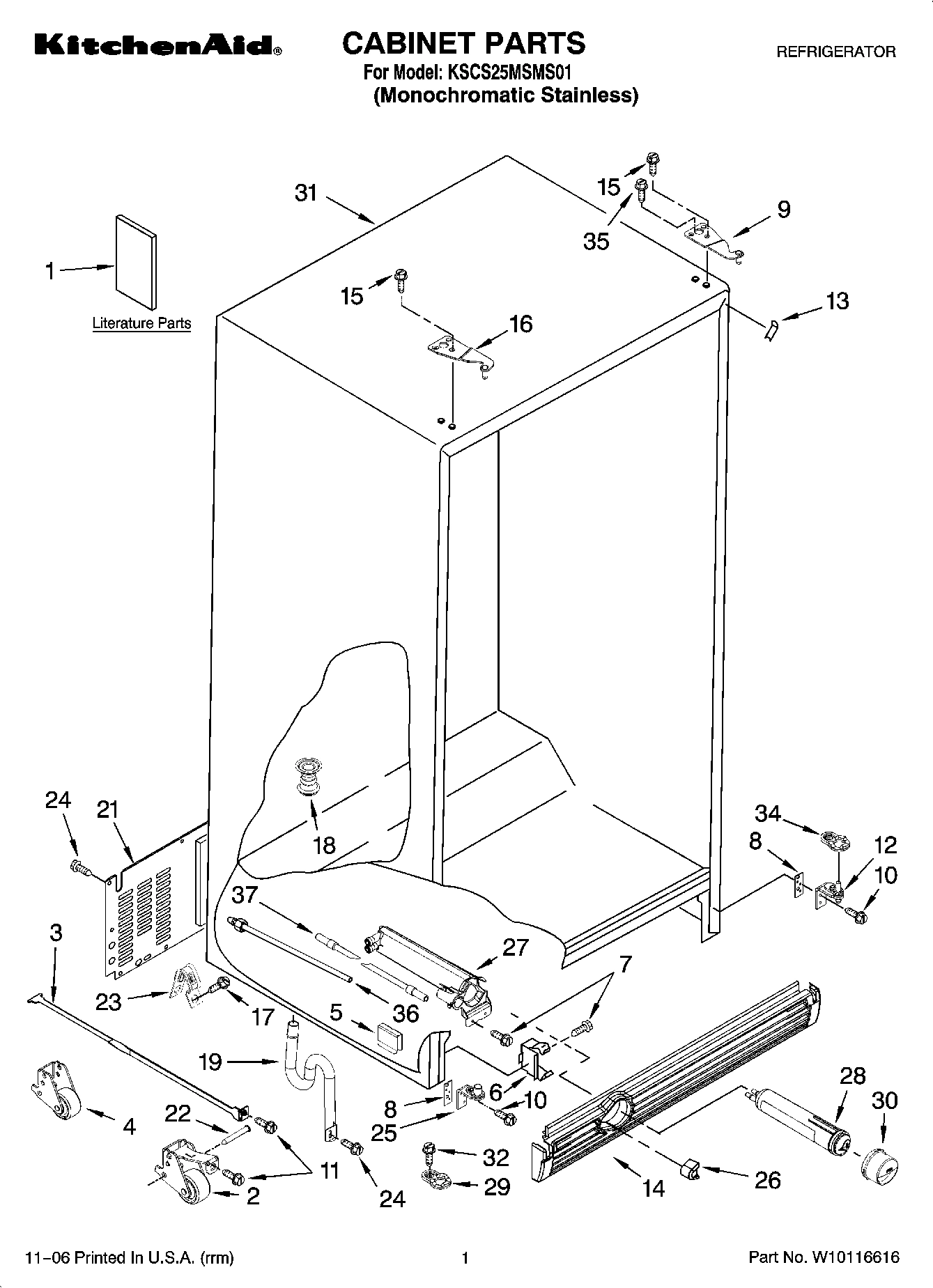

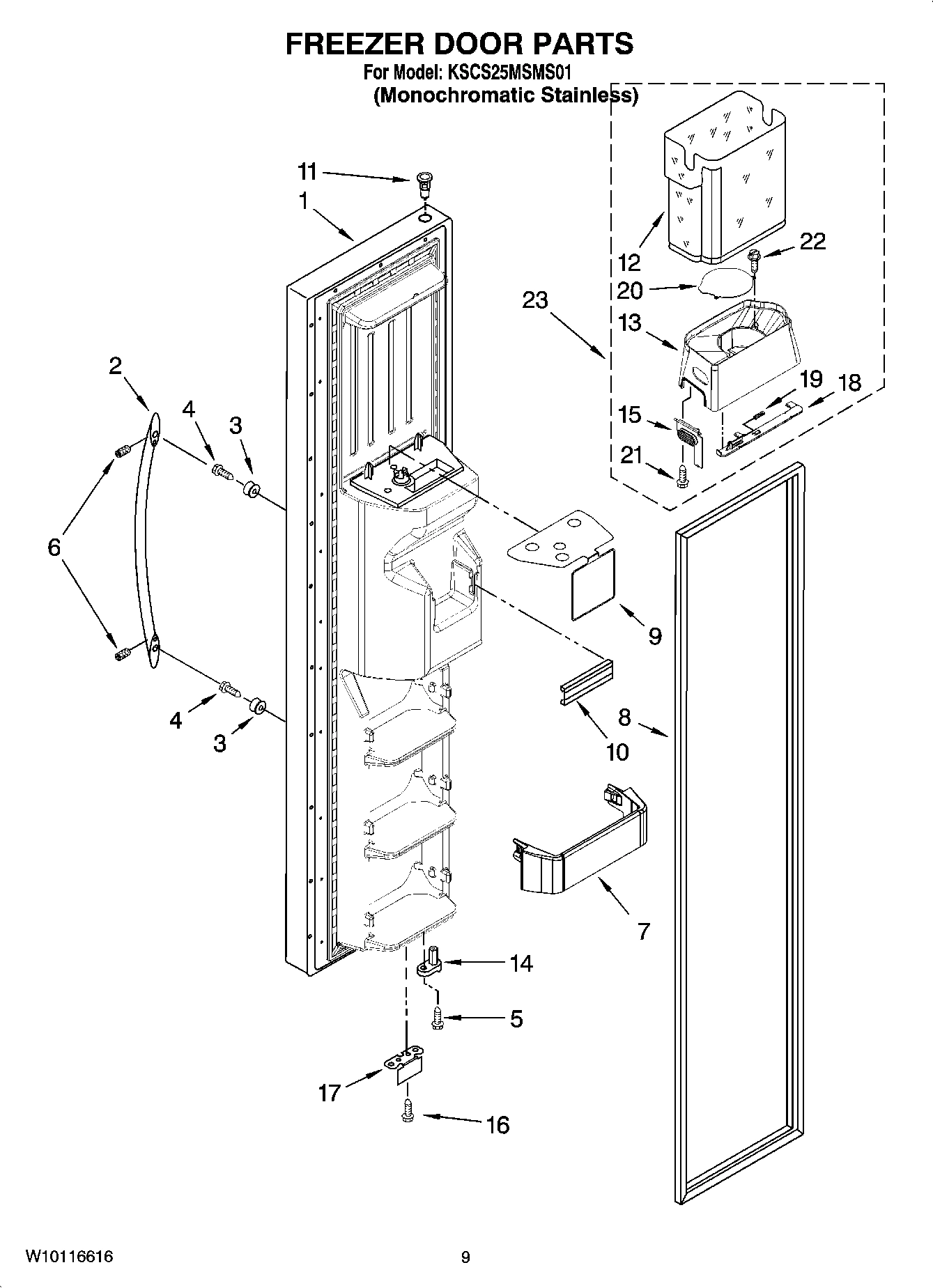

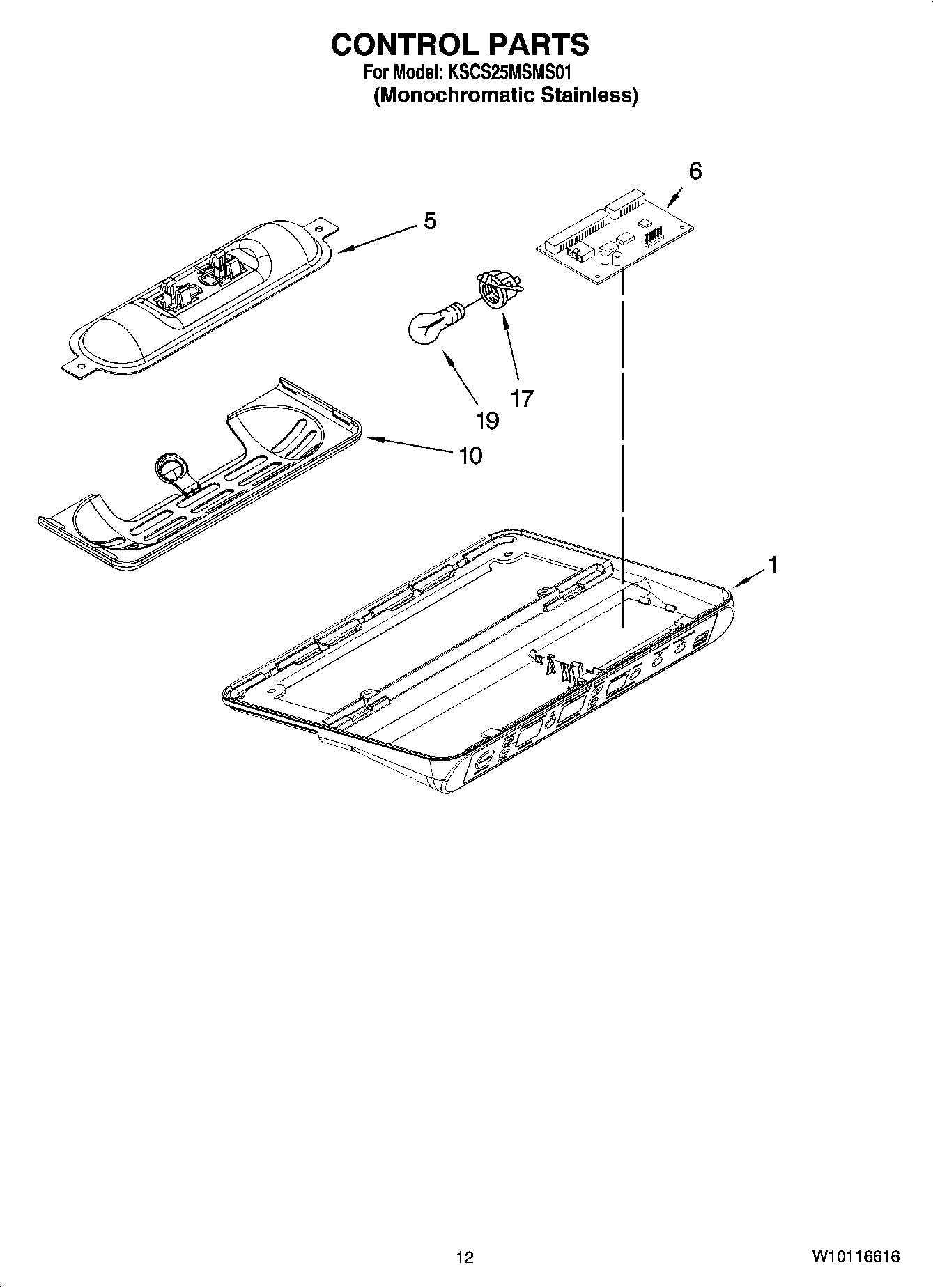

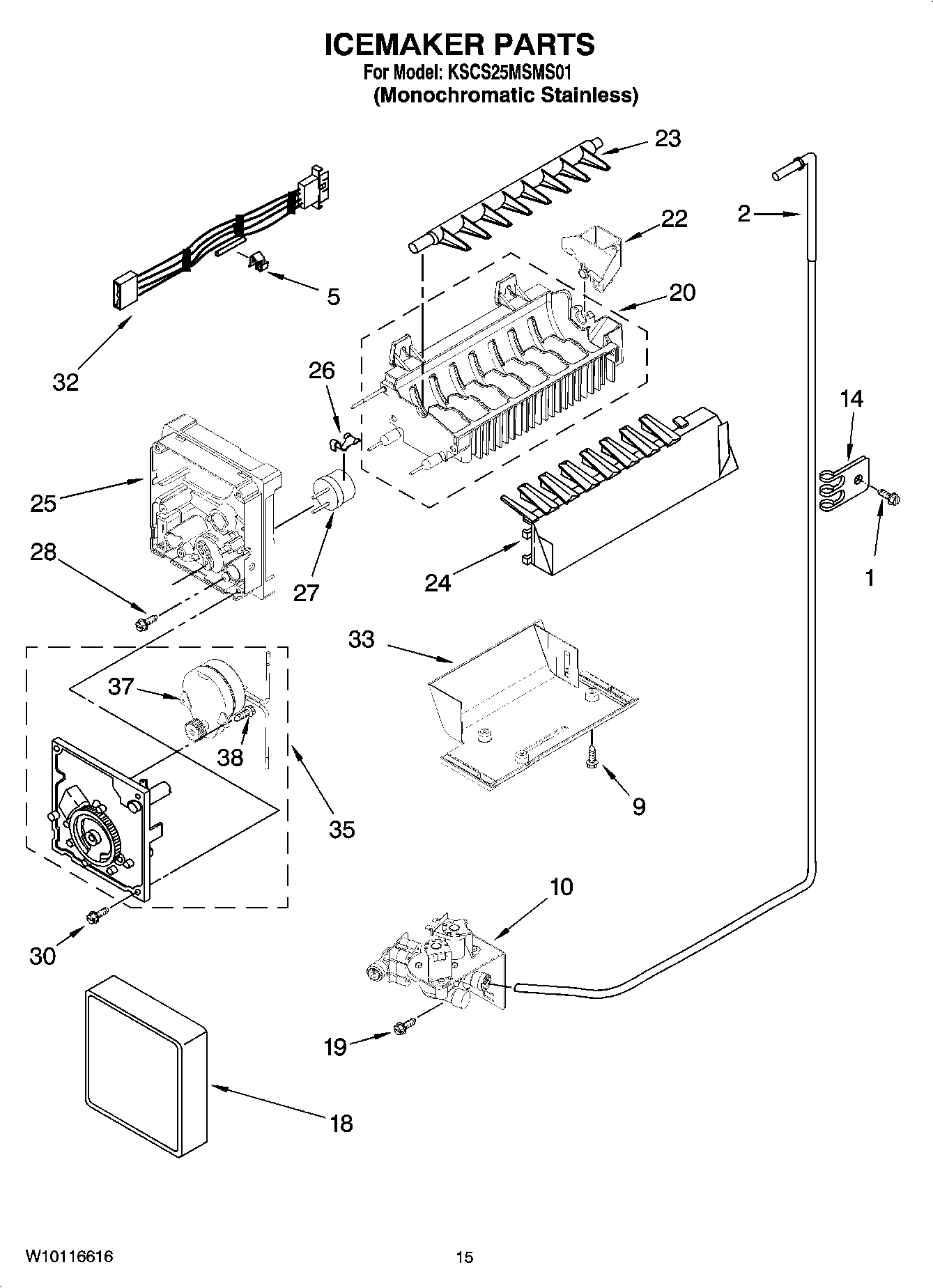

Model Whirlpool KSCS25MSMS01 REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability

Important: The spray paint is not to be used WPL ARI91948A4 Contact Us For Availability

Miscellaneous WPL ARI91949A4 Contact Us For Availability

TORX SCREW WRENCH WPL ARI91950A4 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

Energy Guide WPL 2318614 Contact Us For Availability

1

Control Box (Includes 6) WPL 2319753 Contact Us For Availability

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $59.35

2

Handle (Stainless Steel) WPL 2304832S Contact Us For Availability

2

Front Roller Asm (Left Side) WPL 2306950 Contact Us For Availability

2

Front Roller Asm (Right Side) WPL 2306951 Contact Us For Availability

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Air Scoop WPL 2223298 Contact Us For Availability

3

Strap, Roller WPL 2223263 Contact Us For Availability

4

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

4

WPW10173132 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10173132 $26.44

5

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $37.22

5

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $7.80

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Air Duct Freezer WPL 2223297 Contact Us For Availability

5

Butter Dish WPL 2165792K Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

6

Control Board Asm WPL 2307037 Contact Us For Availability

6

Housing, Control Board WPL 2223703 Contact Us For Availability

7

2301548 Whirlpool Refrigerator Glide Backorder WPL 2301548 $98.93

7

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

8

2223545 Whirlpool Refrigerator Shim Backorder WPL 2223545 $31.71

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Window, Crisper Pan WPL 2301001 Contact Us For Availability

9

2307008AP Whirlpool Refrigerator Hinge Backorder WPL 2307008AP $53.91

9

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301567 Contact Us For Availability

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $29.19

2317200 Whirlpool Refrigerator Inlet Valve Backorder WPL 2317200 $83.10

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $52.72

WP2223879 Whirlpool Refrigerator Compressor D Backorder WPL WP2223879 $54.88

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Plate, Mounting WPL 2301979 Contact Us For Availability

11

W10151272 Whirlpool Refrigerator Screw Backorder WPL W10151272 $9.13

11

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

11

Front, Basket WPL 2224053 Contact Us For Availability

12

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $28.80

12

Hinge Assembly, Bottom-RC WPL 2307179 Contact Us For Availability

12

Upper Bin WPL 2223317 Contact Us For Availability

13

2223893AP Whirlpool Refrigerator Filler Backorder WPL 2223893AP $27.05

13

Eyelet, Roller WPL 2174478 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Door Closer, Upper Cam WPL 2307050 Contact Us For Availability

Grille (Apollo Gray) WPL 2322206AP Contact Us For Availability

15

3400108 Whirlpool Refrigerator Screw Backorder WPL 3400108 $9.59

15

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

15

Clip, Thermistor WPL 2209204 Contact Us For Availability

2307007AP Whirlpool Refrigerator Hinge Backorder WPL 2307007AP $52.83

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

W10916292 Whirlpool Refrigerator Crisper Pan Backorder WPL W10916292 $99.22

WP2223860 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2223860 $51.22

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $32.79

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $2.51

Meat Pan (Includes 13, 14, 19 & 22) WPL 2223790 Contact Us For Availability

2301544 Whirlpool Refrigerator Glide Backorder WPL 2301544 $116.07

2301545 Whirlpool Refrigerator Glide Backorder WPL 2301545 $58.23

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2224173 Whirlpool Refrigerator Cantilever B In Stock WPL WP2224173 $45.64

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Glide Assembly (Snack Pan) (Left Side) WPL 2301551 Contact Us For Availability

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $5.97

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Cover, Emitter WPL 2259487 Contact Us For Availability

Tube, Extension WPL 2254566 Contact Us For Availability

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

21

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

21

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

21

Cover, Unit WPL 2223409 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Handle WPL 2203031 Contact Us For Availability

Pin, Roller (4) WPL 2223387 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clamp WPL 2161324 Contact Us For Availability

24

W10297244 Whirlpool Refrigerator Arm Strip Backorder WPL W10297244 $39.95

24

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $173.69

Hinge Assembly, Bottom-FC WPL 2307152 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Shelf, Snack Pan WPL 2301566 Contact Us For Availability

26

Button, Water Filter (Apollo Gray) WPL 2260503AP Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

27

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $106.14

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

29

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

29

Door Closer, FC WPL 2307051 Contact Us For Availability

30

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $20.74

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Window, Snack Pan WPL 2301006 Contact Us For Availability

31

Harness, Main Control WPL 2187849 Contact Us For Availability

31

Cabinet, (Not A Serviceable Part) WPL ARI91943A3 Contact Us For Availability

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

32

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

33

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $63.40

33

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Door Closer (RC) WPL 2307049 Contact Us For Availability

34

Light Lens WPL 2223663 Contact Us For Availability

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

36

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $12.61

37

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $25.33

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

Tube, Discharge WPL 2223352 Contact Us For Availability

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $88.79
