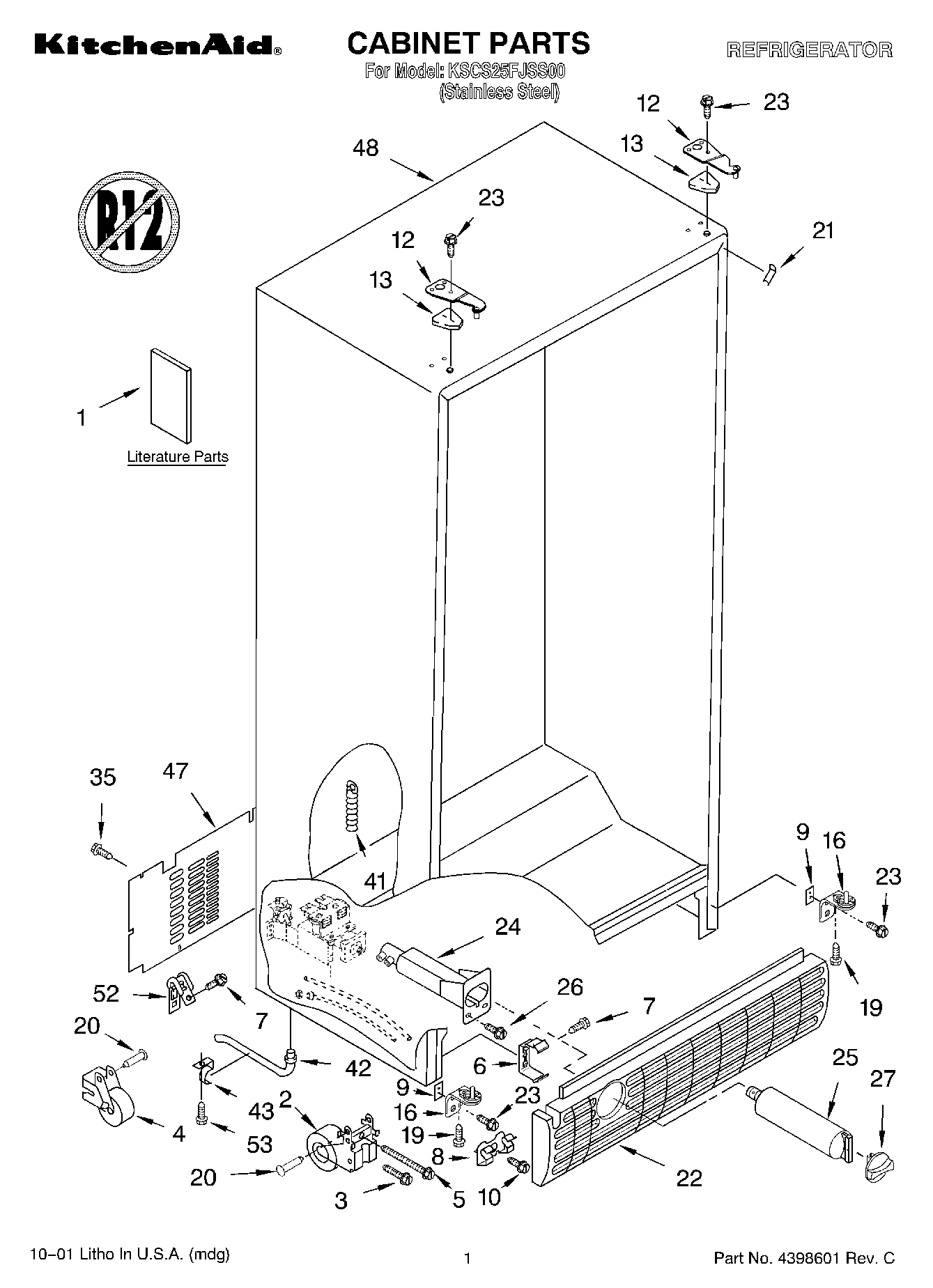

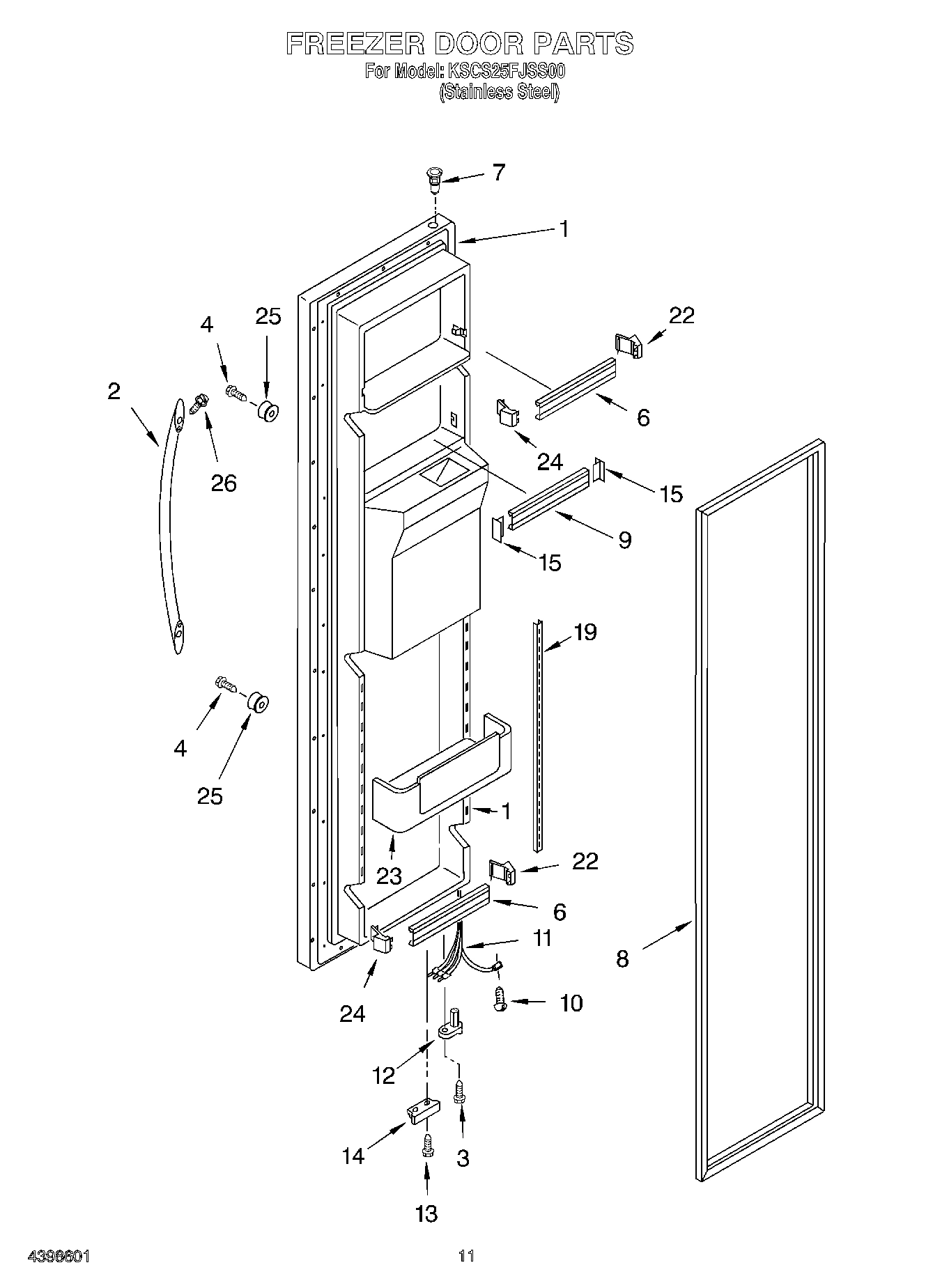

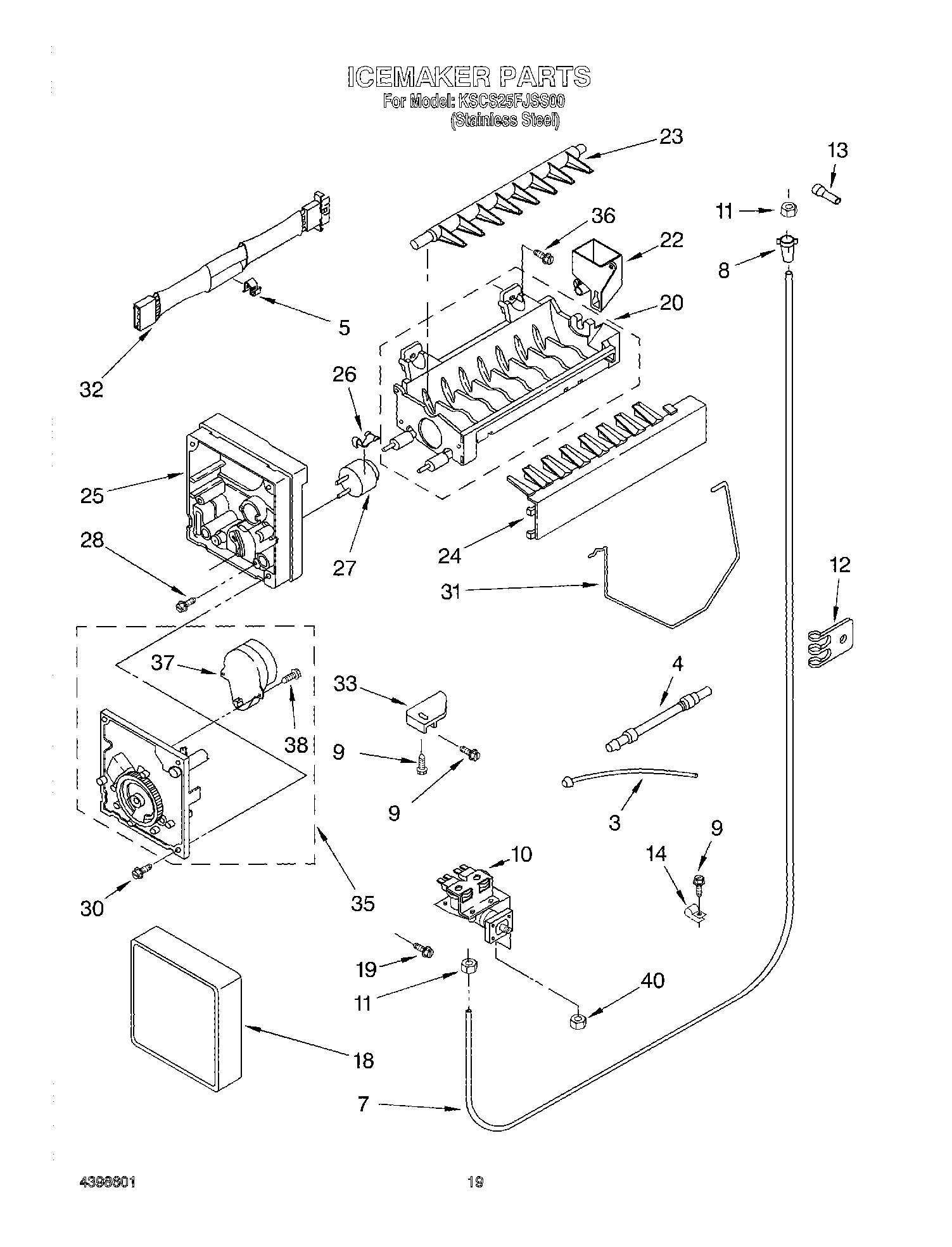

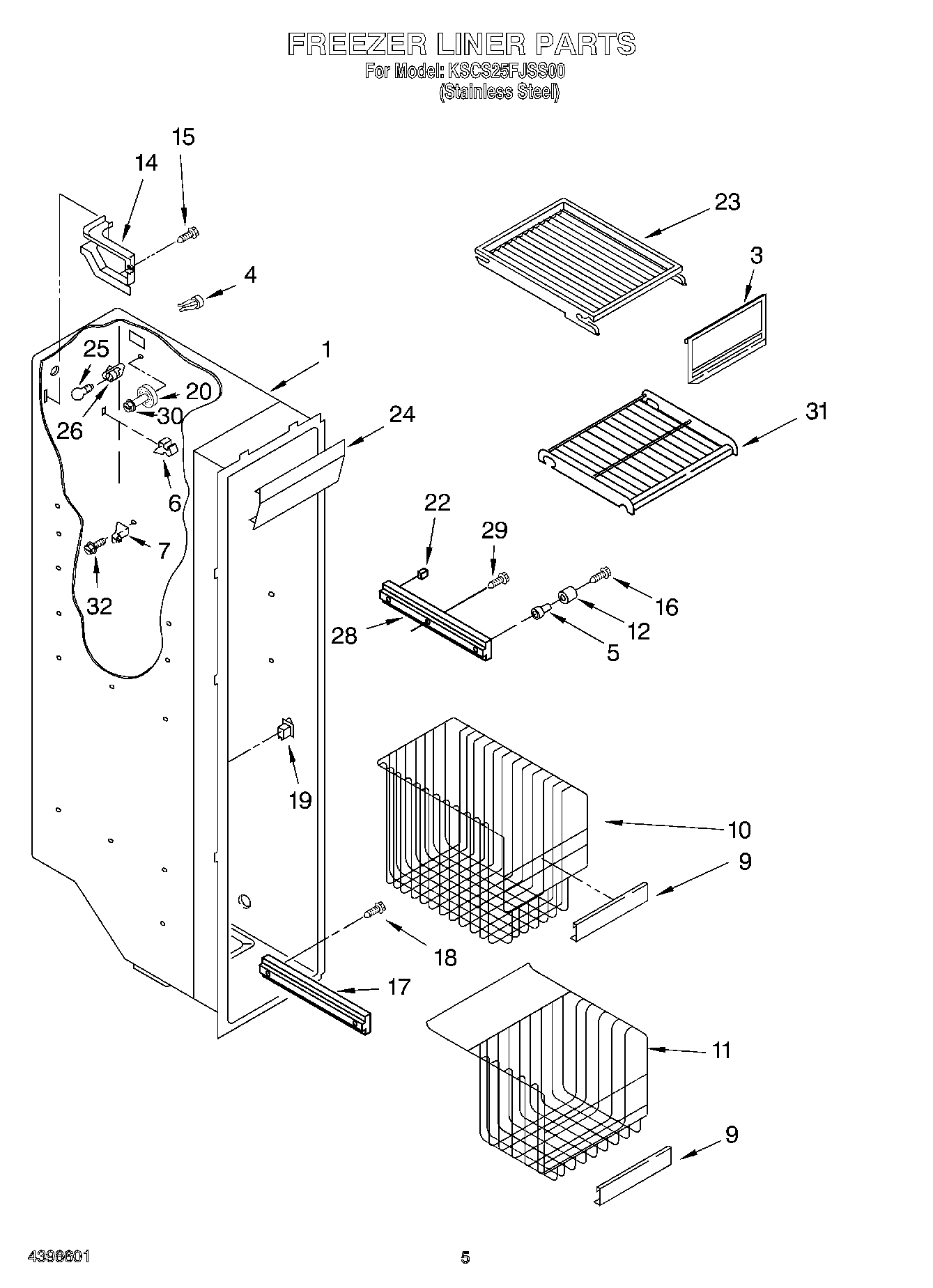

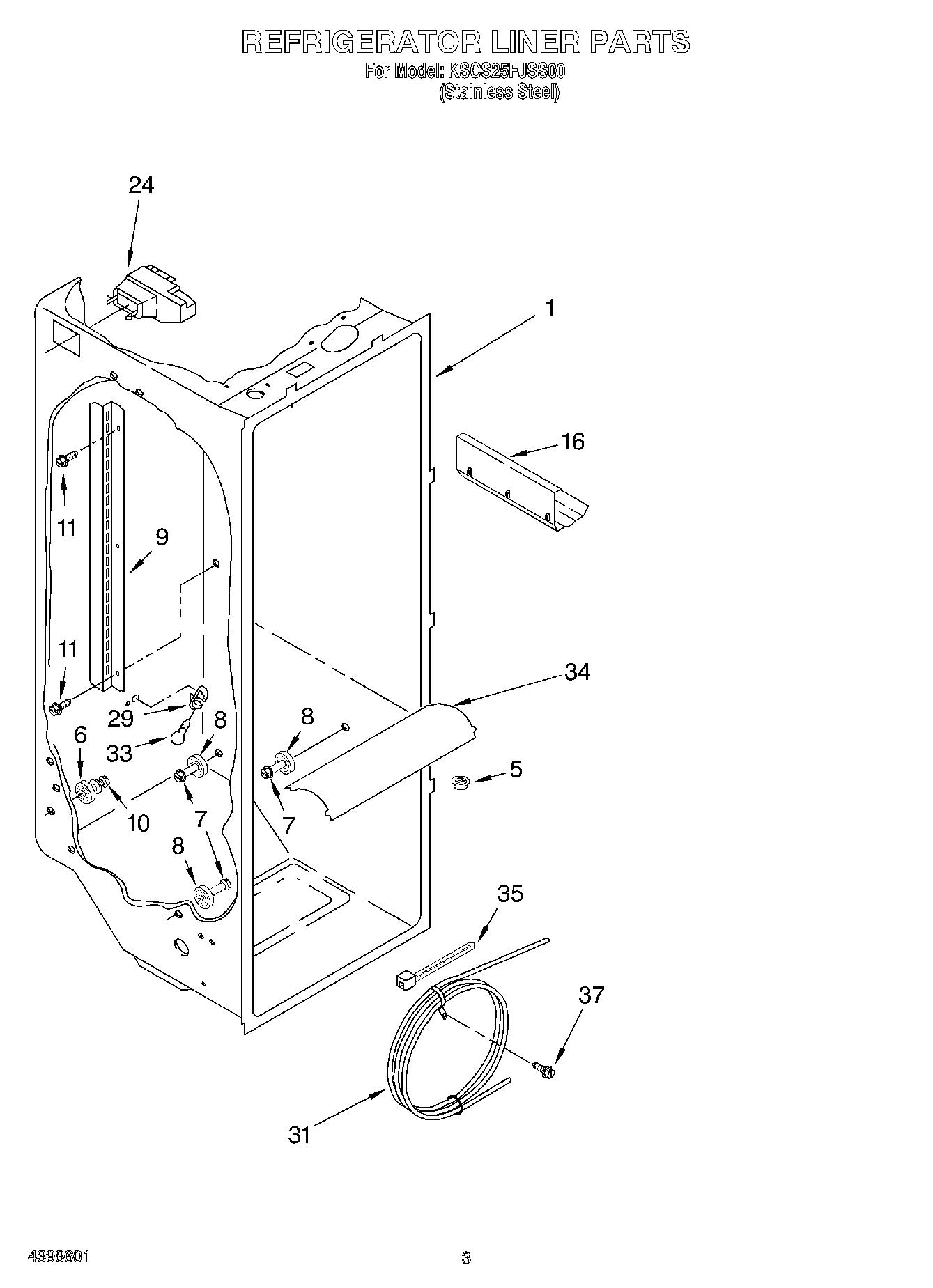

Model Whirlpool KSCS25FJSS00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

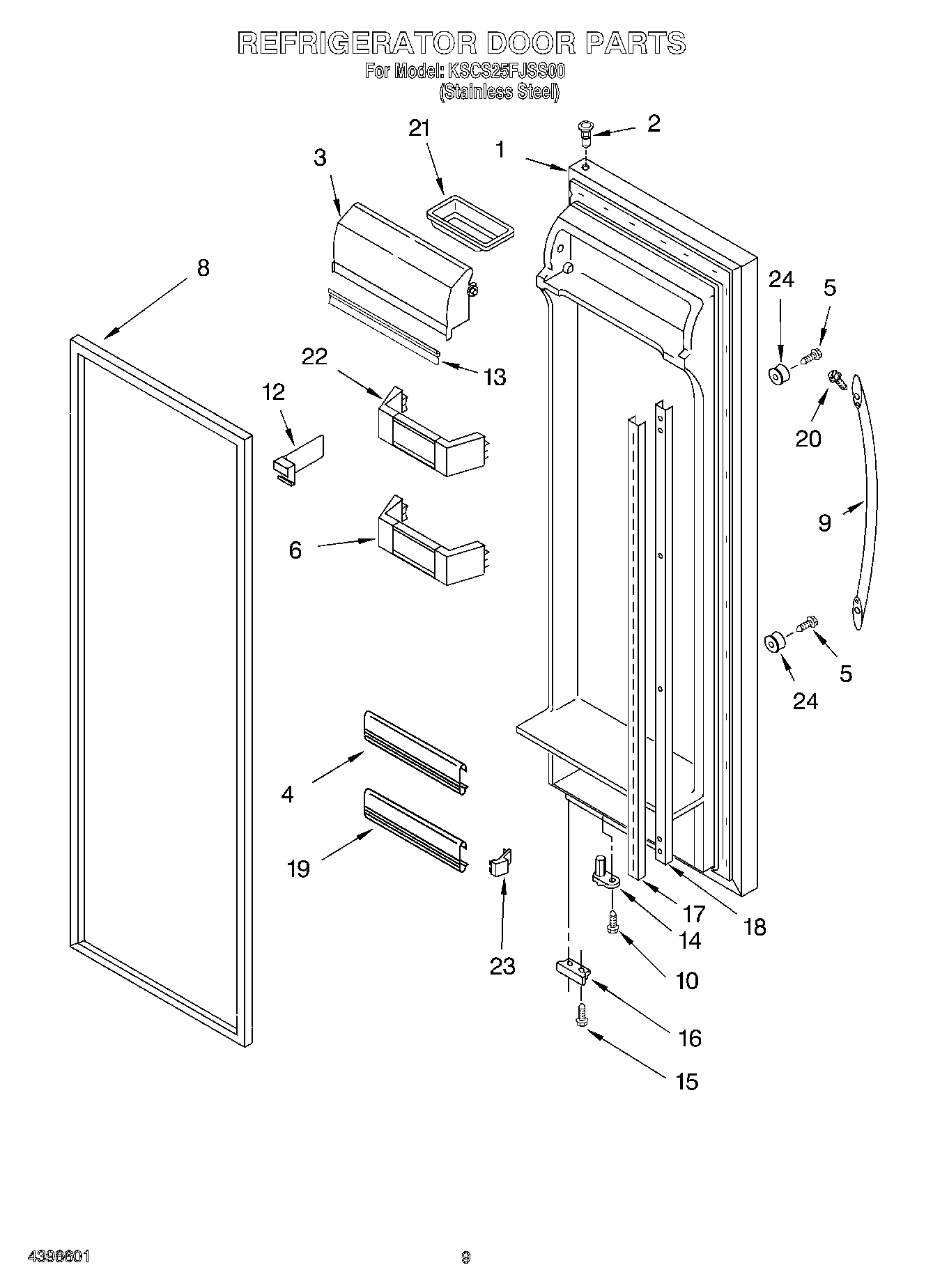

Refrigerator Door (Includes No.7) (Stainless WPL 2209549S Contact Us For Availability

1

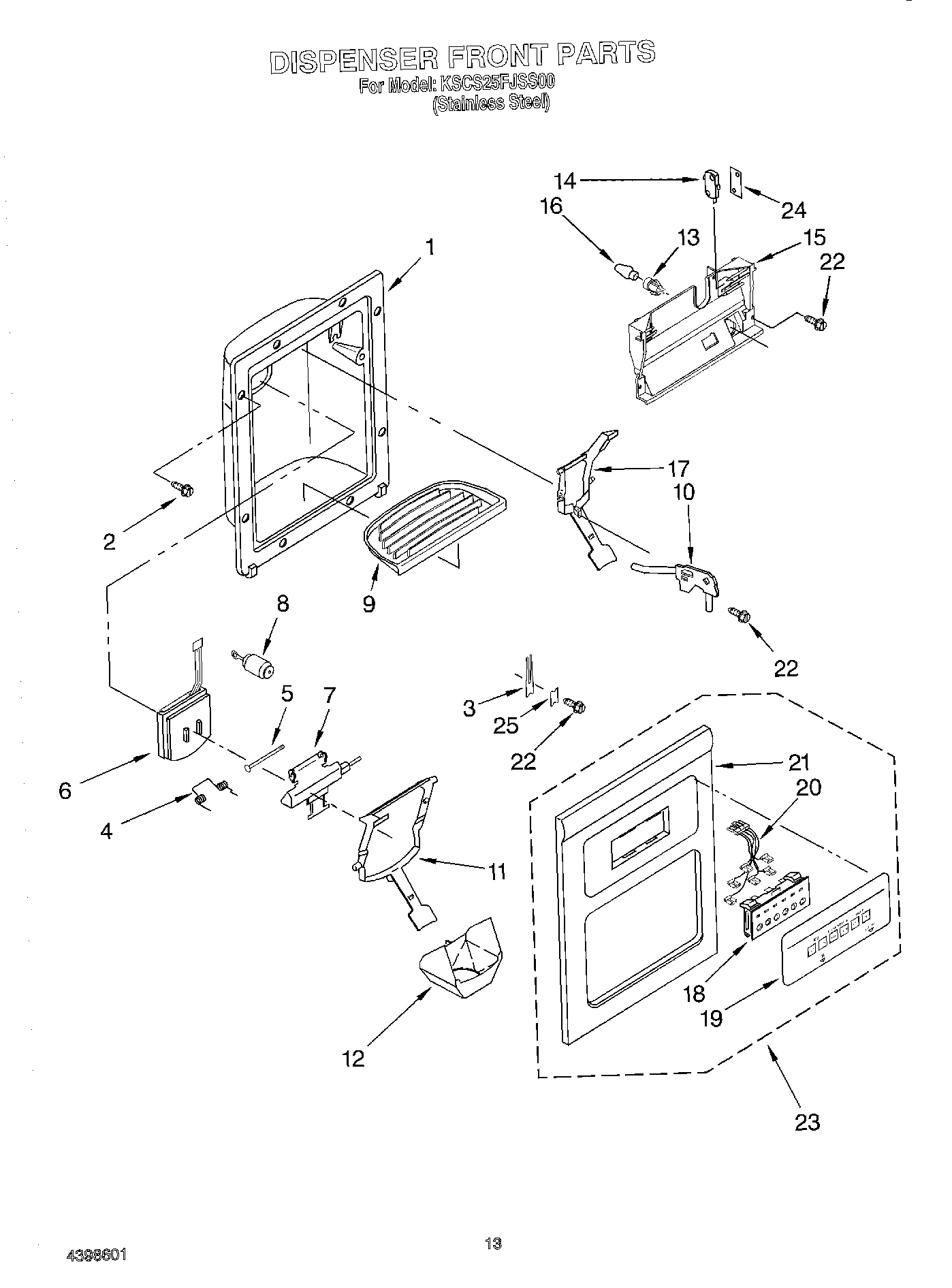

Housing, Dispenser (Not a Serviceable Part) WPL ARI90984A9 Contact Us For Availability

1

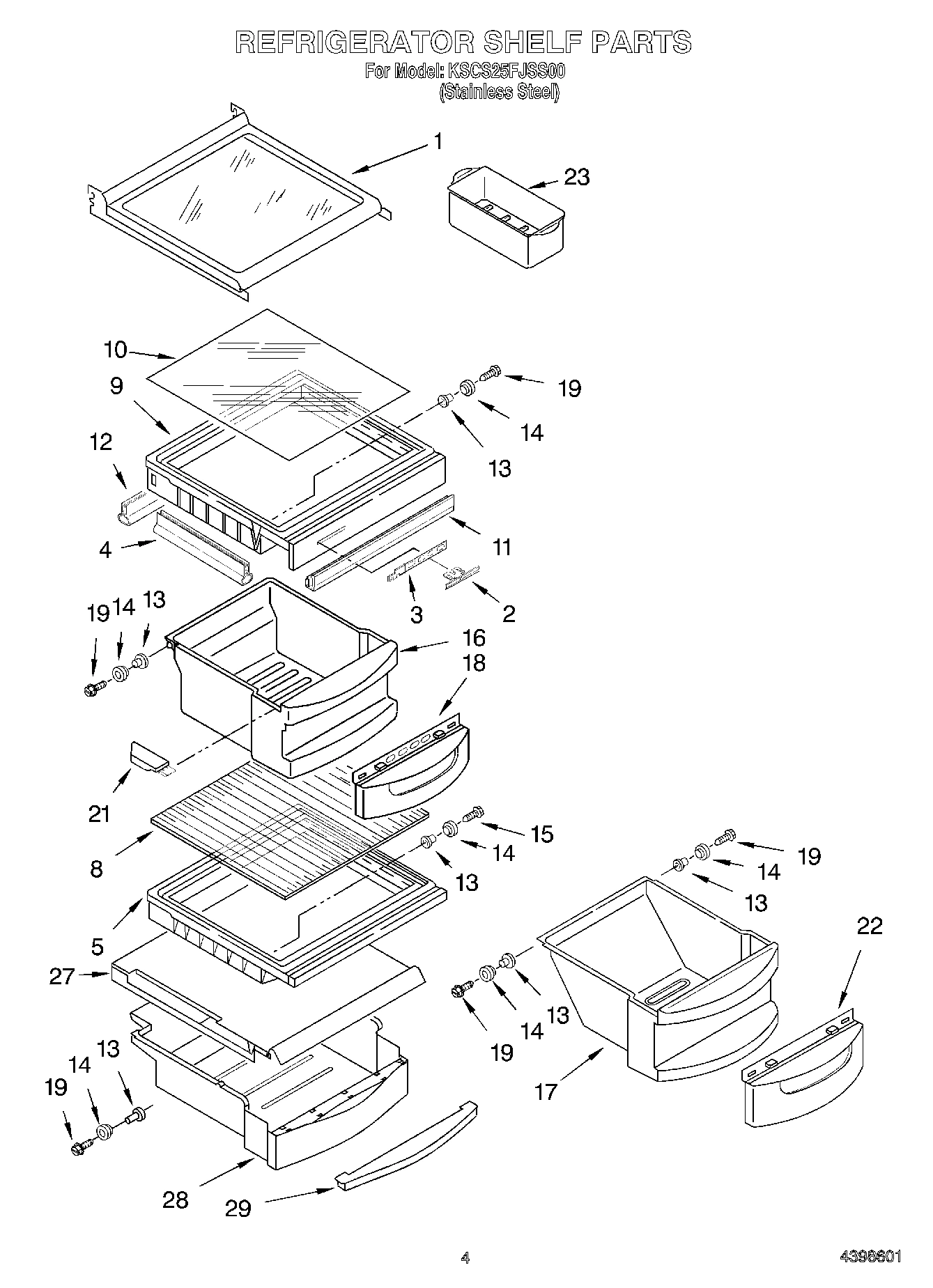

Shelf Assembly, Cantilever (3) WPL 2203054 Contact Us For Availability

1

Overlay WPL 2203081 Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

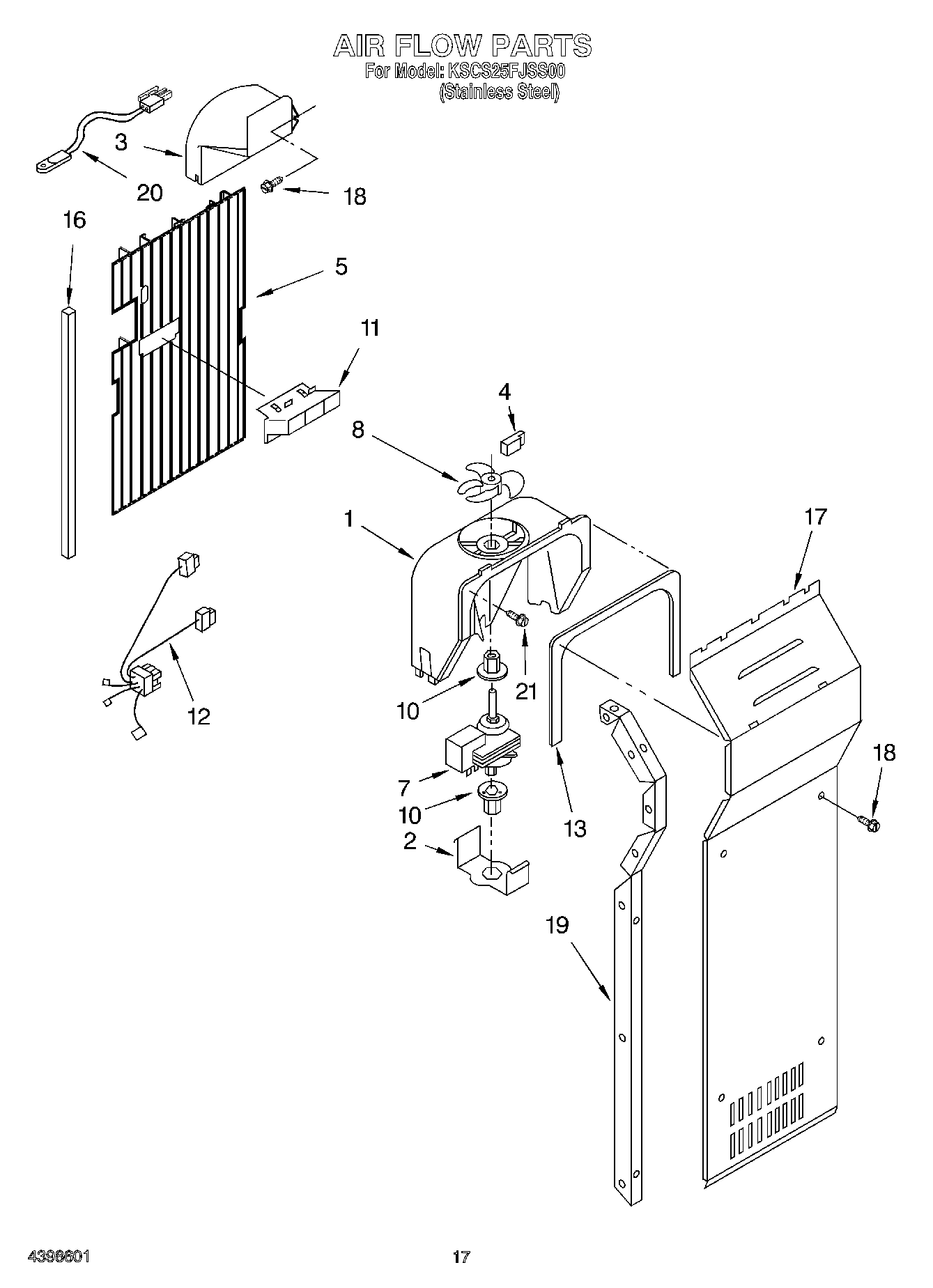

Fan, Blade WPL 2190685 Contact Us For Availability

2

Button, Humidity WPL 2174253 Contact Us For Availability

2

Retainer, Circuit Board WPL 2208141 Contact Us For Availability

3

2174252 Whirlpool Refrigerator Slide Backorder WPL 2174252 $9.15

3

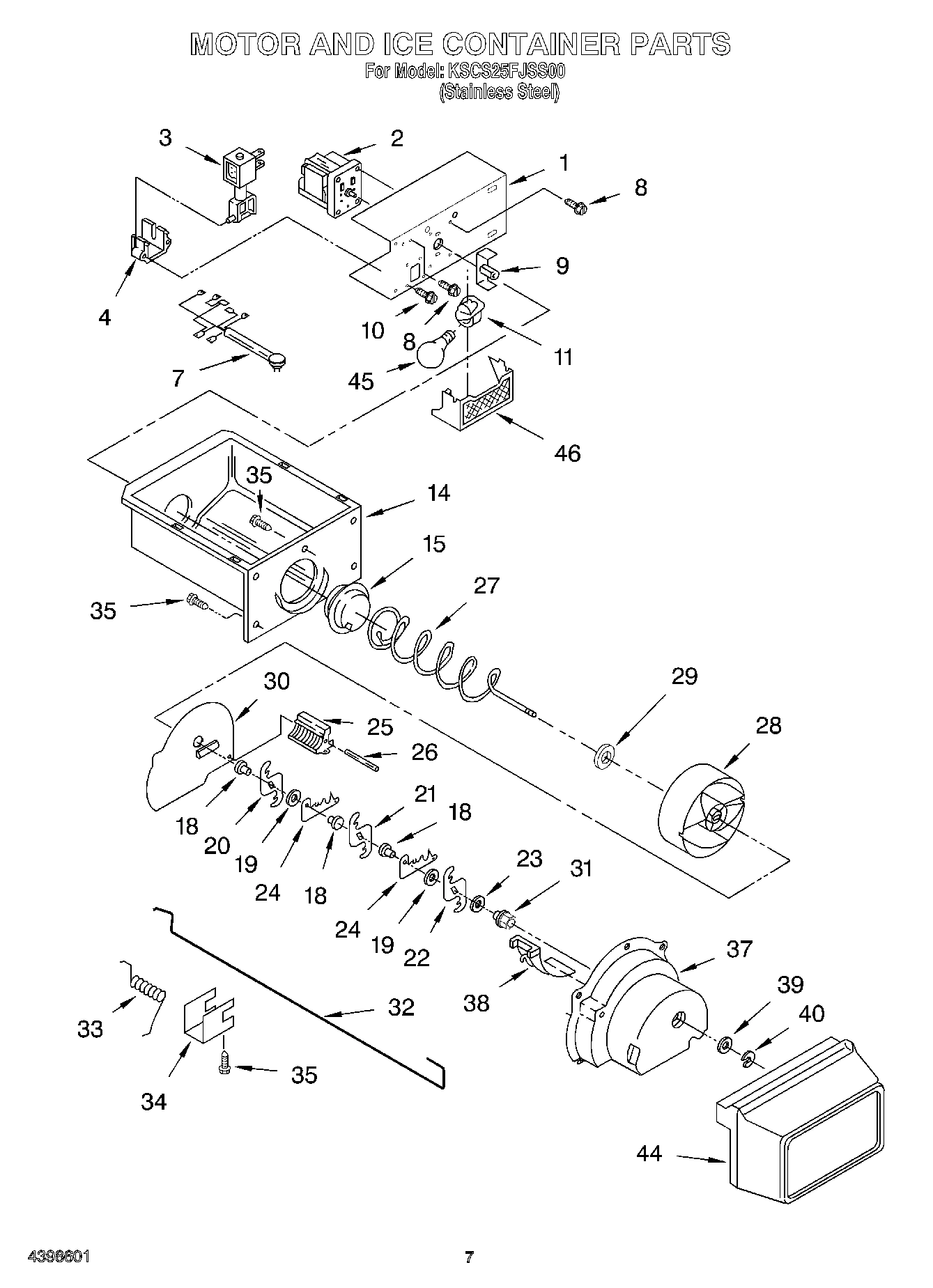

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $145.59

3

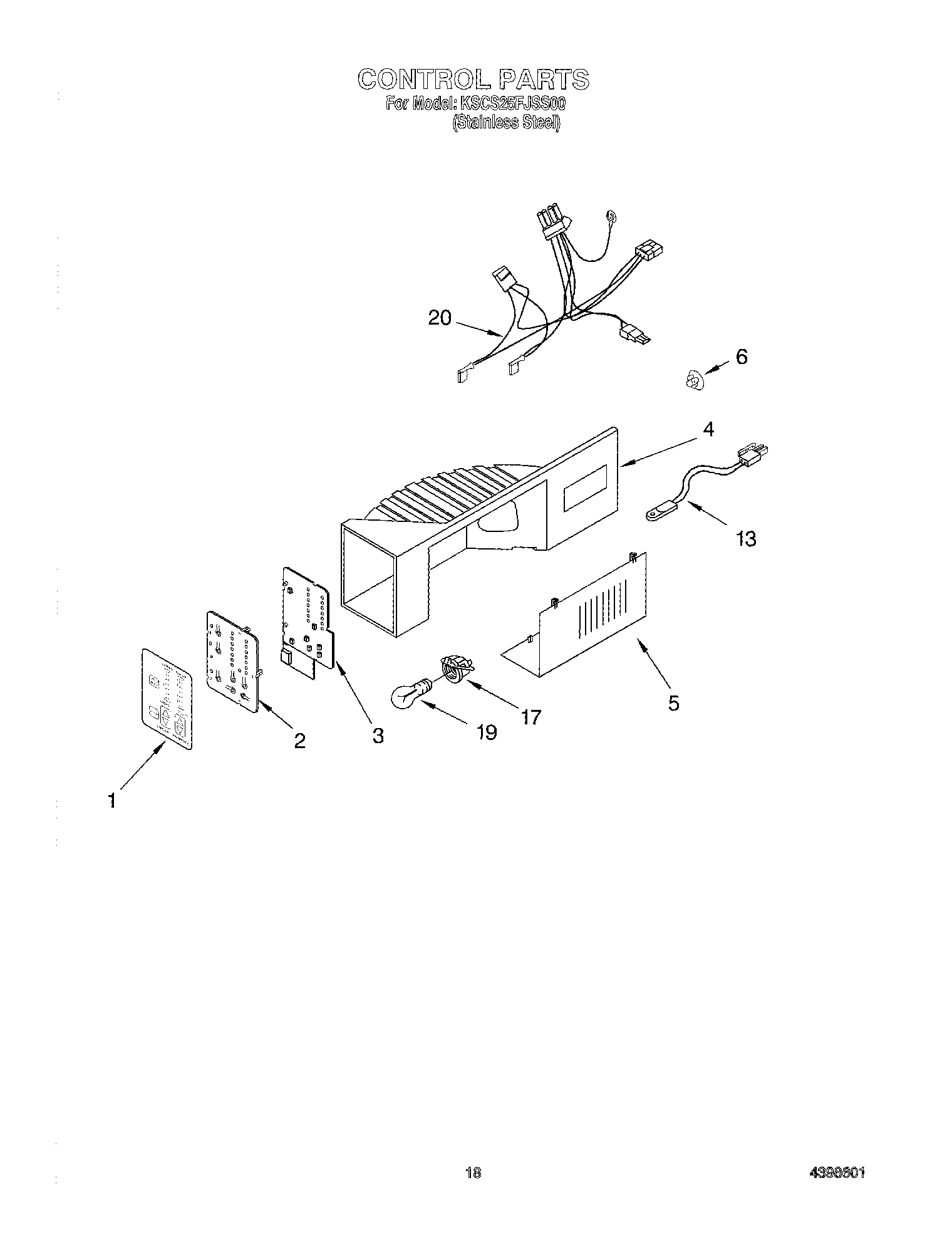

Circuit Board, Interface WPL 2203080 Contact Us For Availability

3

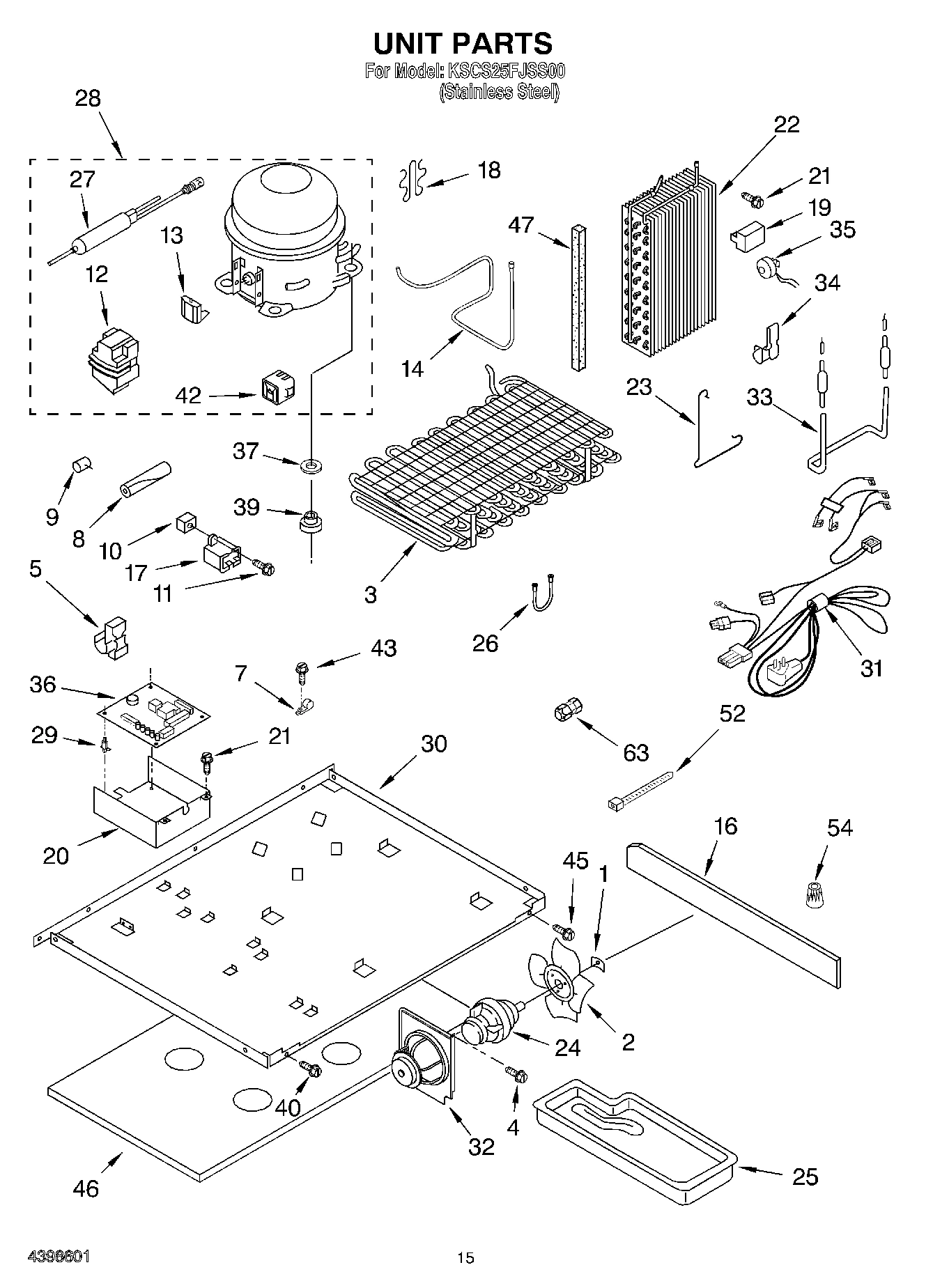

Condenser Assembly WPL 2208155B Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2256010 Whirlpool Door Shelf Trim Backorder WPL WP2256010 $34.66

4

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

Gasket, Side (2) WPL 2174273 Contact Us For Availability

4

Block, Fan Scroll WPL 2208184 Contact Us For Availability

4

Control Box WPL 2199717 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Clip, Wire WPL 2155658 Contact Us For Availability

5

Cover, Meat Pan (Includes Items 13, 14 & 15) WPL 2203034 Contact Us For Availability

5

Air Duct Freezer WPL 2199931 Contact Us For Availability

5

Light Lens WPL 2203108 Contact Us For Availability

6

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

6

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2257017 Whirlpool Refrigerator Cantilever B Backorder WPL WP2257017 $72.36

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Door Gasket, Magnetic (Service) (Black) WPL 2209515 Contact Us For Availability

8

Glass, Cover WPL 2203038 Contact Us For Availability

8

Door Gasket, Magnetic (Service) (Black) WPL 2209514 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2180325 Whirlpool Dispenser Grille In Stock WPL WP2180325 $39.03

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Handle (Includes Item 20) WPL 2204454 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

Screw Grommet WPL 509812 Contact Us For Availability

Glass, Cover WPL 2174148 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP1125528 Whirlpool Refrigerator Gasket Backorder WPL WP1125528 $49.76

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180261 Contact Us For Availability

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

Divider, Bin WPL 2195497 Contact Us For Availability

Gasket, (Rear) WPL 2174274 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2203117 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W11239930 Whirlpool Refrigerator Overload Rel Backorder WPL W11239930 $59.01

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Eyelet, Roller WPL 2174478 Contact Us For Availability

Tube, Water Inlet WPL 2203024 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

Thermistor WPL 2203172 Contact Us For Availability

2313230 Whirlpool Tube Backorder WPL 2313230 $92.13

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

Roller WPL 2188212 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

WP2179227 Whirlpool Refrigerator Crisper Pan Backorder WPL WP2179227 $127.47

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

Hinge & Cam Assy. WPL 2208137 Contact Us For Availability

Extension, Air Baffle WPL 2203020 Contact Us For Availability

Bracket, Door Stop WPL 2195952 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Retainer, Shelf Ladder (2) WPL 1113948 Contact Us For Availability

Cover, Evaporator WPL 2203122 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability

Ladder, Shelf (2) WPL 1113949 Contact Us For Availability

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Trim, Door Shelf WPL 2203087 Contact Us For Availability

Block, Evaporator WPL 2208183 Contact Us For Availability

Overlay, Front Cover (Black) WPL 2186515B Contact Us For Availability

Evaporator, Cover Rail (Right) WPL 2199922 Contact Us For Availability

Evaporator, Cover Rail (Left) WPL 2199923 Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $28.80

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

Set Screw WPL 98654 Contact Us For Availability

Housing, Control Board WPL 2199929 Contact Us For Availability

Thermistor WPL 2199723 Contact Us For Availability

Control Box Harness WPL 2199761 Contact Us For Availability

Butter, Dish WPL 2165792 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI90985A5 Contact Us For Availability

Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability

Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Grille (Black) WPL 2199904B Contact Us For Availability

Window, Meat Pan WPL 2174076 Contact Us For Availability

Stop, Roller WPL 1113169 Contact Us For Availability

Bin, Door (3) WPL 2199983 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2186511B Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2195917K Whirlpool Refrigerator Endcap Backorder WPL WP2195917K $6.79

WP2199840 Whirlpool Refrigerator Housing In Stock WPL WP2199840 $108.46

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Stud, Handle WPL 2203690 Contact Us For Availability

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

26

Tube, Heat Loop WPL 2199806 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

27

WPW10270150 Whirlpool Crisper Drawer Cover Backorder WPL WPW10270150 $211.76

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

28

W10309995 Whirlpool Refrigerator Compressor In Stock WPL W10309995 $372.63

28

Beverage Pan WPL 2203028 Contact Us For Availability

29

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

29

Handle, Beverage WPL 2203029 Contact Us For Availability

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

Unit Mounting Plate WPL 2199740 Contact Us For Availability

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

Unit, Harness WPL 2188366 Contact Us For Availability

32

Fan, Motor Bracket WPL 2208157 Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

Circuit Board, Dual Temp. WPL 2203076 Contact Us For Availability

37

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

37

Washer WPL 680975 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $3.70

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

40

Screw WPL 3400515 Contact Us For Availability

42

8201802 Whirlpool Refrigerator Start Device Backorder WPL 8201802 $46.81

43

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

45

Screw WPL 3400514 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

46

Insulation, Mounting Plate WPL 2203199 Contact Us For Availability

47

Side Support WPL 2203160 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

54

Wire Connector WPL 227991 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
