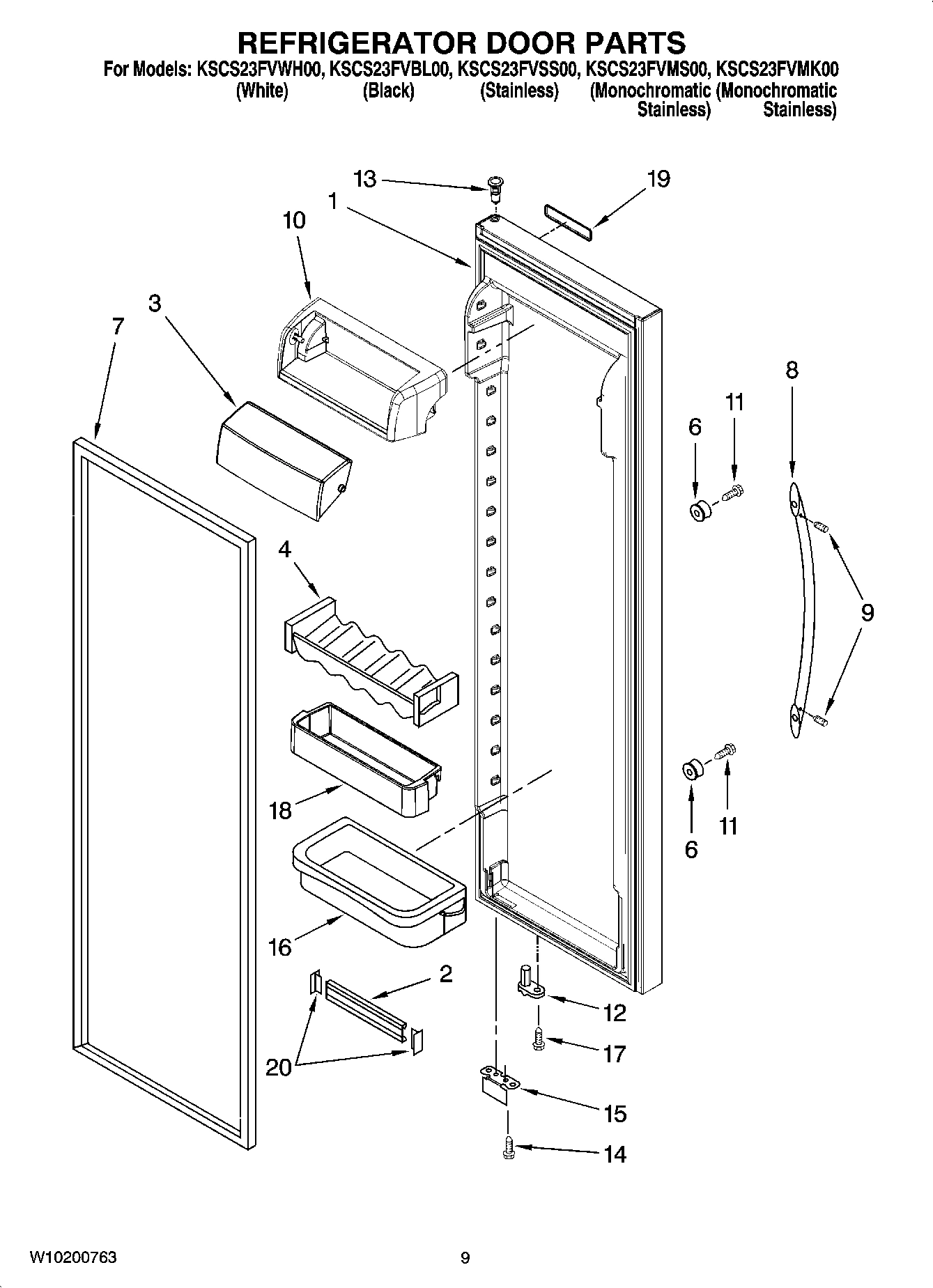

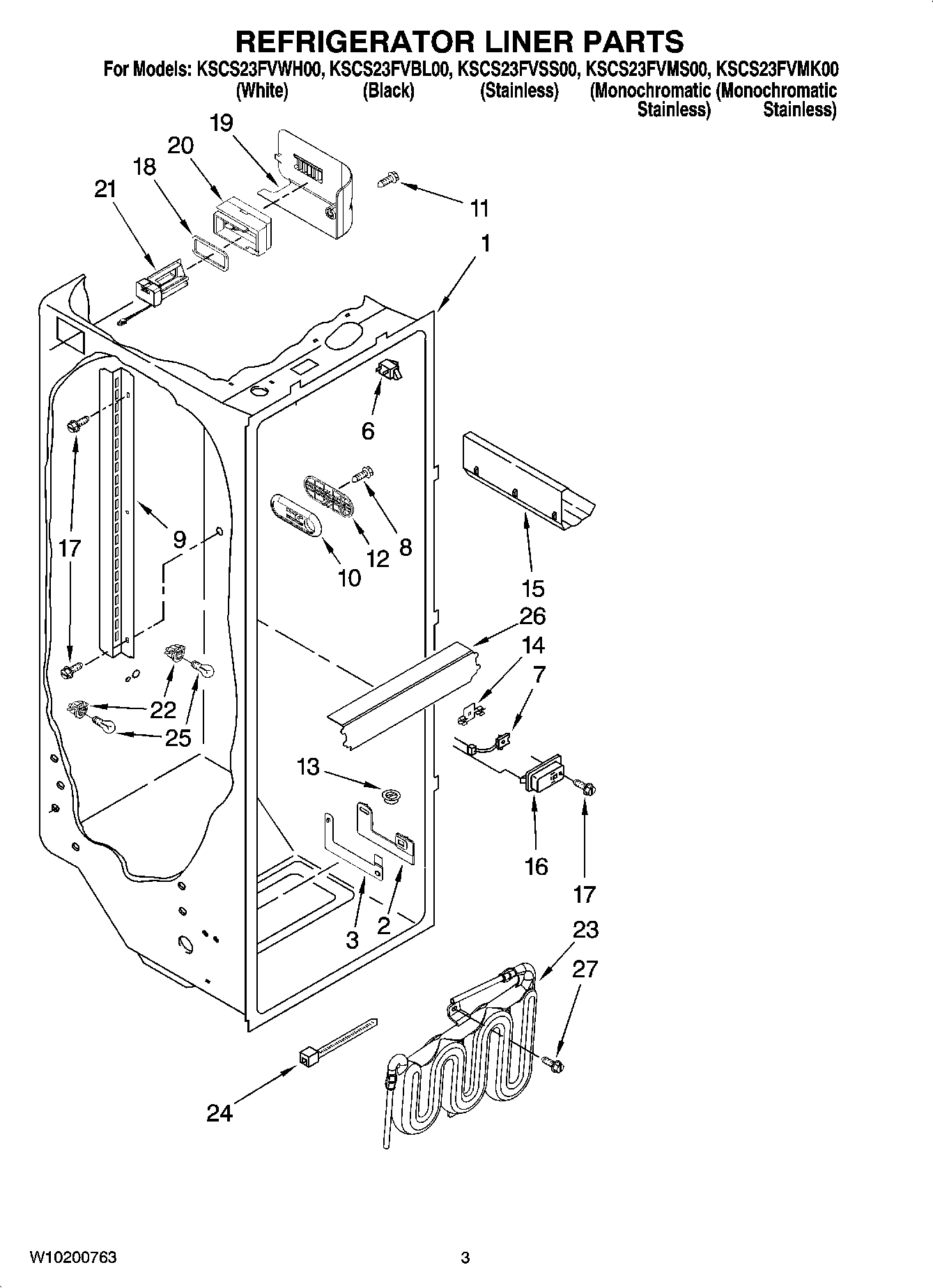

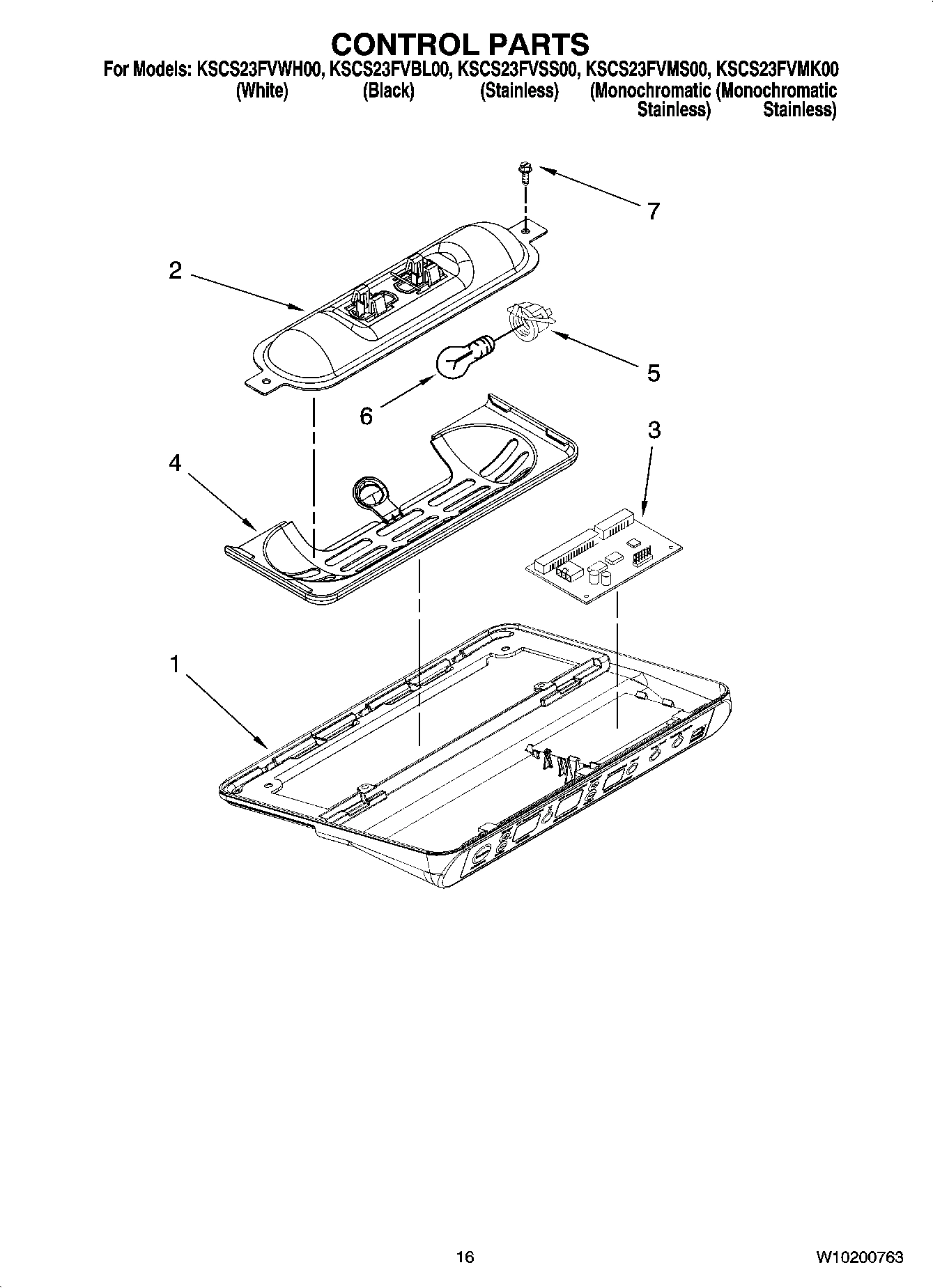

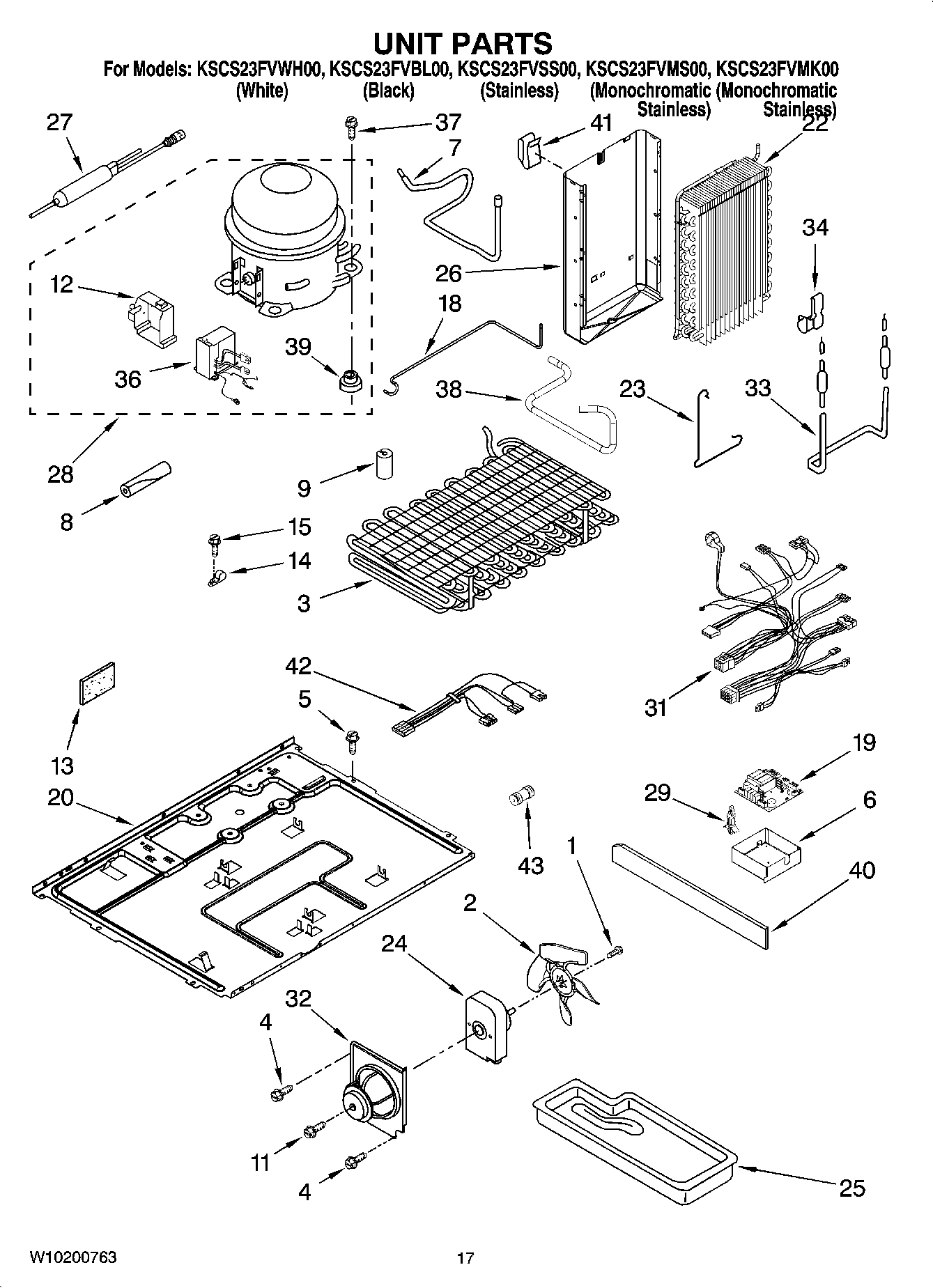

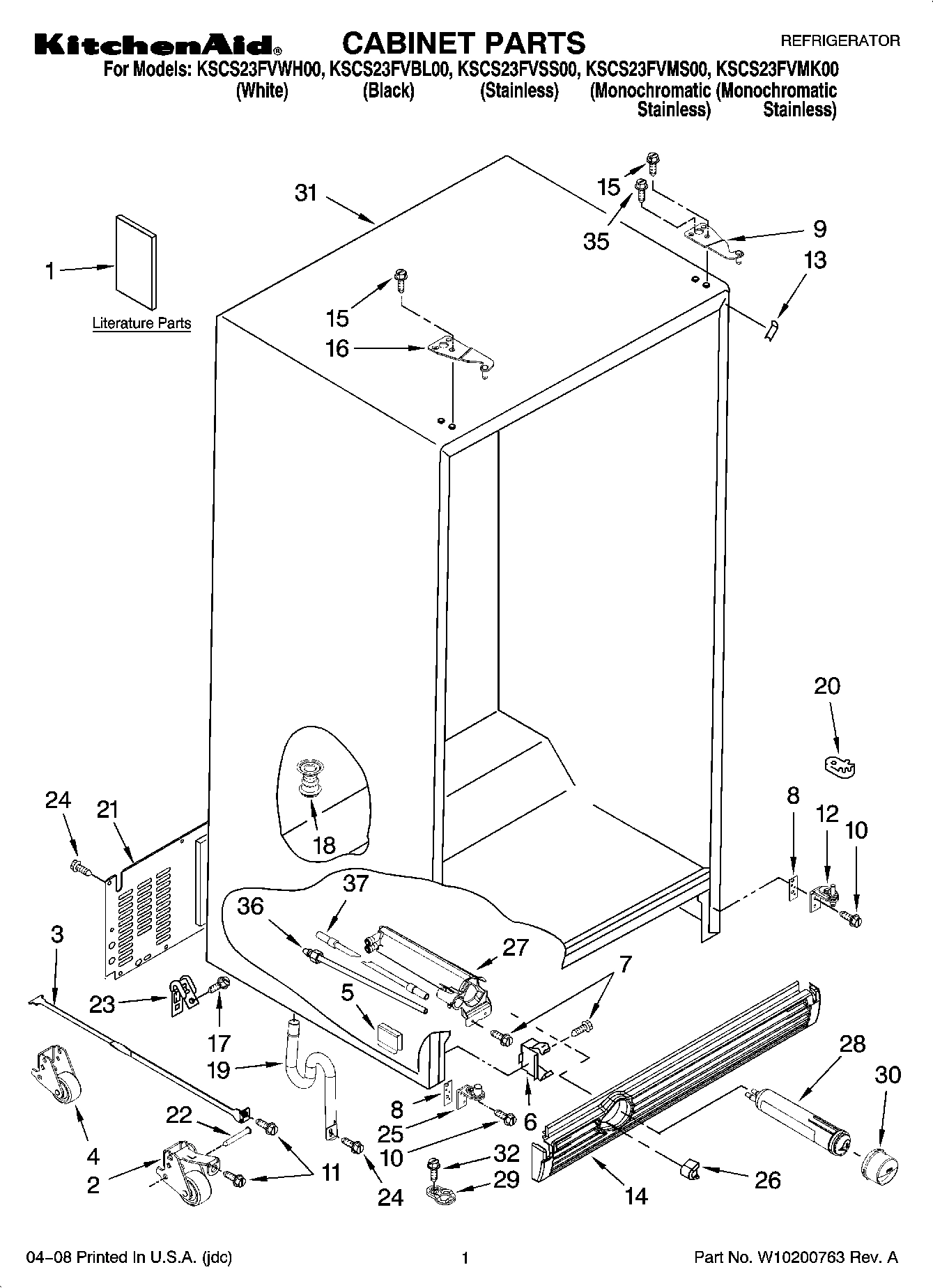

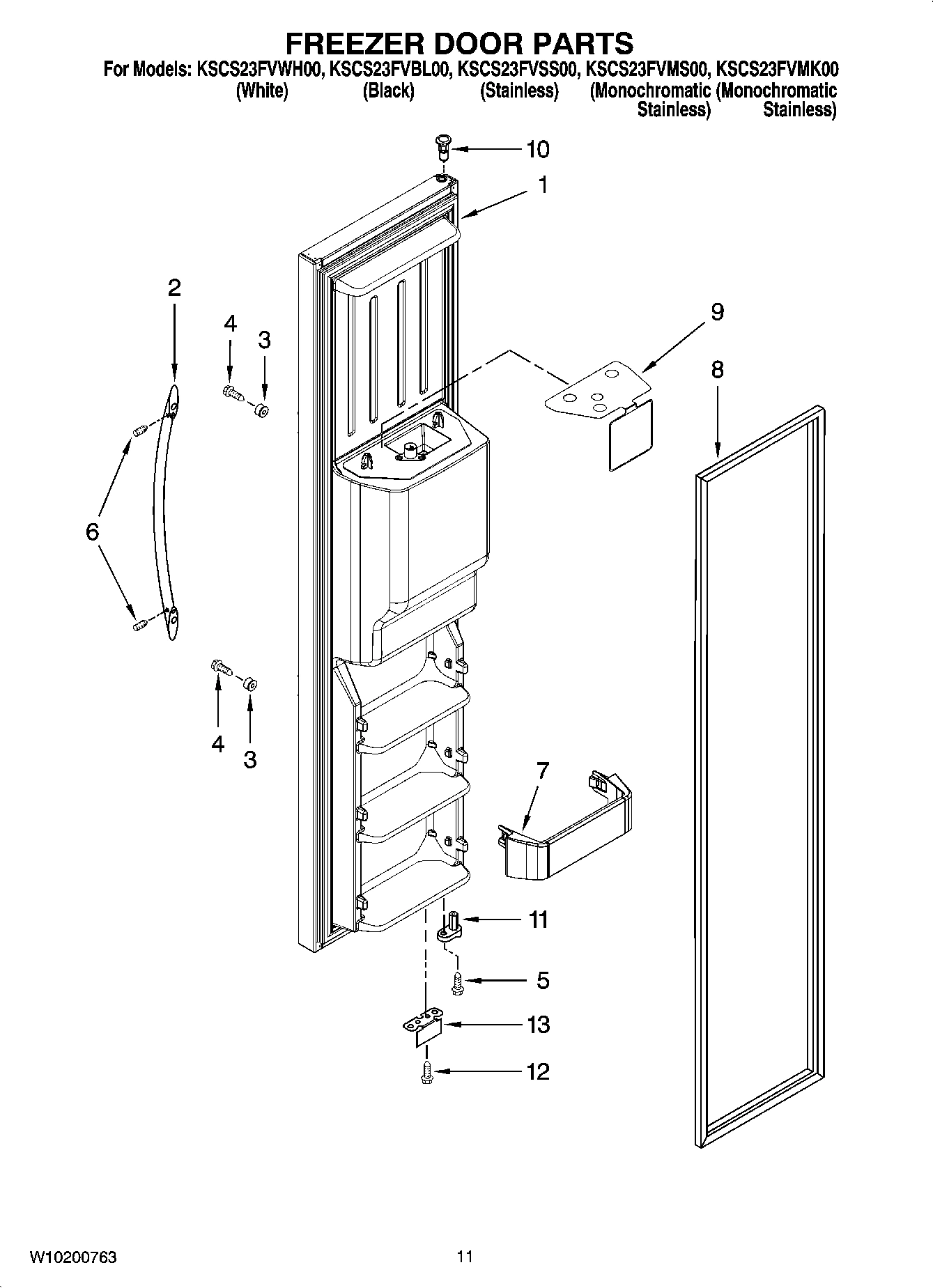

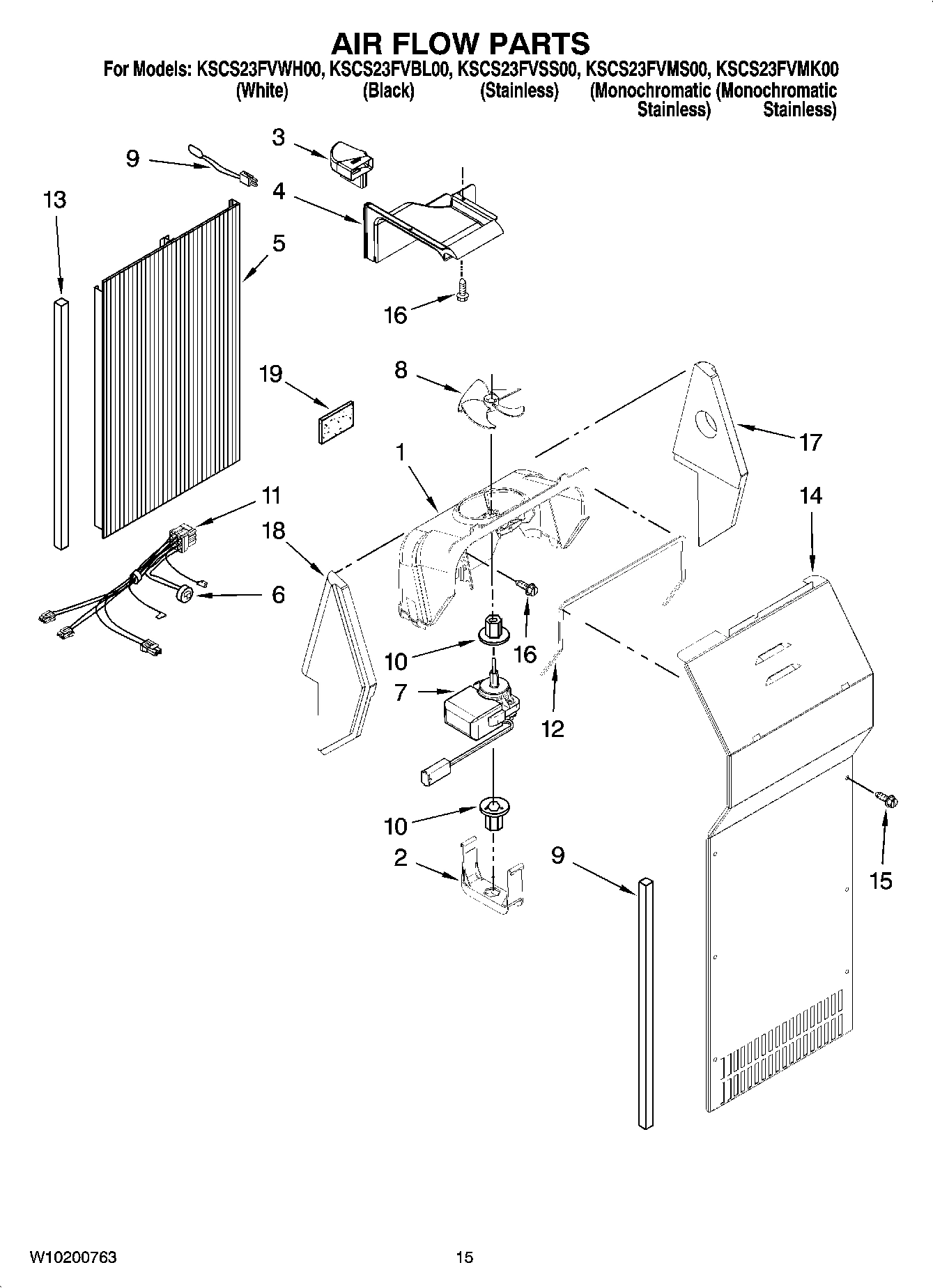

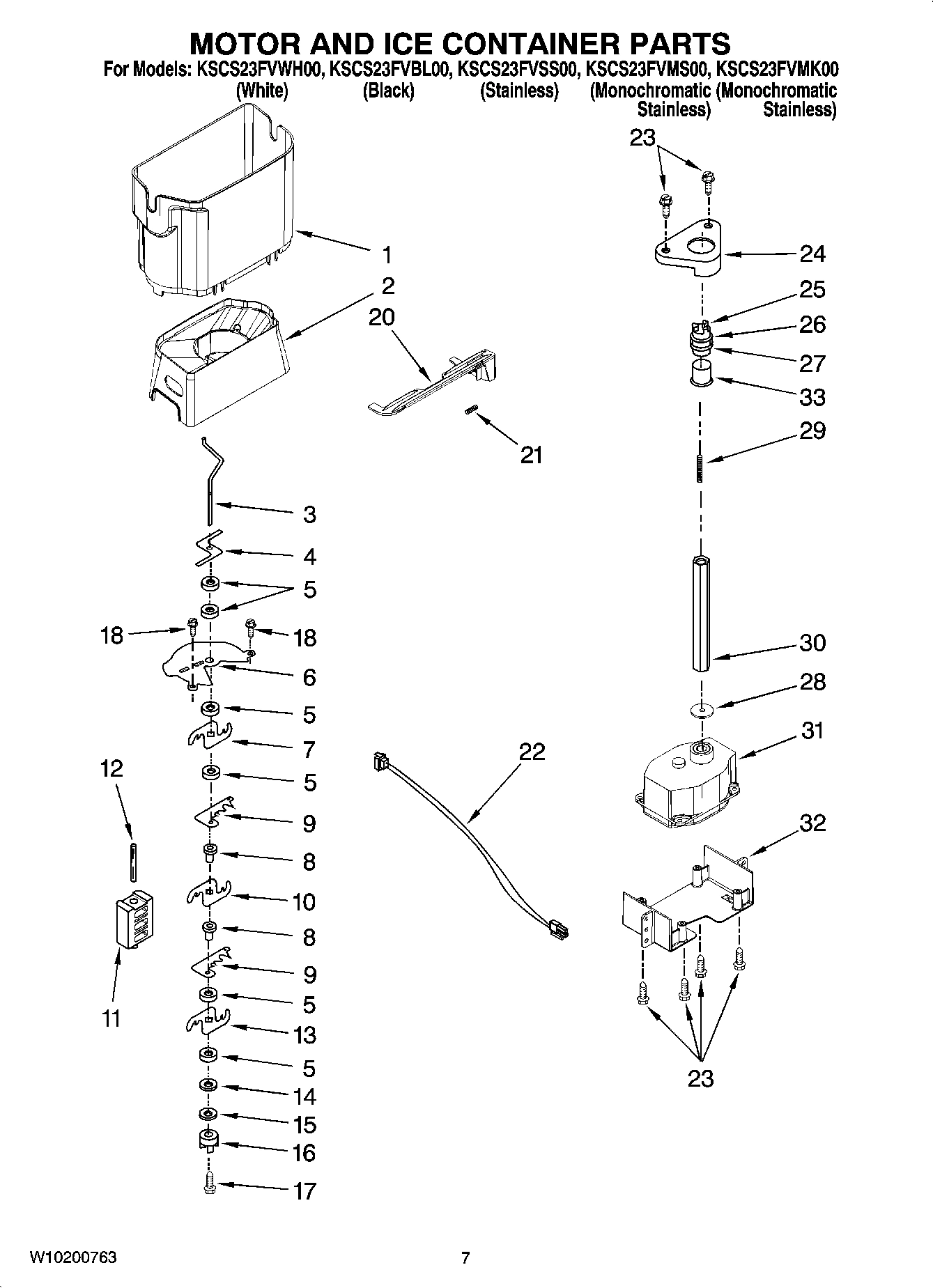

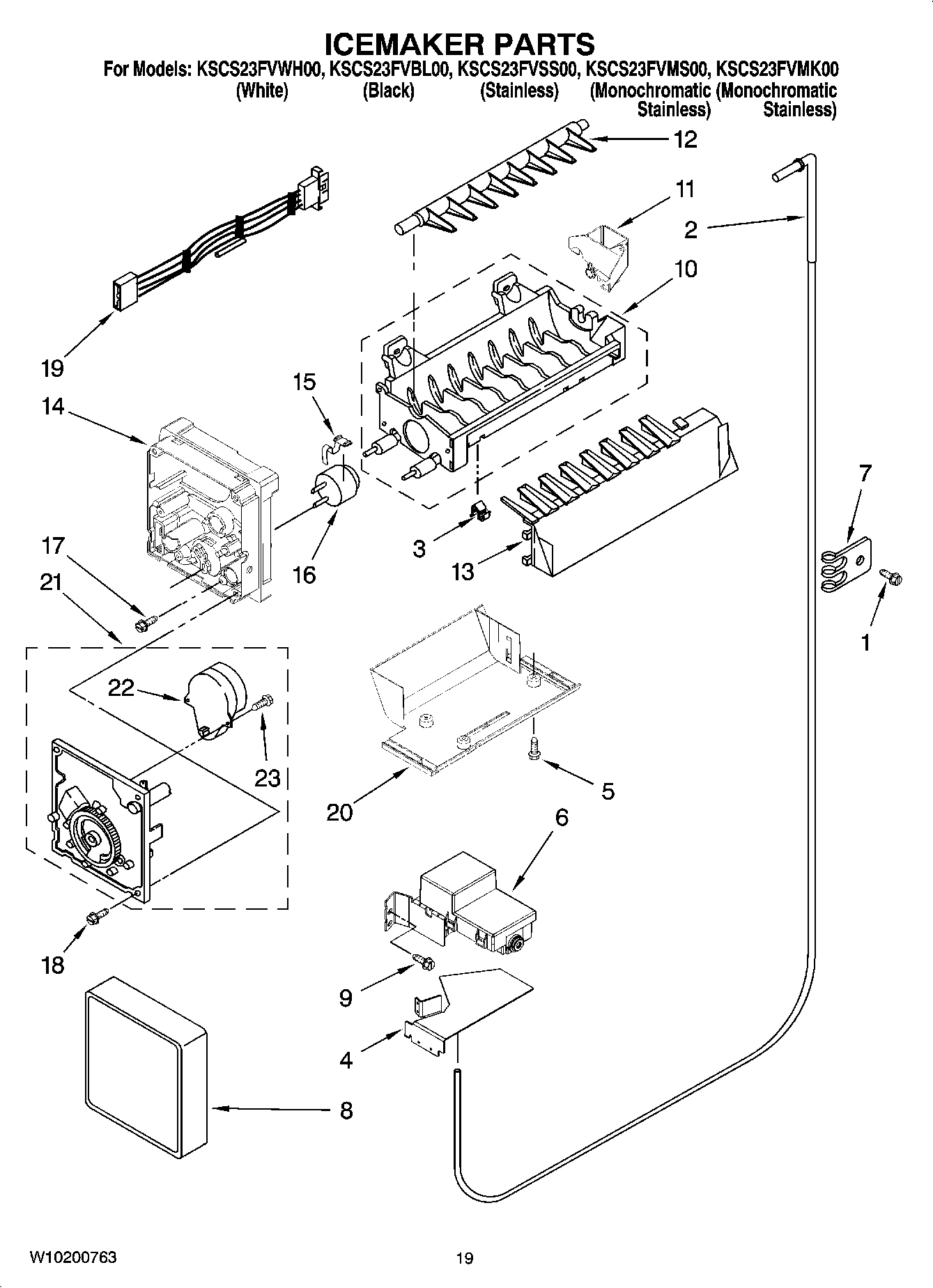

Model Whirlpool KSCS23FVBL00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $8.67

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

Control Box (Includes 3) WPL W10175591 Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI90635A5 Contact Us For Availability

2

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $39.09

2

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $31.49

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $39.86

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

Control Board Asm WPL 2307037 Contact Us For Availability

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Condenser Assembly WPL W10131059 Contact Us For Availability

3

Air Scoop WPL 2223298 Contact Us For Availability

4

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $54.75

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $32.74

4

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

4

Washer WPL 2258220 Contact Us For Availability

5

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $7.80

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WPW10184813 Whirlpool Refrigerator Motor In Stock WPL WPW10184813 $47.71

5

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $4.02

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2305258 Whirlpool Dispenser Door Assembly In Stock WPL WP2305258 $7.69

6

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $8.43

6

WPW10159840 Whirlpool Refrigerator Valve In Stock WPL WPW10159840 $176.95

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $5.40

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

6

Housing, Control Board WPL 2223703 Contact Us For Availability

7

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $19.53

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $29.08

7

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

7

Glide Assembly (Crisper Pan) (Right Side) WPL 2301548 Contact Us For Availability

8

2223545 Whirlpool Refrigerator Shim Backorder WPL 2223545 $33.31

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

8

Handle (Black) WPL 2319727B Contact Us For Availability

8

Window, Crisper Pan WPL 2301001 Contact Us For Availability

8

Front, Basket WPL 2224053 Contact Us For Availability

9

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $16.76

9

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $4.52

9

W11366418 Whirlpool Screw In Stock WPL W11366418 $10.41

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Tray Assembly (Nickel Alloy) WPL 2315109NA Contact Us For Availability

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2301567 Contact Us For Availability

9

Tray Assembly (Black) WPL 2315109B Contact Us For Availability

9

Tray Assembly (White) WPL 2315109W Contact Us For Availability

9

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $30.65

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

Dairy Compartment WPL 2223879 Contact Us For Availability

Spigot WPL 2305236 Contact Us For Availability

11

Door Closer, Upper Cam WPL 2307050 Contact Us For Availability

11

Block, Blade WPL 2198602 Contact Us For Availability

11

Separator Assembly WPL 2305456 Contact Us For Availability

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2303843-includeCORE Whirlpool WP2303843 Ref Backorder WPL WP2303843-includeCORE $207.20

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Hinge Assembly, Bottom-RC (Includes 20) WPL 2307179 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

2305219 Whirlpool Refrigerator Cover Backorder WPL 2305219 $30.25

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

Eyelet, Roller WPL 2174478 Contact Us For Availability

Glide Assembly, Basket (2) (Right Side) WPL 2301544 Contact Us For Availability

Glide Assembly, Basket (2) (Left Side) WPL 2301545 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Cover, Emitter WPL 2259487 Contact Us For Availability

Grille (Midnight Grey) WPL W10194061 Contact Us For Availability

Grille (Black) WPL W10194058 Contact Us For Availability

Clip, Thermistor WPL 2209204 Contact Us For Availability

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $34.44

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $13.10

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $5.38

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $46.59

W10916292 Whirlpool Refrigerator Crisper Pan In Stock WPL W10916292 $104.18

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.19

WP2223860 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2223860 $64.86

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

Pad, Water (For White Model) WPL 2305307CE Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W10133603 Whirlpool Refrigerator Dispenser Ac In Stock WPL W10133603 $172.94

W10133606 Whirlpool Refrigerator Pad In Stock WPL W10133606 $196.19

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

Meat Pan (Includes 13, 14, 19 & 22) WPL 2223790 Contact Us For Availability

Pad, Ice (For White Model) WPL 2305306CE Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

WP2224173 Whirlpool Refrigerator Cantilever B Backorder WPL WP2224173 $47.93

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

Glide Assembly (Snack Pan) (Left Side) WPL 2301551 Contact Us For Availability

Lens, Front Cover WPL 2305287 Contact Us For Availability

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $34.73

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $37.53

Tube, Extension WPL 2254566 Contact Us For Availability

Nameplate (Gray) WPL W10046610 Contact Us For Availability

W10222215 Whirlpool Refrigerator Light Indica In Stock WPL W10222215 $57.63

Door Closer (RC) WPL 2307049 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $179.78

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

Cover, Unit WPL 2223409 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI90636A5 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

Handle WPL 2203031 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 13, 16, WPL 2326256NO Contact Us For Availability

Front Cover Assembly (Includes Items 13, 16, WPL 2326256W Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 13, 16, WPL 2326256B Contact Us For Availability

24

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

24

Wire Assembly, User Interface WPL 2187814 Contact Us For Availability

24

Holder WPL 2212369 Contact Us For Availability

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $7.78

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

Hinge Assembly, Bottom-FC (Includes 29) WPL 2307152 Contact Us For Availability

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

Light Lens WPL 2223663 Contact Us For Availability

Shelf, Snack Pan WPL 2301566 Contact Us For Availability

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

27

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $5.01

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

29

Door Closer, FC WPL 2307051 Contact Us For Availability

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $17.09

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $92.73

Window, Snack Pan WPL 2301006 Contact Us For Availability

31

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $122.27

31

WP2310122 Whirlpool Refrigerator Wire Harness Backorder WPL WP2310122 $150.75

31

Cabinet, (Not A Serviceable Part) WPL ARI90631A3 Contact Us For Availability

32

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

32

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

32

Bracket, Motor WPL 2305208 Contact Us For Availability

33

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

33

Heater, Defrost WPL 2323199 Contact Us For Availability

35

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

35

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

36

WPW10154805 Whirlpool Refrigerator Inverter B In Stock WPL WPW10154805 $262.17

36

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $42.73

37

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

38

Tube, Discharge WPL 2223352 Contact Us For Availability

39

4388295 Whirlpool Refrigerator Mounting Kit Backorder WPL 4388295 $75.04

43

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $10.72
