Model KSCK25FVMS01 – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS
03 - REFRIGERATOR SHELF PARTS
04 - FREEZER LINER PARTS

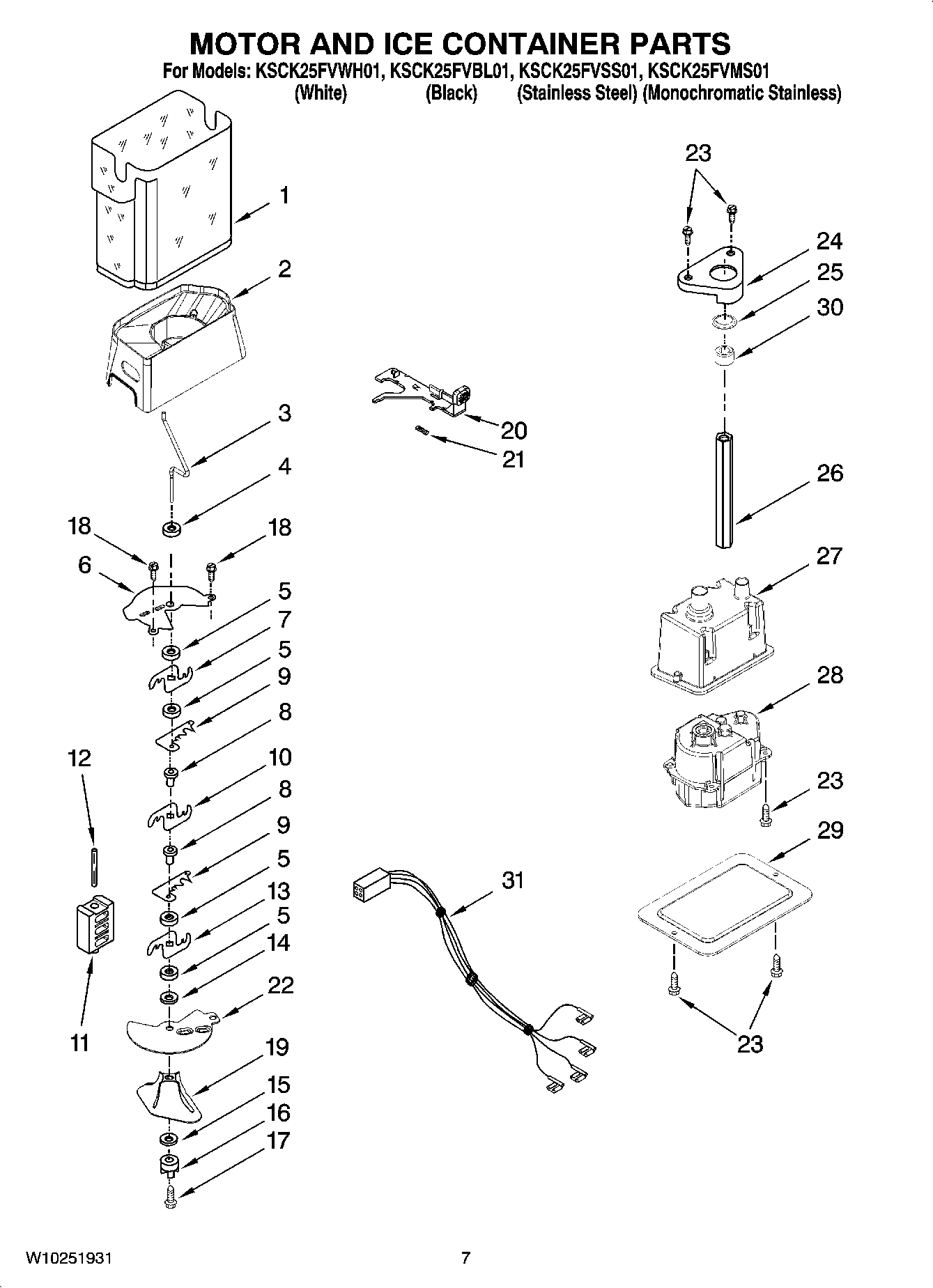

05 - MOTOR AND ICE CONTAINER PARTS

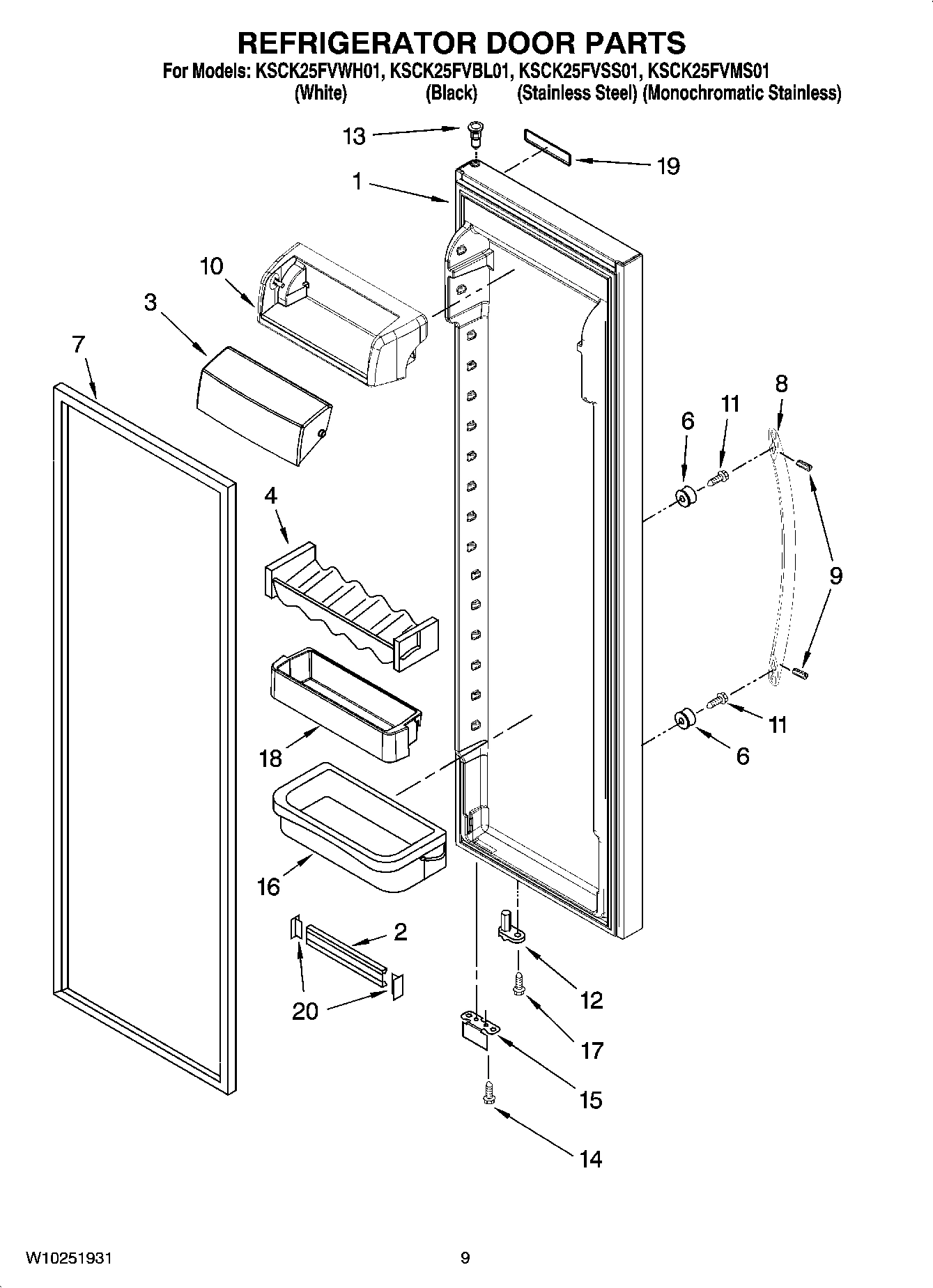

06 - REFRIGERATOR DOOR PARTS

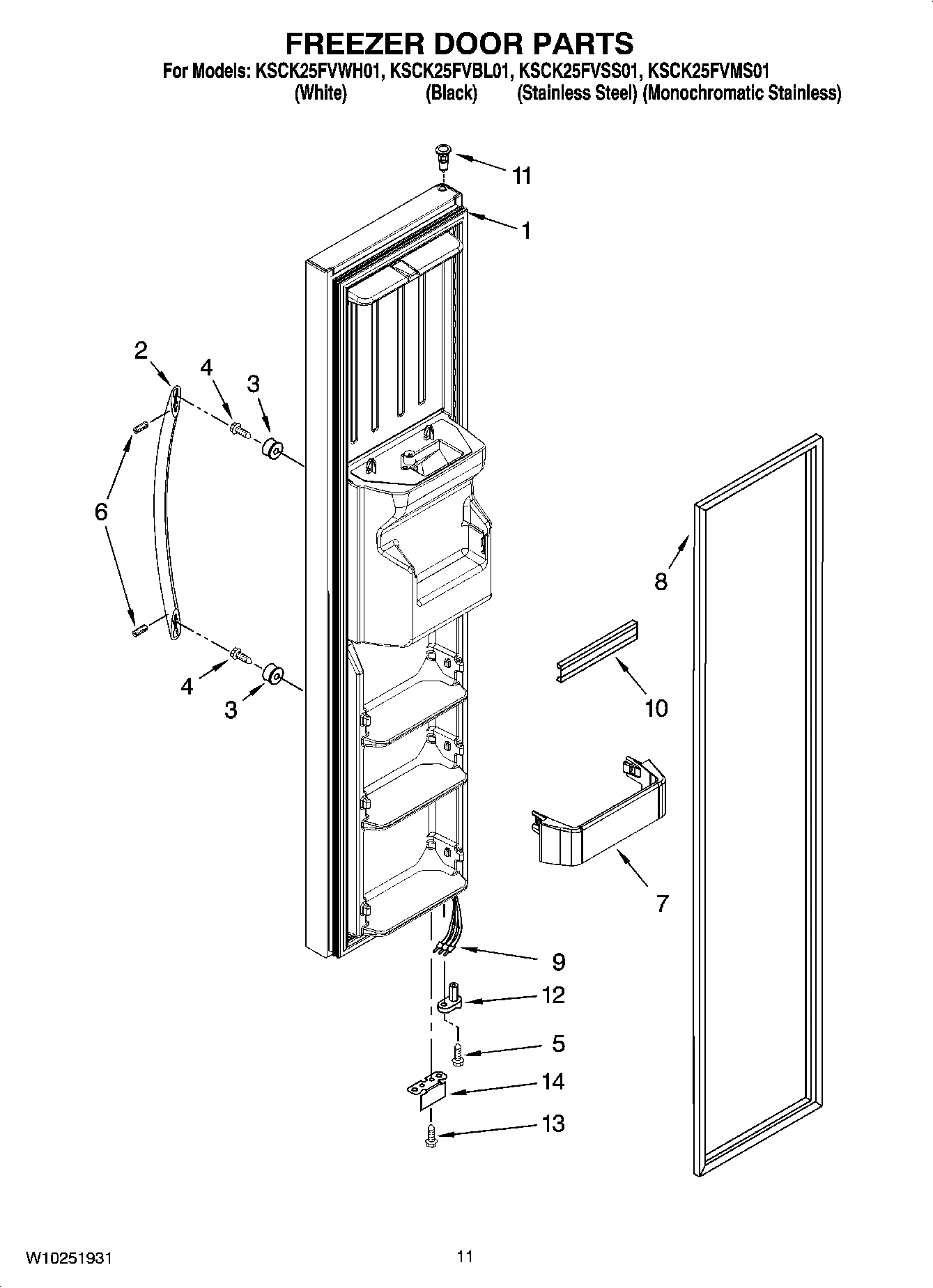

07 - FREEZER DOOR PARTS

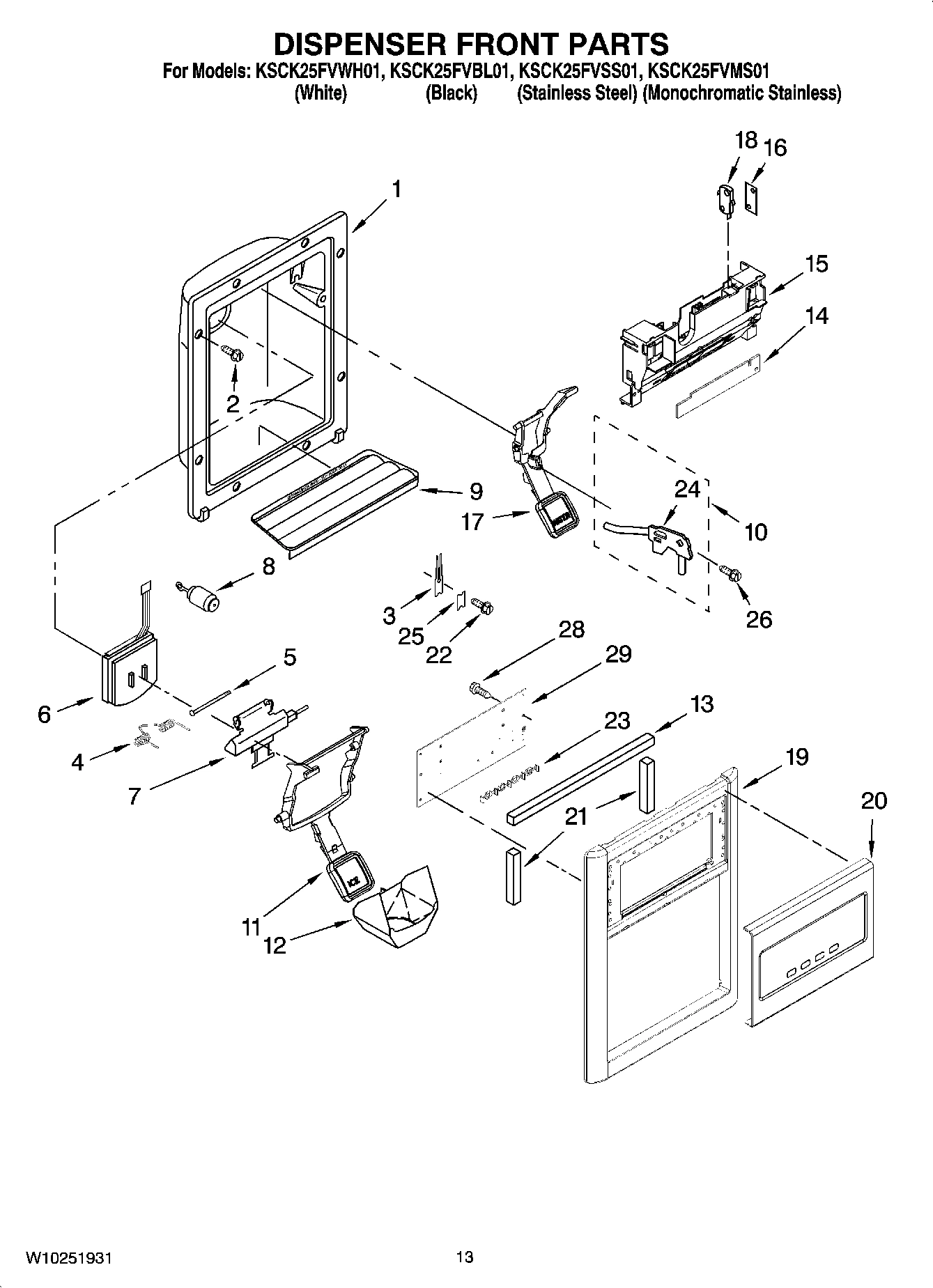

08 - DISPENSER FRONT PARTS
09 - AIR FLOW PARTS

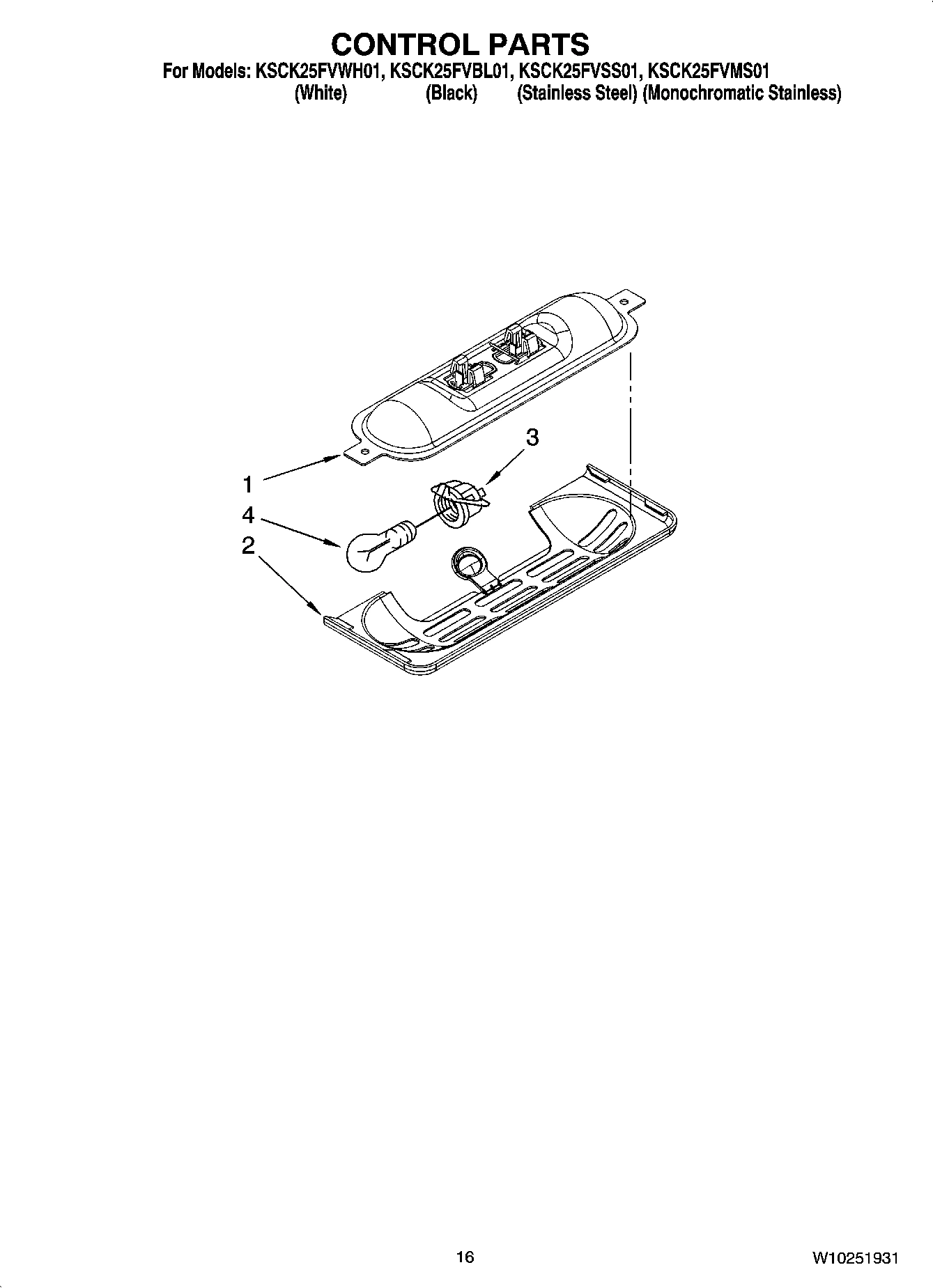

10 - CONTROL PARTS

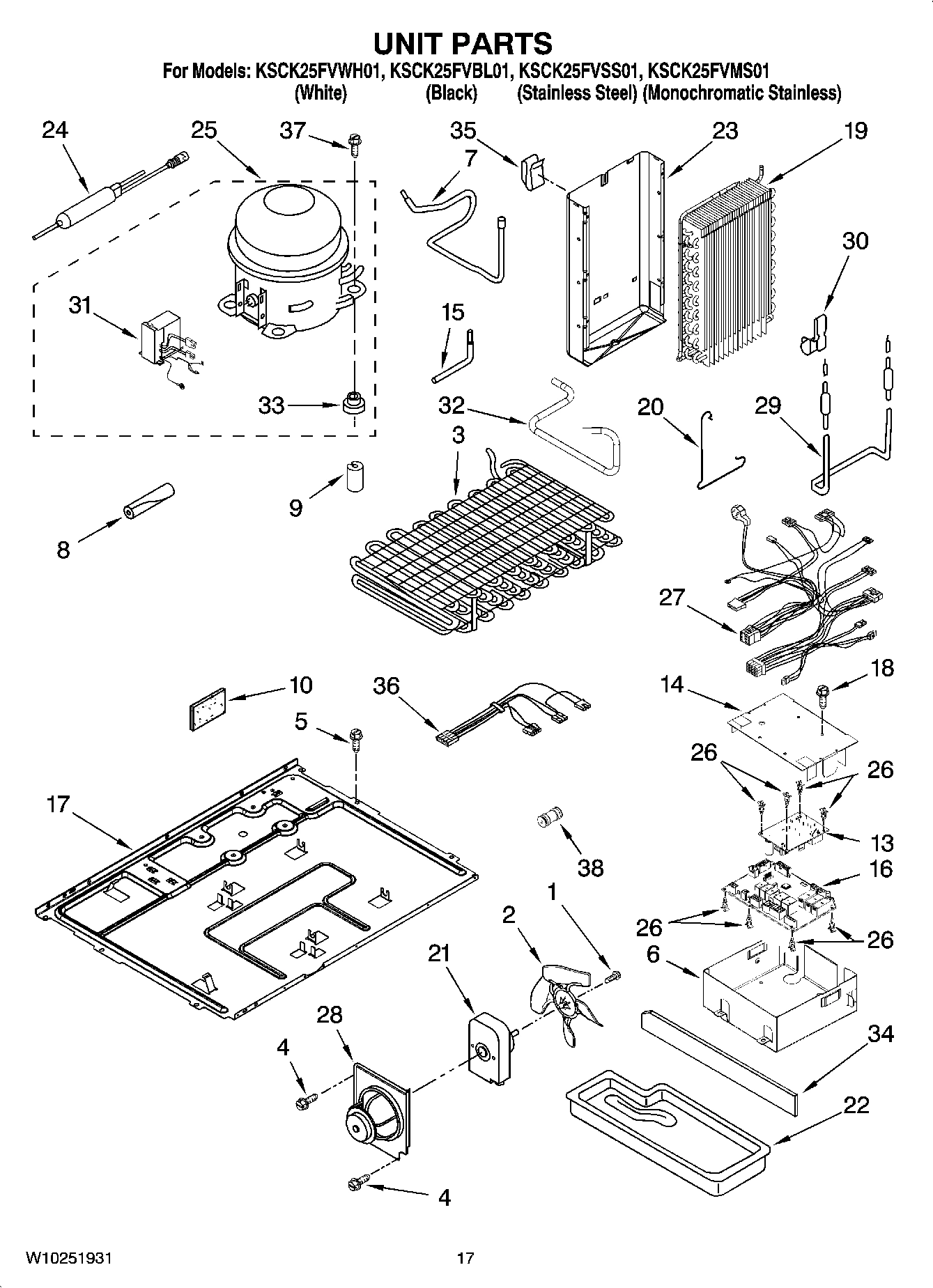

11 - UNIT PARTS

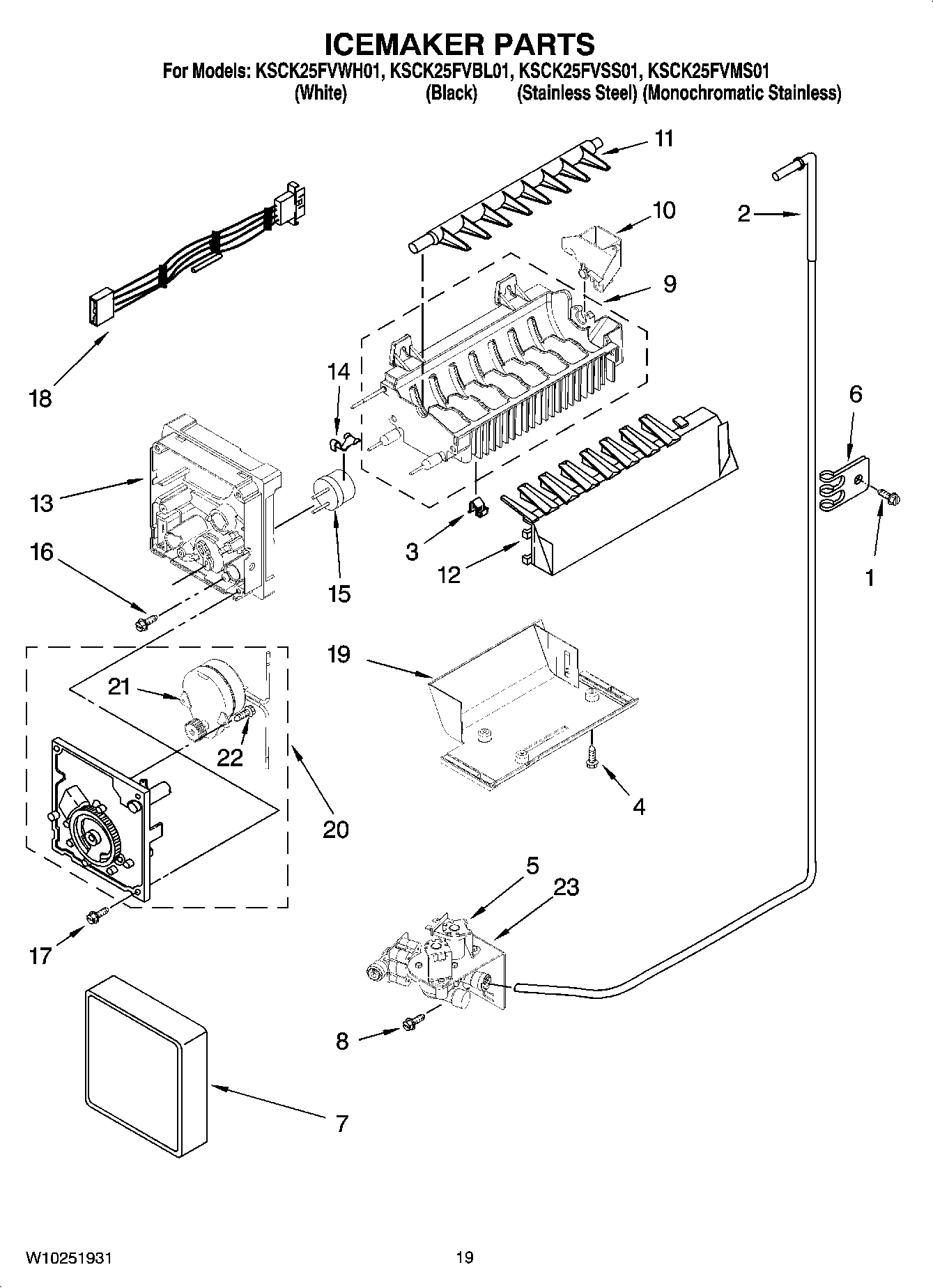

12 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
