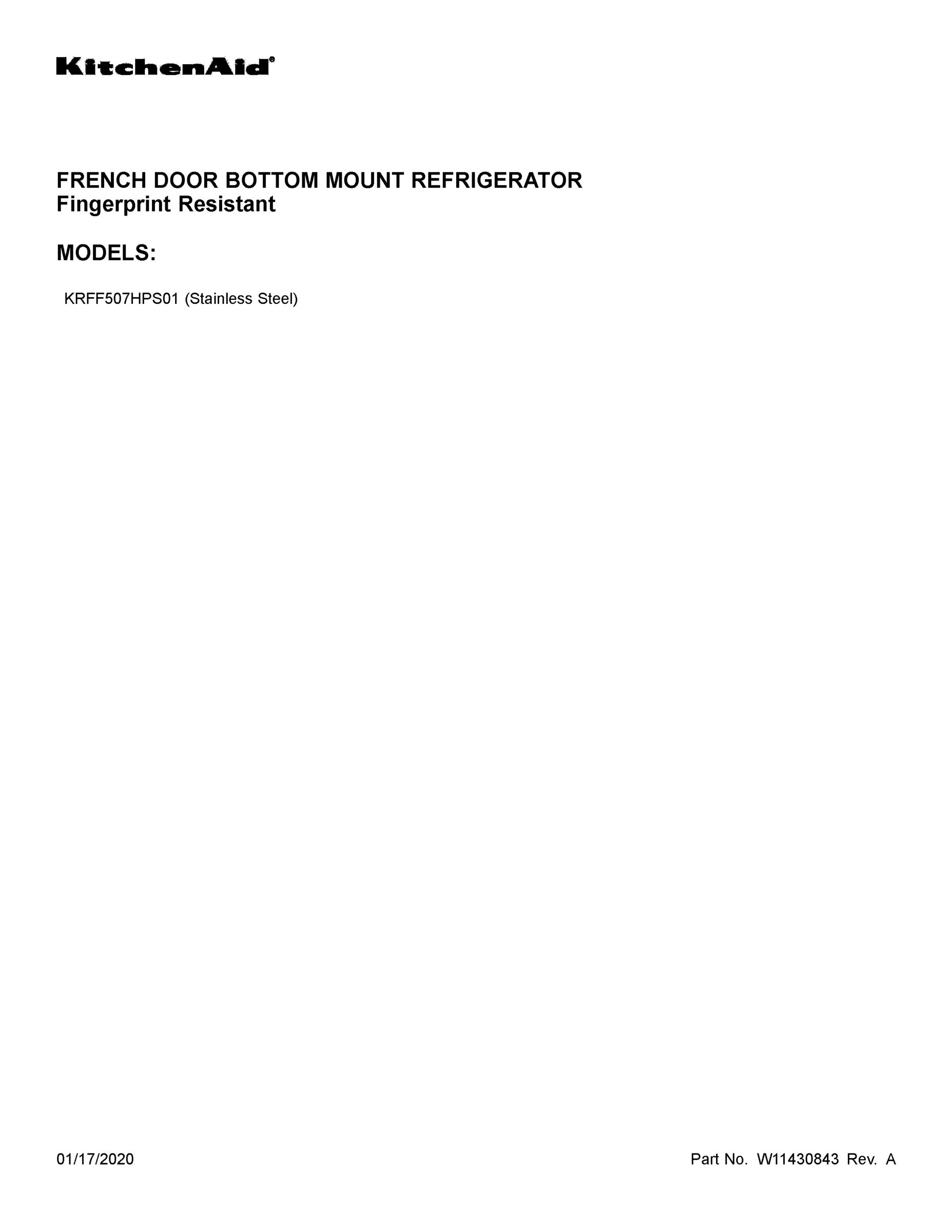

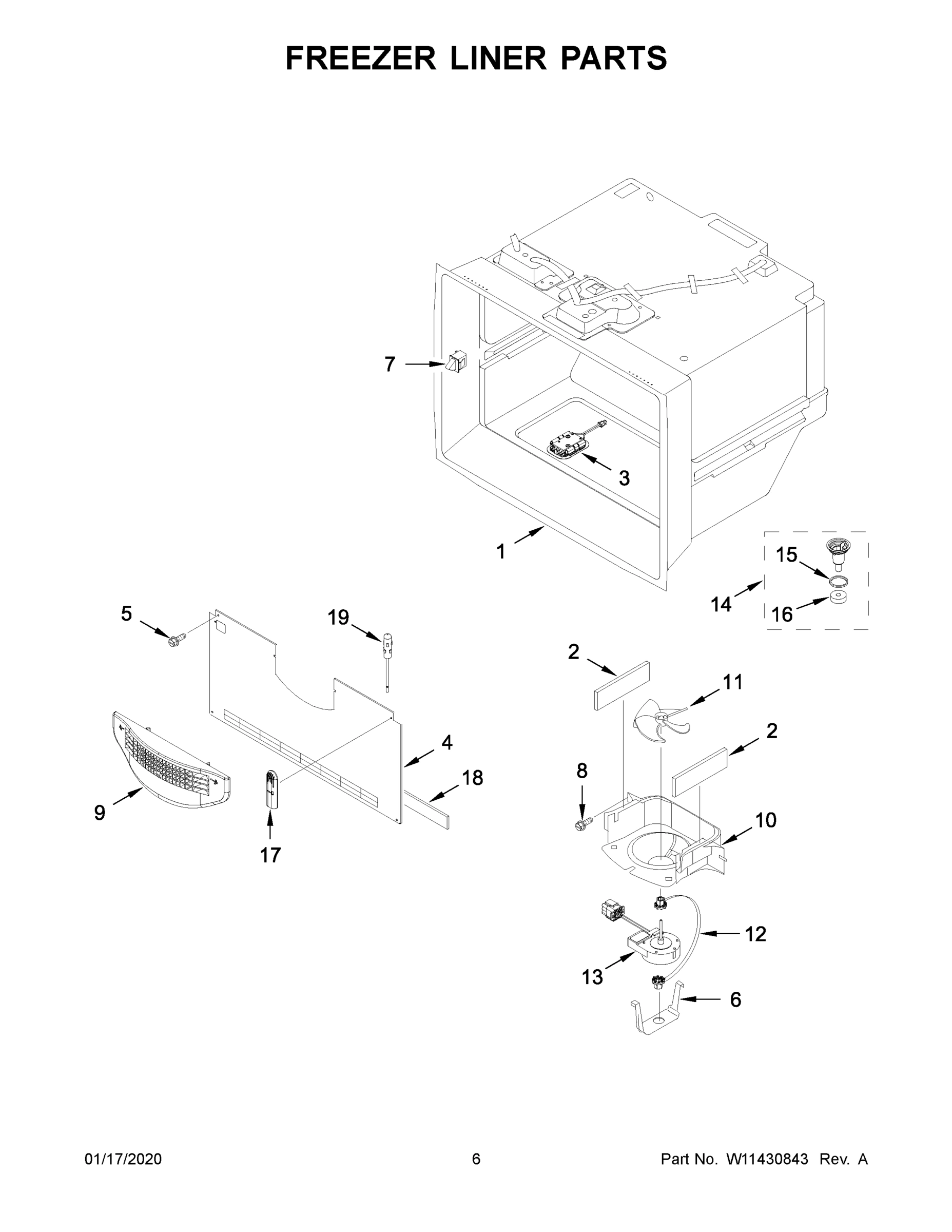

Model Whirlpool KRFF507HPS01 REFRIGERATOR, 4-DOOR, BOTTOM MOUNT – Common Parts &amp; Diagrams

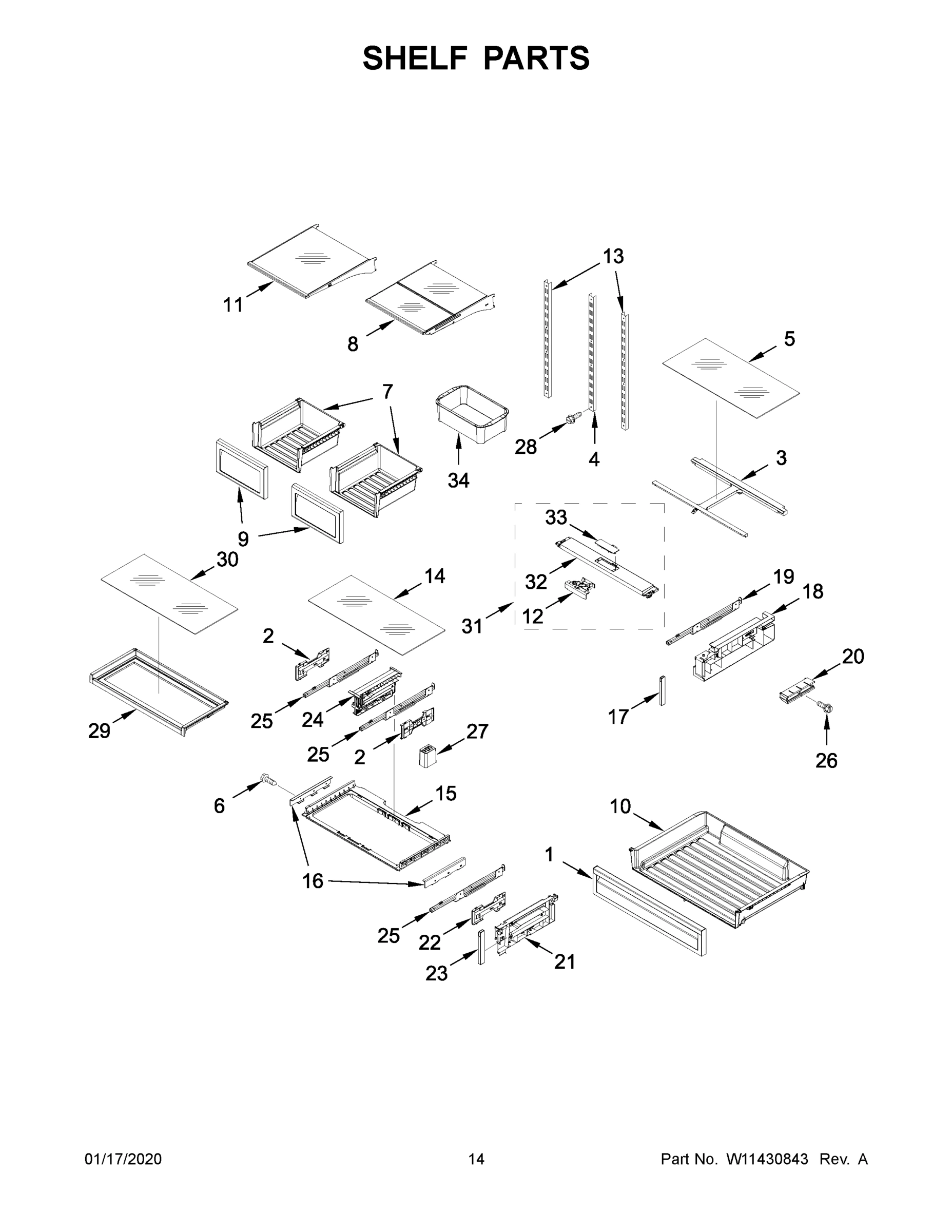

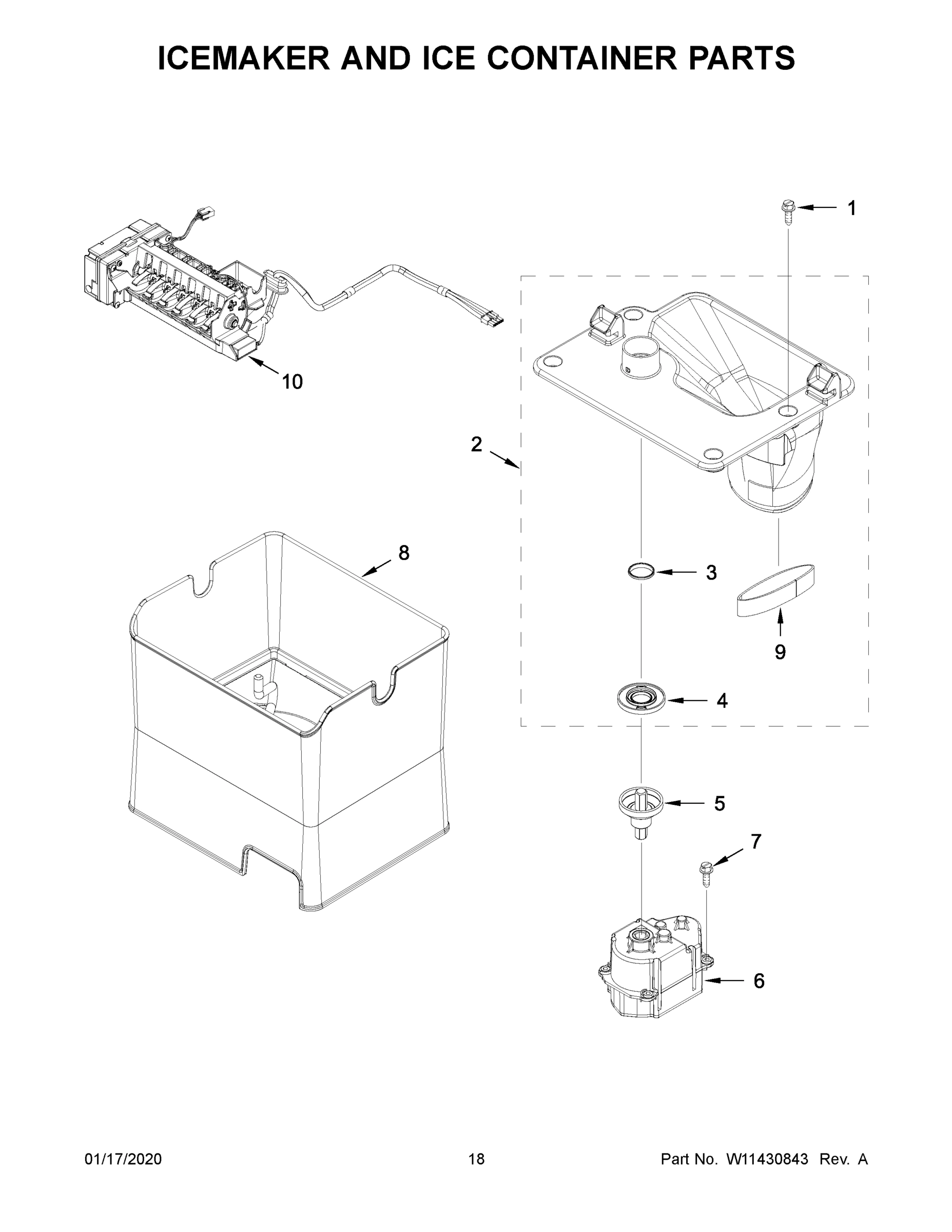

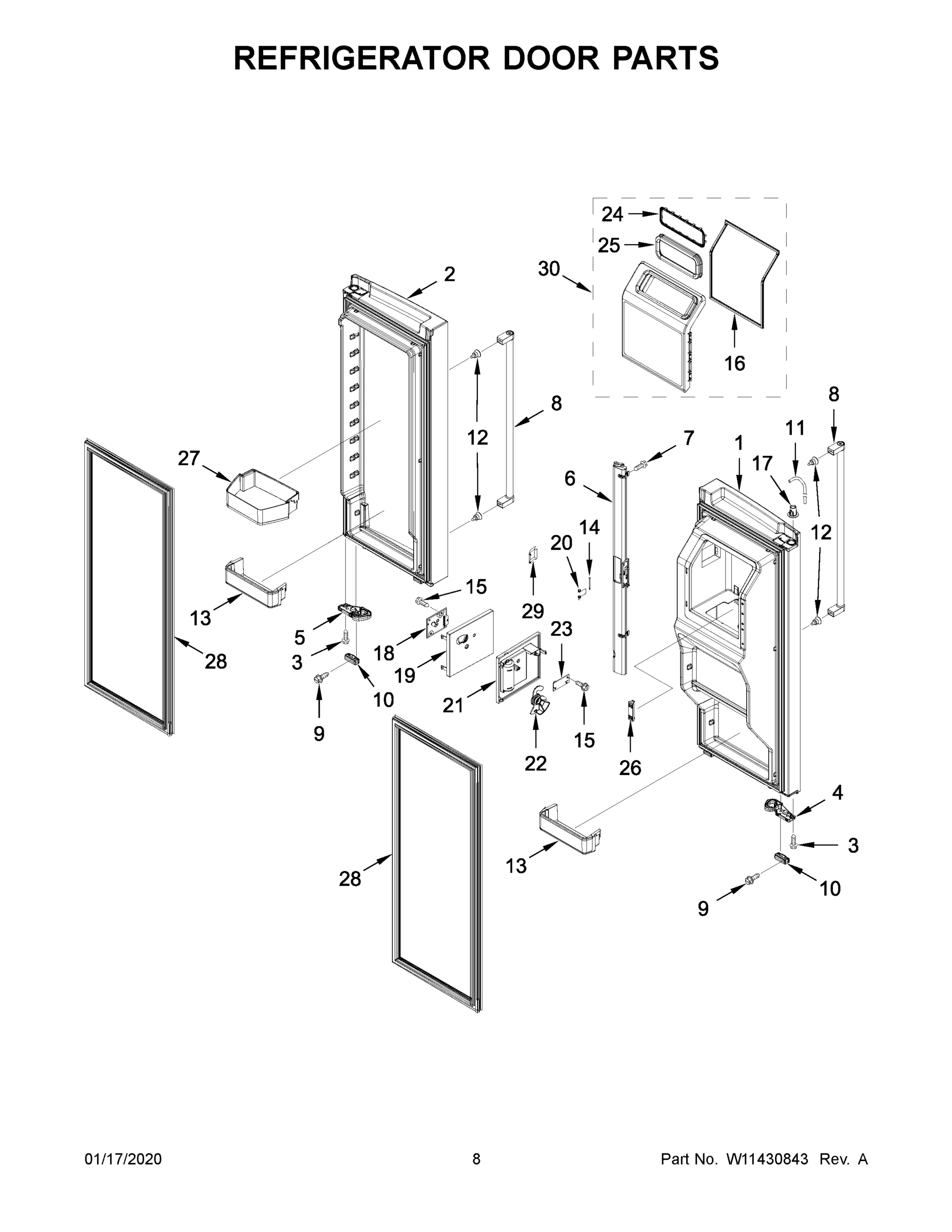

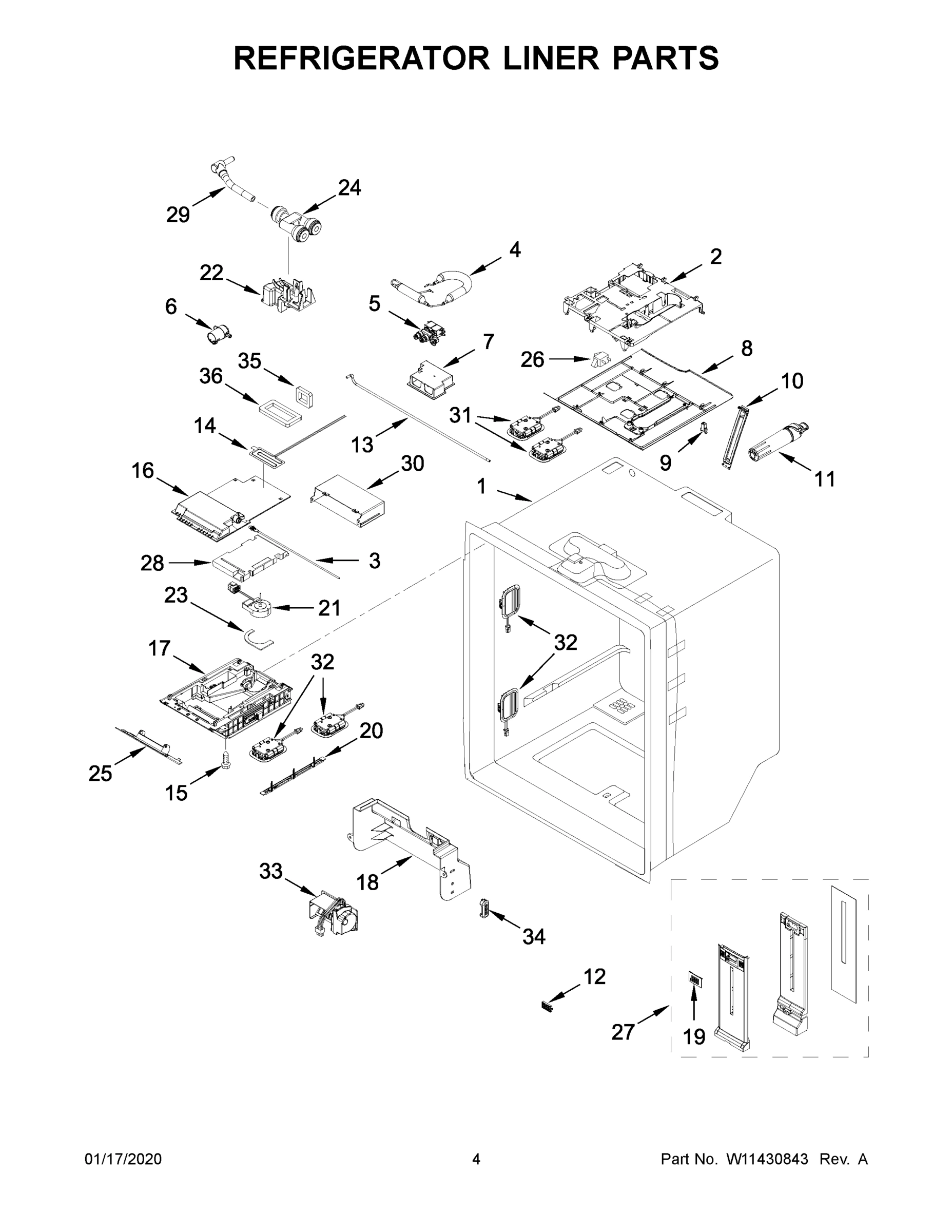

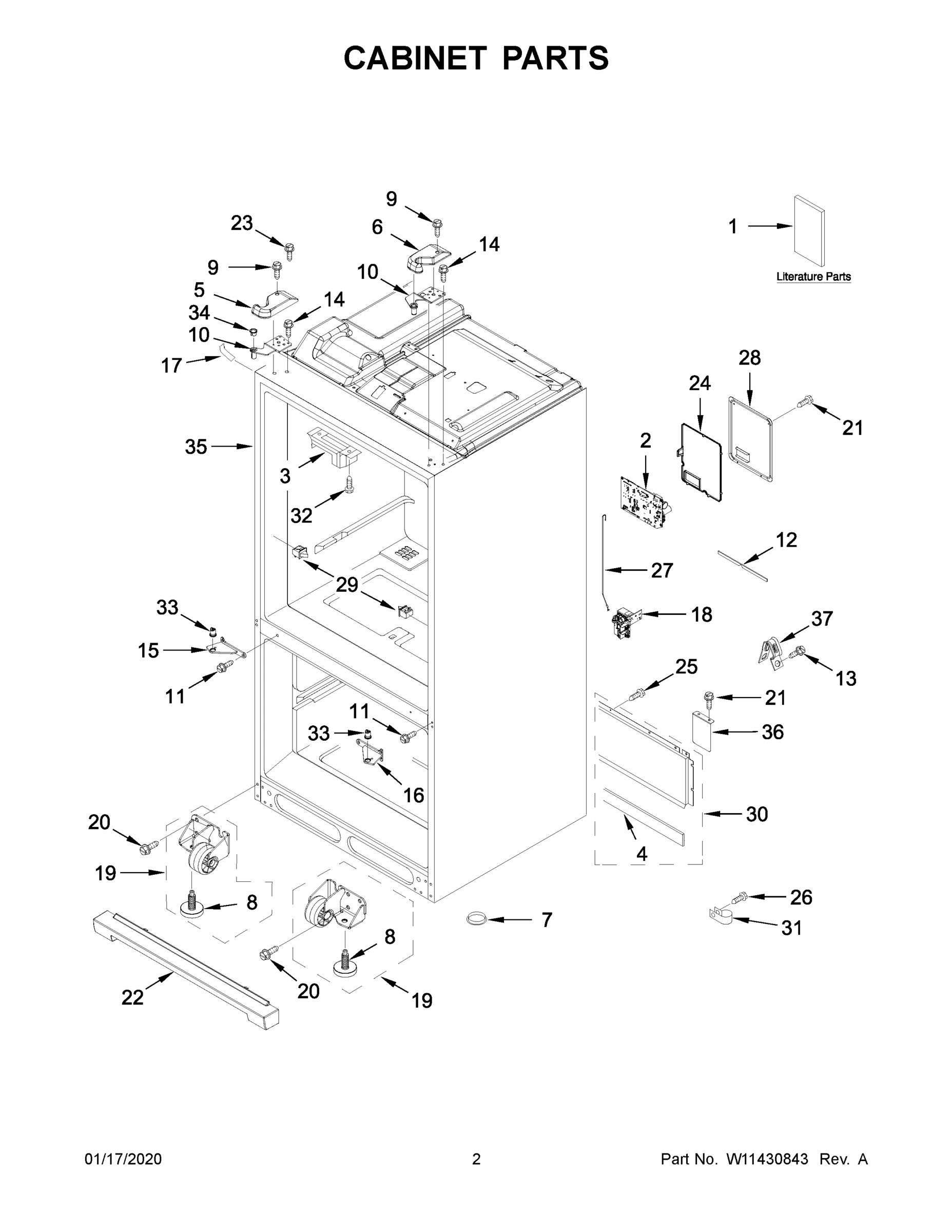

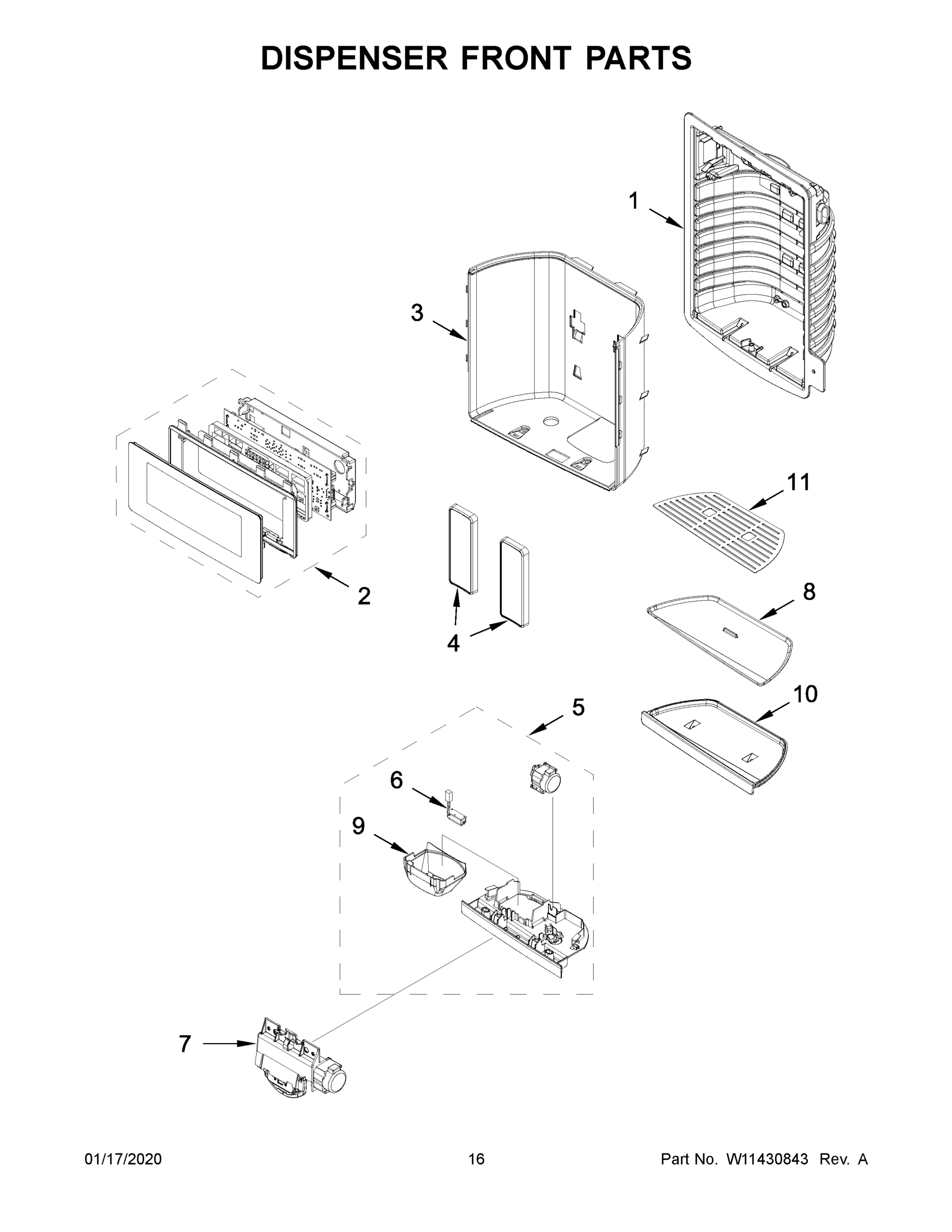

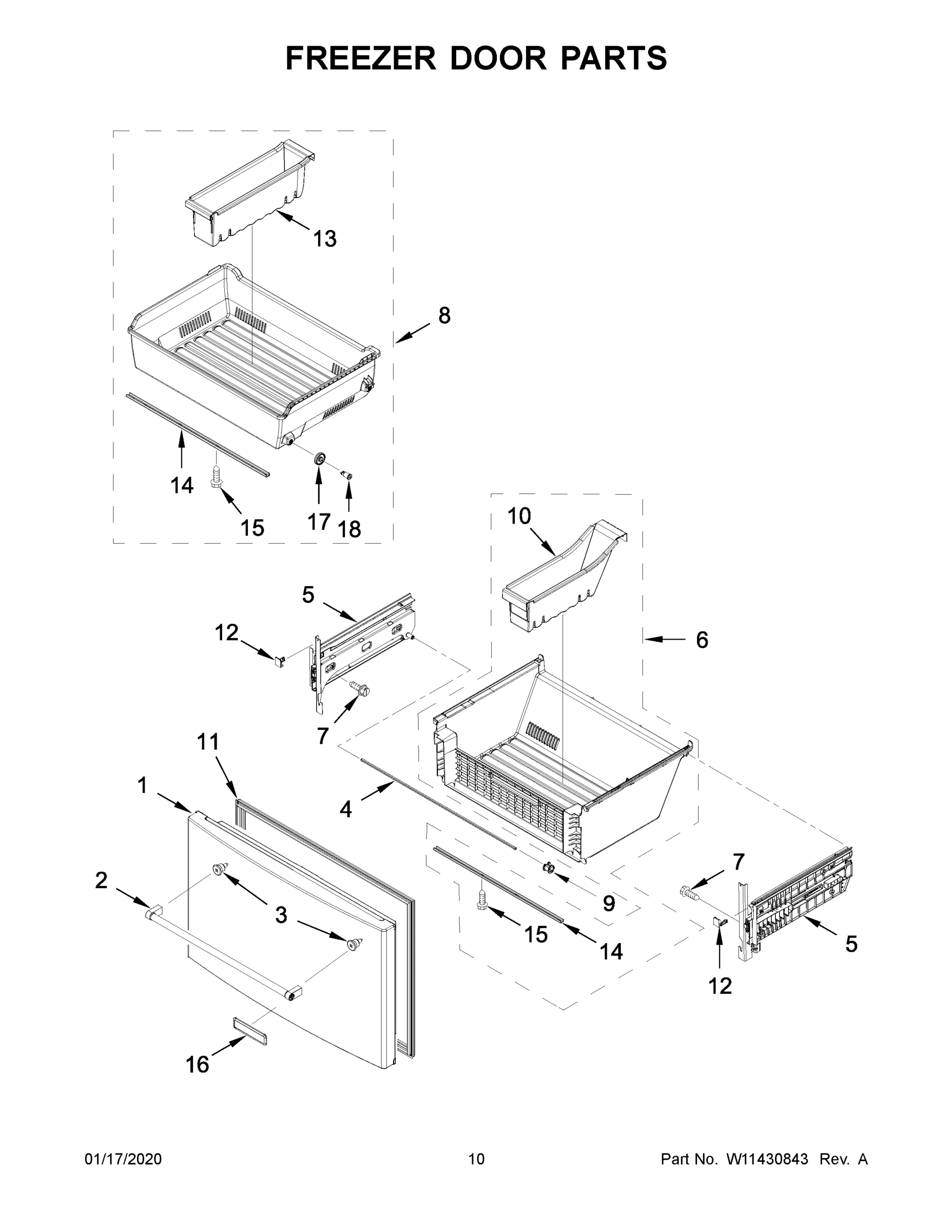

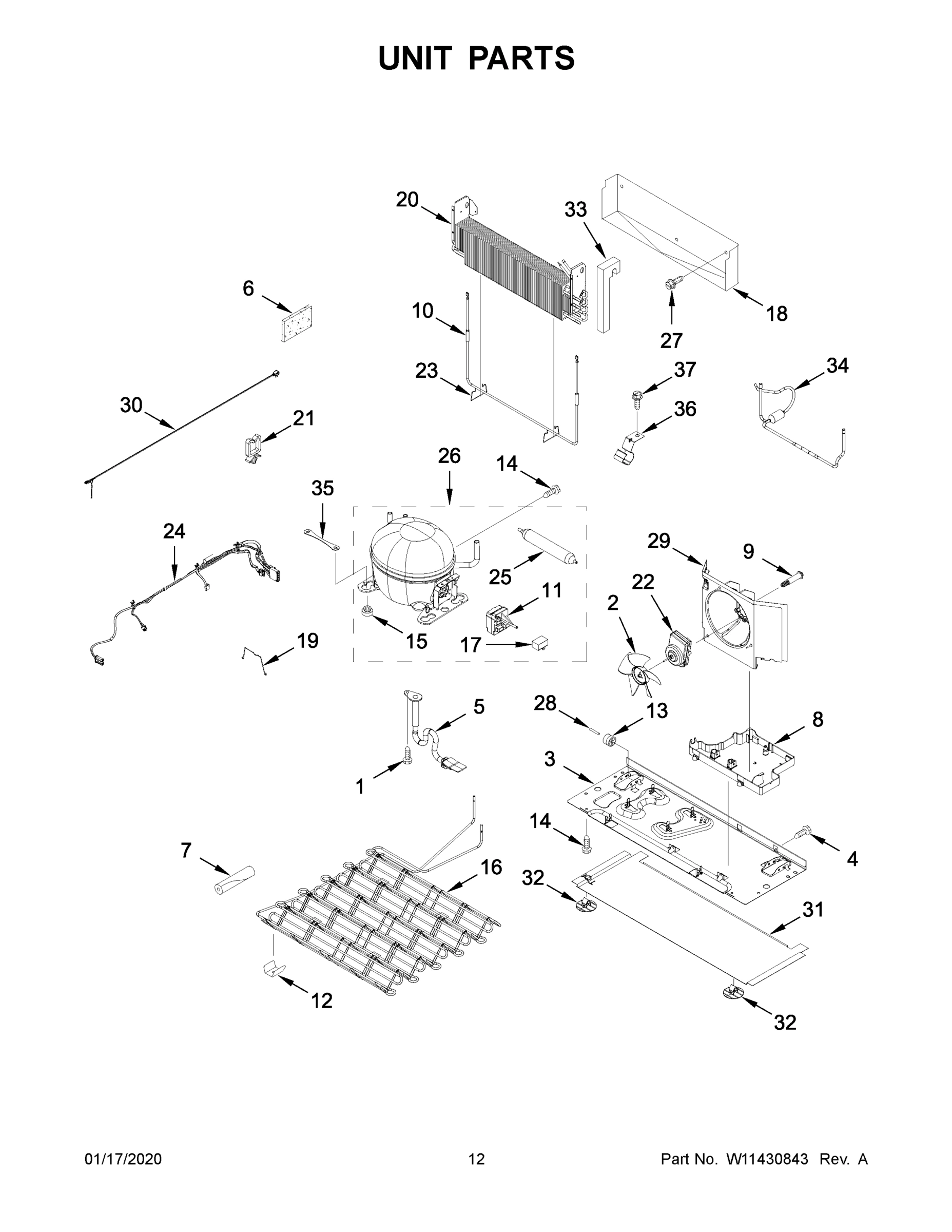

1

W11034025 Whirlpool Refrigerator Front Pan Backorder WPL W11034025 $116.16

1

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

2

W10530317 Whirlpool Refrigerator Plate In Stock WPL W10530317 $8.88

2

W11499276 Whirlpool Refrigerator Handle In Stock WPL W11499276 $98.17

2

W11551762 Whirlpool Refrigerator Plate Backorder WPL W11551762 $23.68

2

WP2188935 Whirlpool Refrigerator Fan Blade In Stock WPL WP2188935 $30.89

3

W10570074 Whirlpool Refrigerator Plate In Stock WPL W10570074 $57.67

3

W11683243 Whirlpool Module In Stock WPL W11683243 $109.68

3

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

3

WPW10344432 Whirlpool Pivot Block Backorder WPL WPW10344432 $6.37

3

WPW10486346 Whirlpool Refrigerator Shield Backorder WPL WPW10486346 $83.66

4

W10505487 Whirlpool Refrigerator Gasket Backorder WPL W10505487 $9.92

4

W10847834 Whirlpool Clip Backorder WPL W10847834 $5.42

4

W10904595 Whirlpool Refrigerator Closer Backorder WPL W10904595 $6.39

4

W11690163 Whirlpool Refrigerator Evaporator C Backorder WPL W11690163 $82.54

4

W11690685 Whirlpool Ladder Backorder WPL W11690685 $31.26

4

WPW10346924 Whirlpool Refrigerator Pad In Stock WPL WPW10346924 $128.12

4

WPW10503522 Whirlpool Refrigerator Shaft Backorder WPL WPW10503522 $33.49

5

W10836794 Whirlpool Refrigerator Separator Backorder WPL W10836794 $77.38

5

W11212164 Whirlpool Refrigerator Door Closer Backorder WPL W11212164 $6.13

5

W11509548 Whirlpool Ice Bucket Coupler In Stock WPL W11509548 $10.87

5

W11712703 Whirlpool Extension Assembly Backorder WPL W11712703 $17.22

5

WPW10341329 Whirlpool Refrigerator Water Valv In Stock WPL WPW10341329 $49.20

6

W10594047 Whirlpool Refrigerator Freezer Bin Backorder WPL W10594047 $125.65

6

WPW10407158 Whirlpool Refrigerator Cover Asse Backorder WPL WPW10407158 $14.05

7

W10811115 Whirlpool Refrigerator Cover Backorder WPL W10811115 $41.14

7

W10919809 Whirlpool Refrigerator Crisper Pan Backorder WPL W10919809 $85.56

7

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.86

7

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

7

WPW10606117 Whirlpool Refrigerator Ice Door In Stock WPL WPW10606117 $73.09

8

W10402269 Whirlpool Refrigerator Insert Backorder WPL W10402269 $37.06

8

W10704090 Whirlpool Refrigerator Freezer Bin Backorder WPL W10704090 $92.56

8

W11190820 Whirlpool Refrigerator Cover Backorder WPL W11190820 $41.14

8

W11225840 Whirlpool Refrigerator Evaporator T Backorder WPL W11225840 $56.42

8

W11483532 Whirlpool Refrigerator Handle In Stock WPL W11483532 $92.64

8

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.88

8

WPW10347093 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10347093 $190.87

8

WPW10737427 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10737427 $188.94

9

W10852685 Whirlpool Clip Assembly Backorder WPL W10852685 $3.62

9

W11094883 Whirlpool Refrigerator Front Pan In Stock WPL W11094883 $109.58

9

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $39.44

9

WPW10291905 Whirlpool Seal In Stock WPL WPW10291905 $9.97

9

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $8.45

W10507444 Whirlpool Refrigerator Divider Backorder WPL W10507444 $31.55

W11573367 Whirlpool Refrigerator Door Bumper Backorder WPL W11573367 $10.76

W11592405 Whirlpool Door Hinge Backorder WPL W11592405 $10.07

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $66.88

WPW10277949 Whirlpool Refrigerator Filter Cov Backorder WPL WPW10277949 $34.97

WPW10363507 Whirlpool Refrigerator Shroud Backorder WPL WPW10363507 $28.09

WPW10400887 Whirlpool Drip Tray Backorder WPL WPW10400887 $45.49

WPW10654844 Whirlpool Storage Drawer In Stock WPL WPW10654844 $81.79

10A

W11592404 Whirlpool Refrigerator Door Hinge Backorder WPL W11592404 $8.55

11

W10394073 Whirlpool Refrigerator Water Tube Backorder WPL W10394073 $44.19

11

WPW10542708 Whirlpool Refrigerator Grille Backorder WPL WPW10542708 $42.47

11

WPW10756310 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10756310 $144.16

12

W10415341 Whirlpool Refrigerator Gasket Backorder WPL W10415341 $12.92

12

W11449276 Whirlpool Handle Support In Stock WPL W11449276 $9.59

12

WPW10485096 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485096 $29.26

12A

WPW10485089 Whirlpool Refrigerator Pan Stop Backorder WPL WPW10485089 $29.26

13

W11106750 Whirlpool Refrigerator Trivet Backorder WPL W11106750 $56.96

13

W11686800 Whirlpool Water Tube In Stock WPL W11686800 $33.01

13

W11690684 Whirlpool Ladder Backorder WPL W11690684 $31.26

W10503218 Whirlpool Refrigerator Funnel Backorder WPL W10503218 $8.36

W11087201 Whirlpool Refrigerator Heater In Stock WPL W11087201 $52.08

W11126052 Whirlpool Screw Assembly In Stock WPL W11126052 $9.59

W11677723 Whirlpool Support Backorder WPL W11677723 $58.97

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

15

W10878115 Whirlpool Refrigerator Door Hinge Backorder WPL W10878115 $28.64

15

W11133643 Whirlpool Refrigerator Frame Backorder WPL W11133643 $106.28

W10876598 Whirlpool Refrigerator Nameplate In Stock WPL W10876598 $32.83

W11133647 Whirlpool Refrigerator Rail Backorder WPL W11133647 $52.26

W11240748 Whirlpool Refrigerator Door Hinge Backorder WPL W11240748 $27.89

W11624997 Whirlpool Refrigerator Gasket Backorder WPL W11624997 $38.14

CONDENSER Backorder WPL W11760073 $68.62

WPW10598013 Whirlpool Refrigerator Cover In Stock WPL WPW10598013 $53.91

16A

W11133648 Whirlpool Refrigerator Rail Backorder WPL W11133648 $52.26

W10467416 Whirlpool Refrigerator Trim Backorder WPL W10467416 $12.65

W11242954 Whirlpool Refrigerator Ice Box In Stock WPL W11242954 $124.78

W11578839 Whirlpool Roller In Stock WPL W11578839 $5.38

W11661208 Whirlpool Cover Assembly Backorder WPL W11661208 $10.76

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

WPW10350564 Whirlpool Refrigerator Freezer Ca In Stock WPL WPW10350564 $45.07

W10898445-includeCORE Whirlpool W10898445 Ref Backorder WPL W10898445-includeCORE $199.02

W11573594 Whirlpool Refrigerator Axle Backorder WPL W11573594 $6.90

WPW10498906 Whirlpool Refrigerator Plate Backorder WPL WPW10498906 $44.45

COVER, DAMPER WPL W10530312 Contact Us For Availability

TRAY, DRIP WPL W10342573 Contact Us For Availability

19

W10499289 Whirlpool Refrigerator Slide Backorder WPL W10499289 $125.05

19

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $37.73

19

COVER, RECEIVER WPL W10258510 Contact Us For Availability

19A

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $37.39

19A

SLIDE, PANTRY (RIGHT HAND) WPL W10499294 Contact Us For Availability

20

W10432697 Whirlpool Refrigerator Insulation Backorder WPL W10432697 $8.45

20

W10505516 Whirlpool Refrigerator Trim Backorder WPL W10505516 $12.83

20

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

21

W10258502 Whirlpool Refrigerator Cover Backorder WPL W10258502 $33.16

21

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

21A

W11315180 Whirlpool Refrigerator Plate Backorder WPL W11315180 $13.36

W10258540 Whirlpool Refrigerator Slide Backorder WPL W10258540 $6.77

W10530316 Whirlpool Refrigerator Plate Backorder WPL W10530316 $9.46

W10713934 Whirlpool Refrigerator Bracket Backorder WPL W10713934 $26.54

WPW10637671 Whirlpool Refrigerator Front Gril In Stock WPL WPW10637671 $54.50

23

W10467415 Whirlpool Refrigerator Trim Backorder WPL W10467415 $27.60

23

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

23

WPW10392172 Whirlpool Refrigerator Gasket Backorder WPL WPW10392172 $9.70

W10530307 Whirlpool Refrigerator Track Backorder WPL W10530307 $30.62

W10768379 Whirlpool Refrigerator Cover Backorder WPL W10768379 $41.47

W11171078 Whirlpool Refrigerator Wire Harness Backorder WPL W11171078 $62.05

W11209438 Whirlpool Refrigerator Connector Backorder WPL W11209438 $13.16

WPW10400825 Whirlpool Refrigerator Retainer Backorder WPL WPW10400825 $10.61

25

W11233912 Whirlpool Refrigerator Slide In Stock WPL W11233912 $107.01

25

W11637688 Whirlpool Heater In Stock WPL W11637688 $39.53

25

WPW10347087 Whirlpool Refrigerator Ice Chute In Stock WPL WPW10347087 $19.51

27

W10530315 Whirlpool Refrigerator Support Backorder WPL W10530315 $7.67

27

W11098862 Whirlpool Refrigerator Cantilever B Backorder WPL W11098862 $61.70

28

W10423560 Whirlpool Refrigerator Screw Backorder WPL W10423560 $9.59

28

W10754144 Whirlpool Refrigerator Cover Backorder WPL W10754144 $34.13

28

WPW10280983 Whirlpool Refrigerator Insulation In Stock WPL WPW10280983 $30.98

29

W10723352 Whirlpool Refrigerator Water Tube Backorder WPL W10723352 $45.71

29

WPW10258520 Whirlpool Refrigerator Flipper Backorder WPL WPW10258520 $30.34

29

WPW10406719 Whirlpool Refrigerator Shroud Backorder WPL WPW10406719 $26.19

30

W11482027 Whirlpool Refrigerator Back Cover Backorder WPL W11482027 $42.90

30

WPW10635022 Whirlpool Refrigerator Adapter Backorder WPL WPW10635022 $40.02

31

W10278140 Whirlpool Refrigerator Unit Cover Backorder WPL W10278140 $49.50

31

W11683244 Whirlpool LED Module Service Kit In Stock WPL W11683244 $155.48

32

W10815861 Whirlpool Refrigerator Clip Backorder WPL W10815861 $6.90

32

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

33

W10491355 Whirlpool Refrigerator Air Gasket Backorder WPL W10491355 $9.24

33

WPW10479155 Whirlpool Refrigerator Control In Stock WPL WPW10479155 $58.27

33

COUPLER, DOOR WPL W10505294 Contact Us For Availability

34

W10212137 Whirlpool Refrigerator Grommet Backorder WPL W10212137 $7.78

34

W11238397 Whirlpool Refrigerator Cover Backorder WPL W11238397 $10.76

34

WPW10248856 Whirlpool Refrigerator Cantilever Backorder WPL WPW10248856 $46.54

35

W10236396 Whirlpool Refrigerator Strap In Stock WPL W10236396 $7.81

35

WPW10320706 Whirlpool Refrigerator Gasket In Stock WPL WPW10320706 $9.75

36

WPW10280988 Whirlpool Refrigerator Gasket In Stock WPL WPW10280988 $3.70

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $23.08

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $7.85

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WPL W10917540 WPL W10917540 Contact Us For Availability

MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" WPL 876029 Contact Us For Availability

MISCELLANEOUS, TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability

TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
