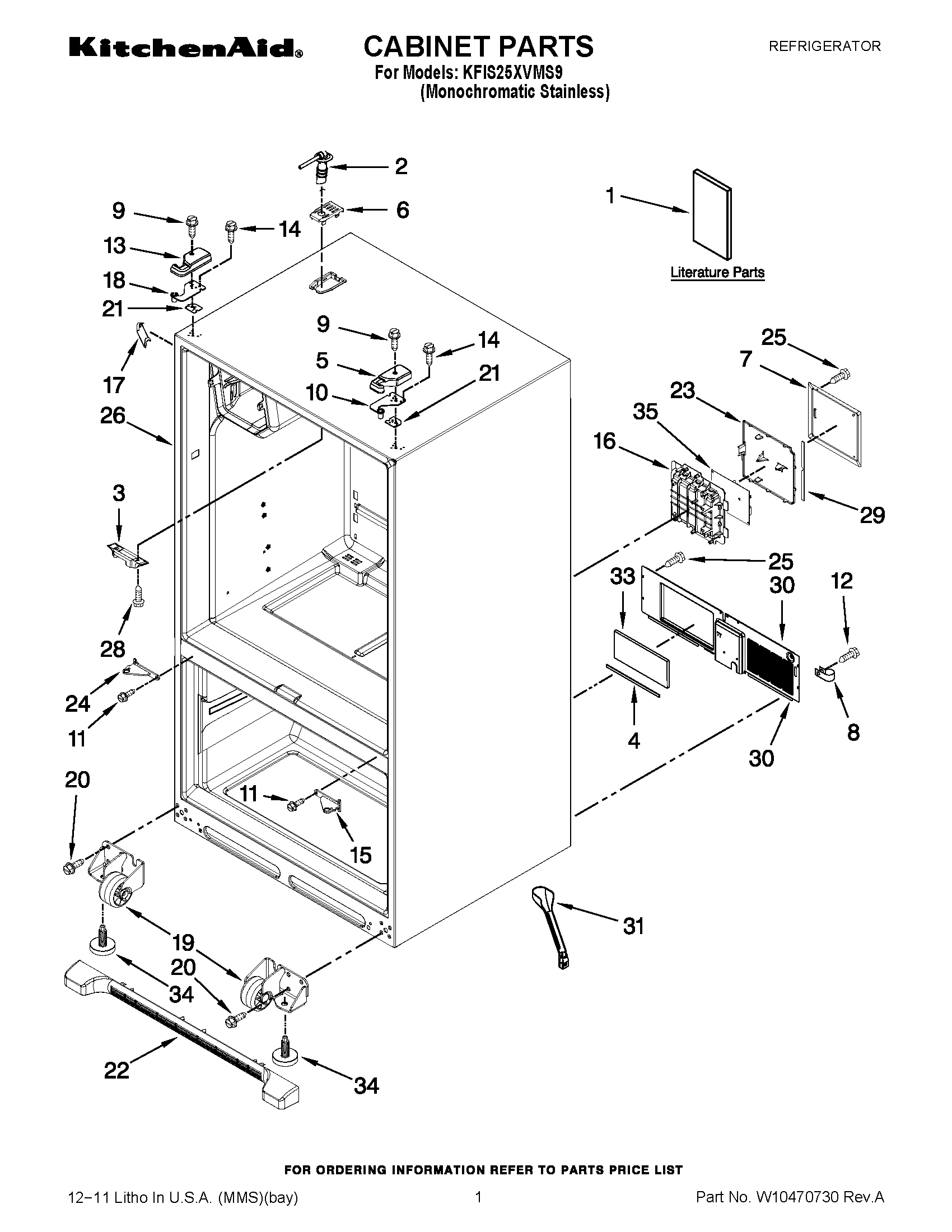

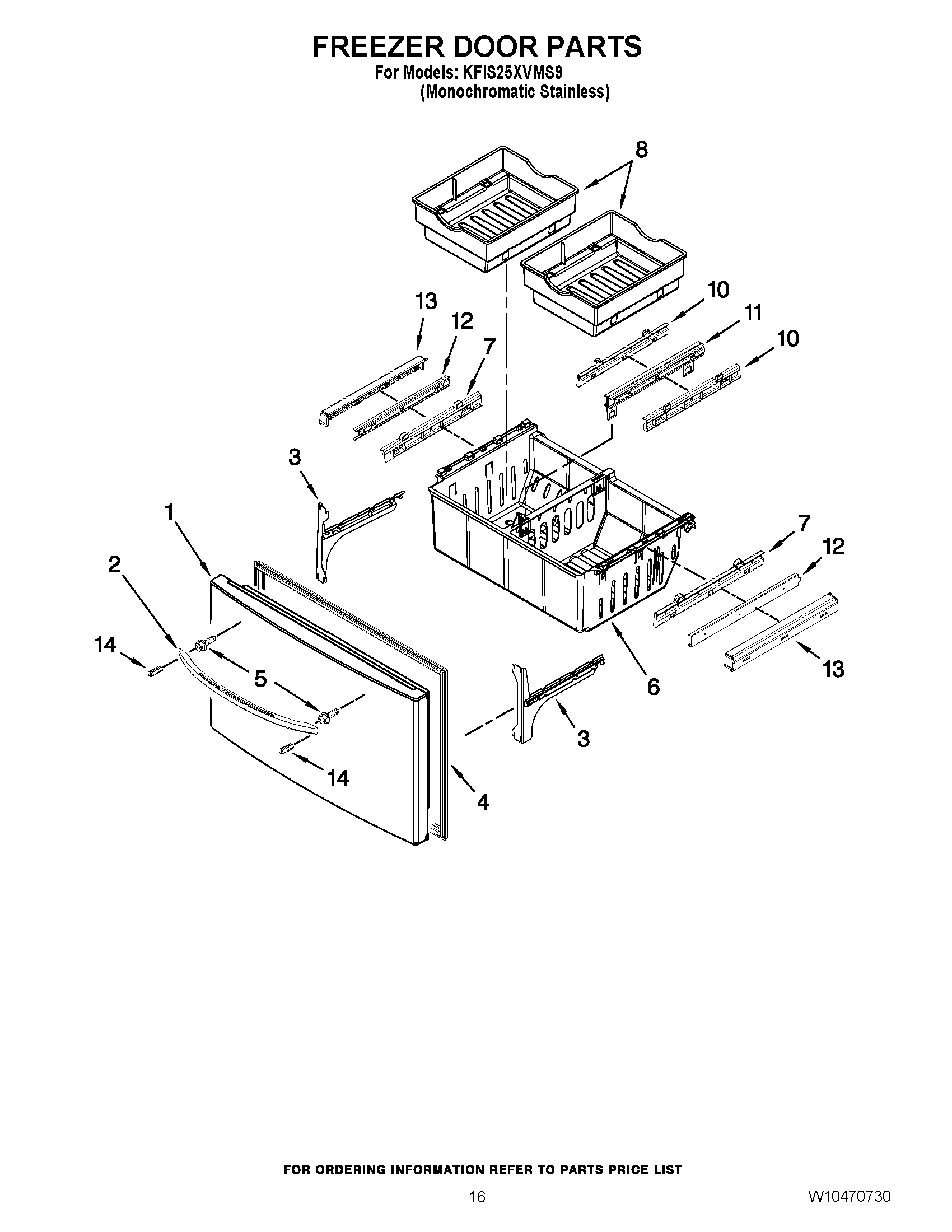

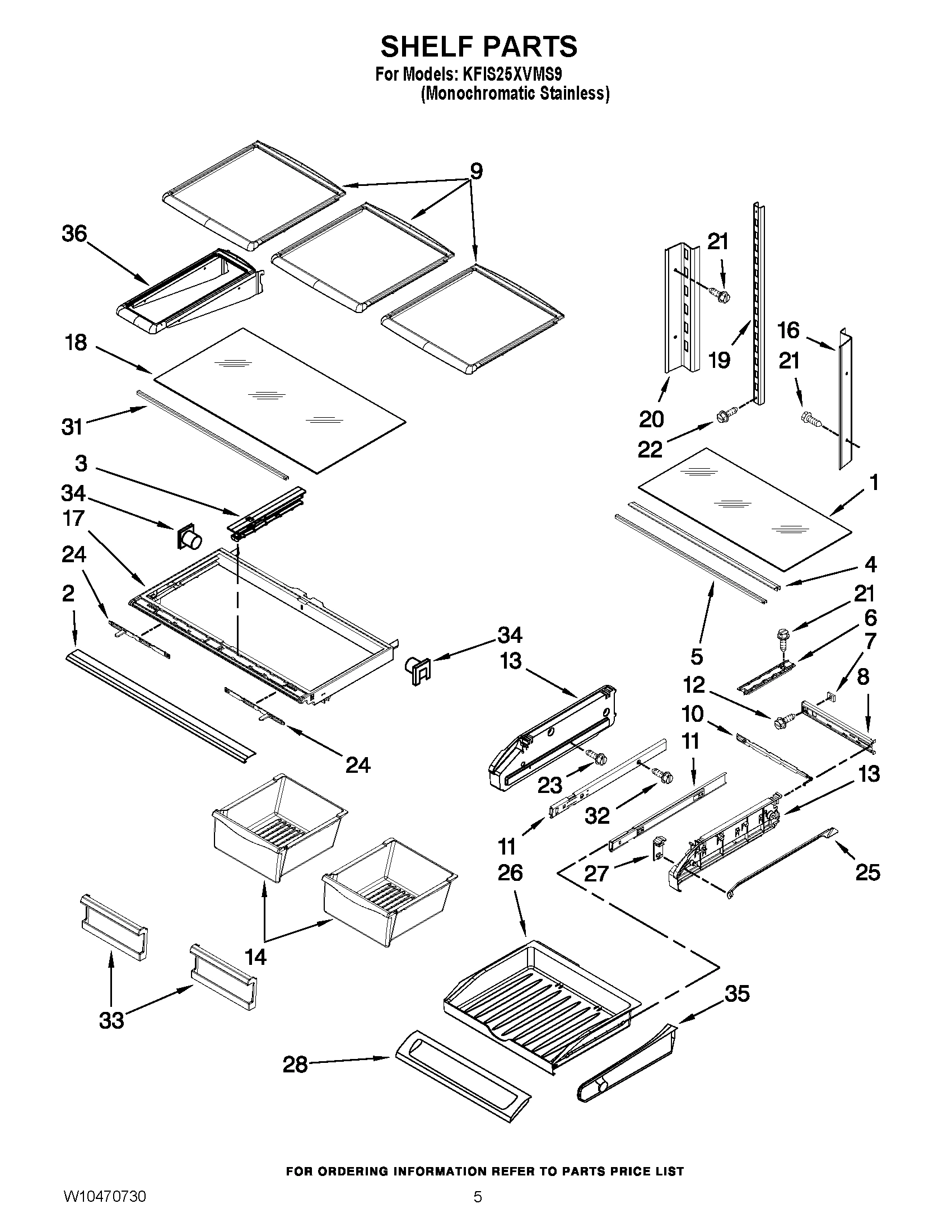

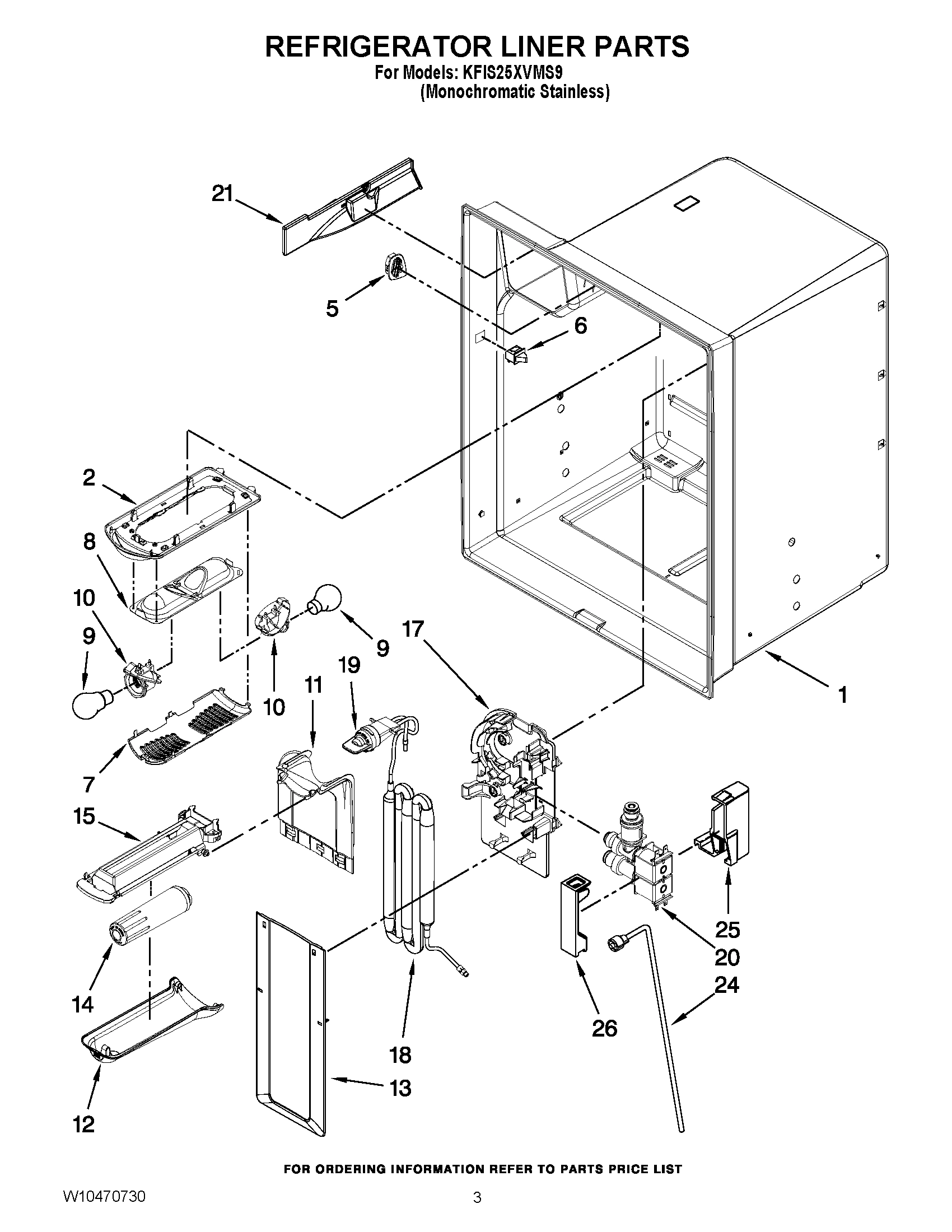

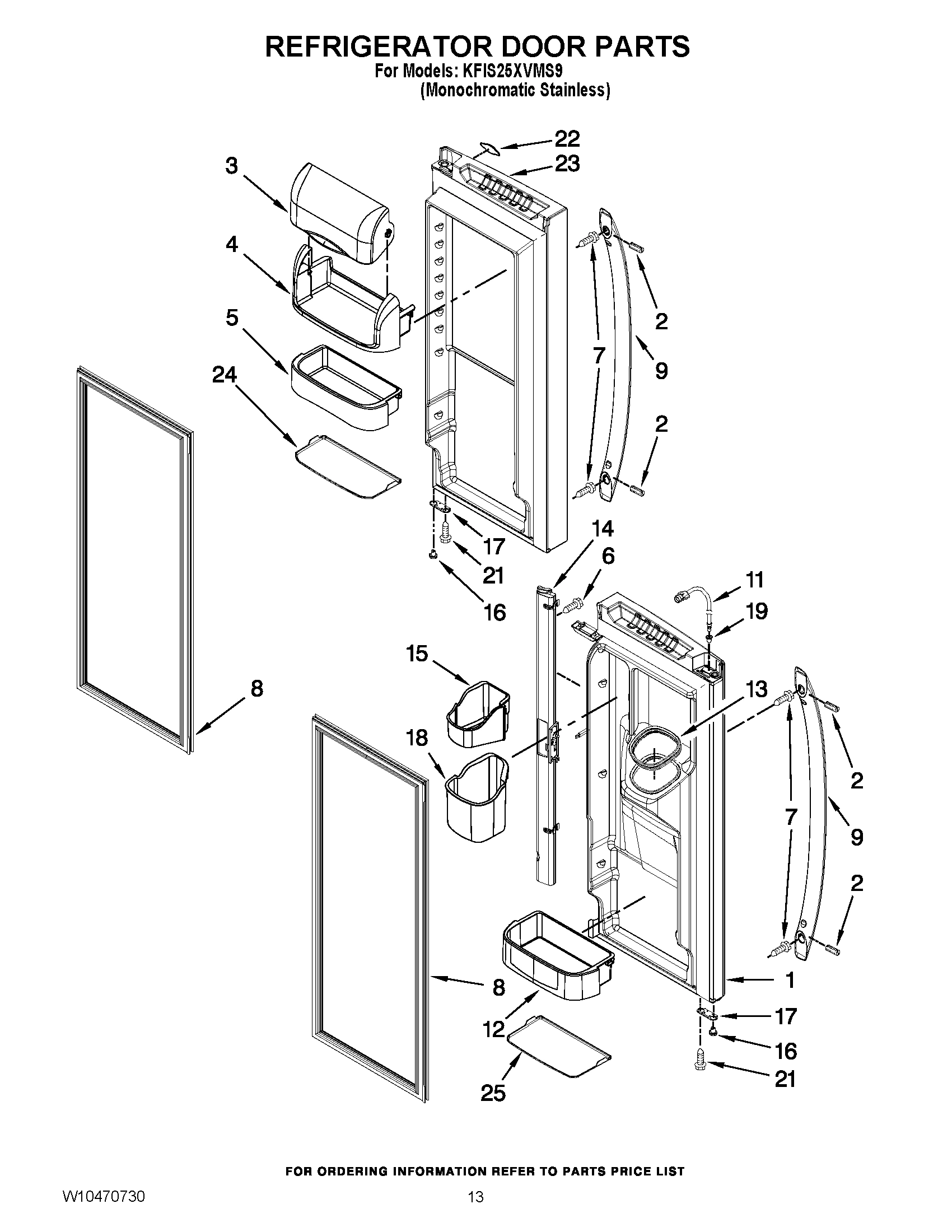

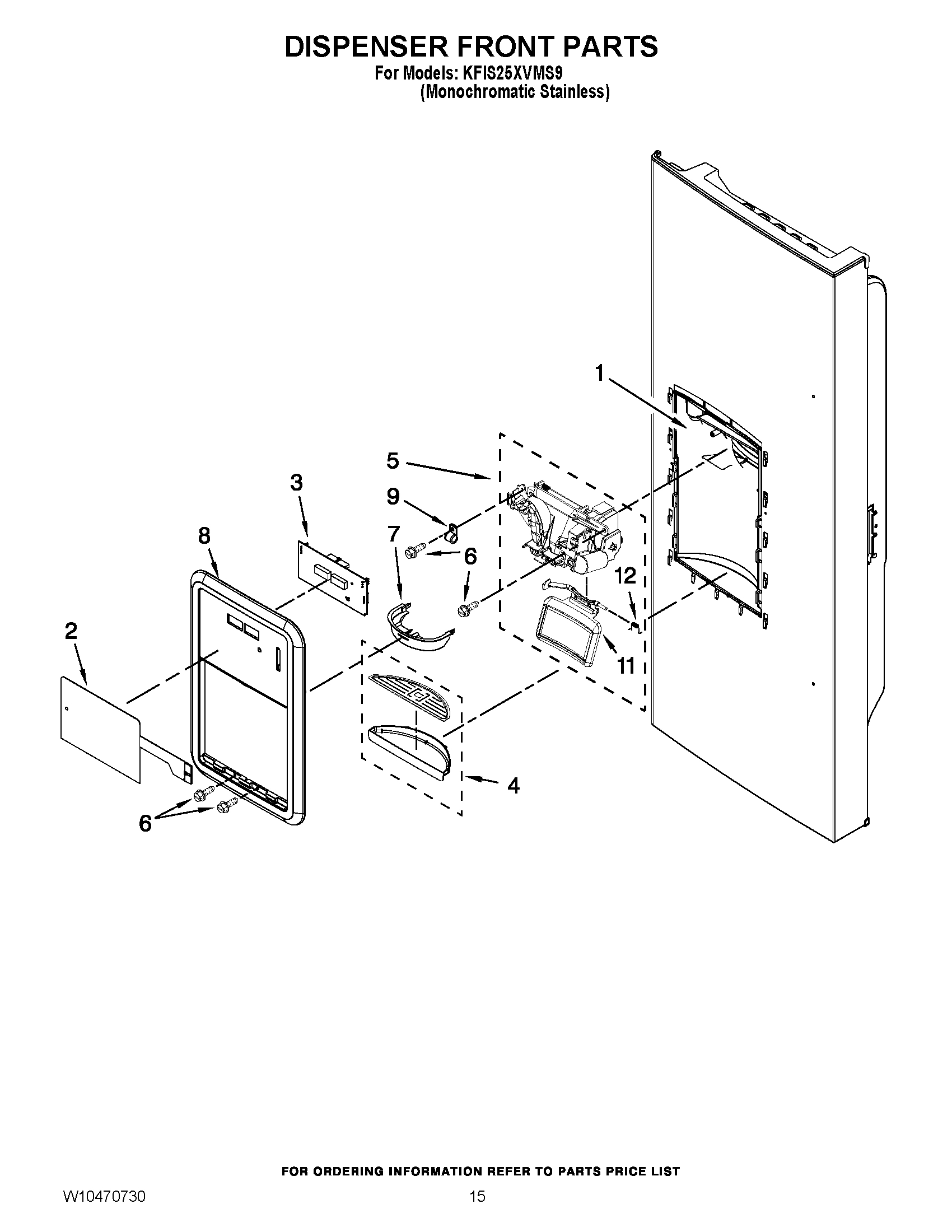

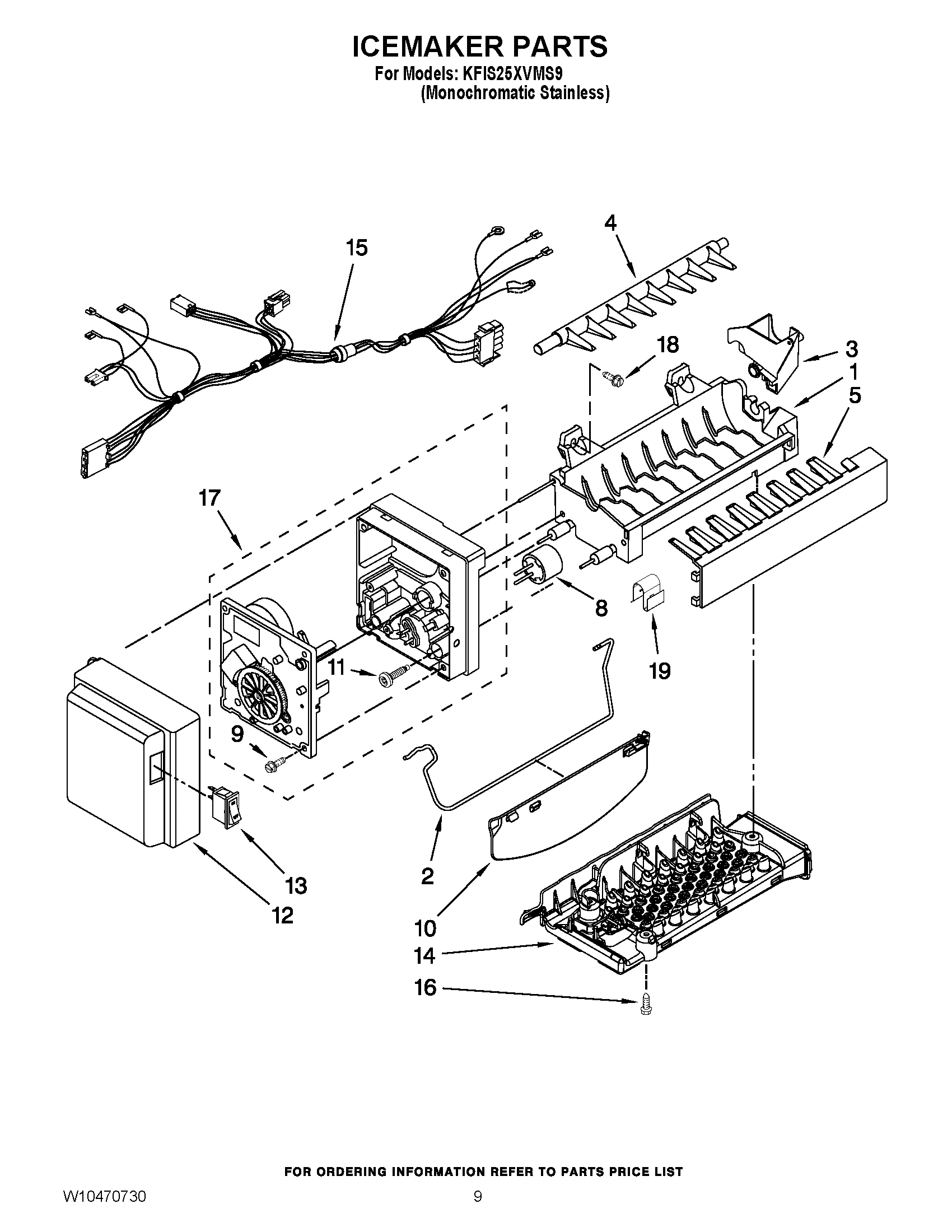

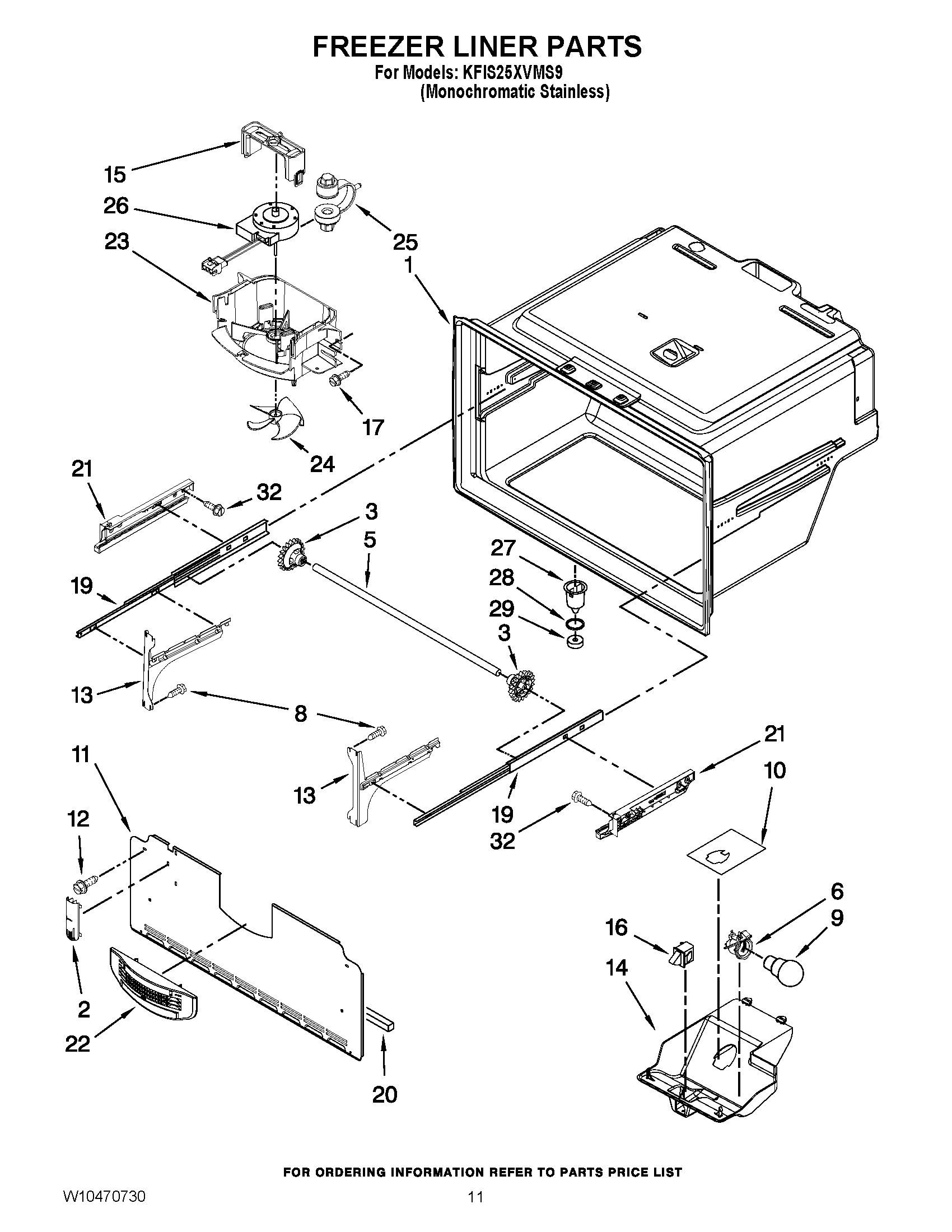

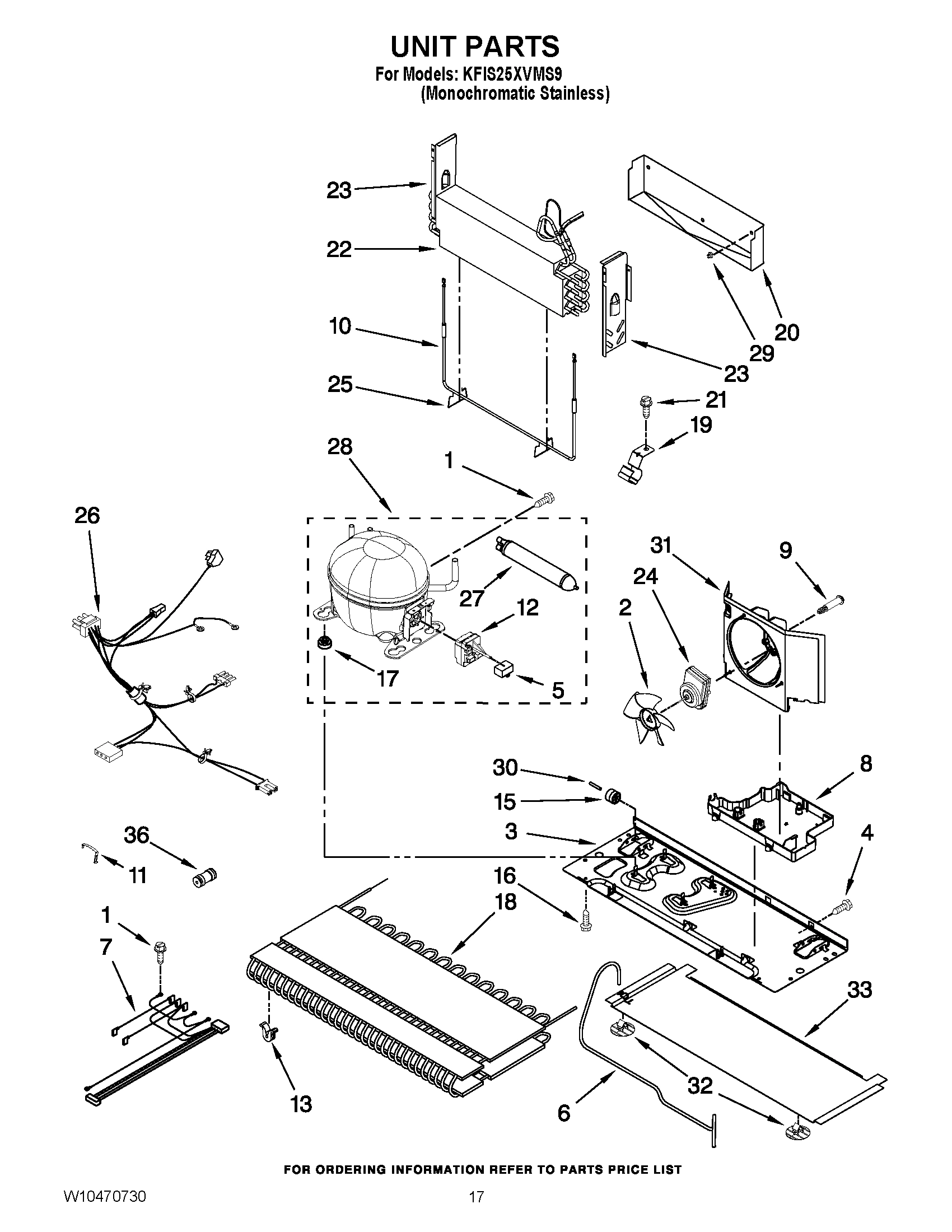

Model Whirlpool KFIS25XVMS9 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11033333 Whirlpool Glass Shelf Backorder WPL W11033333 $127.18

1

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $90.86

1

WPW10324090 Whirlpool Refrigerator Ice Bin In Stock WPL WPW10324090 $212.66

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.16

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

2

WPW10378254 Whirlpool Refrigerator Shut Off A In Stock WPL WPW10378254 $26.21

2

TRIM, CRISPER WPL W10231484 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

W10121281 Whirlpool Refrigerator Shroud Backorder WPL W10121281 $26.21

3

W10377998 Whirlpool Refrigerator Cup Fill Backorder WPL W10377998 $28.57

3

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $11.36

3

Board, L.V. WPL 13053103SP Contact Us For Availability

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $13.89

4

WP67006010 Whirlpool Refrigerator Shelf Trim Backorder WPL WP67006010 $87.59

4

WPW10162697 Whirlpool Refrigerator Motor Backorder WPL WPW10162697 $113.74

4

SUMP, DISPENSER (STAINLESS) WPL W10448627 Contact Us For Availability

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $42.82

5

WP13005705 Whirlpool Refrigerator Chute Backorder WPL WP13005705 $181.70

5

WPW10119841 Whirlpool Cantilever Bin In Stock WPL WPW10119841 $44.91

5

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

6

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

6

WPW10233569 Whirlpool Refrigerator Tube Backorder WPL WPW10233569 $43.19

7

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $39.14

7

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $10.76

7

Grommet, Fan Motor WPL W10151687 Contact Us For Availability

8

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $52.78

8

W10356556 Whirlpool Refrigerator Divider Backorder WPL W10356556 $48.35

8

W10443023 Whirlpool Refrigerator Housing Backorder WPL W10443023 $37.83

8

WP12924903 Whirlpool Refrigerator Freezer Bin Backorder WPL WP12924903 $67.98

8

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

8

FACADE, DISPENSER (APOLLO GREY) WPL W10310691 Contact Us For Availability

9

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.01

9

W11402525 Whirlpool Glass Shelf Backorder WPL W11402525 $118.14

12925404SP Whirlpool Refrigerator Bracket Backorder WPL 12925404SP $20.64

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

W11592374 Whirlpool Refrigerator Top Door Hin Backorder WPL W11592374 $10.07

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $65.49

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $75.66

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $26.96

WPW10351019 Whirlpool Refrigerator Extension In Stock WPL WPW10351019 $27.03

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10275942 Whirlpool Refrigerator Water Tube Backorder WPL W10275942 $43.13

W10308421 Whirlpool Refrigerator Evaporator C Backorder WPL W10308421 $102.86

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

WPW10127427 Whirlpool Refrigerator Control In Stock WPL WPW10127427 $65.37

WPW10185233 Whirlpool Refrigerator Pad In Stock WPL WPW10185233 $34.95

WPW10235357 Whirlpool Refrigerator Glide Asse Backorder WPL WPW10235357 $144.39

WPW10235370 Whirlpool Refrigerator Glide In Stock WPL WPW10235370 $108.35

WPW10119846 Whirlpool Refrigerator Door Bin S In Stock WPL WPW10119846 $46.57

WPW10194431 Whirlpool Start Device In Stock WPL WPW10194431 $58.28

WPW10235367 Whirlpool Refrigerator Glide Backorder WPL WPW10235367 $131.97

WPW10460384 Whirlpool Front Cover Assembly Backorder WPL WPW10460384 $10.25

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $16.87

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $12.77

WP2313326 Whirlpool Refrigerator Switch Backorder WPL WP2313326 $7.94

WPW10330994 Whirlpool Refrigerator Bracket Backorder WPL WPW10330994 $54.13

WPW10330995 Whirlpool Refrigerator Bracket Backorder WPL WPW10330995 $108.21

EDR4RXD1 Whirlpool EveryDrop„¢ Filter 4 Re In Stock WPL EDR4RXD1 $55.44

W11434460 Whirlpool Refrigerator Housing Backorder WPL W11434460 $12.39

WP67004515 Whirlpool Crisper Drawer In Stock WPL WP67004515 $87.12

WPW10312691 Whirlpool Refrigerator Air Baffle In Stock WPL WPW10312691 $116.63

15

W11029429 Whirlpool Refrigerator Wire Harness Backorder WPL W11029429 $112.99

16

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

16

W10251965 Whirlpool Refrigerator Ladder Backorder WPL W10251965 $11.38

16

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $29.12

17

W10882923 Whirlpool Refrigerator Ice Maker As In Stock WPL W10882923 $92.55

17

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

17

WPW10329866 Whirlpool Frame In Stock WPL WPW10329866 $112.59

18

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

18

WP67006704 Whirlpool Glass Crisper Cover In Stock WPL WP67006704 $119.56

18

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.91

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $6.92

W10273464 Whirlpool Refrigerator Ladder Backorder WPL W10273464 $11.03

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $24.32

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

W10251966 Whirlpool Refrigerator Ladder Backorder WPL W10251966 $28.80

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $29.39

WPW10312696 Whirlpool Water Inlet Valve In Stock WPL WPW10312696 $113.26

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $33.89

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $34.28

WPW10284682 Whirlpool Refrigerator Bracket Backorder WPL WPW10284682 $47.84

WPW10284683 Whirlpool Refrigerator Bracket In Stock WPL WPW10284683 $72.92

WPW10309869 Whirlpool Refrigerator Cover Backorder WPL WPW10309869 $39.13

22

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

22

W11536253 Whirlpool Refrigerator Evaporator Backorder WPL W11536253 $105.14

22

WPW10243391 Whirlpool Refrigerator Nameplate Backorder WPL WPW10243391 $26.90

23

W10296536 Whirlpool Refrigerator Cover Backorder WPL W10296536 $34.66

23

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $3.70

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $35.52

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

WPW10444033 Whirlpool Refrigerator Water Tube Backorder WPL WPW10444033 $41.38

W10118193 Whirlpool Refrigerator Cover Backorder WPL W10118193 $28.80

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

WP67003795 Whirlpool Refrigerator Temperature Backorder WPL WP67003795 $3.70

26

W10850438 Whirlpool Refrigerator Evaporator M Backorder WPL W10850438 $160.43

26

WP67003531 Whirlpool Drawer Assembly In Stock WPL WP67003531 $91.17

27

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $11.14

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

28

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

28

WP67005930 Whirlpool Refrigerator Pantry Draw In Stock WPL WP67005930 $46.10

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

30

WPW10270394 Whirlpool Refrigerator Back Cover Backorder WPL WPW10270394 $77.72

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $27.80

31

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $43.11

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

32

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

33

Fiber, Acoustic WPL 12820505 Contact Us For Availability

33

FRONT, CRISPER WPL 12909404SP Contact Us For Availability

34

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $28.80

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

35

WP67002759 Whirlpool Refrigerator Divider In Stock WPL WP67002759 $27.10

36

W11197490 Whirlpool Refrigerator Cantilever S Backorder WPL W11197490 $127.18

36

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11033771 Whirlpool Refrigerator Coupling Backorder WPL W11033771 $13.21

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
