Model Whirlpool KEYE960WWH0 – Common Parts & Diagrams

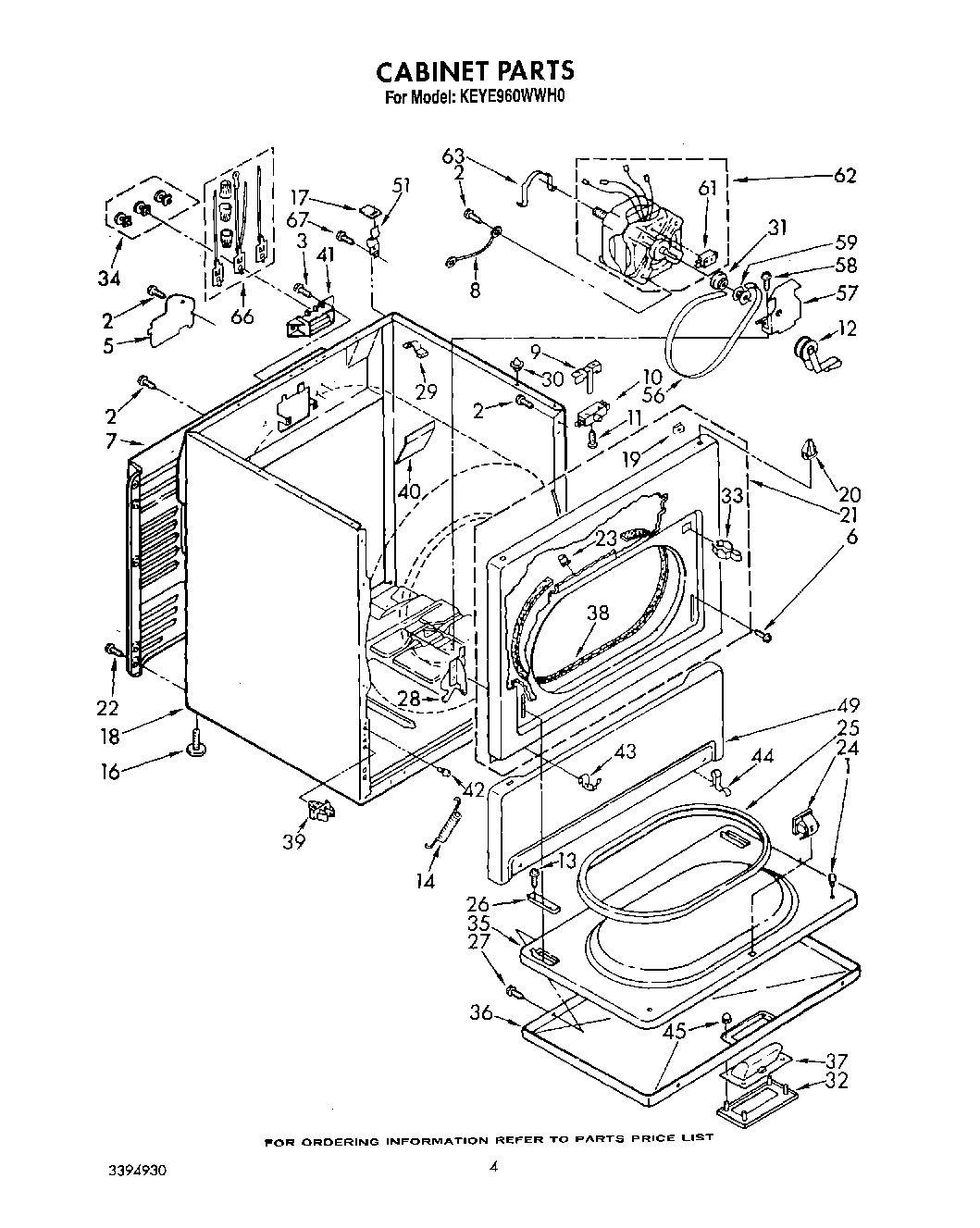

03 - SECTION

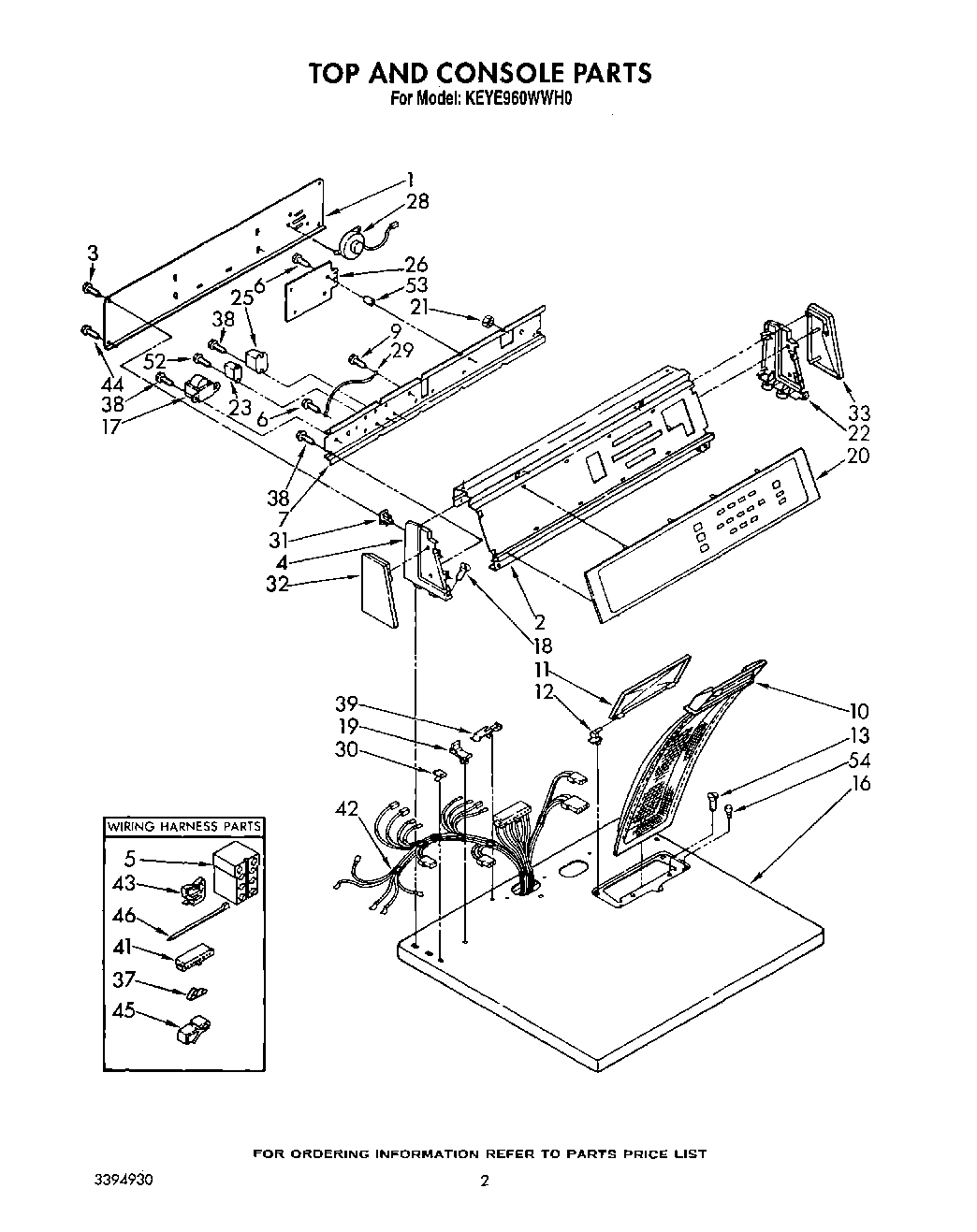

02 - SECTION

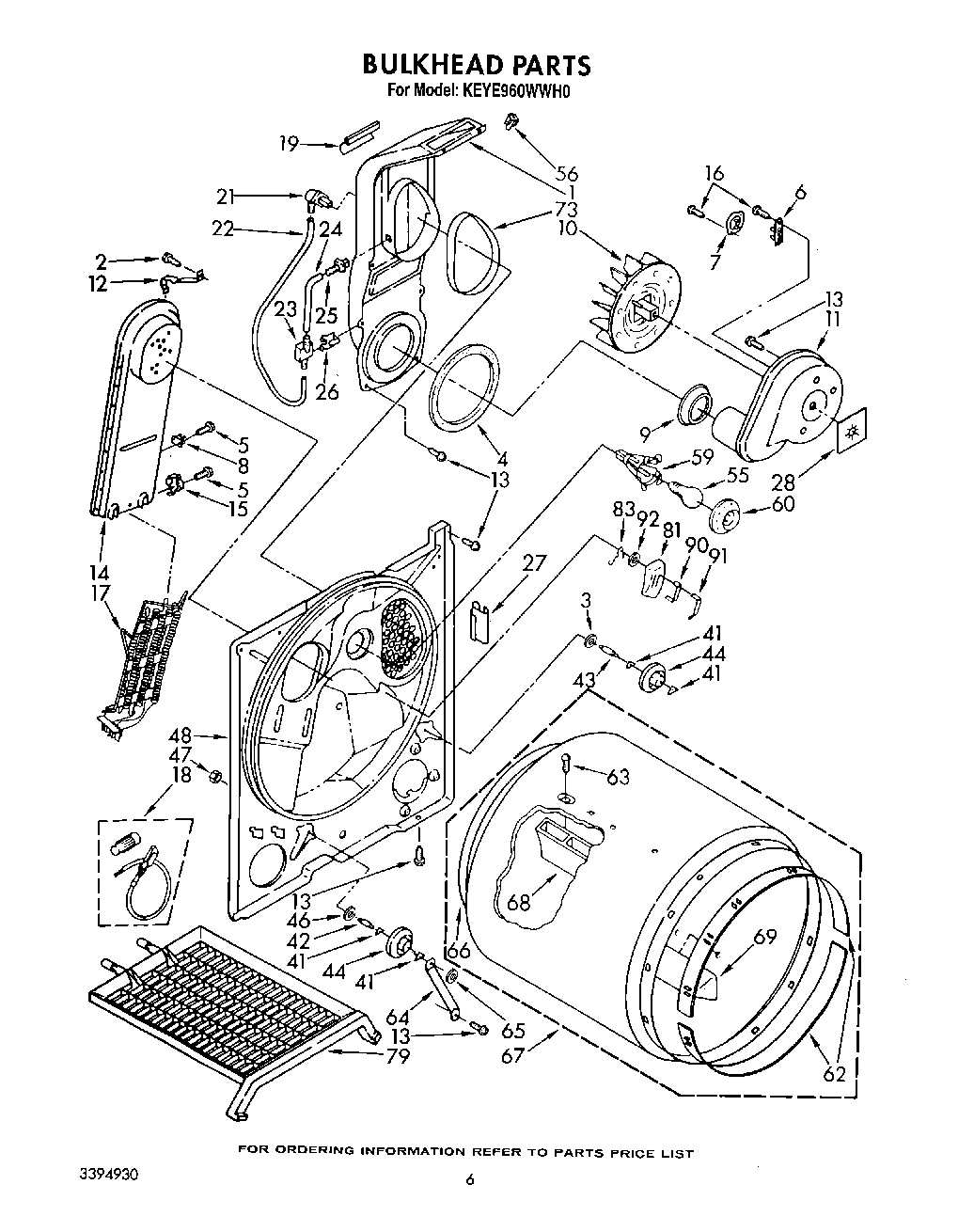

04 - SECTION

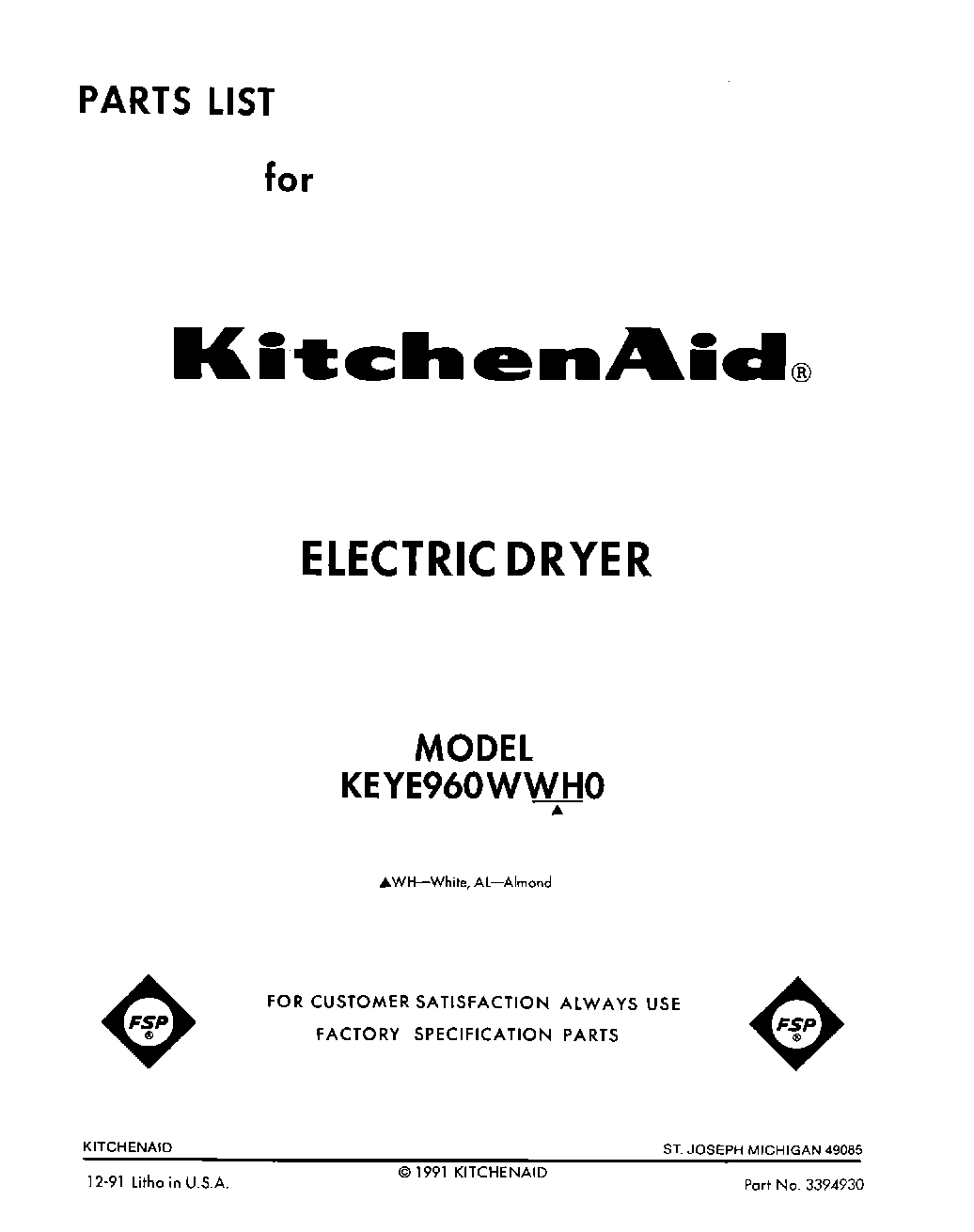

01 - SECTION
Common parts from model Whirlpool KEYE960WWH0
WPL 799344 WPL 799344 Contact Us For Availability
Harvest Wheat WPL 261890 Contact Us For Availability
Harvest Wheat (Uncut) WPL 261891 Contact Us For Availability
Toast WPL 285365 Contact Us For Availability
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
Platinum (Uncut) WPL 285368 Contact Us For Availability
Leveler (Thinner) WPL 350941 Contact Us For Availability
WPL 72112 WPL 72112 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT3387320 WPL LIT3387320 Contact Us For Availability
WPL LIT3387422 WPL LIT3387422 Contact Us For Availability
WPL LIT3388652 WPL LIT3388652 Contact Us For Availability
WPL LIT3389704 WPL LIT3389704 Contact Us For Availability
WPL LIT3392981 WPL LIT3392981 Contact Us For Availability
WPL LIT3394907 WPL LIT3394907 Contact Us For Availability
WPL LIT3394930 WPL LIT3394930 Contact Us For Availability
1
Panel, Rear Console WPL 3388889 Contact Us For Availability
1
Lint Chute Assembly WPL 349242 Contact Us For Availability
2
Panel, Control WPL 3394789 Contact Us For Availability
4
Cap, End (L.H.) WPL 3354640 Contact Us For Availability
5
Receptacle, (Natural) WPL 3387626 Contact Us For Availability
7
Bracket, Control WPL 3394065 Contact Us For Availability
11
Cover, Lint Screen WPL 691205 Contact Us For Availability
11
Housing, Blower WPL 695081 Contact Us For Availability
14
Box, Heater WPL 695547 Contact Us For Availability
16
Top (White) WPL 3393374 Contact Us For Availability
16
Top (Almond) WPL 3393375 Contact Us For Availability
17
Transformer WPL 660987 Contact Us For Availability
18
Screw, 8-18 (2) WPL 64211 Contact Us For Availability
19
Stop, Push-In (2) WPL 358473 Contact Us For Availability
20
Module, Touch WPL 3394782 Contact Us For Availability
21
Nut, Lock WPL 3407038 Contact Us For Availability
21
Tap, Downstream WPL 339625 Contact Us For Availability
22
Cap, End (R.H.) WPL 3354646 Contact Us For Availability
22
Tubing Downstream WPL 339893 Contact Us For Availability
23
Motor Relay WPL 696819 Contact Us For Availability
23
Sensor, Pressure WPL 696371 Contact Us For Availability
24
Tubing Upstream WPL 339892 Contact Us For Availability
25
Power Relay WPL 696300 Contact Us For Availability
25
Tap Upstream WPL 339624 Contact Us For Availability
26
Microcomputer Assembly WPL 3407034 Contact Us For Availability
26
Clip, Switch WPL 339745 Contact Us For Availability
28
Speaker & Housing WPL 387973 Contact Us For Availability
28
Seal, Blower Shaft WPL 3392123 Contact Us For Availability
29
Wire, Ground WPL 690853 Contact Us For Availability
30
Nut, Push-In (2) WPL 358472 Contact Us For Availability
31
Clip, Push-On (4) WPL 689559 Contact Us For Availability
32
Trim, End Cap (L.H.) WPL 3356028 Contact Us For Availability
33
Trim, End Cap (R.H.) WPL 3356049 Contact Us For Availability
37
Terminal WPL 60279 Contact Us For Availability
39
Clip, Wire (Tech Sheet/Top) WPL 357144 Contact Us For Availability
41
Connector WPL 60278 Contact Us For Availability
42
Harness, Electric WPL 3394906 Contact Us For Availability
43
Clip, Harness (Rear Bulkhead Area) WPL 688412 Contact Us For Availability
45
Clip, Harness Retainer (Door Switch Wires) WPL 689180 Contact Us For Availability
48
BULKHEAD WPL 685821 Contact Us For Availability
52
Screw Mounting WPL 98831 Contact Us For Availability
53
Support, Board WPL 313087 Contact Us For Availability
54
Bumper, Lint Lid WPL 297535 Contact Us For Availability
59
Socket Assembly WPL 691034 Contact Us For Availability
60
Lens, Drum Light WPL 341165 Contact Us For Availability
63
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
79
Dry Rack Assembly WPL 692990 Contact Us For Availability
× ![]()
