Model Alliance KDEMNRGS303UW01 Dryer – Common Parts & Diagrams

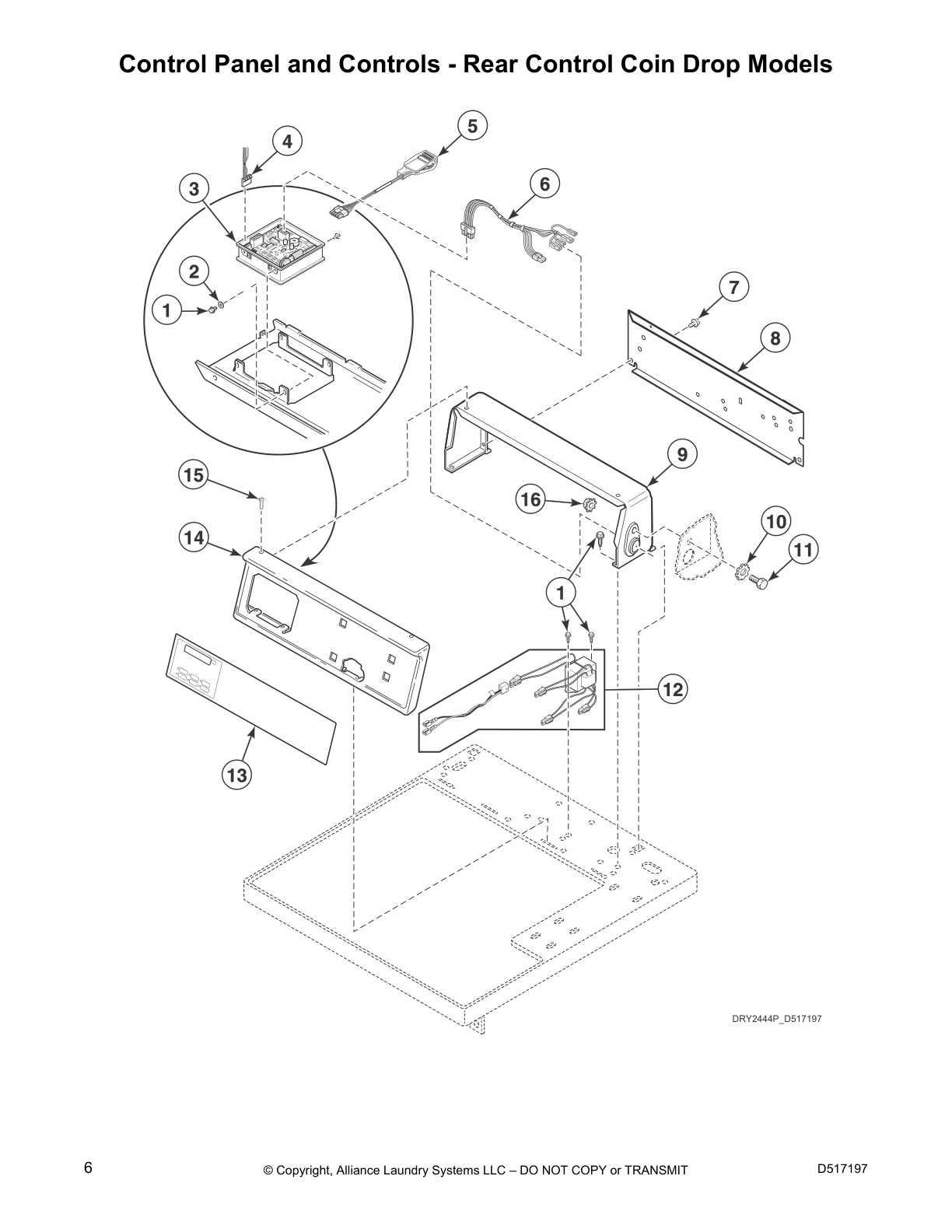

Control Panel and Controls - Rear Control Coin Drop Models

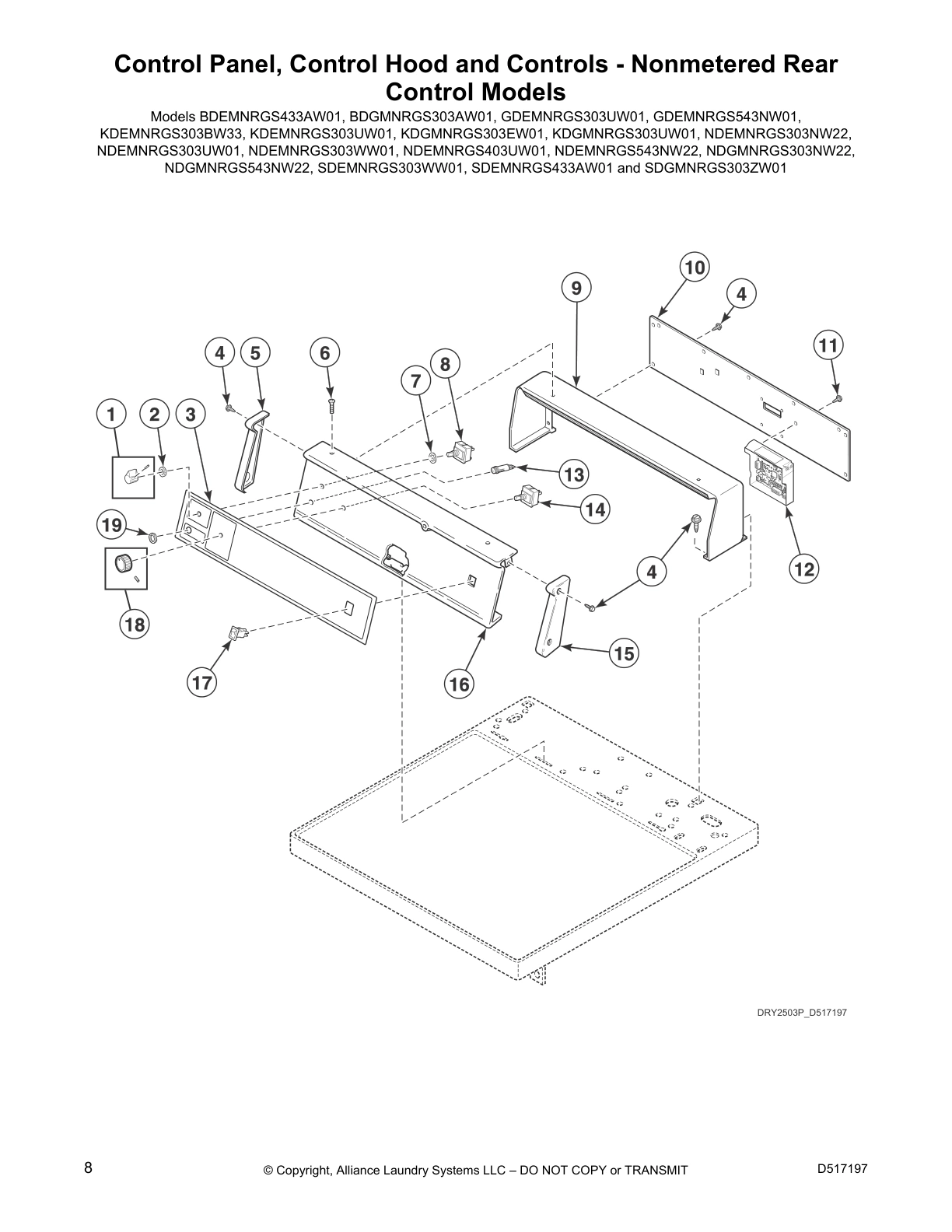

Control Panel, Control Hood and Controls - Nonmetered Rear
Control Models
Control Panel and Control Hood - Coin Slide Rear Control Models
Meter Case - Rear Control Coin Drop Models
Coin Slide Extension, Meter Case and Control
Cabinet Top - Rear Control Models
Non-Electronic Coin Drop
Electronic Coin Drop
Control Cabinet Controls - 10 Degree Front Control Models
Control Panel and Controls - 10 Degree Front Control Models
(Drawing 1 of 2)
Control Panel and Controls - 45 Degree Front Control Models
Loading Door Without Window
Loading Door With Window
Loading Door With Window
Access Panel, Front Panel and Seal
Motor and Belt
Exhaust Fan and Idler
Thermistor
Front Bulkhead, Air Duct and Felt Seal (Drawing 1 of 2)
Front Bulkhead, Air Duct and Felt Seal (Drawing 2 of 2)
Cylinder Assembly
Rear Bulkhead, Felt Seal and Cylinder Roller
Terminal Block
Heater Duct and Element Assembly - 1 Phase Electric Models
Heater Duct Assembly - 3 Phase Electric Models
Heater Duct Assembly
Gas Valve, Igniter and Gas Conversion Kits
Gas Models Through Serial No. 1908000001
Gas Valve, Igniter and Gas Conversion Kits
Gas Models Starting Serial No. 1908000001
Cabinet, Exhaust Duct and Base
Contactor and Transformer
Power Cord
Junction Box
Junction Box Filter and Harnesses
Terminal Block and Terminals
Terminals
Motor Connection Block and Tools
Wire Harnesses and Wires - Front Control Models
Wire Harnesses and Wires - Rear Control Models
Label Location on Rear of Cabinet
Common parts from model Alliance KDEMNRGS303UW01 Dryer
× ![]()
