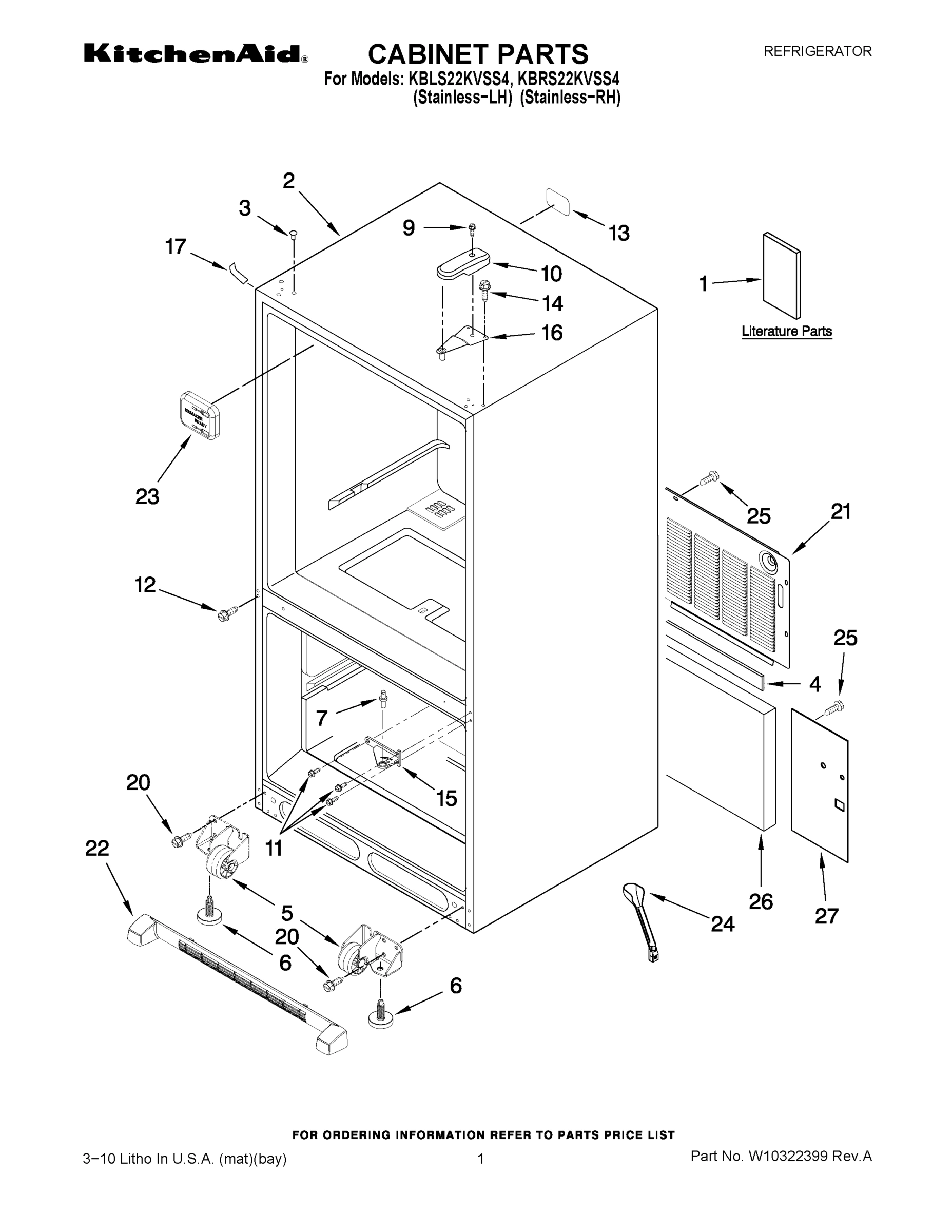

Model Whirlpool KBRS22KVSS4 REFRIGERATOR – Common Parts &amp; Diagrams

1

13107545SQ Whirlpool Refrigerator Foam In Pla Backorder WPL 13107545SQ $669.06

1

13107547SQ Whirlpool FIP Stainless Steel Door Backorder WPL 13107547SQ $577.49

1

13109217SQ Whirlpool Refrigerator Foam In Pla Backorder WPL 13109217SQ $489.07

1

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $39.36

1

LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

2

W10231483 Whirlpool Refrigerator Trim Shelf Backorder WPL W10231483 $41.52

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

2

BRACKET, CONTROL AND LIGHTS WPL 12806301 Contact Us For Availability

3

WP67003637 Whirlpool Dairy Door In Stock WPL WP67003637 $41.82

3

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

3

OVERLAY WPL W10217736 Contact Us For Availability

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

W11416469 Whirlpool Refrigerator Housing Backorder WPL W11416469 $83.33

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $46.65

4

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $127.04

4

Basket, Freezer (Upper) WPL W10201223 Contact Us For Availability

5

W11715937 Whirlpool Shaft Backorder WPL W11715937 $37.90

5

WPW10371195 Whirlpool Refrigerator Cantilever Backorder WPL WPW10371195 $45.71

5

WPW10503183 Whirlpool Freezer Basket Backorder WPL WPW10503183 $130.46

5

SCREW WPL W10290759 Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

W11402521 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402521 $118.14

6

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

7

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.65

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $36.31

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $43.32

8

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $137.86

8

Divider, Lower Basket WPL W10205416 Contact Us For Availability

9

W10311695 Whirlpool Refrigerator Divider Backorder WPL W10311695 $14.37

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.01

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

9

WPW10314517K Whirlpool Refrigerator Handle Backorder WPL WPW10314517K $120.76

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.44

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $66.88

WPW10450021 Whirlpool Refrigerator Mat Backorder WPL WPW10450021 $30.80

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $105.96

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $27.82

W11402523 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402523 $118.14

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $4.56

WPW10197426 Whirlpool Refrigerator Start Devi Backorder WPL WPW10197426 $57.23

Nameplate (Apollo Grey) WPL W10046610 Contact Us For Availability

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $37.84

14

Backorder WPL W11750607 $18.30

14

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $52.87

14

Retainer, Door WPL 12690502 Contact Us For Availability

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $47.49

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

WPW10594329 Whirlpool Control Damper In Stock WPL WPW10594329 $91.80

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

16

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

16

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.18

16

WP67002633 Whirlpool Crisper Pan In Stock WPL WP67002633 $86.30

17

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

17

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $42.33

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $35.12

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $35.12

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $71.73

Bucket, Short WPL 12643911SP Contact Us For Availability

19

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

19

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $43.32

19

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $115.43

20

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $10.83

20

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.00

21

W10251969 Whirlpool Refrigerator Ladder Backorder WPL W10251969 $11.51

23

Dam (Left Side) WPL 12225602 Contact Us For Availability

23

PAN, PANTRY WPL 12645023 Contact Us For Availability

24

W10656985 Whirlpool Refrigerator Trim Backorder WPL W10656985 $47.18

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

25

67002002 Whirlpool Refrigerator Pantry Slide Backorder WPL 67002002 $9.81

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

25

W11690160 Whirlpool Grommet Backorder WPL W11690160 $2.40

26

W11024089 Whirlpool Refrigerator Evaporator F In Stock WPL W11024089 $33.78

26

INSULATION, SOUND WPL 12820505 Contact Us For Availability

26

BAR, PANTRY WPL 12531401 Contact Us For Availability

27

WP12531601 Whirlpool Refrigerator Tunnel Backorder WPL WP12531601 $4.15

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

28

GASKET, PANTRY WPL 12531701 Contact Us For Availability

29

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $3.70

29

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $3.70

30

WP67001716 Whirlpool Refrigerator Shelf Suppo In Stock WPL WP67001716 $4.32

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $27.80

31

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

32

BOX, HV CONTROL WPL W10257665 Contact Us For Availability

33

LID, HV BOX WPL 12957702 Contact Us For Availability

34

GASKET, HV BOX WPL 12957801 Contact Us For Availability

36

EXTENSION, BASEPAN WPL W10206337 Contact Us For Availability

37

W10206339 Whirlpool Fastener Backorder WPL W10206339 $4.70

38

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $39.14

39

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11459724 Whirlpool Refrigerator Icemaker In Stock WPL W11459724 $154.33

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

HARNESS, CONTROLS (REFRIGERATOR) (INCLUDES TH WPL W10224290 Contact Us For Availability
