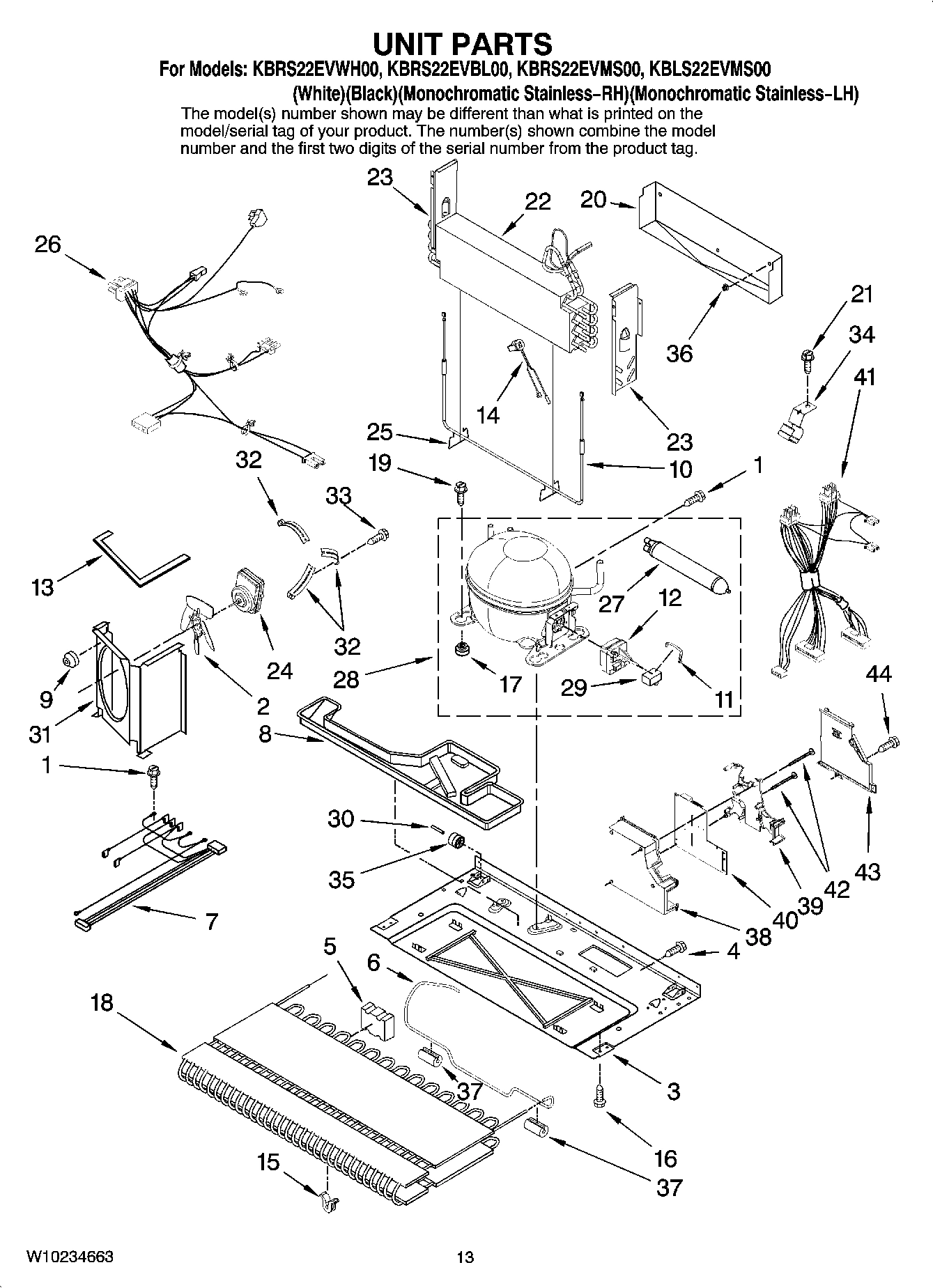

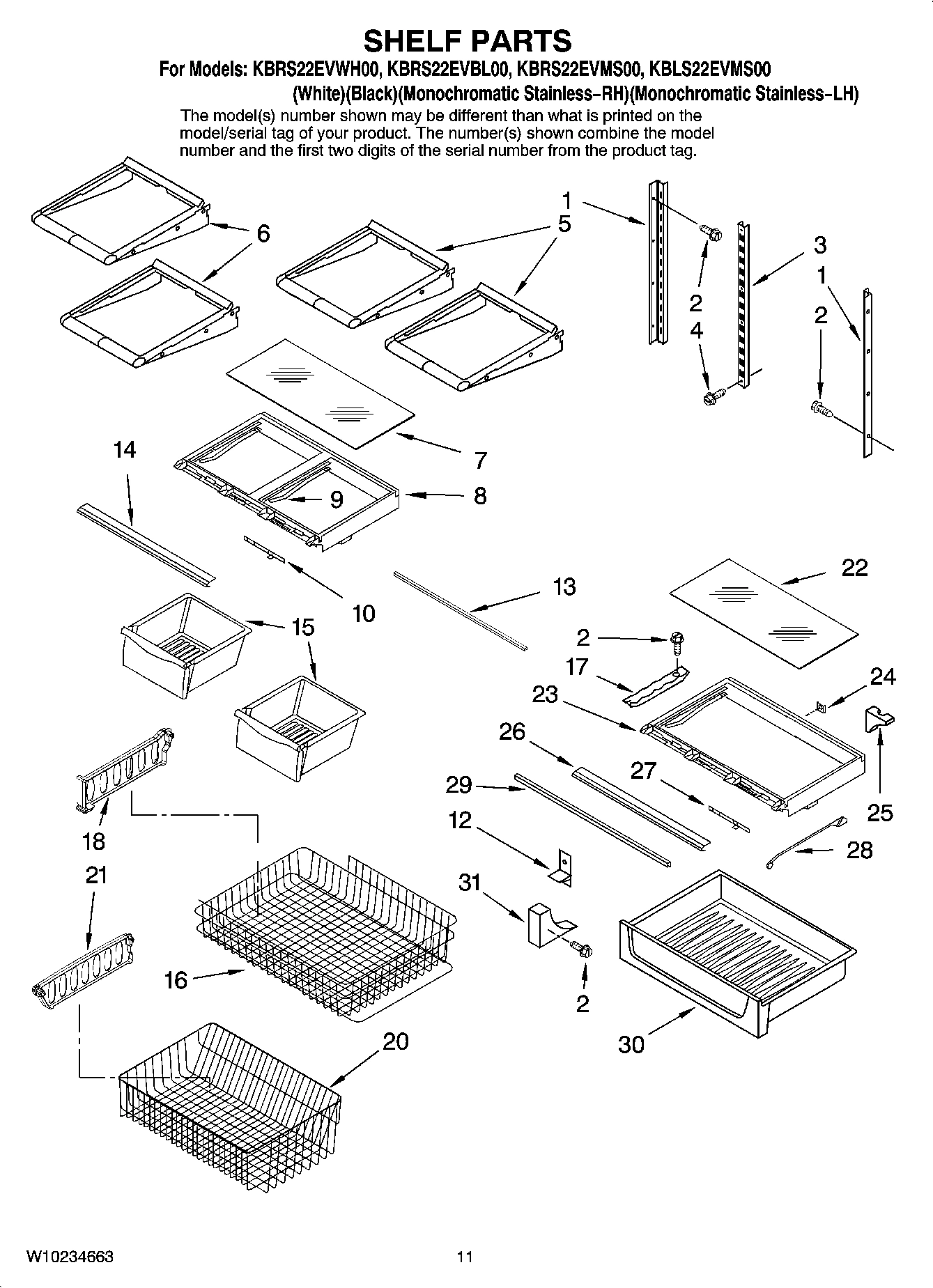

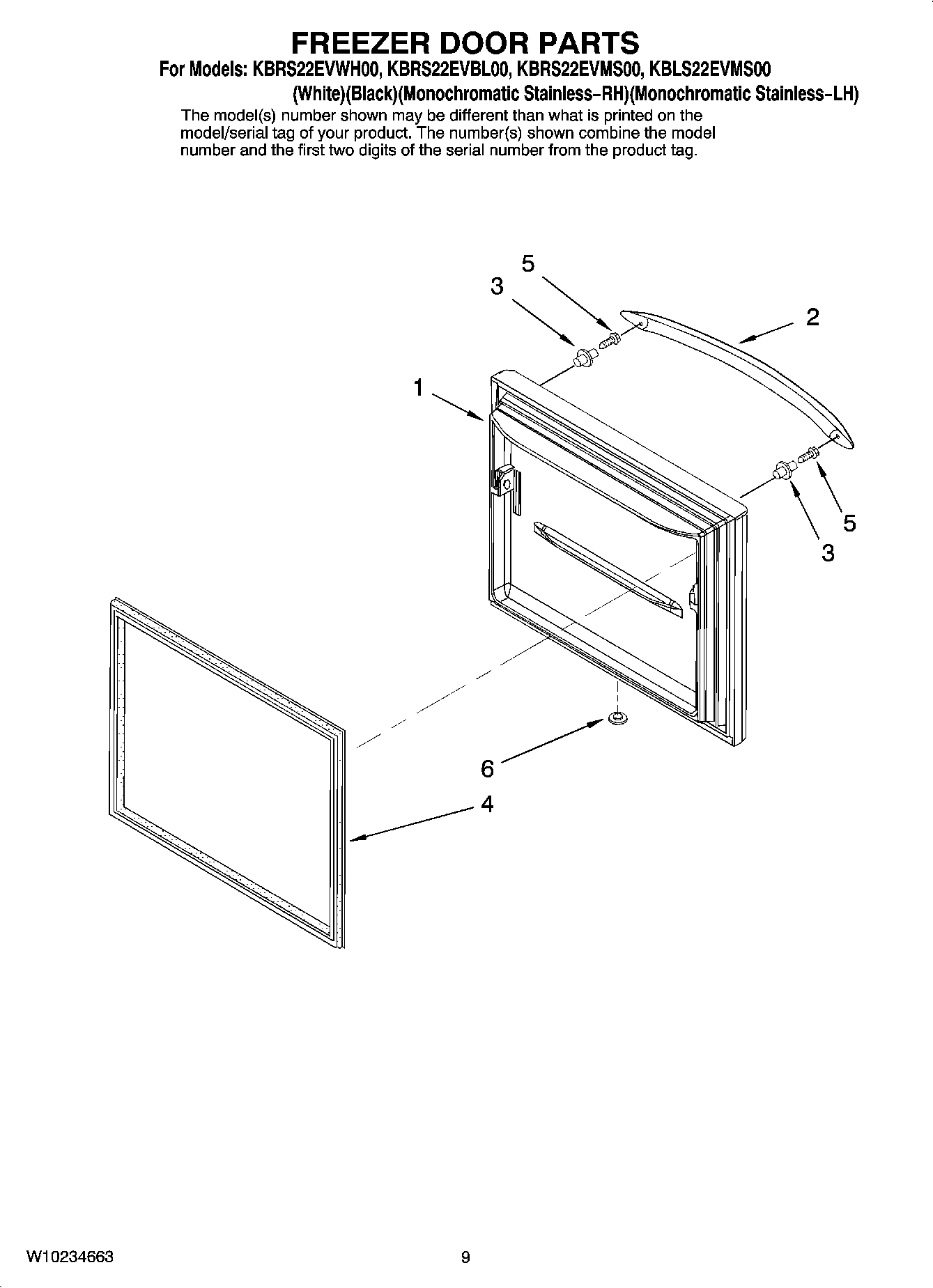

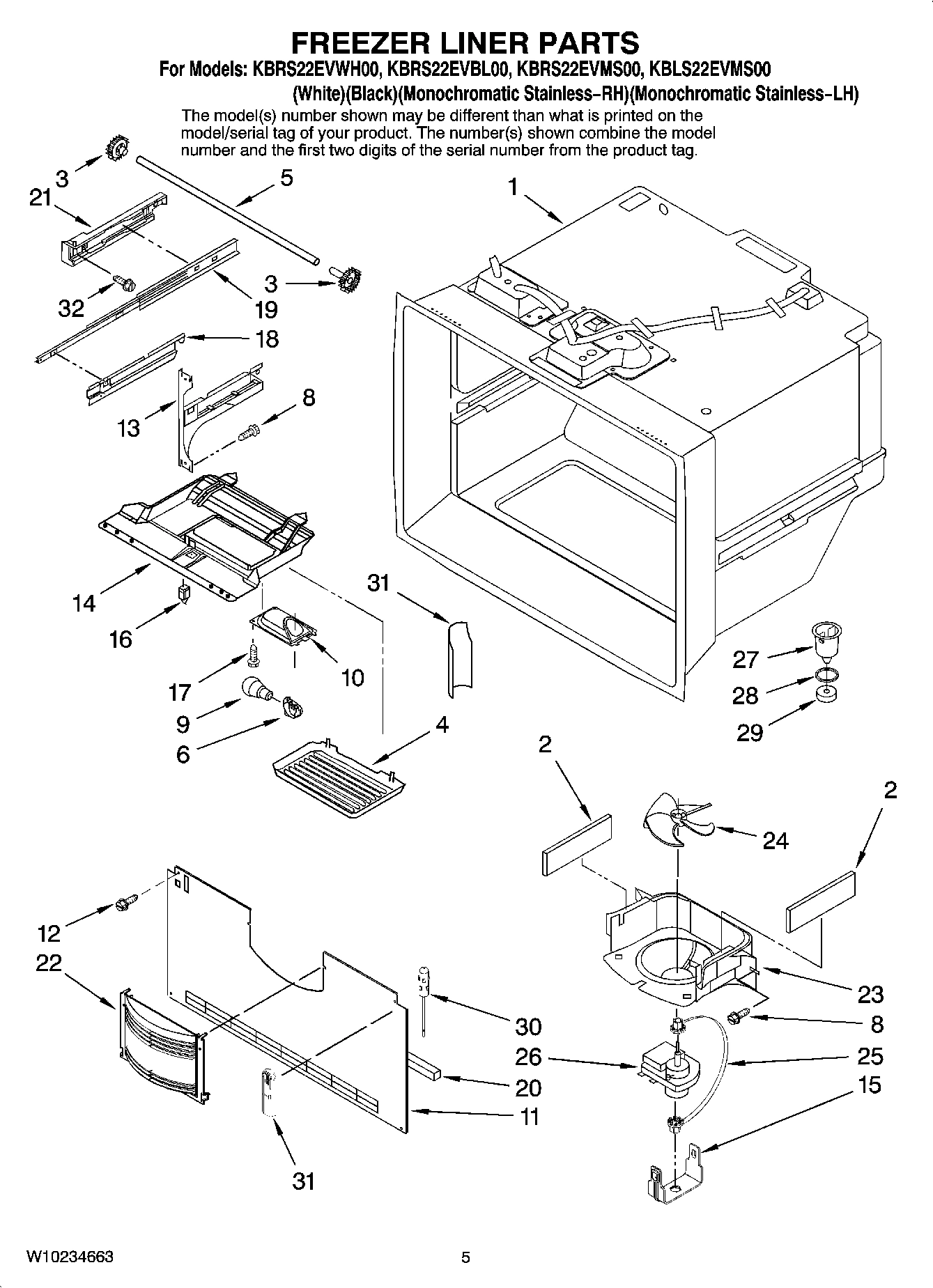

Model Whirlpool KBRS22EVBL00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

67005644 Whirlpool Refrigerator Wire Harness Backorder WPL 67005644 $31.79

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI79976A2 WPL ARI79976A2 Contact Us For Availability

WPL ARI79977A6 WPL ARI79977A6 Contact Us For Availability

WPL ARI79978A4 WPL ARI79978A4 Contact Us For Availability

WPL ARI79979A3 WPL ARI79979A3 Contact Us For Availability

Following Parts Not Illustrated WPL ARI79968A5 Contact Us For Availability

1

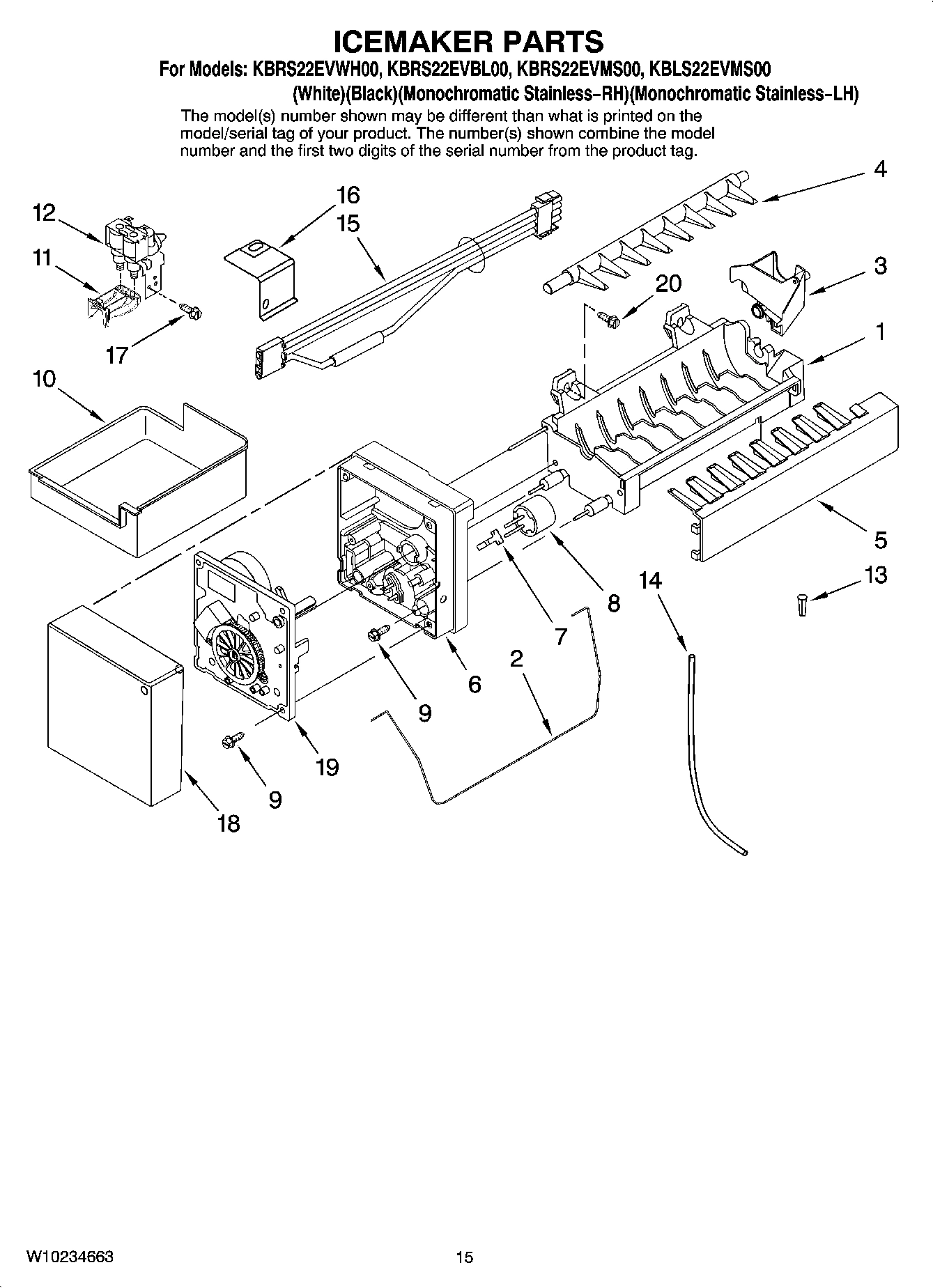

Mold & Heater Assembly (Not Available Order D WPL ARI79973A1 Contact Us For Availability

1

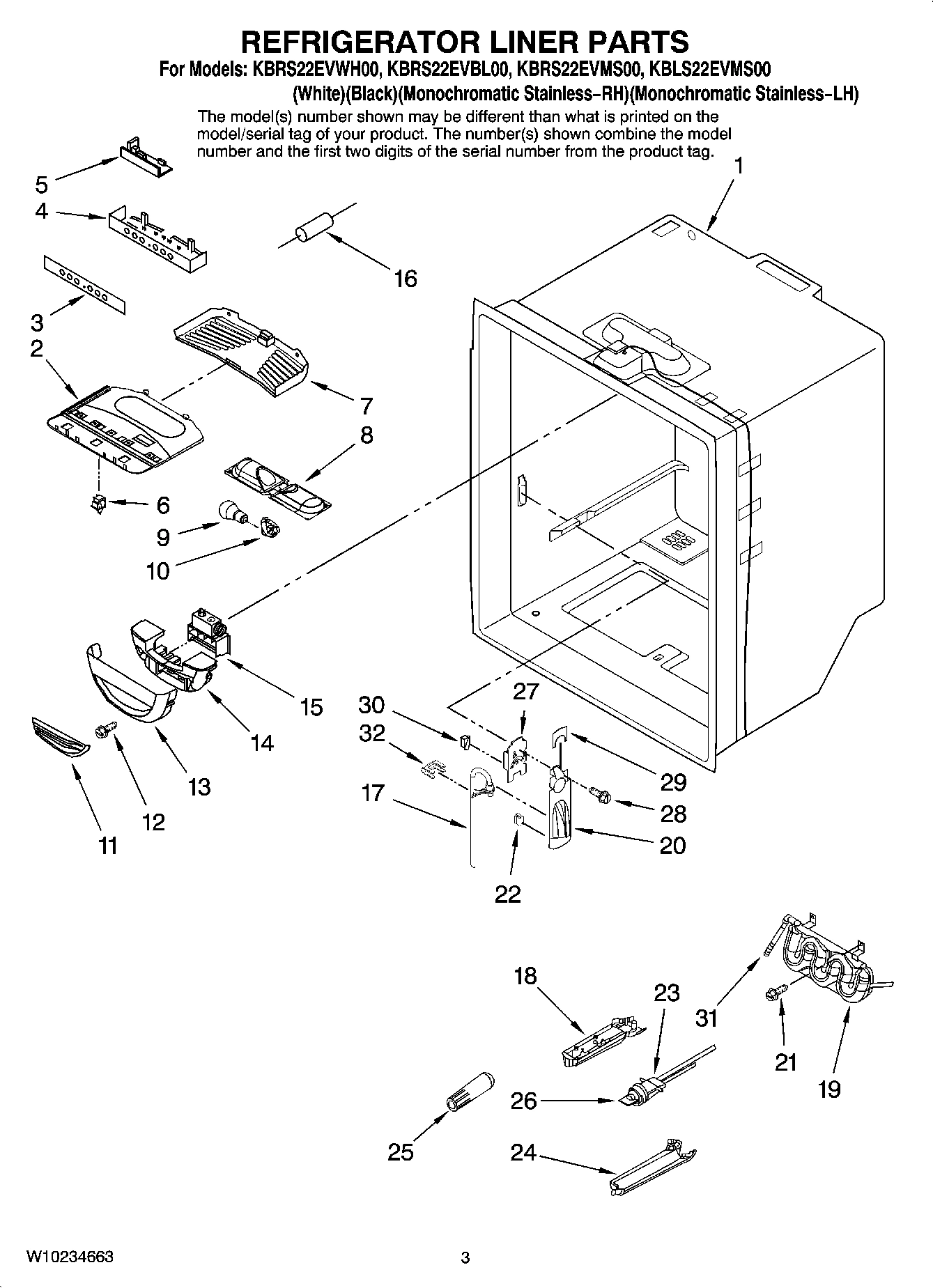

Liner (Not A Serviceable Part) WPL ARI79967A1 Contact Us For Availability

1

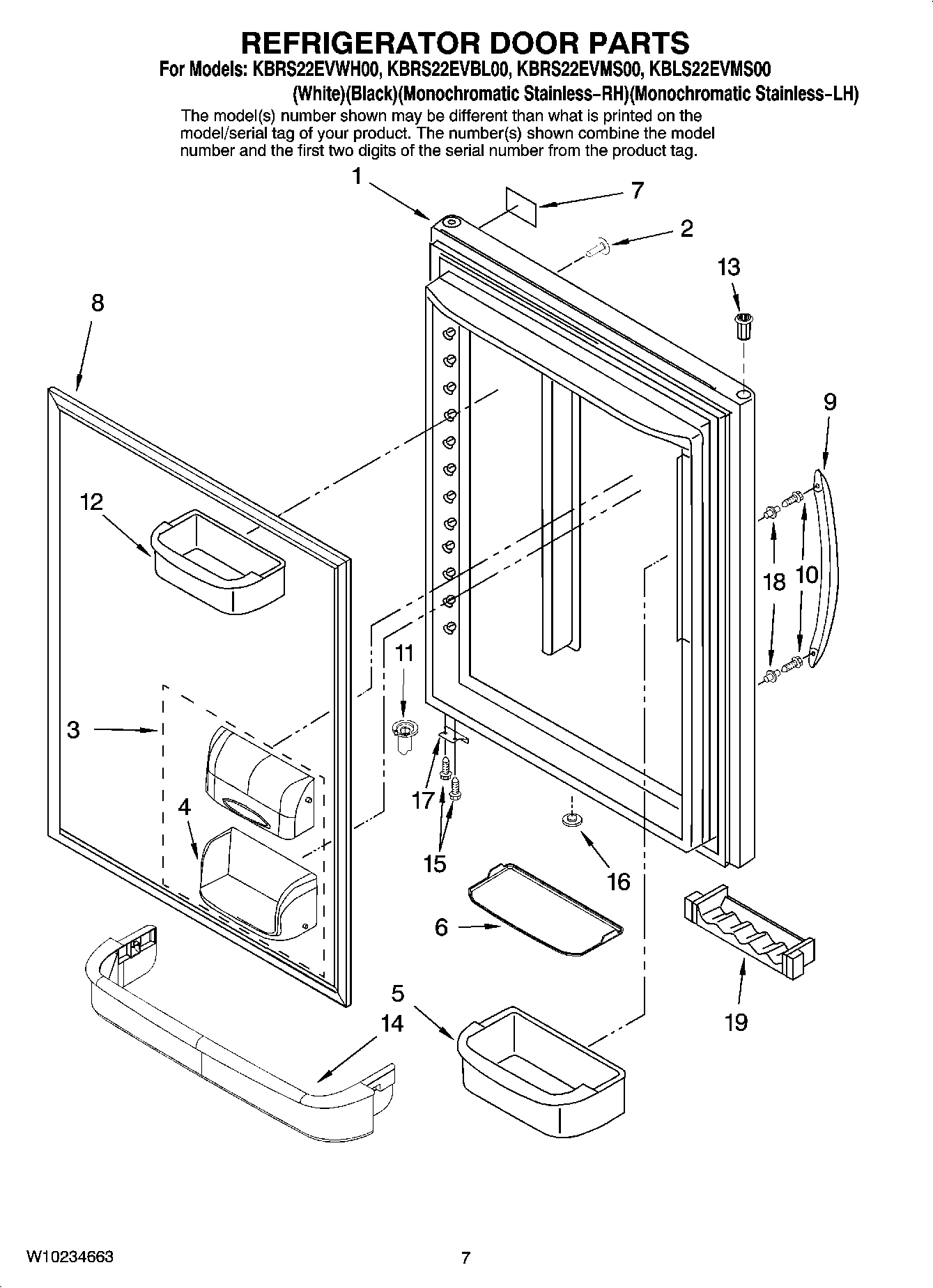

Door, Refrigerator (Black) WPL 12658583BQ Contact Us For Availability

1

Door, Refrigerator (White) WPL 12658583WQ Contact Us For Availability

1

Door, Refrigerator (Stainless-RH) WPL 13023869SQ Contact Us For Availability

1

Door, Refrigerator (Stainless-LH) WPL 13023870SQ Contact Us For Availability

1

Ladder, Side WPL 67001317 Contact Us For Availability

1

Use & Care Guide WPL W10137649 Contact Us For Availability

1

Tech Sheet WPL W10168777 Contact Us For Availability

1

Energy Guide WPL W10212714 Contact Us For Availability

2

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $31.46

2

Bracket, Control and Lights WPL Y67003896 Contact Us For Availability

2

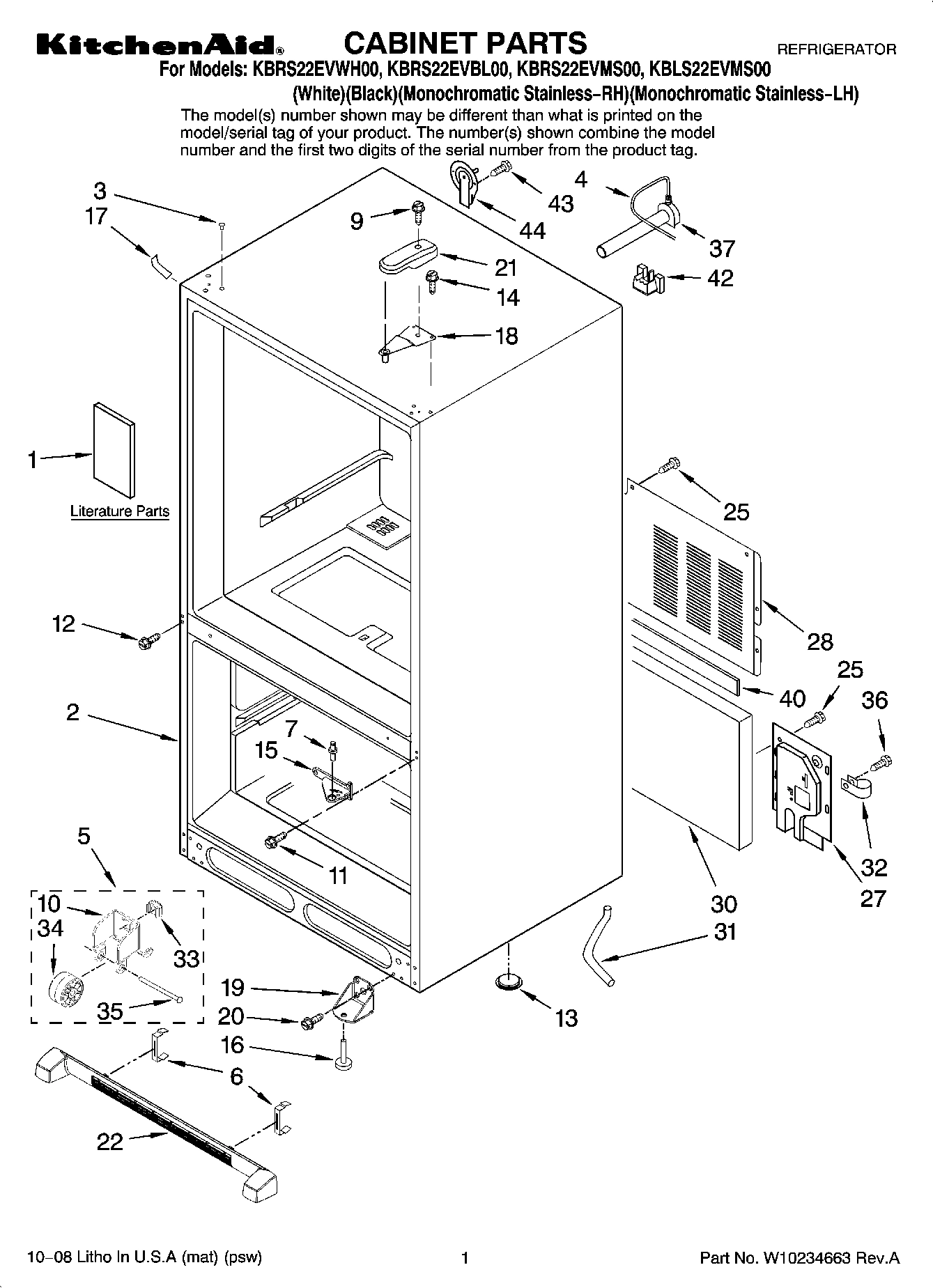

Cabinet, (Not A Serviceable Part) WPL ARI79966A8 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $28.16

3

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.70

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $53.64

3

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

3

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $3.70

3

Overlay WPL W10209973 Contact Us For Availability

4

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

4

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $46.65

4

WPB5705307 Whirlpool Refrigerator Tube Backorder WPL WPB5705307 $7.39

4

Module, Control WPL W10185585 Contact Us For Availability

5

W11402523 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402523 $118.14

5

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

5

WPW10371195 Whirlpool Refrigerator Cantilever Backorder WPL WPW10371195 $45.71

5

Roller Foot Assembly WPL 12580304KVF Contact Us For Availability

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

W11402521 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402521 $118.14

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

6

WPW10450021 Whirlpool Refrigerator Mat Backorder WPL WPW10450021 $30.80

6

Clip, Grille WPL 12627302 Contact Us For Availability

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $36.31

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

7

WPW10243392 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243392 $33.09

7

WPW10243393 Whirlpool Dishwasher Nameplate Backorder WPL WPW10243393 $35.74

7

Nameplate (Grey) WPL W10046610 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $43.32

8

W10443313 Whirlpool Door Gasket In Stock WPL W10443313 $126.29

8

W10443314 Whirlpool Refrigerator FIP Gasket Backorder WPL W10443314 $122.02

8

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $137.86

8

Thermostat (Not Available Order D7824706Q) WPL ARI79974A4 Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

9

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

9

WPW10314515 Whirlpool Refrigerator Handle Backorder WPL WPW10314515 $122.50

9

WPW10314517K Whirlpool Refrigerator Handle Backorder WPL WPW10314517K $120.76

9

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $39.36

9

Handle, Door (Black) WPL W10119643 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $29.88

67006901 Whirlpool Refrigerator Screw Backorder WPL 67006901 $2.51

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $56.82

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.70

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $27.82

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $4.56

WP67001716 Whirlpool Refrigerator Shelf Suppo In Stock WPL WP67001716 $4.32

WP67006531 Whirlpool Water Inlet Valve In Stock WPL WP67006531 $113.58

Bucket, Shelf (1) (Small) WPL 67005724 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $37.84

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

W10231483 Whirlpool Refrigerator Trim Shelf Backorder WPL W10231483 $41.52

Backorder WPL W11750607 $18.30

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $32.00

Retainer, Door WPL 12690502 Contact Us For Availability

12607103AP Whirlpool Refrigerator Door Hinge Backorder WPL 12607103AP $25.80

WP12607103WD Whirlpool Refrigerator Center Hi Backorder WPL WP12607103WD $57.16

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $47.49

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $74.68

Pan, Crisper (2) WPL 67005927 Contact Us For Availability

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.08

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $28.80

Basket, Freezer (Upper) WPL W10201223 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $27.71

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

W11401472 Whirlpool Refrigerator Door Stop Backorder WPL W11401472 $10.76

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $12.77

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.18

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $6.31

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.00

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Divider, Upper Basket WPL W10171557 Contact Us For Availability

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $43.32

Tank, Water WPL W10153958 Contact Us For Availability

Module Assembly (Not Available Order D7824706 WPL ARI79975A7 Contact Us For Availability

Bracket, Foot (2) WPL W10208641 Contact Us For Availability

20

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.51

20

WPW10503183 Whirlpool Freezer Basket Backorder WPL WPW10503183 $130.46

20

Dispenser WPL 12706909SP Contact Us For Availability

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $27.74

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

W11106366 Whirlpool Refrigerator Door Hinge Backorder WPL W11106366 $26.55

Divider, Lower Basket WPL W10205416 Contact Us For Availability

W10819546 Whirlpool Refrigerator Clip Backorder WPL W10819546 $5.11

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $115.43

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

WPW10534161 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534161 $47.67

WPW10534162 Whirlpool Refrigerator Front Gril In Stock WPL WPW10534162 $39.08

23

WP67006524 Whirlpool Refrigerator Housing In Stock WPL WP67006524 $78.05

23

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $34.13

23

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $71.73

24

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $44.58

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

24

Gasket, Pantry WPL 67002005 Contact Us For Availability

EDR4RXD1 Whirlpool EveryDrop„¢ Filter 4 Re In Stock WPL EDR4RXD1 $55.44

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

W11690160 Whirlpool Grommet Backorder WPL W11690160 $2.40

WP12531601 Whirlpool Refrigerator Tunnel Backorder WPL WP12531601 $4.15

26

W10656985 Whirlpool Refrigerator Trim Backorder WPL W10656985 $47.18

26

Plug, Filter Bypass WPL 12664501 Contact Us For Availability

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $29.61

67002002 Whirlpool Refrigerator Pantry Slide Backorder WPL 67002002 $9.81

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

Cover, Water Valve WPL 12751507 Contact Us For Availability

28

WP67006415 Whirlpool Refrigerator Screw Backorder WPL WP67006415 $3.70

28

Cover, Unit WPL 12575101WD Contact Us For Availability

28

Rod, Temperature Control WPL 67002003 Contact Us For Availability

29

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $12.55

29

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $42.33

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $22.72

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $27.82

Drawer, Pantry WPL 67005928 Contact Us For Availability

W10164397 Whirlpool Refrigerator Drain Tube Backorder WPL W10164397 $8.73

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $9.90

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $3.70

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $3.70

32

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.00

32

Clip, Drain Tube WPL W10157973 Contact Us For Availability

33

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $26.75

34

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $3.04

35

Pin WPL M1205302 Contact Us For Availability

36

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $26.21

37

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

37

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $41.85

38

Box, HV WPL 67004969 Contact Us For Availability

39

Spacer, HV WPL 67005418 Contact Us For Availability

40

Board, HV WPL 12782036SP Contact Us For Availability

40

Gasket WPL B5759649 Contact Us For Availability

41

Harness, HV WPL 12972902 Contact Us For Availability

42

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $4.15

42

SCREW WPL 67006550 Contact Us For Availability

43

67005421 Whirlpool Hoist Cover Backorder WPL 67005421 $28.80

43

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

44

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

44

W10709801 Whirlpool Refrigerator Screw Backorder WPL W10709801 $9.13

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $68.02
