Model Whirlpool KBLS36FKB01 BUILT-IN BOTTOM MOUNT REFRIGERATOR – Common Parts & Diagrams

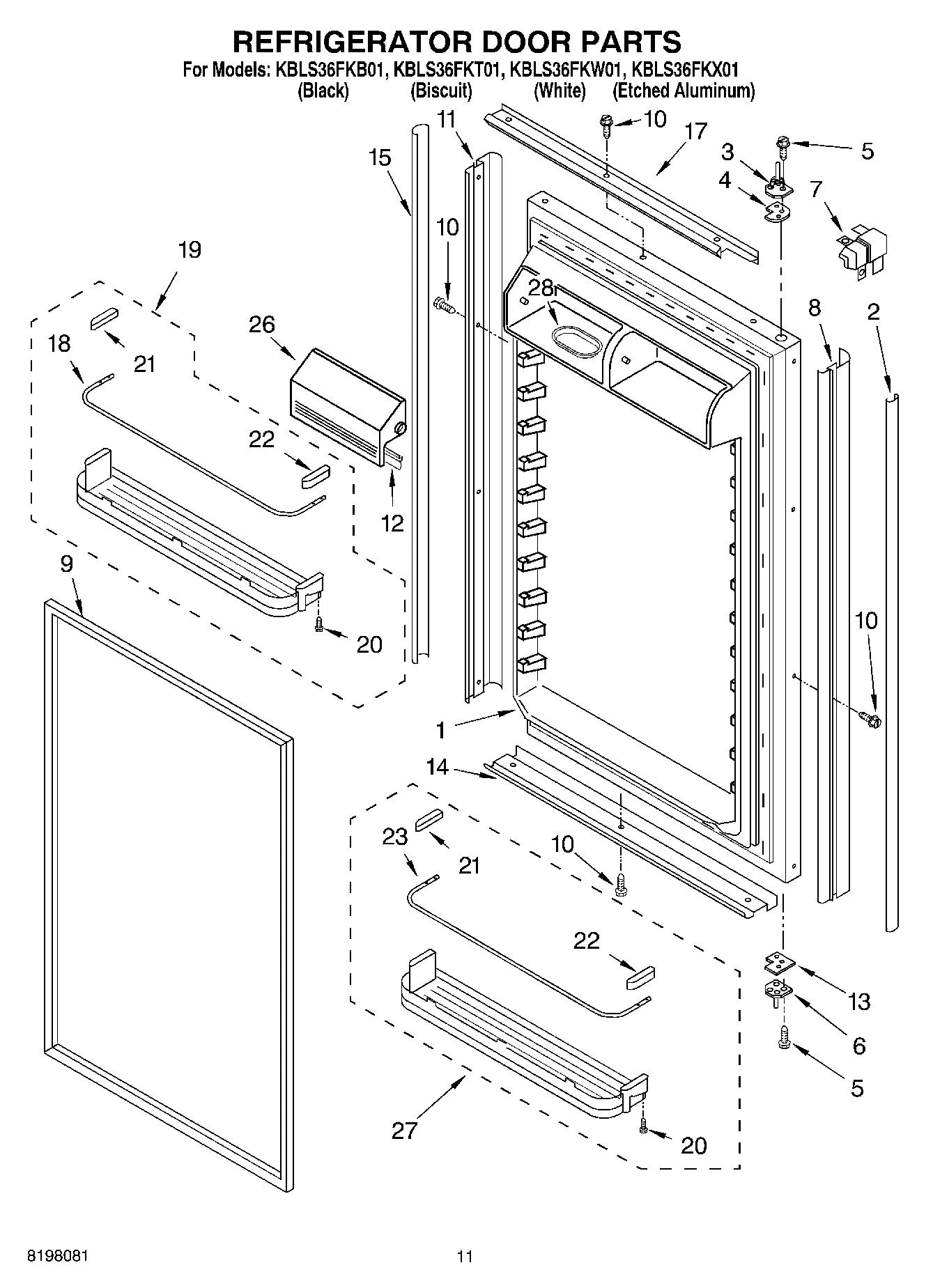

07 - REFRIGERATOR DOOR

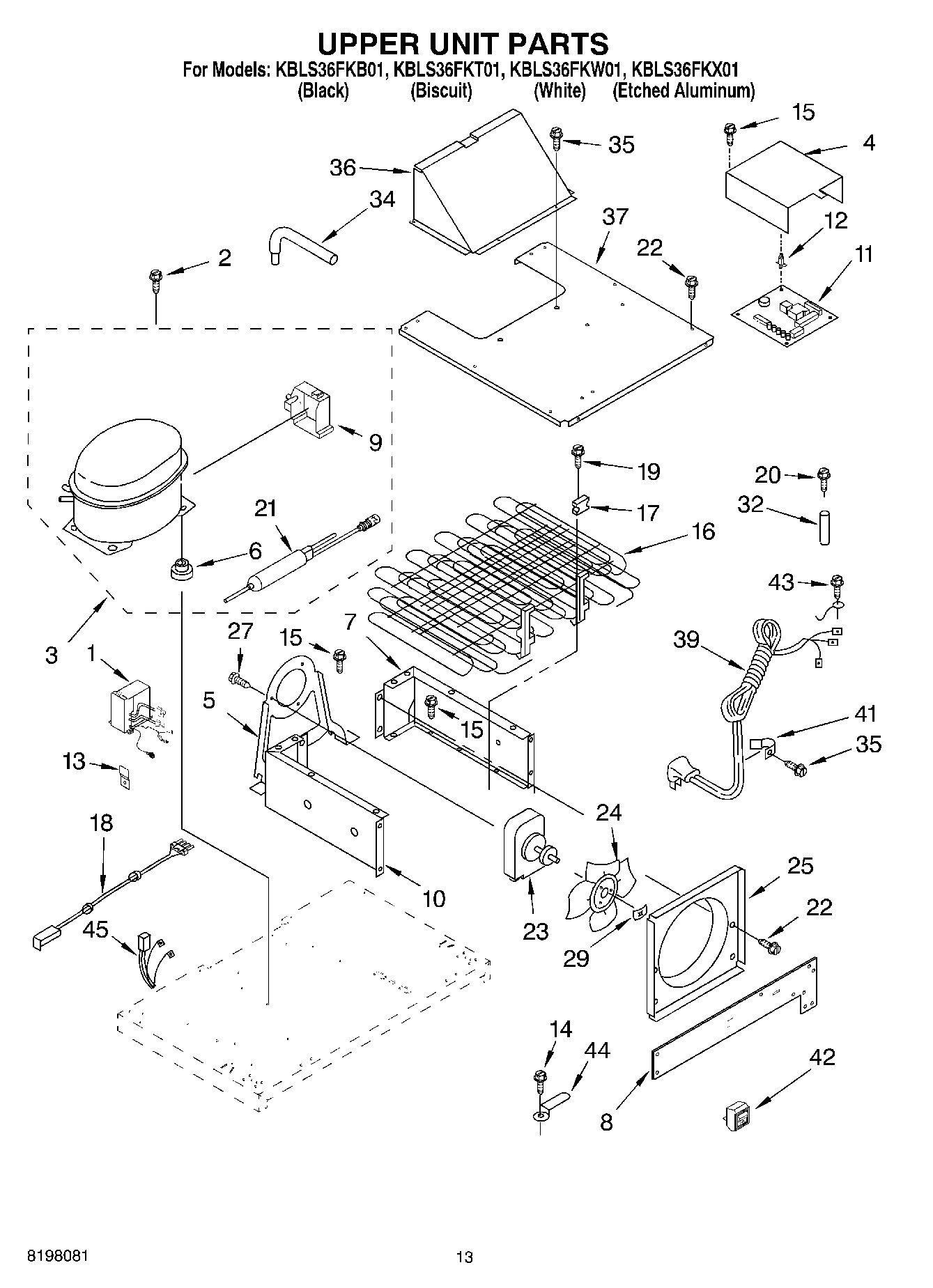

08 - UPPER UNIT
04 - LINER
02 - CABINET AND BREAKER TRIM
01 - CABINET, LITERATURE
06 - FREEZER DOOR AND BASKET
09 - LOWER UNIT AND TUBE
03 - TOP GRILLE AND UNIT COVER
05 - REFRIGERATOR SHELF
10 - ICE MAKER, OPTIONAL
Common parts from model Whirlpool KBLS36FKB01 BUILT-IN BOTTOM MOUNT REFRIGERATOR
1
Liner, Refrigerator (Not Servicable) WPL ARI78950A3 Contact Us For Availability
1
Cabinet, Trim (Right Side) (Black) WPL 2215919B Contact Us For Availability
1
Cabinet, Trim (Right Side) (Biscuit) WPL 2215919T Contact Us For Availability
1
Cabinet, Trim (Right Side) (White) WPL 2215919W Contact Us For Availability
1
Cabinet, Trim Right Side (Etched Aluminum) WPL 8201535 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT2215852 Contact Us For Availability
1
Literature Parts (Energy Label) WPL LIT2221286 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT2254715 Contact Us For Availability
1
Literature Parts (Service & Wiring Sheet) WPL LIT2254723 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Freezer Door Panel (Includes Item 9) WPL 2188601 Contact Us For Availability
1
Top Grille Assembly (Etched Aluminum) WPL 2215973 Contact Us For Availability
1
Top Grille Assembly (Black) WPL 2215973B Contact Us For Availability
1
Top Grille Assembly (Biscuit) WPL 2215973T Contact Us For Availability
1
Top Grille Assembly (White) WPL 2215973W Contact Us For Availability
1
Slide, Freezer Basket (Right Side) WPL 2221278 Contact Us For Availability
1
Slide, Freezer Basket (Left Side) WPL 2221279 Contact Us For Availability
1
Tube, Valve WPL 2204597 Contact Us For Availability
2
Liner, Freezer (Not Servicable) WPL ARI78951A9 Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI78948A7 Contact Us For Availability
2
Divider, Basket WPL 2204525 Contact Us For Availability
2
Cover, Unit WPL 2209490 Contact Us For Availability
2
Screw, 8-15 x 1.00 WPL 9751808 Contact Us For Availability
3
Cover, Heat Exchanger WPL 2215610 Contact Us For Availability
3
Grommet, Tube Crossover WPL 2005004 Contact Us For Availability
3
Clamp, Divider WPL 2207429 Contact Us For Availability
4
Diffuser Cap, Left Side WPL 2215827 Contact Us For Availability
4
Cabinet, Trim (Bottom) WPL 2254724 Contact Us For Availability
4
Spacer, Crisper (Right Side) WPL 2005138 Contact Us For Availability
4
Spacer, Crisper (Left Side) WPL 2005139 Contact Us For Availability
5
Diffuser Cap, Right Side WPL 2005931 Contact Us For Availability
5
Guard, Wiring WPL 2209492 Contact Us For Availability
6
Cabinet, Trim Top WPL 2003645 Contact Us For Availability
6
Grommet, Wiring WPL 2005006 Contact Us For Availability
6
Cover-Trim, Handle (Etched Aluminum) WPL 2006327 Contact Us For Availability
6
Cover-Trim, Handle (White) WPL 2006328 Contact Us For Availability
6
Cover-Trim, Handle (Biscuit) WPL 2006330 Contact Us For Availability
6
Cover-Trim, Handle (Black) WPL 2006331 Contact Us For Availability
6
Suction Tube WPL 2209035 Contact Us For Availability
6
Tube, Filter Inlet WPL 2214613 Contact Us For Availability
7
Breaker Trim (Not Serviced) WPL ARI78949A5 Contact Us For Availability
7
Grommet, Flexible WPL 2005007 Contact Us For Availability
7
Trim-Door, Side (Etched Aluminum) WPL 2005868 Contact Us For Availability
7
Trim-Door, Side (White) WPL 2005869 Contact Us For Availability
7
Trim-Door, Side (Biscuit) WPL 2006303 Contact Us For Availability
7
Trim-Door, Side (Black) WPL 2006304 Contact Us For Availability
7
Heater, Defrost (Rear) WPL 2207486 Contact Us For Availability
7
Wire Assembly WPL 2187423 Contact Us For Availability
7
Roller WPL 2188212 Contact Us For Availability
7
Water Inlet Tube Assembly WPL 2221140 Contact Us For Availability
8
Cover, Hinge WPL 2005782 Contact Us For Availability
8
Trim-Door, Bottom (Etched Aluminum) WPL 2006278 Contact Us For Availability
8
Trim-Door, Bottom (White) WPL 2006279 Contact Us For Availability
8
Trim-Door, Bottom (Biscuit) WPL 2006281 Contact Us For Availability
8
Trim-Door, Bottom (Black) WPL 2006282 Contact Us For Availability
8
Tube, Connect (Drier) WPL 2209454 Contact Us For Availability
8
Baffle-Air, Condenser WPL 2215678 Contact Us For Availability
8
Bracket, Spacer (Right) WPL 2221280 Contact Us For Availability
8
Bracket, Spacer (Left) WPL 2221281 Contact Us For Availability
9
Heater, Drain Pan WPL 2209451 Contact Us For Availability
9
Seal, Side Trim WPL 2005925 Contact Us For Availability
9
Eyelet, Roller WPL 2174478 Contact Us For Availability
9
Mounting Bracket, Grill WPL 2006442 Contact Us For Availability
9
Door Gasket, Magnetic WPL 2188533 Contact Us For Availability
9
Tube, Filter Outlet WPL 2254800 Contact Us For Availability
10
Screw WPL 2005921 Contact Us For Availability
10
Wiring Channel, Freezer Rear WPL 2006148 Contact Us For Availability
10
Cabinet Trim (Left Side) (Etched Aluminum) WPL 2215936 Contact Us For Availability
10
Cabinet Trim (Left Side) (Black) WPL 2215936B Contact Us For Availability
10
Cabinet Trim (Left Side) (Biscuit) WPL 2215936T Contact Us For Availability
10
Cabinet Trim (Left Side) (White) WPL 2215936W Contact Us For Availability
10
Cover-Trim, Side (Etched Aluminum) WPL 2006322 Contact Us For Availability
10
Cover-Trim, Side (White) WPL 2006323 Contact Us For Availability
10
Cover-Trim, Side (Biscuit) WPL 2006325 Contact Us For Availability
10
Cover-Trim, Side (Black) WPL 2006326 Contact Us For Availability
10
Hanger, Heater WPL 2209450 Contact Us For Availability
11
Foam, Fan Shroud WPL 2215844 Contact Us For Availability
11
Cap, Grommet WPL 1112849 Contact Us For Availability
11
Handle, Door (Etched Aluminum) WPL 2005188 Contact Us For Availability
11
Handle, Door (White) WPL 2005392 Contact Us For Availability
11
Handle, Door (Biscuit) WPL 2006291 Contact Us For Availability
11
Handle, Door (Black) WPL 2006292 Contact Us For Availability
11
Shield, Drain Pan WPL 2005908 Contact Us For Availability
11
Nut Compression WPL 2204357 Contact Us For Availability
12
Support, Heater WPL 2204543 Contact Us For Availability
12
Cover WPL 2169935 Contact Us For Availability
13
Roller Stop WPL 1113169 Contact Us For Availability
13
Shroud, Evaporator Fan WPL 2215606 Contact Us For Availability
13
Tube, Drain Condensate WPL 2204516 Contact Us For Availability
13
Trim, Corner (White) WPL 2006270 Contact Us For Availability
13
Trim, Corner (Biscuit) WPL 2006272 Contact Us For Availability
13
Trim, Corner (Black) WPL 2006273 Contact Us For Availability
13
Tube, Discharge WPL 2209036 Contact Us For Availability
14
Screw 8-15 x 1/2 (White) WPL 8281251 Contact Us For Availability
14
Screw 8-15 x 1/2 (Biscuit) WPL 8281253 Contact Us For Availability
14
Plug, Water Valve WPL 2215656 Contact Us For Availability
15
Bracket, Assembly Freezer Basket WPL 2207533 Contact Us For Availability
15
Support, Crisper Shelf (2) WPL 2005987 Contact Us For Availability
16
Evaporator WPL 2209465 Contact Us For Availability
16
Rail, Deli Center WPL 2006454 Contact Us For Availability
17
Heater, Defrost (Front) WPL 2207485 Contact Us For Availability
17
Screw, Door Stop WPL 2001295 Contact Us For Availability
17
Basket, Upper WPL 2005376 Contact Us For Availability
17
Wire Assembly, Icemaker WPL 2254792 Contact Us For Availability
18
Bracket WPL 2215503 Contact Us For Availability
18
Pan, Ice Cube WPL 2174124 Contact Us For Availability
18
Clamp, Heater (2) WPL 2204510 Contact Us For Availability
18
Shelf (4) WPL 2005571 Contact Us For Availability
18
Cover WPL 2221232 Contact Us For Availability
19
Cam-Closer, Door WPL 2005783 Contact Us For Availability
19
Wiring Channel WPL 8201595 Contact Us For Availability
19
Air Damper, Deli WPL 2005429 Contact Us For Availability
20
Screw WPL 487522 Contact Us For Availability
20
Wiring Harness, Freezer WPL 2221261 Contact Us For Availability
20
Bushing WPL 2207471 Contact Us For Availability
20
Rail-Rear, Deli WPL 2005151 Contact Us For Availability
21
Cover, Evaporator Assembly WPL 2215833 Contact Us For Availability
21
Screw WPL 3400507 Contact Us For Availability
21
Glass Shelf, Deli WPL 2005152 Contact Us For Availability
22
Bushing WPL 2002903 Contact Us For Availability
22
Basket, Freezer Lower WPL 2006244 Contact Us For Availability
22
Rail-Front, Deli WPL 2220883 Contact Us For Availability
23
Control Knob, Deli WPL 2005415 Contact Us For Availability
24
Blade, Fan WPL 2190685 Contact Us For Availability
24
Drain Tube, Condensate WPL 2209208 Contact Us For Availability
24
Spacer WPL 2207576 Contact Us For Availability
25
Insulation, Baffle WPL 2215530 Contact Us For Availability
25
Washer WPL 2006252 Contact Us For Availability
26
Cover, Air Diffuser WPL 2215531 Contact Us For Availability
26
Roller WPL 2207550 Contact Us For Availability
26
Bracket, Drain Pan (Left) WPL 1113206 Contact Us For Availability
26
Bracket, Drain Pan (Right) WPL 1113207 Contact Us For Availability
26
Connector, Deli Pan WPL 2005165 Contact Us For Availability
27
Heater-Tube, Drain WPL 2204595 Contact Us For Availability
27
Lid, Deli Pan WPL 2222655 Contact Us For Availability
27
Cement Alumilastic) WPL 542639 Contact Us For Availability
28
Insulation, Tube Drain WPL 2204538 Contact Us For Availability
28
Hinge Rod, Deli Pan WPL 2005923 Contact Us For Availability
29
Cover, Tube Drain WPL 2204537 Contact Us For Availability
29
Cripser Pan WPL 2005157 Contact Us For Availability
30
Handle, Crisper Pan WPL 2005480 Contact Us For Availability
31
Housing, Switch WPL 2215835 Contact Us For Availability
31
Shut Off Arm WPL 2221172 Contact Us For Availability
32
Skirt, Grille- Bottom (Biscuit) WPL 2209024T Contact Us For Availability
32
SKIRT-GRILLE, BOTTOM (WHITE) WPL 2209024W Contact Us For Availability
32
Overlay, Crisper Pan WPL 2005986 Contact Us For Availability
33
Wire, Jumper WPL 2187377 Contact Us For Availability
33
Rail-Front, Crisper Shelf WPL 2220885 Contact Us For Availability
34
Grille Base, Front (Black) WPL 2215889B Contact Us For Availability
34
Grille Base, Front (Biscuit) WPL 2215889T Contact Us For Availability
34
Grille Base, Front (White) WPL 2215889W Contact Us For Availability
34
Vent, Crisper Shelf WPL 2005425 Contact Us For Availability
35
Clip, Thermistor WPL 2209204 Contact Us For Availability
35
Screw WPL 3400878 Contact Us For Availability
35
Slide-Humidity, Crisper Shelf WPL 2005413 Contact Us For Availability
36
Cover, Rear WPL 2209133 Contact Us For Availability
37
Control Panel WPL 2215816 Contact Us For Availability
37
Glass, Crisper Shelf WPL 2005477 Contact Us For Availability
37
Water Valve Mounting Bracket WPL 2221282 Contact Us For Availability
38
Overlay, Control Panel WPL 2221064 Contact Us For Availability
38
Rail-Rear, Crisper Shelf WPL 2005478 Contact Us For Availability
39
Circuit Board (User Interface) WPL 2209159 Contact Us For Availability
39
Seal-Front, Crisper Shelf WPL 2005479 Contact Us For Availability
40
Insert, Control Box WPL 2215670 Contact Us For Availability
40
Insulation, Crisper Rail WPL 2005984 Contact Us For Availability
41
Baffle-Center, Crisper Shelf WPL 2005985 Contact Us For Availability
42
Center Support, Left Half WPL 2005794 Contact Us For Availability
43
Center Support, Right Half WPL 2005795 Contact Us For Availability
44
Clip, Cord Plug WPL 653035 Contact Us For Availability
44
Harness, Control Box WPL 2187424 Contact Us For Availability
44
Bracket, Center Support WPL 2005796 Contact Us For Availability
45
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
45
Wiring Harness, Unit Compartment WPL 2187418 Contact Us For Availability
45
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
45
Channel, Wiring Freezer Light WPL 8201534 Contact Us For Availability
46
CLIP, WIRING WPL 1115375 Contact Us For Availability
47
WPL 2207578 WPL 2207578 Contact Us For Availability
47
Deli Pan WPL 2222741 Contact Us For Availability
48
Wiring Cover, Icemaker WPL 2005792 Contact Us For Availability
48
Ladder, Shelf (4) WPL 2005410 Contact Us For Availability
49
Defrost Bi-Metal WPL 2187378 Contact Us For Availability
50
Diffuser Assembly WPL 2215829 Contact Us For Availability
50
Ladder, Crisper Support WPL 2005797 Contact Us For Availability
52
WPL 2221260 WPL 2221260 Contact Us For Availability
53
WPL 2207522 WPL 2207522 Contact Us For Availability
55
WPL 2207569 WPL 2207569 Contact Us For Availability
100
Front Panel Kit (White) WPL 2220952 Contact Us For Availability
100
Front Panel Kit (Black) WPL 2220953 Contact Us For Availability
100
Front Panel Kit (Biscuit) WPL 2220954 Contact Us For Availability
100
Front Panel Kit (Stainless Steel) WPL 2220955 Contact Us For Availability
100
Black Acrylic Static Cleaner WPL 978849 Contact Us For Availability
× ![]()
