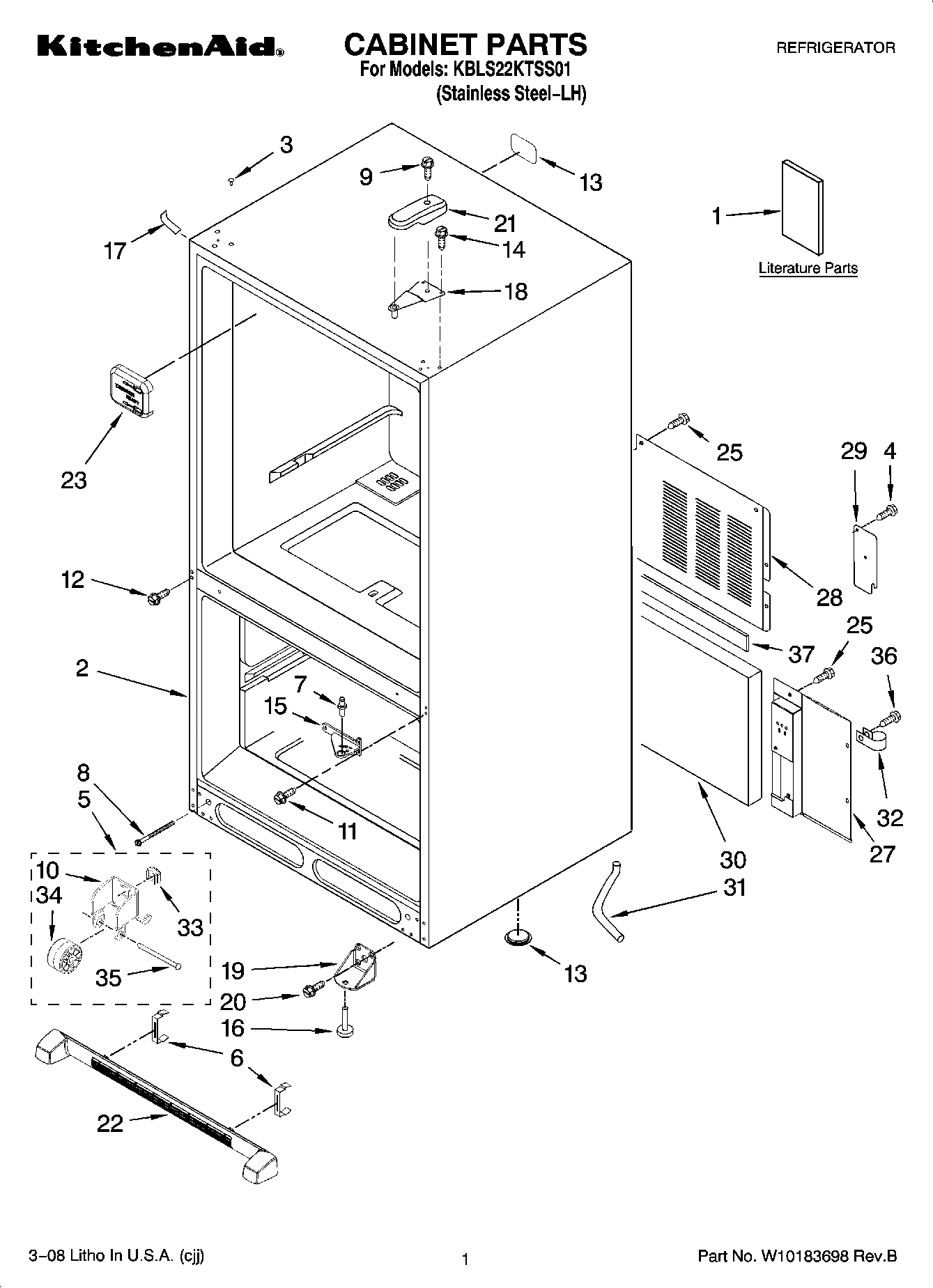

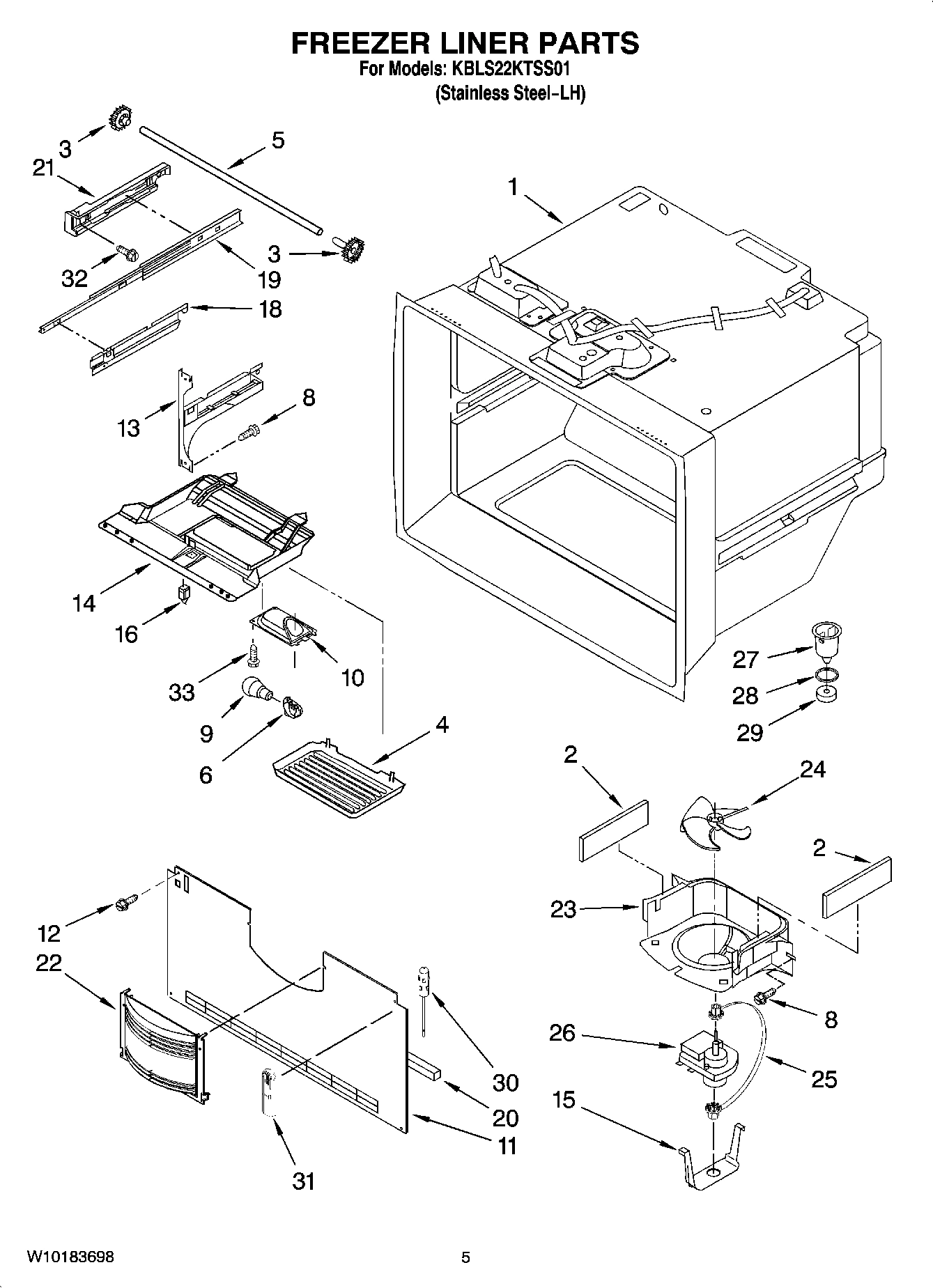

Model Whirlpool KBLS22KTSS01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

67005644 Whirlpool Refrigerator Wire Harness Backorder WPL 67005644 $31.79

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $68.02

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

WPL 978029 WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Following Parts Not Illustrated WPL ARI78907A2 Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 qt.) (Black (Uncut)) WPL 799340 Contact Us For Availability

KIT, EVAPO WPL 799833 Contact Us For Availability

WPL 978028 WPL 978028 Contact Us For Availability

WPL ARI78910A7 WPL ARI78910A7 Contact Us For Availability

WPL ARI78911A9 WPL ARI78911A9 Contact Us For Availability

WPL ARI78912A2 WPL ARI78912A2 Contact Us For Availability

WPL ARI78913A9 WPL ARI78913A9 Contact Us For Availability

WPL ARI78914A4 WPL ARI78914A4 Contact Us For Availability

WPL ARI78915A5 WPL ARI78915A5 Contact Us For Availability

WPL ARI78916A7 WPL ARI78916A7 Contact Us For Availability

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

Ladder, Side WPL 67001317 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI78906A8 Contact Us For Availability

1

Refrigerator Door (Stainless Steel-LH) WPL W10170545 Contact Us For Availability

1

Freezer Door (w/ Insulation) (Stainless Steel WPL W10170543 Contact Us For Availability

2

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $33.18

2

Bracket, Control and Lights WPL Y67003896 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $28.16

3

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.70

3

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $53.64

3

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.00

3

Overlay WPL W10183186 Contact Us For Availability

3

Basepan WPL 67005744 Contact Us For Availability

4

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $46.65

4

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $127.04

4

Housing, Electronic Control WPL 67005444 Contact Us For Availability

5

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

5

WPW10371195 Whirlpool Refrigerator Cantilever Backorder WPL WPW10371195 $45.71

5

Shelf, Fixed (2) WPL 67005730 Contact Us For Availability

6

67004938 Whirlpool Refrigerator Waterline Ass Backorder WPL 67004938 $56.45

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

Shelf, Glide (2) WPL 67005731 Contact Us For Availability

6

Nameplate (Grey) WPL W10146610 Contact Us For Availability

6

COMPRESSOR WPL W10130129 Contact Us For Availability

7

W10119857 Whirlpool Wire Harness Backorder WPL W10119857 $67.49

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $36.31

7

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $137.86

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $43.32

8

Handle, Door (Stainless Steel) WPL 2319727S Contact Us For Availability

8

Drain Pan WPL 67004713 Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

9

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $39.36

9

Grommet (3) WPL 61004743 Contact Us For Availability

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

WP67001794 Whirlpool Refrigerator Defrost Hea Backorder WPL WP67001794 $73.96

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $27.82

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Rack, Ice WPL 12646501 Contact Us For Availability

Bin, Shelf (1) (Small) WPL 67005724 Contact Us For Availability

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

WP10972101 Whirlpool Refrigerator Spacer Backorder WPL WP10972101 $4.65

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $4.56

WPW10197426 Whirlpool Refrigerator Start Devi Backorder WPL WPW10197426 $57.23

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $37.84

13

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

13

Retainer WPL 67001748 Contact Us For Availability

W10231483 Whirlpool Refrigerator Trim Shelf Backorder WPL W10231483 $41.52

Backorder WPL W11750607 $18.30

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $32.00

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.70

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $74.68

Pan, Crisper (2) WPL 67005927 Contact Us For Availability

16

Basket, Freezer (Upper) WPL 67004986 Contact Us For Availability

16

Shroud, Condenser WPL W10158508 Contact Us For Availability

17

W10136415 Whirlpool Clip Backorder WPL W10136415 $26.21

17

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $43.32

17

WP67006908 Whirlpool Refrigerator Screw In Stock WPL WP67006908 $2.51

18

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

18

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $138.54

18

Divider, Upper Basket WPL 67004127 Contact Us For Availability

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

Screw WPL 67006608 Contact Us For Availability

Tube, Discharge WPL W10167036 Contact Us For Availability

20

W11159742 Whirlpool Refrigerator Gasket Backorder WPL W11159742 $10.10

20

WPW10292802 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10292802 $66.34

20

Basket, Freezer (Lower) WPL 67006024 Contact Us For Availability

WPW10284681 Whirlpool Refrigerator Bracket Backorder WPL WPW10284681 $117.53

Bracket, Slide (Left) WPL W10128118 Contact Us For Availability

Divider, Lower Basket WPL 67006644 Contact Us For Availability

Clip, Evaporator WPL 10623002 Contact Us For Availability

22

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $194.96

22

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $115.43

22

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $34.13

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $71.73

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

24

Gasket, Pantry WPL 67002005 Contact Us For Availability

24

Motor, Fan WPL 67004432 Contact Us For Availability

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $27.29

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

25

WP12531601 Whirlpool Refrigerator Tunnel Backorder WPL WP12531601 $4.15

26

W10656985 Whirlpool Refrigerator Trim Backorder WPL W10656985 $47.18

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

26

Harness, Unit Includes Cord WPL 13060202 Contact Us For Availability

27

67002002 Whirlpool Refrigerator Pantry Slide Backorder WPL 67002002 $9.81

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $27.69

27

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $64.58

28

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

28

Rod, Temperature Control WPL 67002003 Contact Us For Availability

29

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $42.33

29

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $29.43

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $22.72

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

Drawer, Pantry WPL 67005928 Contact Us For Availability

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

W10164397 Whirlpool Refrigerator Drain Tube Backorder WPL W10164397 $8.73

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $3.70

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $3.70

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

32

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

32

Screw WPL 67006573 Contact Us For Availability

67005421 Whirlpool Hoist Cover Backorder WPL 67005421 $28.80

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $26.75

W10709797 Whirlpool Refrigerator Screw Backorder WPL W10709797 $9.59

WP67001716 Whirlpool Refrigerator Shelf Suppo In Stock WPL WP67001716 $4.32

34

Divider, Pantry WPL 67001923 Contact Us For Availability

34

Board, HV WPL W10168780 Contact Us For Availability

35

WP67001255 Whirlpool Ice Bucket In Stock WPL WP67001255 $82.10

35

Spacer, HV WPL 67005719 Contact Us For Availability

36

Box, HV WPL 67005718 Contact Us For Availability

37

SCREW WPL 67006550 Contact Us For Availability

38

Harness, HV WPL 67005938 Contact Us For Availability

39

W10709801 Whirlpool Refrigerator Screw Backorder WPL W10709801 $9.13

40

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $26.21

41

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

42

Block, Condenser WPL 67005491 Contact Us For Availability

43

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $10.76

44

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70
