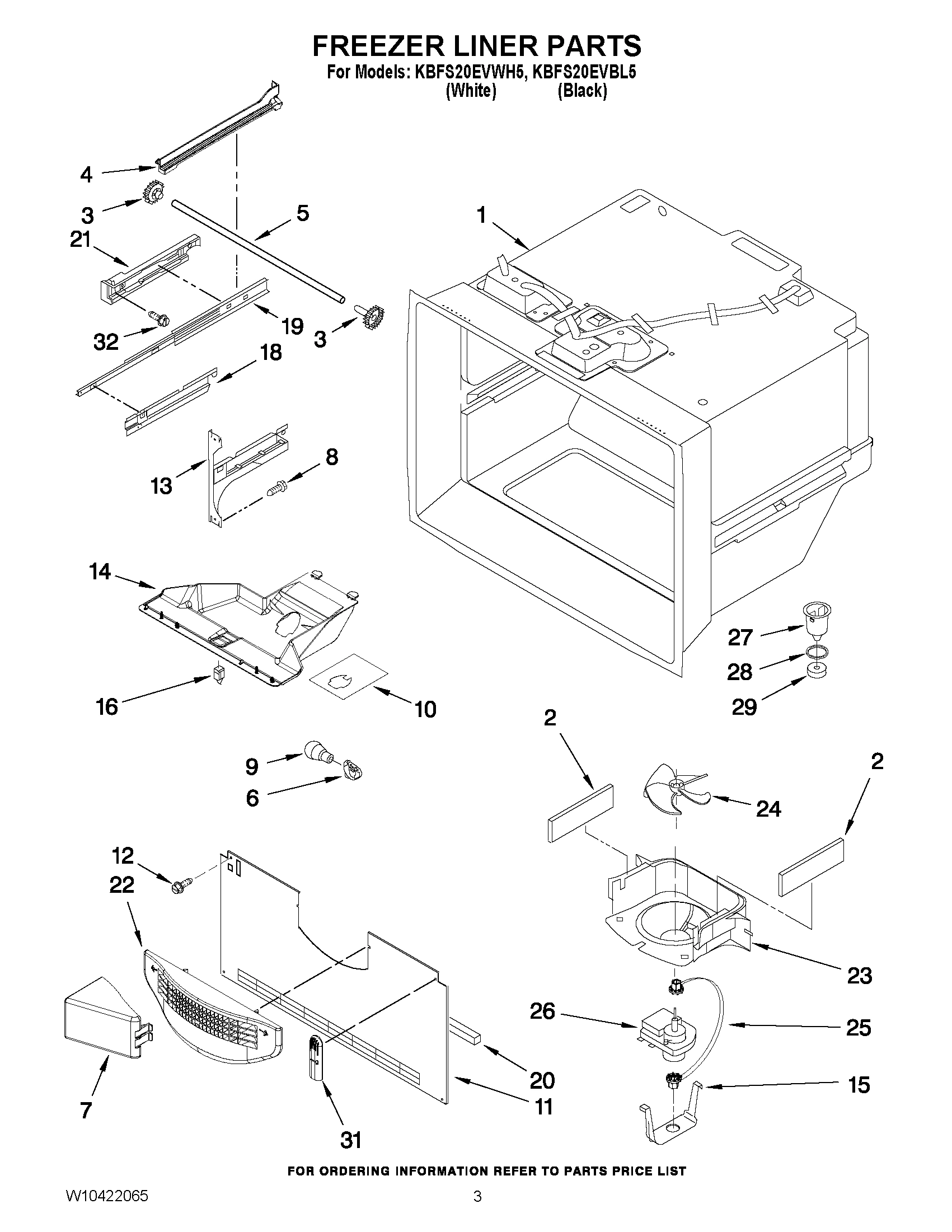

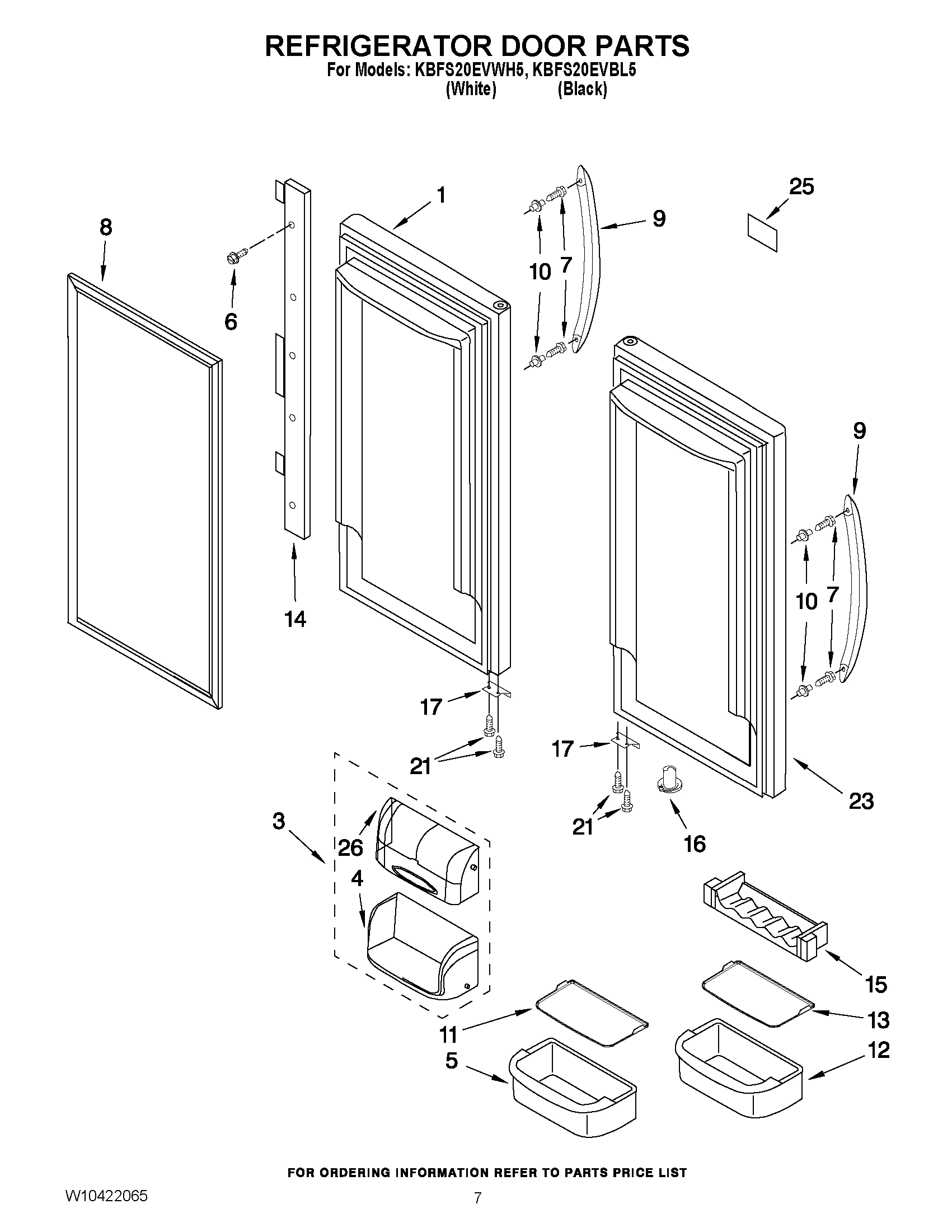

Model Whirlpool KBFS20EVWH5 REFRIGERATOR – Common Parts & Diagrams

1
SCREW
SCREW WPL 12992301 Contact Us For Availability
View on Model
3
GEAR (INCLUDES BOTH)
GEAR (INCLUDES BOTH) WPL 12002497 Contact Us For Availability
View on Model
4
GASKET
GASKET WPL B5759655 Contact Us For Availability
View on Model
6
SWEEP, DUAL TUBE
SWEEP, DUAL TUBE WPL 12831101 Contact Us For Availability
View on Model
7
DIVERTER, AIR
DIVERTER, AIR WPL W10157765 Contact Us For Availability
View on Model
7
SCREW
SCREW WPL W10290759 Contact Us For Availability
View on Model
7
HARNESS, EVAP. HEATER
HARNESS, EVAP. HEATER WPL W10292242 Contact Us For Availability
View on Model
8
DIVIDER, UPPER BASKET
DIVIDER, UPPER BASKET WPL W10241046 Contact Us For Availability
View on Model
10
HOUSING, CONTROL
HOUSING, CONTROL WPL 12656202 Contact Us For Availability
View on Model
11
Screw (2)
Screw (2) WPL 8533917 Contact Us For Availability
View on Model
12
Hinge, Top Right
Hinge, Top Right WPL 12626910ED Contact Us For Availability
View on Model
13
COVER, LEFT HINGE (WHITE)
COVER, LEFT HINGE (WHITE) WPL W10217484 Contact Us For Availability
View on Model
13
COVER, LEFT HINGE (BLACK)
COVER, LEFT HINGE (BLACK) WPL W10217485 Contact Us For Availability
View on Model
15
HINGE, CENTER (2) (BLACK)
HINGE, CENTER (2) (BLACK) WPL 12655103ED Contact Us For Availability
View on Model
17
Cover, Corner (White)
Cover, Corner (White) WPL 12587703W Contact Us For Availability
View on Model
18
Hinge, Top Left
Hinge, Top Left WPL 12626911ED Contact Us For Availability
View on Model
22
LADDER, CENTER
LADDER, CENTER WPL W10273463 Contact Us For Availability
View on Model
22
FUNNEL, FILL TUBE
FUNNEL, FILL TUBE WPL 12918001 Contact Us For Availability
View on Model
23
Dam (Left Side)
Dam (Left Side) WPL 12225602 Contact Us For Availability
View on Model
25
GROMMET
GROMMET WPL W10121318 Contact Us For Availability
View on Model
25
SCREW (2)
SCREW (2) WPL W10215666 Contact Us For Availability
View on Model
26
COVER, WATER LINE
COVER, WATER LINE WPL 12726003 Contact Us For Availability
View on Model
27
GUARD, WATER VALVE
GUARD, WATER VALVE WPL W10208593 Contact Us For Availability
View on Model
33
LID, HV BOX
LID, HV BOX WPL W10296541 Contact Us For Availability
View on Model
33
INSULATION, SOUND
INSULATION, SOUND WPL 12820505 Contact Us For Availability
View on Model
33
Divider, Lower Basket
Divider, Lower Basket WPL W10150061 Contact Us For Availability
View on Model
37
MOUNT, GEAR RH
MOUNT, GEAR RH WPL W10348260 Contact Us For Availability
View on Model
38
MOUNT, GEAR LH
MOUNT, GEAR LH WPL W10348259 Contact Us For Availability
View on Model
39
LIFT, BAIL ARM
LIFT, BAIL ARM WPL W10149389 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
VALVE, ACCESS (3/16``)
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
View on Model
NI
SEALER, GUM (4 FEET)
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
View on Model
NI
Valve, Access (5/16``)
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
View on Model
NI
Valve, Access (3/8``)
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
View on Model
NI
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
NI
VALVE, ACCESS (3/4``)
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
View on Model
NI
Kit, Terminal Connector
Kit, Terminal Connector WPL 833938 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH WPL 350942 Contact Us For Availability
View on Model
NI
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT))
PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
NI
Torx Key
Torx Key WPL 1117510 Contact Us For Availability
View on Model
