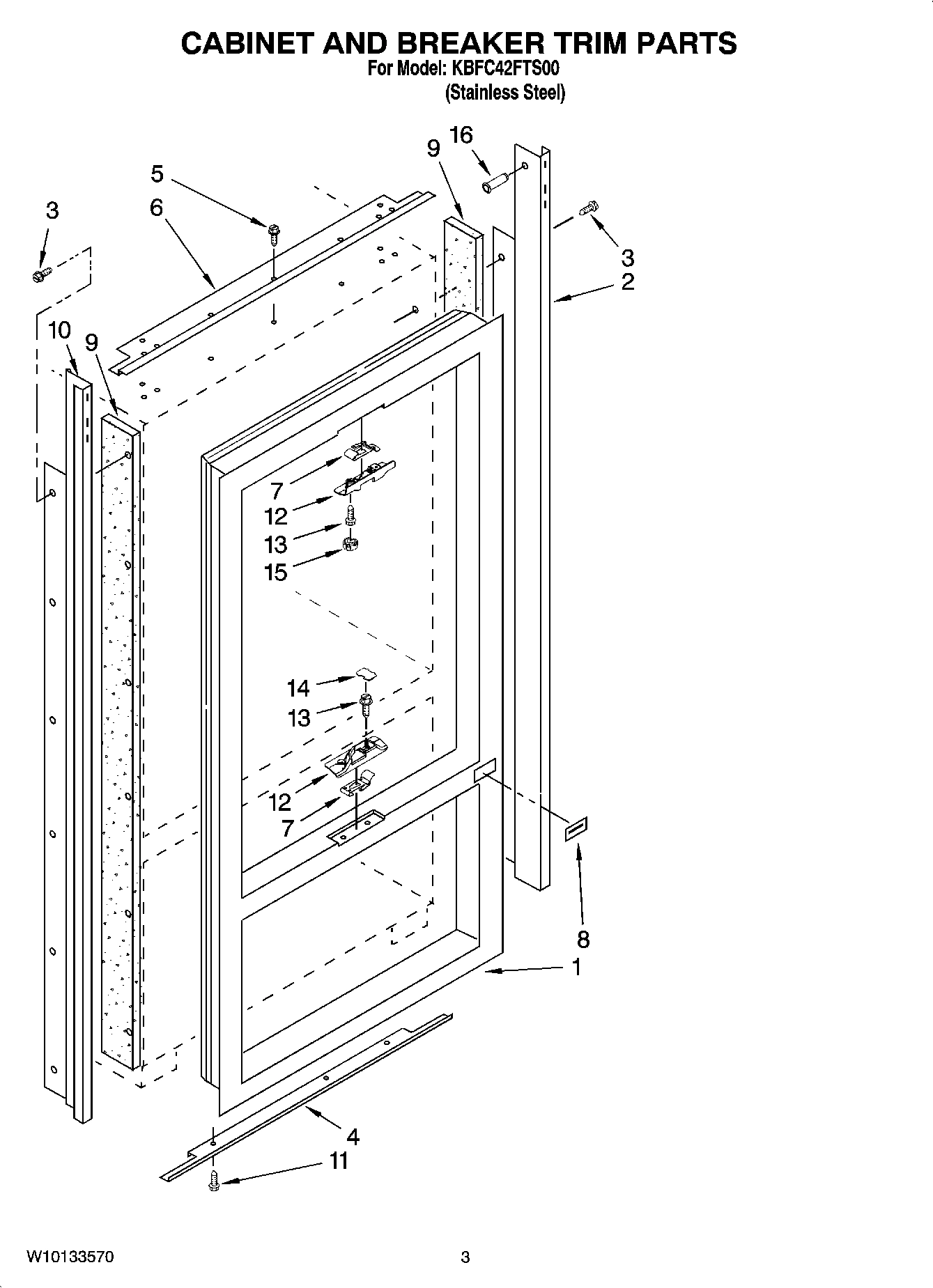

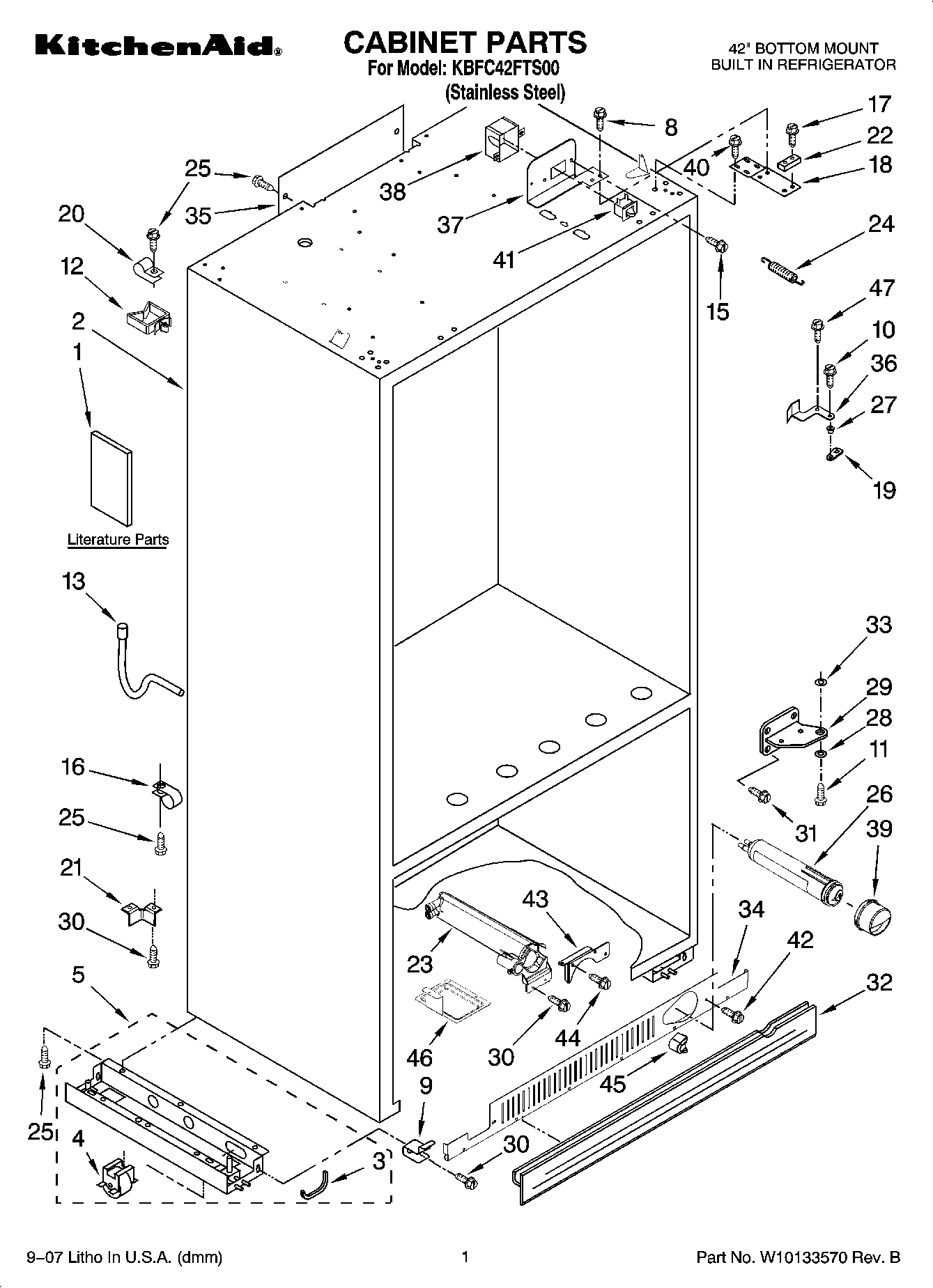

Model Whirlpool KBFC42FTS00 42`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W10129081 Whirlpool Refrigerator Handle Backorder WPL W10129081 $207.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Cleaner, Stainless Steel WPL 8537055 Contact Us For Availability

Following Parts Not Illustrated (Optional Par WPL ARI78109A4 Contact Us For Availability

1

Crisper Pan Assembly (Includes 2) (Right) WPL 2268171 Contact Us For Availability

1

Door, Refrigerator (Includes Item 2) (Right) WPL 2307902 Contact Us For Availability

1

Door, Refrigerator (Includes Item 2) (Left) WPL 2307903 Contact Us For Availability

1

Freezer Door (Includes 9) WPL 2327400 Contact Us For Availability

1

Tube, Transition (Condenser) WPL 2309072 Contact Us For Availability

2

8201809 Whirlpool Refrigerator Door Gasket In Stock WPL 8201809 $129.35

2

W10388653 Whirlpool Refrigerator Tube Backorder WPL W10388653 $13.93

2

W10744329 Whirlpool Refrigerator Support In Stock WPL W10744329 $125.33

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $75.78

2

Divider, Basket (2) WPL 2317101 Contact Us For Availability

3

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $12.70

3

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

3

W10665413 Whirlpool Refrigerator Mat Backorder WPL W10665413 $148.63

3

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

3

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $64.71

3

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

4

2307944 Whirlpool Clip Backorder WPL 2307944 $7.61

4

W10135775 Whirlpool Refrigerator Screw Backorder WPL W10135775 $8.73

4

WP2320616 Whirlpool Refrigerator Slide In Stock WPL WP2320616 $142.00

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $16.58

4

Spacer-Hinge, Top WPL 2256381 Contact Us For Availability

4

Jumper, Heater Fill Tube WPL 2310108 Contact Us For Availability

5

WP2303091 Whirlpool Refrigerator Electronic C Backorder WPL WP2303091 $153.06

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Screw WPL W10061370 Contact Us For Availability

5

Bracket, Mounting WPL 2307945 Contact Us For Availability

6

2309219 Whirlpool Refrigerator Filler Backorder WPL 2309219 $106.43

6

Tube, Suction WPL 2309076 Contact Us For Availability

6

Tube, Filter Inlet WPL 2325170 Contact Us For Availability

6

SPACER, HINGE (BOTTOM) WPL 2257647 Contact Us For Availability

7

2316752 Whirlpool Refrigerator Door Hinge Backorder WPL 2316752 $83.59

7

W10219166 Whirlpool Refrigerator Heater Backorder WPL W10219166 $70.39

7

Bottom Hinge Assembly (Right) WPL 2316751 Contact Us For Availability

7

Cam, Mullion (Bottom) WPL 2316858 Contact Us For Availability

7

Cam, Mullion (Top) WPL 2316857 Contact Us For Availability

7

Tube Assembly, Water Inlet WPL 2317848 Contact Us For Availability

7

Spacer, Door Edge - Side WPL 2316788 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

8

NAMEPLATE WPL 2317923S Contact Us For Availability

8

Transformer WPL 2303033 Contact Us For Availability

8

Skin, Door WPL 2316732 Contact Us For Availability

8

SPACER, DOOR EDGE TOP & BOTTOM WPL 2309221 Contact Us For Availability

8

Scroll Assembly WPL 2306178 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

2309216 Whirlpool Refrigerator Door Gasket In Stock WPL 2309216 $119.21

9

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $11.29

9

W11669856 Whirlpool Grommet Backorder WPL W11669856 $5.51

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Ice Pan Assembly (Includes 10) WPL 2306174 Contact Us For Availability

WP2307650 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2307650 $96.20

SCREW WPL W10004850 Contact Us For Availability

PLATE, DOOR HANDLE WPL 2306398 Contact Us For Availability

Motor, Fan WPL 2259385 Contact Us For Availability

2327511 Whirlpool Refrigerator Pan Backorder WPL 2327511 $205.65

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $52.48

WP2316868 Whirlpool Refrigerator Handle Backorder WPL WP2316868 $144.46

WP308544 Whirlpool Screw In Stock WPL WP308544 $2.51

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

Shield, Valve WPL W10129653 Contact Us For Availability

2309230 Whirlpool Refrigerator Clip Backorder WPL 2309230 $9.33

2309231 Whirlpool Refrigerator Clip Backorder WPL 2309231 $32.12

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

Diffuser Assembly WPL 2320523 Contact Us For Availability

Filler, Foam WPL 2309218 Contact Us For Availability

Skin, Door WPL 2316733 Contact Us For Availability

2309073 Whirlpool Refrigerator Tube Backorder WPL 2309073 $27.52

2314064 Whirlpool Refrigerator Drain Tube Backorder WPL 2314064 $30.25

WP2221231 Whirlpool Refrigerator Shield In Stock WPL WP2221231 $40.50

Spacer, Door Edge (Handle Side) WPL 2314068 Contact Us For Availability

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

Defrost Bi-Metal WPL 2310137 Contact Us For Availability

Spacer, Door Edge (Hinge Side) WPL 2316768 Contact Us For Availability

Basket Assembly, Freezer WPL 2327532 Contact Us For Availability

2317829 Whirlpool Refrigerator Cover Backorder WPL 2317829 $12.35

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

W10195924 Whirlpool Refrigerator Evaporator Backorder WPL W10195924 $178.53

WP2207454 Whirlpool Refrigerator Nut Backorder WPL WP2207454 $4.58

SPACER, DOOR EDGE (TOP / BOTTOM) WPL 2309204 Contact Us For Availability

2307998 Whirlpool Refrigerator Condenser Backorder WPL 2307998 $261.55

488946 Whirlpool Air Conditioner Clamp Backorder WPL 488946 $10.25

W10757973-includeCORE Whirlpool W10757973 Ref Backorder WPL W10757973-includeCORE $462.17

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $4.59

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $3.70

WPW10281063 Whirlpool Refrigerator Heater Pan In Stock WPL WPW10281063 $170.47

WASHER WPL W10001190 Contact Us For Availability

2306106 Whirlpool Refrigerator Track In Stock WPL 2306106 $11.07

2310136 Whirlpool Refrigerator Wire Harness In Stock WPL 2310136 $67.17

W11500952 Whirlpool Refrigerator Hinge Bushin Backorder WPL W11500952 $12.32

DIFFUSER, CRISPER (COMPLETE)(2) WPL 2268249 Contact Us For Availability

Screw, Door Stop WPL W10005070 Contact Us For Availability

Screw, 5/16-24 x 1 (Basket to Slide) WPL W10001170 Contact Us For Availability

Cover, Box WPL 2316684 Contact Us For Availability

2306116 Whirlpool Refrigerator Slide Backorder WPL 2306116 $122.91

2306117 Whirlpool Refrigerator Slide Backorder WPL 2306117 $116.41

W11218690 Whirlpool Refrigerator Door Hinge In Stock WPL W11218690 $27.89

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $4.56

Cover WPL 2257538 Contact Us For Availability

Cover, Wiring WPL 2316683 Contact Us For Availability

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

WP2320509 Whirlpool Refrigerator Door Cam Backorder WPL WP2320509 $9.92

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

Mullion Assembly WPL 2307938 Contact Us For Availability

W10323746 Whirlpool Refrigerator Cantilever B Backorder WPL W10323746 $56.16

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

Divider, Freezer Bins (Includes receiver) WPL 2317925 Contact Us For Availability

Block, Evaporator Water Filter WPL 2306180 Contact Us For Availability

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

2302952 Whirlpool Refrigerator Slide Backorder WPL 2302952 $124.83

2302953 Whirlpool Refrigerator Slide Backorder WPL 2302953 $124.94

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

W10323598 Whirlpool Refrigerator Cantilever B Backorder WPL W10323598 $57.79

W10716209 Whirlpool Refrigerator Support In Stock WPL W10716209 $29.44

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

W11403572 Whirlpool Refrigerator Bracket Backorder WPL W11403572 $25.49

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

WPW10131132 Whirlpool Refrigerator Door Compr Backorder WPL WPW10131132 $42.97

SHIELD WPL 2317927 Contact Us For Availability

Clip, Heater WPL 2317920 Contact Us For Availability

2222795 Whirlpool Refrigerator Rail Backorder WPL 2222795 $33.31

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $124.19

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $91.88

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

SUPPORT, SLIDE LEFT WPL 2306105 Contact Us For Availability

2320554 Whirlpool Bracket Backorder WPL 2320554 $26.21

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $32.39

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2222981 Whirlpool Refrigerator Gasket In Stock WPL WP2222981 $93.11

Blade, Fan WPL 2190685 Contact Us For Availability

Bracket, Evaporator Cover (Right Side) WPL 2317893 Contact Us For Availability

Bracket, Evaporator Cover (Left Side) WPL 2320512 Contact Us For Availability

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

25

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

25

WPW10323035 Whirlpool Refrigerator Cantilever Backorder WPL WPW10323035 $46.23

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

WPW10323172 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323172 $3.70

WPW10323173 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323173 $3.70

Bracket, Air Return WPL W10121940 Contact Us For Availability

27

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $23.70

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

28

WP2317844 Whirlpool Refrigerator Cover Backorder WPL WP2317844 $5.20

29

2310164 Whirlpool Refrigerator Wire Harness In Stock WPL 2310164 $40.68

29

BRACKET Backorder WPL 2320559 $28.80

29

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

2307566 Whirlpool Refrigerator Tube Backorder WPL 2307566 $10.16

W10075920 Whirlpool Refrigerator Washer Backorder WPL W10075920 $5.38

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

W11474472 Whirlpool Screw In Stock WPL W11474472 $2.51

Washer (EPDM) WPL 2320526 Contact Us For Availability

Wire Assembly (Water Valve) WPL 2310193 Contact Us For Availability

32

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $2.51

32

SKIRT, GRILLE (BOTTOM) WPL 2209025B Contact Us For Availability

33

2314023 Whirlpool Bushing Backorder WPL 2314023 $27.01

33

Air Deflector Asy WPL W10135430 Contact Us For Availability

34

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

34

WP2310251 Whirlpool Refrigerator Power Cord Backorder WPL WP2310251 $53.73

34

Grille Base, Front WPL 2325188B Contact Us For Availability

35

W10185556 Whirlpool Refrigerator Bracket Backorder WPL W10185556 $45.29

36

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $32.16

36

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $31.95

37

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

39

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

40

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

41

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

46

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $53.53

47

WP8533980 Whirlpool Refrigerator Screw Backorder WPL WP8533980 $27.52

100

WPW10277450 Whirlpool Refrigerator Icemaker In Stock WPL WPW10277450 $168.35
