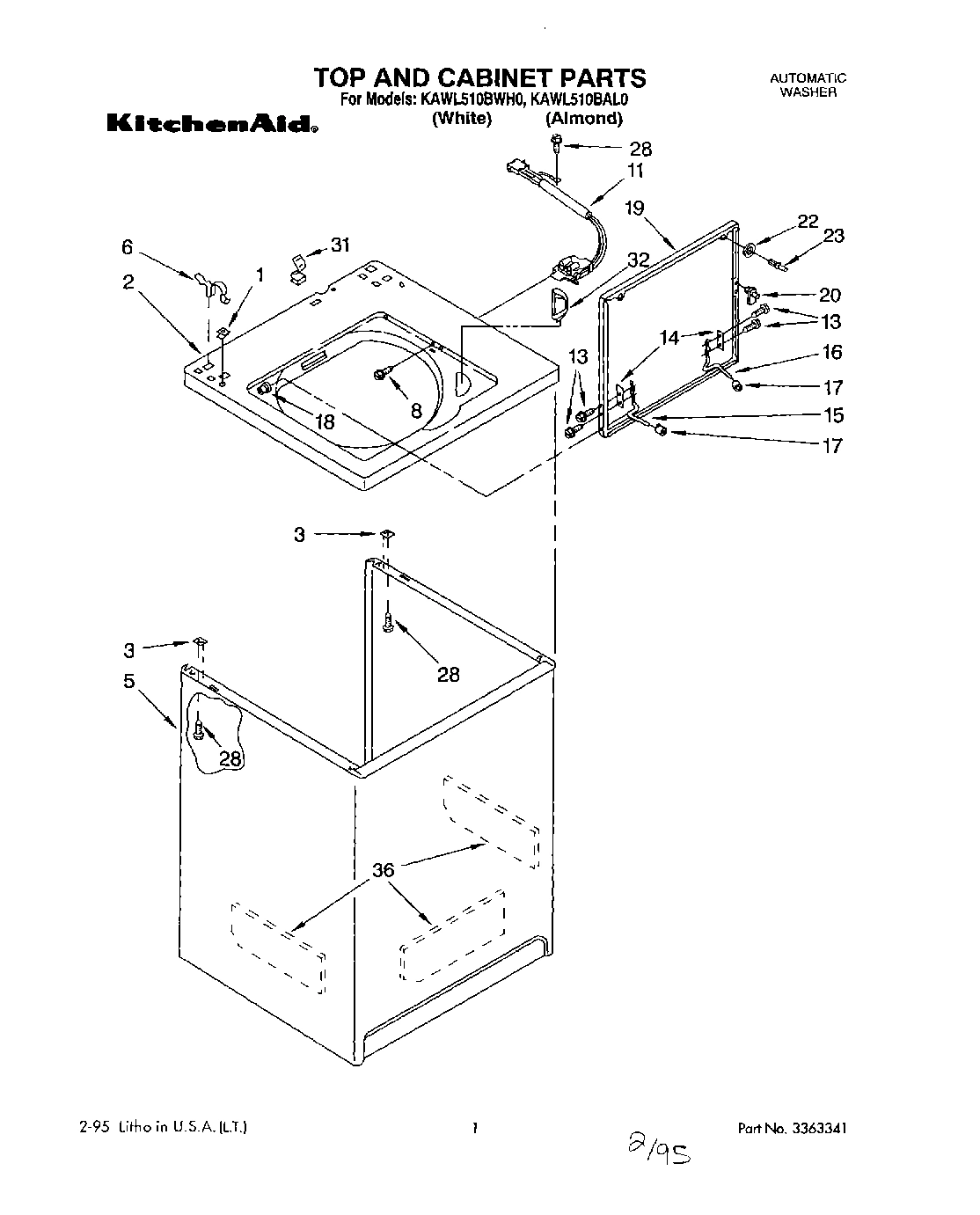

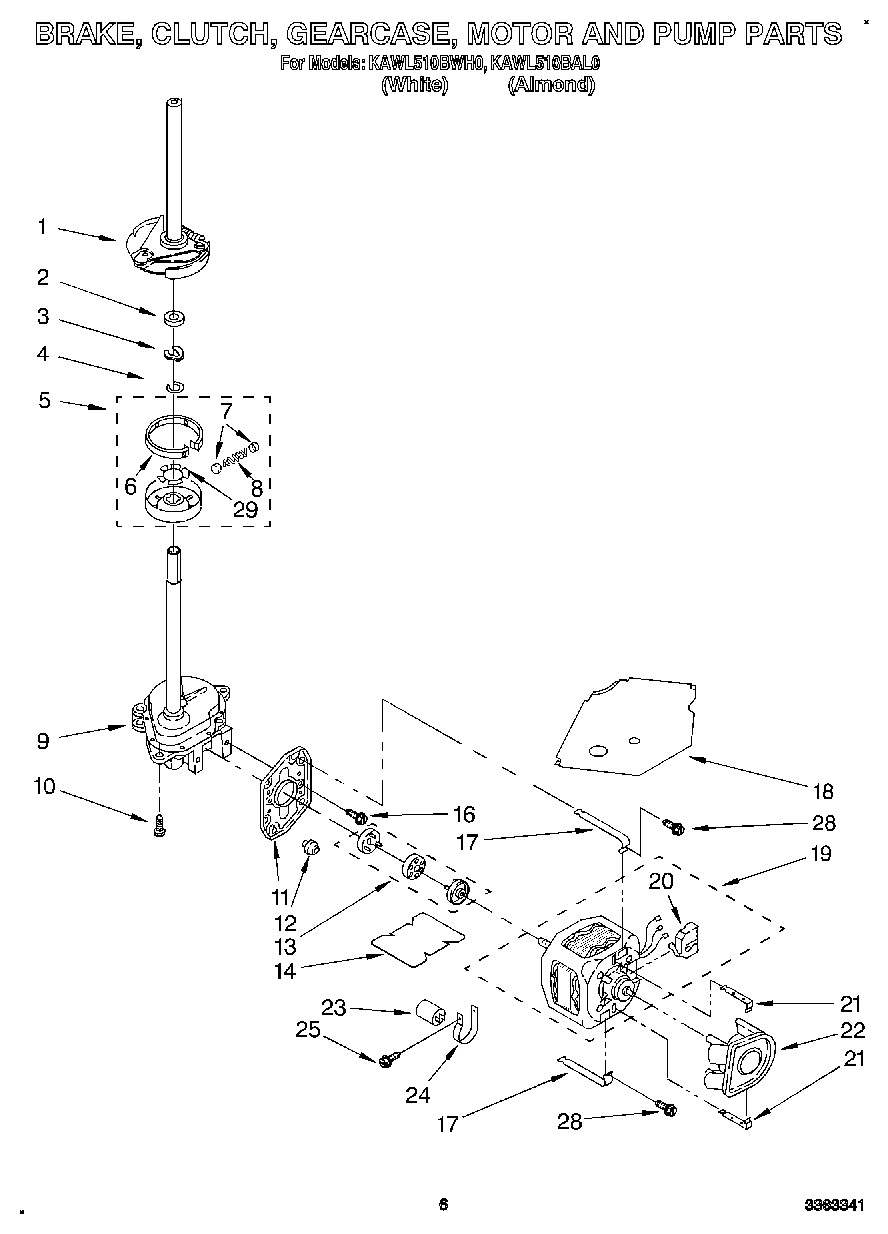

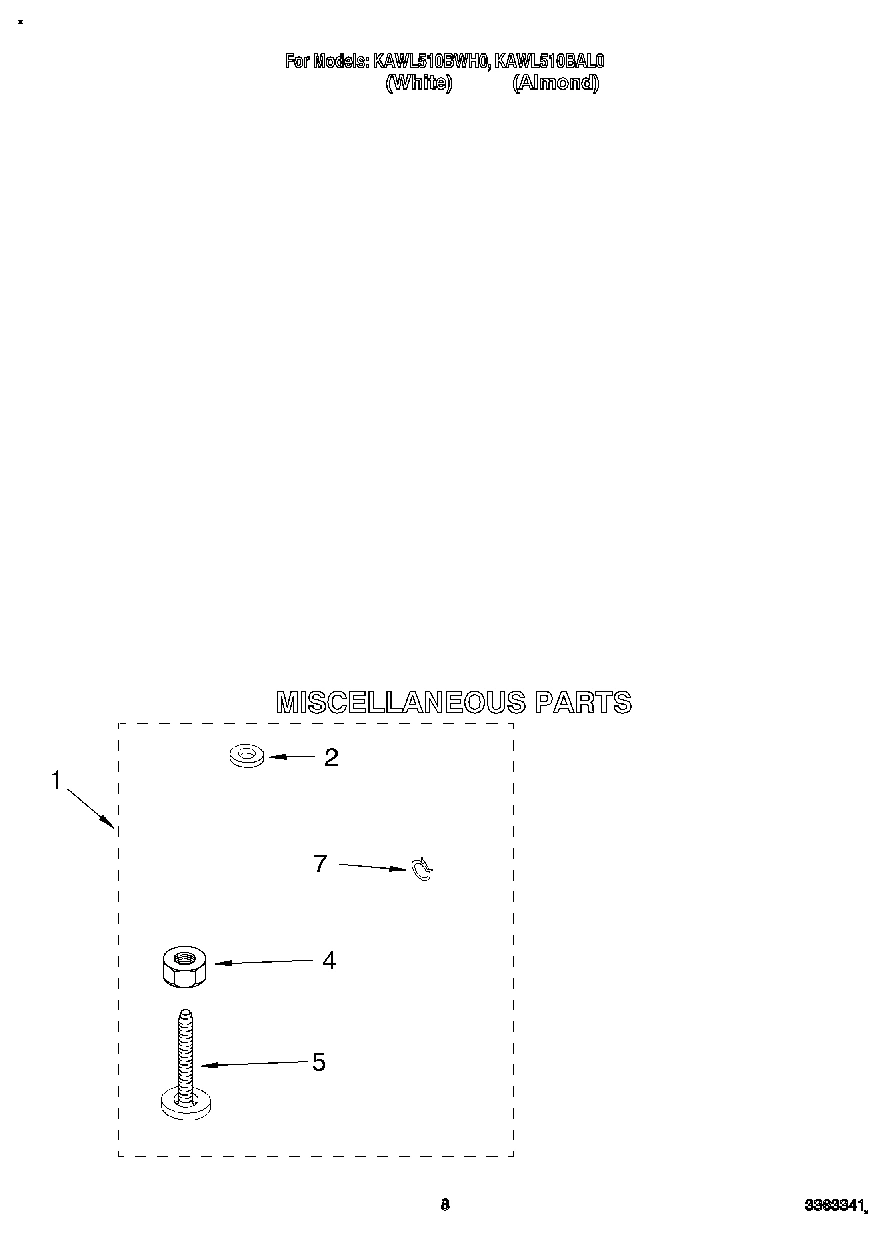

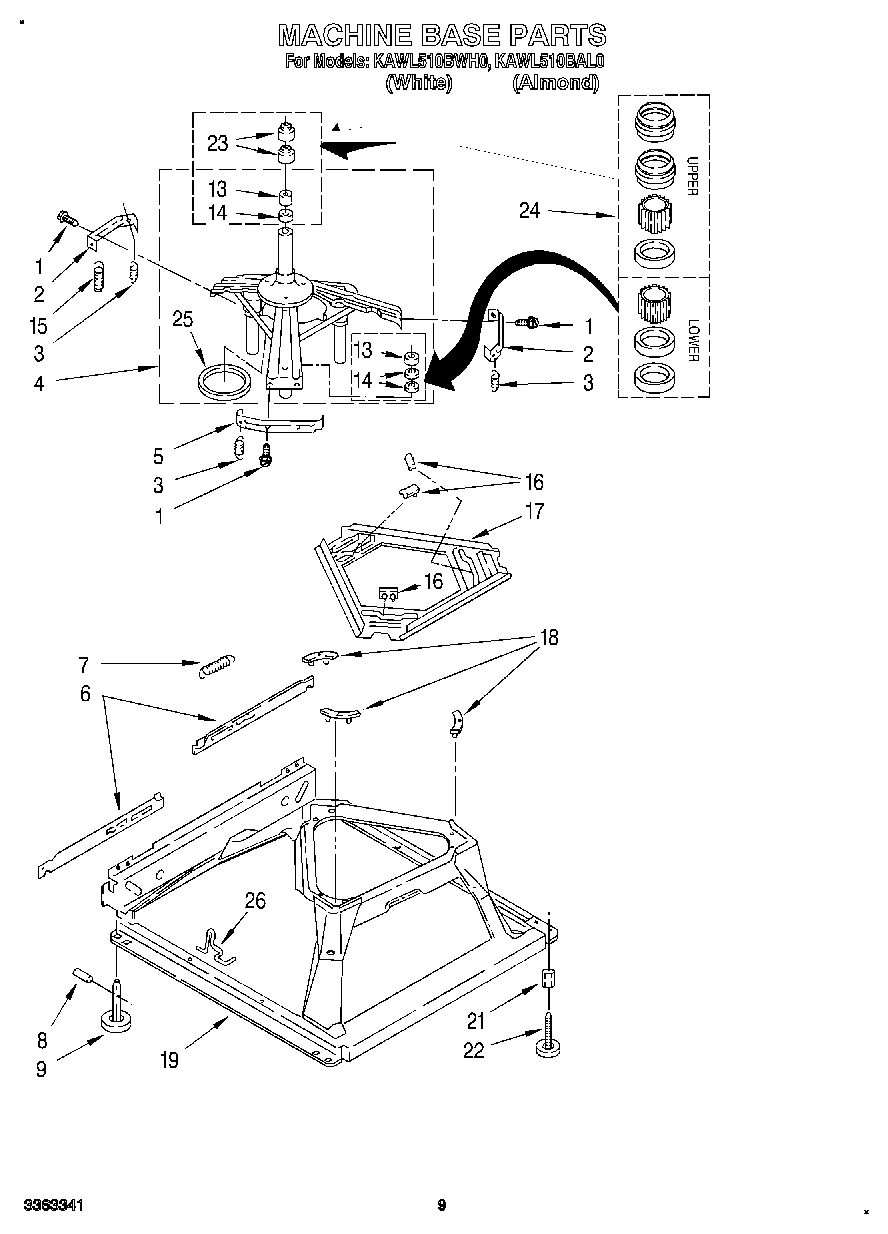

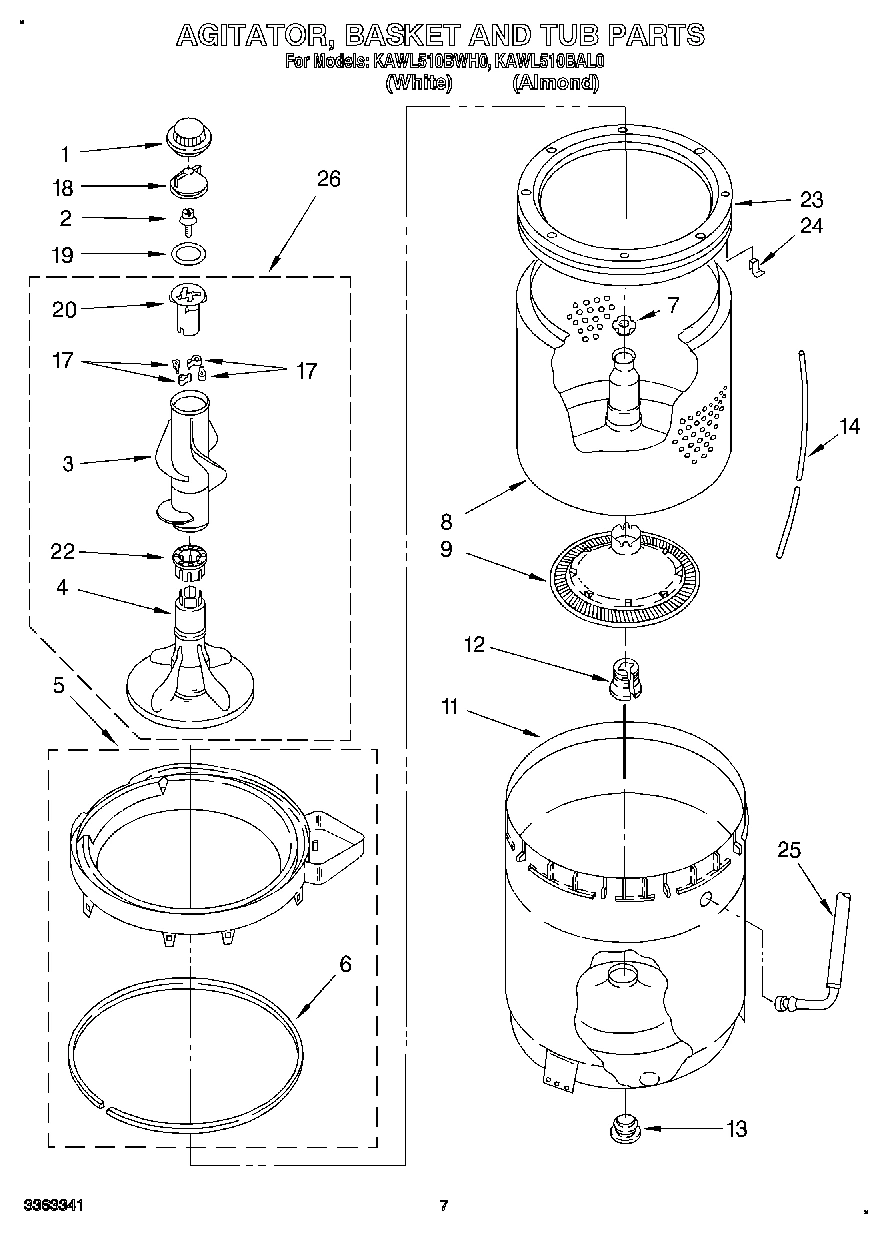

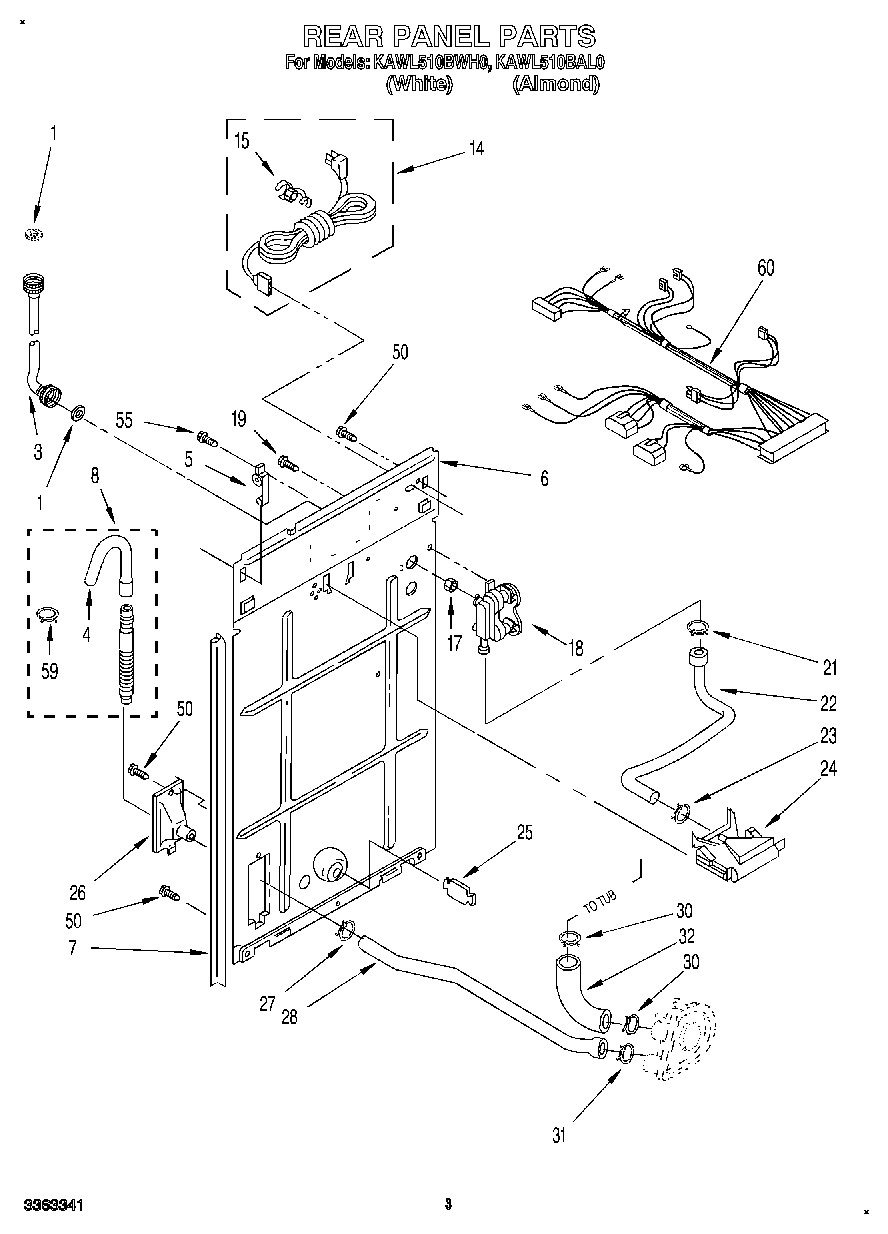

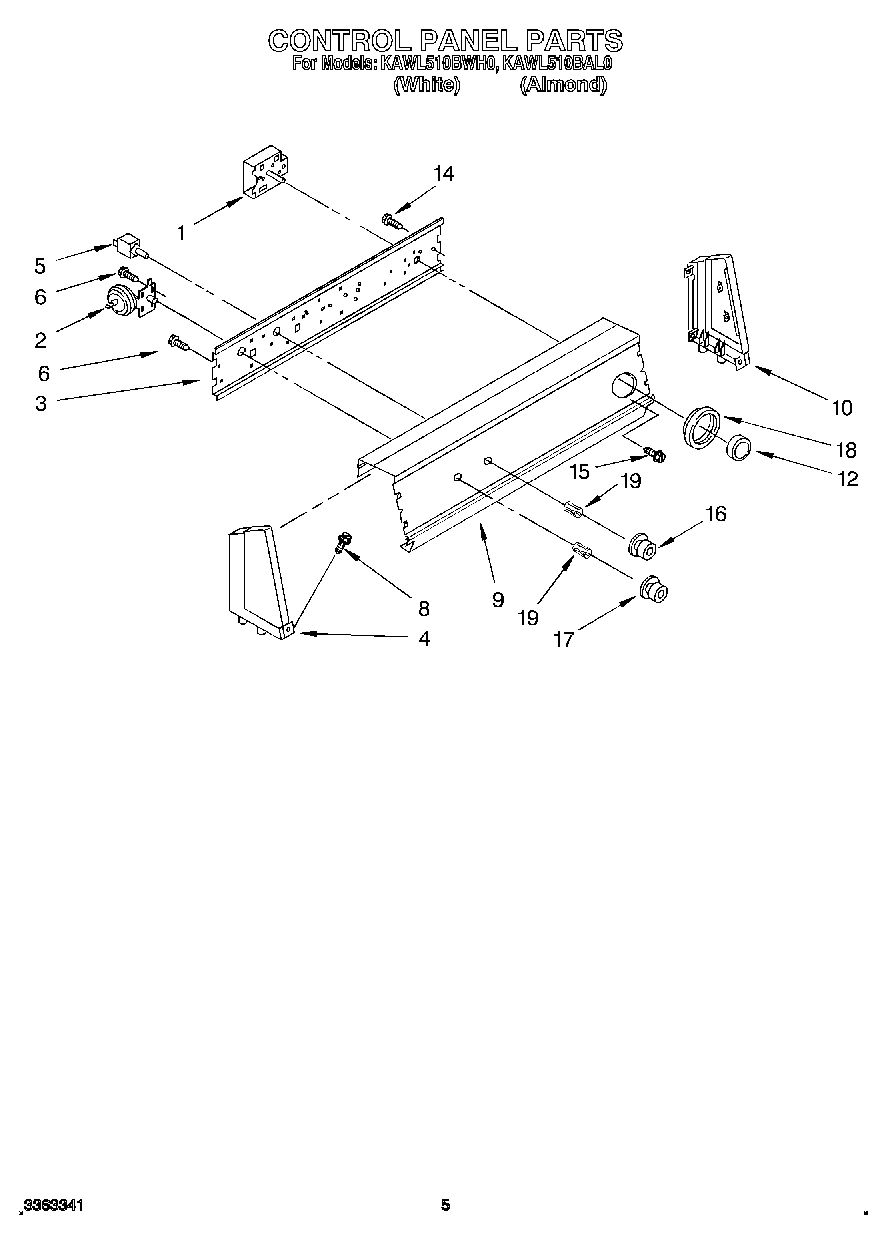

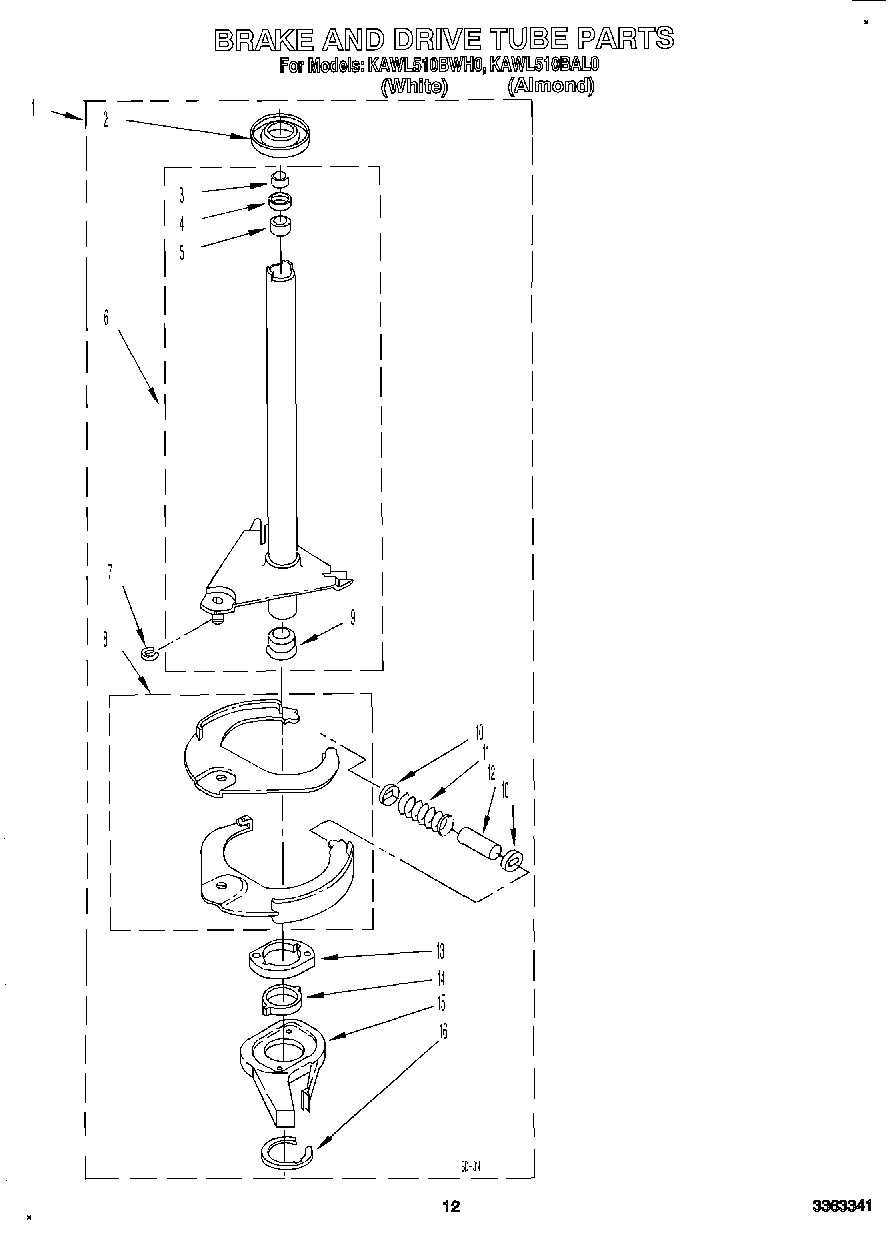

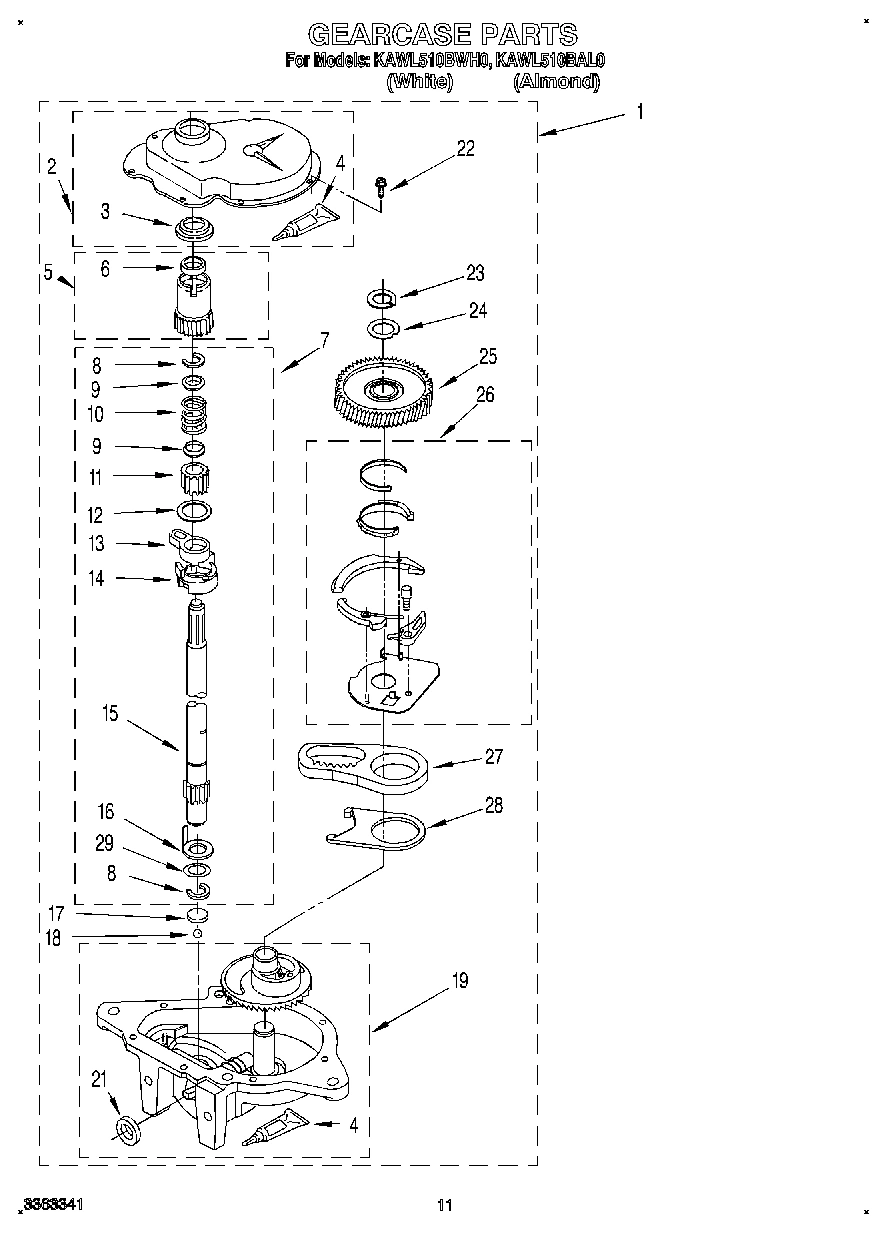

Model Whirlpool KAWL510BAL0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $9.99

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Timer, Control 60 Hz. (Motor Not A Service Pa WPL 3362622 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Switch, Water Level WPL 3356466 Contact Us For Availability

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $77.78

3

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $41.82

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $4.98

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP3350830 Whirlpool Agitator Assembly Backorder WPL WP3350830 $67.11

4

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $28.80

4

Cap, End (L.H.) (For White & Almond Models) WPL 3360571 Contact Us For Availability

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Tub Ring WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

(Alt.) WPL 334711 Contact Us For Availability

5

(Alt.) WPL 334835 Contact Us For Availability

5

Switch, Water Temperature WPL 661538 Contact Us For Availability

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $152.90

6

WP3359586 Whirlpool Tub Seal Backorder WPL WP3359586 $28.80

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $3.70

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $28.37

8

285702 Whirlpool Extensions Backorder WPL 285702 $37.95

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Screw, 8-18 (2) WPL 64211 Contact Us For Availability

8

Basket WPL 3357245 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $10.82

9

285868 Whirlpool Washer Filter Plug Kit In Stock WPL 285868 $9.92

9

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

Console, Panel (For White & Almond Models) WPL 3361985 Contact Us For Availability

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

10

Cap, End (R.H.) (For White & Almond Models) WPL 3360568 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $10.76

11

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

11

Tub (Includes Item 25) WPL 63039 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

Knob, Timer WPL 3349233 Contact Us For Availability

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

13

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Cord, Power WPL 3360514 Contact Us For Availability

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.29

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

16

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $10.60

16

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

80040 Whirlpool Washer Agitator Dog Kit In Stock WPL 80040 $1.10

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $76.80

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Knob, Water Level Switch WPL 3363041 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $5.82

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WPW10074580 Whirlpool Agitator Inner Cap and In Stock WPL WPW10074580 $7.47

Dial, Timer (For White & Almond Models) WPL 3363039 Contact Us For Availability

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

WPW10072840 Whirlpool Seal Assembly In Stock WPL WPW10072840 $3.70

Motor, Main Drive WPL 3351023 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3359886 Contact Us For Availability

20

285811 Whirlpool Washer Agitator Repair Kit In Stock WPL 285811 $8.76

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

285587 Whirlpool Thrust Washer In Stock WPL 285587 $1.43

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

23

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

23

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $35.57

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $28.69

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $2.51

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

25

Hose, Bleach WPL 3358198 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.21

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

Agitator (Complete Asy.) WPL 3357524 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

28

Hose, Pump To Drain Connector WPL 3359816 Contact Us For Availability

29

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

36

Sound-Damper (Cabinet) WPL 3349654 Contact Us For Availability

50

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

59

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

60

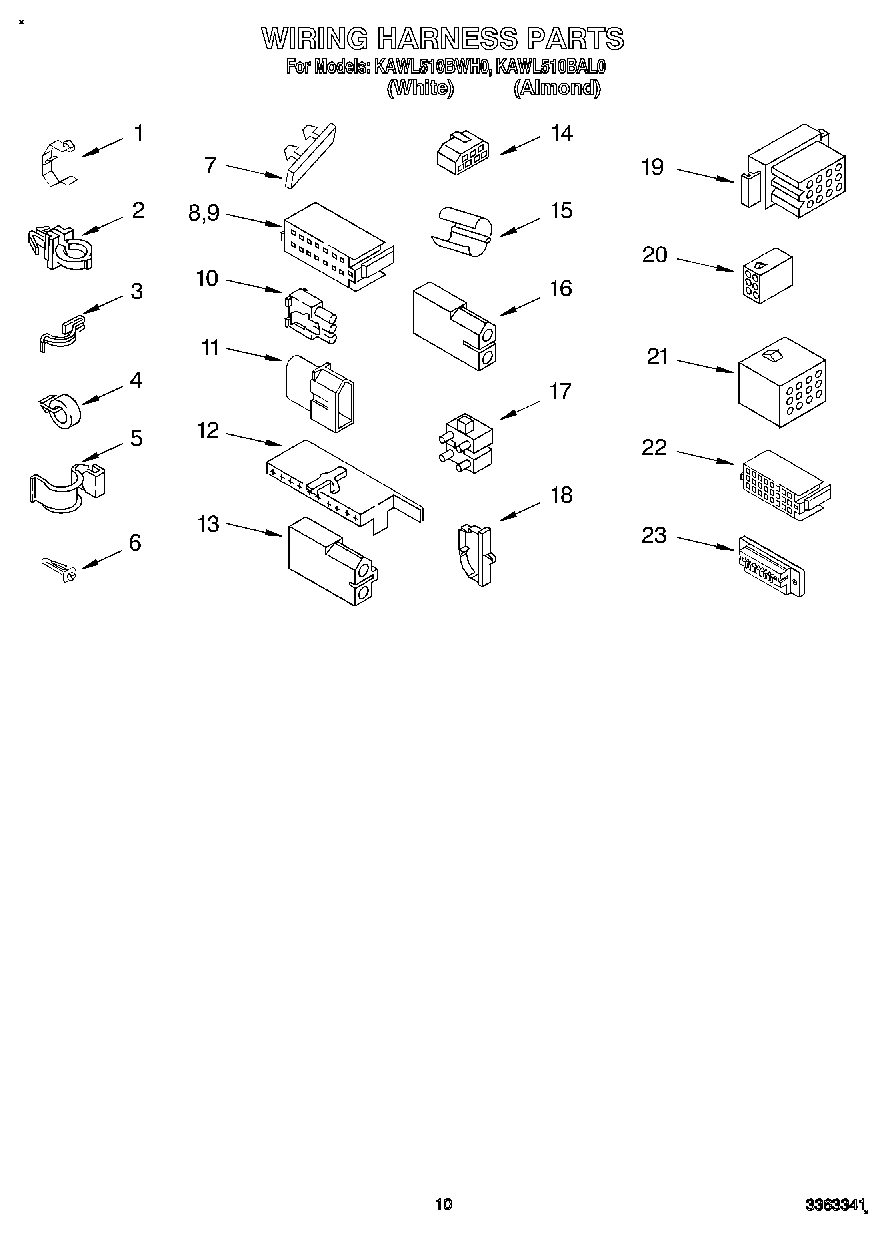

Harness, Wiring (For Detail See Wiring Harnes WPL 3362560 Contact Us For Availability
