Model Whirlpool KAWE764WWH2 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $88.94

1

Timer, Control 60 Hz. (Motor Not Serviced) WPL 3356396 Contact Us For Availability

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

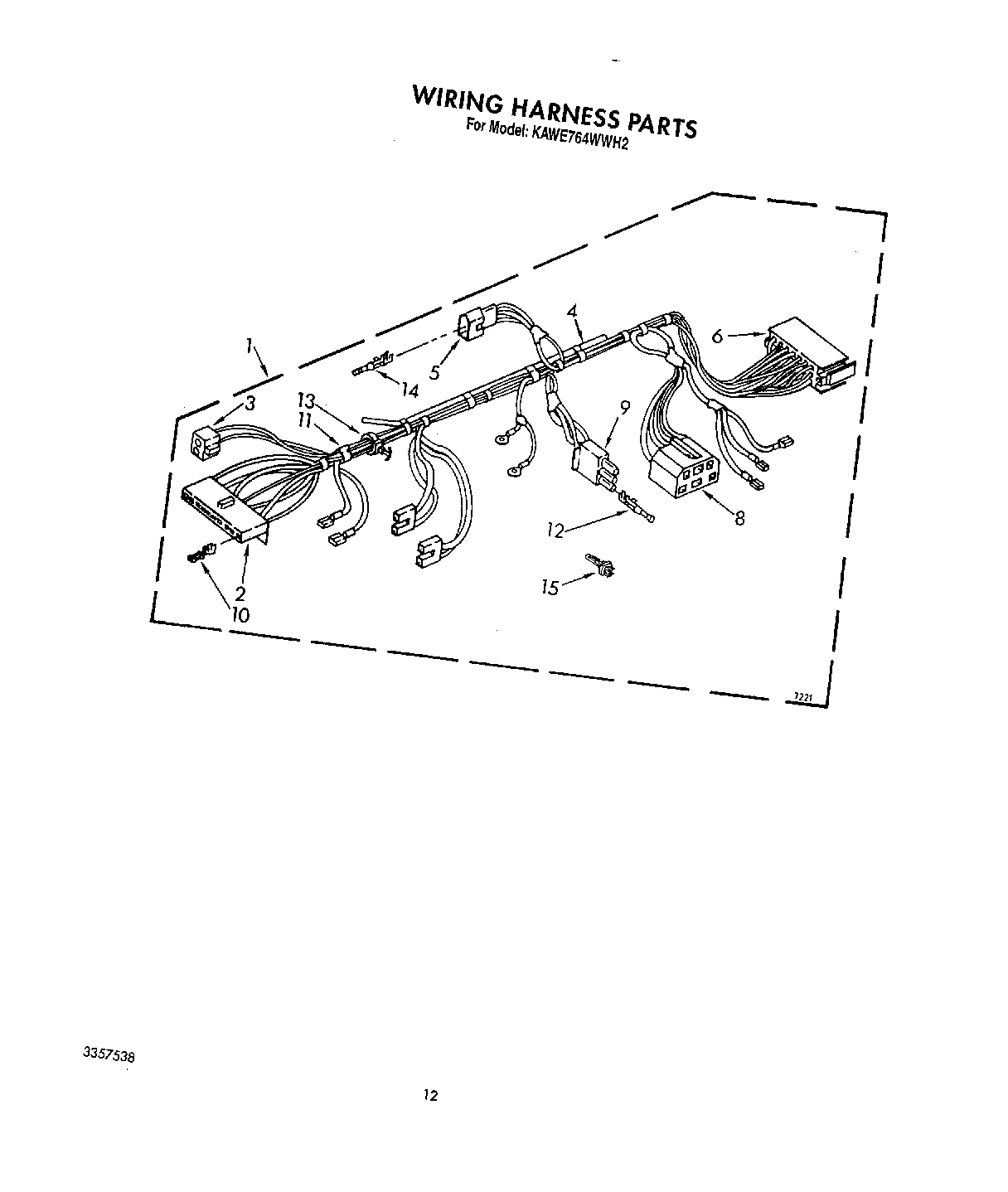

Wiring Harness & Pressure Switch Hose WPL 3357489 Contact Us For Availability

1

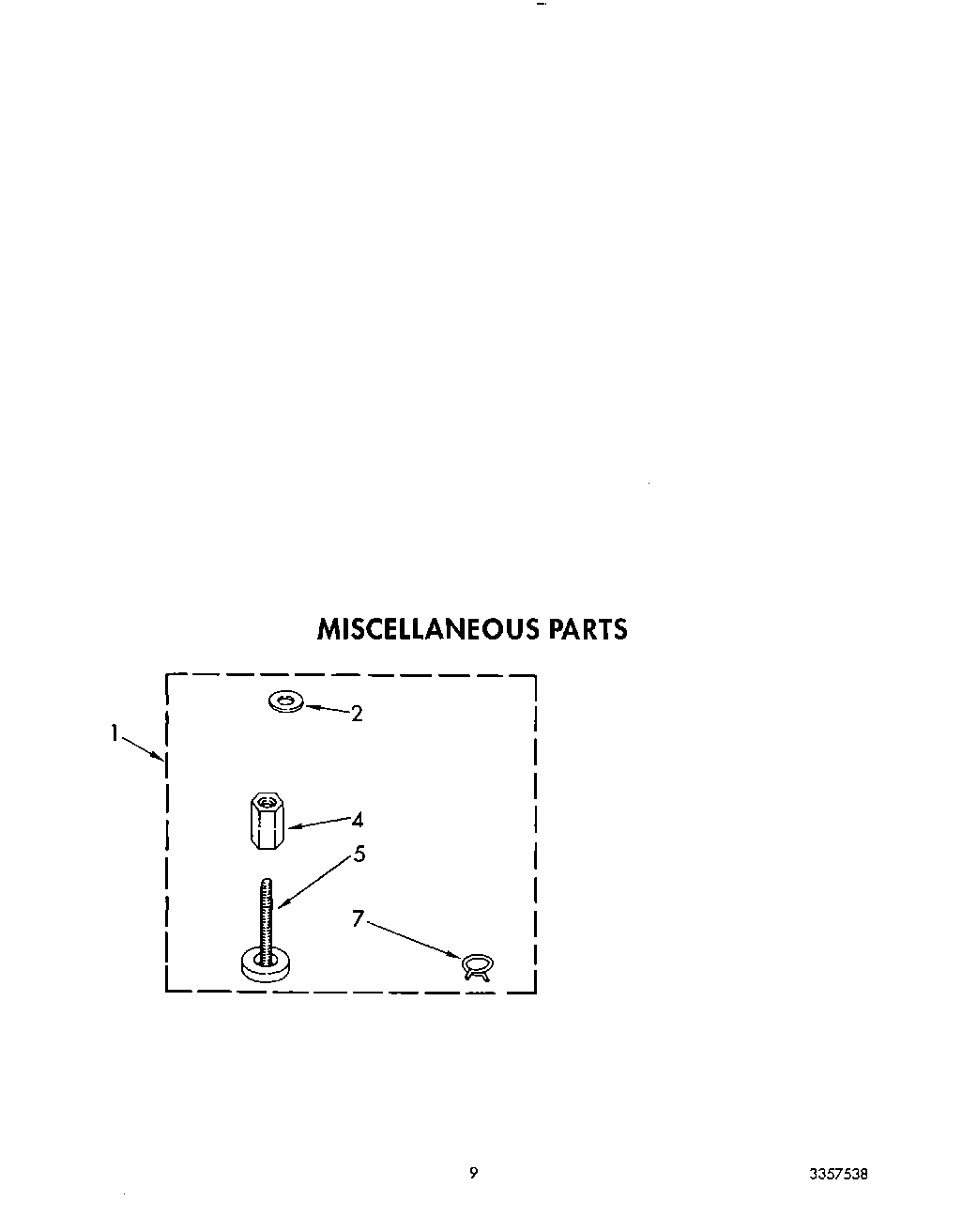

Miscellaneous Parts Bag WPL 3356711 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.29

2

WP62505 Whirlpool Connector Backorder WPL WP62505 $10.76

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $5.27

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $3.70

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $3.70

2

Switch, Water Level WPL 3350764 Contact Us For Availability

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $3.70

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $3.70

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

3

WPW10080230 Whirlpool Ring In Stock WPL WPW10080230 $4.98

3

Bracket, Control WPL 3349232 Contact Us For Availability

3

Receptacle, Terminal (2 Way) WPL 3348075 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $3.70

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $44.98

4

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

4

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.51

4

Cap, End (L.H.) WPL 3354640 Contact Us For Availability

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $18.42

5

353424 Whirlpool Connector Backorder WPL 353424 $10.76

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.29

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Switch, Water Temperature WPL 3347122 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

6

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $3.70

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $127.32

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

6

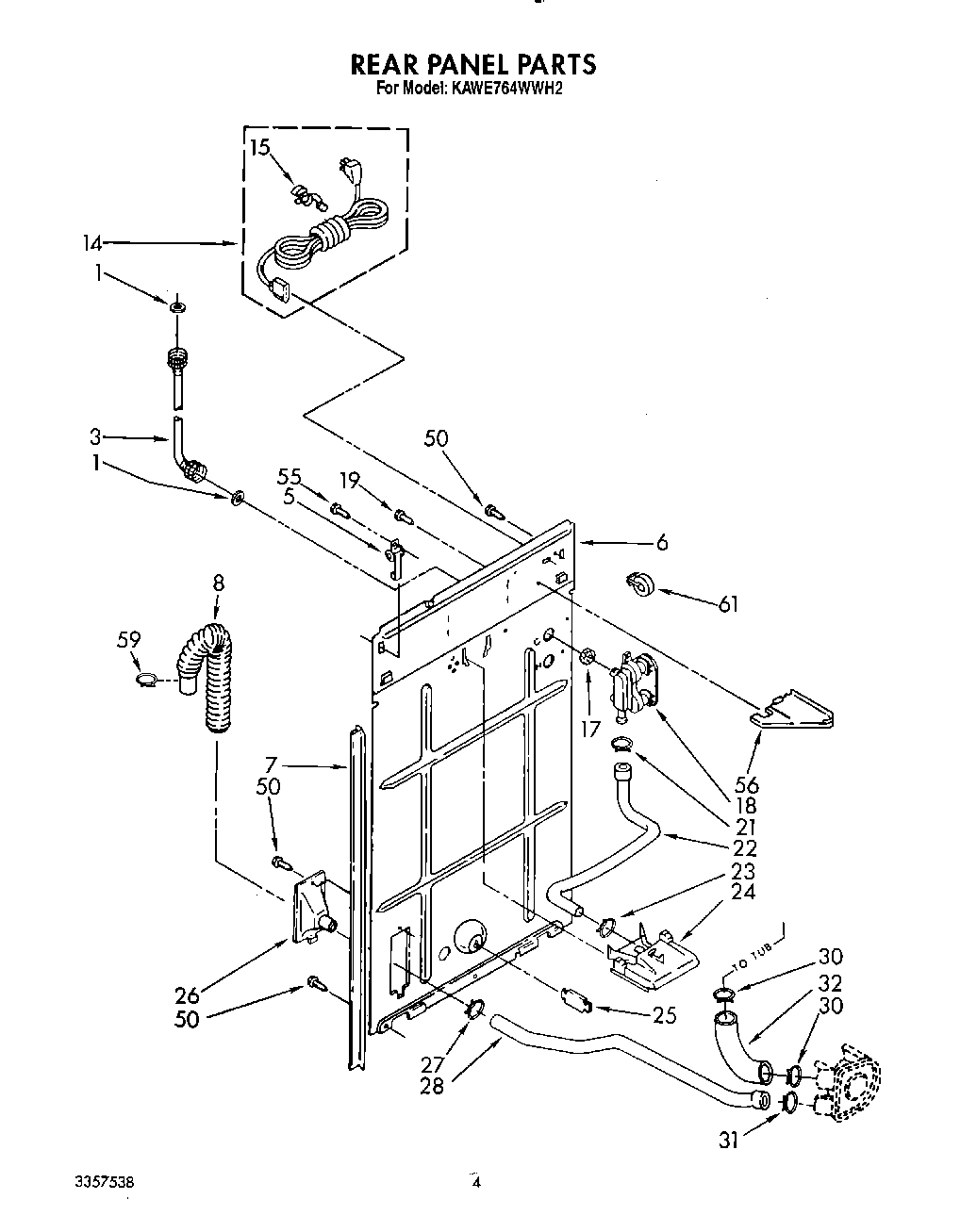

Panel, Rear WPL 3348430 Contact Us For Availability

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $4.94

7

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

7

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $103.30

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $2.51

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $10.76

7

WP689559 Whirlpool Nut Backorder WPL WP689559 $3.70

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $75.04

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $18.32

8

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $28.49

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $2.51

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $6.15

8

Screw, 8-18 (2) WPL 64211 Contact Us For Availability

8

Connector, Temp. Switch WPL 3347243 Contact Us For Availability

8

Hose, Drain (10 Ft.) (Not Included) WPL 671577 Contact Us For Availability

9

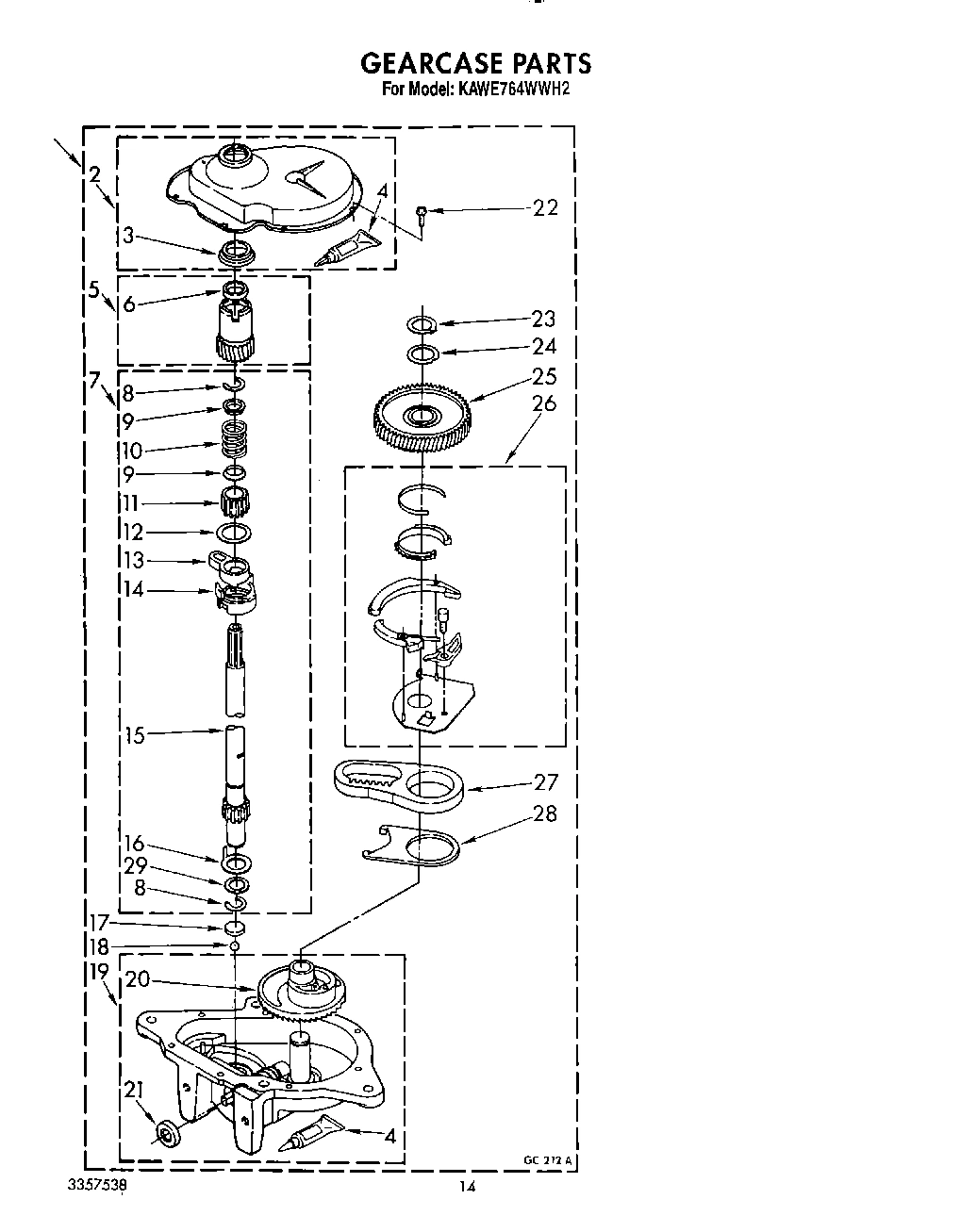

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $177.07

9

62677 Whirlpool Retainer Backorder WPL 62677 $7.58

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $3.70

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $3.70

9

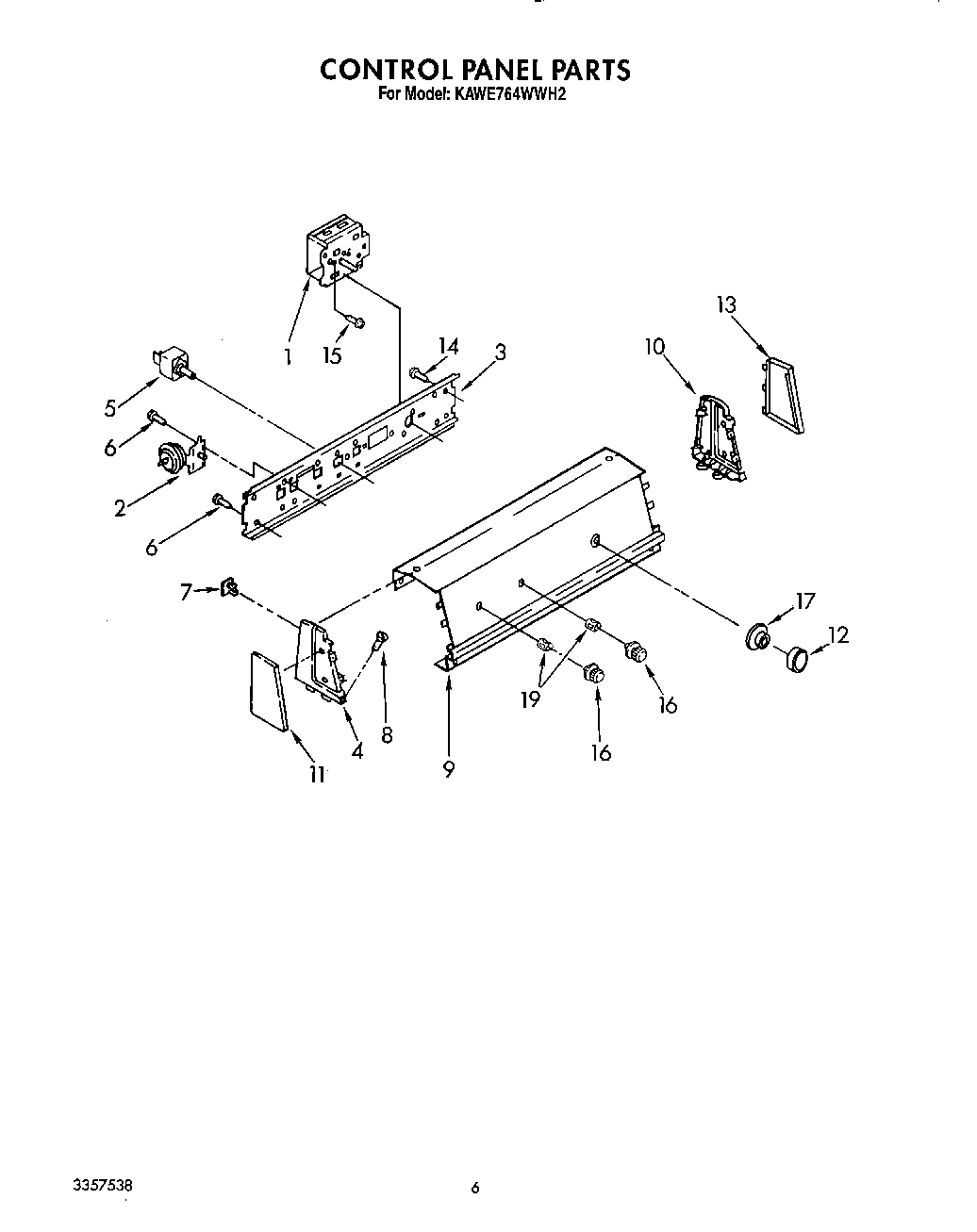

Console, Panel WPL 3353415 Contact Us For Availability

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.44

Lock, Filter WPL 62942 Contact Us For Availability

Cap, End (R.H.) WPL 3354646 Contact Us For Availability

Terminal, Female WPL 3371761 Contact Us For Availability

Screw, Gearcase To Base (3) (5/16-24 x 3/4) WPL 62735 Contact Us For Availability

WP62611 Whirlpool Plate Backorder WPL WP62611 $37.28

Trim, Endcap (L.H.) WPL 3353685 Contact Us For Availability

Protector, Harness WPL 63523 Contact Us For Availability

Spring, Brake WPL 387806 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $9.59

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $8.44

WP62691 Whirlpool Grommet In Stock WPL WP62691 $5.31

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

Knob, Timer WPL 3349233 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $9.63

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $2.51

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.51

Trim, Endcap (R.H.) WPL 3353678 Contact Us For Availability

Clip, Harness WPL 62749 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $11.77

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $13.67

Cord, Power WPL 62734 Contact Us For Availability

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

WP54584 Whirlpool Hinge Backorder WPL WP54584 $10.08

Clip, Harness WPL 3390496 Contact Us For Availability

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

WP54583 Whirlpool Hinge Backorder WPL WP54583 $9.37

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Knob, Control WPL 3354668 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $3.70

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Dial, Timer WPL 3349244 Contact Us For Availability

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $13.91

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $14.57

18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

Motor, Main Drive WPL 3350418 Contact Us For Availability

Lid (White) WPL 3359021 Contact Us For Availability

Lid (Almond) WPL 3359022 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $3.19

20

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $29.23

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $3.70

Seal, Agitator WPL 357574 Contact Us For Availability

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $7.83

22

WP3363892 Whirlpool Water Pump In Stock WPL WP3363892 $41.25

22

BUMPER WPL 356908 Contact Us For Availability

23

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $10.30

23

WP356907 Whirlpool Rivet Backorder WPL WP356907 $3.70

23

WP8572720 Whirlpool Capacitor In Stock WPL WP8572720 $35.57

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $71.60

24

357030 Whirlpool Clamp Backorder WPL 357030 $10.76

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $26.24

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $3.70

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $7.96

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $29.41

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $14.40

26

Stop, Push-In Top WPL 358472 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

28

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

28

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

29

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $4.78

30

Rivet, Serial Nameplate WPL 354239 Contact Us For Availability

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $7.92

32

Hose, Pump To Drain Connector WPL 3352515 Contact Us For Availability

34

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.02

36

Sound-Damper (Cabinet) WPL 3349654 Contact Us For Availability

50

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

56

Sheild, Suds WPL 3348424 Contact Us For Availability

59

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.70

61

8559320 Whirlpool Clip Backorder WPL 8559320 $13.91
