Model GE JTP95BA6BB – Common Parts & Diagrams
CONVECTION FAN
DOOR
DOOR LOCK
MICROWAVE BODY PARTS

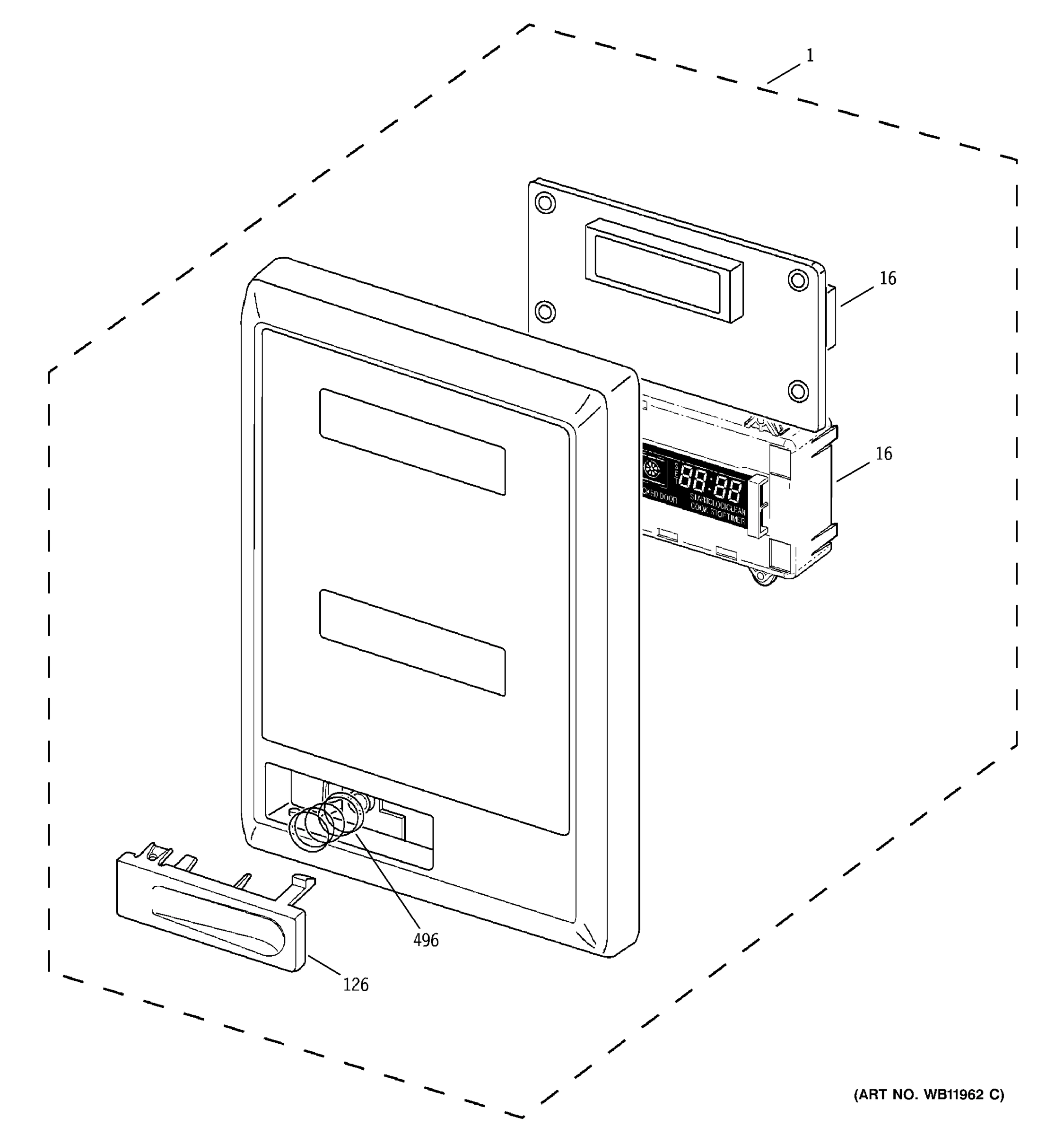

MICROWAVE CONTROL PANEL

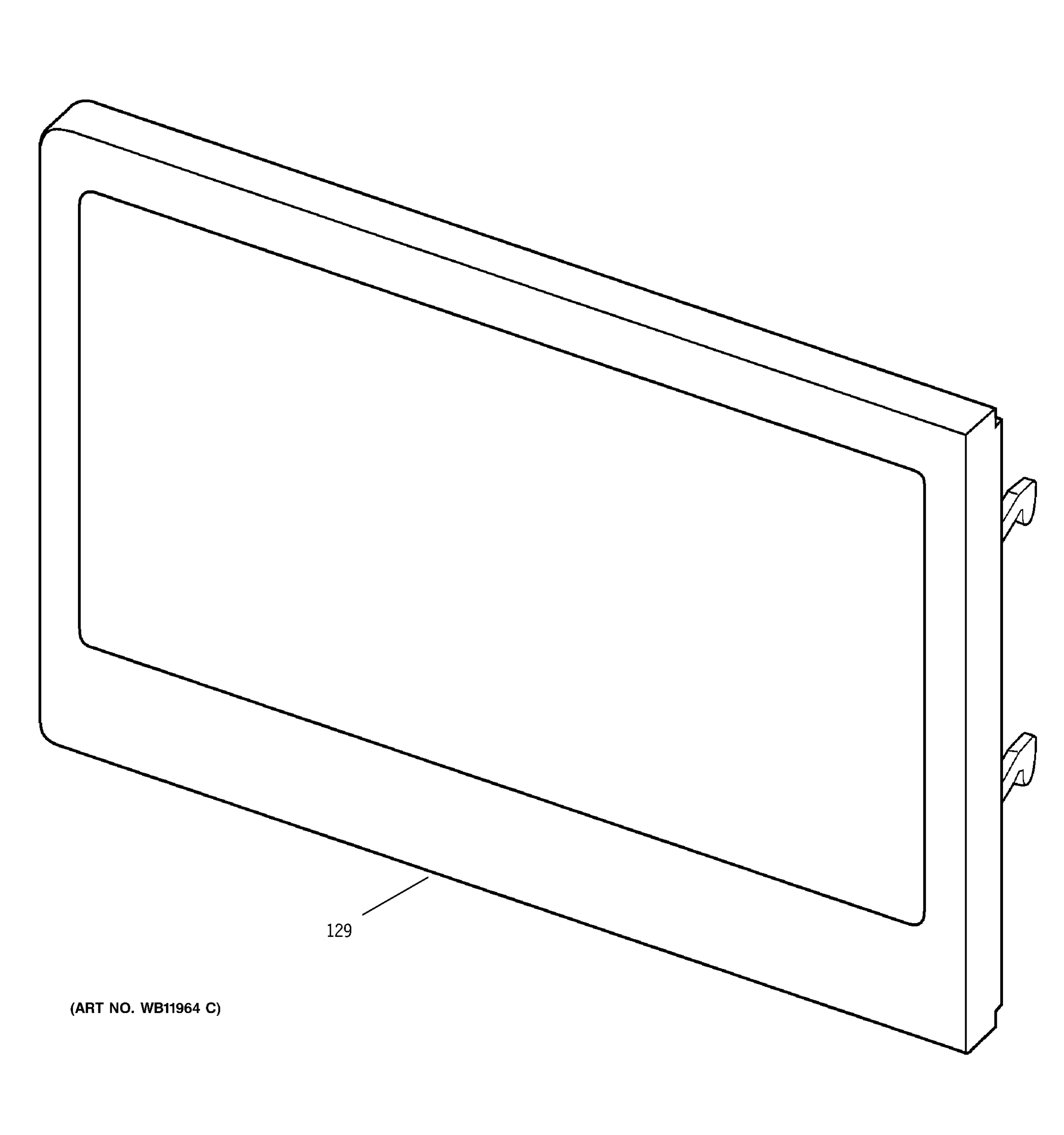

MICROWAVE DOOR

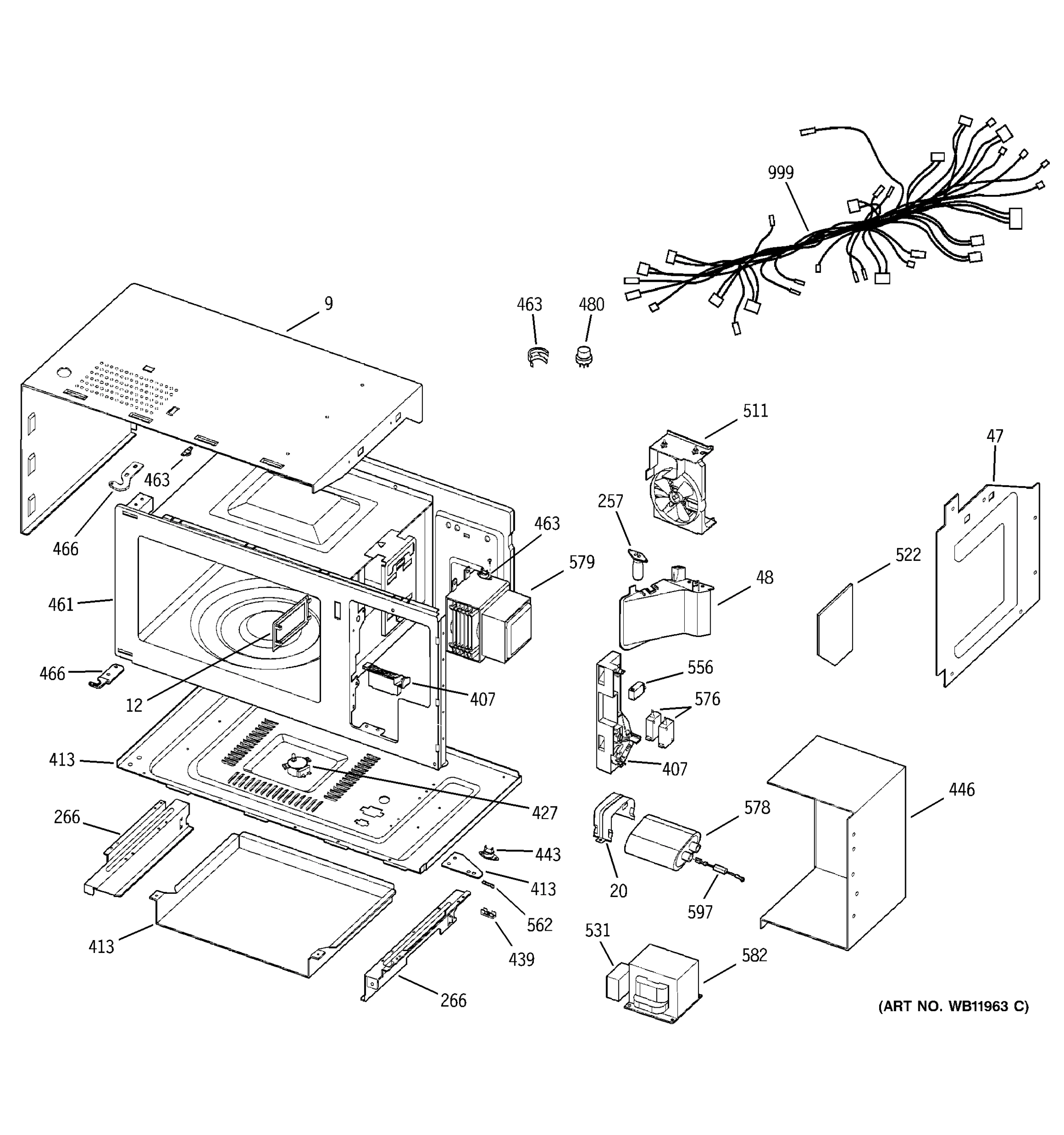

MICROWAVE ENCLOSURER

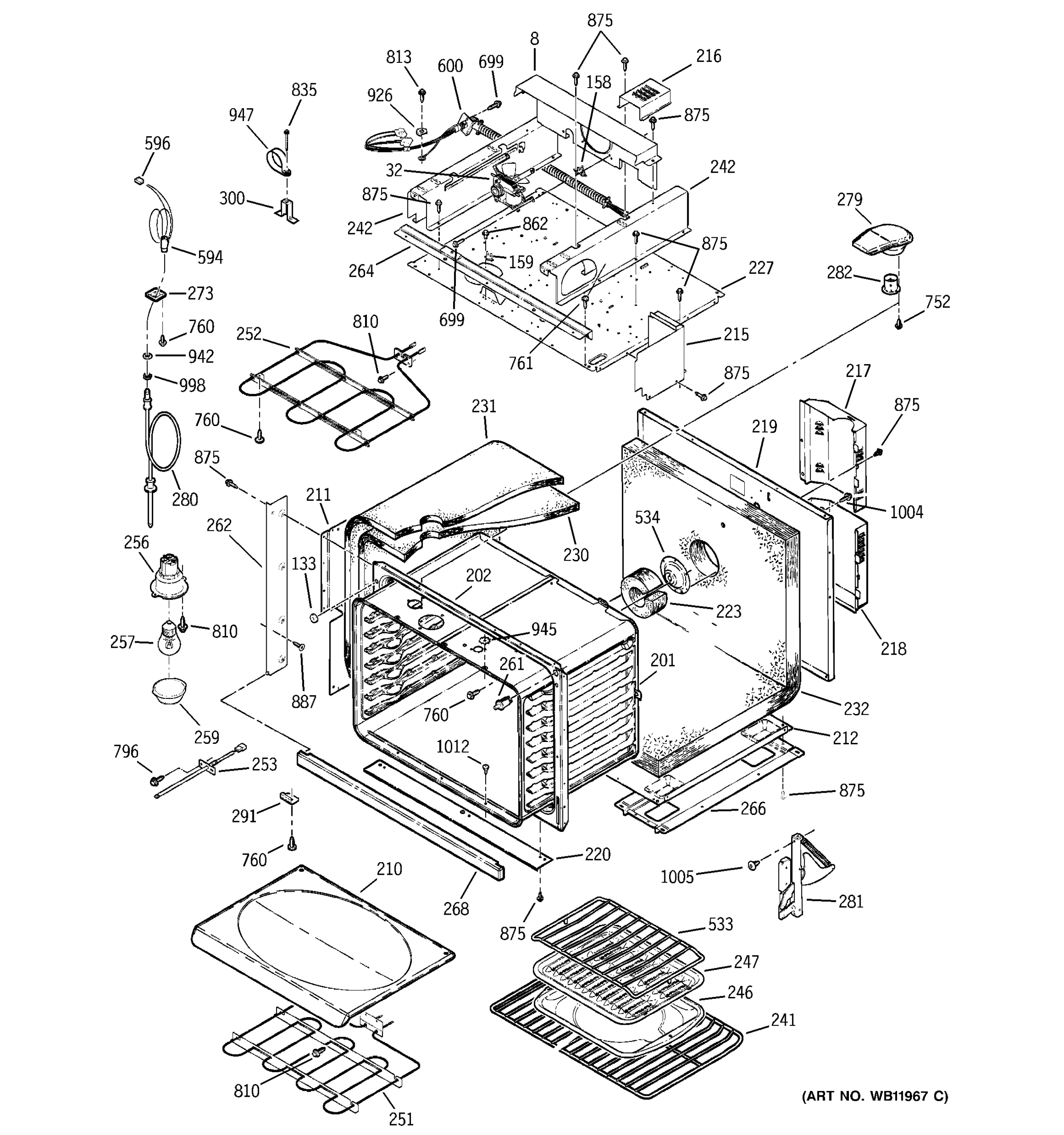

OVEN BODY WITH MICROWAVE SUPPORT
Common parts from model GE JTP95BA6BB
1
GEN WB36X10094 GEN WB36X10094 Contact Us For Availability
8
FAN SUPPORT GEN WB02T10020 Contact Us For Availability
16
GEN WB27T10092 GEN WB27T10092 Contact Us For Availability
16
GEN WB27T10318 GEN WB27T10318 Contact Us For Availability
18
GEN WB06X10168 GEN WB06X10168 Contact Us For Availability
28
GEN WB02T10033 GEN WB02T10033 Contact Us For Availability
126
GEN WB03X0885 GEN WB03X0885 Contact Us For Availability
129
GEN WB55T10038 GEN WB55T10038 Contact Us For Availability
140
GEN WB56T10075 GEN WB56T10075 Contact Us For Availability
151
GEN WB14T10008 GEN WB14T10008 Contact Us For Availability
159
LIMIT SWITCH GEN WB24T10059 Contact Us For Availability
201
OVEN BODY-UPPER GEN WB63T10063 Contact Us For Availability
202
GEN WB63T10064 GEN WB63T10064 Contact Us For Availability
206
GEN WB07T10104 GEN WB07T10104 Contact Us For Availability
211
INSULATION RETAINER-SIDE GEN WB02K5306 Contact Us For Availability
212
INSULATION RETAINER-BTM GEN WB02K10047 Contact Us For Availability
215
GEN WB34T10009 GEN WB34T10009 Contact Us For Availability
216
GEN WB34K5234 GEN WB34K5234 Contact Us For Availability
217
WIRE COVER UPR RR GEN WB34K5193 Contact Us For Availability
218
WIRE COVER LWR RR GEN WB34K5192 Contact Us For Availability
219
GEN WB56X10189 GEN WB56X10189 Contact Us For Availability
220
BTM TRIM SHIELD GEN WB34K5195 Contact Us For Availability
227
GEN WB02T10109 GEN WB02T10109 Contact Us For Availability
230
GEN WB35K5118 GEN WB35K5118 Contact Us For Availability
231
GEN WB35K5119 GEN WB35K5119 Contact Us For Availability
241
GEN WB48K5022 GEN WB48K5022 Contact Us For Availability
242
GEN WB02K5384 GEN WB02K5384 Contact Us For Availability
242
GEN WB02K5385 GEN WB02K5385 Contact Us For Availability
243
GEN WB34T10010 GEN WB34T10010 Contact Us For Availability
244
GEN WB38K5056 GEN WB38K5056 Contact Us For Availability
248
GEN WB34T10013 GEN WB34T10013 Contact Us For Availability
257
GEN WB08X10012 GEN WB08X10012 Contact Us For Availability
257
OVEN LIGHT GEN BUY LOCAL Contact Us For Availability
262
GEN WB07K5416 GEN WB07K5416 Contact Us For Availability
262
GEN WB07K5417 GEN WB07K5417 Contact Us For Availability
263
GEN WB07K5471 GEN WB07K5471 Contact Us For Availability
264
GEN WB07T10179 GEN WB07T10179 Contact Us For Availability
266
GEN WB63X10016 GEN WB63X10016 Contact Us For Availability
266
GEN WB63X10013 GEN WB63X10013 Contact Us For Availability
268
BOTTOM TRIM-BLK GEN WB07T10037 Contact Us For Availability
273
GEN WB34K5140 GEN WB34K5140 Contact Us For Availability
279
GEN WB38T10014 GEN WB38T10014 Contact Us For Availability
281
GEN WB14T10009 GEN WB14T10009 Contact Us For Availability
281
GEN WB14T10010 GEN WB14T10010 Contact Us For Availability
282
GEN WB28K5010 GEN WB28K5010 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
300
GEN WB02X9896 GEN WB02X9896 Contact Us For Availability
407
GEN WB10X10015 GEN WB10X10015 Contact Us For Availability
407
GEN WB10X10016 GEN WB10X10016 Contact Us For Availability
413
GEN WB63T10069 GEN WB63T10069 Contact Us For Availability
413
GEN WB63X10011 GEN WB63X10011 Contact Us For Availability
413
GEN WB63X10015 GEN WB63X10015 Contact Us For Availability
427
GEN WB26X0194 GEN WB26X0194 Contact Us For Availability
439
GEN WB06X10050 GEN WB06X10050 Contact Us For Availability
443
GEN WB24X10034 GEN WB24X10034 Contact Us For Availability
446
GEN WB34T10017 GEN WB34T10017 Contact Us For Availability
461
GEN WB63X10012 GEN WB63X10012 Contact Us For Availability
463
GEN WB24X10025 GEN WB24X10025 Contact Us For Availability
463
THERMOSTAT-MAGNETRON GEN WB21X0536 Contact Us For Availability
466
GEN WB10X10017 GEN WB10X10017 Contact Us For Availability
466
GEN WB14X0211 GEN WB14X0211 Contact Us For Availability
496
GEN WB09X10009 GEN WB09X10009 Contact Us For Availability
511
GEN WB26X10026 GEN WB26X10026 Contact Us For Availability
511
FAN MOTOR CONV. GEN WB26T10006 Contact Us For Availability
522
GEN WB35X10001 GEN WB35X10001 Contact Us For Availability
531
CUSHION-HVT GEN WB35X10002 Contact Us For Availability
534
GEN WB26T10003 GEN WB26T10003 Contact Us For Availability
582
GEN WB27X10189 GEN WB27X10189 Contact Us For Availability
594
GEN WB08T10017 GEN WB08T10017 Contact Us For Availability
596
GEN WB08K5013 GEN WB08K5013 Contact Us For Availability
600
GEN WB18K5628 GEN WB18K5628 Contact Us For Availability
835
GEN WB01X1123 GEN WB01X1123 Contact Us For Availability
862
GEN WB01X1178 GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
947
GEN WB01K5043 GEN WB01K5043 Contact Us For Availability
999
GEN 31-10433 GEN 31-10433 Contact Us For Availability
999
MINI MANUAL &WD ASM M/W GEN 31-13682 Contact Us For Availability
999
GEN 31-13903 GEN 31-13903 Contact Us For Availability
999
GEN 49-8443 GEN 49-8443 Contact Us For Availability
999
GEN 49-8924 GEN 49-8924 Contact Us For Availability
999
GEN WB18T10046 GEN WB18T10046 Contact Us For Availability
999
WIRE HARNESS F.O.D. GEN WB18T10109 Contact Us For Availability
999
GEN WB18T10212 GEN WB18T10212 Contact Us For Availability
999
GEN WB18T10213 GEN WB18T10213 Contact Us For Availability
1004
GEN WH02X0941 GEN WH02X0941 Contact Us For Availability
× ![]()
