Model GE JS750EF3ES Electric Range – Common Parts & Diagrams
CONTROL PANEL
COOKTOP

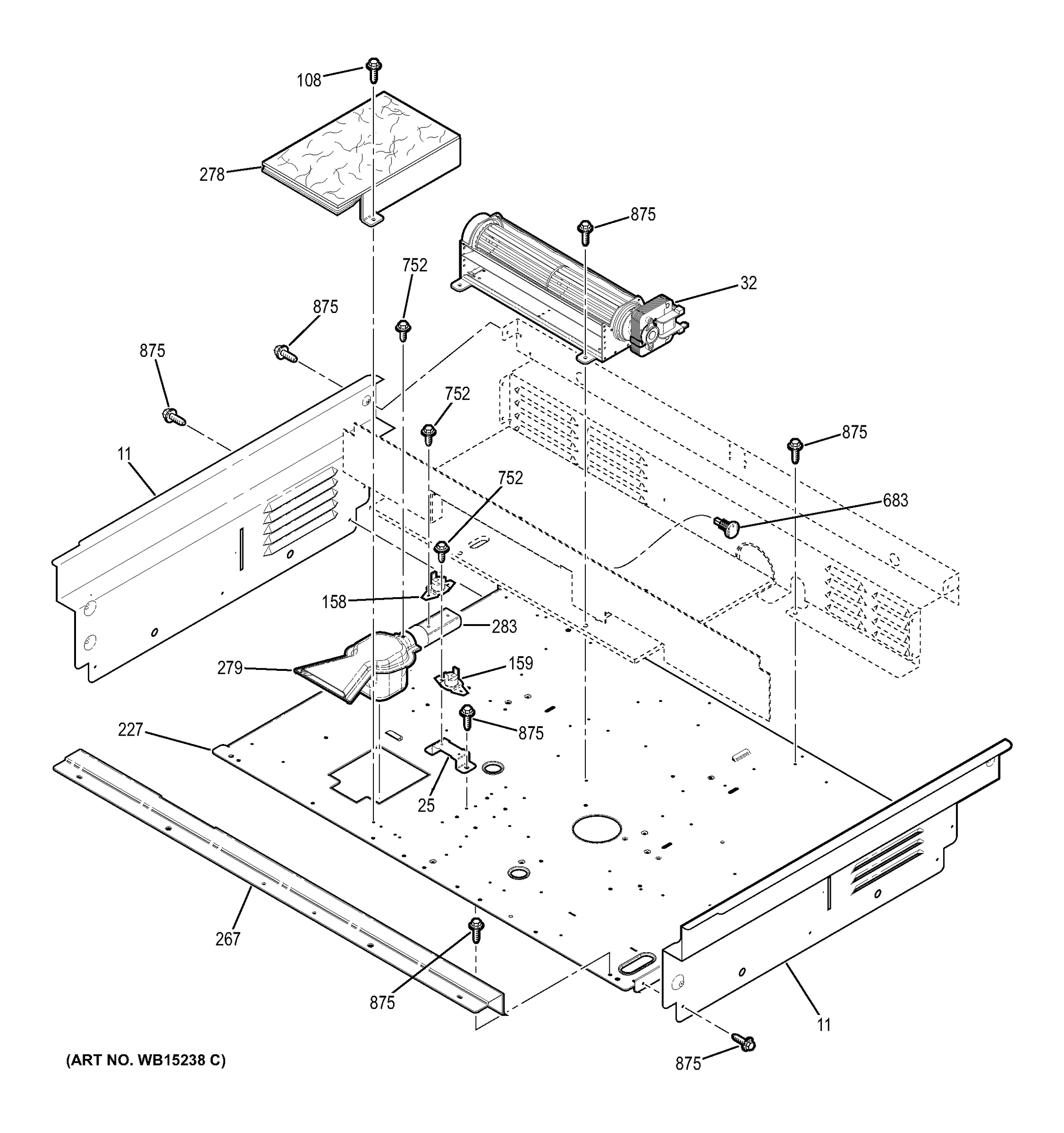

COOLING FAN

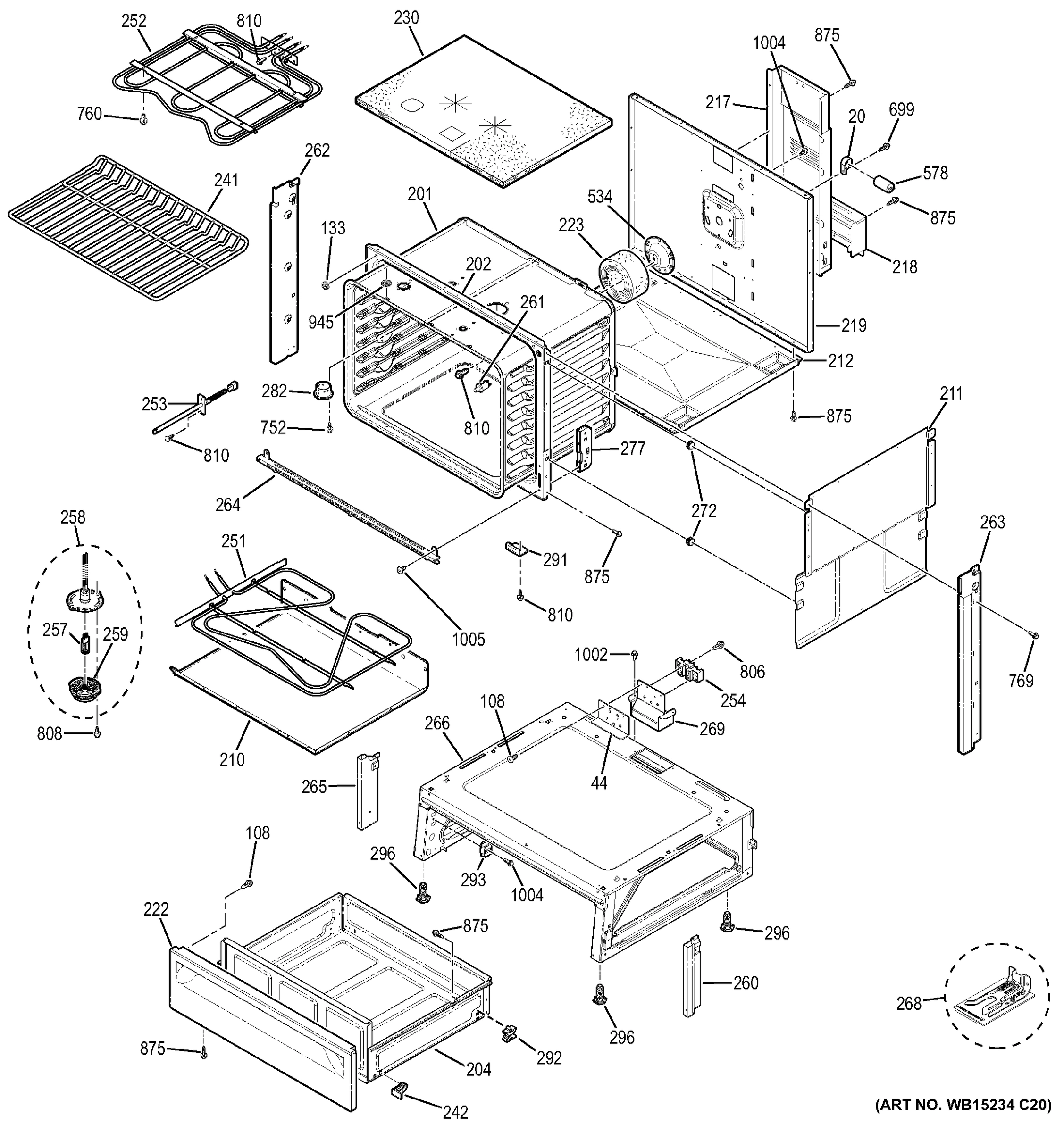

BODY PARTS

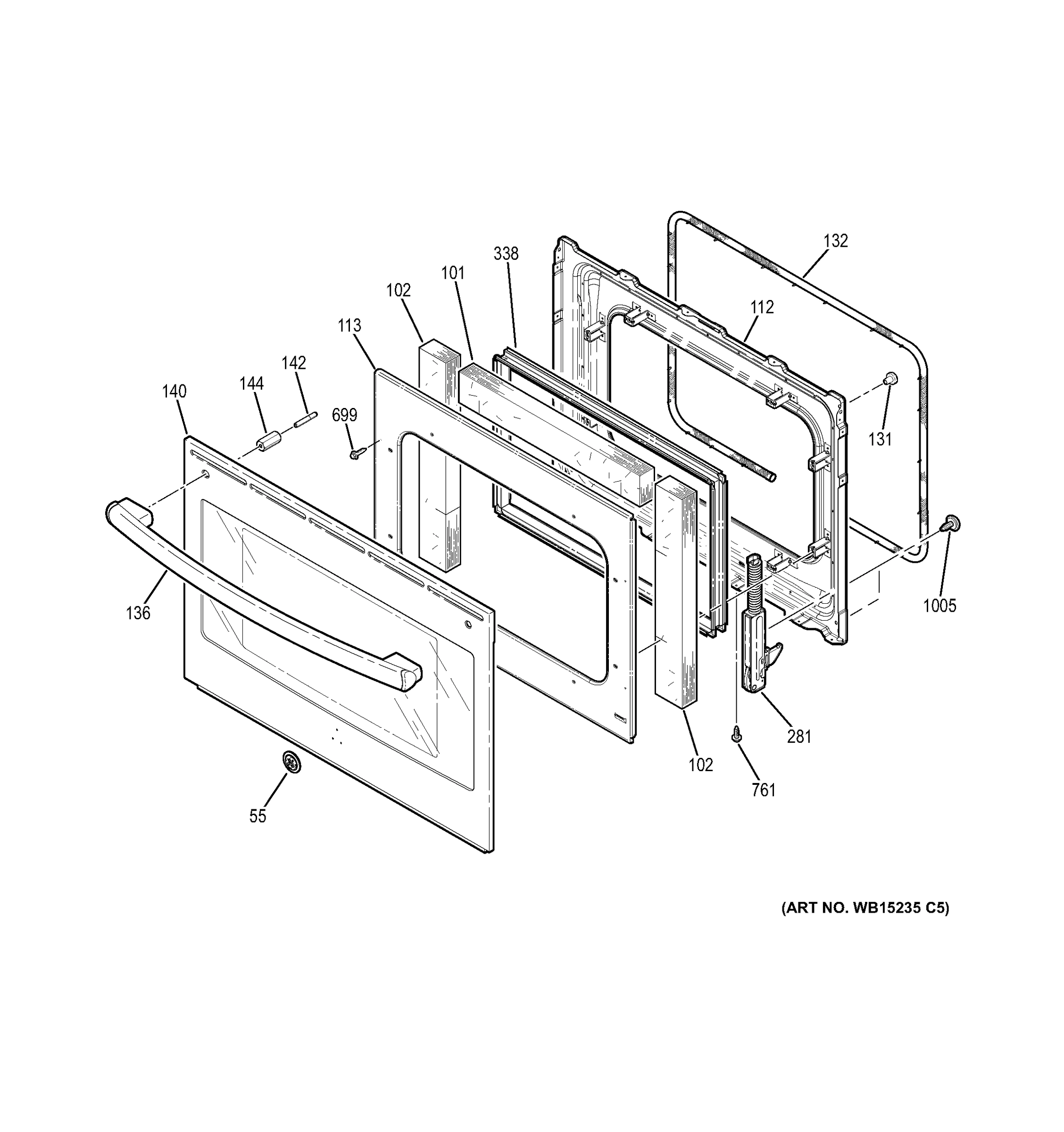

DOOR

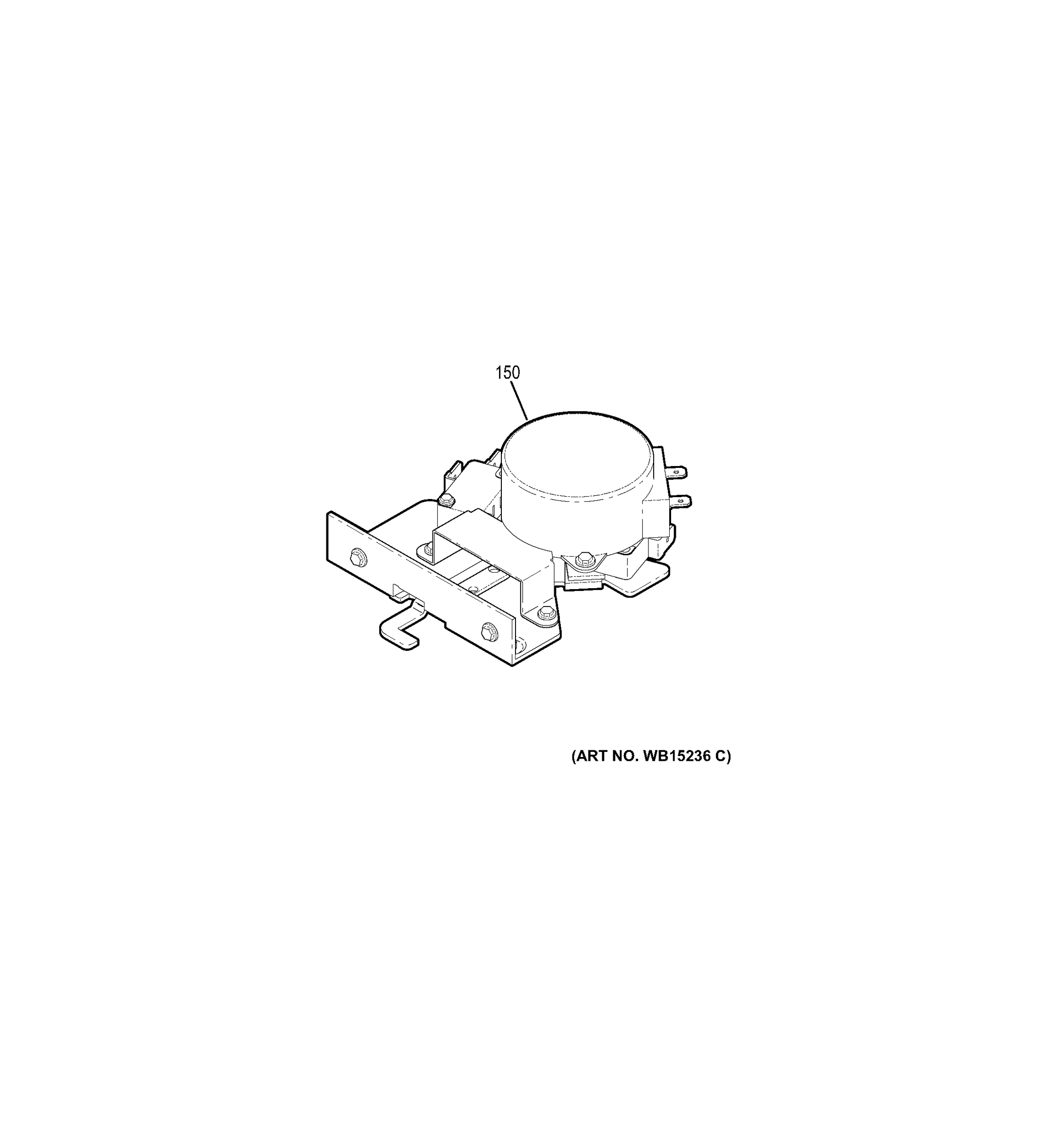

DOOR LOCK

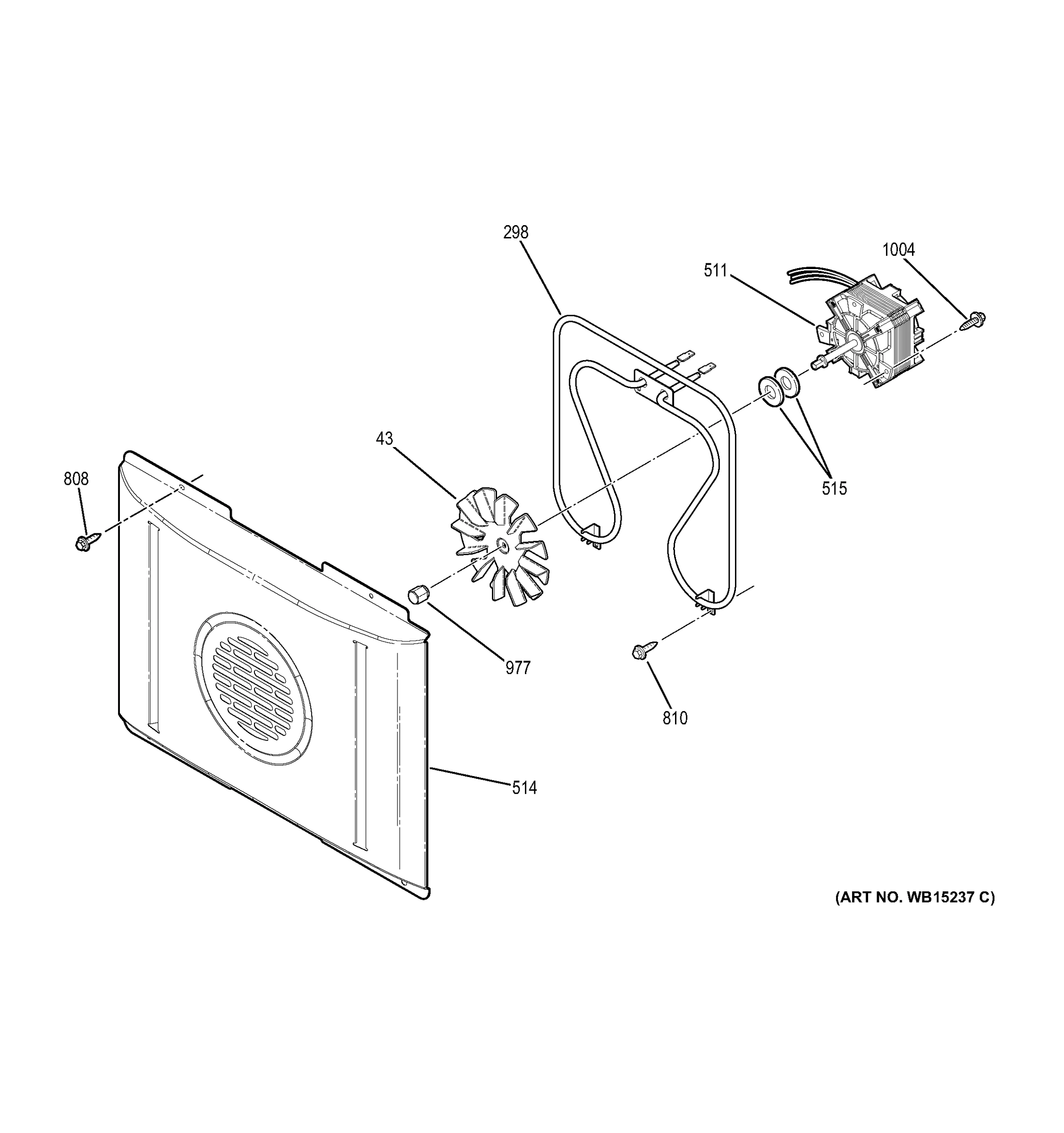

CONVECTION FAN
Common parts from model GE JS750EF3ES Electric Range
1
PANEL CNTL ASM (TZ) GEN WB07X23531 Contact Us For Availability
11
EXTENSION SIDE RT GEN WB07T10497 Contact Us For Availability
16
CONTROL BOARD T012 ELE GEN WB27X25361 Contact Us For Availability
17
FACEPLATE GRAPHICS (DG) GEN WB07X21417 Contact Us For Availability
18
PANEL OVERLAY ASM (TZ) GEN WB07X23530 Contact Us For Availability
19
SWITCH INFINITE CONTROL GEN WB24X26408 Contact Us For Availability
21
INF SWITCH CONTROL (WM) GEN WB24T10012 Contact Us For Availability
26
CONTROL PANEL GASKET GEN WB02X10742 Contact Us For Availability
27
INSERT CNTL PNL LT GEN WB27X20070 Contact Us For Availability
29
KNOB ASM GEN WB03T10337 Contact Us For Availability
30
LIGHT INDICATOR GEN WB25T10056 Contact Us For Availability
37
KIT BACKSPLASH (BK) GEN WB07T10680 Contact Us For Availability
50
GASKET MAINTOP RH GEN WB02T10319 Contact Us For Availability
53
ELEMENT RADIANT 6 WARMER GEN WB30T10124 Contact Us For Availability
55
BADGE GE GEN WB02T10589 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT RADIANT 8 IN GEN WB30T10132 Contact Us For Availability
58
ELEMENT HALIANT 12 TRPL GEN WB30T10155 Contact Us For Availability
101
INSULATION OVN DR SDE GEN WB35T10226 Contact Us For Availability
112
LINING OVN DR ASM GEN WB63X20052 Contact Us For Availability
113
RETAINER INSLN OVN DR GEN WB02T10371 Contact Us For Availability
131
DOOR PAD GEN WB01T10026 Contact Us For Availability
132
GASKET OVN DR GEN WB04T10076 Contact Us For Availability
133
DOOR BUMPER GEN WB01T10022 Contact Us For Availability
144
SPACER REINFORCEMENT GEN WB02T10452 Contact Us For Availability
150
LATCH OVN GEN WB14T10069 Contact Us For Availability
159
LIMIT SWITCH-UPPER(LOCK) GEN WB24T10060 Contact Us For Availability
204
DRAWER BODY ASM MECH GEN WB55T10180 Contact Us For Availability
241
RACK OVEN GEN WB48T10076 Contact Us For Availability
242
WEDGE DRAWER GEN WB48T10068 Contact Us For Availability
251
ELEMENT HIDDEN BAKE ASM GEN WB44X20956 Contact Us For Availability
252
BROIL ELEMENT GEN WB44X20957 Contact Us For Availability
253
SENSOR ASM GEN WB23T10015 Contact Us For Availability
258
LAMP HALOGEN ASM GEN WB25T10096 Contact Us For Availability
264
TRIM FRT FRM (BK) GEN WB07T10516 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
272
SUPPORT SIDE PANEL GEN WB02T10411 Contact Us For Availability
277
RECEIVER HINGE GEN WB10T10083 Contact Us For Availability
281
HINGE DOOR RT GEN WB10X24380 Contact Us For Availability
293
DRAWER SUPPORT FRT GEN WB48T10013 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X22160 Contact Us For Availability
578
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
761
SCR 8-18X.450 AB FLT20 S GEN WB01T10110 Contact Us For Availability
977
NUT GEN WB02T10017 Contact Us For Availability
1002
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1006
SCR 8-32 TT FLP .270 GEN WB01X23501 Contact Us For Availability
× ![]()
