Model GE JGS750DEF2BB – Common Parts & Diagrams

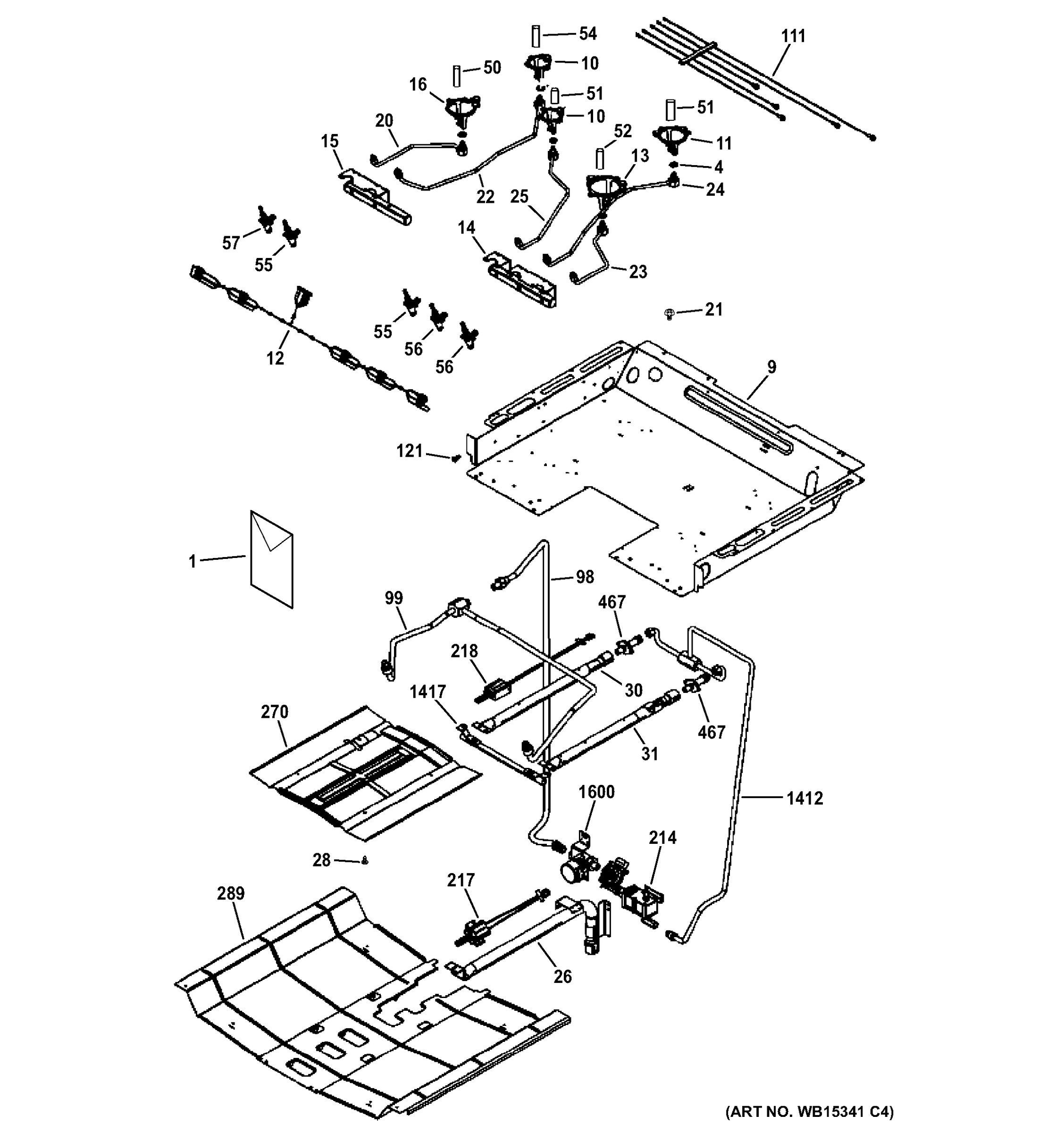

GAS & BURNER PARTS

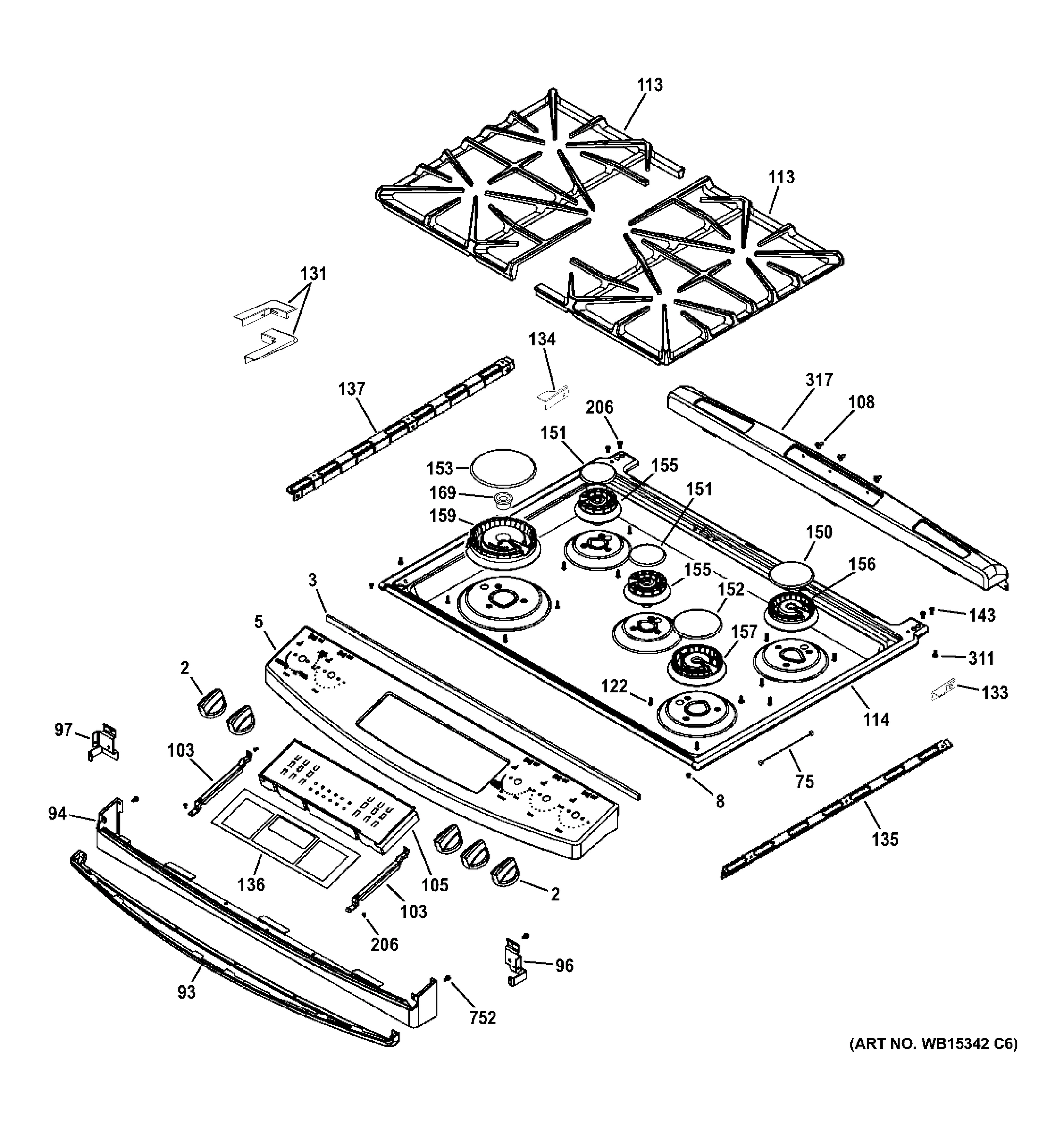

CONTROL PANEL & COOKTOP
BODY PARTS
DOOR & DRAWER PARTS
Common parts from model GE JGS750DEF2BB
1
CLEANER-SS GEN WB02T10111 Contact Us For Availability
1
KIT CONVERSION LP GEN WB28X20752 Contact Us For Availability
2
KNOB ASM (2.0-HVY-WH) GEN WB03X20725 Contact Us For Availability
4
ECONOMIC NUT GEN WB01K10037 Contact Us For Availability
8
SCREW 8-32 GEN WB01K10002 Contact Us For Availability
10
CKT BRACKET SMALL GEN WB02K10360 Contact Us For Availability
11
CKT BRACKET MDM & LGE GEN WB02K10361 Contact Us For Availability
13
CKT BRACKET MDM & LGE GEN WB02K10362 Contact Us For Availability
16
BRACKET COOKTOP XL GEN WB02K10363 Contact Us For Availability
21
SCR 8 HD 1/4 - 20 GEN WB01K10067 Contact Us For Availability
22
RL ORIFICE HOLDER GEN WB28X20836 Contact Us For Availability
23
FR ORIFICE HOLDER GEN WB28X20832 Contact Us For Availability
24
RR ORIFICE HOLDER GEN WB28X20834 Contact Us For Availability
26
BURNER BAKE GEN WB16K10081 Contact Us For Availability
50
ORIFICE SPUD (VISION) GEN WB28K10861 Contact Us For Availability
51
ORIFICE SPUD GEN WB28K10834 Contact Us For Availability
52
ORIFICE SPUD LP 88L GEN WB28K10214 Contact Us For Availability
54
ORIFICE-LP 89MM GEN WB28K10023 Contact Us For Availability
55
VALVE BURNER 270 GEN WB21X20469 Contact Us For Availability
56
VALVE BURNER 270 GEN WB21X20470 Contact Us For Availability
57
VALVE BURNER 270 GEN WB21X20612 Contact Us For Availability
91
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
108
SCR 8-18 AB PHR 1/2 S GEN WR01X10389 Contact Us For Availability
111
HARNESS H. V. GEN WB18X24362 Contact Us For Availability
113
GRATE CAST GEN WB31X20837 Contact Us For Availability
122
CKT SCREW GEN WB01K10106 Contact Us For Availability
128
LAMP INSULATION GEN WB02K10349 Contact Us For Availability
150
ASM BURNER CAP (9500) GEN WB29K10023 Contact Us For Availability
151
ASM BURNER CAP (5000) GEN WB29K10022 Contact Us For Availability
152
ASM BURNER CAP (12000) GEN WB29K10024 Contact Us For Availability
153
CAP BURNER ASM (15K) GEN WB28K10222 Contact Us For Availability
155
SMALL BURNER V 5K GEN WB16K10070 Contact Us For Availability
156
BURNER MEDIUM (9500) GEN WB16K10055 Contact Us For Availability
157
BURNER 12K GEN WB16T10046 Contact Us For Availability
159
VISION BURNER XL GEN WB16K10062 Contact Us For Availability
169
VENTURI 15K LP GEN WB16K10085 Contact Us For Availability
200
OVEN RACK GEN WB48X20249 Contact Us For Availability
203
LINE CORD GEN WB18K10081 Contact Us For Availability
205
COVER MOTOR GEN WB34K10097 Contact Us For Availability
206
SCREW GEN WB01K10091 Contact Us For Availability
214
VALVE CONTROL ASM NOR. D GEN WB19K10079 Contact Us For Availability
217
IGNITER GLOWBAR BROIL GEN WB13K10043 Contact Us For Availability
219
DEFLECTOR OVEN GEN WB49K10037 Contact Us For Availability
222
HINGE DOOR RT GEN WB10X21056 Contact Us For Availability
222
HINGE DOOR LT GEN WB10X21054 Contact Us For Availability
233
PLUNGER SWITCH DUAL GEN WB24X20445 Contact Us For Availability
238
SPACER BASE FRONT GEN WB16X20448 Contact Us For Availability
240
PANEL SIDE BROIL RT GEN WB63K0002 Contact Us For Availability
245
LEG LEVELING GEN WB02X20759 Contact Us For Availability
259
DRAWER SLIDE ASSY LEFT GEN WB39K10021 Contact Us For Availability
259
DRAWER SLIDE ASSY RIGHT GEN WB39K10020 Contact Us For Availability
270
DEFLECTOR FLAME GEN WB34X20524 Contact Us For Availability
277
GASKET OVEN LIGHT GEN WB32K10044 Contact Us For Availability
279
LATCH AUTOMATIC GEN WB10X20842 Contact Us For Availability
289
LOWER HEAT SHIELD GEN WB34K10086 Contact Us For Availability
300
KIT DRAWER BODY ASM GEN WB49X26563 Contact Us For Availability
306
PANEL DRAWER GEN WB56X20396 Contact Us For Availability
314
GLASS & PANEL DOOR ASM GEN WB56X21055 Contact Us For Availability
318
GASKET OVEN ASM GEN WB32K10052 Contact Us For Availability
319
CRYSTAL WINDOW GEN WB57K10174 Contact Us For Availability
327
SPEEDNUT GEN WB01K10093 Contact Us For Availability
332
INSULATION GEN WB35K10221 Contact Us For Availability
335
INSULATION GEN WB35K10222 Contact Us For Availability
338
CRYSTAL WINDOW GEN WB56X23809 Contact Us For Availability
340
LINER DOOR WELD ASSEMBLY GEN WB55K10084 Contact Us For Availability
345
LINER DRAWER GEN WB63X20840 Contact Us For Availability
362
BARRIER DOOR GEN WB07X20288 Contact Us For Availability
375
BRACKET HANDLE GEN WB02X20520 Contact Us For Availability
400
FRAME WINDOW PACK ASM GEN WB34K10141 Contact Us For Availability
469
SCR 10-16 AB TRW20 1/2 GEN WB01K10116 Contact Us For Availability
601
COVER TOP GEN WB34X21682 Contact Us For Availability
609
DOOR GUARD GEN WB34X21683 Contact Us For Availability
621
SUPPORT LOWER CRYSTAL GEN WB02X21684 Contact Us For Availability
659
CORD FIBER GLASS GEN WB35X21685 Contact Us For Availability
665
DOOR STIFFENER GEN WB34X21570 Contact Us For Availability
667
INSULATION DOOR GEN WB35X21686 Contact Us For Availability
668
FOIL TRIM DOOR GEN WB35X21687 Contact Us For Availability
669
INSULATION DOOR GEN WB35X21688 Contact Us For Availability
692
LOWER DEFLECTOR GEN WB34X21689 Contact Us For Availability
722
FAN COVER BACK GEN WB34K10038 Contact Us For Availability
723
FAN INSULATOR GEN WB35K10038 Contact Us For Availability
724
FAN SUPPORT GEN WB02K10034 Contact Us For Availability
726
FAN MOTOR CONVECT-2SPEED GEN WB26K10003 Contact Us For Availability
731
SUPPORT HANDLE GEN WB02X21690 Contact Us For Availability
793
INSULATION DOOR GEN WB35X21691 Contact Us For Availability
800
SCR 8 GEN WB01K10042 Contact Us For Availability
851
UPPER DEFLECTOR GEN WB34X21693 Contact Us For Availability
963
SCR 8-22 PL IHX .71 GEN WB01K10108 Contact Us For Availability
1104
DIVERTER ASM GEN WB34X21698 Contact Us For Availability
1105
DIVERTER ASM GEN WB34X21699 Contact Us For Availability
1111
GEN WB01K10086 GEN WB01K10086 Contact Us For Availability
1120
GEN WB02K10178 GEN WB02K10178 Contact Us For Availability
1330
GEN WB10K10029 GEN WB10K10029 Contact Us For Availability
1600
VALVE LOCKOUT GEN WB19K10059 Contact Us For Availability
2000
GE BADGE GRAY GEN WB02T10589X Contact Us For Availability
× ![]()
