Model Maytag JFC2290REM00 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET

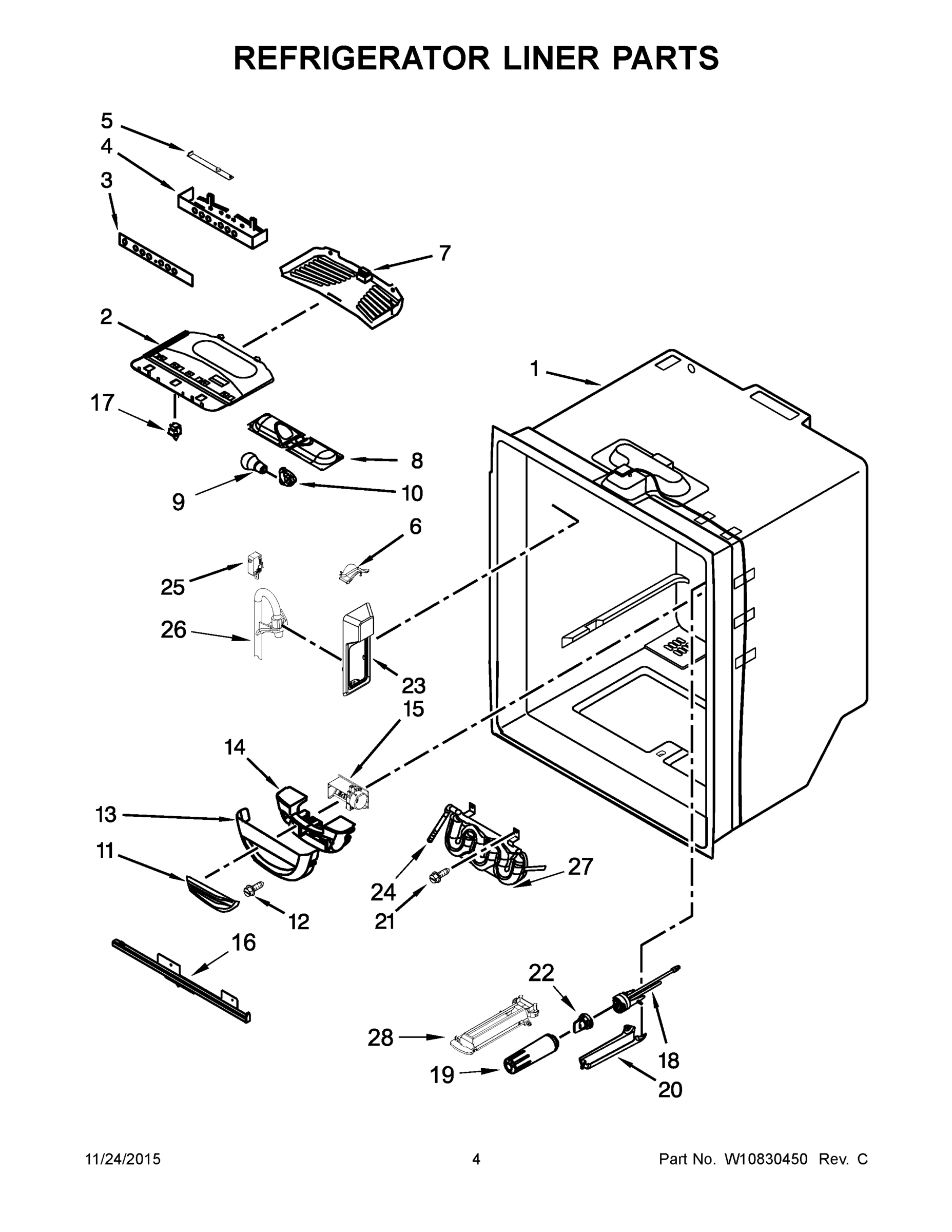

02 - CABINET PARTS

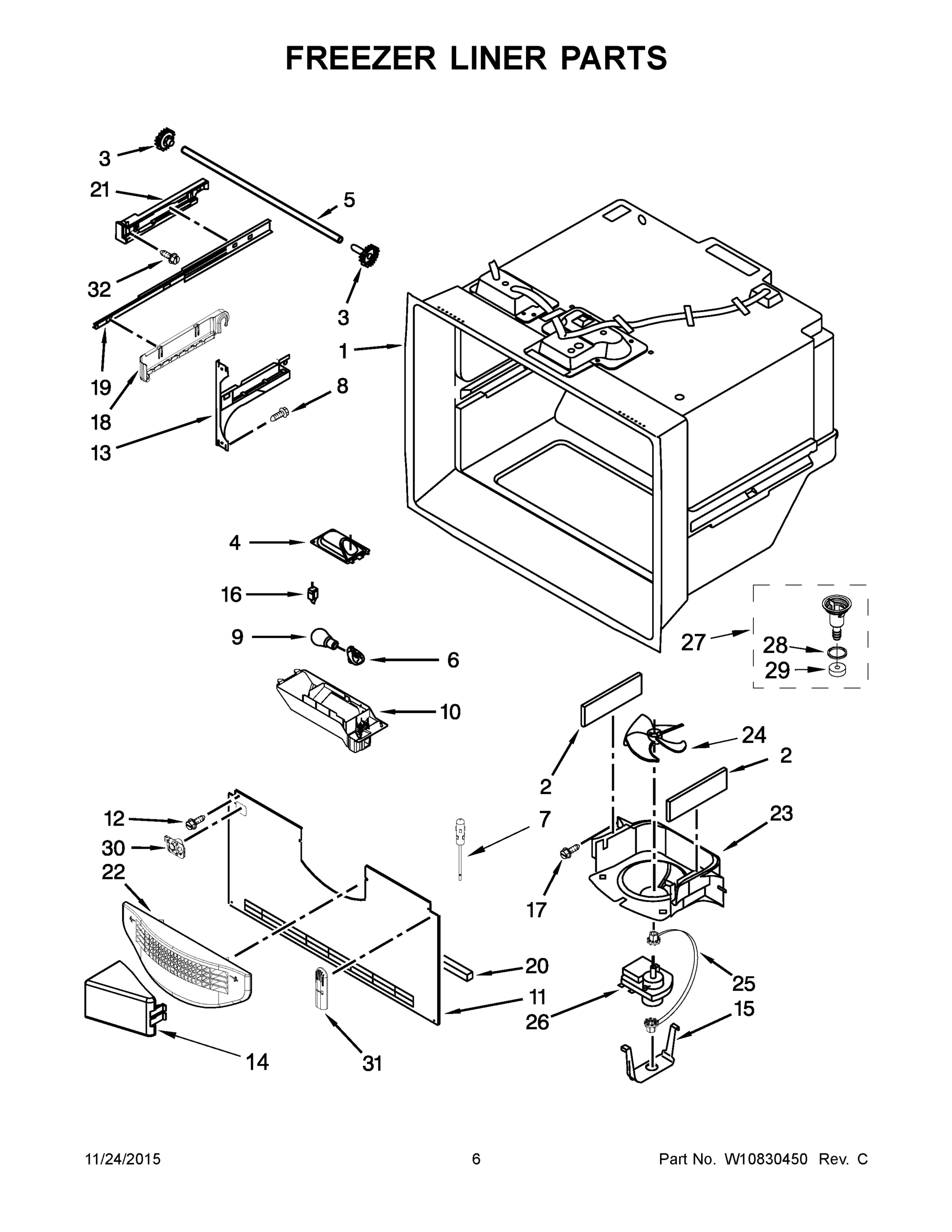

03 - REFRIGERATOR LINER PARTS
04 - FREEZER LINER PARTS

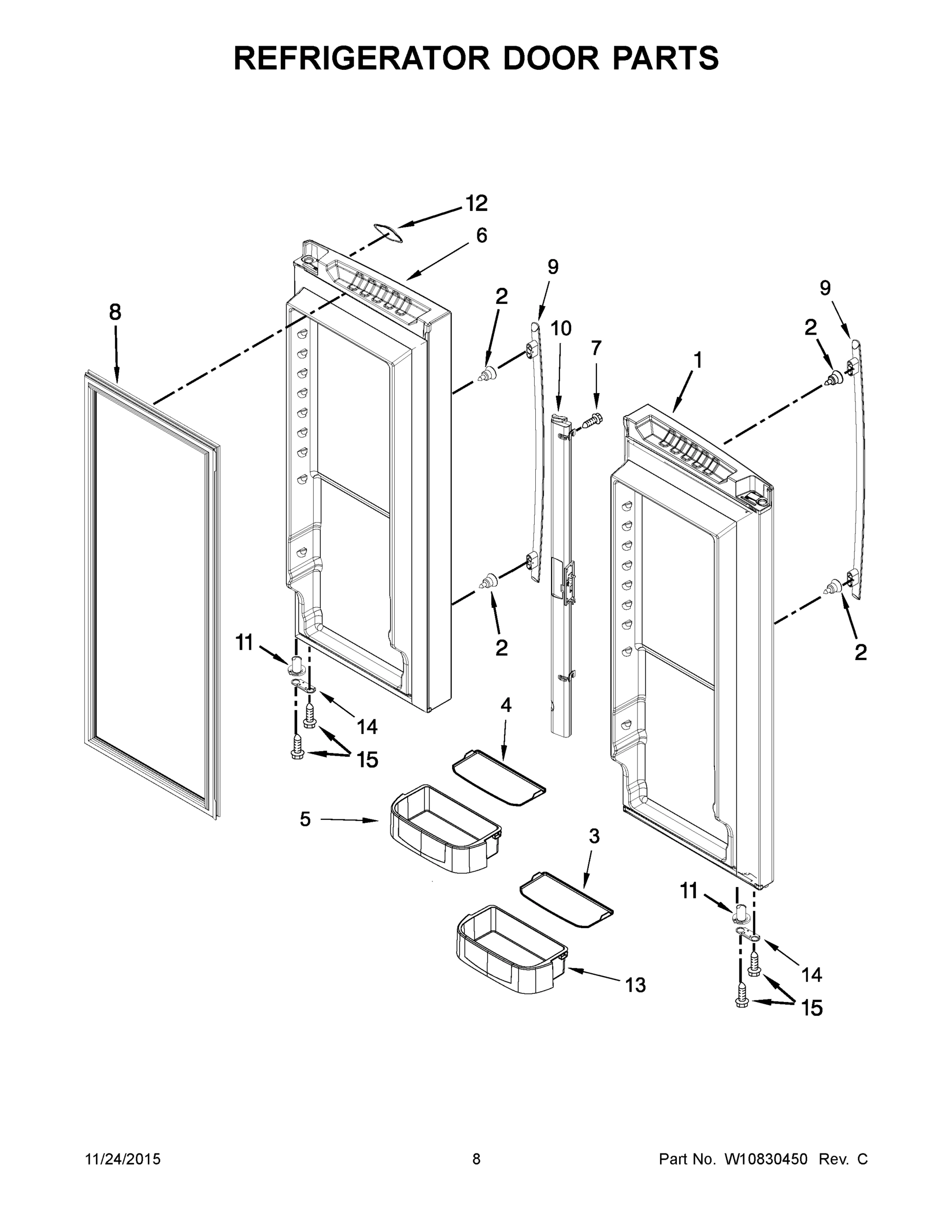

05 - REFRIGERATOR DOOR PARTS

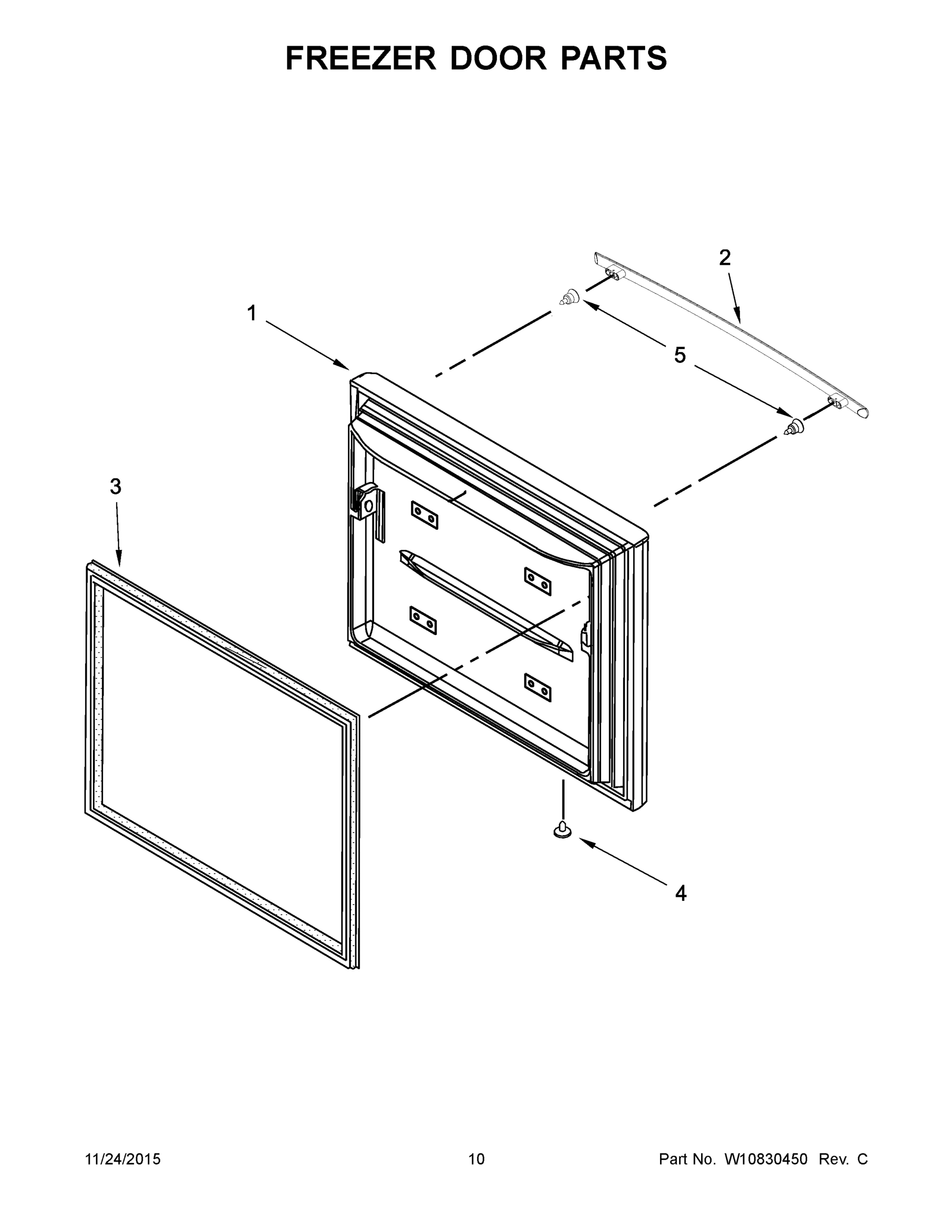

06 - FREEZER DOOR PARTS

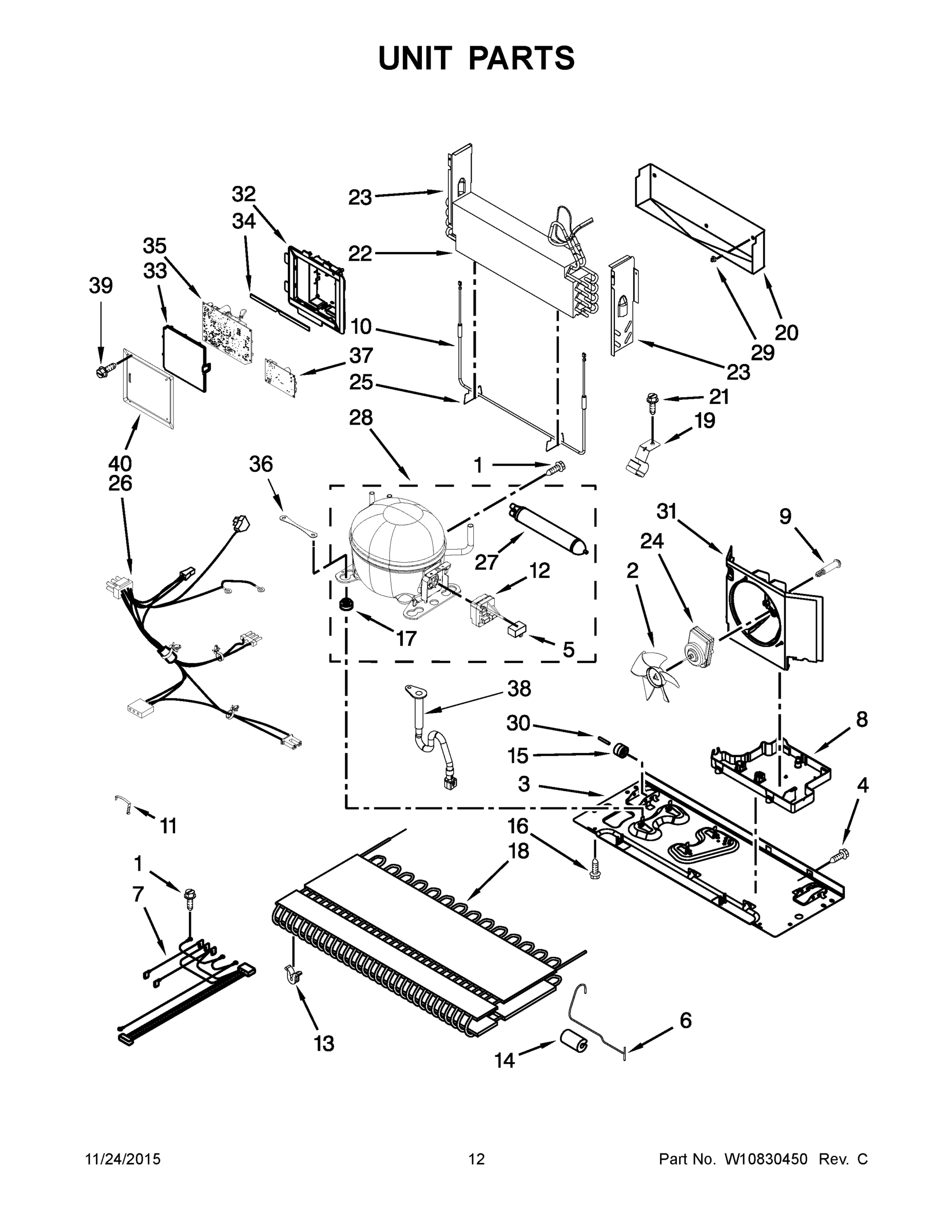

07 - UNIT PARTS

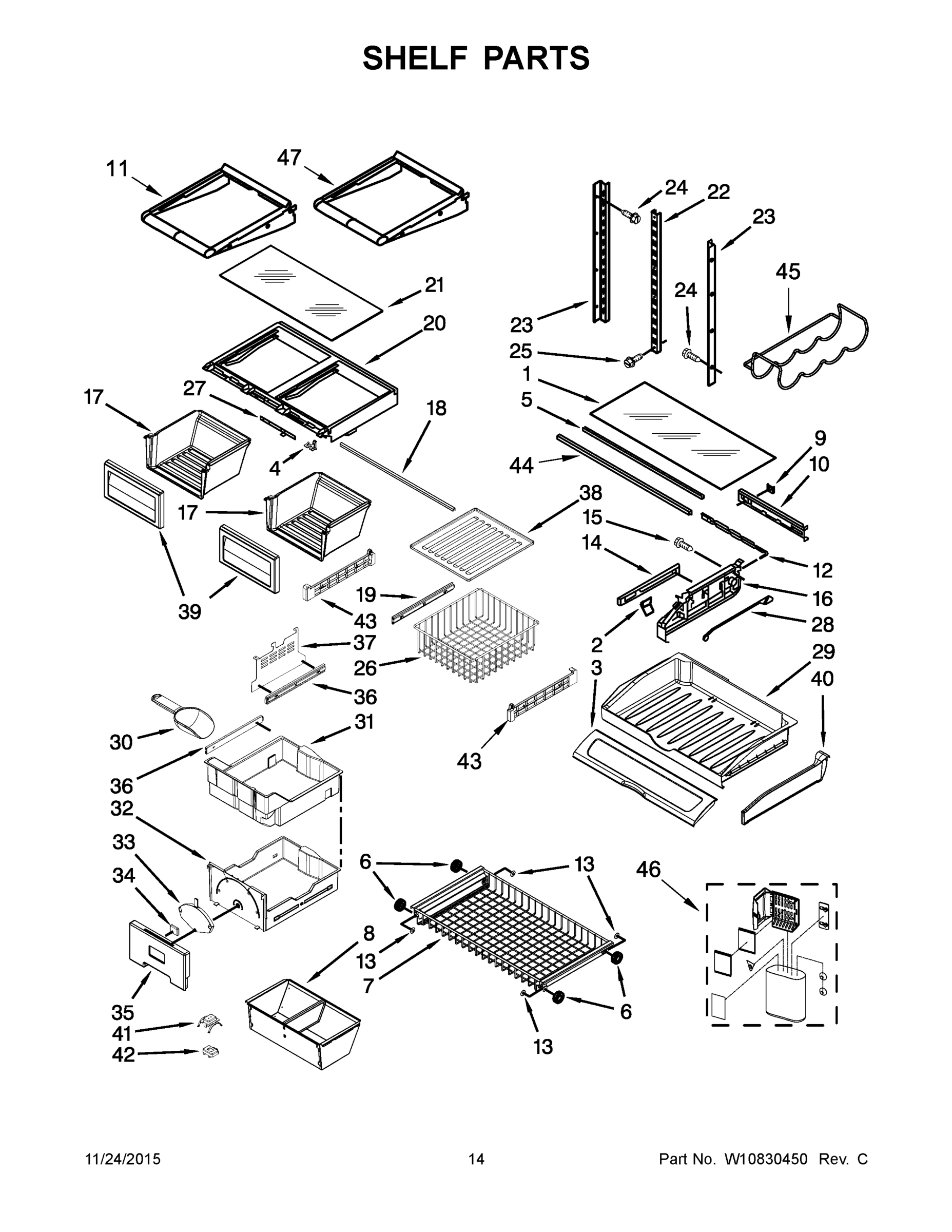

08 - SHELF PARTS

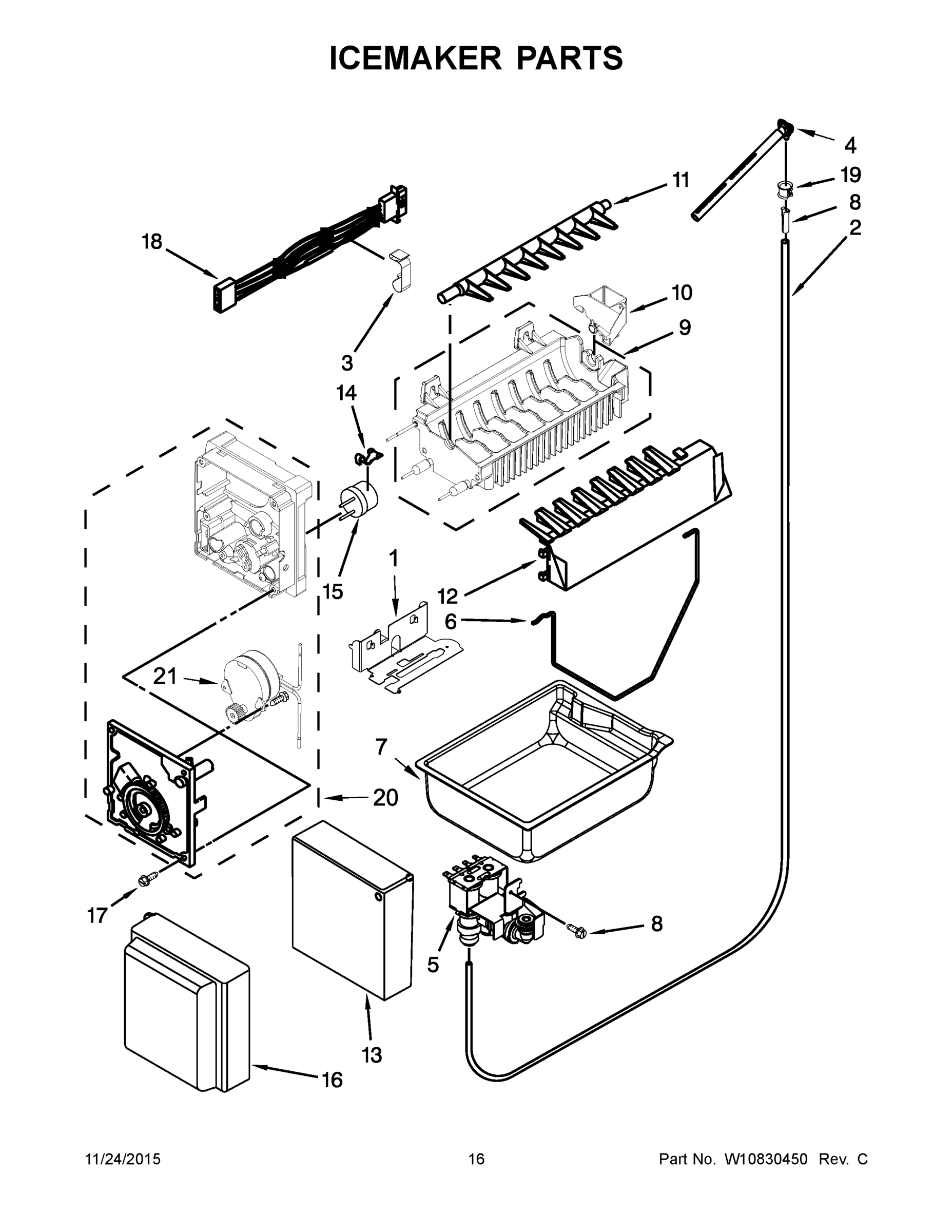

09 - ICEMAKER PARTS
10 - OPTIONAL PARTS
Common parts from model Maytag JFC2290REM00 REFRIGERATOR
1
MAY 13094747S MAY 13094747S Contact Us For Availability
1
MAY 13094917S MAY 13094917S Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12204815 MAY 12204815 Contact Us For Availability
1
MAY W10420084 MAY W10420084 Contact Us For Availability
2
MAY W10464766 MAY W10464766 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
HANDLE, DOOR (STAINLESS) MAY W10298179 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY 12655204 MAY 12655204 Contact Us For Availability
2
MAY B5705333 MAY B5705333 Contact Us For Availability
3
MAY W10808269 MAY W10808269 Contact Us For Availability
3
GRIPPER, GALLON MAY W10450019 Contact Us For Availability
3
GASKET, DOOR (GREY) MAY W10443320 Contact Us For Availability
3
MAY W10480111 MAY W10480111 Contact Us For Availability
3
MAY 12656822 MAY 12656822 Contact Us For Availability
3
CLAMP, WIRE MAY 10526702 Contact Us For Availability
4
MAY B5759655 MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MODULE, CONTROL MAY W10464767 Contact Us For Availability
4
HOUSING, FREEZER LIGHT MAY 12476401V Contact Us For Availability
4
GRIPPER, MEDIUM MAY W10450018 Contact Us For Availability
4
KNOB, HUMIDITY CONTROL MAY W10119222 Contact Us For Availability
4
MAY 10463203 MAY 10463203 Contact Us For Availability
5
MAY W10116216 MAY W10116216 Contact Us For Availability
5
MAY W10802332 MAY W10802332 Contact Us For Availability
5
MAY W10460893 MAY W10460893 Contact Us For Availability
5
BUCKET, MEDIUM MAY W10119841 Contact Us For Availability
5
MAY W10350564 MAY W10350564 Contact Us For Availability
5
MAY 12227305WH MAY 12227305WH Contact Us For Availability
5
VALVE, WATER INLET MAY W10420083 Contact Us For Availability
6
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
6
MAY W10116529 MAY W10116529 Contact Us For Availability
6
SOCKET, LIGHT MAY 12570701V Contact Us For Availability
6
MAY 13094739S MAY 13094739S Contact Us For Availability
6
MAY W10233569 MAY W10233569 Contact Us For Availability
6
ROLLER, BASKET MAY 2204542 Contact Us For Availability
6
MAY W10512602 MAY W10512602 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY 12791419SP MAY 12791419SP Contact Us For Availability
7
MAY 12990204 MAY 12990204 Contact Us For Availability
7
HARNESS, EVAPORATOR HEATER MAY W10292241 Contact Us For Availability
7
MAY W10119854 MAY W10119854 Contact Us For Availability
7
MAY W10120005 MAY W10120005 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
MAY 12990521 MAY 12990521 Contact Us For Availability
8
MAY W10443241 MAY W10443241 Contact Us For Availability
8
MAY W10655368 MAY W10655368 Contact Us For Availability
8
ASSEMBLY, BIN MAY W10144706 Contact Us For Availability
8
MAY A3223101 MAY A3223101 Contact Us For Availability
9
MAY 12992603 MAY 12992603 Contact Us For Availability
9
MAY W10745744 MAY W10745744 Contact Us For Availability
9
HANDLE, DOOR (STAINLESS) MAY W10298244 Contact Us For Availability
9
SCREW MAY W10216919 Contact Us For Availability
9
MAY 12656901 MAY 12656901 Contact Us For Availability
9
ASSEMBLY, MOLD AND HEATER MAY W10300025 Contact Us For Availability
10
HINGE, TOP (RIGHT HAND) MAY W10210891 Contact Us For Availability
10
MODULE, FREEZER LIGHT MAY W10119832 Contact Us For Availability
10
MAY 12732508AP MAY 12732508AP Contact Us For Availability
10
MAY 12729123 MAY 12729123 Contact Us For Availability
10
MAY 12656202 MAY 12656202 Contact Us For Availability
10
MAY W10410073 MAY W10410073 Contact Us For Availability
10A
HINGE, TOP (LEFT HAND) MAY W10210890 Contact Us For Availability
11
MAY W10339086 MAY W10339086 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY W10308420 MAY W10308420 Contact Us For Availability
11
MAY 12028505AP MAY 12028505AP Contact Us For Availability
11
MAY W10216075 MAY W10216075 Contact Us For Availability
11
MAY W10739612 MAY W10739612 Contact Us For Availability
11
MAY W10318914 MAY W10318914 Contact Us For Availability
12
MAY W10120103 MAY W10120103 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
MAY W10214168 MAY W10214168 Contact Us For Availability
12
MAY W10330834 MAY W10330834 Contact Us For Availability
12
MAY 12655402 MAY 12655402 Contact Us For Availability
12
MAY W10699925 MAY W10699925 Contact Us For Availability
13
MAY W10120102 MAY W10120102 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY W10330994 MAY W10330994 Contact Us For Availability
13
BUCKET, GALLON MAY W10119846 Contact Us For Availability
13
MAY W10137529 MAY W10137529 Contact Us For Availability
13
NUT, HEX MAY 2207415 Contact Us For Availability
13A
MAY W10330995 MAY W10330995 Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY 13012402 MAY 13012402 Contact Us For Availability
14
MAY W10157765 MAY W10157765 Contact Us For Availability
14
MAY W10120097 MAY W10120097 Contact Us For Availability
14
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
14
GLIDE, DRAWER (LEFT HAND) MAY W10132653 Contact Us For Availability
14
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
14A
GLIDE, DRAWER (RIGHT HAND) MAY W10132652 Contact Us For Availability
15
MAY 12990504 MAY 12990504 Contact Us For Availability
15
HINGE, CENTER (RIGHT) (GREY) MAY W10135097 Contact Us For Availability
15
MAY W10594329 MAY W10594329 Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
15
MAY W10290336 MAY W10290336 Contact Us For Availability
16
MAY W10658542 MAY W10658542 Contact Us For Availability
16
SLIDE, CRISPER (LEFT HAND) MAY 2302952 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
ENDCAP, PANTRY (LEFT HAND) MAY W10122078 Contact Us For Availability
16
MAY W10377174 MAY W10377174 Contact Us For Availability
16A
SLIDE, CRISPER (RIGHTT HAND) MAY 2302953 Contact Us For Availability
16A
ENDCAP, PANTRY (RIGHT HAND) MAY W10121977 Contact Us For Availability
17
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
GROMMET MAY 10835903 Contact Us For Availability
17
MAY W10119219 MAY W10119219 Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
18
MAY 12820505 MAY 12820505 Contact Us For Availability
18
MAY W10609243 MAY W10609243 Contact Us For Availability
18
CRADLE, BASKET (LEFT HAND) MAY W10119848 Contact Us For Availability
18
MAY W10505454 MAY W10505454 Contact Us For Availability
18
MAY W10490807 MAY W10490807 Contact Us For Availability
18
MAY W10458985 MAY W10458985 Contact Us For Availability
18A
CRADLE, BASKET (RIGHT HAND) MAY W10119849 Contact Us For Availability
19
ROLLER ASSEMBLY (FRONT) (LEFT HAND) MAY W10515763 Contact Us For Availability
19
MAY W10735404 MAY W10735404 Contact Us For Availability
19
MAY 13055901N MAY 13055901N Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
19
MAY W10170836 MAY W10170836 Contact Us For Availability
19
MAY M0114003 MAY M0114003 Contact Us For Availability
19A
ROLLER ASSEMBLY (FRONT) (RIGHT HAND) MAY W10515762 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
MAY 12960301N MAY 12960301N Contact Us For Availability
20
GASKET MAY A3189396 Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
20
MAY W10119215 MAY W10119215 Contact Us For Availability
20
ASSEMBLY, MODULE AND MOTOR MAY W10281342 Contact Us For Availability
21
MOTOR (NOT AVAILABLE, ORDER #20) MAY N/P Contact Us For Availability
21
CLAMP, TUBE MAY M0108107 Contact Us For Availability
21
MAY W10544403 MAY W10544403 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY 12204827 MAY 12204827 Contact Us For Availability
21A
MAY W10544404 MAY W10544404 Contact Us For Availability
22
MAY W10534155 MAY W10534155 Contact Us For Availability
22
MAY 12664501SP MAY 12664501SP Contact Us For Availability
22
MAY 13024803 MAY 13024803 Contact Us For Availability
22
MAY W10317014 MAY W10317014 Contact Us For Availability
22
MAY W10273463 MAY W10273463 Contact Us For Availability
23
MAY W10204292 MAY W10204292 Contact Us For Availability
23
MAY 13057901 MAY 13057901 Contact Us For Availability
23
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
23
MAY W10569182 MAY W10569182 Contact Us For Availability
23A
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
24
HINGE, CENTER (LEFT) (GREY) MAY W10135096 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY W10609117 MAY W10609117 Contact Us For Availability
24
MAY 12990513 MAY 12990513 Contact Us For Availability
25
MAY 12575502 MAY 12575502 Contact Us For Availability
25
MAY W10121318 MAY W10121318 Contact Us For Availability
25
SCREW MAY 12990515 Contact Us For Availability
26
MAY 12726003 MAY 12726003 Contact Us For Availability
26
MAY W10117324 MAY W10117324 Contact Us For Availability
26
MAY W10128551 MAY W10128551 Contact Us For Availability
26
MAY W10679221 MAY W10679221 Contact Us For Availability
26
BASKET, UPPER FREEZER MAY W10120003 Contact Us For Availability
27
MAY W10208593 MAY W10208593 Contact Us For Availability
27
MAY 12706109 MAY 12706109 Contact Us For Availability
27
MAY W10662407 MAY W10662407 Contact Us For Availability
27
DRIER MAY W10177049 Contact Us For Availability
27
MAY W10119217 MAY W10119217 Contact Us For Availability
28
MAY 12990302 MAY 12990302 Contact Us For Availability
28
MAY 12955901 MAY 12955901 Contact Us For Availability
28
MAY M0500703 MAY M0500703 Contact Us For Availability
28
MAY W10485433 MAY W10485433 Contact Us For Availability
28
MAY 12655303 MAY 12655303 Contact Us For Availability
29
MAY W10528513 MAY W10528513 Contact Us For Availability
29
MAY B8381501 MAY B8381501 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 12655703 MAY 12655703 Contact Us For Availability
30
MAY W10211855 MAY W10211855 Contact Us For Availability
30
GUIDE, FILL TUBE MAY W10201550 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
30
MAY W10182881 MAY W10182881 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
MAY W10189184 MAY W10189184 Contact Us For Availability
32
MAY 12990501 MAY 12990501 Contact Us For Availability
32
MAY W10119790 MAY W10119790 Contact Us For Availability
32
MAY W10120008 MAY W10120008 Contact Us For Availability
33
MAY W10296541 MAY W10296541 Contact Us For Availability
33
MAY W10184030 MAY W10184030 Contact Us For Availability
34
GASKET, CONTROL BOX MAY 12957801 Contact Us For Availability
34
MAY W10720771 MAY W10720771 Contact Us For Availability
35
CONTROL, ELECTRONIC MAY W10120827 Contact Us For Availability
35
MAY W10174720 MAY W10174720 Contact Us For Availability
36
MAY W10236396 MAY W10236396 Contact Us For Availability
36
MAY W10170835 MAY W10170835 Contact Us For Availability
37
CONTROL, POWER SUPPLY ELECTRONIC MAY W10120821 Contact Us For Availability
37
SUPPORT, FREEZER DOOR MAY W10120014 Contact Us For Availability
38
MAY W10622099 MAY W10622099 Contact Us For Availability
38
MAY W10451455 MAY W10451455 Contact Us For Availability
39
MAY 12990702 MAY 12990702 Contact Us For Availability
39
MAY W10212414 MAY W10212414 Contact Us For Availability
40
MAY 12961602 MAY 12961602 Contact Us For Availability
40
MAY 12709301 MAY 12709301 Contact Us For Availability
41
MAY W10121002 MAY W10121002 Contact Us For Availability
42
MAY W10121004 MAY W10121004 Contact Us For Availability
43
ADAPTER (LEFT HAND) MAY W10163084 Contact Us For Availability
43A
ADAPTER (RIGHT HAND) MAY W10163087 Contact Us For Availability
44
MAY W10528935 MAY W10528935 Contact Us For Availability
45
MAY W10742811 MAY W10742811 Contact Us For Availability
46
MAY W10593207 MAY W10593207 Contact Us For Availability
47
MAY W10824708 MAY W10824708 Contact Us For Availability
100
MAY W10683115 MAY W10683115 Contact Us For Availability
NI
HARNESS, CONTROL (REFRIGERATOR) MAY W10391289 Contact Us For Availability
NI
MAY W10196195 MAY W10196195 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY 8003RP MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
