Model Maytag JFC2089WEP11 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - FREEZER LINER PARTS

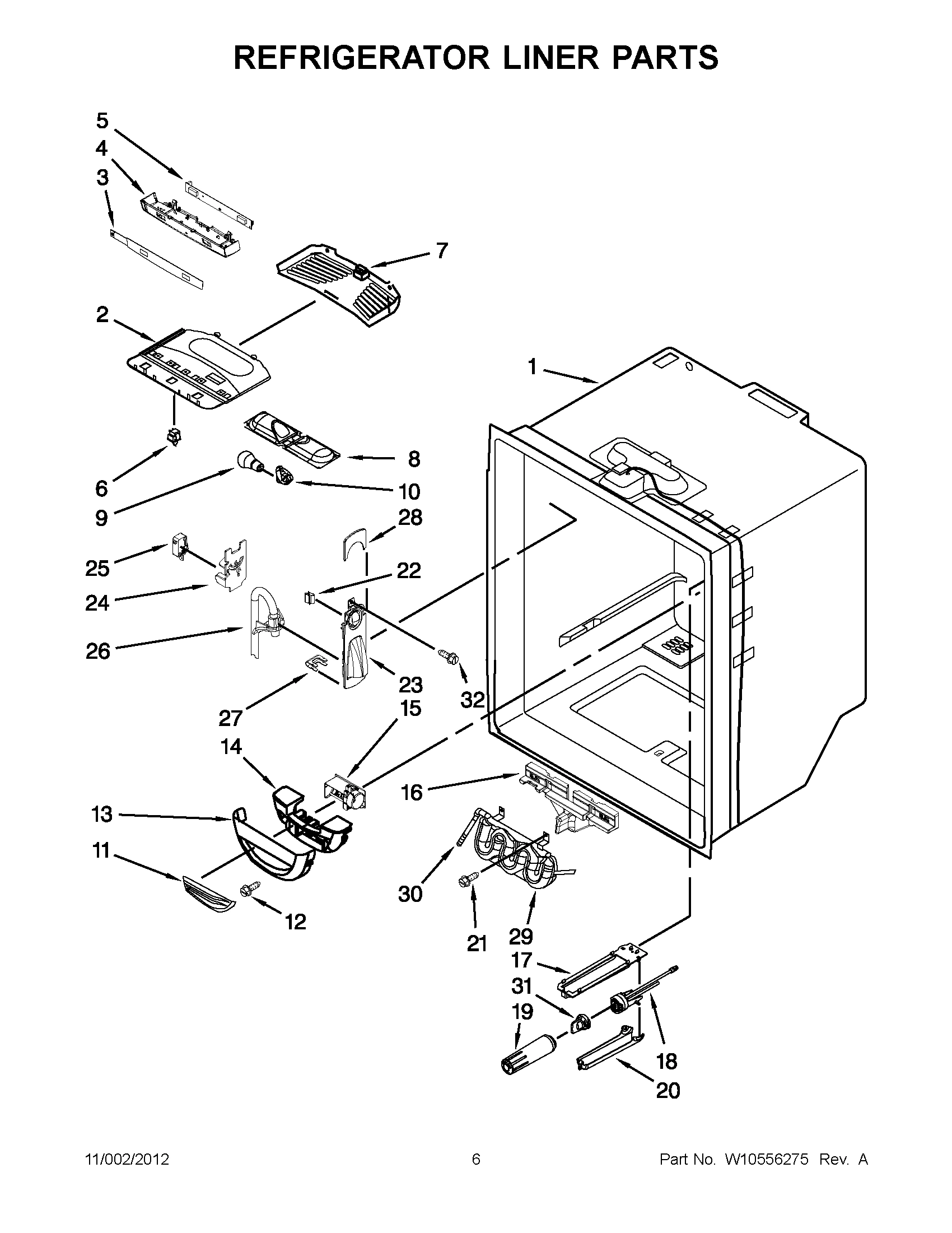

03 - REFRIGERATOR LINER PARTS

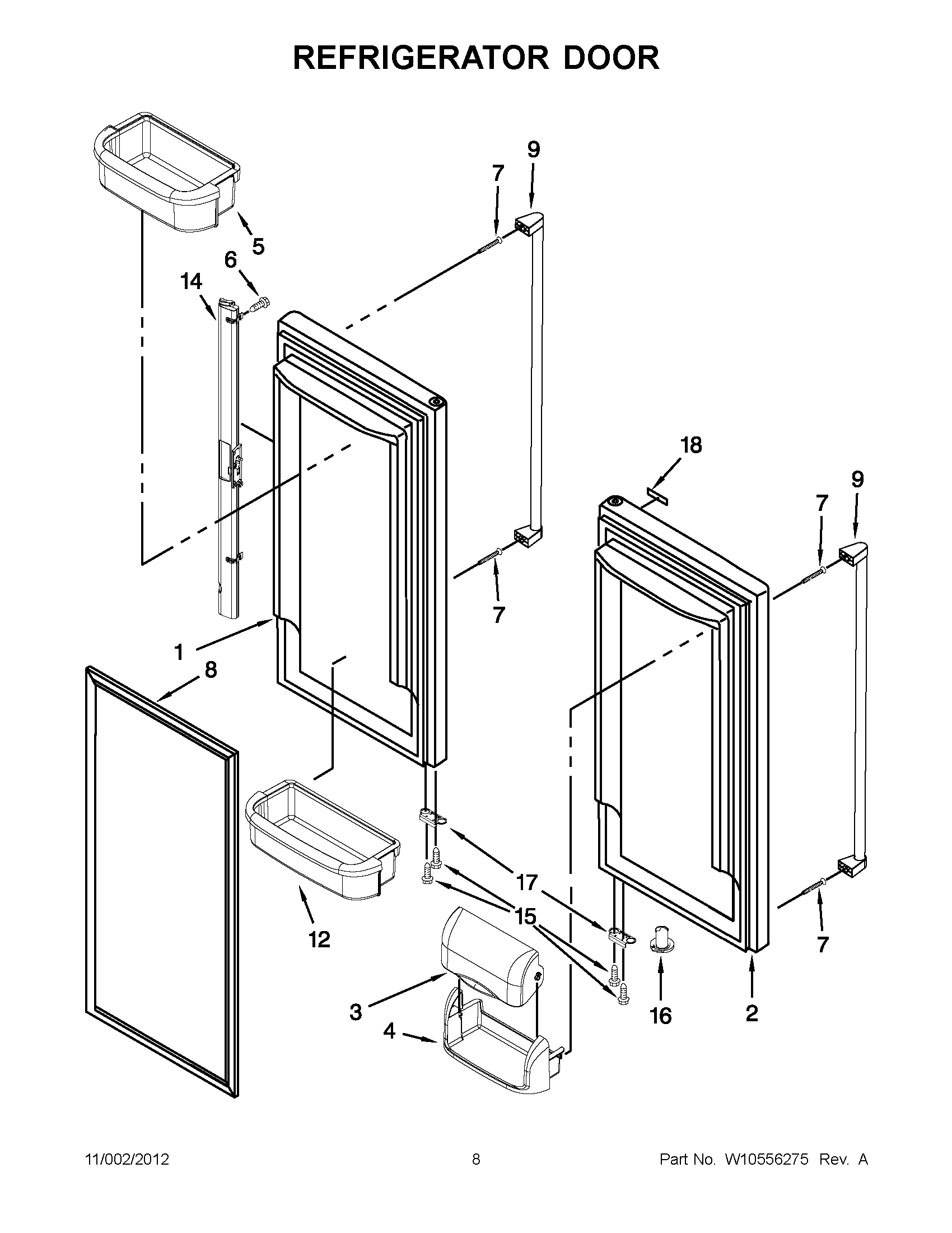

04 - REFRIGERATOR DOOR

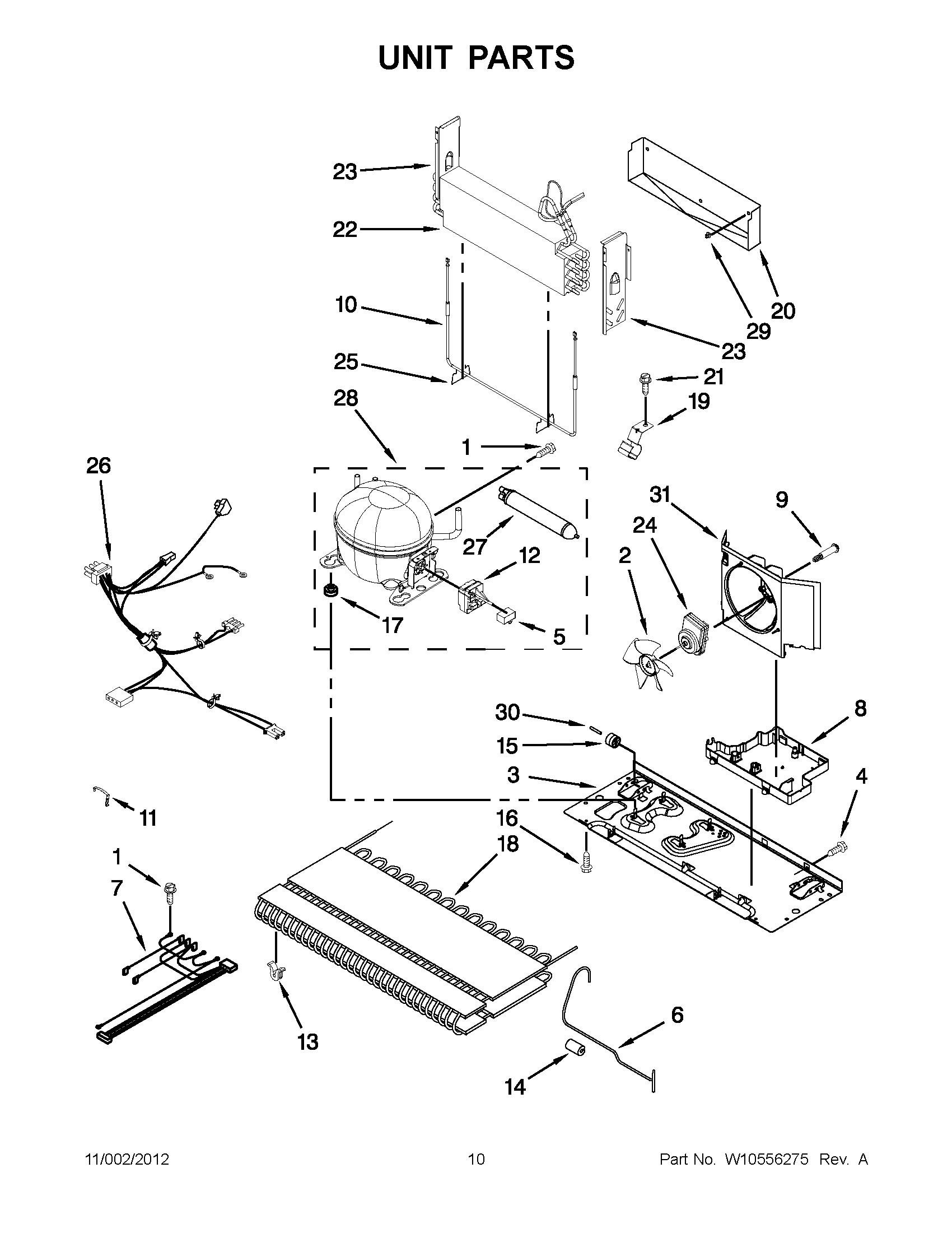

05 - UNIT PARTS
06 - SHELF PARTS

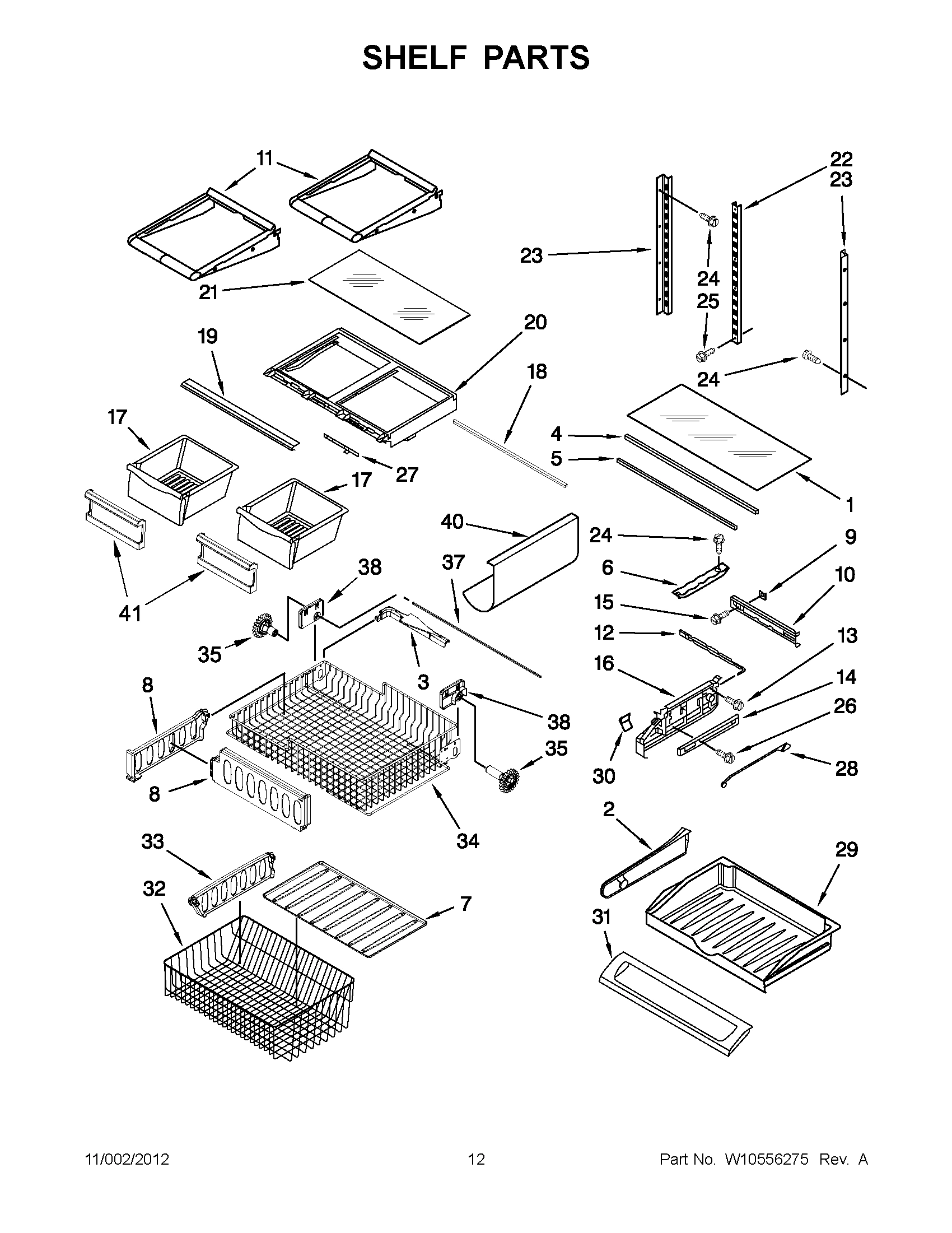

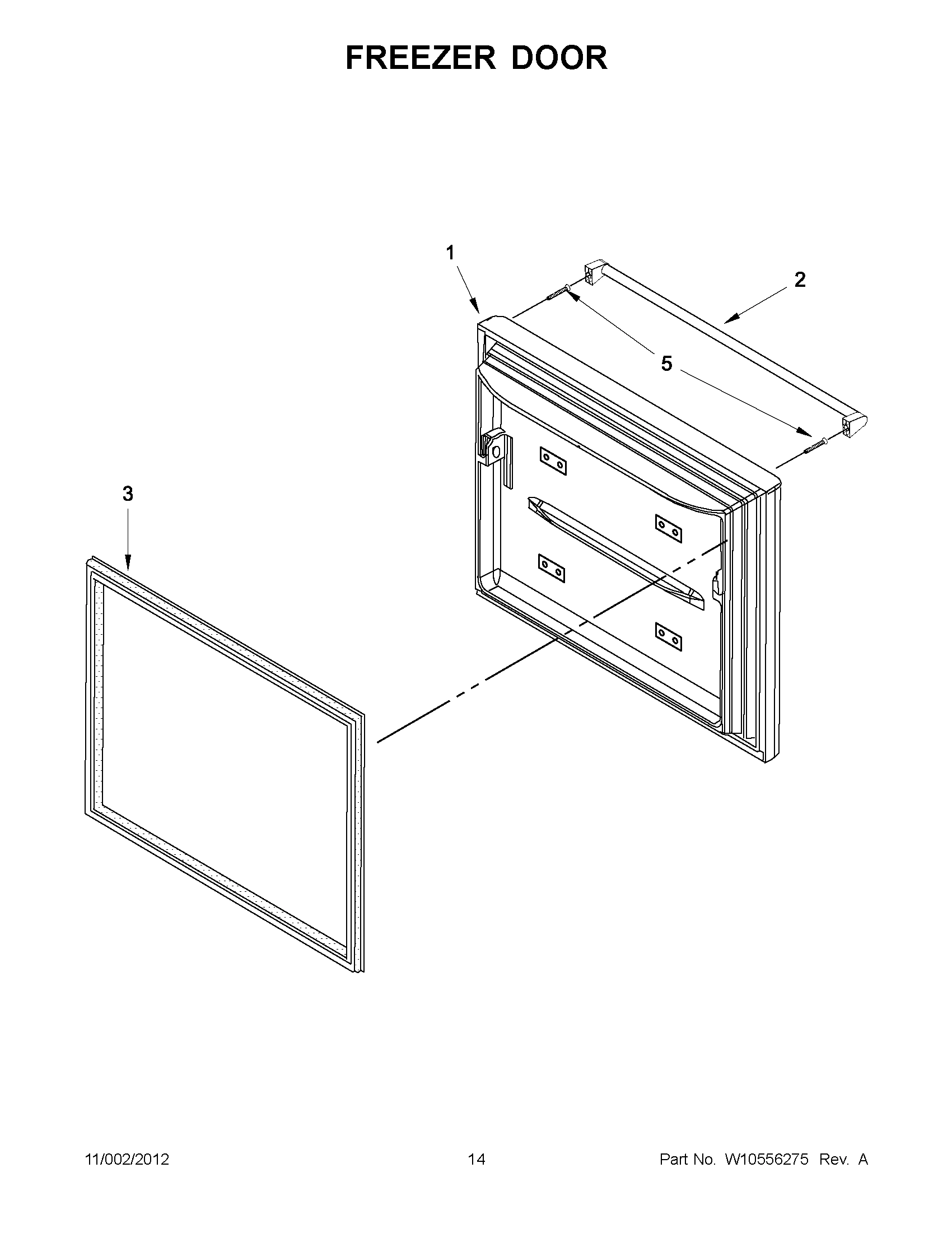

07 - FREEZER DOOR

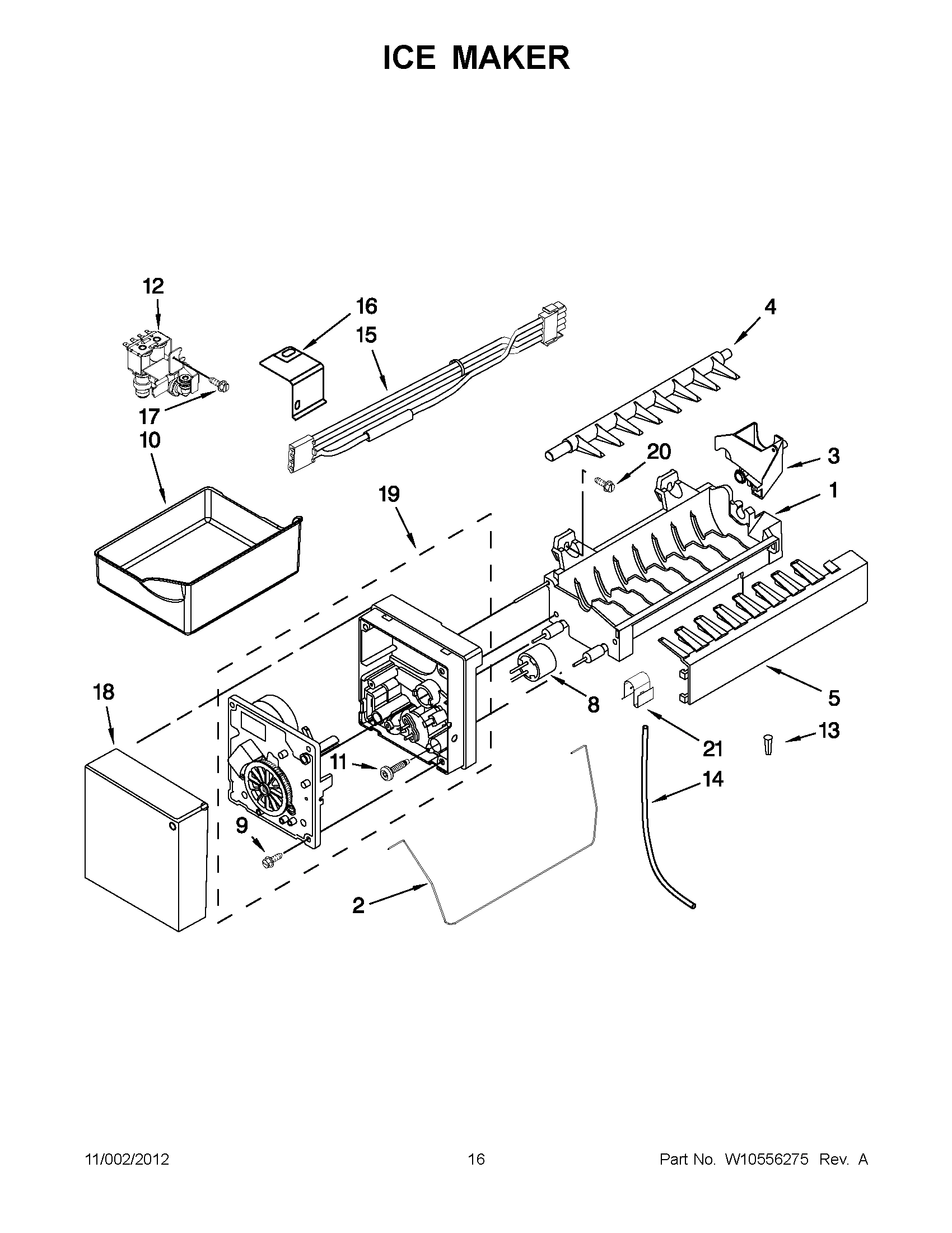

08 - ICE MAKER
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JFC2089WEP11 REFRIGERATOR
1
MAY 13107788S MAY 13107788S Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12204829 MAY 12204829 Contact Us For Availability
1
MAY 13109206S MAY 13109206S Contact Us For Availability
1
ASSEMBLY, MOLD & HEATER MAY W10300025 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY W10464764 MAY W10464764 Contact Us For Availability
2
MAY 13107777S MAY 13107777S Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY 12709301N MAY 12709301N Contact Us For Availability
2
MAY W10298179N MAY W10298179N Contact Us For Availability
2
MAY W10446527N MAY W10446527N Contact Us For Availability
2
MAY W10512602 MAY W10512602 Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY W10316408 MAY W10316408 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY W10480111 MAY W10480111 Contact Us For Availability
3
MAY W10149389N MAY W10149389N Contact Us For Availability
3
GASKET, DOOR (GREY) MAY W10443320 Contact Us For Availability
3
MAY W10410073 MAY W10410073 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
RACK, SIDE (RIGHT HAND) MAY W10516604 Contact Us For Availability
4
RACK, SIDE (LEFT HAND) MAY W10516605 Contact Us For Availability
4
MODULE, CONTROL MAY W10464767 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
TRIM, PANTRY GLASS MAY 12655902SP Contact Us For Availability
4
EJECTOR, ARM MAY W10318914 Contact Us For Availability
5
MAY W10128551 MAY W10128551 Contact Us For Availability
5
MAY W10428901 MAY W10428901 Contact Us For Availability
5
MAY 12801904 MAY 12801904 Contact Us For Availability
5
MAY W10350564 MAY W10350564 Contact Us For Availability
5
MAY 12227305WH MAY 12227305WH Contact Us For Availability
5
GASKET, DOOR (SCREW) MAY W10303465 Contact Us For Availability
5
STRIPPER, ICE MAY W10122563 Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
MAY 12990204 MAY 12990204 Contact Us For Availability
6
MAY W10233569 MAY W10233569 Contact Us For Availability
6
MAY 12531901 MAY 12531901 Contact Us For Availability
7
MAY W10157765 MAY W10157765 Contact Us For Availability
7
MAY 12806501N MAY 12806501N Contact Us For Availability
7
MAY W10460893 MAY W10460893 Contact Us For Availability
7
HARNESS, EVAPORATOR (INCLUDES THERMISTOR) MAY W10292242 Contact Us For Availability
7
MAY 12727304 MAY 12727304 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
GASKET, DOOR (GREY) MAY W10443225 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
8
DIVIDER, UPPER MAY W10241046 Contact Us For Availability
8
MAY W10290336 MAY W10290336 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
BULB, LIGHT MAY W10311505 Contact Us For Availability
9
BULB, LIGHT MAY W10311505N Contact Us For Availability
9
MAY W10298244N MAY W10298244N Contact Us For Availability
9
MAY W10446526N MAY W10446526N Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
9
MAY 12656901 MAY 12656901 Contact Us For Availability
9
MAY 489464 MAY 489464 Contact Us For Availability
10
Hinge, Top Right MAY 12626910ED Contact Us For Availability
10
HOUSING, FOIL MAY W10277466 Contact Us For Availability
10
Socket, Light MAY 12570701V Contact Us For Availability
10
MAY 12729129 MAY 12729129 Contact Us For Availability
10
CONTROL, HOUSING MAY 12656202 Contact Us For Availability
10
MAY W10171529N MAY W10171529N Contact Us For Availability
11
MAY W10339086 MAY W10339086 Contact Us For Availability
11
MAY W10308416 MAY W10308416 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY W10174384 MAY W10174384 Contact Us For Availability
11
MAY 12463911 MAY 12463911 Contact Us For Availability
11
MAY 8533917 MAY 8533917 Contact Us For Availability
12
MAY M0114003 MAY M0114003 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
BUCKET, GALLON MAY 12840002 Contact Us For Availability
12
DEVICE, START MAY W10448874 Contact Us For Availability
12
MAY 12655402 MAY 12655402 Contact Us For Availability
12
VALVE, WATER INLET MAY W10420083 Contact Us For Availability
13
MAY W10217487 MAY W10217487 Contact Us For Availability
13
MAY W10121318 MAY W10121318 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY 12990512 MAY 12990512 Contact Us For Availability
13
MAY W10137529 MAY W10137529 Contact Us For Availability
13
MAY A3223101 MAY A3223101 Contact Us For Availability
14
MAY B5705333 MAY B5705333 Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
MAY 13012402 MAY 13012402 Contact Us For Availability
14
MULLION, DOOR (GREY) MAY 12722803AP Contact Us For Availability
14
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
14
MAY W10235370 MAY W10235370 Contact Us For Availability
15
MAY 12655102AP MAY 12655102AP Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
MAY W10207517 MAY W10207517 Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
15
MAY W10458985 MAY W10458985 Contact Us For Availability
16
MAY 12777701 MAY 12777701 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
Insulation, Tank MAY W10163893 Contact Us For Availability
16
MAY 12028505AP MAY 12028505AP Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
MAY 12656018 MAY 12656018 Contact Us For Availability
16
MAY 12656105 MAY 12656105 Contact Us For Availability
16
MAY 2256086 MAY 2256086 Contact Us For Availability
17
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
MAY 12704801 MAY 12704801 Contact Us For Availability
17
MAY W10120097 MAY W10120097 Contact Us For Availability
17
MAY 10835903SP MAY 10835903SP Contact Us For Availability
17
MAY 12531105SP MAY 12531105SP Contact Us For Availability
17
MAY 12991604 MAY 12991604 Contact Us For Availability
18
Hinge, Top Left MAY 12626911ED Contact Us For Availability
18
MAY D7753903 MAY D7753903 Contact Us For Availability
18
MAY 12590620 MAY 12590620 Contact Us For Availability
18
MAY W10214168 MAY W10214168 Contact Us For Availability
18
MAY W10346415 MAY W10346415 Contact Us For Availability
18
MAY 12227304WD MAY 12227304WD Contact Us For Availability
18
MAY W10377174 MAY W10377174 Contact Us For Availability
19
MAY W10515762 MAY W10515762 Contact Us For Availability
19
MAY W10515763 MAY W10515763 Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY W10336197 MAY W10336197 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
19
MAY W10231478N MAY W10231478N Contact Us For Availability
19
ASSEMBLY, MODULE AND MOTOR MAY W10281342 Contact Us For Availability
20
MAY 12991302 MAY 12991302 Contact Us For Availability
20
GASKET MAY A3189396 Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
20
FRAME, CRISPER (ALSO ORDER GASKET W10177506 Q MAY 12531202SP Contact Us For Availability
20
MAY W10001240 MAY W10001240 Contact Us For Availability
21
SHIM, TOP HINGE MAY 12579702 Contact Us For Availability
21
MAY B8381501 MAY B8381501 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY 12204821N MAY 12204821N Contact Us For Availability
21
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
22
GRILLE, TOE (GREY) MAY W10244558N Contact Us For Availability
22
MAY 13024803 MAY 13024803 Contact Us For Availability
22
MAY B8390302 MAY B8390302 Contact Us For Availability
22
MAY W10317014 MAY W10317014 Contact Us For Availability
22
MAY W10273463 MAY W10273463 Contact Us For Availability
23
MAY M0108107 MAY M0108107 Contact Us For Availability
23
Shroud, Evaporator MAY 13057901 Contact Us For Availability
23
FACADE, DISPENSER MAY 12706909 Contact Us For Availability
23
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
23
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
23
MAY W10251971 MAY W10251971 Contact Us For Availability
24
TUBE-DRAIN MAY W10344402 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
PLATE, DISPENSER MAY 12707303 Contact Us For Availability
24
MAY 12990513 MAY 12990513 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
25
MAY W10330994 MAY W10330994 Contact Us For Availability
25
MAY W10330995 MAY W10330995 Contact Us For Availability
25
MAY W10215666 MAY W10215666 Contact Us For Availability
26
MAY 12990504 MAY 12990504 Contact Us For Availability
26
MAY 12726003 MAY 12726003 Contact Us For Availability
26
MAY 12990521 MAY 12990521 Contact Us For Availability
26
MAY 12707206 MAY 12707206 Contact Us For Availability
26
HARNESS, UNIT MAY W10234025 Contact Us For Availability
27
MAY W10208593 MAY W10208593 Contact Us For Availability
27
MAY W10281115 MAY W10281115 Contact Us For Availability
27
MAY W10281116 MAY W10281116 Contact Us For Availability
27
MAY 12251001 MAY 12251001 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
27
MAY 12530805SP MAY 12530805SP Contact Us For Availability
28
MAY 12990302 MAY 12990302 Contact Us For Availability
28
SLIDE, DRAWER MAY W10488001N Contact Us For Availability
28
MAY 12707005 MAY 12707005 Contact Us For Availability
28
COMPRESSOR MAY W10445422 Contact Us For Availability
28
BAR, CONTROL MAY 12655303 Contact Us For Availability
29
MAY W10284692 MAY W10284692 Contact Us For Availability
29
MAY W10284693 MAY W10284693 Contact Us For Availability
29
MAY 12706112 MAY 12706112 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 12655702N MAY 12655702N Contact Us For Availability
30
MAY W10211855 MAY W10211855 Contact Us For Availability
30
MAY 12990501 MAY 12990501 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
30
MAY 12655204 MAY 12655204 Contact Us For Availability
31
MAY 12812903WD MAY 12812903WD Contact Us For Availability
31
MAY 12664501SP MAY 12664501SP Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
31
MAY 12656813 MAY 12656813 Contact Us For Availability
32
MAY 12820505 MAY 12820505 Contact Us For Availability
32
MAY 12791419SP MAY 12791419SP Contact Us For Availability
32
MAY W10503185 MAY W10503185 Contact Us For Availability
33
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
33
MAY W10309238 MAY W10309238 Contact Us For Availability
33
MAY W10150061 MAY W10150061 Contact Us For Availability
34
MAY W10348245 MAY W10348245 Contact Us For Availability
35
MAY 12961602 MAY 12961602 Contact Us For Availability
35
GEAR SPUR (RIGHT HAND) MAY W10474715 Contact Us For Availability
35
GEAR SPUR (LEFT HAND) MAY W10474716 Contact Us For Availability
36
MAY 12957702SP MAY 12957702SP Contact Us For Availability
37
BOARD, HV CONTROL MAY W10317076 Contact Us For Availability
37
MAY 12812904WD MAY 12812904WD Contact Us For Availability
38
MAY 12957801SP MAY 12957801SP Contact Us For Availability
38
MOUNT-GEAR (LEFT HAND) MAY W10348259 Contact Us For Availability
38
MOUNT-GEAR (RIGHT HAND) MAY W10348260 Contact Us For Availability
40
MAY W10367642 MAY W10367642 Contact Us For Availability
41
MAY 12727402SP MAY 12727402SP Contact Us For Availability
100
ICEMAKER ASSEMBLY (COMPLETE) MAY W10469286 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, MAY N/P Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) MAY W10224292 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. ENAMEL, BLACK MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3`` MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24 MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
