Model Maytag JFC2089BEM00 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT – Common Parts & Diagrams
01 - COVER SHEET
02 - CABINET PARTS

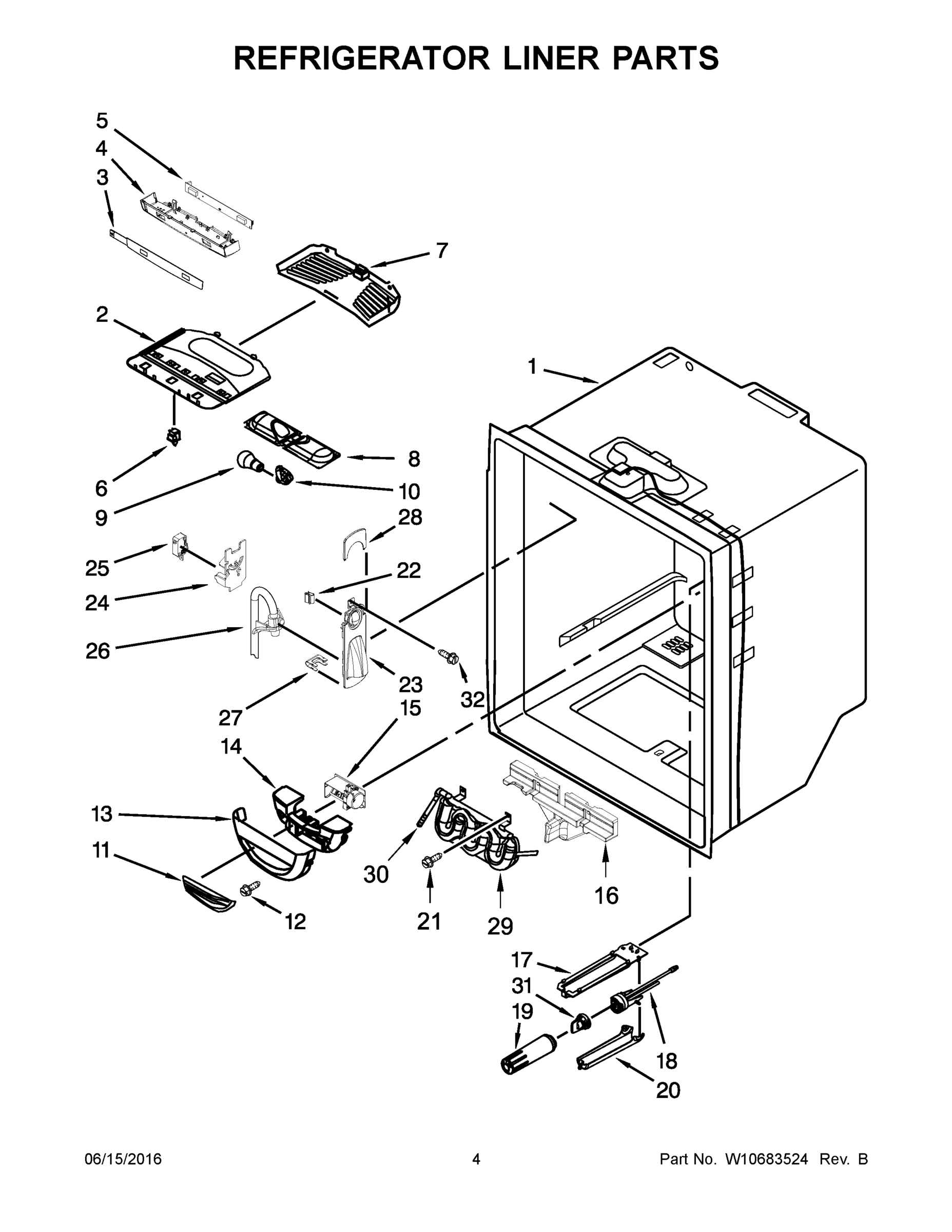

03 - REFRIGERATOR LINER PARTS

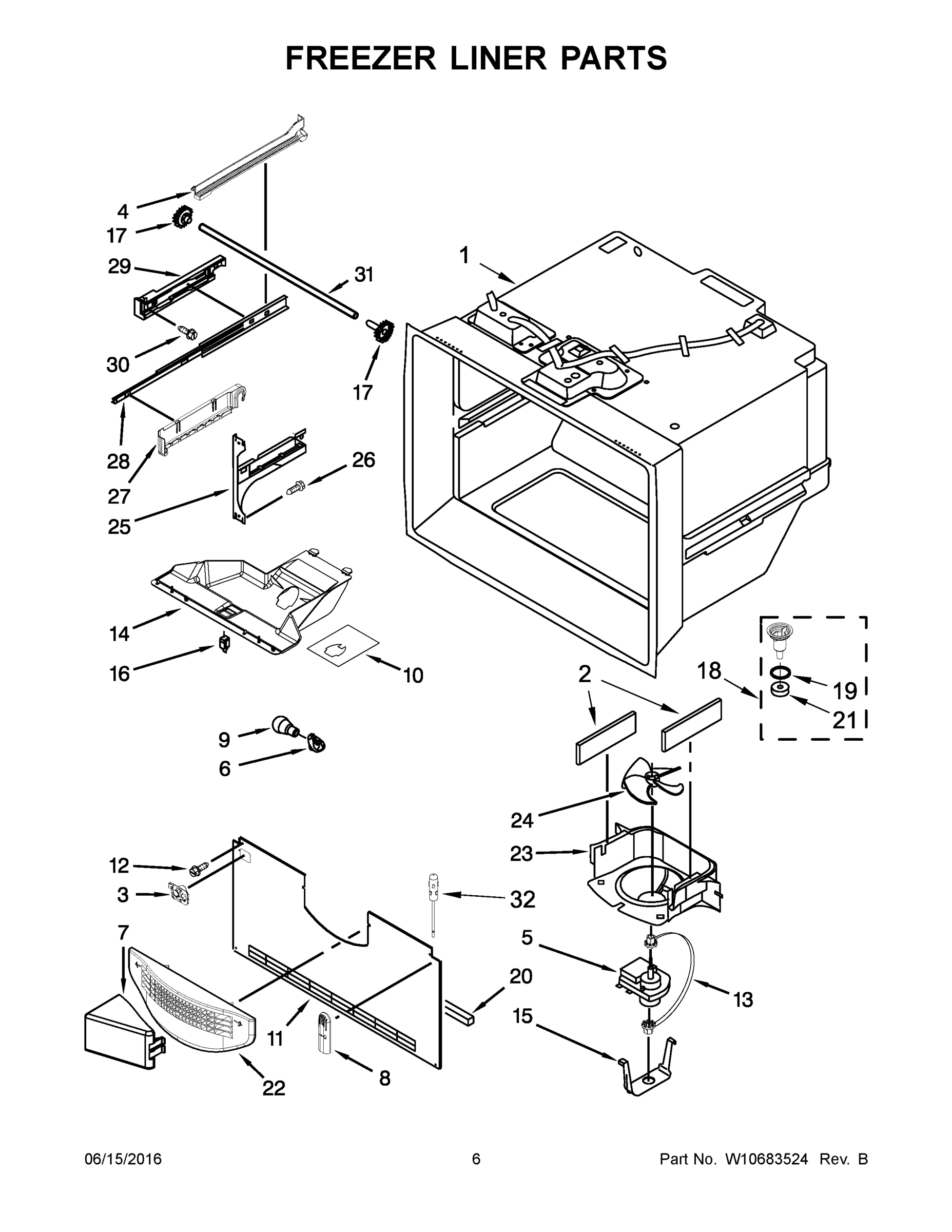

04 - FREEZER LINER PARTS

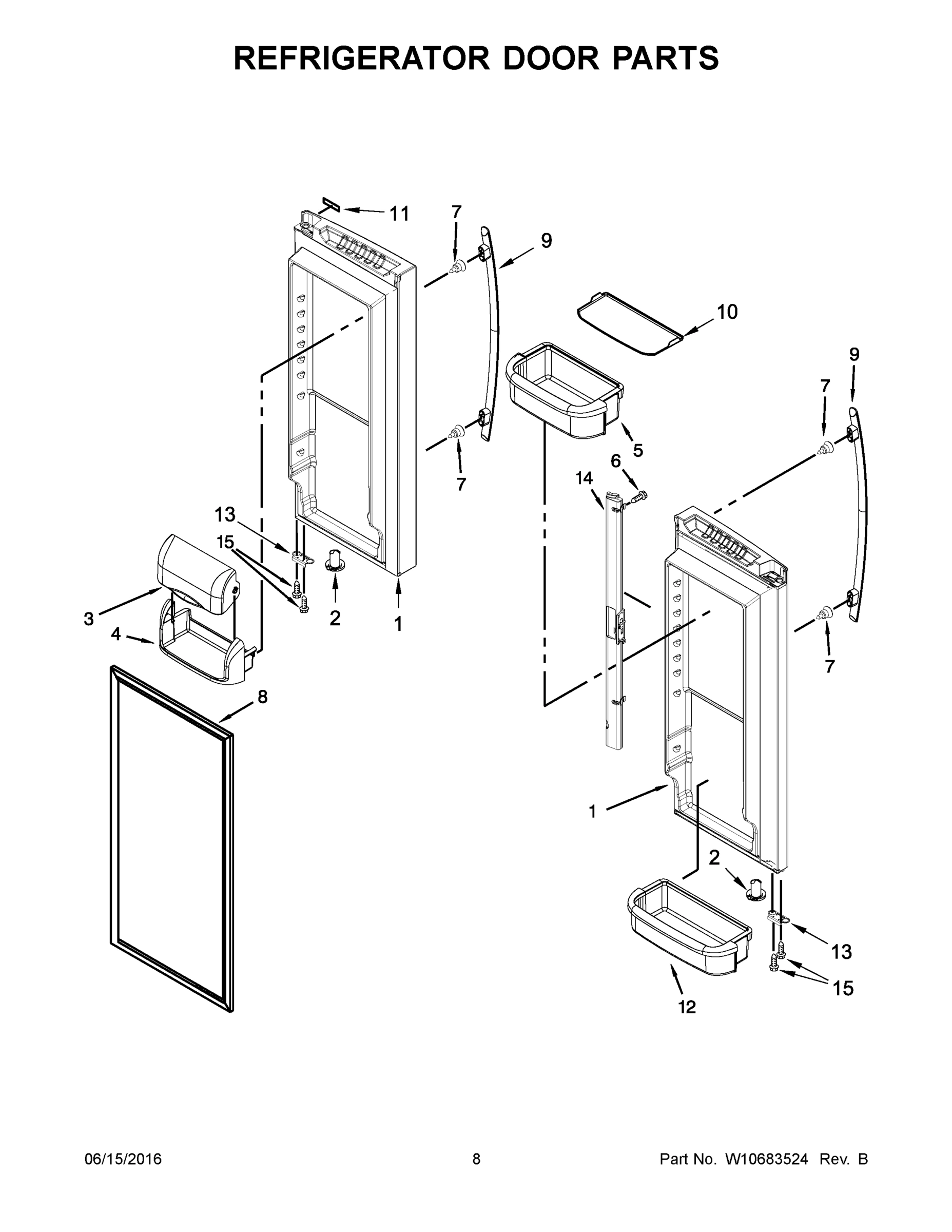

05 - REFRIGERATOR DOOR PARTS

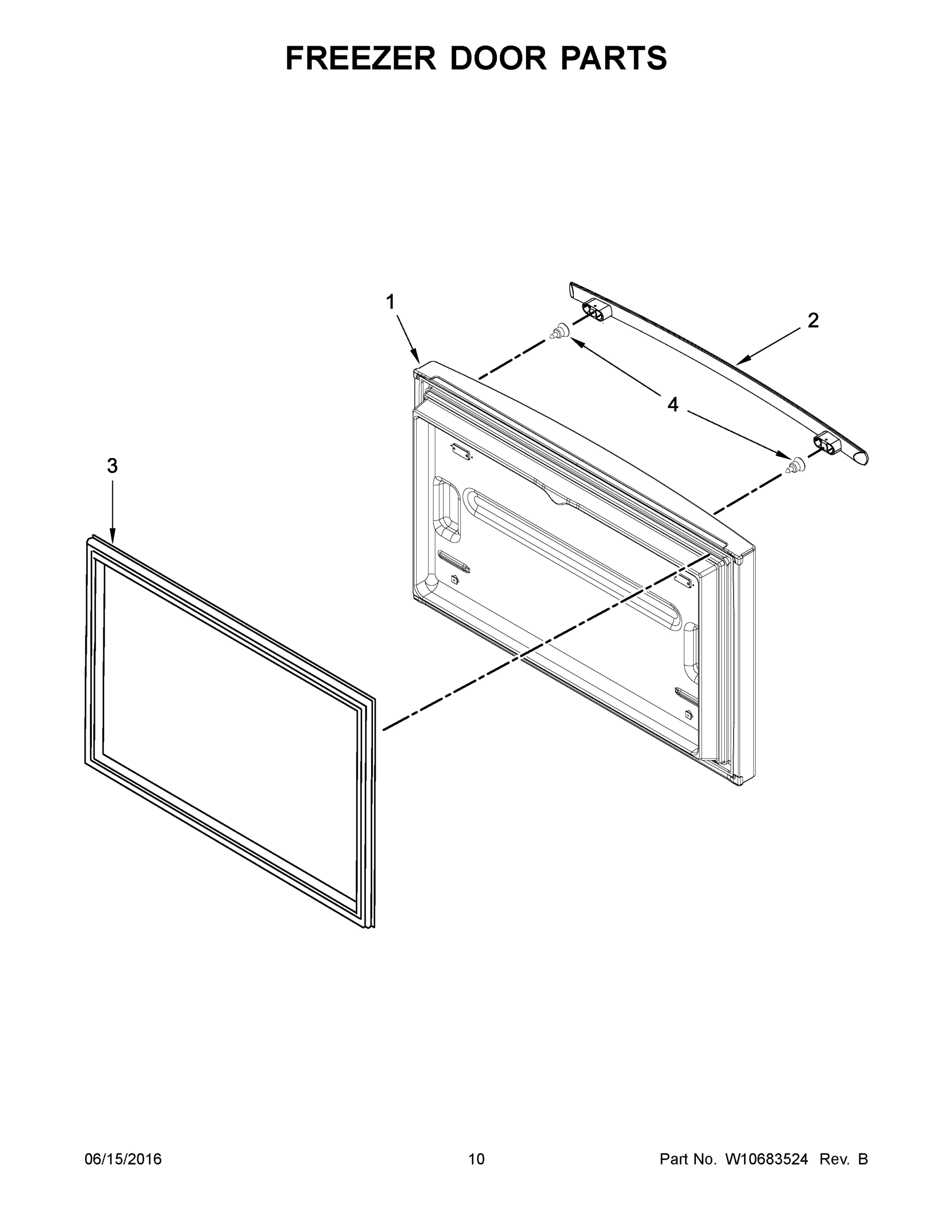

06 - FREEZER DOOR PARTS

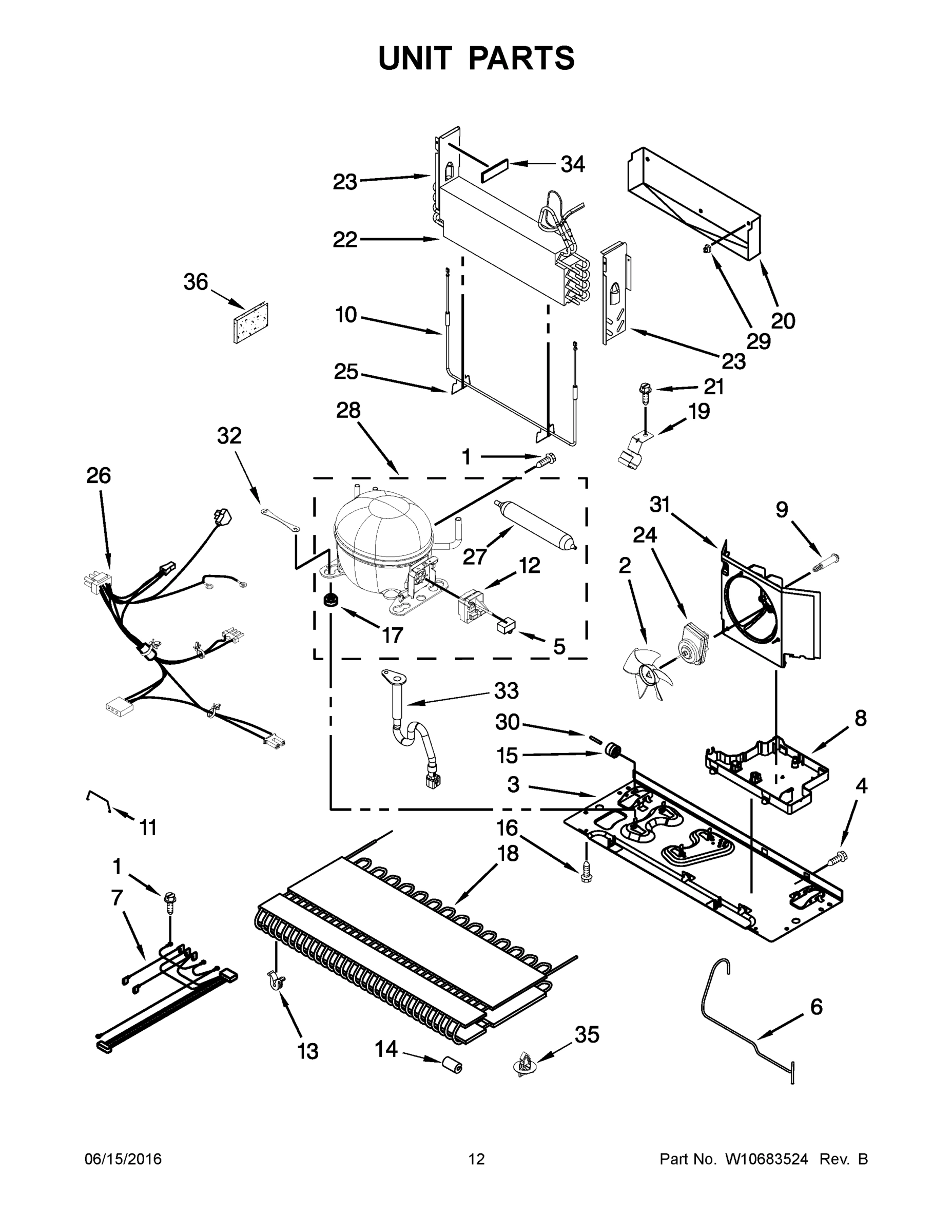

07 - UNIT PARTS

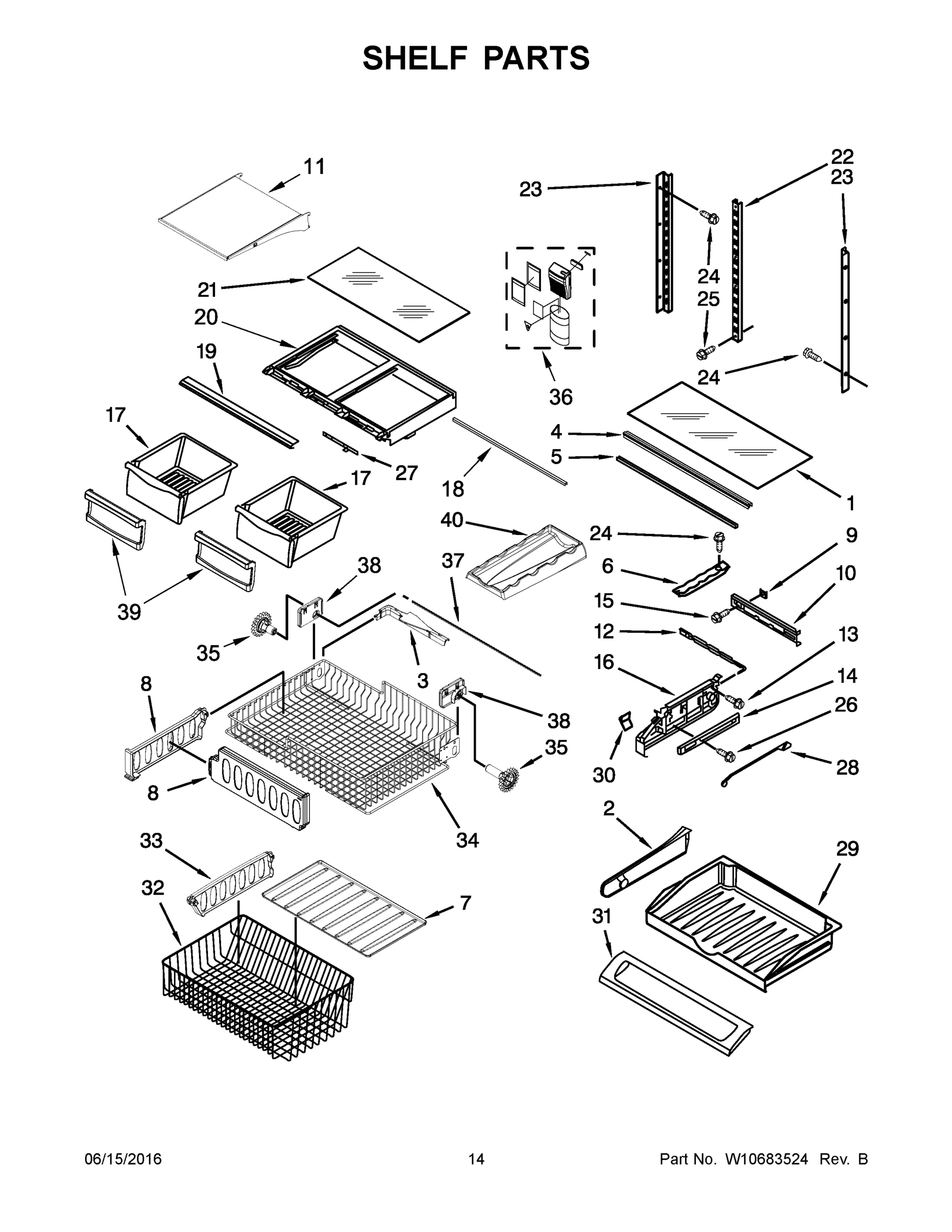

08 - SHELF PARTS

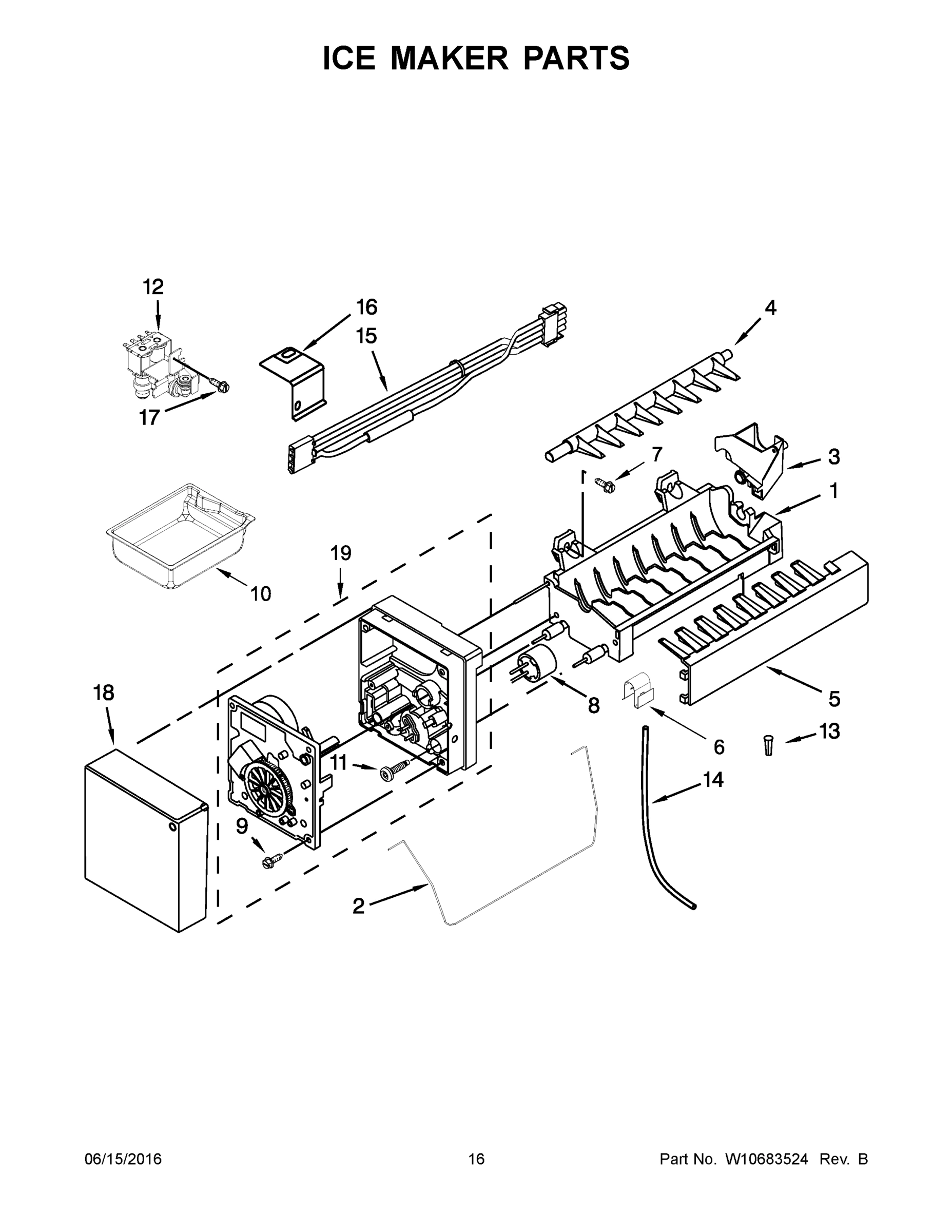

09 - ICE MAKER PARTS
10 - OPTIONAL PARTS
Common parts from model Maytag JFC2089BEM00 REFRIGERATOR, FRENCH DOOR, BOTTOM MOUNT
1
DOOR, REFRIGERATOR LEFT HAND (STAINLESS) MAY 13107881S Contact Us For Availability
1
MAY 12977864S MAY 12977864S Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
1
MAY 12204829 MAY 12204829 Contact Us For Availability
1
ASSEMBLY, MOLD AND HEATER MAY W10300025 Contact Us For Availability
1A
DOOR, REFRIGERATOR RIGHT HAND (STAINLESS) MAY 13107855S Contact Us For Availability
2
MAY W10464764 MAY W10464764 Contact Us For Availability
2
MAY A3189392 MAY A3189392 Contact Us For Availability
2
MAY 12028505AP MAY 12028505AP Contact Us For Availability
2
MAY W10564657 MAY W10564657 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
2
MAY 12709301 MAY 12709301 Contact Us For Availability
2
MAY W10512602 MAY W10512602 Contact Us For Availability
2A
MAY W10605389 MAY W10605389 Contact Us For Availability
3
MAY W10632601 MAY W10632601 Contact Us For Availability
3
MAY 12932103 MAY 12932103 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
GASKET, DOOR (GREY) MAY W10443320 Contact Us For Availability
3
MAY W10480111 MAY W10480111 Contact Us For Availability
3
MAY W10149389N MAY W10149389N Contact Us For Availability
3
MAY W10410073 MAY W10410073 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MODULE, CONTROL MAY W10464767 Contact Us For Availability
4
RACK, SIDE (LEFT HAND) MAY W10516605 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10460893 MAY W10460893 Contact Us For Availability
4
MAY W10528935 MAY W10528935 Contact Us For Availability
4
MAY W10318914 MAY W10318914 Contact Us For Availability
4A
RACK, SIDE (RIGHT HAND) MAY W10516604 Contact Us For Availability
5
COVER, TOP HINGE LEFT HAND (GREY) MAY W10337648 Contact Us For Availability
5
MAY W10677146 MAY W10677146 Contact Us For Availability
5
MAY 13062901 MAY 13062901 Contact Us For Availability
5
MAY W10371194 MAY W10371194 Contact Us For Availability
5
MAY W10350564 MAY W10350564 Contact Us For Availability
5
MAY 12227305WH MAY 12227305WH Contact Us For Availability
5
STRIPPER, ICE MAY W10122563 Contact Us For Availability
5A
COVER, TOP HINGE RIGHT HAND (GREY) MAY 12962302AP Contact Us For Availability
6
MAY C3680310V MAY C3680310V Contact Us For Availability
6
MAY 12990204 MAY 12990204 Contact Us For Availability
6
MAY W10242974 MAY W10242974 Contact Us For Availability
6
MAY 12531901 MAY 12531901 Contact Us For Availability
6
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
7
MAY 12806501 MAY 12806501 Contact Us For Availability
7
MAY W10157765 MAY W10157765 Contact Us For Availability
7
HARNESS, EVAPORATOR HEATER (INCLUDES THERMIST MAY W10292239 Contact Us For Availability
7
MAY 12727304 MAY 12727304 Contact Us For Availability
7
MAY W10001240 MAY W10001240 Contact Us For Availability
8
MAY W10443023 MAY W10443023 Contact Us For Availability
8
MAY 12815301 MAY 12815301 Contact Us For Availability
8
MAY W10830162 MAY W10830162 Contact Us For Availability
8
MAY W10655368 MAY W10655368 Contact Us For Availability
8
MAY W10241046 MAY W10241046 Contact Us For Availability
8
MAY W10290336 MAY W10290336 Contact Us For Availability
9
MAY 12992602 MAY 12992602 Contact Us For Availability
9
MAY W10820003 MAY W10820003 Contact Us For Availability
9
HANDLE, DOOR (STAINLESS (JFC2089BEM00)) MAY W10298179 Contact Us For Availability
9
MAY W10622701 MAY W10622701 Contact Us For Availability
9
MAY 12656901 MAY 12656901 Contact Us For Availability
9
MAY 489464 MAY 489464 Contact Us For Availability
9A
MAY W10605387 MAY W10605387 Contact Us For Availability
10
HINGE, TOP (LEFT HAND) MAY 12963204ED Contact Us For Availability
10
SOCKET, LIGHT MAY 12570701V Contact Us For Availability
10
MAY W10277466 MAY W10277466 Contact Us For Availability
10
MAY W10449760 MAY W10449760 Contact Us For Availability
10
MAY 12729123 MAY 12729123 Contact Us For Availability
10
MAY 12656202 MAY 12656202 Contact Us For Availability
10
MAY W10740448N MAY W10740448N Contact Us For Availability
10A
HINGE, TOP (RIGHT HAND) MAY 12963205ED Contact Us For Availability
10A
MAY W10450021 MAY W10450021 Contact Us For Availability
11
MAY W10673840 MAY W10673840 Contact Us For Availability
11
MAY 12806801 MAY 12806801 Contact Us For Availability
11
MAY W10308416 MAY W10308416 Contact Us For Availability
11
NAMEPLATE (STAINLESS (JFC2089BEM00)) MAY W10214168 Contact Us For Availability
11
MAY W10650382 MAY W10650382 Contact Us For Availability
11
MAY W10743555 MAY W10743555 Contact Us For Availability
11
MAY 8533917 MAY 8533917 Contact Us For Availability
12
MAY M0114003 MAY M0114003 Contact Us For Availability
12
MAY 12990604 MAY 12990604 Contact Us For Availability
12
MAY W10289497 MAY W10289497 Contact Us For Availability
12
MAY W10796741 MAY W10796741 Contact Us For Availability
12
MAY 12655402 MAY 12655402 Contact Us For Availability
12
VALVE, WATER INLET MAY W10420083 Contact Us For Availability
13
MAY 12961602 MAY 12961602 Contact Us For Availability
13
MAY 12806701 MAY 12806701 Contact Us For Availability
13
MAY 12990512 MAY 12990512 Contact Us For Availability
13
MAY W10150583 MAY W10150583 Contact Us For Availability
13
MAY 12968202AP MAY 12968202AP Contact Us For Availability
13
MAY W10137529 MAY W10137529 Contact Us For Availability
13
MAY A3223101 MAY A3223101 Contact Us For Availability
14
MAY B5705333 MAY B5705333 Contact Us For Availability
14
MAY 12992403 MAY 12992403 Contact Us For Availability
14
MAY 13012402 MAY 13012402 Contact Us For Availability
14
MAY W10277025 MAY W10277025 Contact Us For Availability
14
MULLION, DOOR (GREY) MAY 12722803APN Contact Us For Availability
14
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
14
MAY W10235370 MAY W10235370 Contact Us For Availability
15
HINGE, CENTER LEFT HAND (GREY) MAY 13000001AP Contact Us For Availability
15
MAY W10594329 MAY W10594329 Contact Us For Availability
15
MAY 13058002 MAY 13058002 Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
15
MAY W10458985 MAY W10458985 Contact Us For Availability
15A
HINGE, CENTER RIGHT HAND (GREY) MAY 13000002AP Contact Us For Availability
16
MAY W10658542 MAY W10658542 Contact Us For Availability
16
INSULATION, TANK MAY W10163893 Contact Us For Availability
16
MAY 12466105 MAY 12466105 Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
16
MAY 12656105 MAY 12656105 Contact Us For Availability
16
MAY 2256086 MAY 2256086 Contact Us For Availability
16A
MAY 12656018 MAY 12656018 Contact Us For Availability
17
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
MAY 12704801 MAY 12704801 Contact Us For Availability
17
GROMMET MAY 10835903 Contact Us For Availability
17
MAY 12531105SP MAY 12531105SP Contact Us For Availability
17
MAY 12991604 MAY 12991604 Contact Us For Availability
18
MAY W10296541 MAY W10296541 Contact Us For Availability
18
MAY W10609243 MAY W10609243 Contact Us For Availability
18
MAY W10662407 MAY W10662407 Contact Us For Availability
18
MAY W10346415 MAY W10346415 Contact Us For Availability
18
MAY W10832723 MAY W10832723 Contact Us For Availability
18
MAY W10377174 MAY W10377174 Contact Us For Availability
19
MAY W10515763 MAY W10515763 Contact Us For Availability
19
MAY W10735404 MAY W10735404 Contact Us For Availability
19
MAY M0500703 MAY M0500703 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
19
MAY W10231485N MAY W10231485N Contact Us For Availability
19
ASSEMBLY, MODULE AND MOTOR MAY W10281342 Contact Us For Availability
19A
MAY W10515762 MAY W10515762 Contact Us For Availability
20
MAY W10709365 MAY W10709365 Contact Us For Availability
20
GASKET MAY A3189396 Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
20
MAY 12531202SP MAY 12531202SP Contact Us For Availability
21
SHIM, TOP HINGE (LEFT HAND) MAY 12999501 Contact Us For Availability
21
MAY B8381501 MAY B8381501 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
21
MAY 12204821 MAY 12204821 Contact Us For Availability
21A
SHIM, TOP HINGE (RIGHT HAND) MAY 12999502 Contact Us For Availability
22
MAY W10534155 MAY W10534155 Contact Us For Availability
22
MAY B8390302 MAY B8390302 Contact Us For Availability
22
MAY 13024803 MAY 13024803 Contact Us For Availability
22
MAY W10317014 MAY W10317014 Contact Us For Availability
22
MAY W10273463 MAY W10273463 Contact Us For Availability
23
CLAMP, TUBE MAY M0108107 Contact Us For Availability
23
MAY W10585703 MAY W10585703 Contact Us For Availability
23
MAY 13057901 MAY 13057901 Contact Us For Availability
23
DAM (LEFT HAND) MAY 12225602 Contact Us For Availability
23
MAY W10569182 MAY W10569182 Contact Us For Availability
23A
DAM (RIGHT HAND) MAY 12225702 Contact Us For Availability
24
GASKET, CONTROL BOX MAY 12957801 Contact Us For Availability
24
MAY W10585699 MAY W10585699 Contact Us For Availability
24
MAY 12990513 MAY 12990513 Contact Us For Availability
24
MAY 2169142 MAY 2169142 Contact Us For Availability
24
MAY W10609117 MAY W10609117 Contact Us For Availability
25
MAY W10330994 MAY W10330994 Contact Us For Availability
25
MAY W10215666 MAY W10215666 Contact Us For Availability
25A
MAY W10330995 MAY W10330995 Contact Us For Availability
26
MAY 12990504 MAY 12990504 Contact Us For Availability
26
MAY 12726003 MAY 12726003 Contact Us For Availability
26
MAY 12707206 MAY 12707206 Contact Us For Availability
26
MAY 12990521 MAY 12990521 Contact Us For Availability
26
MAY W10679208 MAY W10679208 Contact Us For Availability
27
MAY W10208593 MAY W10208593 Contact Us For Availability
27
MAY 12251001 MAY 12251001 Contact Us For Availability
27
MAY W10281115 MAY W10281115 Contact Us For Availability
27
DRIER MAY W10177049 Contact Us For Availability
27
MAY 12530805SP MAY 12530805SP Contact Us For Availability
27A
MAY W10281116 MAY W10281116 Contact Us For Availability
28
MAY 12990302 MAY 12990302 Contact Us For Availability
28
FACADE, DISPENSER (TOP) MAY 12707005 Contact Us For Availability
28
MAY 13055901 MAY 13055901 Contact Us For Availability
28
MAY W10391109 MAY W10391109 Contact Us For Availability
28
MAY 12655303 MAY 12655303 Contact Us For Availability
29
BOARD, HV CONTROL MAY W10317076 Contact Us For Availability
29
MAY 12706112 MAY 12706112 Contact Us For Availability
29
MAY W10284692 MAY W10284692 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
29
MAY 12655702 MAY 12655702 Contact Us For Availability
29A
MAY W10284693 MAY W10284693 Contact Us For Availability
30
MAY W10211855 MAY W10211855 Contact Us For Availability
30
MAY 12990501 MAY 12990501 Contact Us For Availability
30
MAY 12477202 MAY 12477202 Contact Us For Availability
30
MAY 12655204 MAY 12655204 Contact Us For Availability
31
MAY 12664501SP MAY 12664501SP Contact Us For Availability
31
MAY W10802332 MAY W10802332 Contact Us For Availability
31
MAY W10189184 MAY W10189184 Contact Us For Availability
31
MAY 12656813 MAY 12656813 Contact Us For Availability
32
MAY W10528513 MAY W10528513 Contact Us For Availability
32
MAY 12791419SP MAY 12791419SP Contact Us For Availability
32
MAY W10236396 MAY W10236396 Contact Us For Availability
32
MAY W10503185 MAY W10503185 Contact Us For Availability
33
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
33
MAY W10622099 MAY W10622099 Contact Us For Availability
33
MAY W10150061 MAY W10150061 Contact Us For Availability
34
MAY A3189397 MAY A3189397 Contact Us For Availability
34
MAY W10348245 MAY W10348245 Contact Us For Availability
35
MAY W10815863 MAY W10815863 Contact Us For Availability
35
GEAR, SPUR (LEFT HAND) MAY W10474716 Contact Us For Availability
35A
GEAR, SPUR (RIGHT HAND) MAY W10474715 Contact Us For Availability
36
SEALER, INSULATION MAY 2169104 Contact Us For Availability
36
MAY W10596756 MAY W10596756 Contact Us For Availability
37
MAY W10802333 MAY W10802333 Contact Us For Availability
38
MAY W10348259 MAY W10348259 Contact Us For Availability
38A
MAY W10348260 MAY W10348260 Contact Us For Availability
39
MAY 12802602SP MAY 12802602SP Contact Us For Availability
40
MAY 12525101 MAY 12525101 Contact Us For Availability
100
ASSEMBLY, ICEMAKER (COMPLETE) MAY W10469286 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, CONTROLS (REFRIGERATOR) MAY W10224292 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (11/4 OZ.) MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MAY 8003RP MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
