Model Maytag JCD2395WES00 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - REFRIGERATOR LINER PARTS

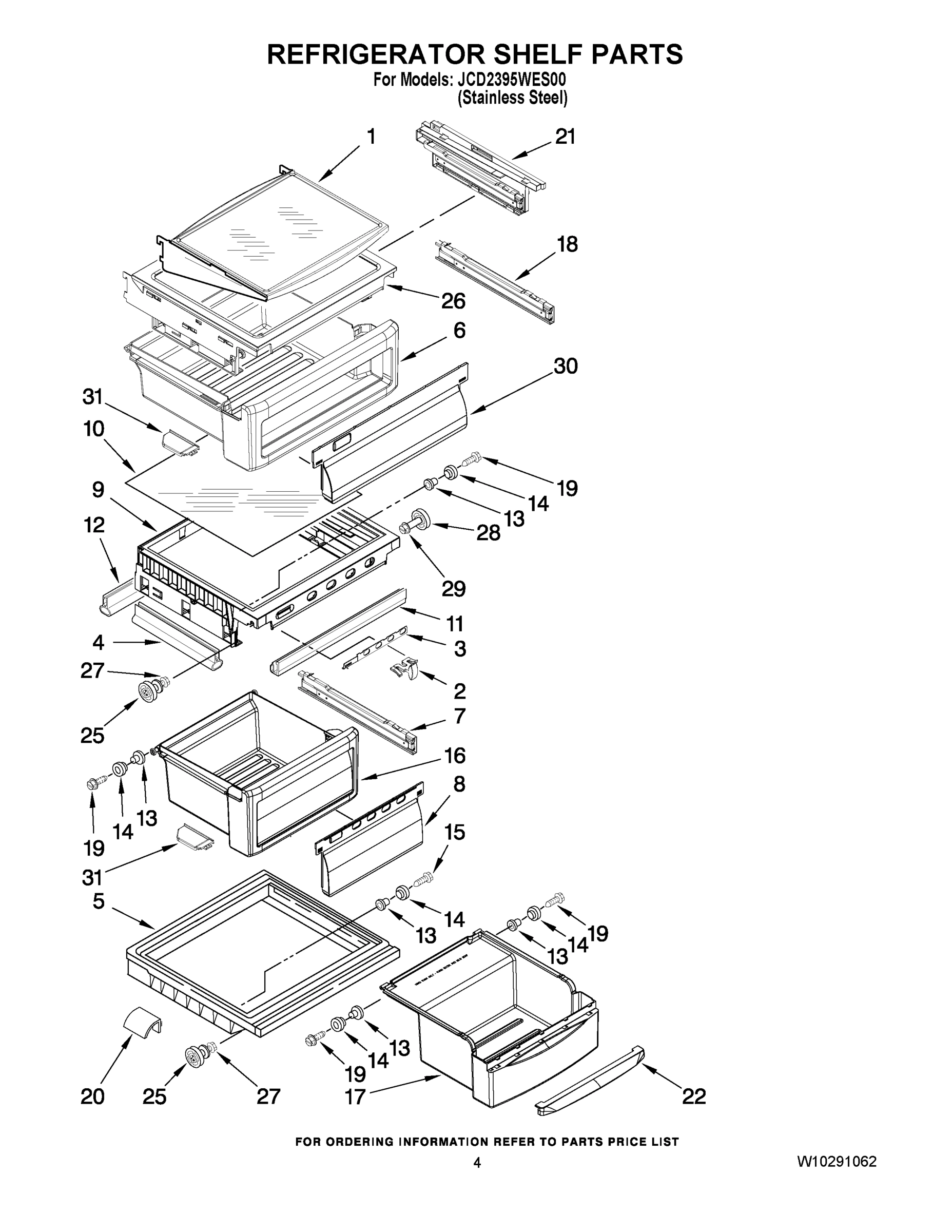

03 - REFRIGERATOR SHELF PARTS

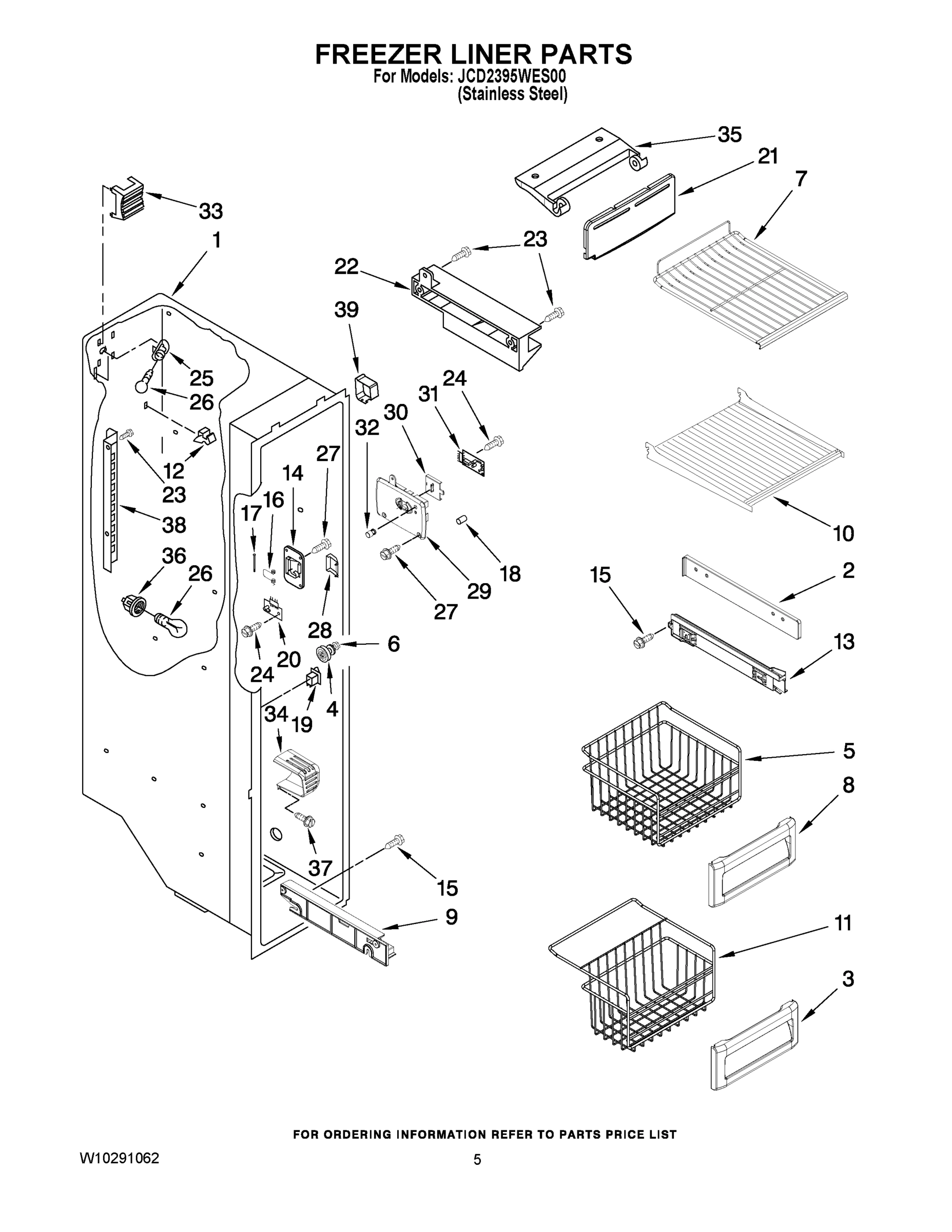

04 - FREEZER LINER PARTS

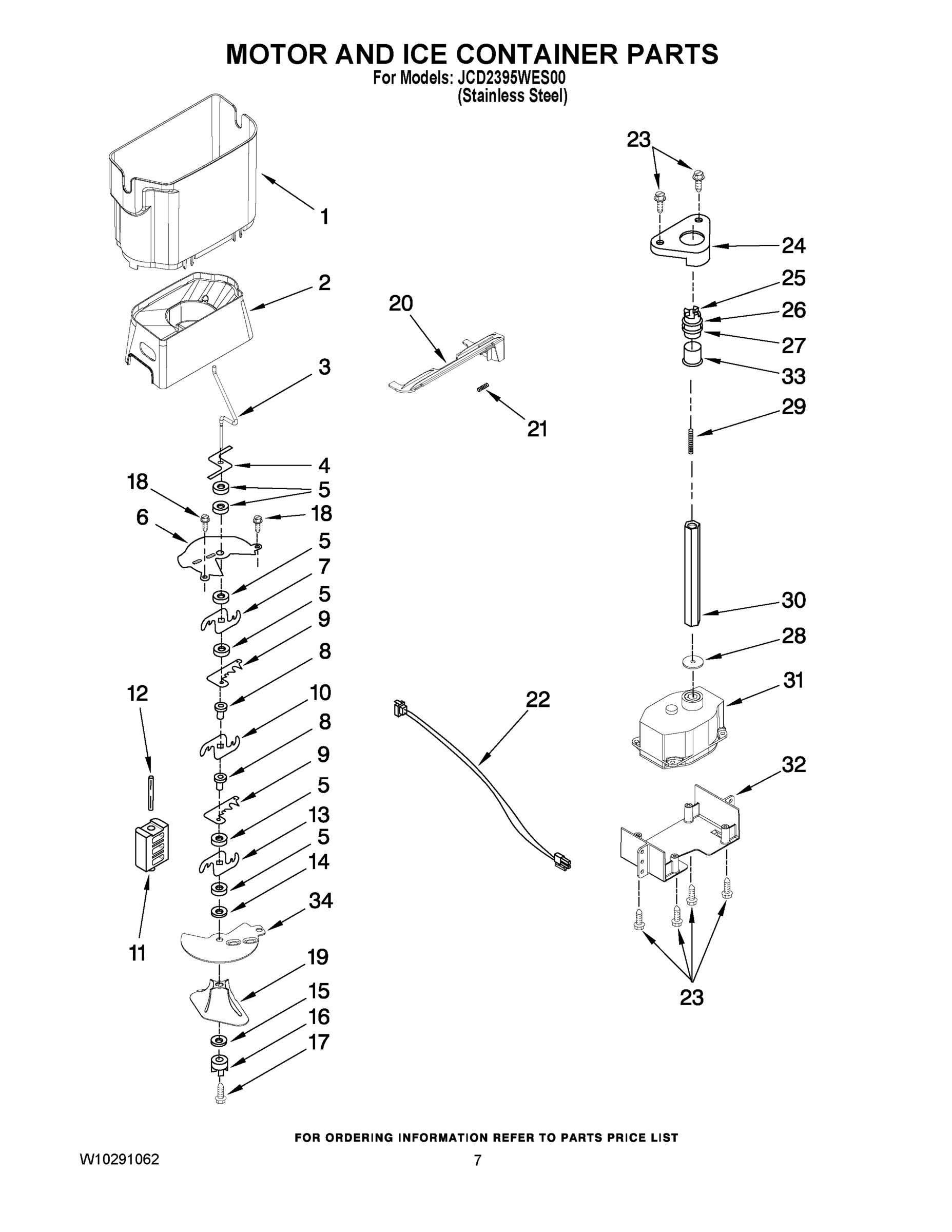

05 - MOTOR AND ICE CONTAINER PARTS

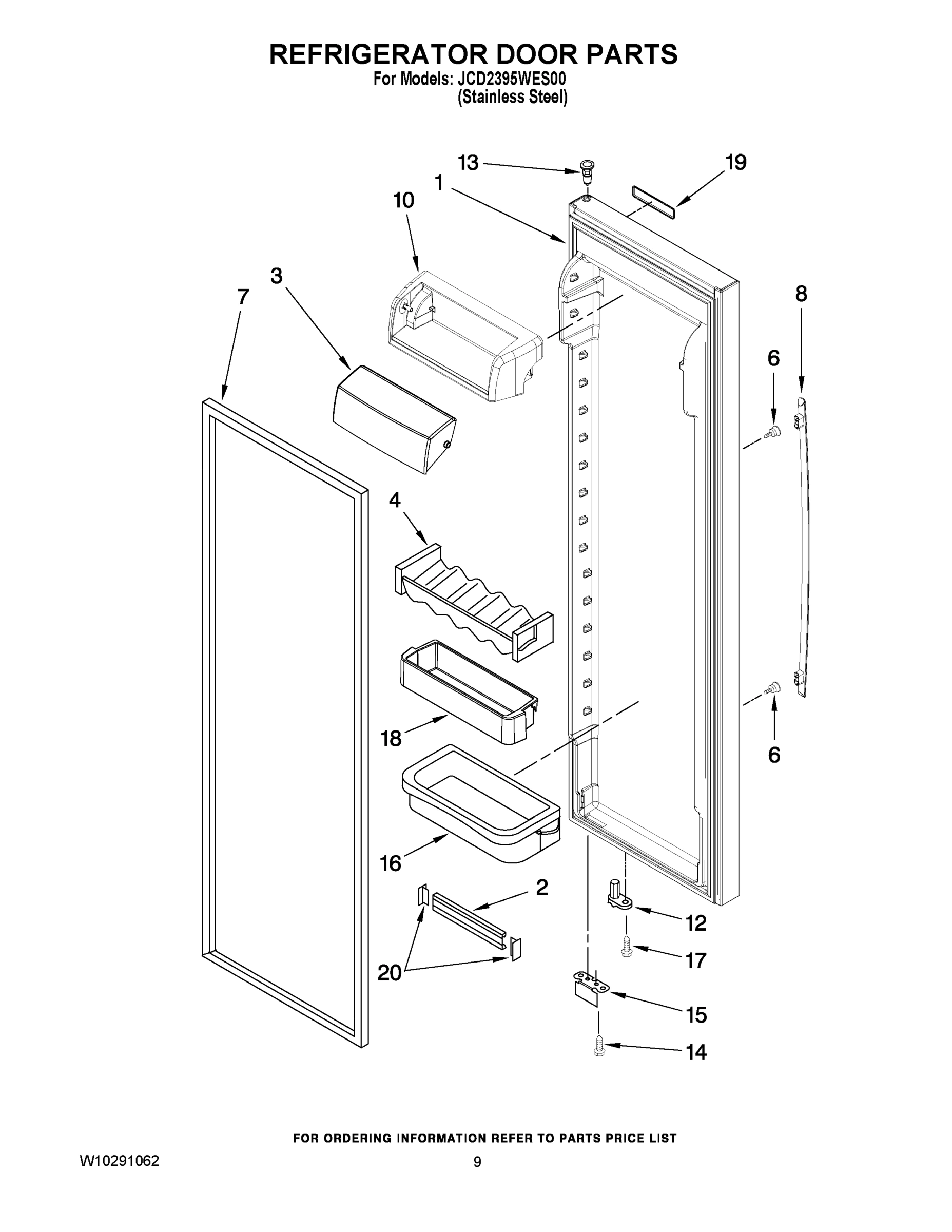

06 - REFRIGERATOR DOOR PARTS

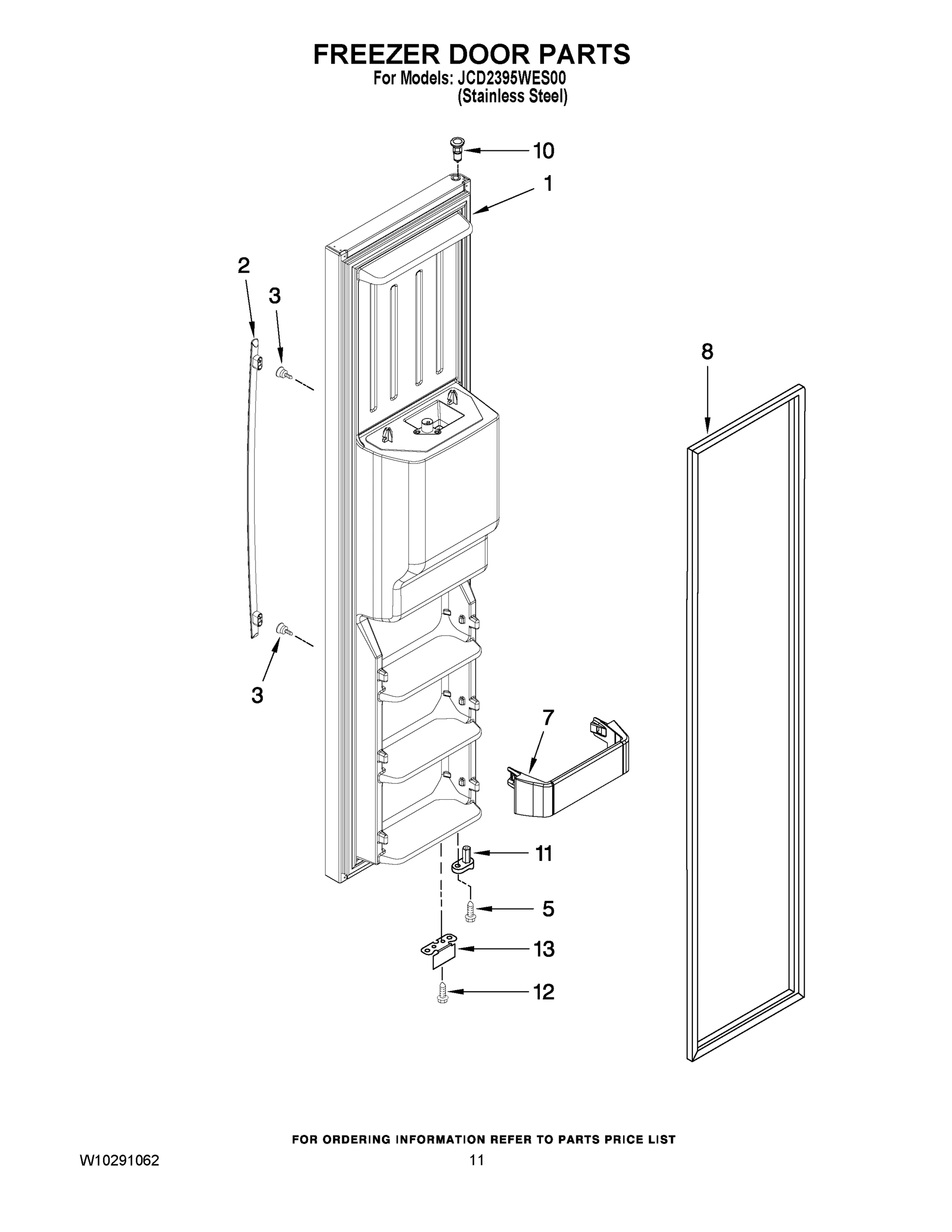

07 - FREEZER DOOR PARTS

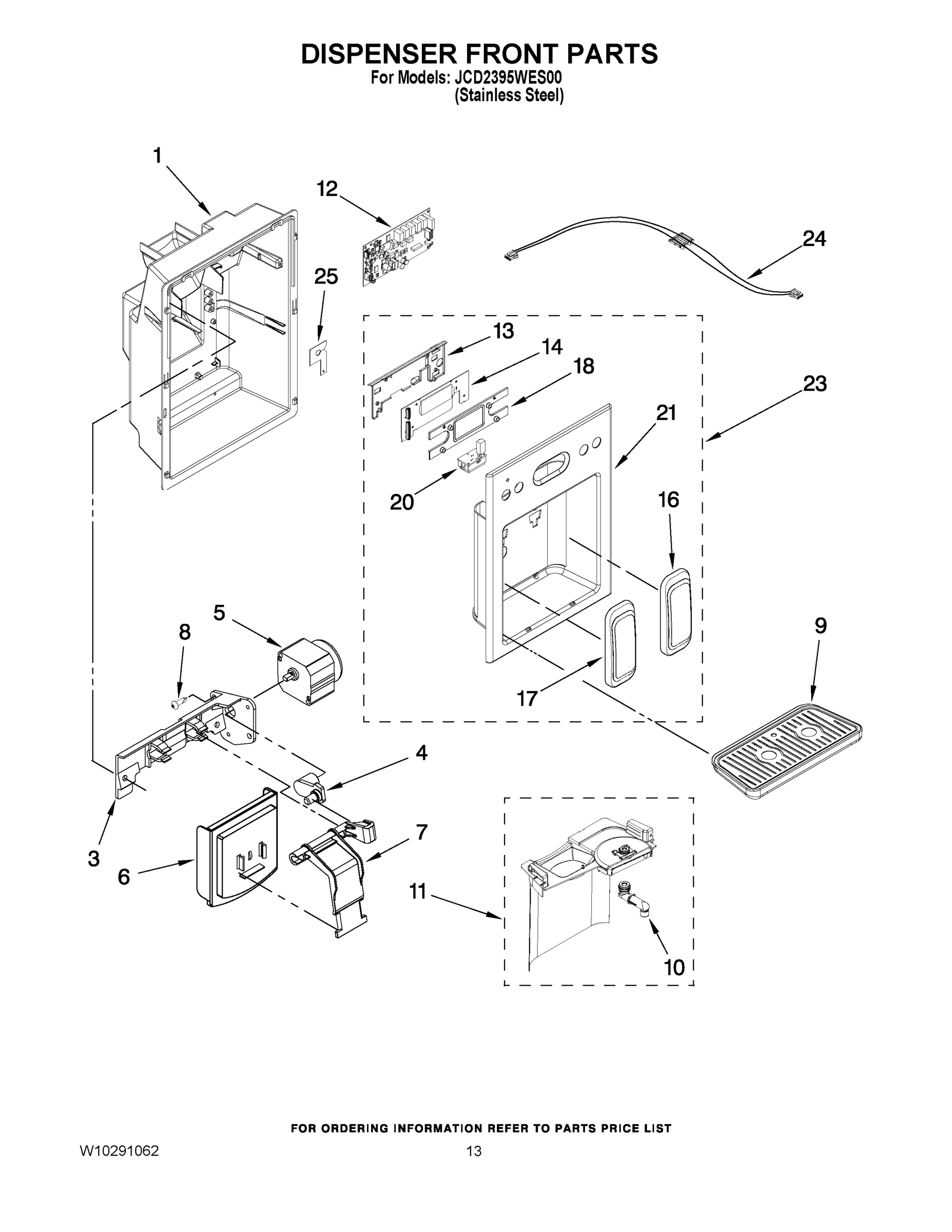

08 - DISPENSER FRONT PARTS

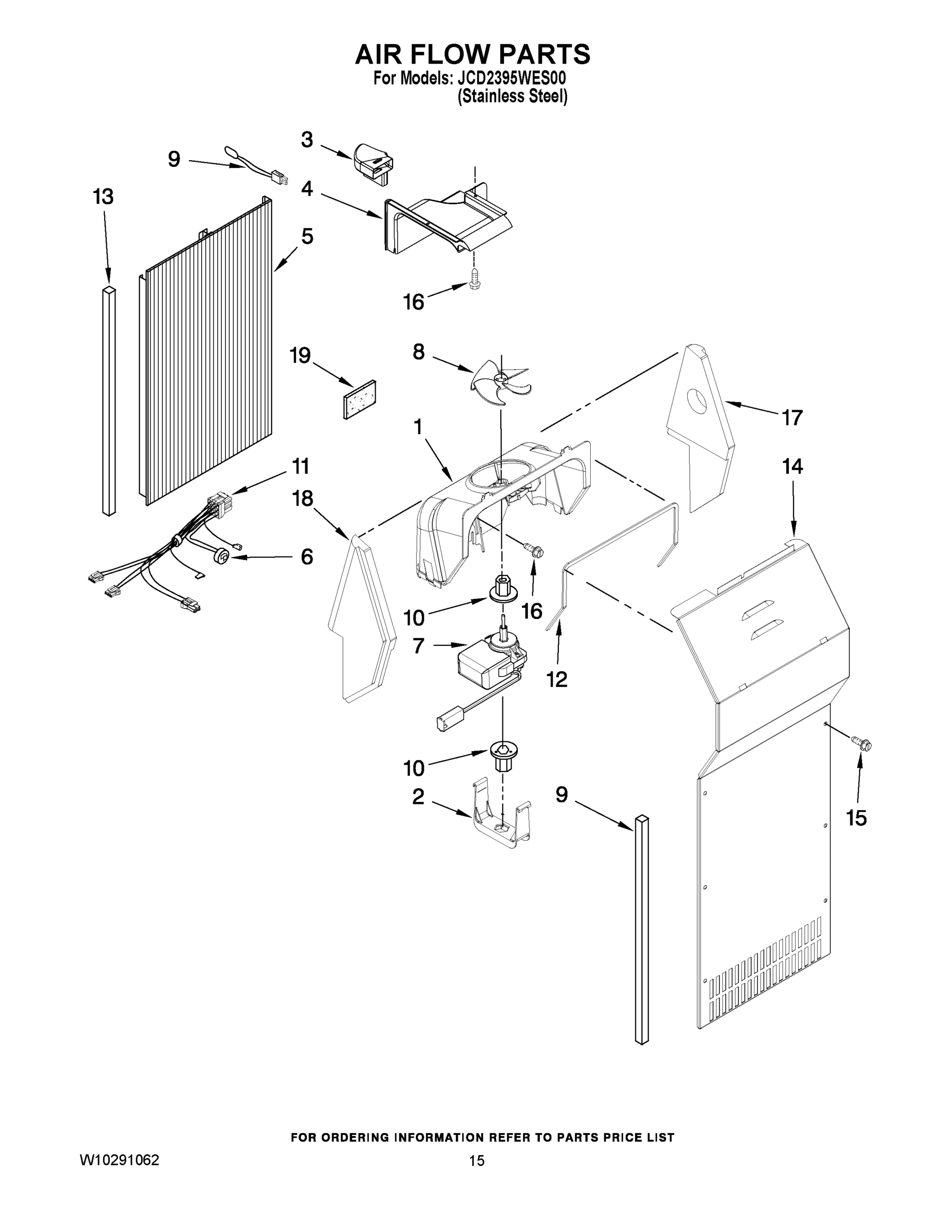

09 - AIR FLOW PARTS

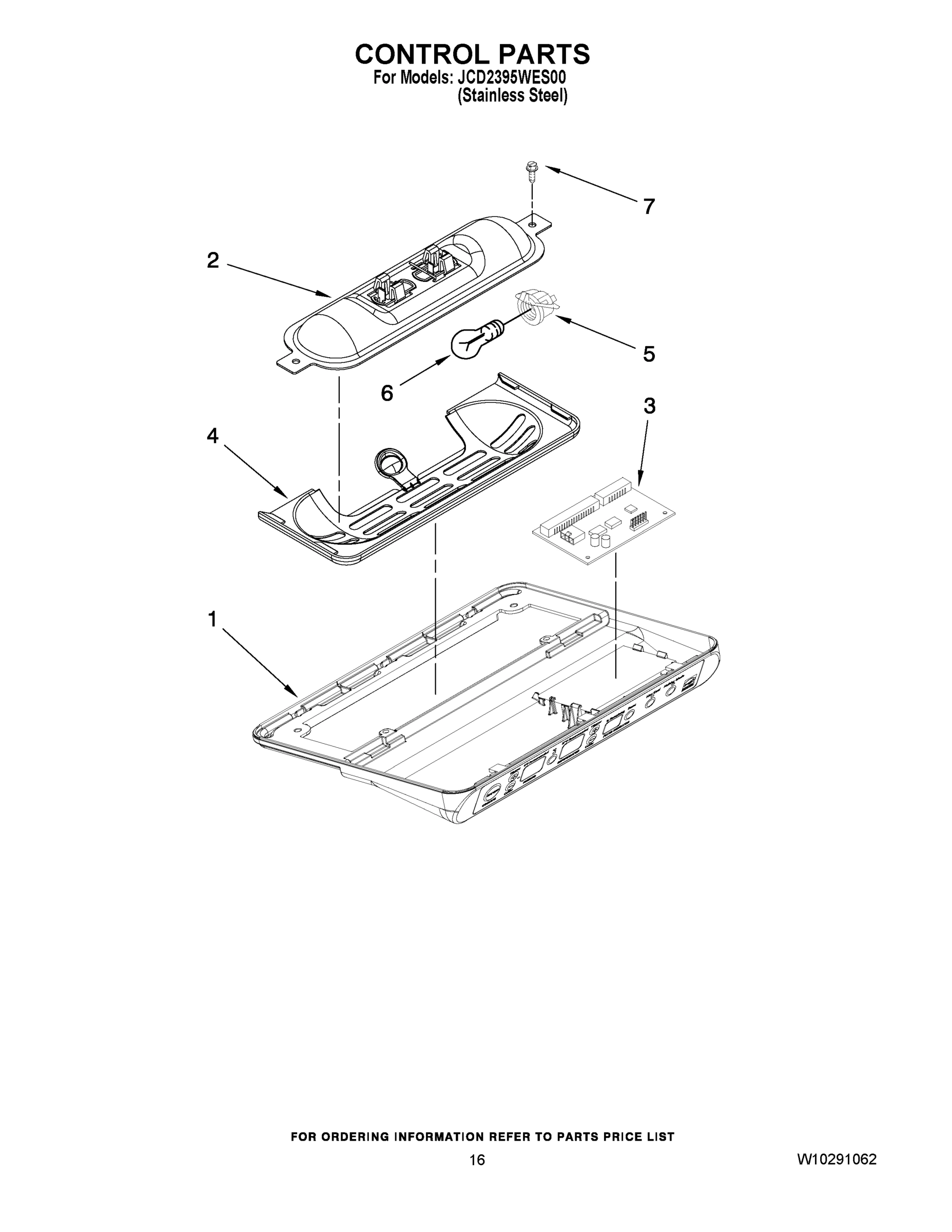

10 - CONTROL PARTS

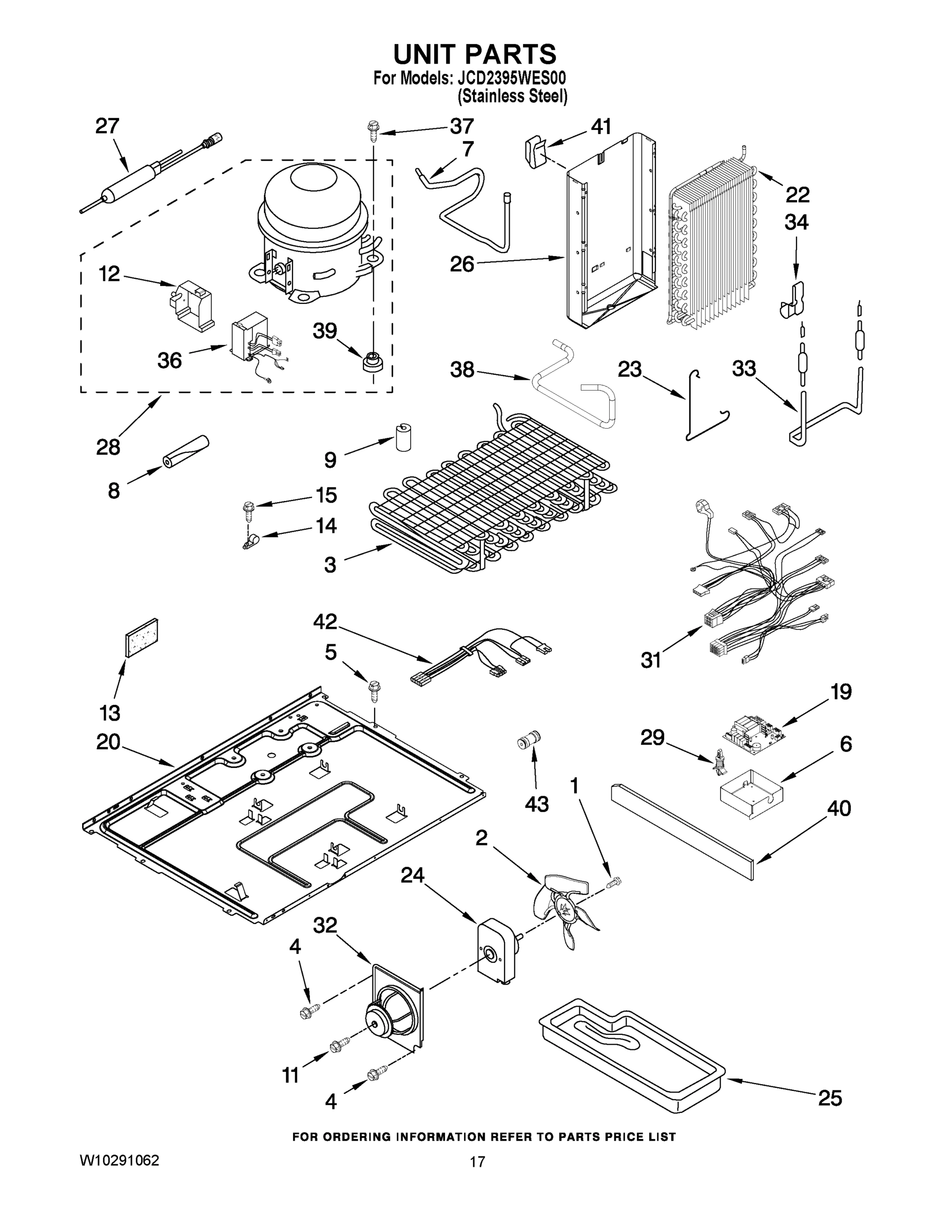

11 - UNIT PARTS

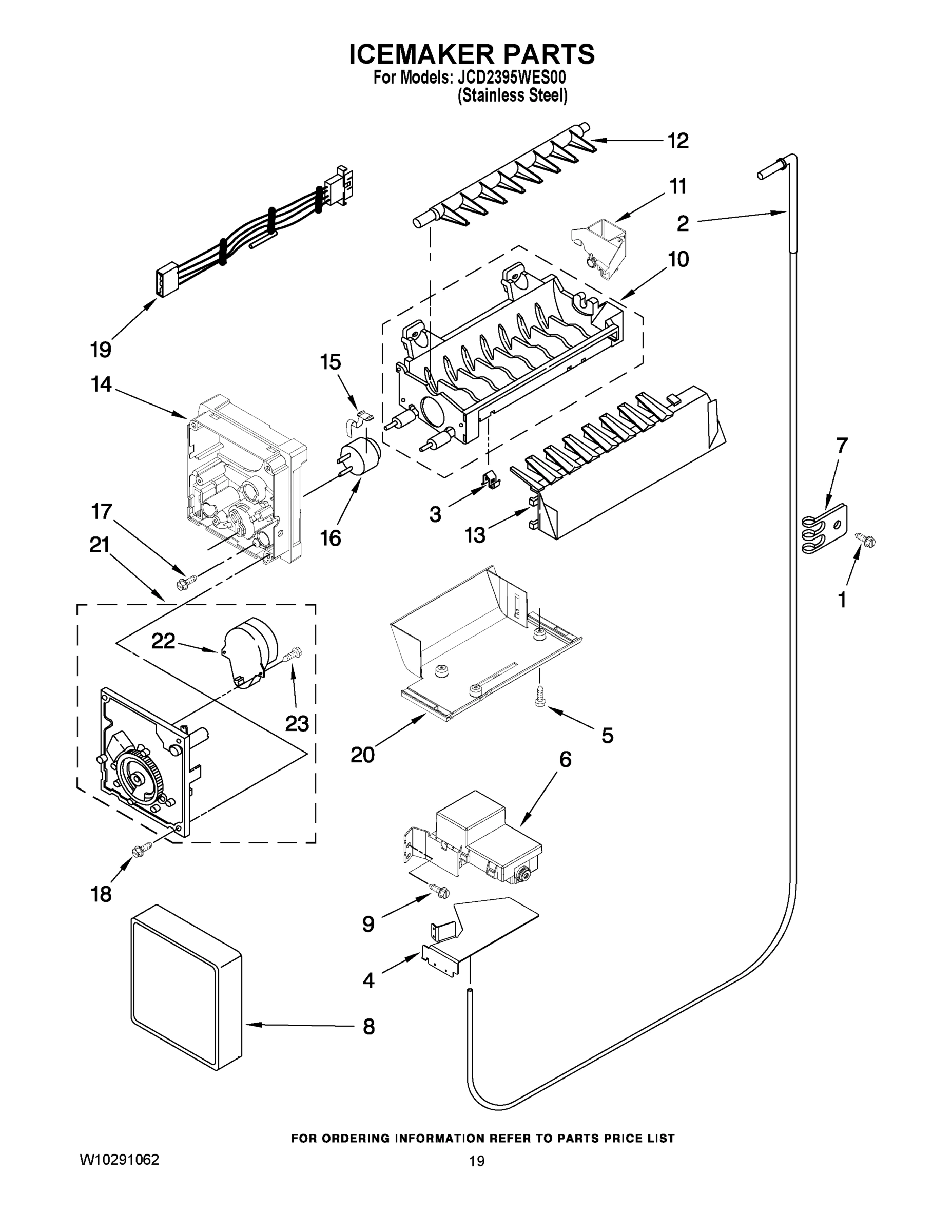

12 - ICEMAKER PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JCD2395WES00 REFRIGERATOR
1
MAY 2220407 MAY 2220407 Contact Us For Availability
1
MAY 2318510 MAY 2318510 Contact Us For Availability
1
MAY W10152832 MAY W10152832 Contact Us For Availability
1
MAY W10203274 MAY W10203274 Contact Us For Availability
1
MAY W10216710 MAY W10216710 Contact Us For Availability
1
MAY 489084 MAY 489084 Contact Us For Availability
1
SHELF ASSEMBLY, CANTILEVER (3) MAY W10235943 Contact Us For Availability
1
MAY W10139482 MAY W10139482 Contact Us For Availability
1
MAY W10214138 MAY W10214138 Contact Us For Availability
1
MAY W10214139 MAY W10214139 Contact Us For Availability
1
Fan Scroll MAY 2182120 Contact Us For Availability
1
MAY W10205000 MAY W10205000 Contact Us For Availability
1
SCREW MAY 777070 Contact Us For Availability
2
MAY W10199222 MAY W10199222 Contact Us For Availability
2
MAY W10199223 MAY W10199223 Contact Us For Availability
2
MAY 2223524 MAY 2223524 Contact Us For Availability
2
Button, Humidity MAY 2301025 Contact Us For Availability
2
MAY 2223777 MAY 2223777 Contact Us For Availability
2
MAY W10205004 MAY W10205004 Contact Us For Availability
2
Trim, Shelf MAY 2203087 Contact Us For Availability
2
HANDLE (STAINLESS STEEL) MAY W10183428 Contact Us For Availability
2
MAY 2223733 MAY 2223733 Contact Us For Availability
2
HEAT SHIELD ASM (INCLUDES No.5) MAY 2223882 Contact Us For Availability
2
FAN BLADE MAY W10139483 Contact Us For Availability
2
MAY 2303216 MAY 2303216 Contact Us For Availability
3
MAY W10199260 MAY W10199260 Contact Us For Availability
3
MAY 2223339 MAY 2223339 Contact Us For Availability
3
Slide, Humidity MAY 2301026 Contact Us For Availability
3
MAY 2224051 MAY 2224051 Contact Us For Availability
3
MAY W10140642 MAY W10140642 Contact Us For Availability
3
MAY 2255421 MAY 2255421 Contact Us For Availability
3
MAY W10170540 MAY W10170540 Contact Us For Availability
3
MAY 2305202 MAY 2305202 Contact Us For Availability
3
MAY 2223298 MAY 2223298 Contact Us For Availability
3
MAY 2307037 MAY 2307037 Contact Us For Availability
3
MAY W10193018 MAY W10193018 Contact Us For Availability
3
CLIP,FUSE MAY 628379 Contact Us For Availability
4
MAY W10173132 MAY W10173132 Contact Us For Availability
4
MAY 2301117 MAY 2301117 Contact Us For Availability
4
MAY 2196483 MAY 2196483 Contact Us For Availability
4
MAY 2258220 MAY 2258220 Contact Us For Availability
4
MAY 2223883 MAY 2223883 Contact Us For Availability
4
MAY 2305242 MAY 2305242 Contact Us For Availability
4
MAY 2223303 MAY 2223303 Contact Us For Availability
4
Light Lens, Control Box MAY 2223506 Contact Us For Availability
4
MAY 489427 MAY 489427 Contact Us For Availability
4
MAY W10199264 MAY W10199264 Contact Us For Availability
5
MAY 2223388 MAY 2223388 Contact Us For Availability
5
MAY 489478 MAY 489478 Contact Us For Availability
5
COVER, MEAT PAN MAY W10270150 Contact Us For Availability
5
MAY 2223691 MAY 2223691 Contact Us For Availability
5
Spacer, Flat (4) MAY 1119007 Contact Us For Availability
5
MAY 3400012 MAY 3400012 Contact Us For Availability
5
MAY W10184813 MAY W10184813 Contact Us For Availability
5
MAY 2223771 MAY 2223771 Contact Us For Availability
5
Light Socket MAY 2223857 Contact Us For Availability
5
MAY 3400524 MAY 3400524 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
Switch, Rocker Arm MAY 1118894 Contact Us For Availability
6
SNACK PAN MAY W10163047 Contact Us For Availability
6
MAY 8281158 MAY 8281158 Contact Us For Availability
6
MAY W10139321 MAY W10139321 Contact Us For Availability
6
MAY 2305258 MAY 2305258 Contact Us For Availability
6
MAY 2321799 MAY 2321799 Contact Us For Availability
6
MAY 2326255 MAY 2326255 Contact Us For Availability
6
MAY 2223703 MAY 2223703 Contact Us For Availability
6
SMART VALVE ASM MAY 2319734 Contact Us For Availability
7
MAY 488500 MAY 488500 Contact Us For Availability
7
MAY 2188820 MAY 2188820 Contact Us For Availability
7
Glide Assembly, Crisper Pan (Right Side) MAY 2301548 Contact Us For Availability
7
Glide Assembly, Crisper Pan (Left Side) MAY 2301549 Contact Us For Availability
7
MAY 2223500 MAY 2223500 Contact Us For Availability
7
MAY 2257024 MAY 2257024 Contact Us For Availability
7
MAY 2326342 MAY 2326342 Contact Us For Availability
7
MAY 2223559 MAY 2223559 Contact Us For Availability
7
MAY 2305204 MAY 2305204 Contact Us For Availability
7
MAY 2259385 MAY 2259385 Contact Us For Availability
7
MAY 489000 MAY 489000 Contact Us For Availability
7
MAY 2223351 MAY 2223351 Contact Us For Availability
7
TUBE CLIP MAY W10142287 Contact Us For Availability
8
MAY 2223545 MAY 2223545 Contact Us For Availability
8
Window, Crisper Pan MAY 2301001 Contact Us For Availability
8
FRONT, BASKET MAY 2224053 Contact Us For Availability
8
Spacer, Step (2) MAY 1119005 Contact Us For Availability
8
MAY 2326343 MAY 2326343 Contact Us For Availability
8
MAY 4449745 MAY 4449745 Contact Us For Availability
8
Fan Blade MAY 2169142 Contact Us For Availability
8
MAY 2161302 MAY 2161302 Contact Us For Availability
8
MAY 2174358 MAY 2174358 Contact Us For Availability
9
Hinge Top, RC (Apollo Gray) MAY 2307008AP Contact Us For Availability
9
MAY 2319866 MAY 2319866 Contact Us For Availability
9
COVER, CRISPER MAY W10163043 Contact Us For Availability
9
MAY 2223787 MAY 2223787 Contact Us For Availability
9
MAY 2223788 MAY 2223788 Contact Us For Availability
9
MAY 2257020 MAY 2257020 Contact Us For Availability
9
MAY 2315109NA MAY 2315109NA Contact Us For Availability
9
MAY 2304241 MAY 2304241 Contact Us For Availability
9
Grommet, Condenser (4) MAY 2319835 Contact Us For Availability
9
MAY 488649 MAY 488649 Contact Us For Availability
10
MAY 3400113 MAY 3400113 Contact Us For Availability
10
MAY 2301234 MAY 2301234 Contact Us For Availability
10
MAY W10163045 MAY W10163045 Contact Us For Availability
10
MAY 2223681 MAY 2223681 Contact Us For Availability
10
MAY 2257023 MAY 2257023 Contact Us For Availability
10
MAY 2223879 MAY 2223879 Contact Us For Availability
10
MAY 2308091 MAY 2308091 Contact Us For Availability
10
MAY W10187441 MAY W10187441 Contact Us For Availability
10
MAY 2223986 MAY 2223986 Contact Us For Availability
10
Mold & Heater Assembly (Also Order 542638) MAY W10122527 Contact Us For Availability
11
MAY 3400243 MAY 3400243 Contact Us For Availability
11
Gasket (Front) MAY 2301116 Contact Us For Availability
11
MAY 2223694 MAY 2223694 Contact Us For Availability
11
MAY 2317239 MAY 2317239 Contact Us For Availability
11
DOOR CLOSER, (UPPER CAM) MAY 2307050 Contact Us For Availability
11
MAY 2305456 MAY 2305456 Contact Us For Availability
11
HARNESS, FAN EVAPORATOR, AND HEATER, BI-METAL MAY W10129813 Contact Us For Availability
11
MAY 8533859 MAY 8533859 Contact Us For Availability
11
Cup-Water Fill MAY 2304969 Contact Us For Availability
12
HINGE ASSEMBLY, BOTTOM-RC (INCLUDES No.20) MAY 2307179 Contact Us For Availability
12
MAY W10162918 MAY W10162918 Contact Us For Availability
12
Gasket (Rear) MAY 2301115 Contact Us For Availability
12
MAY 842534 MAY 842534 Contact Us For Availability
12
MAY 489229 MAY 489229 Contact Us For Availability
12
MAY 2307048 MAY 2307048 Contact Us For Availability
12
MAY 489420 MAY 489420 Contact Us For Availability
12
MAY 2303843 MAY 2303843 Contact Us For Availability
12
Gasket, Fan Scroll MAY 2155789 Contact Us For Availability
12
MAY 2215676 MAY 2215676 Contact Us For Availability
12
MAY 627843 MAY 627843 Contact Us For Availability
13
Filler, Wrapper (Apollo Gray) MAY 2223893AP Contact Us For Availability
13
MAY 2171846 MAY 2171846 Contact Us For Availability
13
MAY 2174478 MAY 2174478 Contact Us For Availability
13
MAY 2301544 MAY 2301544 Contact Us For Availability
13
MAY 2301545 MAY 2301545 Contact Us For Availability
13
MAY 2257022 MAY 2257022 Contact Us For Availability
13
Bracket, Door Stop (Chrome) MAY 2306940 Contact Us For Availability
13
COVER, ELECTRONIC CONTROL MAY 2305219 Contact Us For Availability
13
MAY 2203876 MAY 2203876 Contact Us For Availability
13
INSULATION, SOUND MAY 2169104 Contact Us For Availability
13
Ice Striper MAY 2198598 Contact Us For Availability
14
MAY W10194061 MAY W10194061 Contact Us For Availability
14
MAY 2209204 MAY 2209204 Contact Us For Availability
14
MAY 2188212 MAY 2188212 Contact Us For Availability
14
MAY 2259487 MAY 2259487 Contact Us For Availability
14
MAY 489235 MAY 489235 Contact Us For Availability
14
MAY W10215844 MAY W10215844 Contact Us For Availability
14
MAY 2223413 MAY 2223413 Contact Us For Availability
14
Clamp, Cable MAY 2305373 Contact Us For Availability
14
Support MAY 2194712 Contact Us For Availability
15
MAY 3400108 MAY 3400108 Contact Us For Availability
15
MAY 489211 MAY 489211 Contact Us For Availability
15
MAY 8534064 MAY 8534064 Contact Us For Availability
15
MAY 2198661 MAY 2198661 Contact Us For Availability
15
MAY 8281159 MAY 8281159 Contact Us For Availability
15
MAY 2315522 MAY 2315522 Contact Us For Availability
16
Hinge, Top FC (Apollo Gray) MAY 2307007AP Contact Us For Availability
16
MAY 1116793 MAY 1116793 Contact Us For Availability
16
CRISPER PAN MAY W10163039 Contact Us For Availability
16
MAY 2198635 MAY 2198635 Contact Us For Availability
16
COUPLING MAY 2220457 Contact Us For Availability
16
MAY 2223860 MAY 2223860 Contact Us For Availability
16
FOR STIANLESS STEEL MODEL MAY 2305307AS Contact Us For Availability
16
Thermostat (Also Order 542369 Cement Alumilas MAY 628397 Contact Us For Availability
17
MAY 489464 MAY 489464 Contact Us For Availability
17
MEAT PAN MAY W10162924 Contact Us For Availability
17
MAY 2198634 MAY 2198634 Contact Us For Availability
17
MAY 8281164 MAY 8281164 Contact Us For Availability
17
PAD, ICE (FOR STIANLESS STEEL MODEL) MAY 2305306AS Contact Us For Availability
17
MAY 2223395 MAY 2223395 Contact Us For Availability
17
MAY 8533917 MAY 8533917 Contact Us For Availability
18
MAY 2304888 MAY 2304888 Contact Us For Availability
18
MAY 2304597 MAY 2304597 Contact Us For Availability
18
Glide Assembly, Snack Pan (Right Side) MAY 2301550 Contact Us For Availability
18
Glide Assembly, Snack Pan (Left Side) MAY 2301551 Contact Us For Availability
18
MAY 2198665 MAY 2198665 Contact Us For Availability
18
MAY 3400065 MAY 3400065 Contact Us For Availability
18
MAY 2224173 MAY 2224173 Contact Us For Availability
18
MAY W10205009 MAY W10205009 Contact Us For Availability
18
MAY 2203596 MAY 2203596 Contact Us For Availability
18
MAY 489276 MAY 489276 Contact Us For Availability
19
MAY 2254566 MAY 2254566 Contact Us For Availability
19
MAY 2223403 MAY 2223403 Contact Us For Availability
19
MAY 489261 MAY 489261 Contact Us For Availability
19
Switch, Rocker Arm MAY 1115373 Contact Us For Availability
19
MAY 2317243 MAY 2317243 Contact Us For Availability
19
NAMEPLATE (SS MODEL) MAY W10214168 Contact Us For Availability
19
MAY W10138980 MAY W10138980 Contact Us For Availability
19
MAY W10219463 MAY W10219463 Contact Us For Availability
19
MAY 2187467 MAY 2187467 Contact Us For Availability
20
Door Closer, RC MAY 2307049 Contact Us For Availability
20
MAY 2224076 MAY 2224076 Contact Us For Availability
20
MAY 2223487 MAY 2223487 Contact Us For Availability
20
MAY W10193840 MAY W10193840 Contact Us For Availability
20
MAY W10140685 MAY W10140685 Contact Us For Availability
20
MAY 2156006 MAY 2156006 Contact Us For Availability
20
MAY W10222215 MAY W10222215 Contact Us For Availability
20
MAY 2306932 MAY 2306932 Contact Us For Availability
20
Bracket, Ice Maker Mounting MAY 2303583 Contact Us For Availability
21
MAY 2223409 MAY 2223409 Contact Us For Availability
21
MAY 2220377 MAY 2220377 Contact Us For Availability
21
MAY 2301569 MAY 2301569 Contact Us For Availability
21
MAY 2301570 MAY 2301570 Contact Us For Availability
21
MAY W10185438 MAY W10185438 Contact Us For Availability
21
MAY 2198608 MAY 2198608 Contact Us For Availability
21
Module Assembly (Includes Items 22 & 23) MAY 626691 Contact Us For Availability
22
MOTOR MAY N/P Contact Us For Availability
22
Handle MAY 2203031 Contact Us For Availability
22
Slide, Ice Maker Mounting (Right Side) MAY 2212321 Contact Us For Availability
22
MAY 2306900 MAY 2306900 Contact Us For Availability
22
MAY 2187813 MAY 2187813 Contact Us For Availability
22
Evaporator MAY 2188823 Contact Us For Availability
23
CLAMP, SERVICE CORD MAY 549193 Contact Us For Availability
23
MAY 2307107 MAY 2307107 Contact Us For Availability
23
Screw MAY 8281163 Contact Us For Availability
23
MAY W10205003 MAY W10205003 Contact Us For Availability
23
Clamp MAY 2161324 Contact Us For Availability
23
Screw MAY 489136 Contact Us For Availability
24
MAY 2205813 MAY 2205813 Contact Us For Availability
24
Screw MAY 489214 Contact Us For Availability
24
MAY 2212369 MAY 2212369 Contact Us For Availability
24
Wire Assembly, User Interface MAY W10178851 Contact Us For Availability
24
Fan, Motor MAY 2188874 Contact Us For Availability
25
HINGE ASSEMBLY, BOTTOM-FC (INCLUDES No.29) MAY 2307152 Contact Us For Availability
25
Light Socket MAY 2162085 Contact Us For Availability
25
MAY W10173126 MAY W10173126 Contact Us For Availability
25
Coupling, Bottom MAY 2220458 Contact Us For Availability
25
MAY 2305447 MAY 2305447 Contact Us For Availability
25
MAY 2223398 MAY 2223398 Contact Us For Availability
26
Button, Water Filter (Midnight Grey) MAY 2260503MG Contact Us For Availability
26
Light Bulb MAY W10194422 Contact Us For Availability
26
MAY 2223663 MAY 2223663 Contact Us For Availability
26
MAY W10163048 MAY W10163048 Contact Us For Availability
26
MAY 2198628 MAY 2198628 Contact Us For Availability
26
MAY 2224022 MAY 2224022 Contact Us For Availability
27
MAY W10121140 MAY W10121140 Contact Us For Availability
27
Screw MAY 488280 Contact Us For Availability
27
MAY W10191954 MAY W10191954 Contact Us For Availability
27
MAY 8281185 MAY 8281185 Contact Us For Availability
27
MAY 2212370 MAY 2212370 Contact Us For Availability
27
Drier MAY W10177049 Contact Us For Availability
28
MAY 8212650 MAY 8212650 Contact Us For Availability
28
MAY W10173127 MAY W10173127 Contact Us For Availability
28
MAY 2198633 MAY 2198633 Contact Us For Availability
28
MAY 2305382 MAY 2305382 Contact Us For Availability
28
Compressor (Includes Items 12 & 39) MAY W10155907 Contact Us For Availability
29
MAY 2307051 MAY 2307051 Contact Us For Availability
29
MAY W10191952 MAY W10191952 Contact Us For Availability
29
MAY W10173569 MAY W10173569 Contact Us For Availability
29
SPRING MAY 2198607 Contact Us For Availability
29
Spacer (5) MAY 2223800 Contact Us For Availability
30
MAY 2260502MG MAY 2260502MG Contact Us For Availability
30
MAY 2301006 MAY 2301006 Contact Us For Availability
30
MAY 2315398 MAY 2315398 Contact Us For Availability
30
MAY 2305243 MAY 2305243 Contact Us For Availability
31
Cap, Snack Pan (Right Side) MAY 2301016 Contact Us For Availability
31
Cap, Snack Pan (Left Side) MAY 2301017 Contact Us For Availability
31
MAY W10193666 MAY W10193666 Contact Us For Availability
31
MAY 2252130 MAY 2252130 Contact Us For Availability
31
MAY 2310122 MAY 2310122 Contact Us For Availability
32
MAY 489483 MAY 489483 Contact Us For Availability
32
MAY 2198643 MAY 2198643 Contact Us For Availability
32
MAY 2305208 MAY 2305208 Contact Us For Availability
32
MAY 2224024 MAY 2224024 Contact Us For Availability
33
MAY 2198589 MAY 2198589 Contact Us For Availability
33
MAY 2212365 MAY 2212365 Contact Us For Availability
33
MAY 2323199 MAY 2323199 Contact Us For Availability
34
MAY 2212340 MAY 2212340 Contact Us For Availability
34
Divider Chamber MAY 2317250 Contact Us For Availability
34
MAY 2304287 MAY 2304287 Contact Us For Availability
35
MAY 3400858 MAY 3400858 Contact Us For Availability
35
Bracket, Ice Maker Cover MAY 2198641 Contact Us For Availability
36
MAY 2224020 MAY 2224020 Contact Us For Availability
36
Socket, Light MAY 2155597 Contact Us For Availability
36
MAY W10154805 MAY W10154805 Contact Us For Availability
37
MAY W10212512 MAY W10212512 Contact Us For Availability
37
MAY 3400893 MAY 3400893 Contact Us For Availability
37
MAY 489373 MAY 489373 Contact Us For Availability
38
MAY 2198609 MAY 2198609 Contact Us For Availability
38
MAY 2198610 MAY 2198610 Contact Us For Availability
38
TUBE, PROCESS MAY 2325479 Contact Us For Availability
39
MAY 2303378 MAY 2303378 Contact Us For Availability
39
Grommet (4) MAY 1100826 Contact Us For Availability
40
MAY 2223394 MAY 2223394 Contact Us For Availability
41
MAY 2155547 MAY 2155547 Contact Us For Availability
42
MAY 2310121 MAY 2310121 Contact Us For Availability
43
MAY 2300868 MAY 2300868 Contact Us For Availability
100
MAY W10205005 MAY W10205005 Contact Us For Availability
100
MAY W10190960 MAY W10190960 Contact Us For Availability
NI
WIRE HARNESS, FREEZER DOOR MAY 2310224 Contact Us For Availability
NI
TUBE, DOOR MAY 2317707 Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH MAY 350942 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Black) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 80051 MAY 80051 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. GRAPHITE) MAY 8171357 Contact Us For Availability
NI
PAINT, BULK (1 QT. GRAPHITE) MAY 8171358 Contact Us For Availability
NI
Previous Architect Series Handle Kit (Stainle MAY 8201806 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY W10134625 MAY W10134625 Contact Us For Availability
× ![]()
