Model GE JBP35DM1BB Electric Range – Common Parts & Diagrams

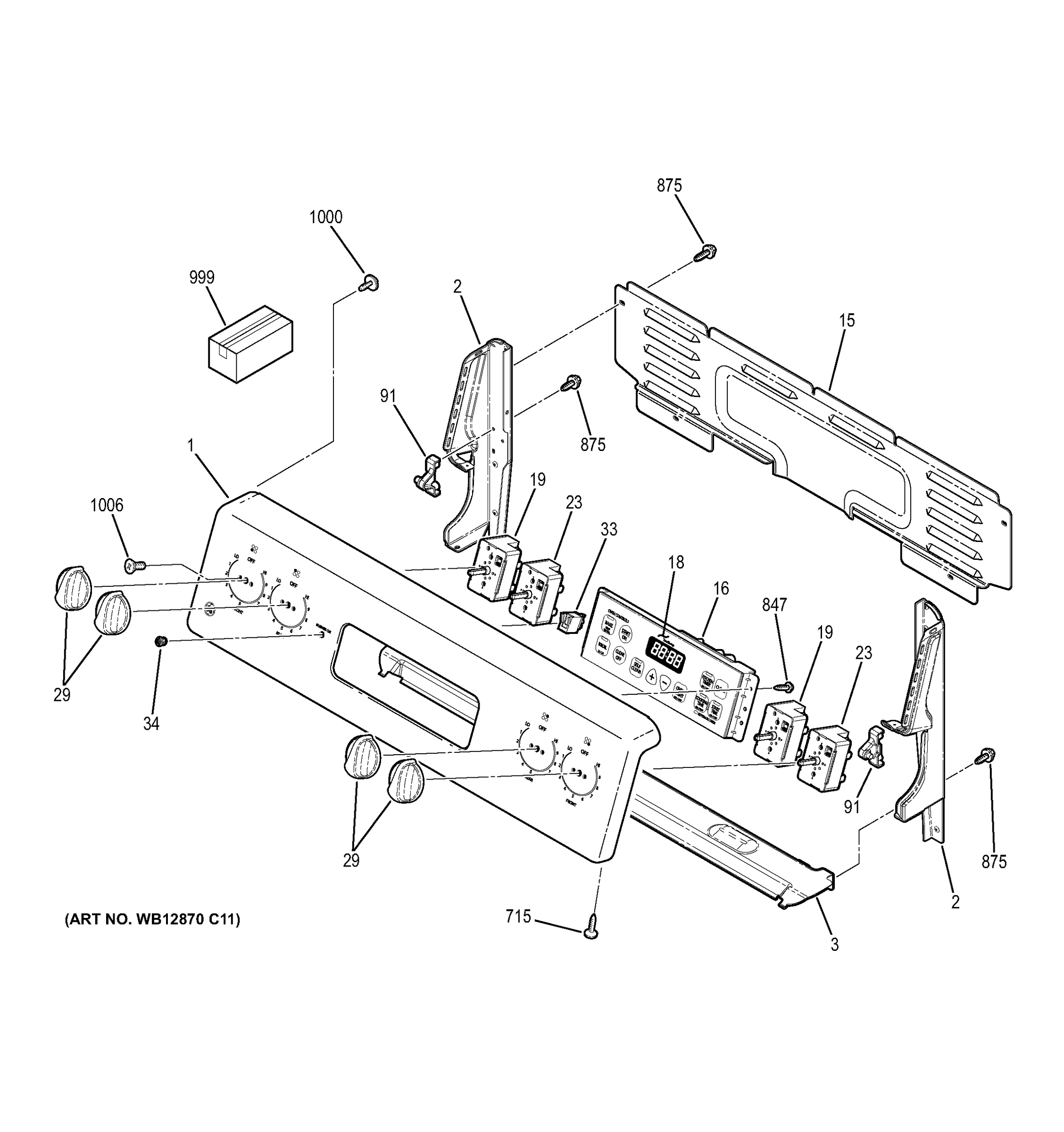

CONTROL PANEL

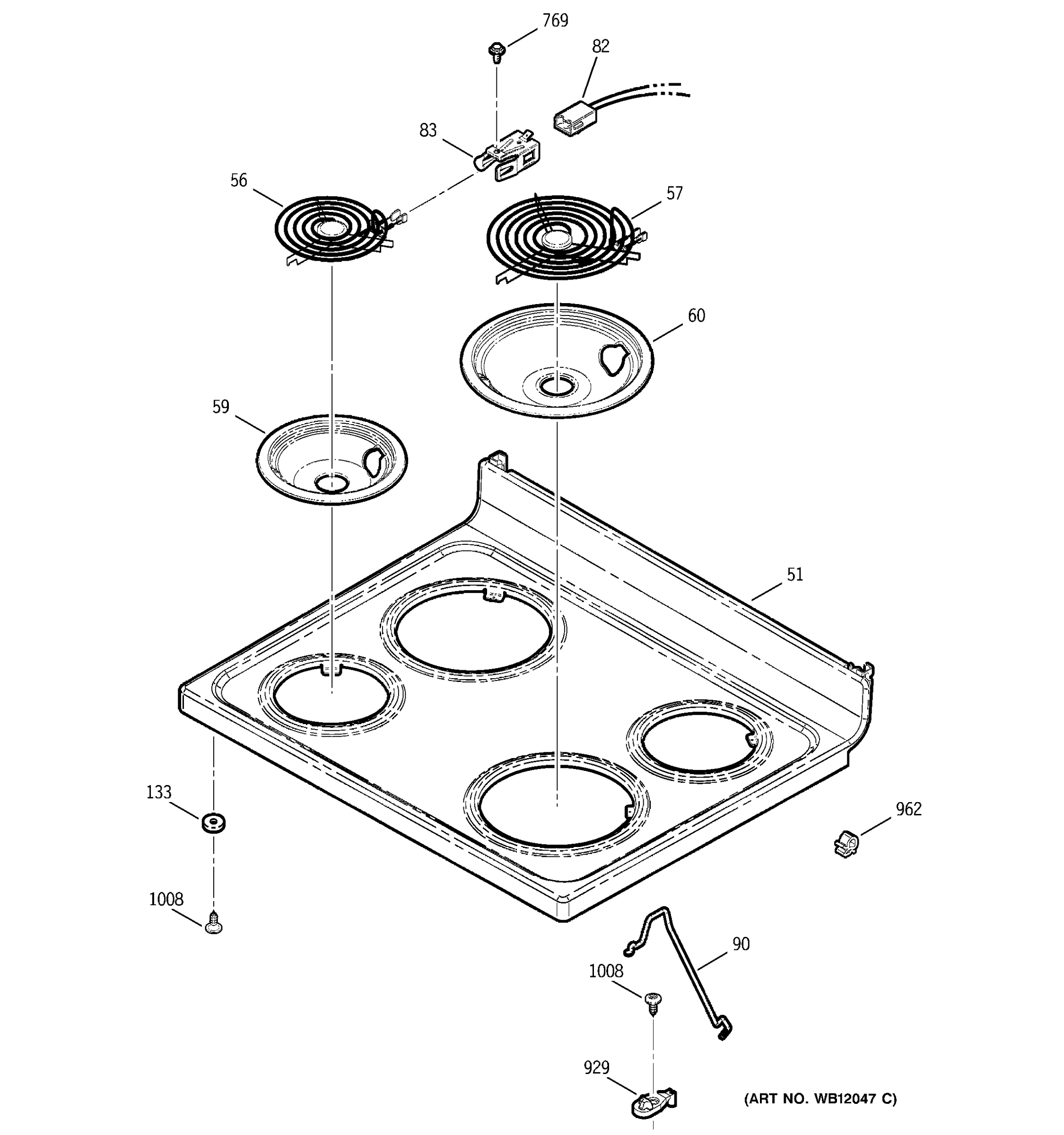

COOKTOP

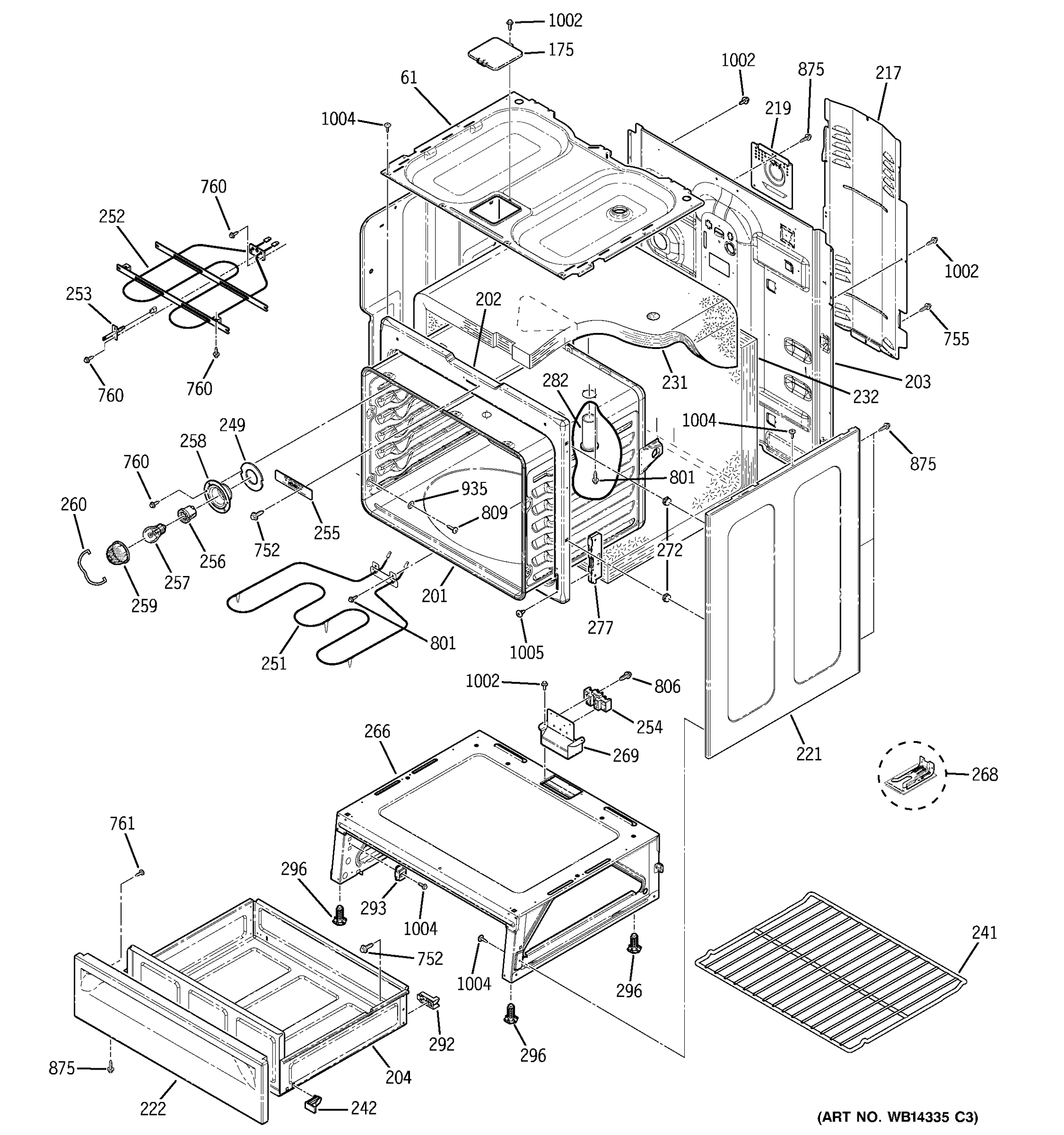

BODY PARTS
DOOR
DOOR LOCK
Common parts from model GE JBP35DM1BB Electric Range
1
TRIM & BRACKET ASM GEN WB36T11054 Contact Us For Availability
18
FACEPLATE GRAPHICS (BK) GEN WB27T11005 Contact Us For Availability
29
KNOB INFINITE (BK) GEN WB03T10281 Contact Us For Availability
33
LIGHT INDICATOR PILOT GEN WB27T10626 Contact Us For Availability
34
LENS GEN WB25T10041 Contact Us For Availability
51
RANGETOP MECH ASM GEN WB62T10613 Contact Us For Availability
83
CLIP RECEPTACLE GEN WB17T10009 Contact Us For Availability
90
ROD SUPPORT GEN WB02T10025 Contact Us For Availability
102
INSULATION DOOR GEN WB35T10114 Contact Us For Availability
112
LINER OVEN DOOR ASM GEN WB55T10176 Contact Us For Availability
113
RETAINER OVN DR INSLN GEN WB56T10178 Contact Us For Availability
121
GLASS OVN DR (BK) GEN WB56T10179 Contact Us For Availability
136
HANDLE (BK) GEN WB15T10183 Contact Us For Availability
140
FRAME DOOR SIDE (BK) GEN WB56T10287 Contact Us For Availability
150
LATCH & HANDLE ASM GEN WB14T10053 Contact Us For Availability
204
DRAWER BODY ASM MECH GEN WB55T10178 Contact Us For Availability
222
PANEL DRAWER GEN WB56T10267 Contact Us For Availability
231
INSULATION OVN WRPR GEN WB35T10209 Contact Us For Availability
232
INSULATION OVN BACK/BTTM GEN WB35T10113 Contact Us For Availability
242
WEDGE DRAWER GEN WB48T10068 Contact Us For Availability
249
GASKET OVEN LIGHT GEN WB02T10027 Contact Us For Availability
252
UNIT BROIL ASM GEN WB44T10094 Contact Us For Availability
256
RECEPTACLE PUSH-IN GEN WB08T10026 Contact Us For Availability
258
OVEN LIGHT CUP GEN WB02T10037 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10415 Contact Us For Availability
269
MOUNT TERMINAL BLOCK GEN WB17T10021 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
HINGE RECEIVER GEN WB10T10068 Contact Us For Availability
281
HINGE DOOR GEN WB10T10071 Contact Us For Availability
293
DRAWER SUPPORT FRT GEN WB48T10013 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
696
SCR 10-16 AB HXW .532 GEN WB01T10103 Contact Us For Availability
919
SPACER GEN WB02T10175 Contact Us For Availability
929
MAINTOP STRIKE GEN WB02T10026 Contact Us For Availability
1002
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
1003
SCR 10-16 PL PNT 2.5 S GEN WB01T10067 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1006
SCREW 8-32 TPT FLR 270 GEN WB01T10053 Contact Us For Availability
× ![]()
