Model GE JB700DJ2BB – Common Parts & Diagrams

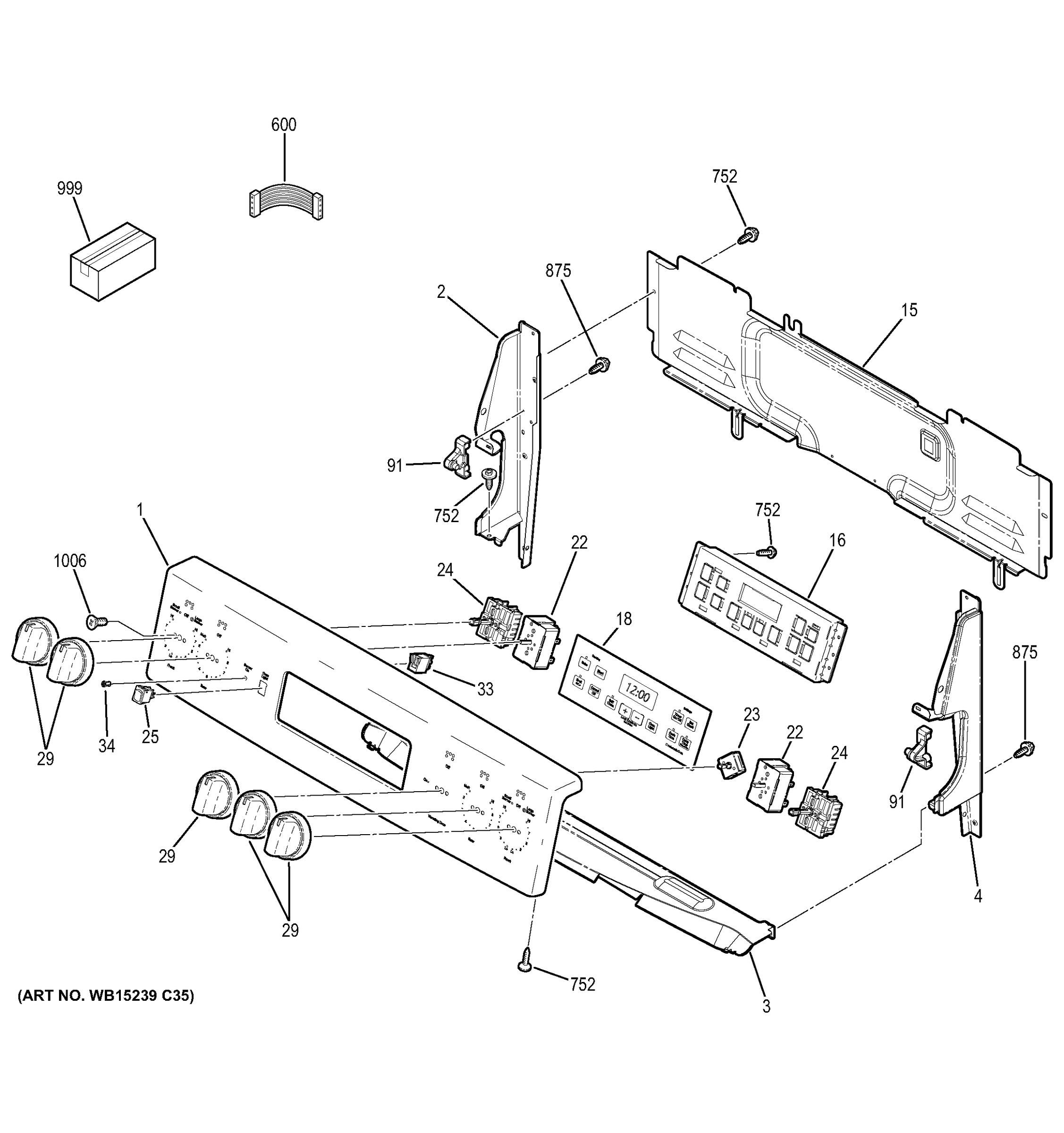

CONTROL PANEL

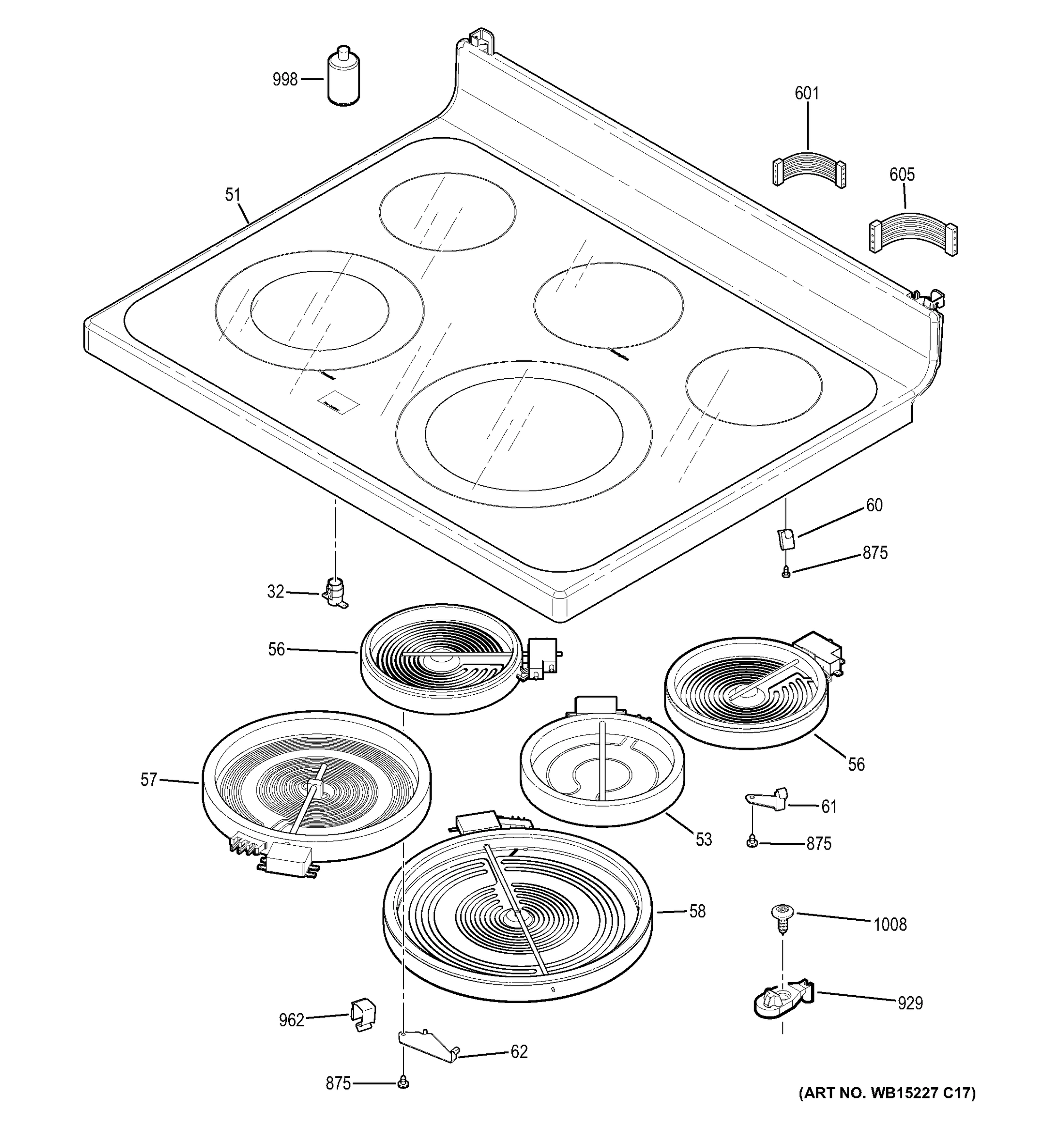

COOKTOP
BODY PARTS
DOOR
DOOR LOCK
CONVECTION FAN
Common parts from model GE JB700DJ2BB
23
SWITCH ROTARY GEN WB24X25302 Contact Us For Availability
25
ROCKER SWITCH OVEN GEN WB24T10042 Contact Us For Availability
29
KNOB INFINITE (BK) GEN WB03X24904 Contact Us For Availability
32
LIGHT INDICATOR GEN WB27T10668 Contact Us For Availability
33
LIGHT INDICATOR PILOT GEN WB25X20005 Contact Us For Availability
34
LENS GEN WB25X24023 Contact Us For Availability
43
HUB BLADE ASM GEN WB02X26501 Contact Us For Availability
51
RANGETOP GLASS ASM (BK) GEN WB62X20851 Contact Us For Availability
53
ELEMENT RADIANT 6 WARMER GEN WB30X20871 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT RADIANT 9" DUAL GEN WB30X24111 Contact Us For Availability
58
ELEMENT HALIANT 12 IN GEN WB30T10130 Contact Us For Availability
60
BRACKET RADIANT ELEMENT GEN WB02X20902 Contact Us For Availability
62
BRACKET RADIANT ELEMENT GEN WB02X20940 Contact Us For Availability
91
PIN RANGETOP HINGE GEN WB10T10116 Contact Us For Availability
102
INSULATION DOOR GEN WB35T10114 Contact Us For Availability
103
INSULATION DOOR GEN WB35T10255 Contact Us For Availability
111
GASKET OVEN GEN WB04T10086 Contact Us For Availability
112
LINER OVEN DOOR ASM (BK) GEN WB55T10203 Contact Us For Availability
113
RETAINER OVN DR INSLN GEN WB56T10178 Contact Us For Availability
121
GLASS OVN DR OTR (BK) GEN WB56X26637 Contact Us For Availability
132
DOOR PAD GEN WB01T10026 Contact Us For Availability
134
TRIM VENT DOOR (BK) GEN WB07X27233 Contact Us For Availability
136
HANDLE (LE-BK) GEN WB15T10213 Contact Us For Availability
140
FRAME DOOR SIDE (BK) GEN WB56T10287 Contact Us For Availability
204
DRAWER BODY ASM MECH GEN WB55T10178 Contact Us For Availability
217
COVER BACK GEN WB34T10128 Contact Us For Availability
229
VENT TUBE INSULATION GEN WB35T10017 Contact Us For Availability
231
INSULATION OVEN GEN WB35T10211 Contact Us For Availability
232
INSULATION OVN BCK & BTM GEN WB35X21424 Contact Us For Availability
241
RACK OVEN GEN WB48T10063 Contact Us For Availability
242
WEDGE DRAWER GEN WB48T10068 Contact Us For Availability
252
SHIELD BROIL ASM GEN WB44X20882 Contact Us For Availability
254
TERMINAL BLOCK ASM GEN WB17T10011 Contact Us For Availability
257
LAMP HALOGEN G9 GEN WB08T10045 Contact Us For Availability
258
LAMP HALOGEN ASM GEN WB25X24909 Contact Us For Availability
259
OV LAMP LENS GEN WB25T10013 Contact Us For Availability
261
SWITCH SPDT HIGH AMP GEN WB24T10147 Contact Us For Availability
264
TRIM FRT FRM (BK) GEN WB07T10516 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
269
MOUNT TERMINAL BLOCK GEN WB17T10021 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
HINGE RECEIVER GEN WB10T10068 Contact Us For Availability
281
HINGE DOOR GEN WB10T10071 Contact Us For Availability
293
DRAWER SUPPORT FRT GEN WB48T10013 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X22160 Contact Us For Availability
511
MOTOR CONVX GEN WB26X26500 Contact Us For Availability
515
GASKET CONV FAN GEN WB04T10080 Contact Us For Availability
578
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
600
HARNESS WIRE INFINITE GEN WB18X25978 Contact Us For Availability
605
LEAD WIRE 14 GA GN GEN WB18T10470 Contact Us For Availability
696
SCR 10-16 AB HXW .532 GEN WB01T10103 Contact Us For Availability
761
SCREW MTG GEN WB1X5364 Contact Us For Availability
919
SPACER GEN WB02T10175 Contact Us For Availability
929
MAINTOP STRIKE GEN WB02T10026 Contact Us For Availability
962
CLIP CABLE GEN WB02X25982 Contact Us For Availability
1002
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
1003
SCR 10-16 PL PNT 2.5 S GEN WB01T10067 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1006
SCR 8-32 TT FLP .270 GEN WB01X23501 Contact Us For Availability
1008
SCR 8-18 BA GEN WB1X5904 Contact Us For Availability
× ![]()
