GE JB645DT1BB Electric Range Parts List

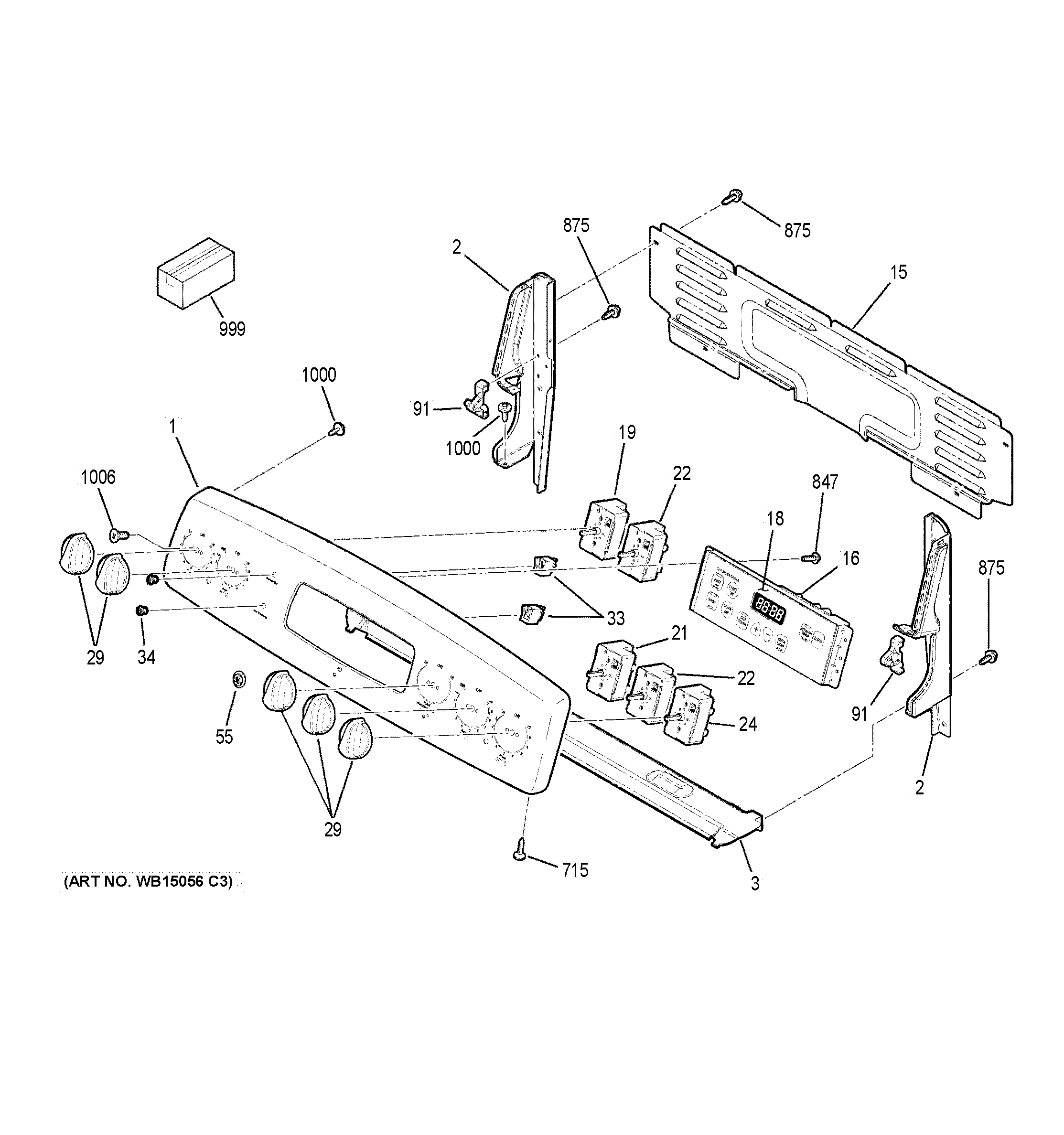

15

COVER CONTROL GEN WB02T10532 Contact Us For Availability

View on Model

16

WB27T11349 GE Range Control Backorder GEN WB27T11349 $107.10

View on Model

18

FACEPLATE GRAPHICS GEN WB27T11360 Contact Us For Availability

View on Model

19

WB24T10058 GE Range Surface Element Switch In Stock GEN WB24T10058 $100.71

View on Model

21

INFINITE SWITCH GEN WB24T10168 Contact Us For Availability

View on Model

22

WB24T10145 GE Range Burner Switch In Stock GEN WB24T10145 $47.12

View on Model

24

WB24T10153 GE Range Infinite Switch Control In Stock GEN WB24T10153 $97.48

View on Model

29

KNOB INFINITE (BK) GEN WB03T10281 Contact Us For Availability

View on Model

33

WB27T10626 GE Oven Indicator Light Pilot In Stock GEN WB27T10626 $5.42

View on Model

34

WB25T10041 GE Oven Lens In Stock GEN WB25T10041 $5.78

View on Model

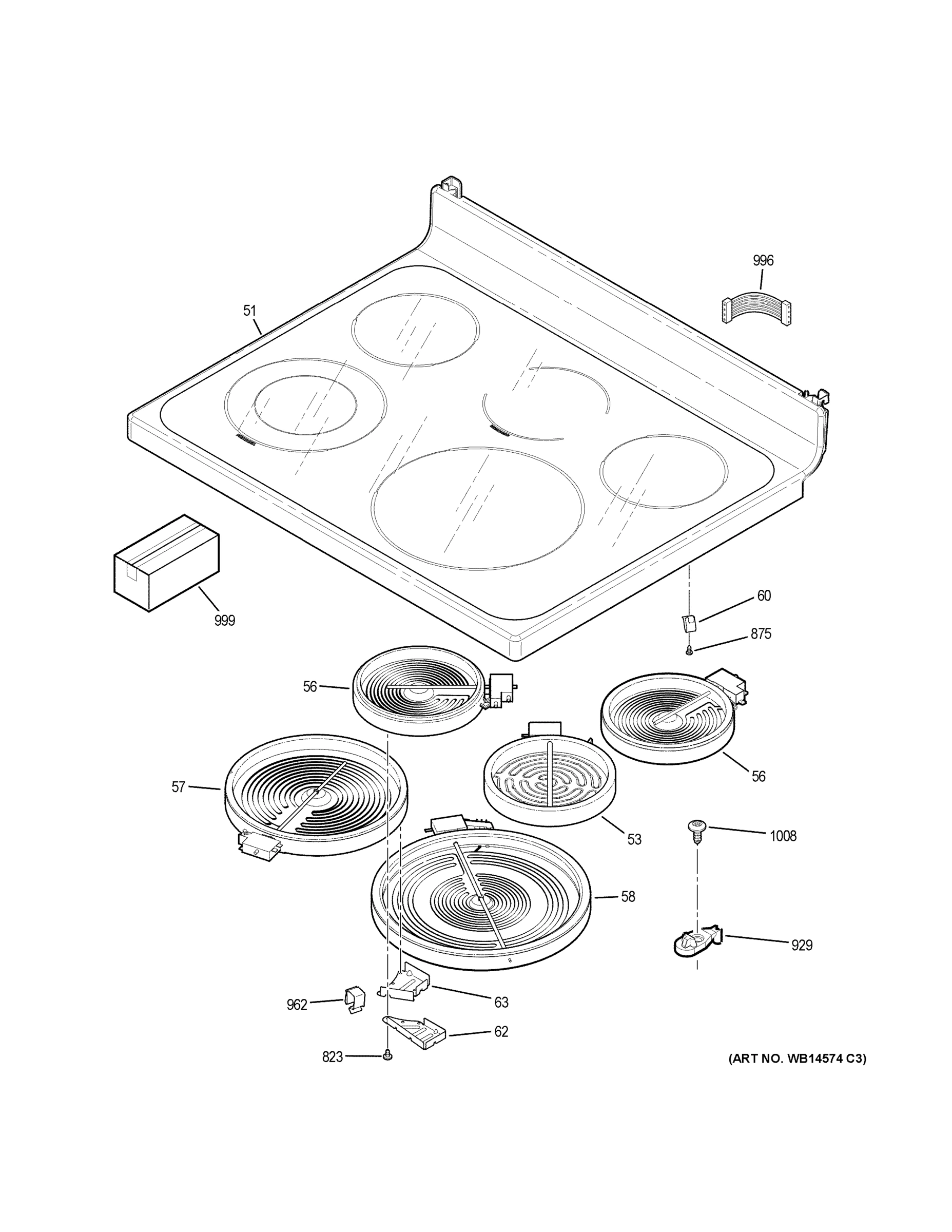

51

RANGETOP GLASS ASM GEN WB62T10720 Contact Us For Availability

View on Model

53

WB30T10124 GE Oven 6" Radiant Warmer Element Backorder GEN WB30T10124 $79.49

View on Model

55

BADGE GE GEN WB02T10359 Contact Us For Availability

View on Model

56

WB30T10129 GE Oven Radiant Element 6 In In Stock GEN WB30T10129 $50.49

View on Model

57

WB30T10131 GE Oven Halogen Element 8 In Backorder GEN WB30T10131 $120.01

View on Model

58

WB30T10146 GE Oven 12" Halogen Element In Stock GEN WB30T10146 $150.35

View on Model

60

WB09X40389 GE Radiant Element Spring Backorder GEN WB09X40389 $5.78

View on Model

102

WB35T10114 GE Oven Door Insulation Backorder GEN WB35T10114 $5.78

View on Model

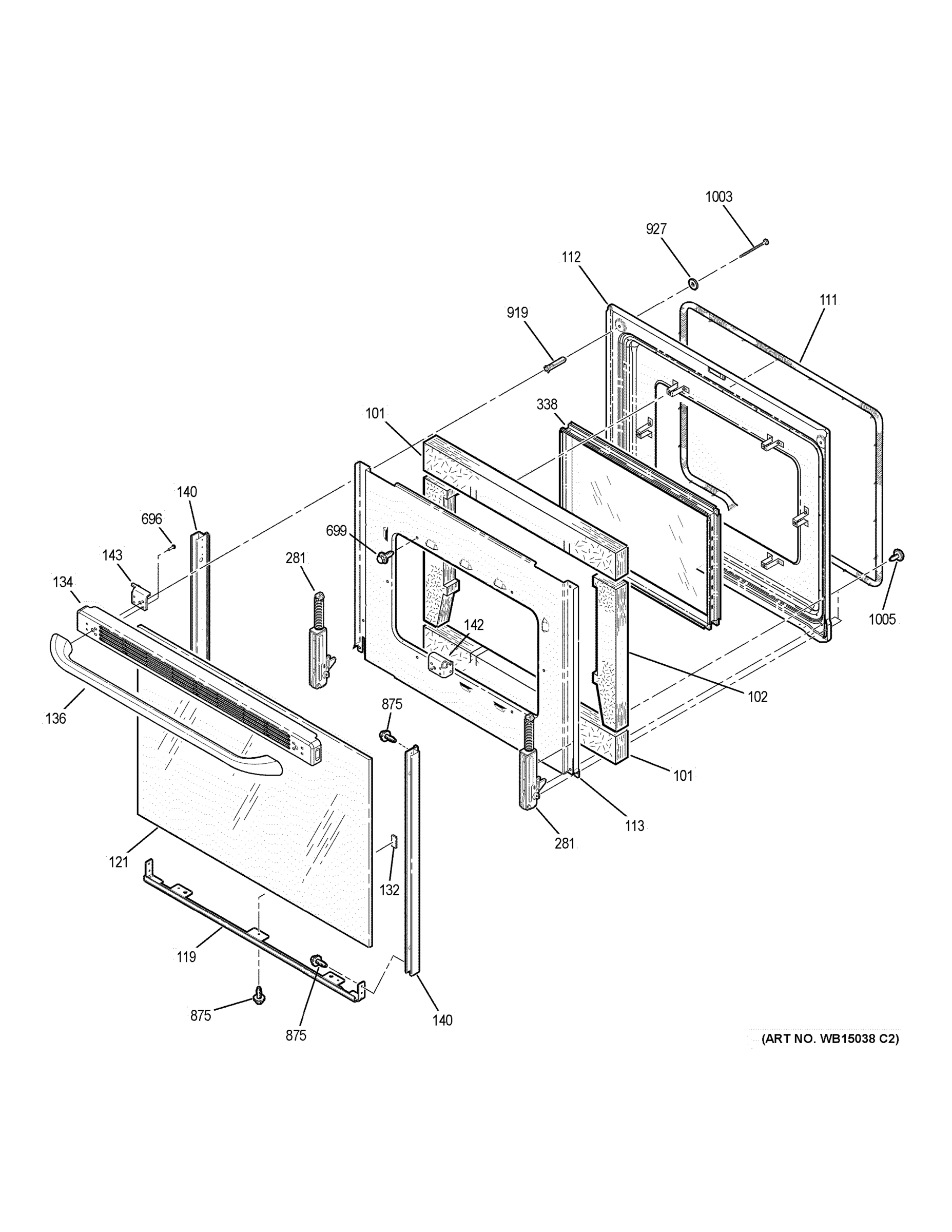

111

WB04T10086 GE Oven Door Gasket In Stock GEN WB04T10086 $41.59

View on Model

112

LINER OVEN DOOR ASM GEN WB55T10176 Contact Us For Availability

View on Model

113

WB56T10178 GE Oven Door Insulation Retainer Backorder GEN WB56T10178 $85.33

View on Model

119

WB07X42966 GE Range Bottom Trim Channel Backorder GEN WB07X42966 $16.53

View on Model

121

WB56T10179 GE Range Glass Door Assembly Backorder GEN WB56T10179 $70.80

View on Model

132

WB01T10026 GE Oven Door Pad Backorder GEN WB01T10026 $5.78

View on Model

134

WB07X27233 GE Range Trim Vent Door (Black) Backorder GEN WB07X27233 $23.05

View on Model

136

HANDLE (BK) GEN WB15T10183 Contact Us For Availability

View on Model

140

WB56T10287 GE Oven Door Side Frame (Black) Backorder GEN WB56T10287 $15.60

View on Model

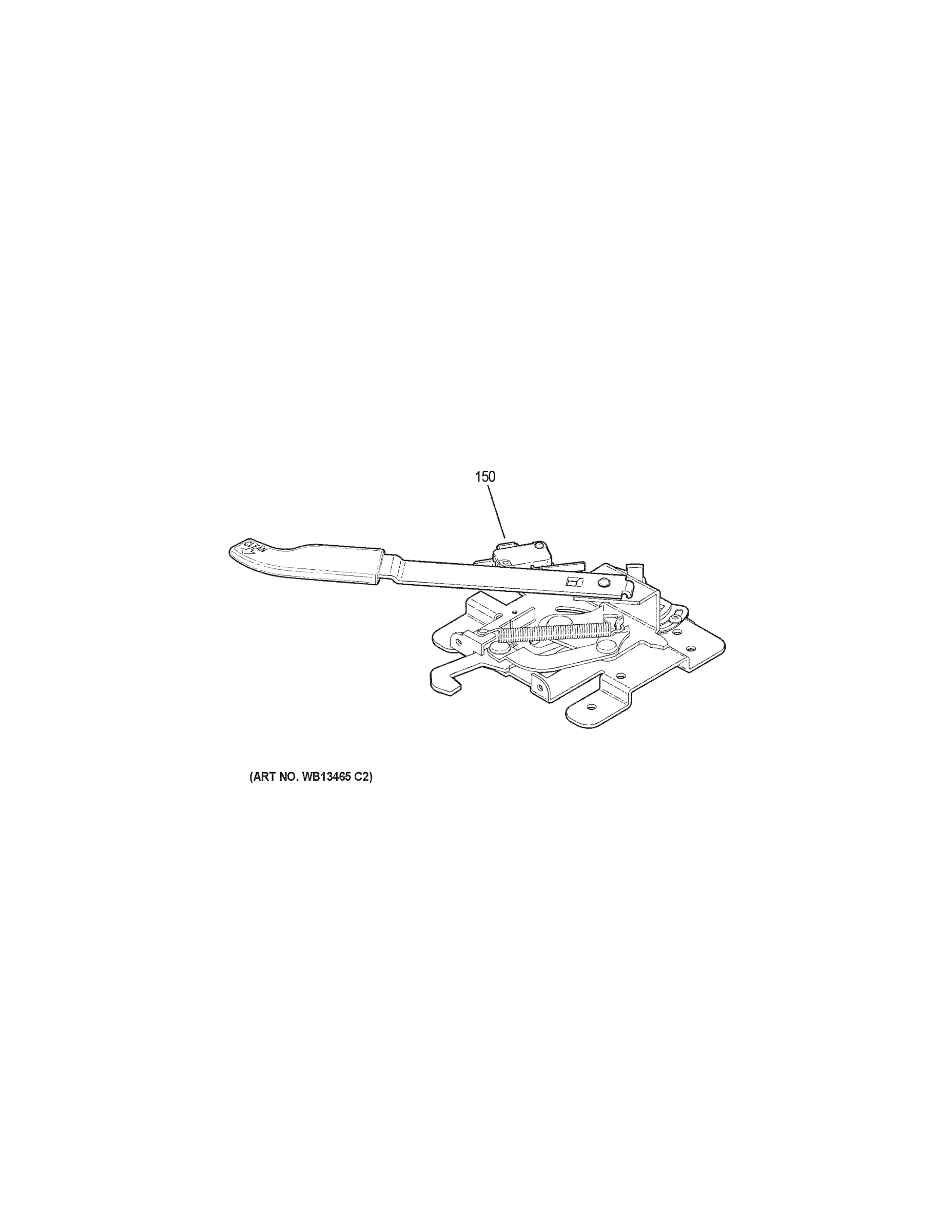

150

WB14T10053 GE Range Latch and Handle Assembly In Stock GEN WB14T10053 $106.48

View on Model

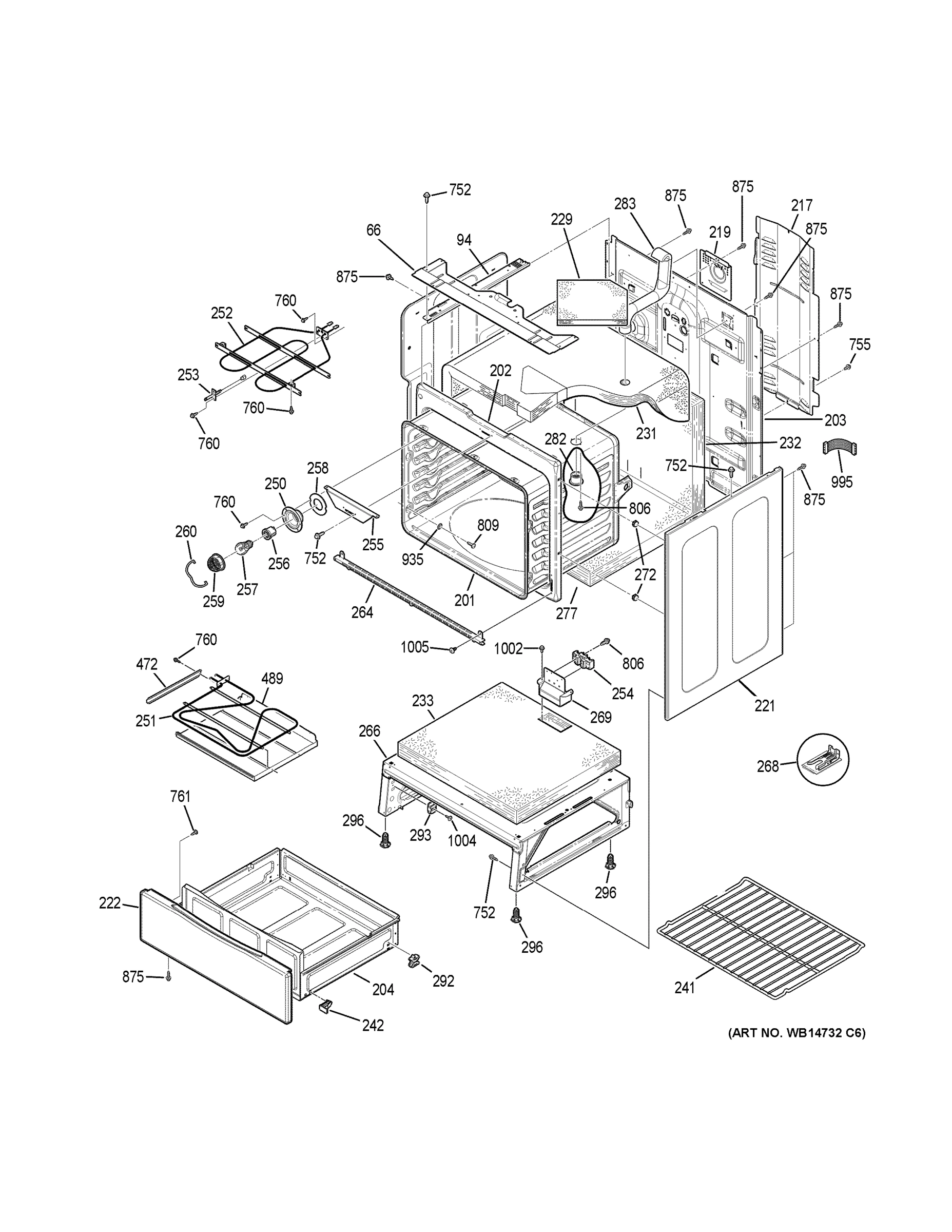

204

WB55T10178 GE Oven Mechanical Drawer Body Ass Backorder GEN WB55T10178 $122.21

View on Model

217

WB34T10128 GE Oven Back Cover Backorder GEN WB34T10128 $40.24

View on Model

222

PANEL DRAWER GEN WB56T10267 Contact Us For Availability

View on Model

229

WB35T10017 GE Oven Vent Tube Insulation Backorder GEN WB35T10017 $5.78

View on Model

231

WB35T10209 GE Range Insulation Backorder GEN WB35T10209 $70.35

View on Model

241

WB48T10063 GE Range Rack In Stock GEN WB48T10063 $42.66

View on Model

242

WB48T10068 GE Oven Wedge Drawer Backorder GEN WB48T10068 $18.79

View on Model

250

WB02T10037 GE Oven Light Cup Backorder GEN WB02T10037 $5.78

View on Model

251

WB44X45499 GE Oven Bake Element In Stock GEN WB44X45499 $28.66

View on Model

252

WB44T10094 GE Oven Broil Element Backorder GEN WB44T10094 $76.42

View on Model

253

WB21X22134 GE Oven Sensor Assembly In Stock GEN WB21X22134 $16.85

View on Model

256

WB08T10026 GE Range Push-In Receptacle In Stock GEN WB08T10026 $6.00

View on Model

258

WB02T10027 GE Range Gasket Backorder GEN WB02T10027 $5.78

View on Model

264

WB07T10516 GE Oven Front Trim Assembly Backorder GEN WB07T10516 $26.54

View on Model

268

WB02T10578 GE Oven Anti-Tip Bracket Assembly In Stock GEN WB02T10578 $20.28

View on Model

269

WB17T10021 GE Oven Mount Terminal Block Backorder GEN WB17T10021 $16.78

View on Model

272

WB02T10034 GE Oven Body Side Support Backorder GEN WB02T10034 $5.78

View on Model

277

WB10T10068 GE Oven Hinge Receiver Backorder GEN WB10T10068 $28.82

View on Model

281

WB10T10071 GE Range Door Hinge Backorder GEN WB10T10071 $53.77

View on Model

282

WB38X33648 GE Vent Tube Backorder GEN WB38X33648 $12.54

View on Model

292

WB02X33180 GE Oven Drawer Glide In Stock GEN WB02X33180 $5.78

View on Model

293

WB48T10013 GE Oven Drawer Support In Stock GEN WB48T10013 $5.78

View on Model

296

WB02X10521 GE Oven Leveling Leg In Stock GEN WB02X10521 $10.05

View on Model

338

WB56T10105 GE Oven Inner Window Assembly In Stock GEN WB56T10105 $104.37

View on Model

696

WB01T10103 GE Oven Screw 10-16 AB HXW .532 Backorder GEN WB01T10103 $5.78

View on Model

699

WB1M1 GE Oven Screw Backorder GEN WB1M1 $5.55

View on Model

847

WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI Backorder GEN WB02T10324 $5.78

View on Model

875

WH2X930 GE Screw In Stock GEN WH2X930 $5.78

View on Model

919

SPACER GEN WB02T10175 Contact Us For Availability

View on Model

927

WB1X119D GE Oven Range Washer In Stock GEN WB1X119D $10.47

View on Model

929

WB02T10026 GE Oven Strike Maintop Backorder GEN WB02T10026 $5.78

View on Model

962

WB02X45146 GE Cable Clip Backorder GEN WB02X45146 $5.34

View on Model

1002

WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS Backorder GEN WB01T10017 $5.78

View on Model

1003

WB01T10067 GE Range Screw 10-16 PL PNT Backorder GEN WB01T10067 $5.78

View on Model

1005

WB01T10008 GE Oven Screw 10-32 In Stock GEN WB01T10008 $5.78

View on Model

1006

WB01T10053 GE Oven 8-32 TPT FLR Screw Backorder GEN WB01T10053 $5.78

View on Model
