Model GE HTWP1200D0WW – Common Parts & Diagrams

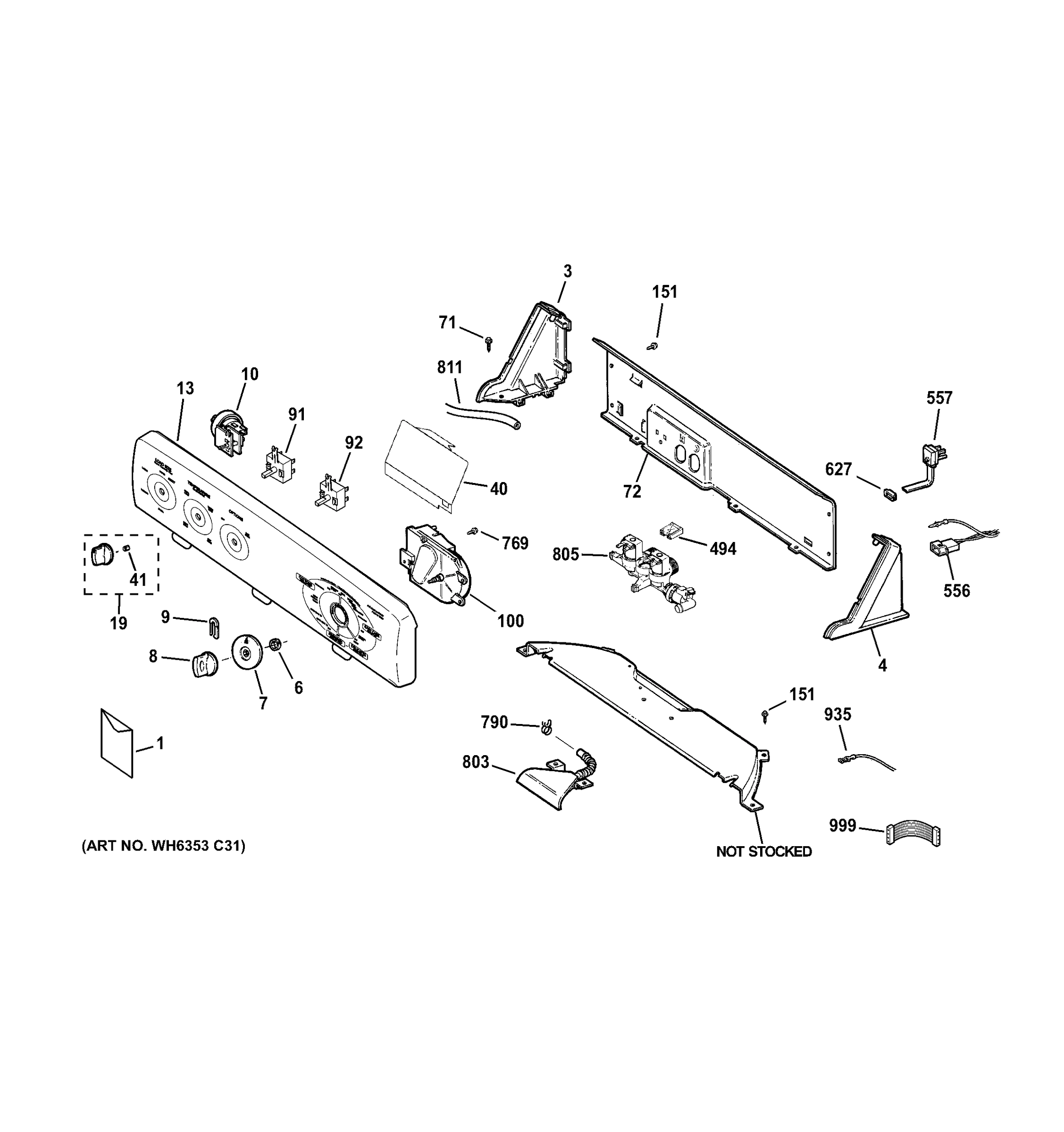

CONTROLS & BACKSPLASH

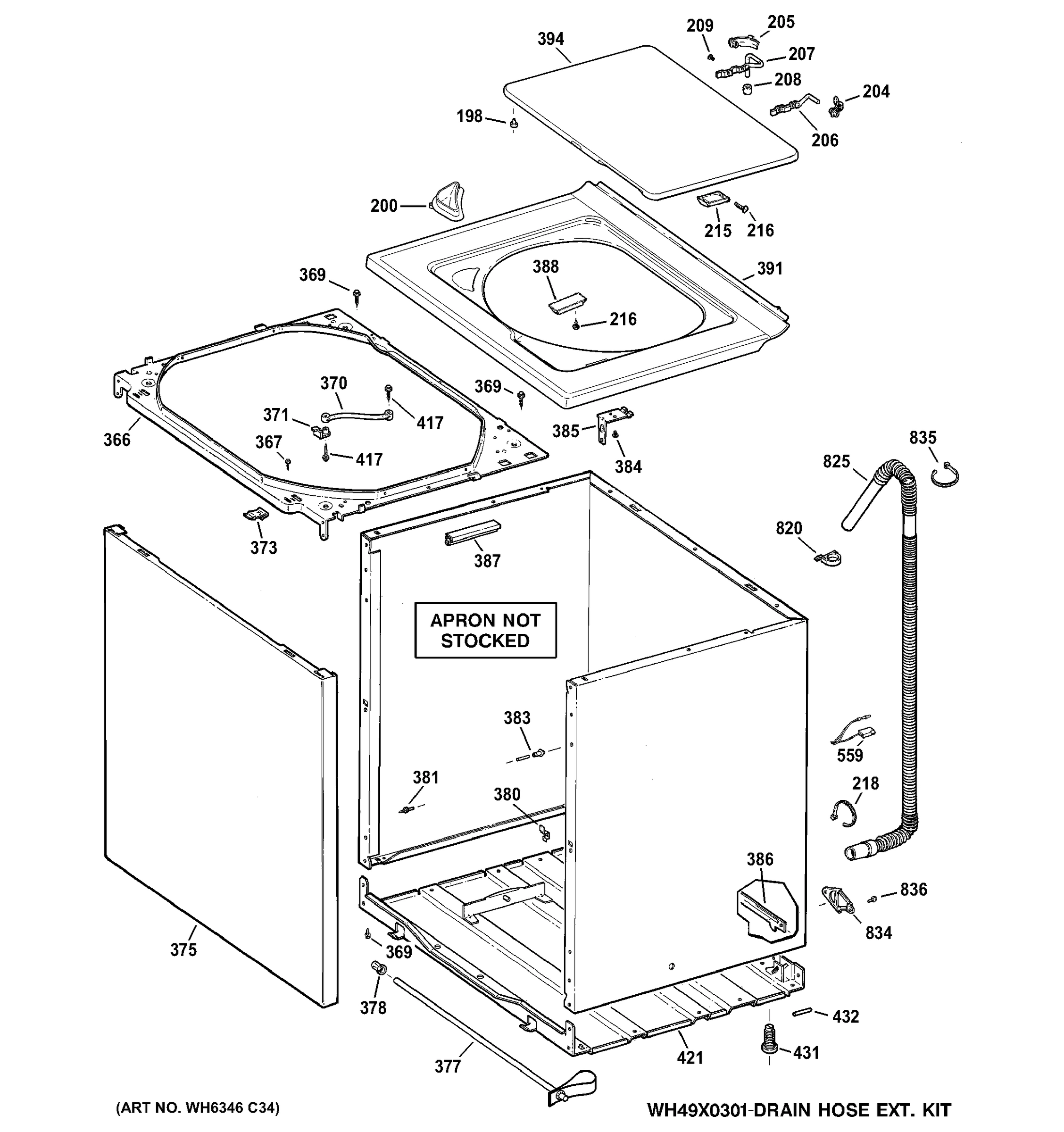

CABINET, COVER & FRONT PANEL
TUB, BASKET & AGITATOR
SUSPENSION, PUMP & DRIVE COMPONENTS
Common parts from model GE HTWP1200D0WW
3
ENDCAP LH WH GEN WH42X10679 Contact Us For Availability
4
ENDCAP RH WH GEN WH42X10678 Contact Us For Availability
6
RING COMPRESSION GEN WH02X10093 Contact Us For Availability
7
DIAL ASM GEN WH11X10047 Contact Us For Availability
8
KNOB ASM CONTROL GEN WH01X10314 Contact Us For Availability
10
SWITCH PRESSURE GEN WH12X10476 Contact Us For Availability
13
BACKSPLASH ASM GEN WH42X10965 Contact Us For Availability
19
KNOB & CLIP ASM GEN WH01X10313 Contact Us For Availability
40
SHIELD TIMER GEN WH02X10354 Contact Us For Availability
41
CLIP KNOB GEN WH01X10106 Contact Us For Availability
72
BACK PANEL GEN WH46X10146 Contact Us For Availability
91
SWITCH ROTARY GEN WH12X10498 Contact Us For Availability
92
FABRIC SOFTENER SWITCH GEN WH12X10477 Contact Us For Availability
100
TIMER WASHER GEN WH12X10527 Contact Us For Availability
200
FUNNEL BLEACH GEN WH01X10057 Contact Us For Availability
205
BUSHING HINGE GEN WH01X10025 Contact Us For Availability
215
MAGNET ASM GEN WH12X10276 Contact Us For Availability
293
CLAMP HOSE GEN WH01X10134 Contact Us For Availability
300
AGITATOR ASM MULTI GEN WH43X10034 Contact Us For Availability
301
SCR 1/4-20 MCH HXW 5/8 S GEN WH02X10237 Contact Us For Availability
305
HOSE DRAIN ASM GEN WH41X10285 Contact Us For Availability
308
SCR 5/16-18 TPT IHW S N GEN WH02X10267 Contact Us For Availability
310
COUPLING AGITATOR GEN WH43X10032 Contact Us For Availability
311
SEAL TUB GEN WH02X10383 Contact Us For Availability
316
BASKET HUB & RING XL GEN WH45X10120 Contact Us For Availability
317
TUB ASM GEN WH45X20473 Contact Us For Availability
320
SHAFT AND TUBE ASM GEN WH38X10019 Contact Us For Availability
327
BALANCE RING ASM GEN WH45X10116 Contact Us For Availability
332
SCREW 14-10 A TRT 7/8 S GEN WH02X10001 Contact Us For Availability
373
CLIP LOCKING GEN WH02X10279 Contact Us For Availability
384
SCREW 8-15 A 3/4 SP HXW GEN WH01X10109 Contact Us For Availability
385
COVER CLIP GEN WH01X10422 Contact Us For Availability
386
BAR SELF LEVELING GEN WH46X10094 Contact Us For Availability
388
LID SWITCH ASM GEN WH12X10334 Contact Us For Availability
413
HEX NUT OVERMOLD ASM GEN WH02X10233 Contact Us For Availability
414
FRONT ROD & SPRING ASM GEN WH16X10158 Contact Us For Availability
415
REAR ROD & SPRING ASM GEN WH16X10159 Contact Us For Availability
419
SOCKET ROD SUPPORT GEN WH01X10001 Contact Us For Availability
421
BASE ASM GEN WH46X10145 Contact Us For Availability
557
CORD POWER ASM GEN WH19X10068 Contact Us For Availability
603
BELT - 6 RIB GEN WH01X10302 Contact Us For Availability
627
SELF LOCKING STRAIN RELF GEN WH12X10208 Contact Us For Availability
651
SCREW 1/4-20 TPT 1H 1/2 GEN WH02X10123 Contact Us For Availability
725
DRIVE PULLEY GEN WH07X10019 Contact Us For Availability
803
HOSE & WATER INLET GEN WH41X10077 Contact Us For Availability
811
HOSE PRES SW GEN WH41X365 Contact Us For Availability
825
HOSE DRAIN EXTERNAL GEN WH41X10096 Contact Us For Availability
999
HARNESS WASHER GEN WH19X10104 Contact Us For Availability
× ![]()
