Model GE GTWN4250M0WS Washer – Common Parts & Diagrams

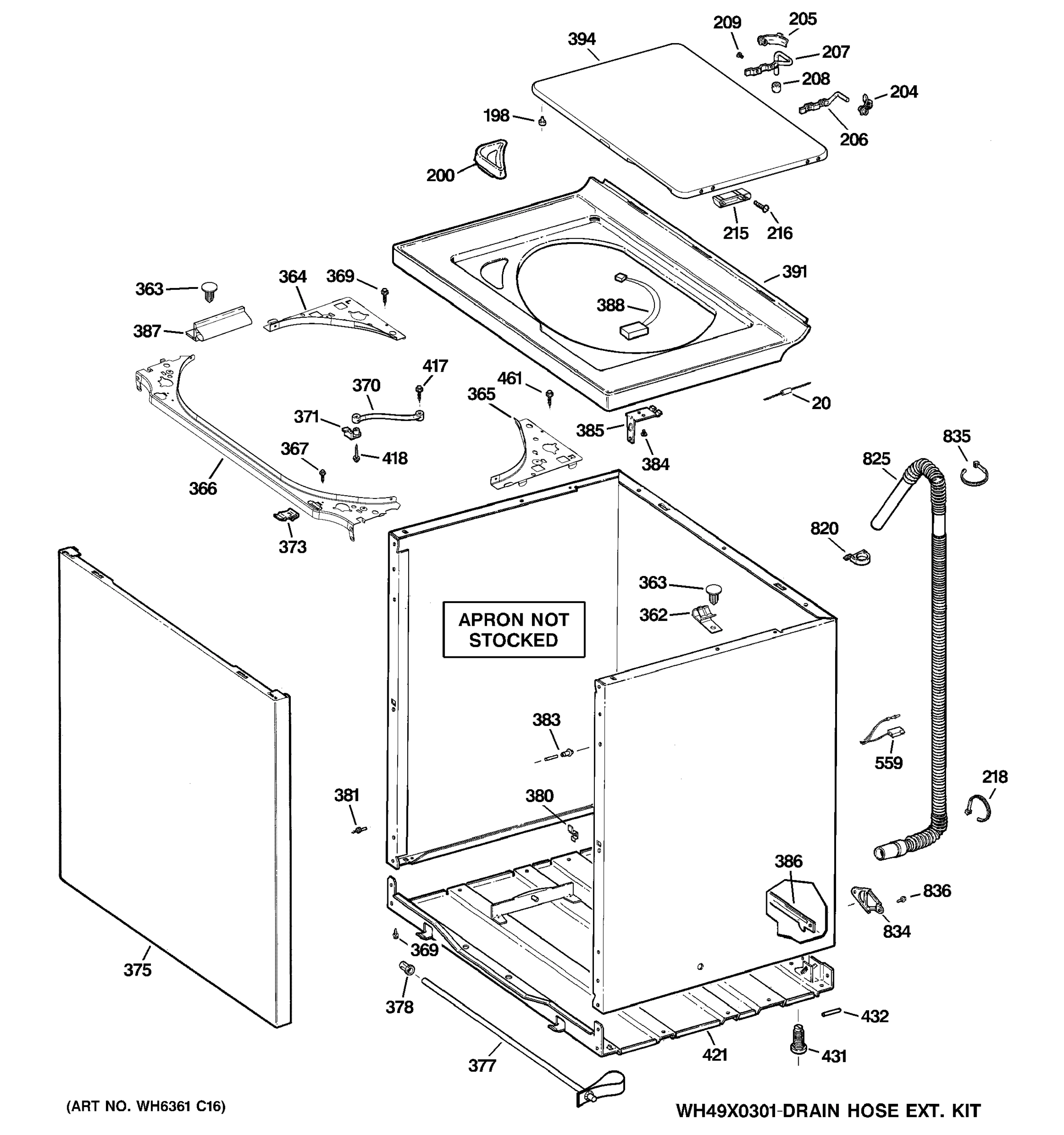

CABINET, COVER & FRONT PANEL

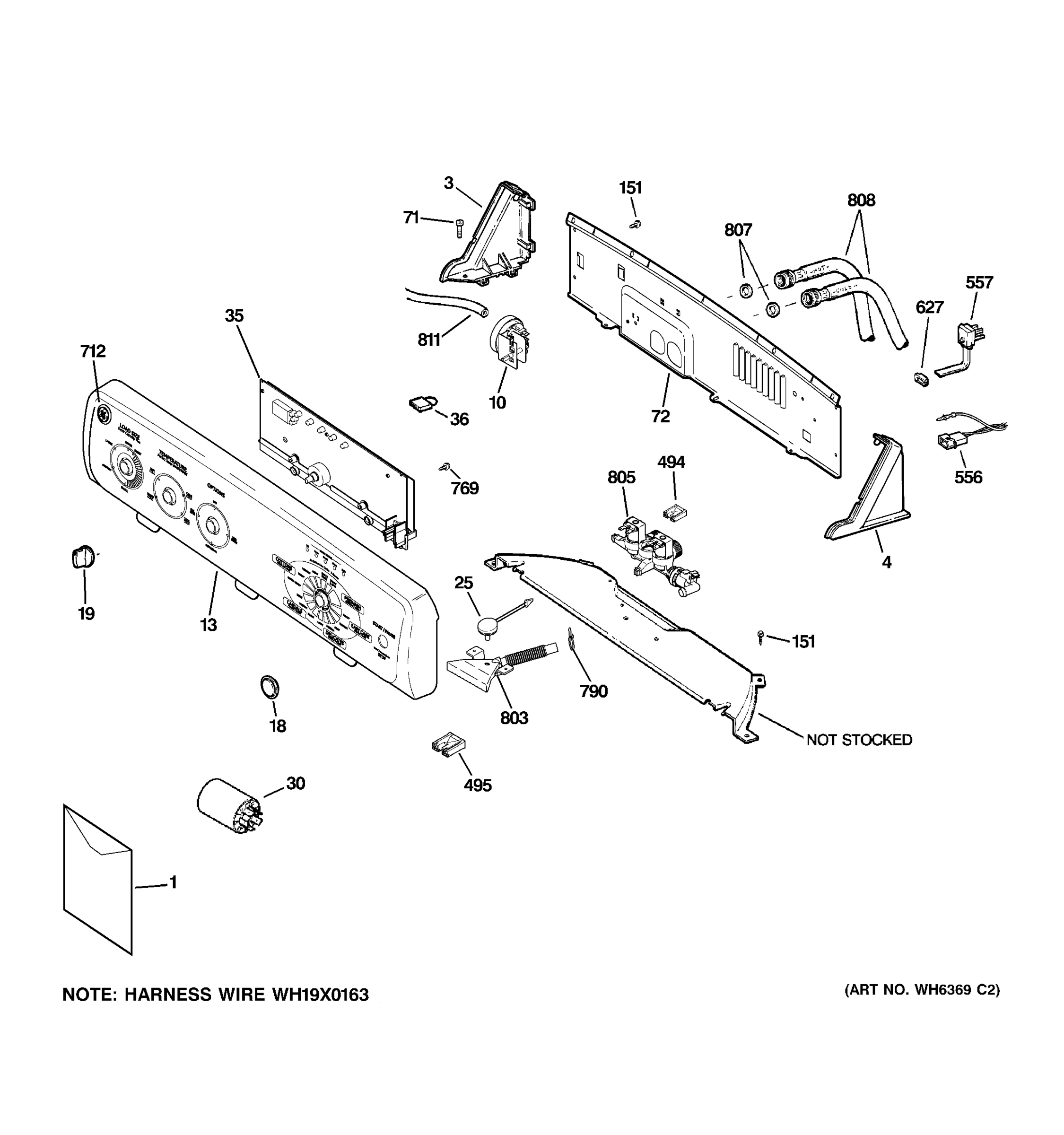

CONTROLS & BACKSPLASH
SUSPENSION, PUMP & DRIVE COMPONENTS
TUB, BASKET & AGITATOR
Common parts from model GE GTWN4250M0WS Washer
10
GEN WH12X10412 GEN WH12X10412 Contact Us For Availability
18
BUTTON SWITCH GEN WH01X10088 Contact Us For Availability
19
GEN WH01X10315 GEN WH01X10315 Contact Us For Availability
20
KIT - FUSE LINK (2 PACK) GEN WH49X10055 Contact Us For Availability
25
GEN WH12X10410 GEN WH12X10410 Contact Us For Availability
30
GEN WH12X10408 GEN WH12X10408 Contact Us For Availability
35
GEN WH12X10475 GEN WH12X10475 Contact Us For Availability
36
GEN WH12X10095 GEN WH12X10095 Contact Us For Availability
72
BACK PANEL GEN WH46X10146 Contact Us For Availability
200
GEN WH01X10057 GEN WH01X10057 Contact Us For Availability
205
BUSHING HINGE GEN WH01X10025 Contact Us For Availability
216
GEN WH02X10217 GEN WH02X10217 Contact Us For Availability
293
GEN WH01X10134 GEN WH01X10134 Contact Us For Availability
300
GEN WH43X10034 GEN WH43X10034 Contact Us For Availability
301
GEN WH02X10237 GEN WH02X10237 Contact Us For Availability
308
GEN WH02X10267 GEN WH02X10267 Contact Us For Availability
310
GEN WH43X10032 GEN WH43X10032 Contact Us For Availability
316
GEN WH45X10060 GEN WH45X10060 Contact Us For Availability
320
PS KIT SHAFT & TUBE ASM GEN WH38X10017 Contact Us For Availability
324
GEN WH02X10283 GEN WH02X10283 Contact Us For Availability
332
GEN WH02X10139 GEN WH02X10139 Contact Us For Availability
365
GEN WH16X10102 GEN WH16X10102 Contact Us For Availability
373
GEN WH02X10279 GEN WH02X10279 Contact Us For Availability
384
SCREW 8-15 A 3/4 SP HXW GEN WH01X10109 Contact Us For Availability
385
GEN WH01X10422 GEN WH01X10422 Contact Us For Availability
386
GEN WH46X10094 GEN WH46X10094 Contact Us For Availability
388
GEN WH12X10334 GEN WH12X10334 Contact Us For Availability
413
GEN WH02X10233 GEN WH02X10233 Contact Us For Availability
415
GEN WH16X10057 GEN WH16X10057 Contact Us For Availability
418
GEN WH02X10282 GEN WH02X10282 Contact Us For Availability
419
GEN WH01X10001 GEN WH01X10001 Contact Us For Availability
421
GEN WH46X10145 GEN WH46X10145 Contact Us For Availability
557
GEN WH19X10068 GEN WH19X10068 Contact Us For Availability
627
GEN WH12X10208 GEN WH12X10208 Contact Us For Availability
630
GEN WH20X10066 GEN WH20X10066 Contact Us For Availability
651
SCREW 1/4-20 TPT 1H 1/2 GEN WH02X10123 Contact Us For Availability
725
DRIVE PULLEY GEN WH07X10019 Contact Us For Availability
769
SCREW 8-18 HI/LO 5/8 GEN WR01X10196 Contact Us For Availability
803
GEN WH41X10206 GEN WH41X10206 Contact Us For Availability
805
GEN WH13X10037 GEN WH13X10037 Contact Us For Availability
808
Intake Hose-1 4'w/90 Deg GEN WH41X10251 Contact Us For Availability
825
GEN WH41X10096 GEN WH41X10096 Contact Us For Availability
× ![]()
