Model Whirlpool GS6NBEXRL01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

Liner (Not A Serviceable Part) WPL ARI71048A3 Contact Us For Availability

1

Frame Assembly (2) WPL 2223517 Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI71052A1 Contact Us For Availability

1

Ice Bin WPL 2305336 Contact Us For Availability

1

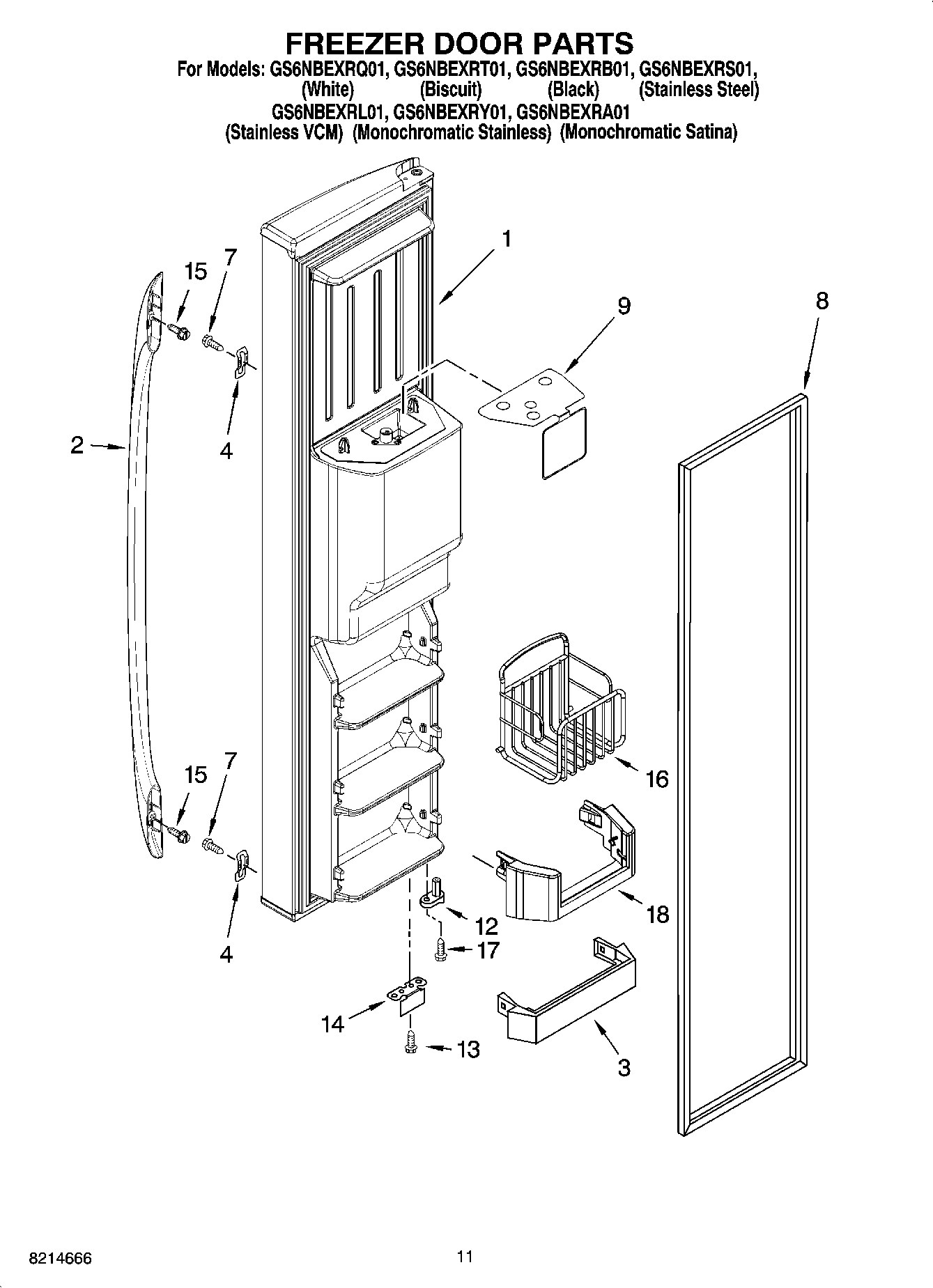

Freezer Door (Includes 8 And Dispenser Front WPL 2303161B Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2303161LA Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2303161LB Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2303161SA Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2303161SB Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2303161T Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2303161W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

2

Dairy Door WPL 2255421 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL 2305206 Contact Us For Availability

2

Snack Bin Asm WPL 2223261 Contact Us For Availability

2

Handle (Black) WPL 2313351B Contact Us For Availability

2

Handle (Biscuit) WPL 2313351T Contact Us For Availability

2

Handle (Universal Silver) WPL 2313351US Contact Us For Availability

2

Handle (White) WPL 2313351W Contact Us For Availability

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $83.82

3

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $33.53

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $39.86

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Cover, Crisper WPL 2223592 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $32.74

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer, Auger WPL 2258220 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10184813 Whirlpool Refrigerator Motor In Stock WPL WPW10184813 $47.71

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2305258 Whirlpool Dispenser Door Assembly In Stock WPL WP2305258 $7.69

6

Electronic Control WPL 2304103 Contact Us For Availability

6

Glass, Meat Cover WPL 2223714 Contact Us For Availability

6

Cover, Crusher WPL 2305244 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $29.08

7

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

7

Glass, Cover WPL 2223591 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2304289 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $148.70

8

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2223242 Whirlpool Refrigerator Cover Backorder WPL WP2223242 $209.82

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

9

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Ladder WPL 2206273 Contact Us For Availability

9

Grille, Slide (Apollo Gray) WPL 2305213AP Contact Us For Availability

9

Grille, Slide (Black) WPL 2305213B Contact Us For Availability

9

Grille, Slide (Biscuit) WPL 2305213T Contact Us For Availability

9

Grille, Slide (White) WPL 2305213W Contact Us For Availability

9

Safety Barrier WPL 2305474 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

WPW10233488 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10233488 $152.60

Spigot WPL 2305236 Contact Us For Availability

2223308 Whirlpool Refrigerator Slide Backorder WPL 2223308 $30.25

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Separator Assembly (Apollo Gray) WPL 2305458AP Contact Us For Availability

Separator Assembly (Black) WPL 2305458B Contact Us For Availability

Separator Assembly (Biscuit) WPL 2305458T Contact Us For Availability

Separator Assembly (White) WPL 2305458W Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

WP2303843-includeCORE Whirlpool WP2303843 Ref Backorder WPL WP2303843-includeCORE $207.20

Door Control Asm WPL 2261601 Contact Us For Availability

Knob, Humidity Control WPL 2223309 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

Ferrite Bead WPL 2308165 Contact Us For Availability

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $7.78

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Cover WPL 2255624 Contact Us For Availability

Meat Pan Assembly WPL 2223243 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2303113 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2303113B Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

SCREW WPL 8533920 Contact Us For Availability

Clip, Retaining WPL 2255199 Contact Us For Availability

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.19

WP2319792 Whirlpool Refrigerator Start Device In Stock WPL WP2319792 $67.04

Electronic Control (User Interface) WPL 2304163 Contact Us For Availability

Basket, Tilt-Out (2) WPL 2304309 Contact Us For Availability

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $29.06

Pad, Ice & Water (For White Model) WPL 2305247CG Contact Us For Availability

Pad, Ice & Water (For Black, Stainless, and S WPL 2305247GM Contact Us For Availability

Pad, Ice & Water (For Monochromatic Stainless WPL 2305247MG Contact Us For Availability

Pad, Ice & Water (For Biscuit Model) WPL 2305247WL Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

2305219 Whirlpool Refrigerator Cover Backorder WPL 2305219 $30.25

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Electronic Control WPL 2304095 Contact Us For Availability

Trivet, Tilt-Out (2) WPL 2223334 Contact Us For Availability

Tube, Water Dispenser WPL 2305228 Contact Us For Availability

Wire Assembly, Freezer Door WPL 2310019 Contact Us For Availability

Following Parts Not Illustrated WPL ARI71051A7 Contact Us For Availability

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $5.01

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $63.59

Control Box WPL 2255623 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI71053A4 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $4.52

Nameplate WPL 2220214 Contact Us For Availability

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

LED Assembly WPL 2303841 Contact Us For Availability

Latch, Bin WPL 2305443 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Light Lens WPL 2209769 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI71054A2 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $17.39

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

Shelf, Slide Out (2) WPL 2255160 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

Tray, Housing (Black) WPL 2305253B Contact Us For Availability

Tray, Housing (Biscuit) WPL 2305253T Contact Us For Availability

Tray, Housing (Universal Silver) WPL 2305253US Contact Us For Availability

Tray, Housing (White) WPL 2305253W Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $13.05

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clip WPL 2161324 Contact Us For Availability

Bracket, Dual Crisper WPL 2256035 Contact Us For Availability

Front Cover Assembly (Includes Items 16, 17, WPL 2305257B Contact Us For Availability

Front Cover Assembly (Includes Items 16, 17, WPL 2305257T Contact Us For Availability

WPL 2305257US WPL 2305257US Contact Us For Availability

WPL 2305257W WPL 2305257W Contact Us For Availability

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

Holder WPL 2212369 Contact Us For Availability

WPL 2187814 WPL 2187814 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

26

Harness, Unit WPL 2187817 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

Knob, FC WPL 2255992 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $312.36

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.92

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Relay (Service Only) WPL 2183454 Contact Us For Availability

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $108.83

30

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $92.73

31

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

32

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $122.27

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

33

Bracket, Motor WPL 2305208 Contact Us For Availability

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

35

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

38

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

WPL 2223751 WPL 2223751 Contact Us For Availability

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

41

Light Lens WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

42

Clip, Heat WPL 2155547 Contact Us For Availability

43

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

45

Ladder (Left Side) WPL 2198609 Contact Us For Availability

45

Ladder (Right Side) WPL 2198610 Contact Us For Availability

46

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $27.52

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

W10169512 Whirlpool Clip Backorder WPL W10169512 $27.52

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Union WPL 2305227 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following P WPL ARI71055A6 Contact Us For Availability

WPL ARI71056A4 WPL ARI71056A4 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51

100

Ice Container (Complete) WPL 2305444 Contact Us For Availability
