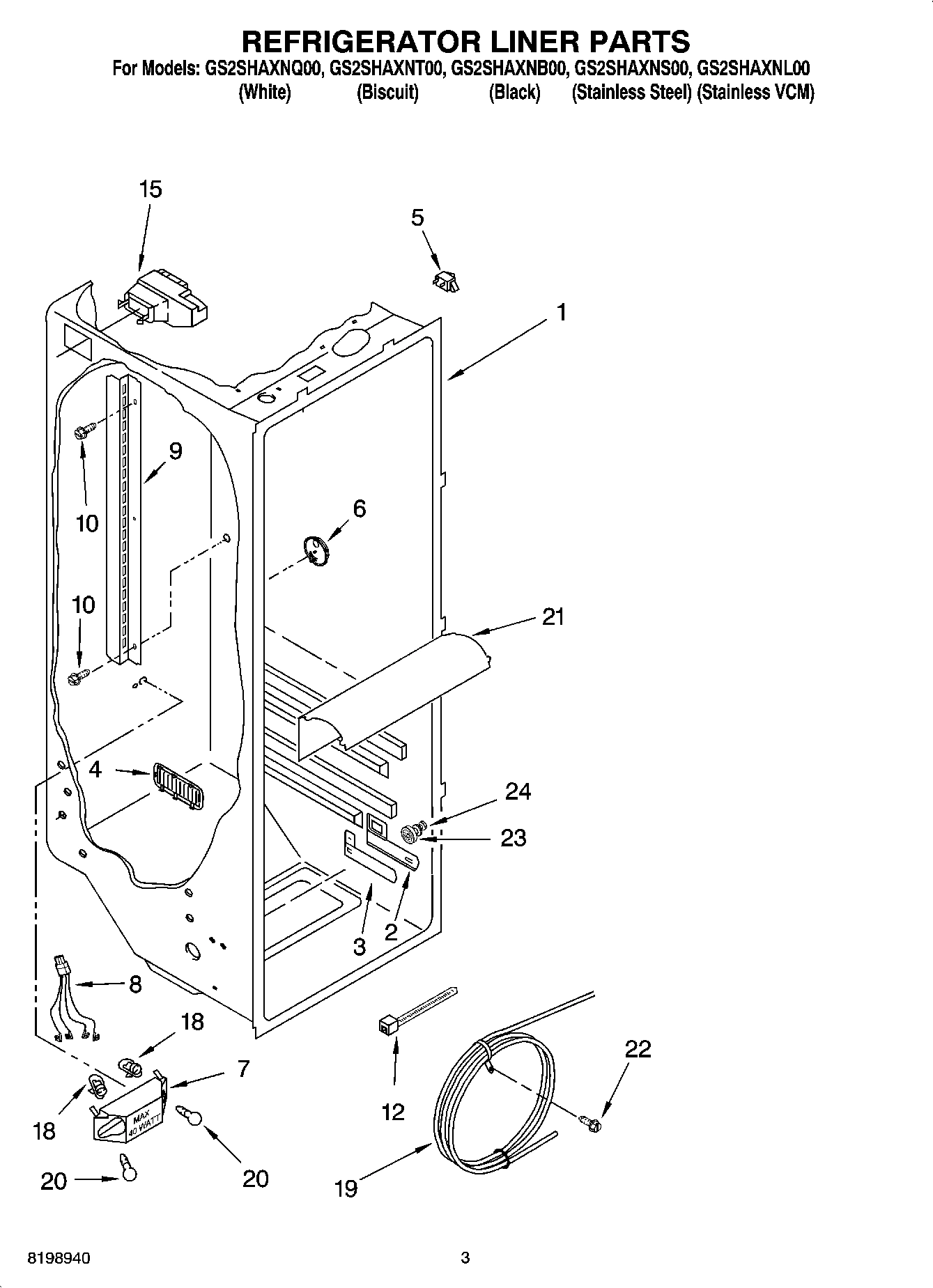

Model Whirlpool GS2SHAXNB00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

KIT, FOAM SLAB (30`` WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Control Box WPL 2255222 Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Black) WPL 2255533B Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Stainles WPL 2255533LB Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Stainles WPL 2255533SB Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Biscuit) WPL 2255533T Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (White) WPL 2255533W Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2261763B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2261763LB Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2261763SB Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2261763T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2261763W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Shield WPL 2255991 Contact Us For Availability

2

Door Compartment WPL 2255420 Contact Us For Availability

2

Handle, Center (Black) WPL 2255517B Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2255517T Contact Us For Availability

2

Handle, Center (White) WPL 2255517W Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Dairy Door WPL 2255421 Contact Us For Availability

4

WP2318736 Whirlpool Refrigerator Door Trim Backorder WPL WP2318736 $43.57

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 3400972 Contact Us For Availability

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Glass, Cover WPL 2223591 Contact Us For Availability

5

Foam, Shield WPL 2261329 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2156021 Whirlpool Refrigerator Door Trim Backorder WPL WP2156021 $41.96

6

Glass, Cover WPL 2223714 Contact Us For Availability

6

Electronic Control WPL 2303805 Contact Us For Availability

6

Door Bin (2) WPL 2223239 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.91

8

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.91

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $140.76

8

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $156.14

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

9

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

9

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $13.05

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Grille, Overflow (Black) WPL 2207048B Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

9

Shield, Electrical WPL 2261232 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Shield, Electrical WPL 2261231 Contact Us For Availability

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.98

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Relay (Service Only) WPL 2183454 Contact Us For Availability

Cam Assembly WPL 2255226 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

Nameplate WPL 2220214 Contact Us For Availability

Bearing Body WPL 2255413 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $54.68

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

Light Lens WPL 2255225 Contact Us For Availability

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Pivot Arm WPL 2255227 Contact Us For Availability

Trivet, Tilt Out (2) WPL 2223472 Contact Us For Availability

16

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

16

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.19

16

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $68.49

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $37.70

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $29.06

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

Frame, Can Rack WPL 2255422 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Floor, Can Rack WPL 2255423 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Control Box Harness WPL 2255235 Contact Us For Availability

Basket, Tilt Out (2) WPL 2223473 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

SCREW WPL 8533920 Contact Us For Availability

Air Diffuser Asm WPL 2255424 Contact Us For Availability

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $195.78

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $17.39

Shelf, Slide Out WPL 2255160 Contact Us For Availability

Shield, Heat WPL 2255666 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Bracket, Insert WPL 2216997 Contact Us For Availability

Connecting Rod WPL 2255228 Contact Us For Availability

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $83.11

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Fastener, Push-On WPL 489285 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

Escutcheon, Control Box WPL 2255611 Contact Us For Availability

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

Shield, Ice Door WPL 987121 Contact Us For Availability

Harness, Unit WPL 2187749 Contact Us For Availability

Knob, RC WPL 2255232 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

Sleeve, Mechanism Display WPL 2252127 Contact Us For Availability

Knob, FC WPL 2255992 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.92

Slide, Ice Maker WPL 2212321 Contact Us For Availability

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Electronic Control WPL 2252189 Contact Us For Availability

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.97

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

31

Control Box WPL 2255623 Contact Us For Availability

31

Air Seal, Thermistor WPL 2261265 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $122.27

32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

Nut, Hex WPL 3400971 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

34

Clip WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

36

Cover WPL 2255624 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

Clip, Retaining WPL 2255199 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

50

Guard, Fan WPL 2186496 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

W10169512 Whirlpool Clip Backorder WPL W10169512 $27.52

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $24.61

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

WPL 978029 WPL 978029 Contact Us For Availability

VALVE, ACCE WPL 978028 Contact Us For Availability

WPL ARI69503A5 WPL ARI69503A5 Contact Us For Availability

WPL ARI69504A1 WPL ARI69504A1 Contact Us For Availability

WPL ARI69505A6 WPL ARI69505A6 Contact Us For Availability
