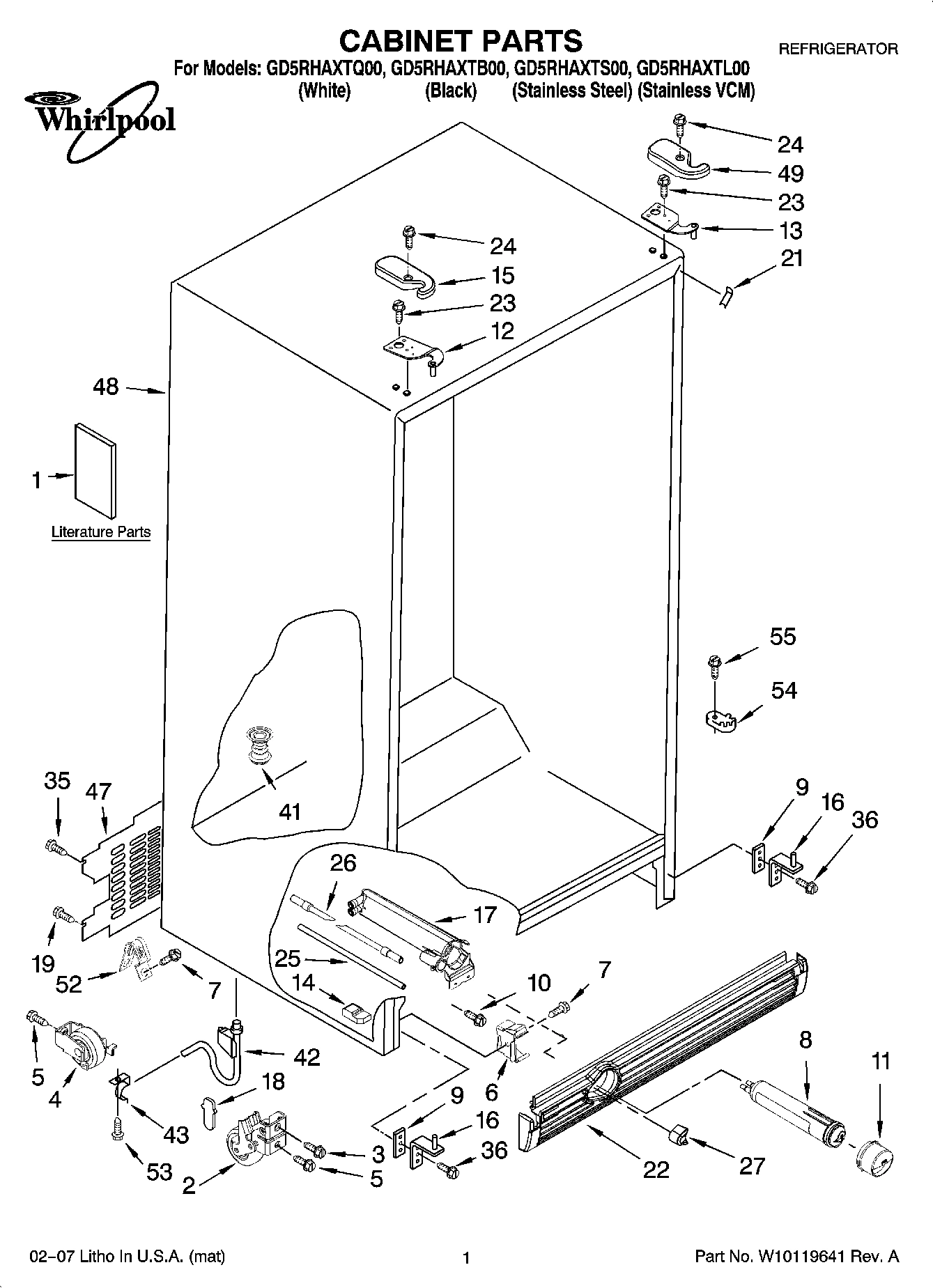

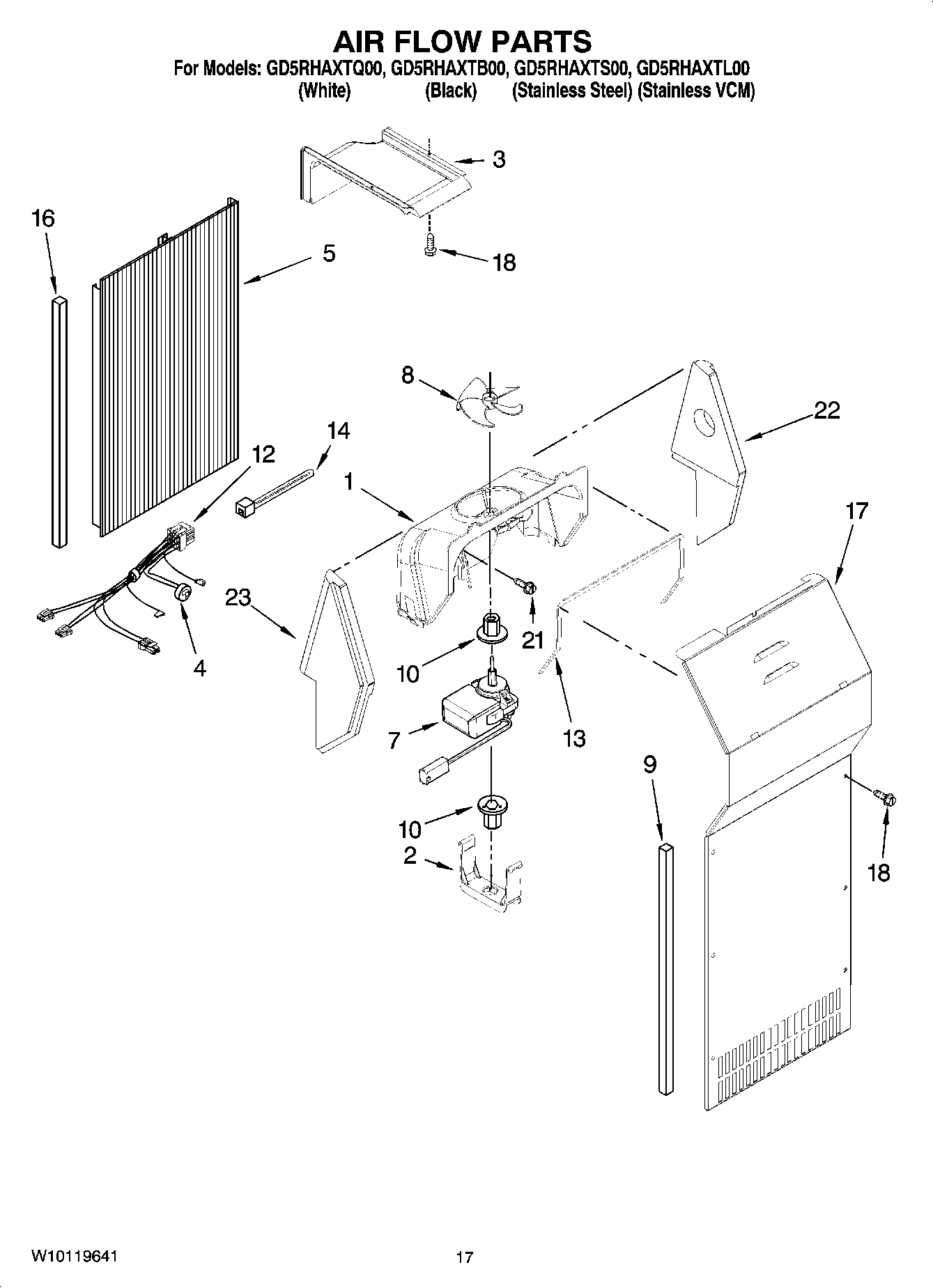

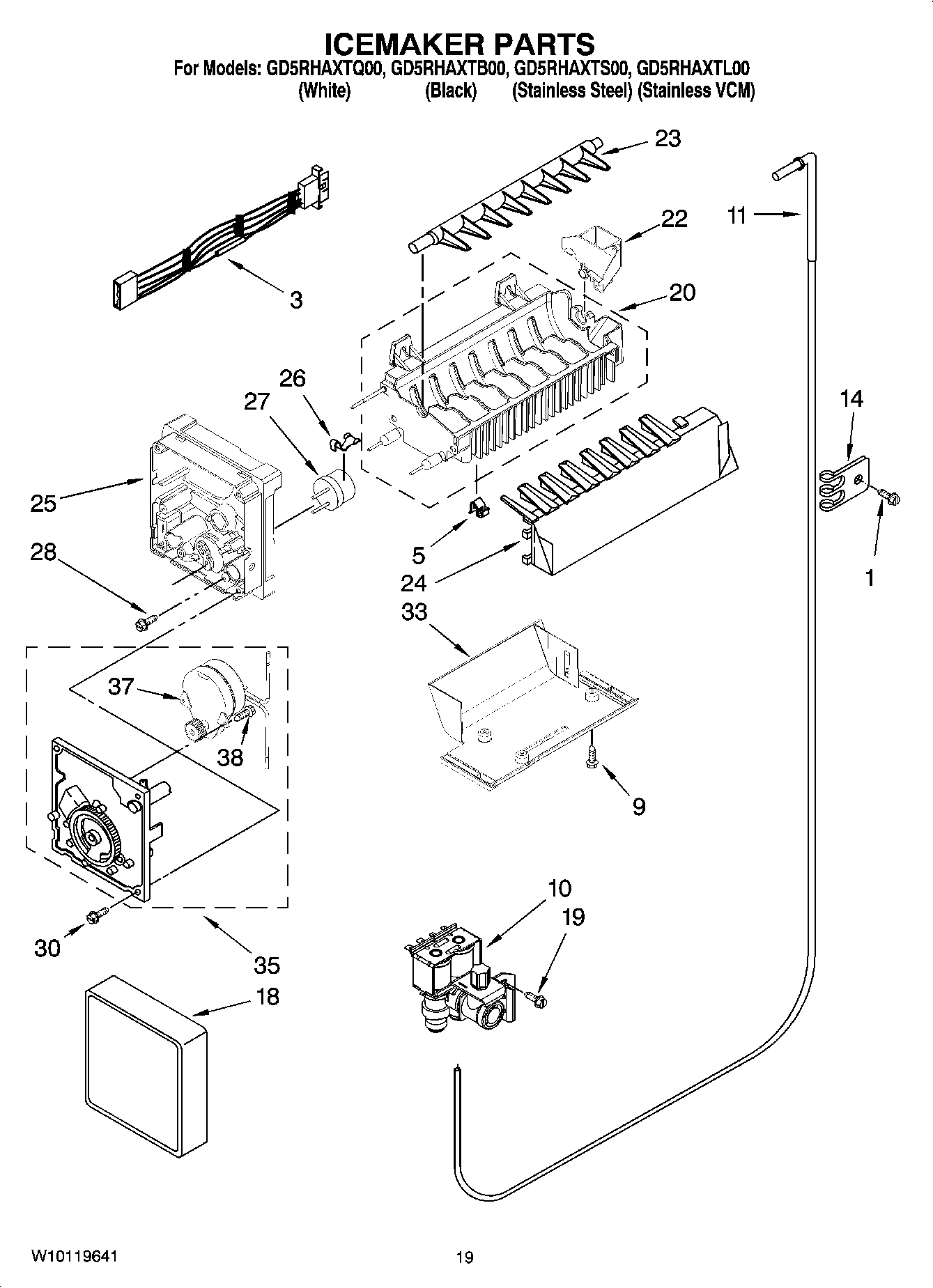

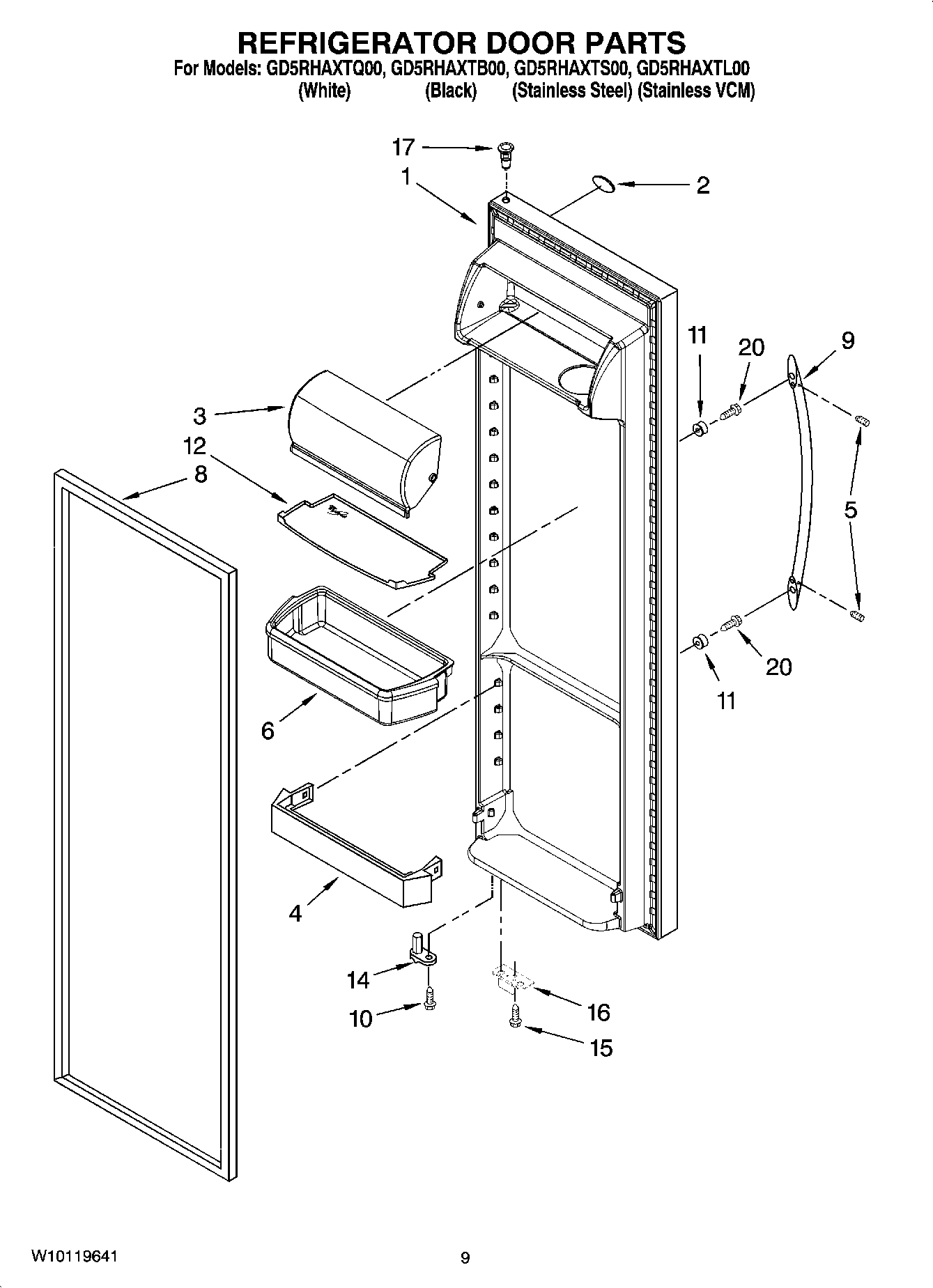

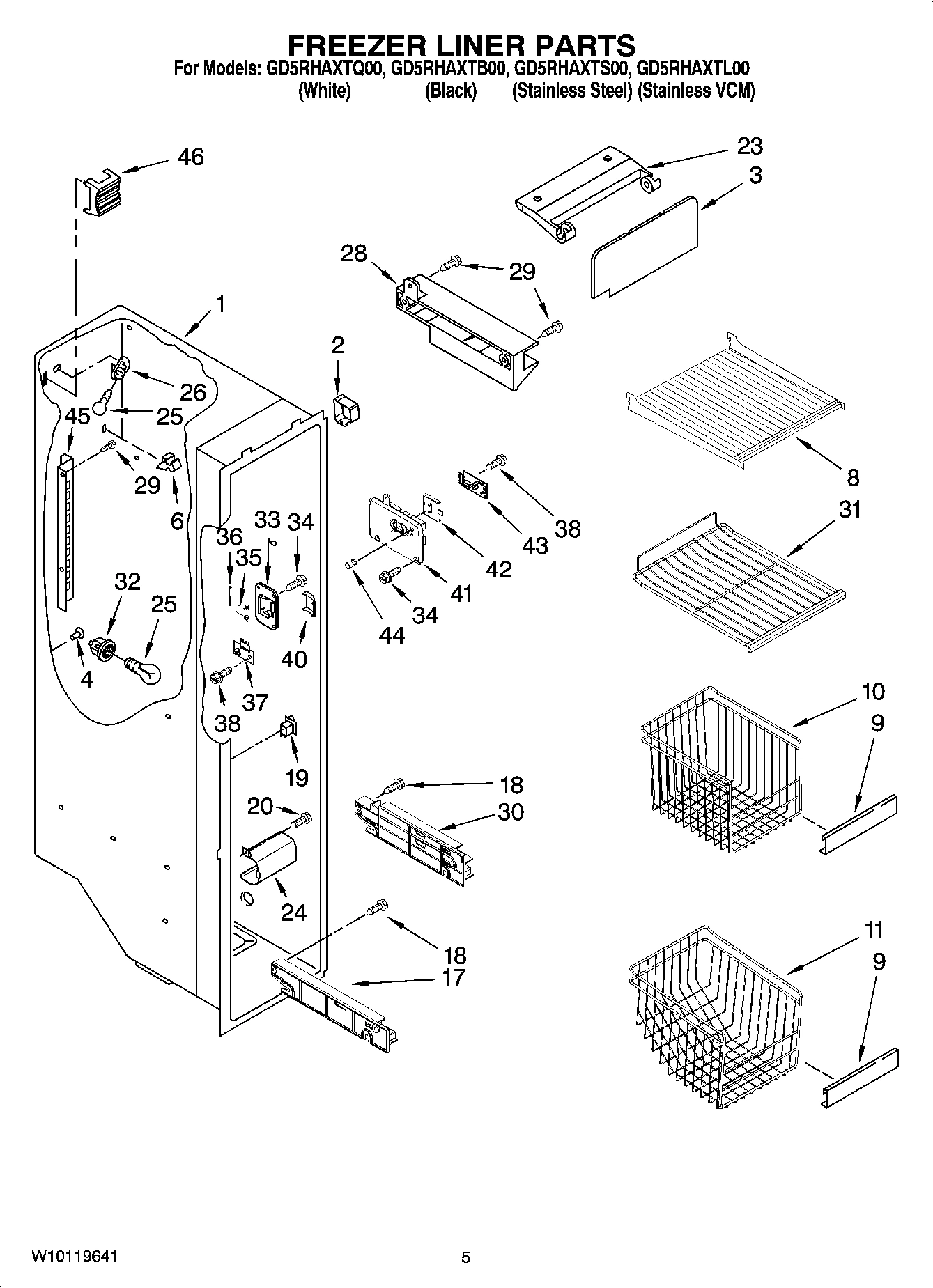

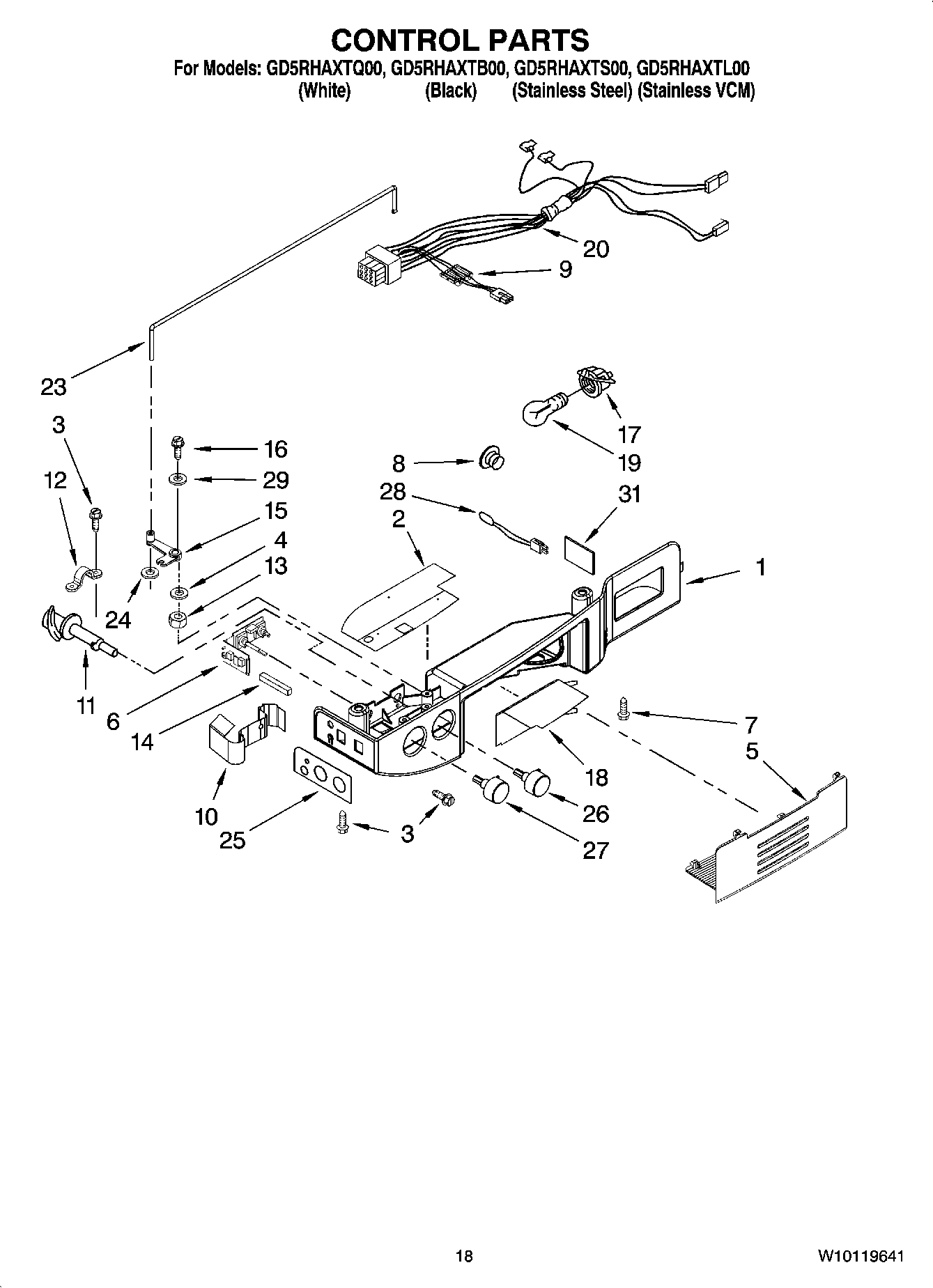

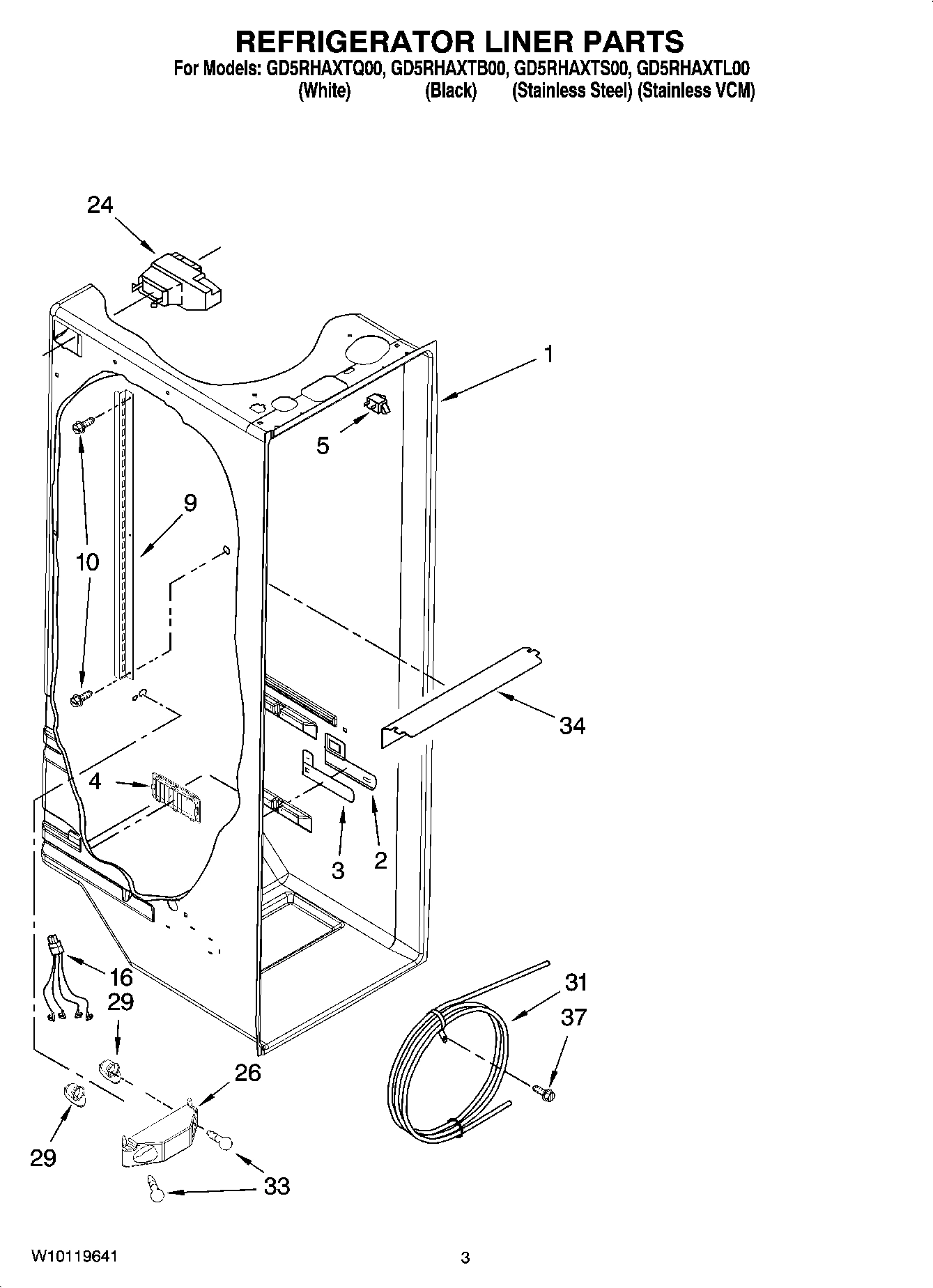

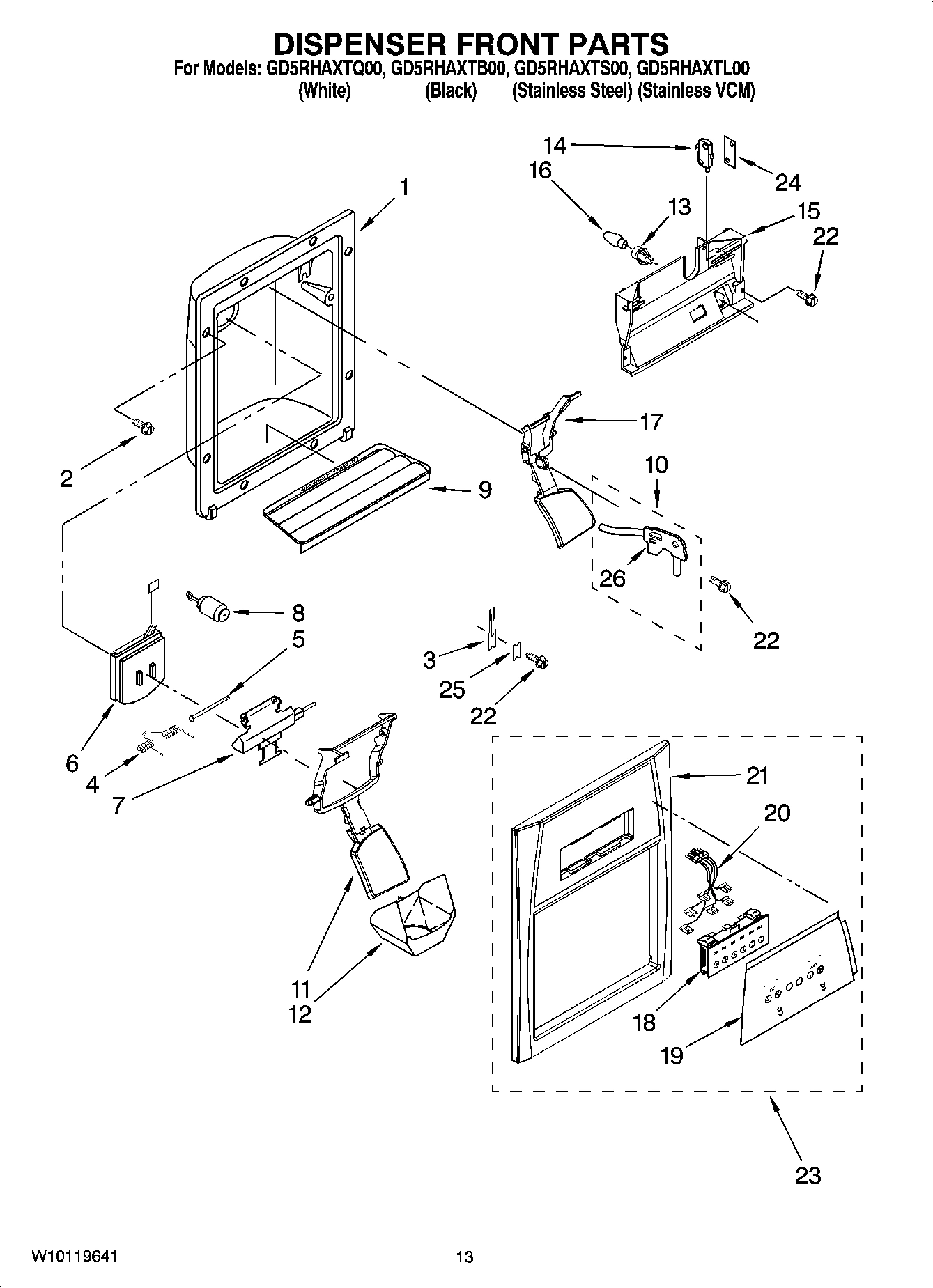

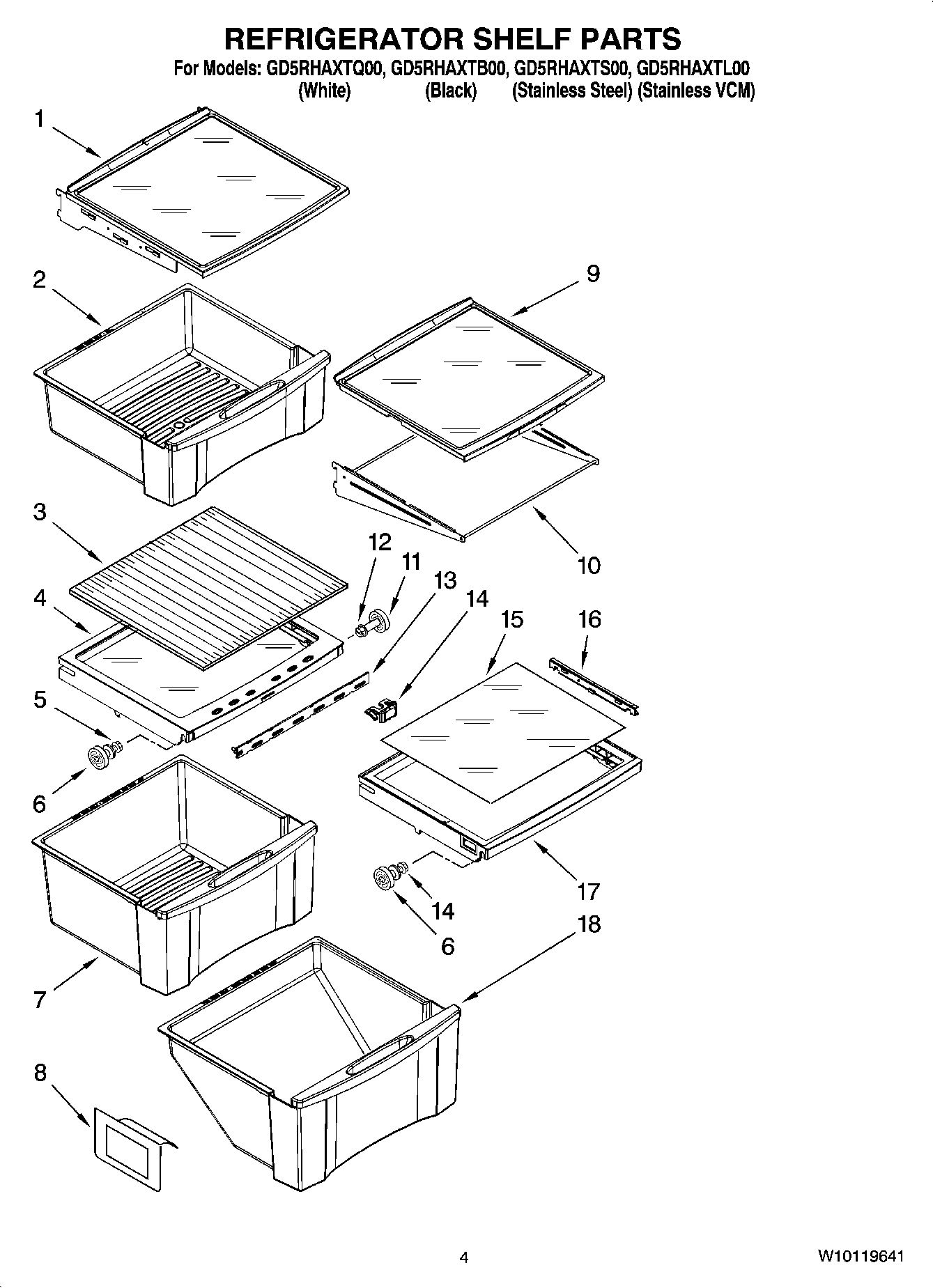

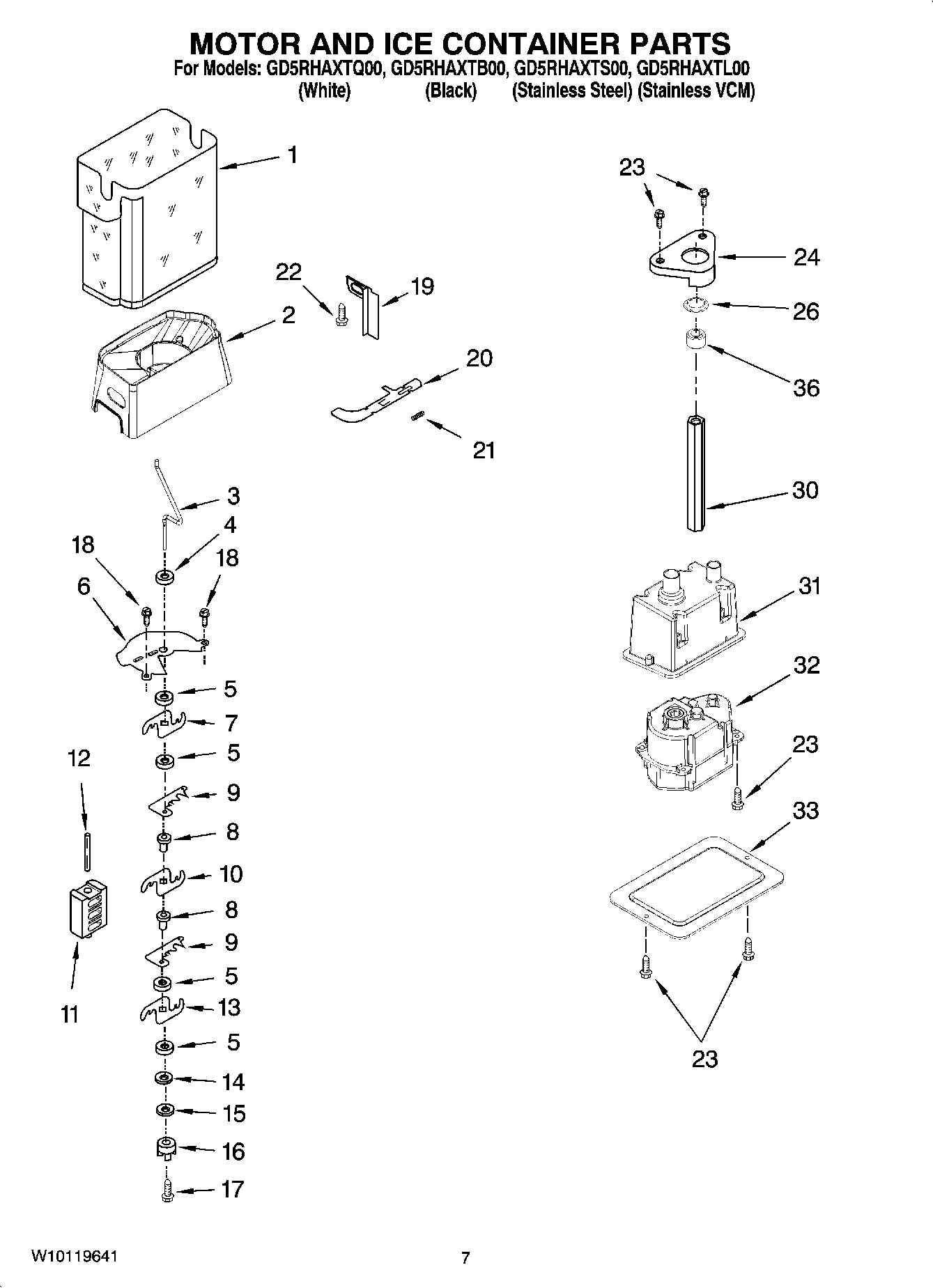

Model Whirlpool GD5RHAXTL00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $130.88

1

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $271.15

1

Housing Dispenser (Not Serviced) WPL ARI63849A1 Contact Us For Availability

1

Instruction Sheet, Door Removal Service Sheet WPL 2216001 Contact Us For Availability

1

Modular Icemaker WPL 2220407 Contact Us For Availability

1

Service & Wiring Sheet WPL 2255774 Contact Us For Availability

1

Use & Care Guide WPL 2318584 Contact Us For Availability

1

Energy Guide WPL 2326312 Contact Us For Availability

1

Control Box WPL 2255222 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Nameplate WPL 2220214 Contact Us For Availability

2

Front Roller (2) WPL 2254628 Contact Us For Availability

2

Shield WPL 2261773 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $124.94

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Washer WPL 3400972 Contact Us For Availability

5

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Lens, Light WPL 2255225 Contact Us For Availability

6

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Electronic Control WPL 2304102 Contact Us For Availability

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

7

Thimble-Top (For Stainless Steel Model) WPL 2301049 Contact Us For Availability

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Ladder, Shelf WPL 2319866 Contact Us For Availability

9

Shelf, Slide Out WPL 2255160 Contact Us For Availability

9

Ferrite Bead WPL 2308165 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Shield, Electrical (Internal) WPL 2305538 Contact Us For Availability

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $53.09

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $59.35

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

Block, Blade WPL 2198602 Contact Us For Availability

Cam Assembly WPL 2255226 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

Mat, Bin (2) WPL 2223464K Contact Us For Availability

Bearing Body WPL 2255413 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $46.04

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

Nut, Hex WPL 3400971 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Block, Housing Support WPL 2260519 Contact Us For Availability

Foam, Shield WPL 2188928 Contact Us For Availability

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Glass, Meat Cover WPL 2223714 Contact Us For Availability

Pivot Arm WPL 2255227 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $59.55

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $35.94

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

Slide, Basket (Right Side) WPL 2301289 Contact Us For Availability

Slide, Basket (Left Side) WPL 2301290 Contact Us For Availability

Thimble-Top (For Stainless Steel Model) WPL 2308050 Contact Us For Availability

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Switch Assembly (Not Available Order 23) WPL ARI63850A7 Contact Us For Availability

Flapper, Drain Extension WPL 2172957 Contact Us For Availability

Shield, Heat WPL 2255666 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Not Available, Order 23 WPL ARI63851A7 Contact Us For Availability

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $41.71

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Box, Control WPL 2255623 Contact Us For Availability

Control Box Harness WPL 2187965 Contact Us For Availability

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI63852A7 Contact Us For Availability

Filler, Wrapper (Black) WPL 2304848 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $58.37

WPW10311033 Whirlpool Refrigerator Grille Backorder WPL WPW10311033 $74.68

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2326383B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2326383W Contact Us For Availability

Connecting Rod WPL 2255228 Contact Us For Availability

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastner, Push-On WPL 489285 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $39.91

25

Overlay, Control Box WPL 2261334 Contact Us For Availability

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $25.33

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Knob, RC WPL 2255232 Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Knob, FC WPL 2255992 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $17.24

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

31

Air Seal, Thermistor WPL 2261265 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

33

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $26.70

36

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

40

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

42

Extension Tube WPL 2172932 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

47

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $67.78

48

Cabinet, (Not A Serviceable Part) WPL ARI63846A8 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $88.79
