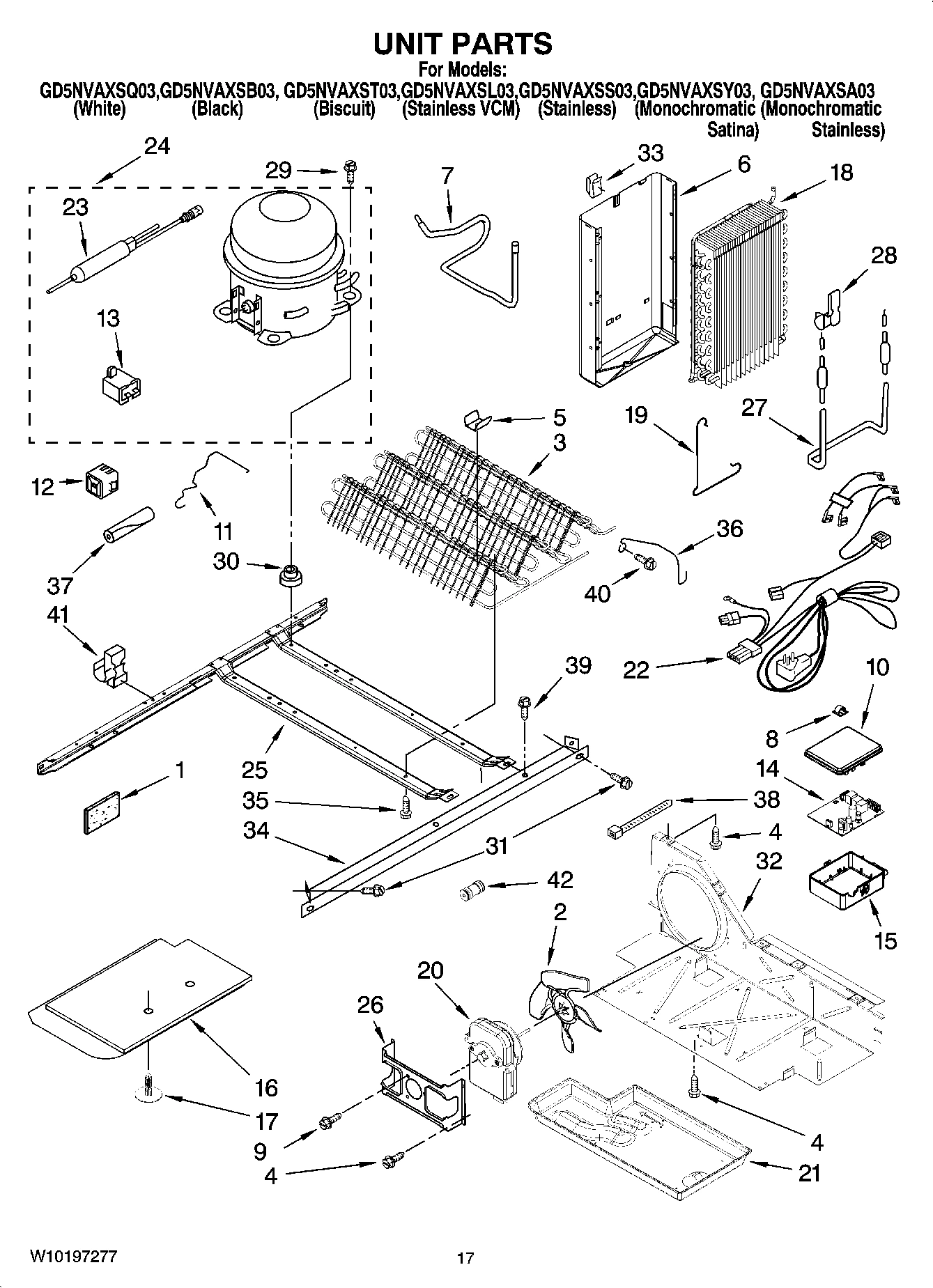

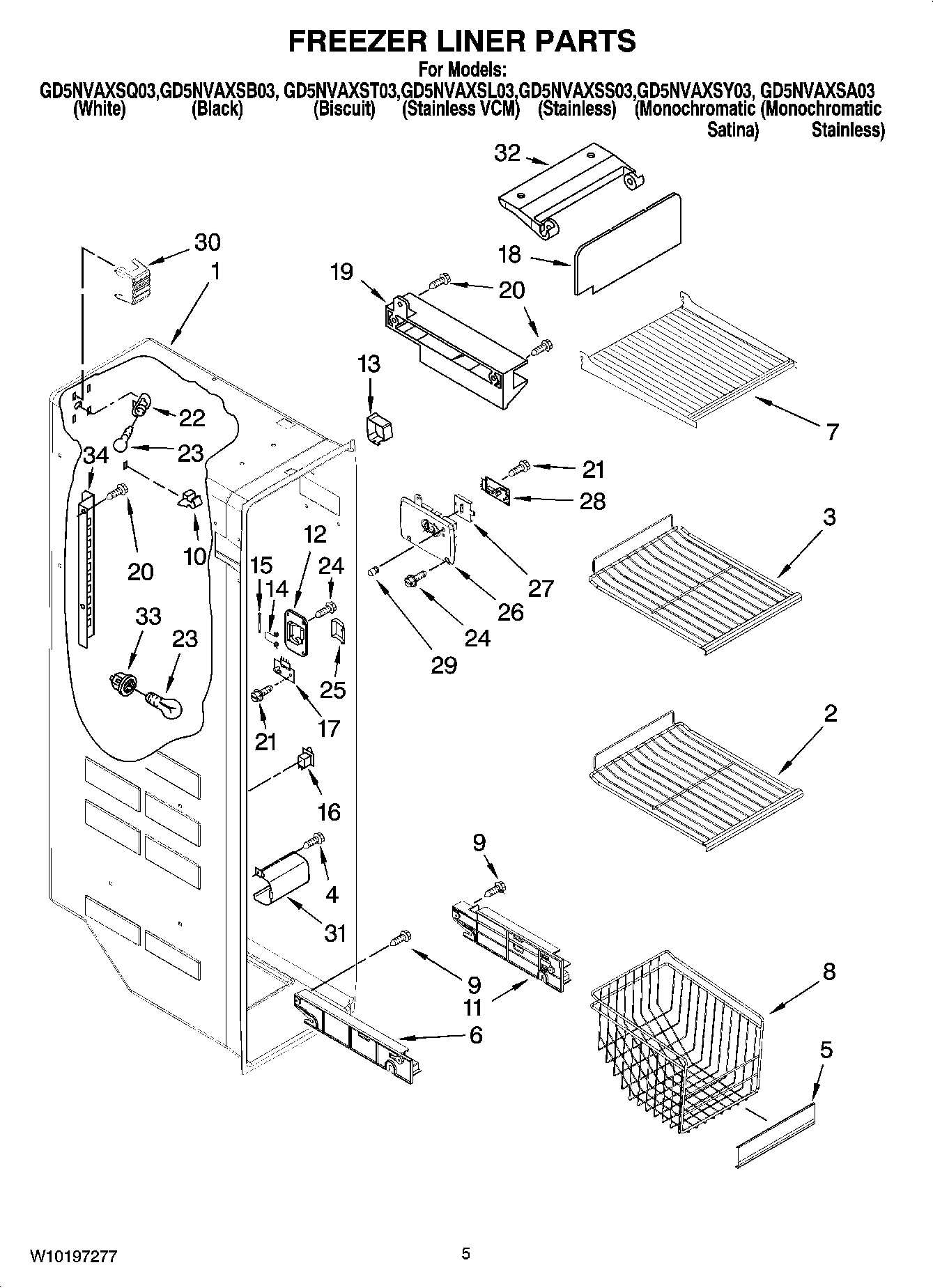

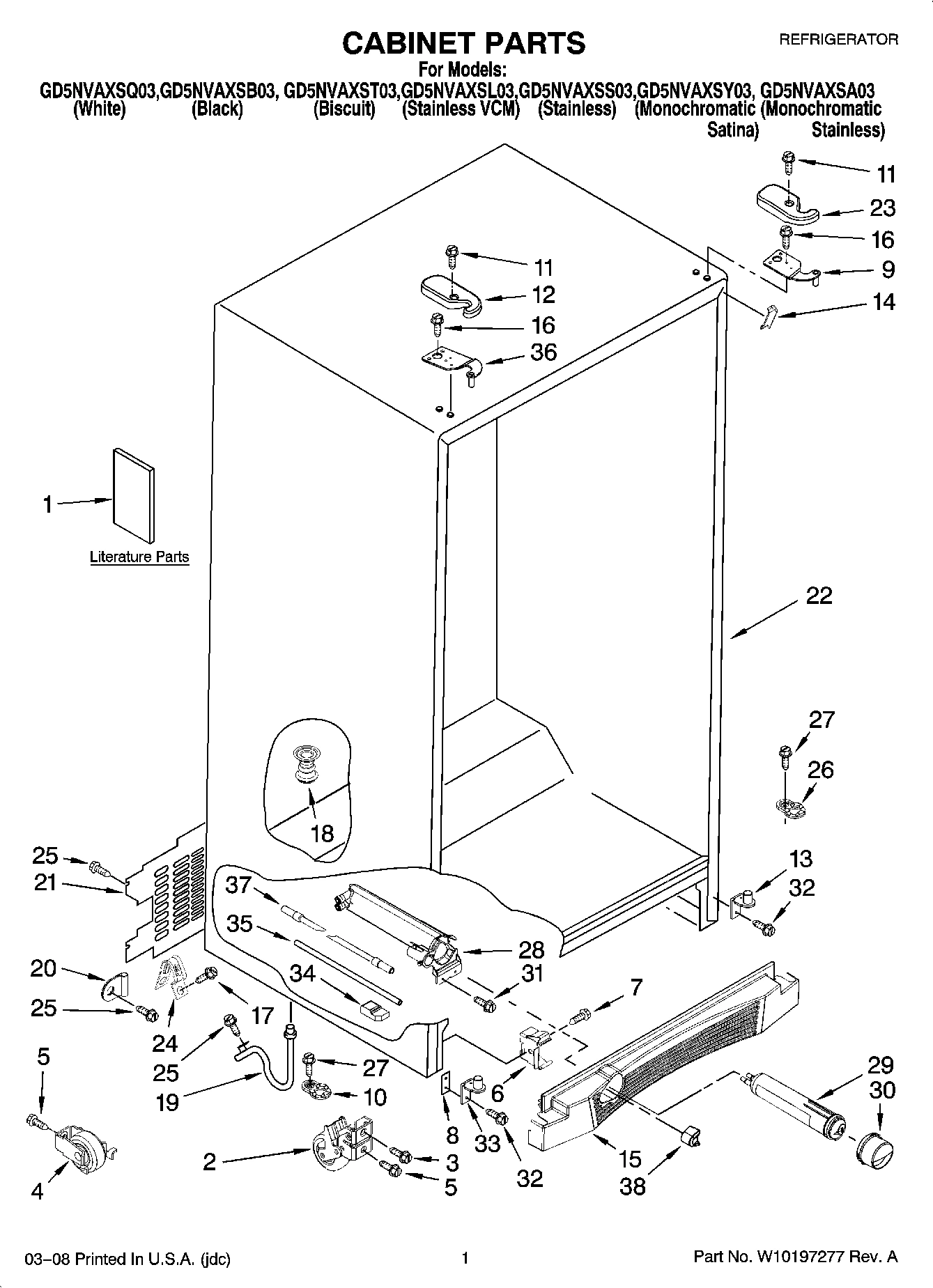

Model Whirlpool GD5NVAXSA03 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI63134A8 Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134A) WPL ARI63135A9 Contact Us For Availability

1

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

Fitting, Water Tube WPL 2303216 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI63129A7 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Black) WPL 2319730B Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Mono Sta WPL 2319730LAP Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2319730LG Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Mono Sat WPL 2319730SAP Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2319730SB Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2319730T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2319730W Contact Us For Availability

2

2305219 Whirlpool Refrigerator Cover Backorder WPL 2305219 $28.80

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

Front Roller (2) WPL 4386774 Contact Us For Availability

2

Dairy Door WPL 2255421 Contact Us For Availability

2

Shelf, Slide Out (Lower) WPL 2211746K Contact Us For Availability

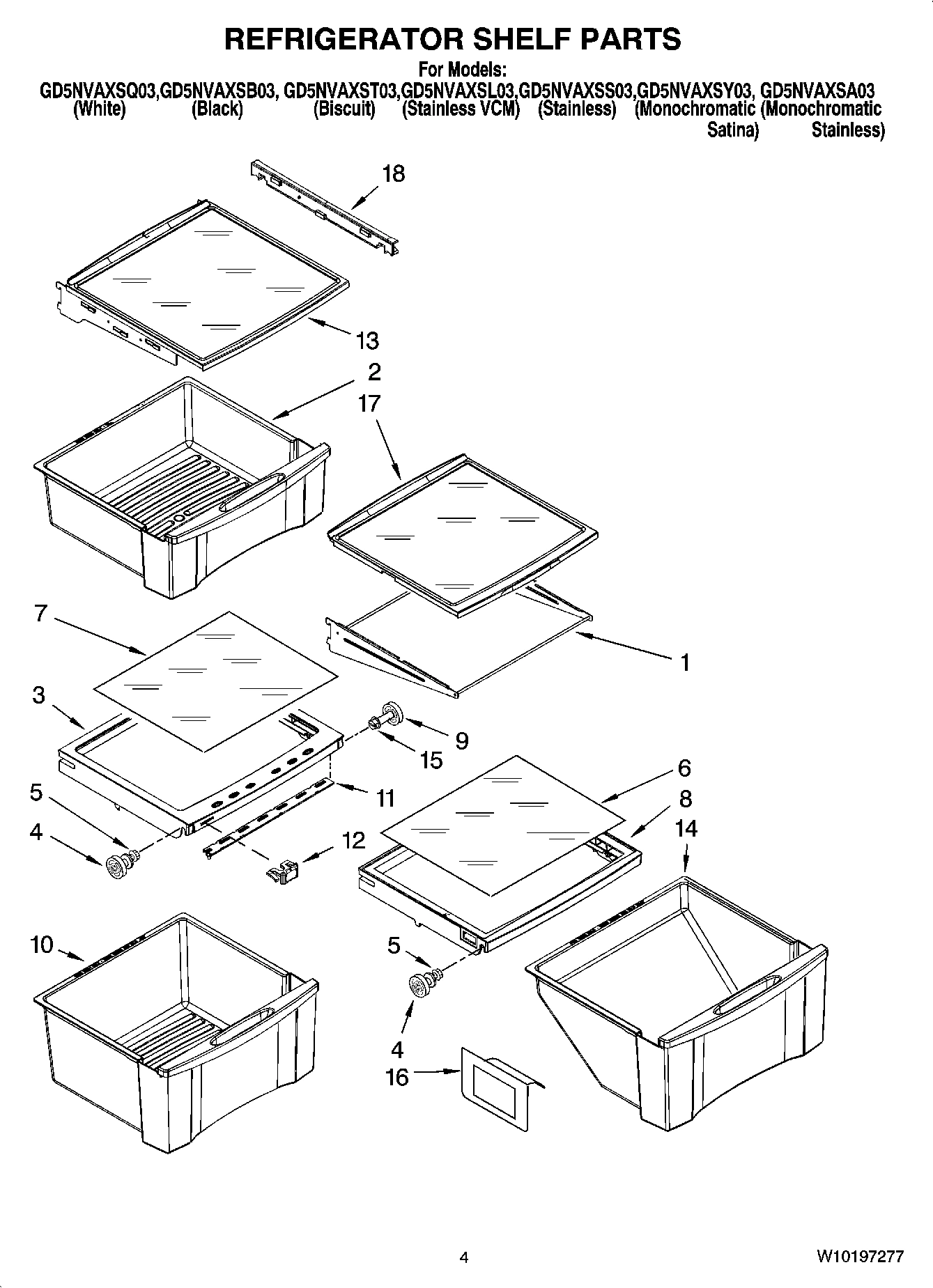

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $79.82

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $37.95

3

WPW10317556 Whirlpool Refrigerator Wire Shelf Backorder WPL WPW10317556 $62.06

3

Door Bin (3) WPL 2223239K Contact Us For Availability

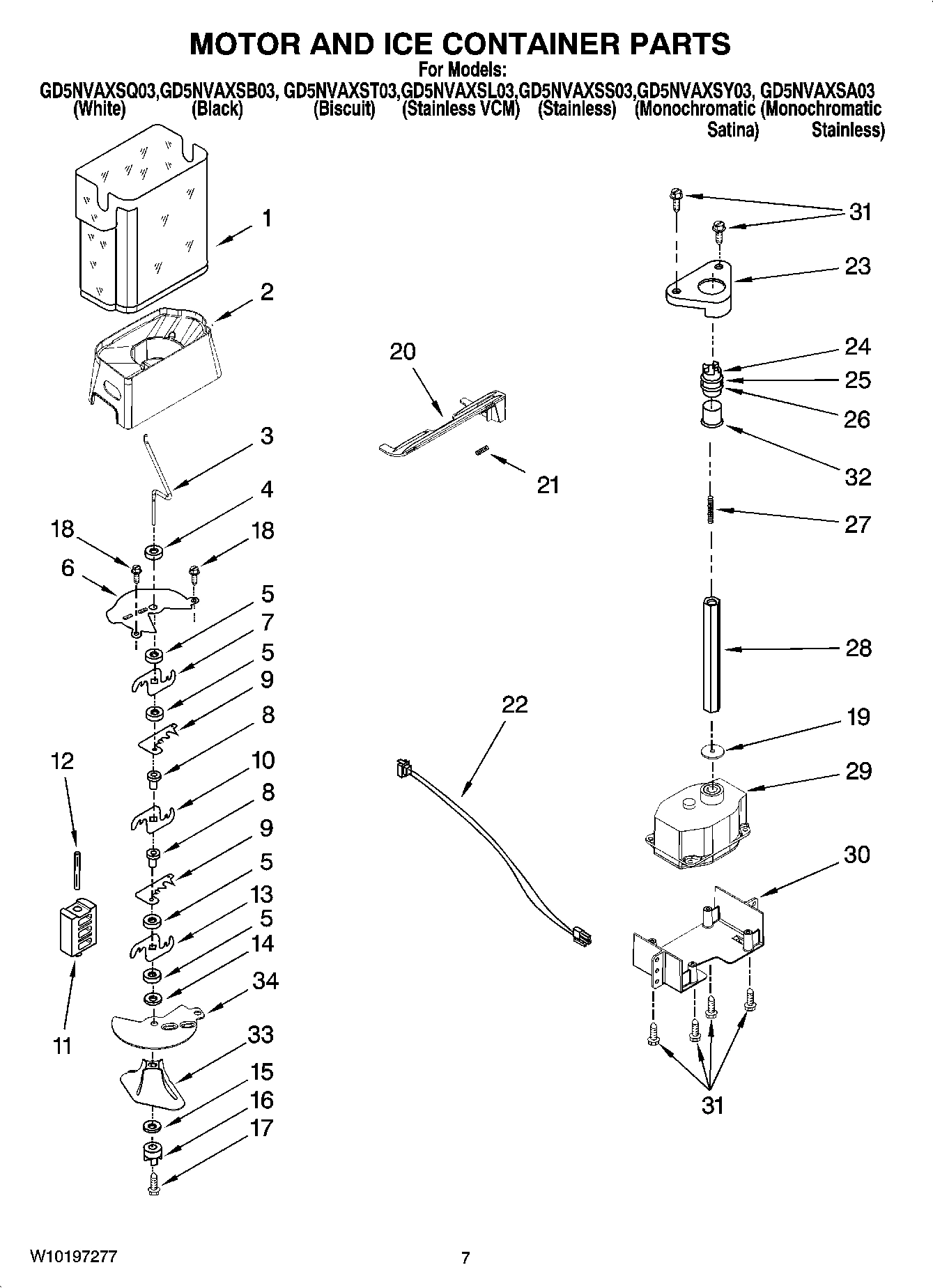

4

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

4

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $30.40

4

WPW10159839 Whirlpool Refrigerator Inlet Valv In Stock WPL WPW10159839 $167.30

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer, Auger WPL 2258220 Contact Us For Availability

4

Air Duct Freezer WPL 2198580 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

5

Trim, Basket WPL 2195905K Contact Us For Availability

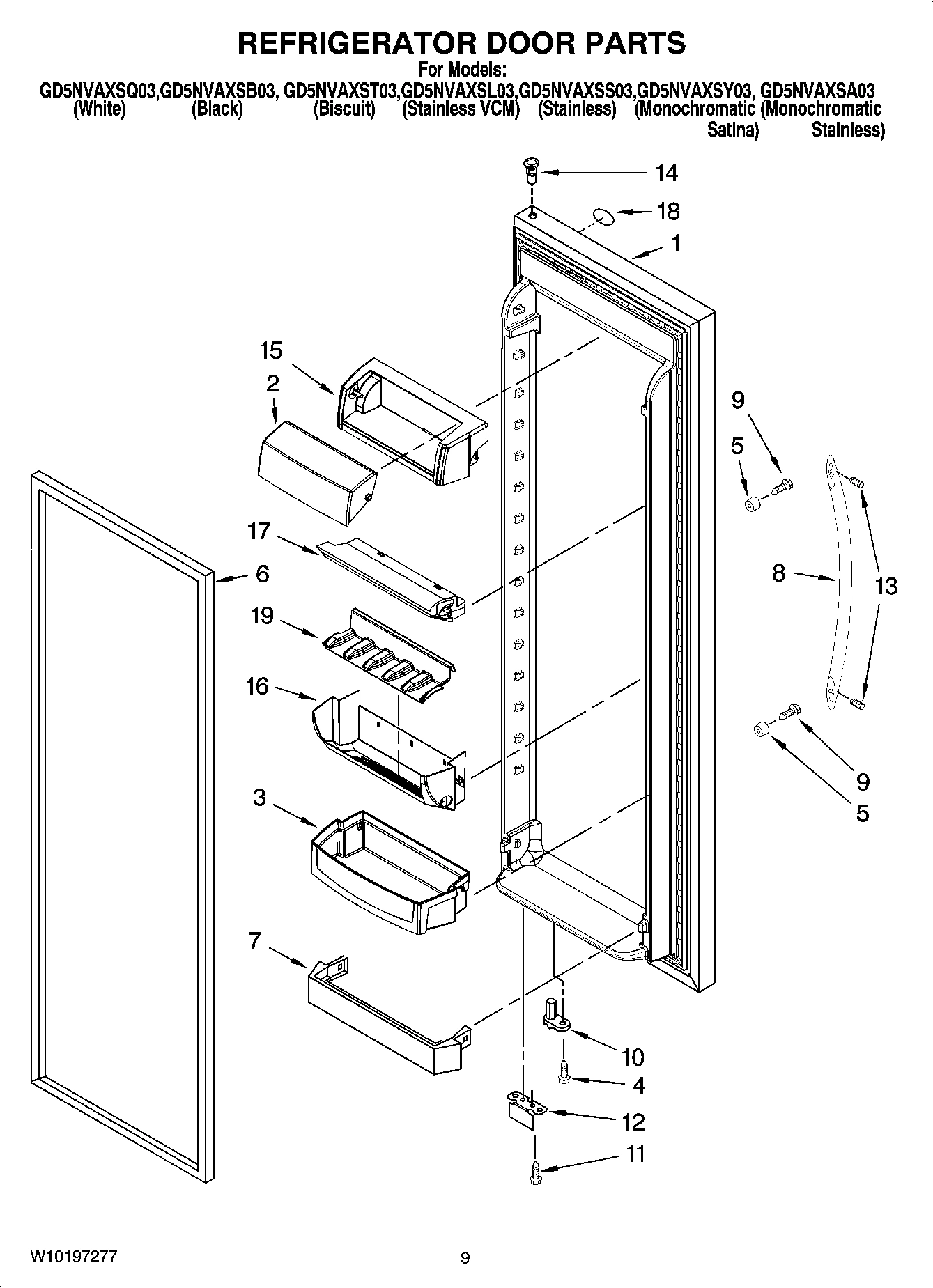

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2305258 Whirlpool Dispenser Door Assembly Backorder WPL WP2305258 $7.69

6

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $134.84

6

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

6

WPW10136734 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10136734 $121.32

6

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

6

Electronic Control WPL 2304103 Contact Us For Availability

6

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

6

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

6

Glass, Meat Cover WPL 2223714 Contact Us For Availability

6

Heat Shield And Drain Pan WPL 2217194 Contact Us For Availability

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

7

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

7

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $124.94

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $27.69

7

WP2318736 Whirlpool Refrigerator Door Trim Backorder WPL WP2318736 $41.50

7

Shelf Ladder WPL 2319866 Contact Us For Availability

7

Shelf (2) WPL 2205837K Contact Us For Availability

8

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2254600B Whirlpool Refrigerator Handle Backorder WPL WP2254600B $108.69

8

WP2254600W Whirlpool Refrigerator Handle Backorder WPL WP2254600W $148.33

8

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $26.21

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

Basket, Sloped WPL 2301191 Contact Us For Availability

8

Handle (Includes 13) (Stainless) WPL 2254600S Contact Us For Availability

8

Handle (Includes 13) (Biscuit) WPL 2254600T Contact Us For Availability

9

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

9

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

9

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

9

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

9

Blade, Fixed WPL 2257020 Contact Us For Availability

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

W10846218 Whirlpool Refrigerator Door Cam Backorder WPL W10846218 $7.80

W11225843 Whirlpool Refrigerator Wire Harness Backorder WPL W11225843 $61.67

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $48.73

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Cover WPL W10133000 Contact Us For Availability

2223314 Whirlpool Refrigerator Clip Backorder WPL 2223314 $8.31

2301291 Whirlpool Refrigerator Track Backorder WPL 2301291 $63.66

2301292 Whirlpool Refrigerator Track Backorder WPL 2301292 $64.89

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $59.55

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $28.80

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $29.81

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $271.15

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Cover, Evaporator (Includes 9) WPL 2206314 Contact Us For Availability

Electronic Control WPL 2304078 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

Control Box WPL 2255623 Contact Us For Availability

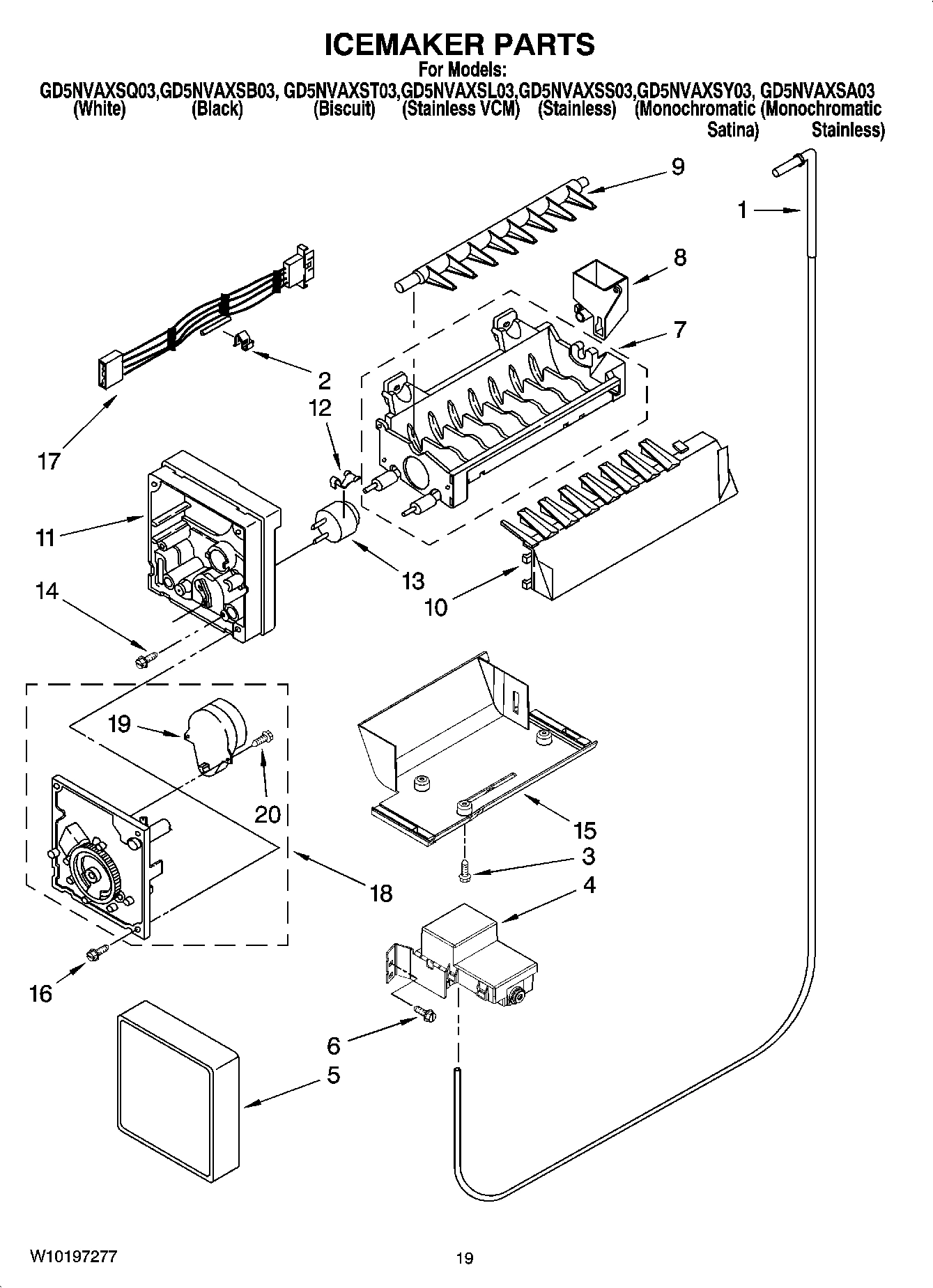

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Door Compartment WPL 2255420 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

Cover Assembly, Electronic Control WPL 2304170 Contact Us For Availability

Frame, Can Rack WPL 2255422 Contact Us For Availability

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Shelf, Slide Out (2) WPL 2255160 Contact Us For Availability

Air Diffuser Asm WPL 2255424 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $41.05

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Nameplate WPL 2220214 Contact Us For Availability

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $4.19

Extension Tube WPL 2304937 Contact Us For Availability

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

Floor, Can Rack WPL 2255423 Contact Us For Availability

20

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

20

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

Front Cover Assembly (Includes Items 15, 16, WPL 2305422US Contact Us For Availability

Front Cover Assembly (Includes Items 15, 1 WPL 2305422W Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W10178851 Whirlpool Refrigerator Jumper Wire Backorder WPL W10178851 $80.96

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

Harness, Unit WPL 2187817 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

Holder WPL 2212369 Contact Us For Availability

W10139460 Whirlpool Refrigerator Compressor In Stock WPL W10139460 $276.71

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

Fastener, Push-On WPL 489285 Contact Us For Availability

25

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

25

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

25

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

26

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

26

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

26

Cover, Receiver WPL W10173569 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

Knob, FC WPL 2255992 Contact Us For Availability

28

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

28

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $17.24

28

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $88.31

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

29

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

29

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $115.68

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $27.21

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

Bracket, Motor WPL 2305208 Contact Us For Availability

Light Shield WPL 2198589 Contact Us For Availability

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Light Lens WPL 2212340 Contact Us For Availability

32

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

32

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

32

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

33

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

33

Clip, Heat WPL 2155547 Contact Us For Availability

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

Ladder (Left Side) WPL 2198609 Contact Us For Availability

Ladder (Right Side) WPL 2198610 Contact Us For Availability

35

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

36

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $26.21

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

37

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

38

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

38

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

38

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

39

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

40

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

41

W10169512 Whirlpool Clip Backorder WPL W10169512 $26.21

42

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $13.41
