Model Whirlpool GD5NHAXSQ00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Gra WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

Control Box WPL 2255222 Contact Us For Availability

1

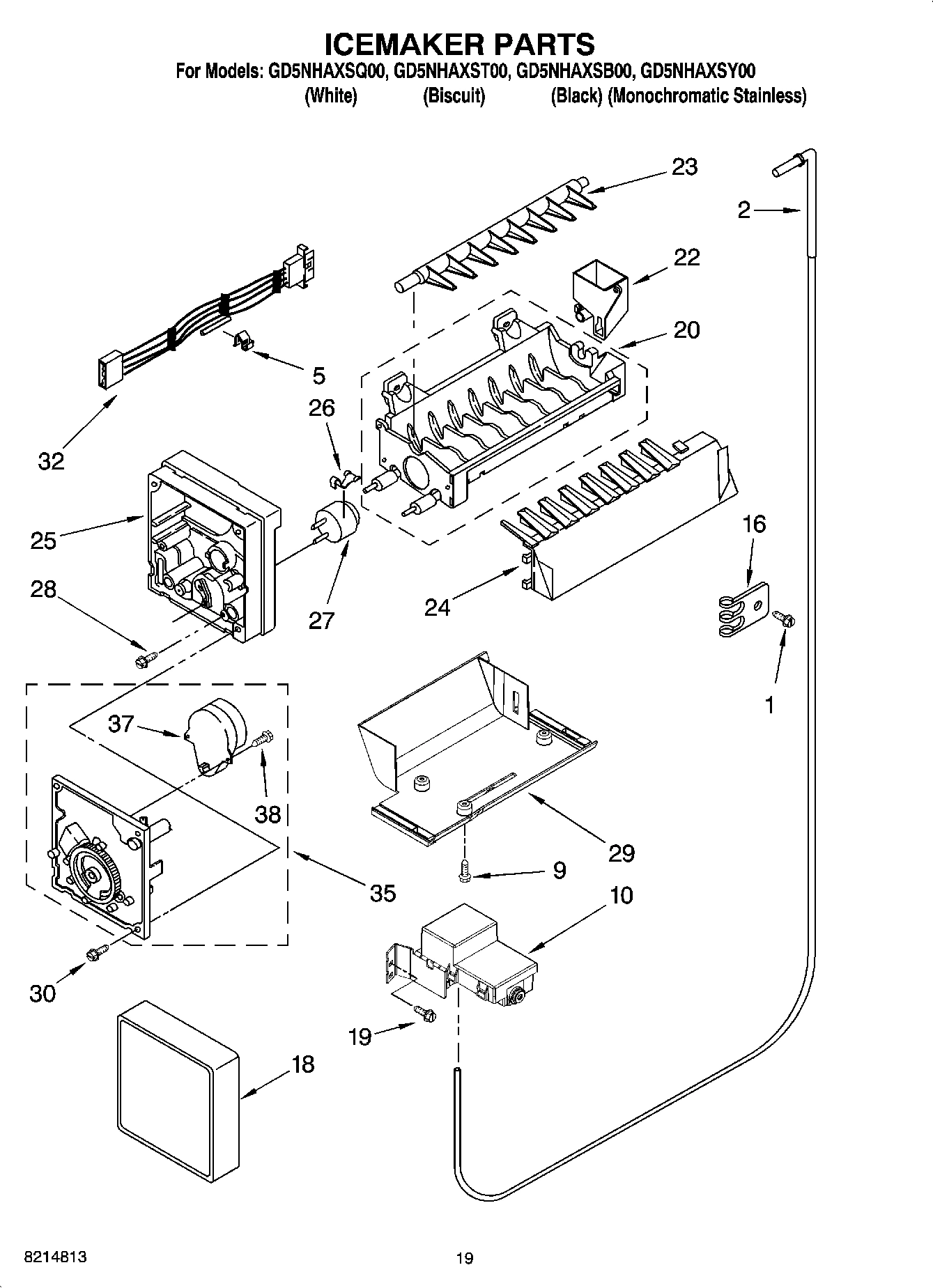

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

Service Sheet WPL 2303909 Contact Us For Availability

1

Wiring Sheet WPL 2303927 Contact Us For Availability

1

Instruction Sheet, Door Removal WPL 2308394 Contact Us For Availability

1

Owner`s Manual WPL 2318505 Contact Us For Availability

1

Energy Guide WPL 2318645 Contact Us For Availability

1

Frame Assembly (2) WPL 2223517 Contact Us For Availability

1

Ice Bin WPL 2305336 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $59.35

2

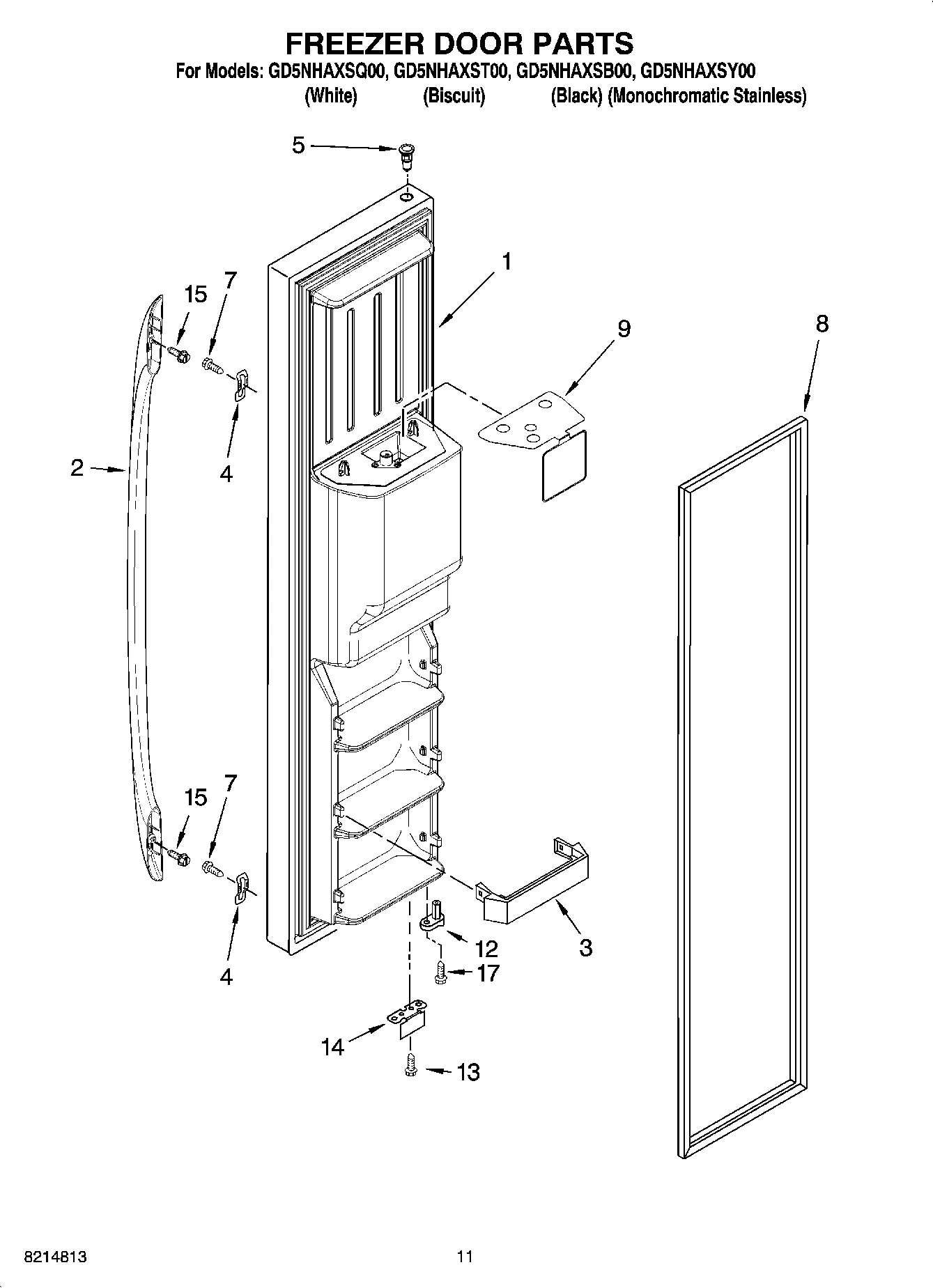

Dairy Door WPL 2255421 Contact Us For Availability

2

Crusher Bin WPL 2305206 Contact Us For Availability

2

Shield WPL 2261773 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Snack Bin Asm WPL 2223261 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $79.82

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $37.95

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

Cover, Crisper WPL 2223592 Contact Us For Availability

4

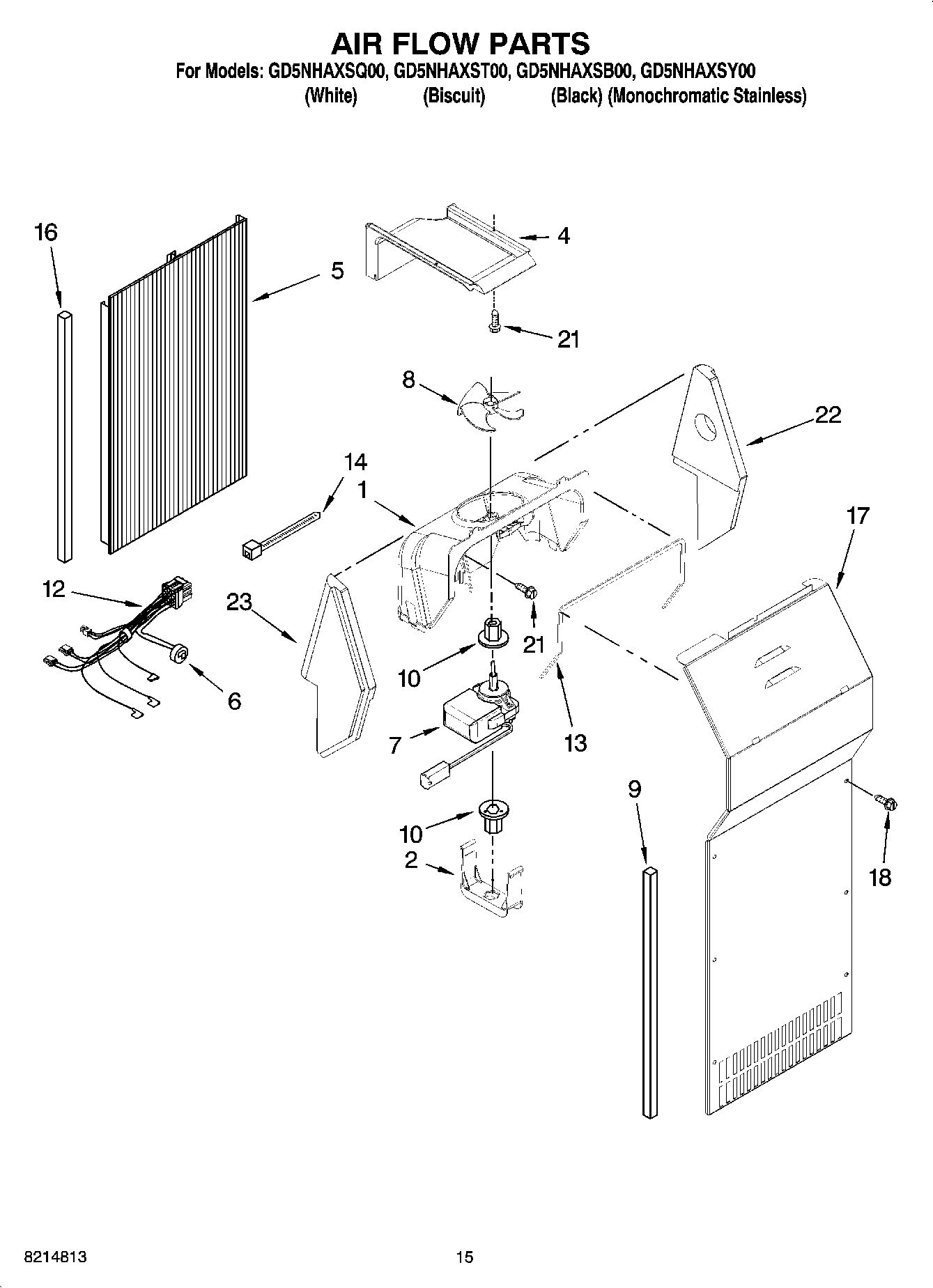

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

4

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $30.40

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer, Auger WPL 2258220 Contact Us For Availability

4

Washer WPL 3400972 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

5

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Lens, Light WPL 2255225 Contact Us For Availability

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2305258 Whirlpool Dispenser Door Assembly Backorder WPL WP2305258 $7.69

6

Electronic Control WPL 2304103 Contact Us For Availability

6

Glass, Meat Cover WPL 2223714 Contact Us For Availability

6

Cover, Crusher WPL 2305244 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

7

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $124.94

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $27.69

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $134.84

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

8

WP2223242 Whirlpool Refrigerator Cover Backorder WPL WP2223242 $209.33

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

9

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shelf Ladder WPL 2319866 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $48.73

WPW10233488 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10233488 $145.34

Shield, Electrical (Internal) WPL 2305538 Contact Us For Availability

Flapper, Drain Extension WPL 2172957 Contact Us For Availability

2223308 Whirlpool Refrigerator Slide Backorder WPL 2223308 $28.80

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Cam Assembly WPL 2255226 Contact Us For Availability

2203407AP Whirlpool Refrigerator Cover Backorder WPL 2203407AP $35.14

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $72.87

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

Bearing Body WPL 2255413 Contact Us For Availability

Knob, Humidity Control WPL 2223309 Contact Us For Availability

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $46.04

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $271.15

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

Nut, Hex WPL 3400971 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Foam, Shield WPL 2188928 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Filler, Wrapper (Apollo Gray) WPL 2315169 Contact Us For Availability

Meat Pan Assembly WPL 2223243 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $58.37

WPW10311033 Whirlpool Refrigerator Grille Backorder WPL WPW10311033 $74.68

SCREW WPL 8533920 Contact Us For Availability

Pivot Arm WPL 2255227 Contact Us For Availability

Grille (Apollo Gray) WPL 2303292AP Contact Us For Availability

Grille (Biscuit) WPL 2303292T Contact Us For Availability

16

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

16

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

16

WP2319792 Whirlpool Refrigerator Start Device In Stock WPL WP2319792 $58.54

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Pad, Ice & Water (For Black Model) WPL 2305247GM Contact Us For Availability

Pad, Ice & Water (For Monochromatic Stainless WPL 2305247MG Contact Us For Availability

Pad, Ice & Water (For Biscuit Model) WPL 2305247WL Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

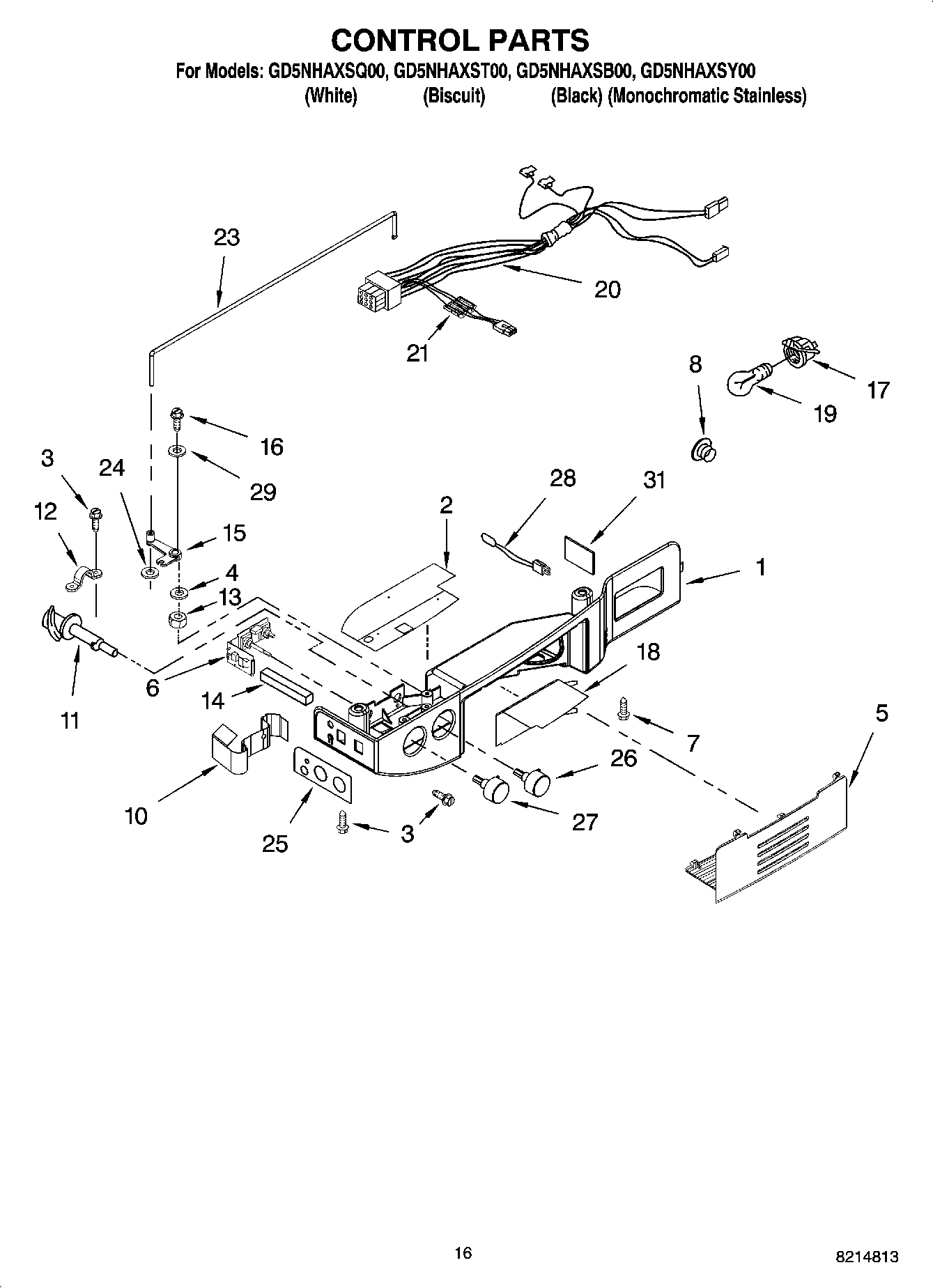

Cover Assembly, Electronic Control WPL 2304170 Contact Us For Availability

Shield, Heat WPL 2255666 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $4.19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $59.78

Control Box WPL 2255623 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI62991A6 Contact Us For Availability

Extension Tube WPL 2172932 Contact Us For Availability

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

Nameplate WPL 2220214 Contact Us For Availability

LED Assembly WPL 2317205 Contact Us For Availability

Control Box Harness (Includes 21) WPL 2187965 Contact Us For Availability

Latch, Bin WPL 2305443 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $67.78

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Front Cover, Housing (Not Available Order 23 WPL ARI62992A7 Contact Us For Availability

Ferrite Bead WPL 2308165 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

Shelf, Slide Out (2) WPL 2255160 Contact Us For Availability

Tray, Housing (Black) WPL 2305408B Contact Us For Availability

Tray, Housing (Biscuit) WPL 2305408T Contact Us For Availability

Tray, Housing (Universal Silver) WPL 2305408US Contact Us For Availability

Tray, Housing (White) WPL 2305408W Contact Us For Availability

Cabinet, (Not A Serviceable Part) WPL ARI62986A7 Contact Us For Availability

2203408AP Whirlpool Refrigerator Cover Backorder WPL 2203408AP $33.64

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clip WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 17, 18, WPL 2305422B Contact Us For Availability

Front Cover Assembly (Includes Items 17, 18, WPL 2305422T Contact Us For Availability

Front Cover Assembly (Includes Items 17, 18, WPL 2305422US Contact Us For Availability

Front WPL 2305422W Contact Us For Availability

Connecting Rod WPL 2255228 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

Holder WPL 2212369 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

WPL 2187814 WPL 2187814 Contact Us For Availability

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

25

Escutcheon, Control Box WPL 2255611 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

26

Knob, RC WPL 2255232 Contact Us For Availability

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Knob, FC WPL 2255992 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $17.24

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

WP2260518AP Whirlpool Filter Cap Assembly In Stock WPL WP2260518AP $20.74

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $88.31

Cap, Water Filter (Biscuit) WPL 2260502T Contact Us For Availability

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

Air Seal, Thermistor WPL 2261265 Contact Us For Availability

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $115.68

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

33

2303141 Whirlpool Refrigerator Door Hinge Backorder WPL 2303141 $120.29

33

Bracket, Motor WPL 2305208 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Block, Housing Support WPL 2260519 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

35

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

35

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $39.91

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $25.33

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

Button, Water WPL 2260503AP Contact Us For Availability

39

W10846218 Whirlpool Refrigerator Door Cam Backorder WPL W10846218 $7.80

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

40

WPL 2305373 WPL 2305373 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

46

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $28.80

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $88.79

100

Ice Container (Complete) WPL 2305444 Contact Us For Availability
