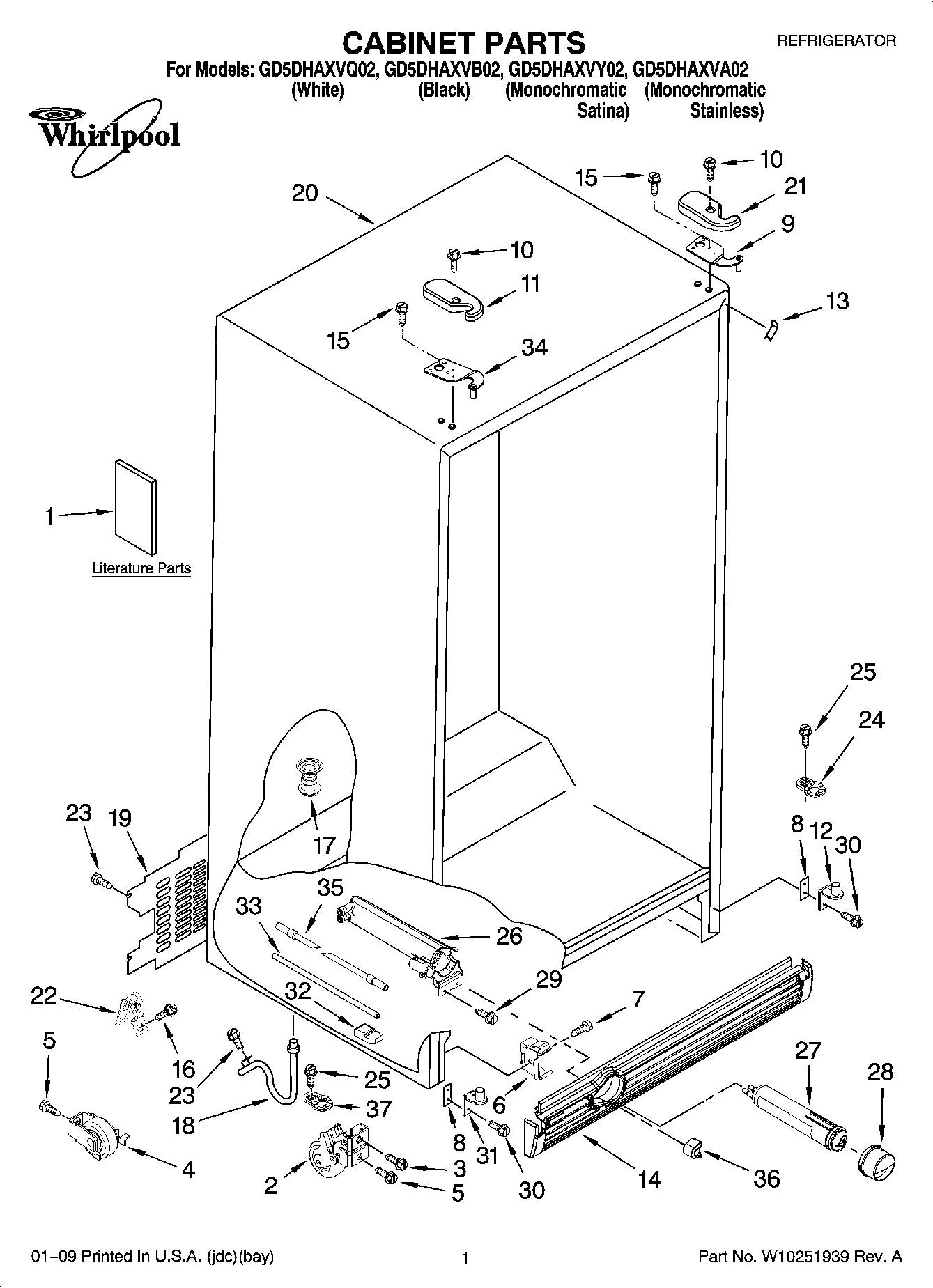

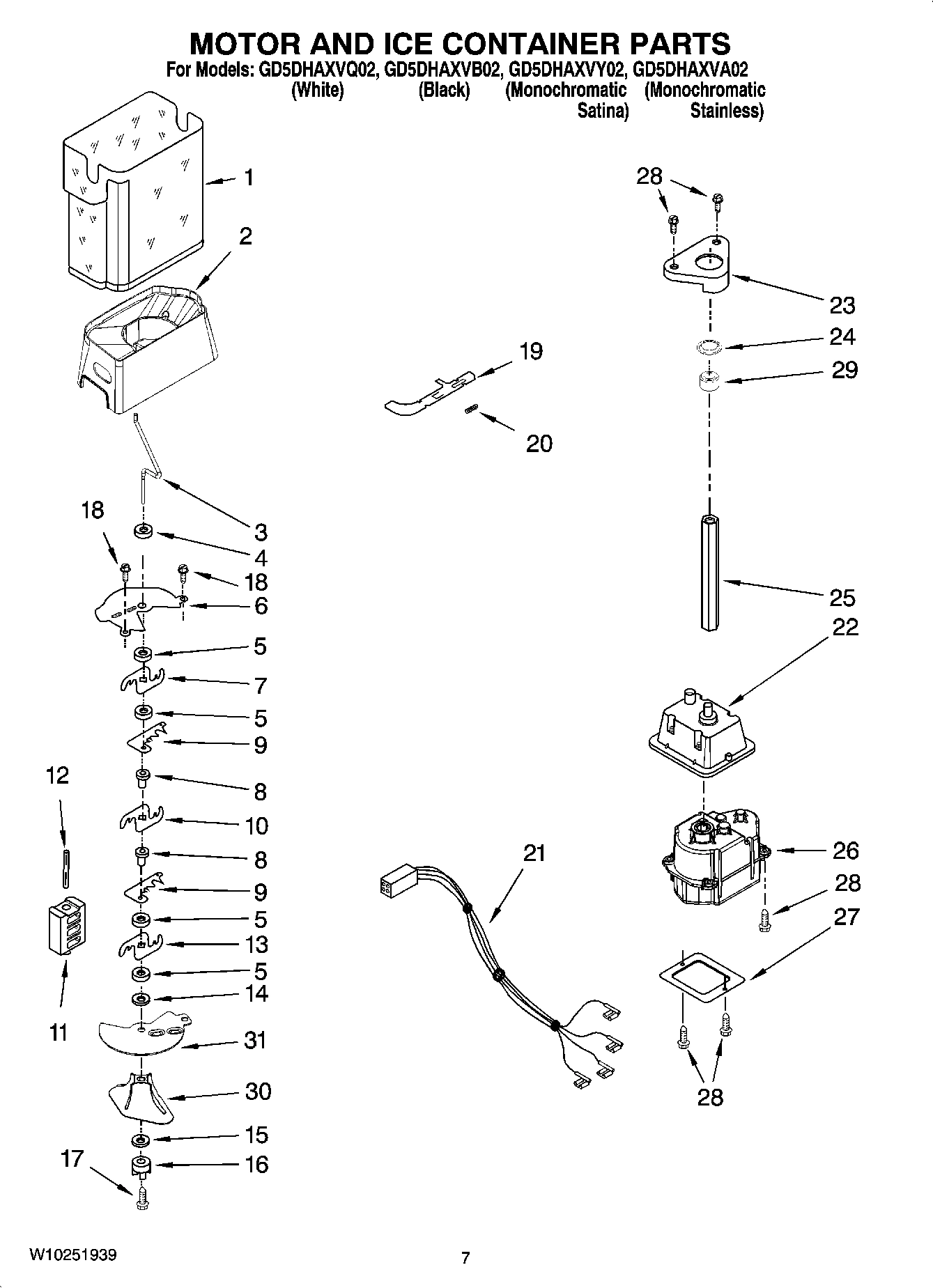

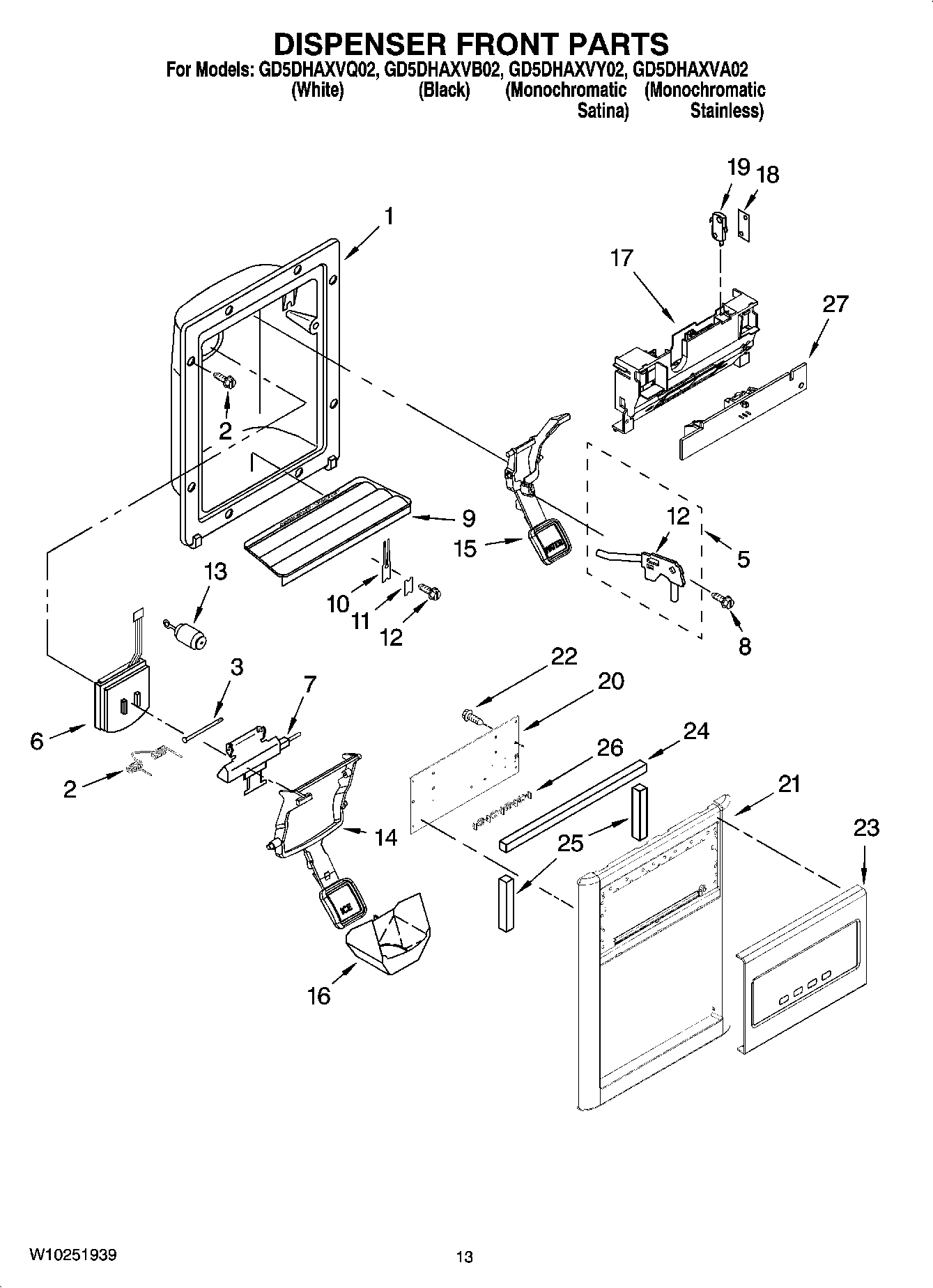

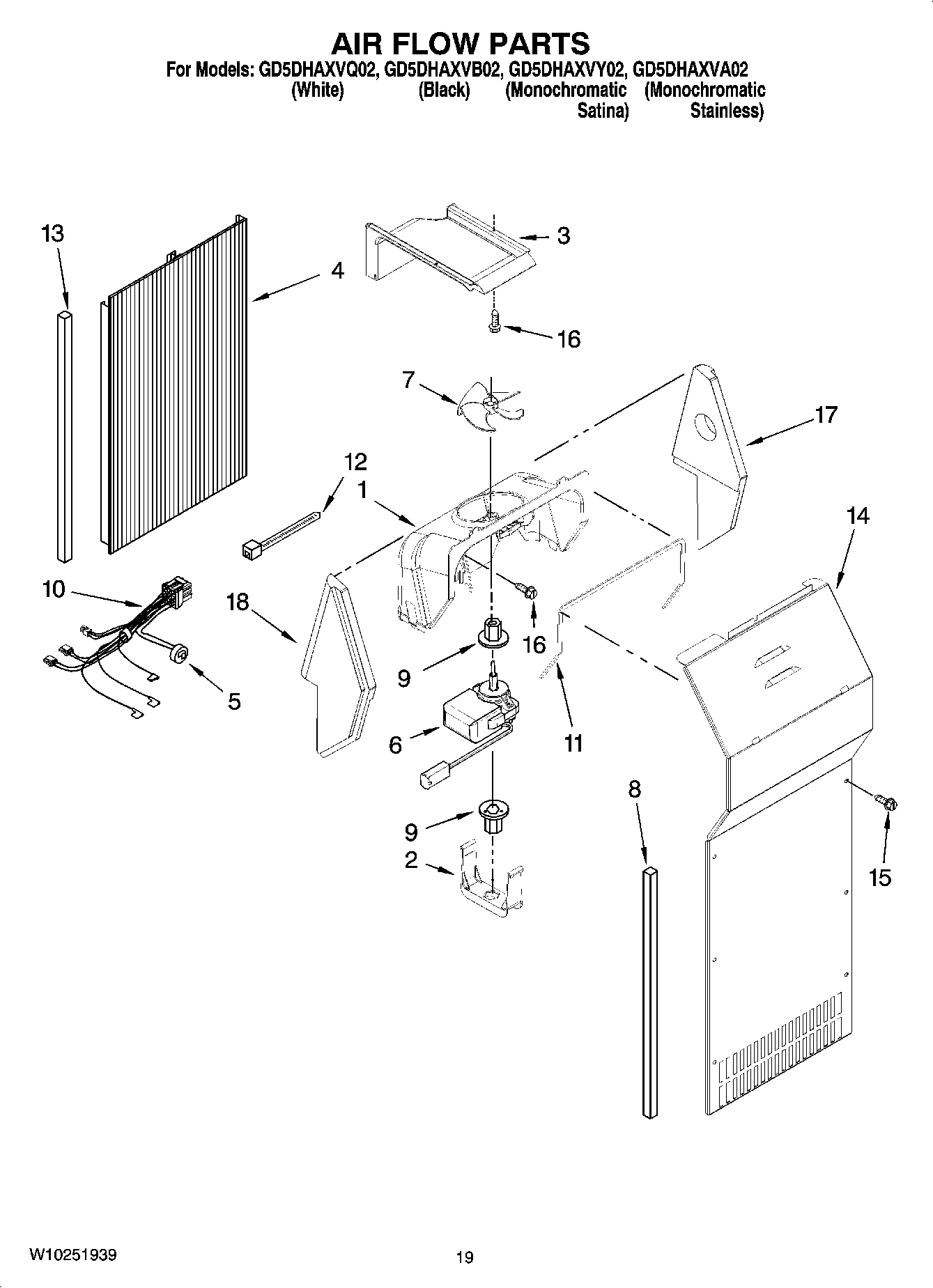

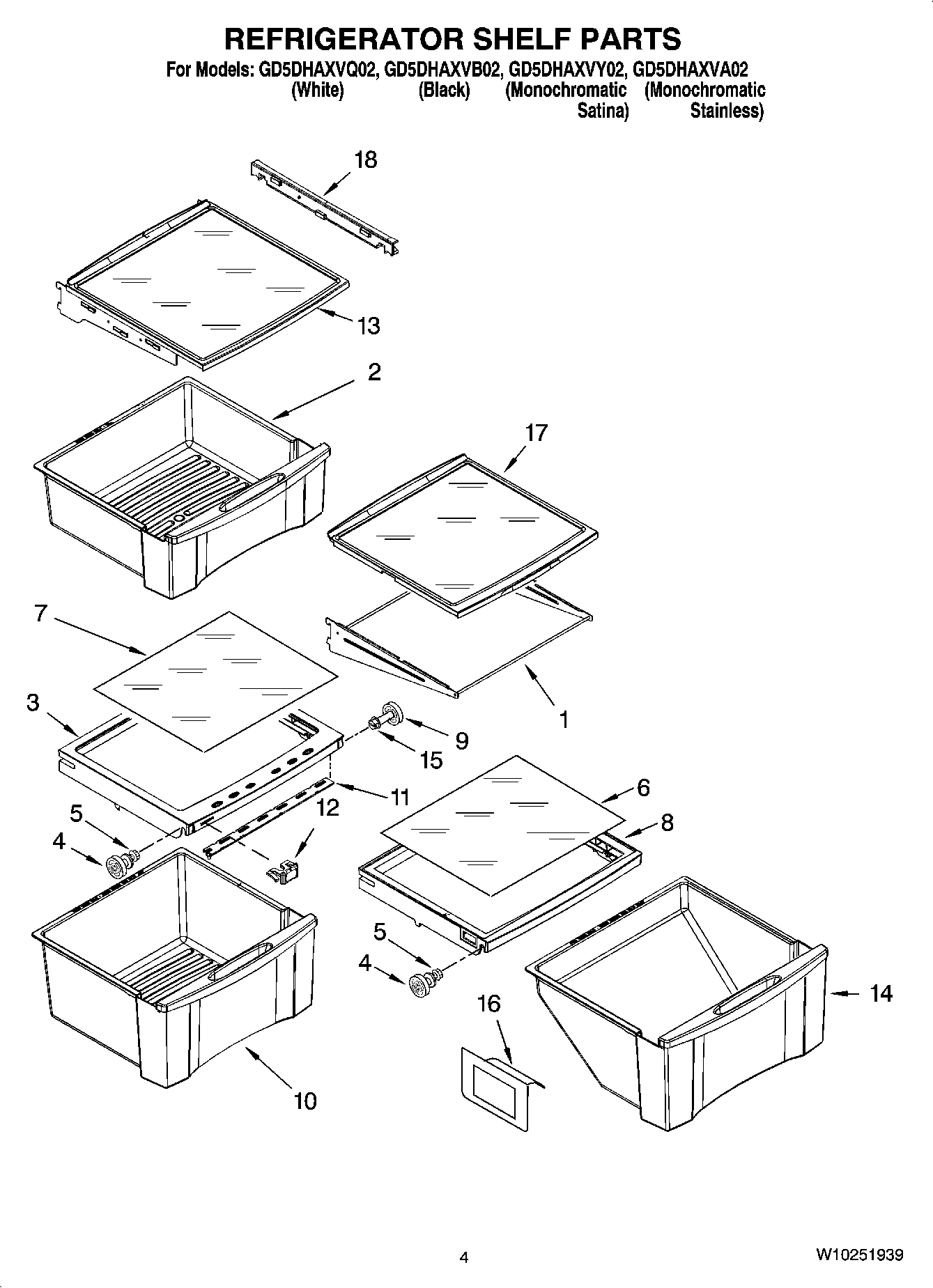

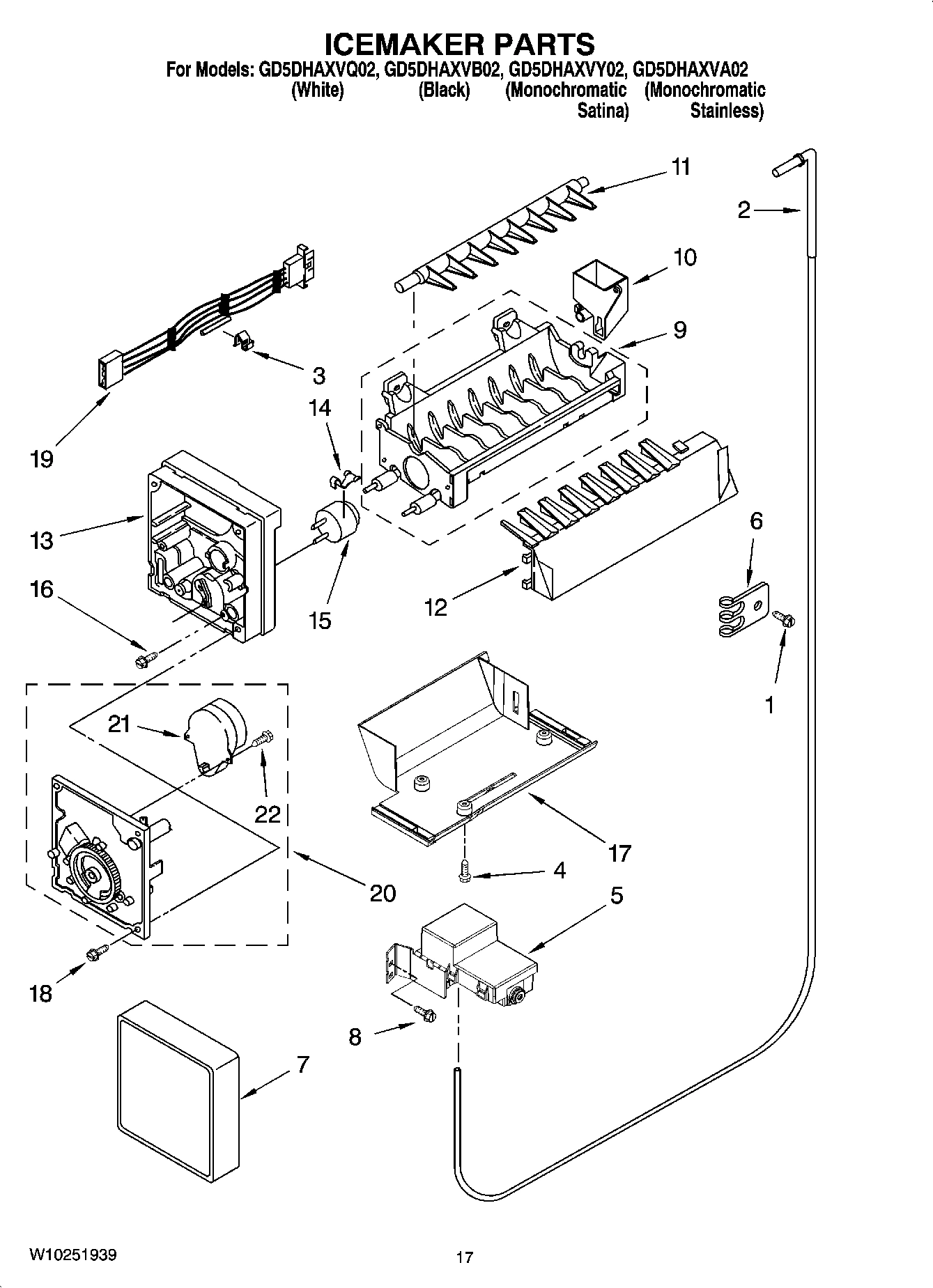

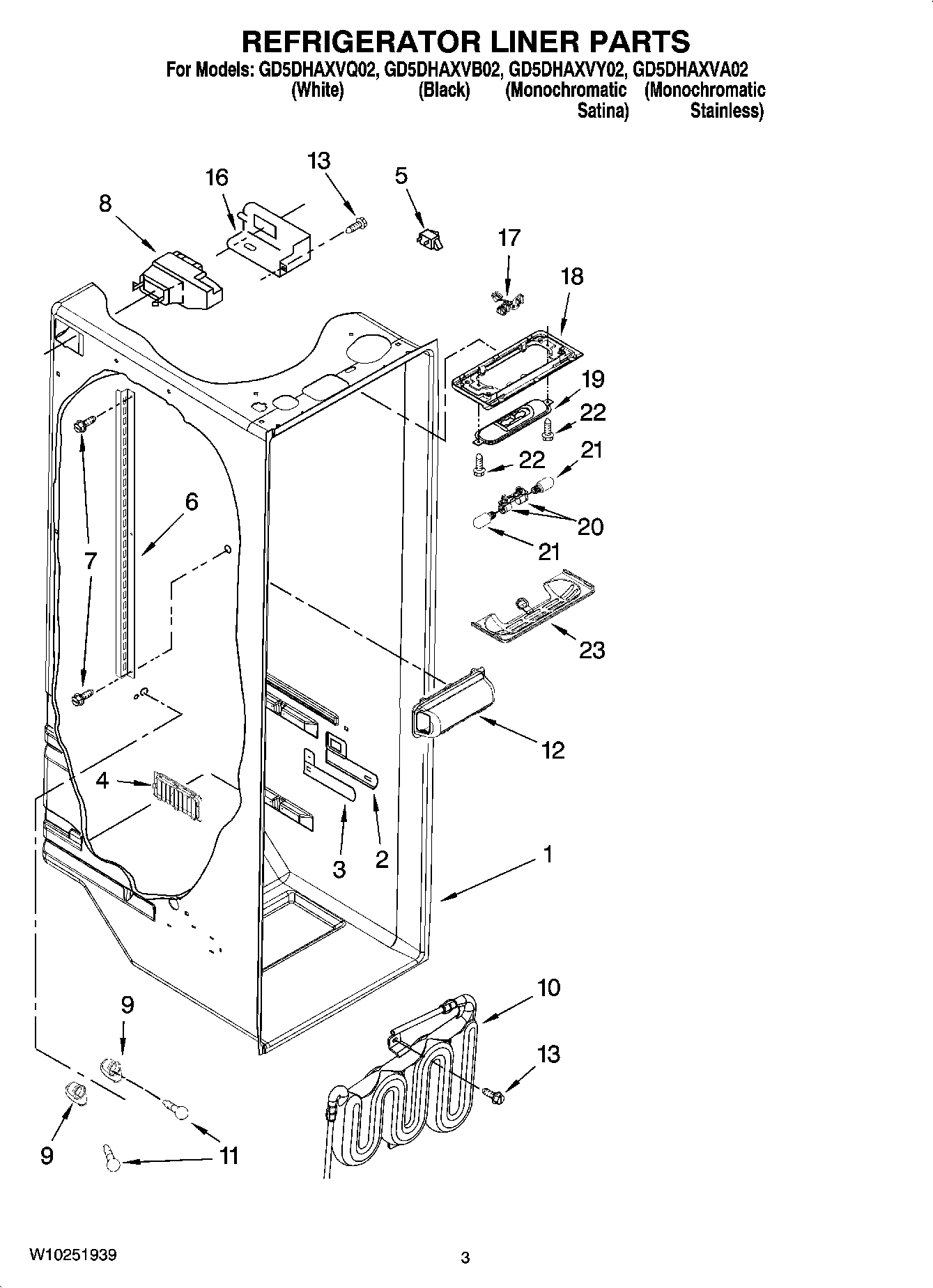

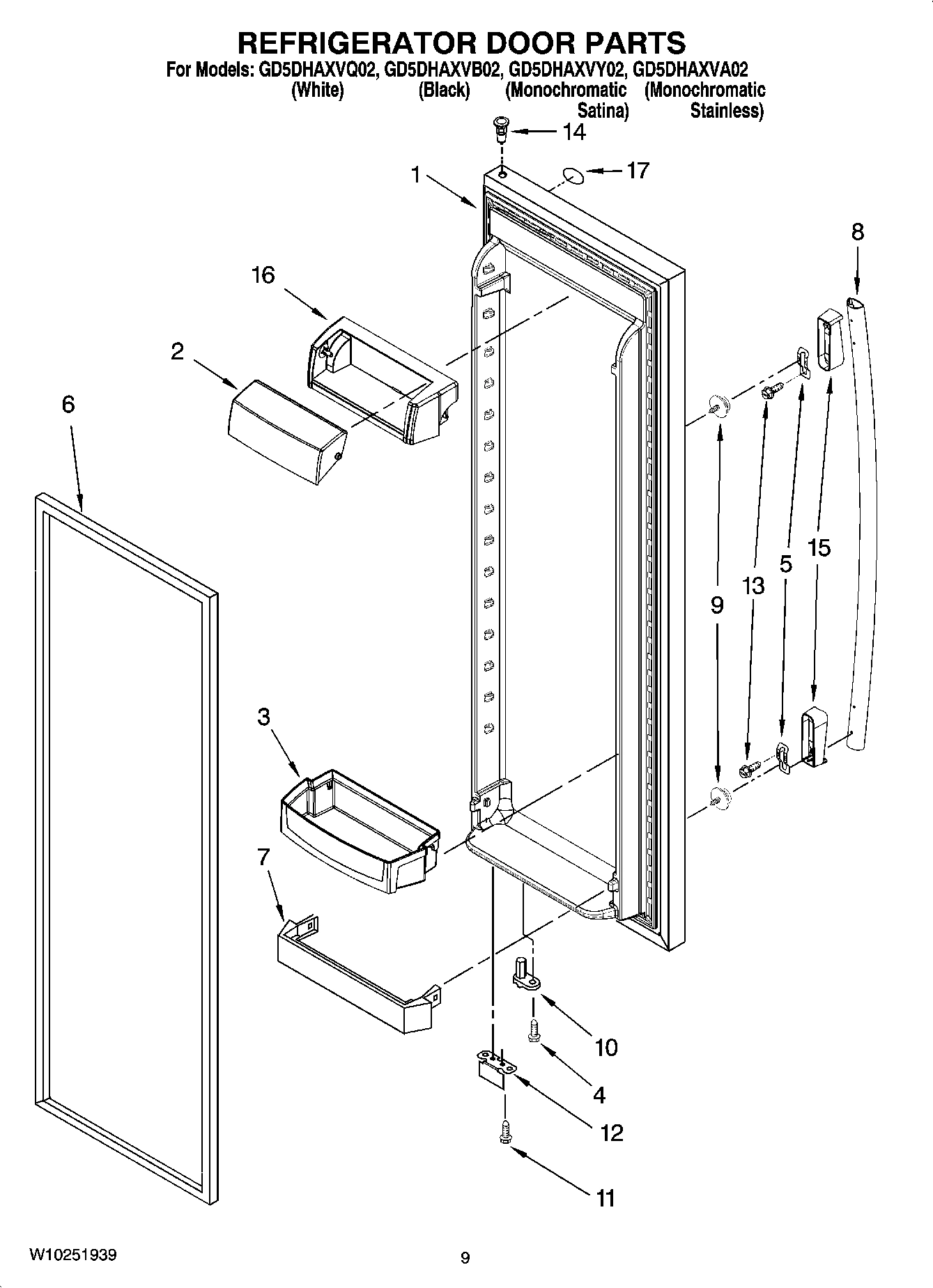

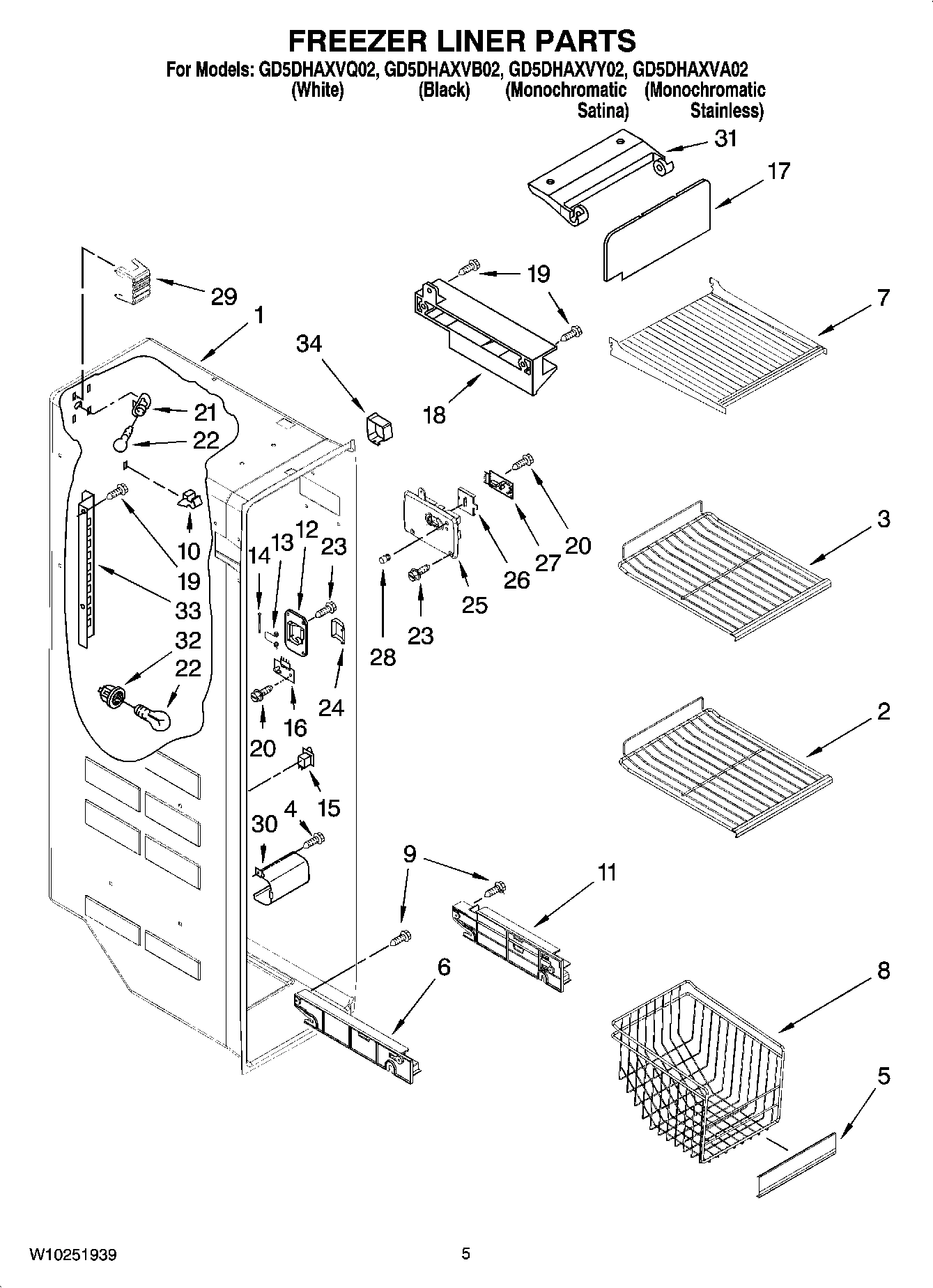

Model Whirlpool GD5DHAXVB02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

Ice Bin WPL W10174539 Contact Us For Availability

1

Frame Assembly (2) WPL 2223517 Contact Us For Availability

2

WPW10130497 Whirlpool Refrigerator Crush Bin Backorder WPL WPW10130497 $90.66

2

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $33.21

2

Dairy Door WPL 2255421 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

2

Snack Bin Asm WPL 2223261 Contact Us For Availability

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $61.42

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

Door Bin (3) WPL W10158506 Contact Us For Availability

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Cover, Crisper WPL 2223592 Contact Us For Availability

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer, Auger WPL 2258220 Contact Us For Availability

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

5

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

6

Glass, Meat Cover WPL 2223714 Contact Us For Availability

6

Shelf Ladder WPL 2319866 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

Glass, Cover WPL 2223591 Contact Us For Availability

8

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $116.82

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

WP2223242 Whirlpool Refrigerator Cover Backorder WPL WP2223242 $209.82

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

9

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

Blade, Fixed WPL 2257020 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $68.49

WPW10233488 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10233488 $152.60

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

2223308 Whirlpool Refrigerator Slide Backorder WPL 2223308 $30.25

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Hinge Cover, FC (White) WPL W10138581 Contact Us For Availability

HINGE COVER, FC (BLACK) WPL W10138582 Contact Us For Availability

Hinge Cover, FC (Apollo Gray) WPL W10138584 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $38.12

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WPW10210789-includeCORE Whirlpool WPW10210789 Backorder WPL WPW10210789-includeCORE $215.12

Knob, Humidity Control WPL 2223309 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Filler, Wrapper (Black) WPL 2304848 Contact Us For Availability

Filler, Wrapper (Apollo Gray) WPL W10143043 Contact Us For Availability

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $35.67

W10155161 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10155161 $59.15

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $36.65

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.52

WPW10184888 Whirlpool Refrigerator Grille Backorder WPL WPW10184888 $117.36

WPW10184890 Whirlpool Refrigerator Grille Backorder WPL WPW10184890 $95.73

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $61.29

Meat Pan Assembly WPL 2223243 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $3.33

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $34.13

Lever, Water (Apollo Grey) WPL W10155162 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $69.88

W11629923 Whirlpool Coupling In Stock WPL W11629923 $13.54

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $69.65

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

Nameplate WPL 2220214 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Shelf, Slide Out (2) WPL 2255160 Contact Us For Availability

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.85

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $13.05

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Spacer, Switch WPL 625834 Contact Us For Availability

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Clip WPL 2161324 Contact Us For Availability

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $39.09

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $71.98

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Latch, Bin WPL 2317277 Contact Us For Availability

20

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

20

Control, Elek WPL 2321751 Contact Us For Availability

20

Cabinet, (Not A Serviceable Part) WPL ARI62751A6 Contact Us For Availability

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $75.95

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $8.43

Bezel, Disp (Mono Satina) WPL W10139842 Contact Us For Availability

Hinge Cover, RC (White) WPL W10138576 Contact Us For Availability

HINGE COVER, RC (BLACK) WPL W10138577 Contact Us For Availability

Hinge Cover, RC (Apollo Gray) WPL W10138579 Contact Us For Availability

Wire Assembly, IDI Motor WPL W10209450 Contact Us For Availability

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

22

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

22

Enclosure, Motor WPL 2322488 Contact Us For Availability

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $4.52

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $54.75

NLA:SCREW Backorder WPL WPW10141645 $3.70

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

Fascia, Disp (Mono Stainless) WPL W10171982 Contact Us For Availability

24

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

24

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

24

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.21

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

Cover, Receiver WPL W10173569 Contact Us For Availability

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

W10822606 Whirlpool Refrigerator Dispenser Mo In Stock WPL W10822606 $101.65

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $57.79

27

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

27

Cover WPL 2212305 Contact Us For Availability

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $17.09

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

29

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

30

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

30

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

31

2303141 Whirlpool Refrigerator Door Hinge Backorder WPL 2303141 $126.31

31

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

31

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

32

Block, Housing Support WPL 2260519 Contact Us For Availability

33

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $42.73

34

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

34

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

34

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

35

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

36

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

36

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

36

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $28.11

37

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

37

DOOR CLOSER, (FC) WPL 2223751 Contact Us For Availability

100

Ice Container (Complete) WPL W10174536 Contact Us For Availability
