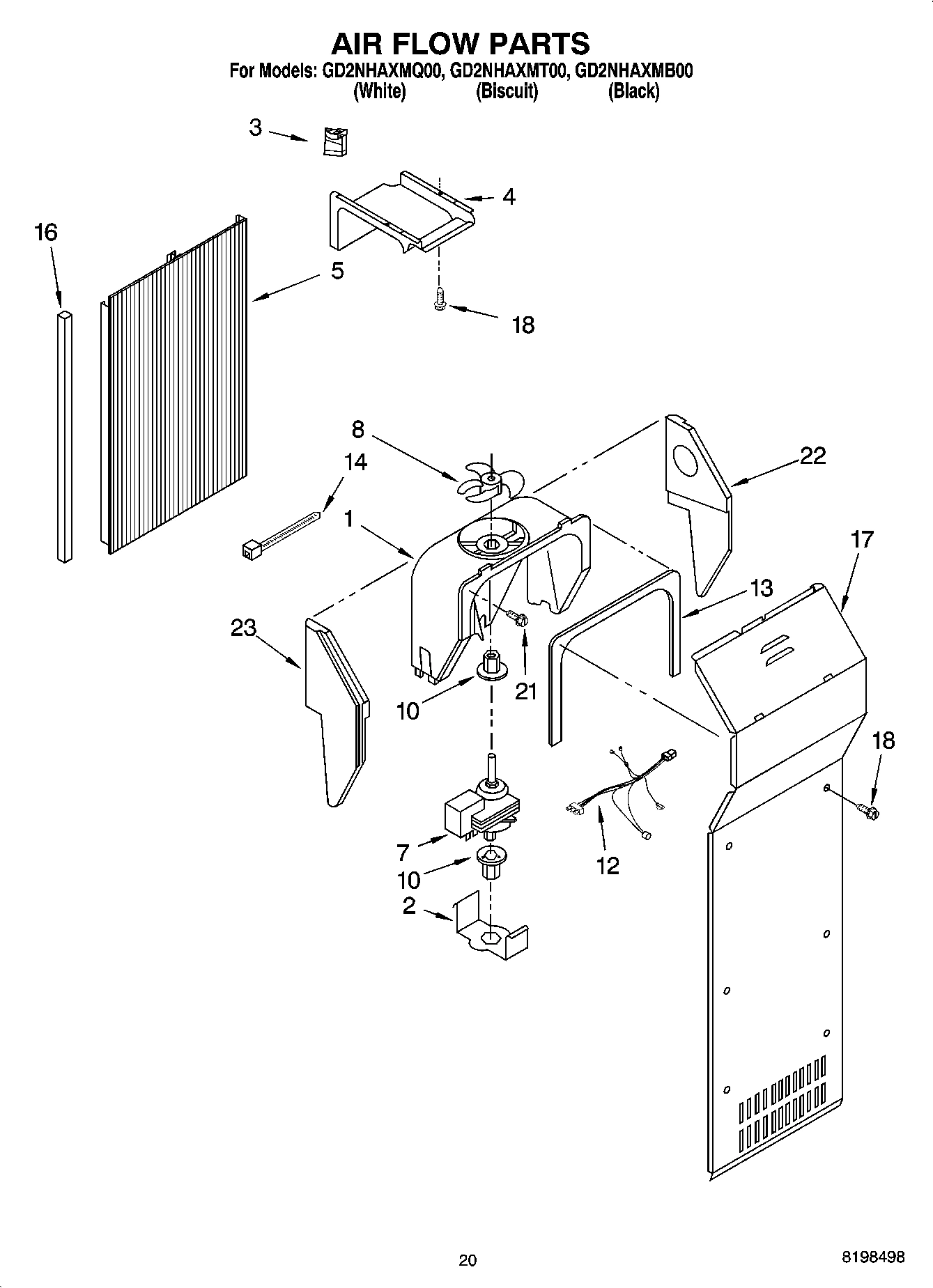

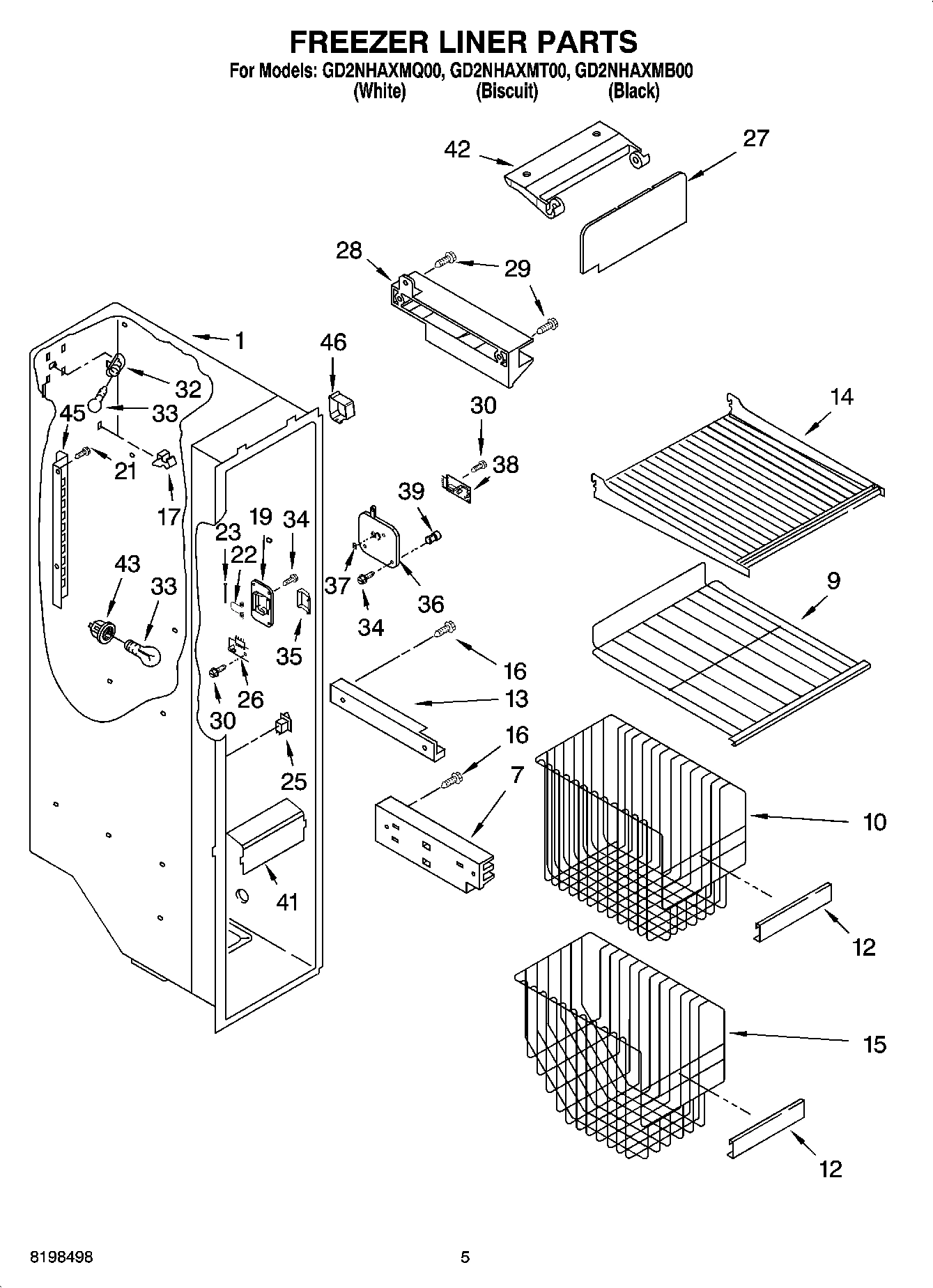

Model Whirlpool GD2NHAXMB00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Housing, Dispenser (Not Serviced) WPL ARI62323A6 Contact Us For Availability

1

Control Box WPL 2255222 Contact Us For Availability

1

Frame Assembly WPL 2223517 Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Black) WPL 2255500B Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Biscuit) WPL 2255500T Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (White) WPL 2255500W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Shield WPL 2255991 Contact Us For Availability

2

Snack Bin Asm WPL 2223261 Contact Us For Availability

2

Door Compartment WPL 2255420 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Cover, Crisper WPL 2223592 Contact Us For Availability

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 3400972 Contact Us For Availability

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $124.94

5

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $10.98

6

Glass, Cover WPL 2223714 Contact Us For Availability

6

Electronic Control WPL 2255229 Contact Us For Availability

6

Door Bin (2) WPL 2223239 Contact Us For Availability

7

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

7

Track, Basket-Dual (Right) WPL 2301289 Contact Us For Availability

7

Track, Basket-Dual (Left) WPL 2301290 Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Extension, Bottom (Biscuit) WPL 2194969T Contact Us For Availability

8

2159073 Whirlpool Refrigerator Door Gasket Backorder WPL 2159073 $87.71

8

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

8

WP2223242 Whirlpool Refrigerator Cover Backorder WPL WP2223242 $209.33

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

9

WP2186649B Whirlpool Refrigerator Handle Backorder WPL WP2186649B $79.24

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $35.90

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $32.35

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

9

Handle, Center (White) WPL 2186649W Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2206671T Contact Us For Availability

9

Shield, Electrical WPL 2261232 Contact Us For Availability

9

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WPW10233488 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10233488 $145.34

Shield, Electrical WPL 2261231 Contact Us For Availability

2223308 Whirlpool Refrigerator Slide Backorder WPL 2223308 $28.80

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Cam Assembly WPL 2255226 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

Nameplate WPL 2220214 Contact Us For Availability

Bearing Body WPL 2255413 Contact Us For Availability

Knob, Humidity Control WPL 2223309 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2194971B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194971B $52.14

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Extension, Top (White) WPL 2194971W Contact Us For Availability

Light Lens WPL 2255225 Contact Us For Availability

Extension, Top (Biscuit) WPL 2194971T Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Meat Pan Asm WPL 2223243 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Pivot Arm WPL 2255227 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $53.75

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $35.90

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $35.94

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Switch Assembly (Not Available, Order 23) WPL ARI62324A8 Contact Us For Availability

Frame, Can Rack WPL 2255422 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $271.15

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Not Available, Order 23 WPL ARI62325A5 Contact Us For Availability

Floor, Can Rack WPL 2255423 Contact Us For Availability

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $41.71

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Control Box Harness WPL 2255235 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Front Cover, Housing (Not Available, Order 23 WPL ARI62326A1 Contact Us For Availability

Air Diffuser Asm WPL 2255424 Contact Us For Availability

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Shelf, Slide Out WPL 2255160 Contact Us For Availability

Shield, Heat WPL 2255666 Contact Us For Availability

Door Bin WPL 2223463 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 18, 19, WPL 2260992B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2260992T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2260992W Contact Us For Availability

Connecting Rod WPL 2255228 Contact Us For Availability

Mat, Bin WPL 2223464 Contact Us For Availability

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

Escutcheon, Control Box WPL 2255610 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

Shield, Ice Door WPL 987121 Contact Us For Availability

26

Knob, RC WPL 2255232 Contact Us For Availability

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Knob, FC WPL 2255992 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $17.24

28

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

31

Control Box WPL 2255623 Contact Us For Availability

31

Cabinet (Not A Serviceable Part) WPL ARI62320A6 Contact Us For Availability

31

Air Seal, Thermistor WPL 2261265 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $91.59

32

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

33

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

33

Nut, Hex WPL 3400971 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
