Model Whirlpool GD27DQXFB01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
03 - REFRIGERATOR SHELF

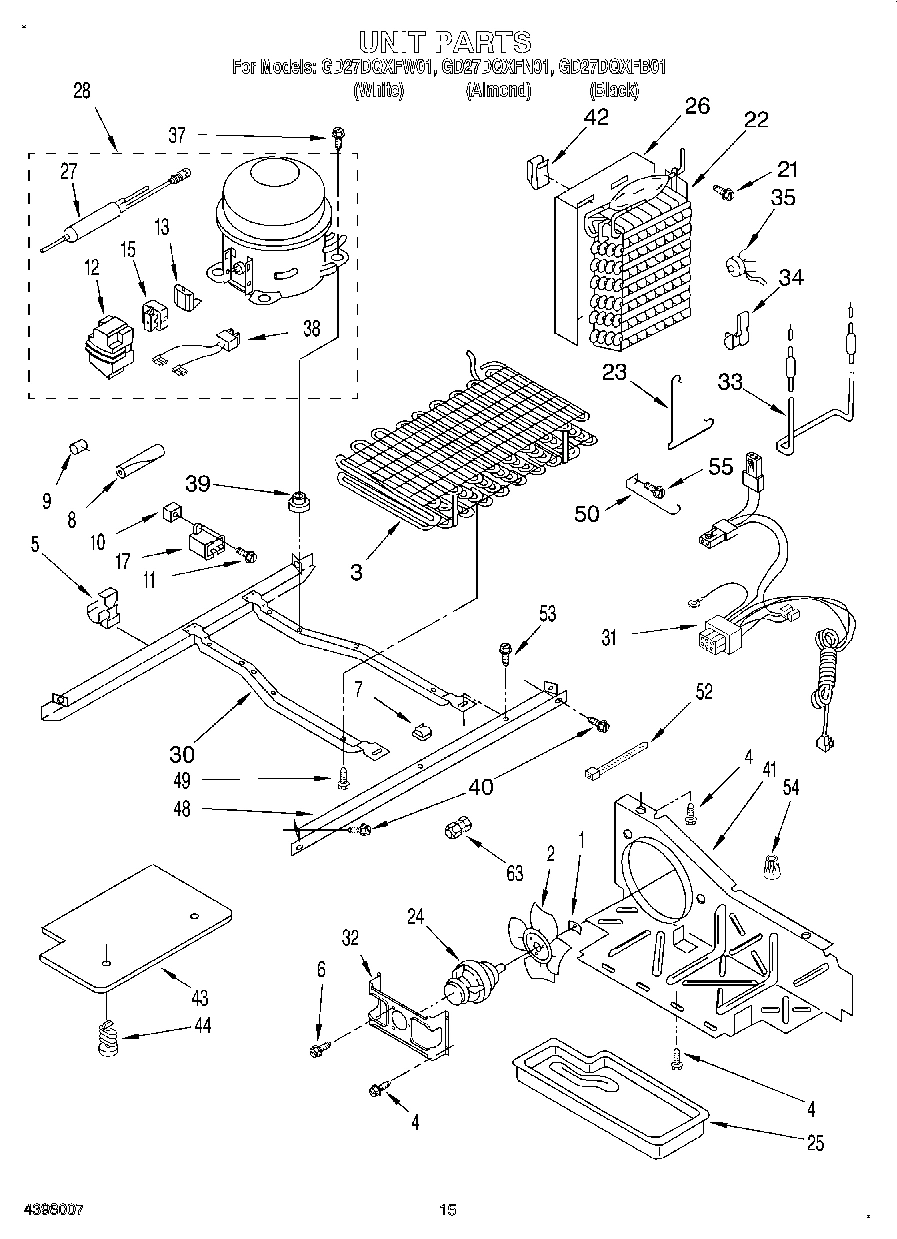

09 - UNIT
12 - ICEMAKER

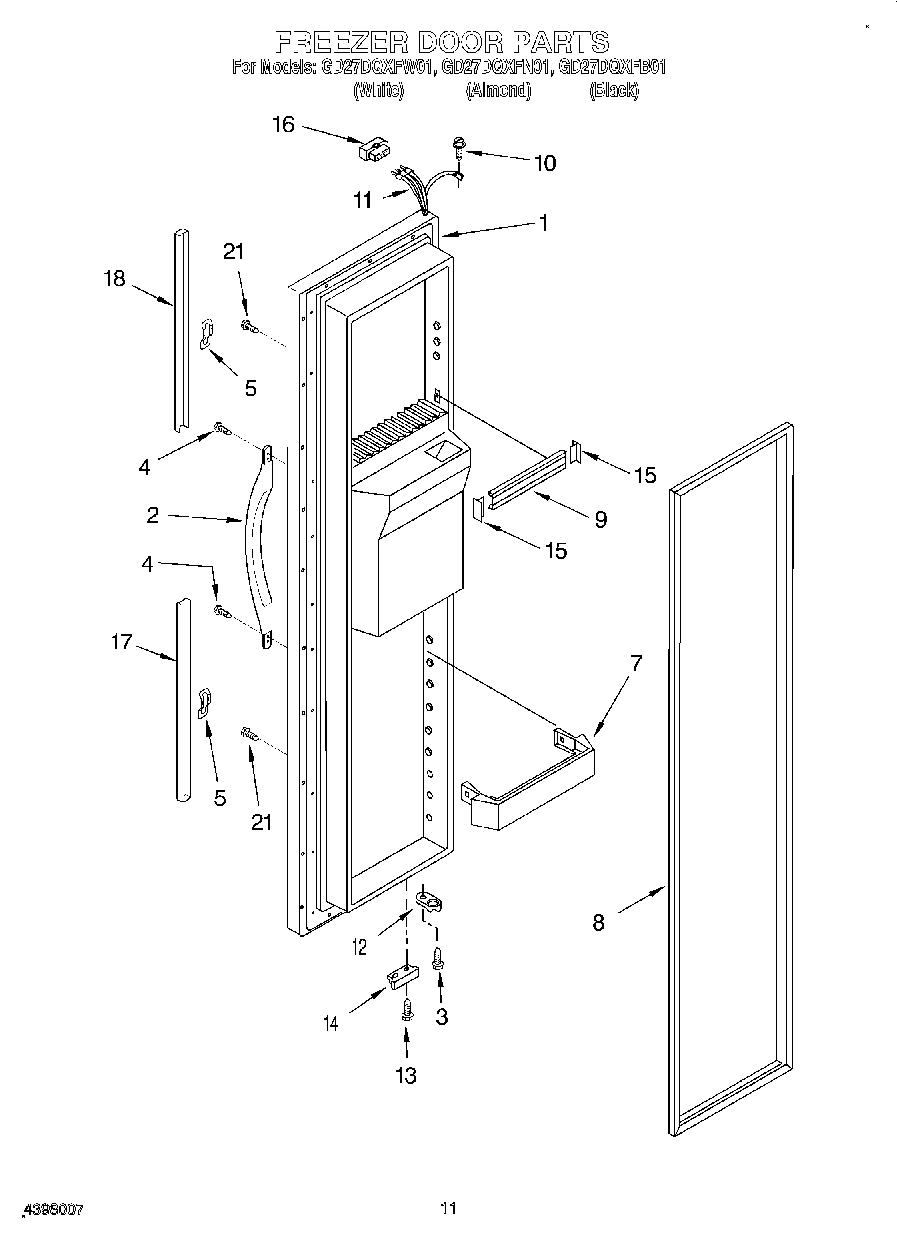

07 - FREEZER DOOR

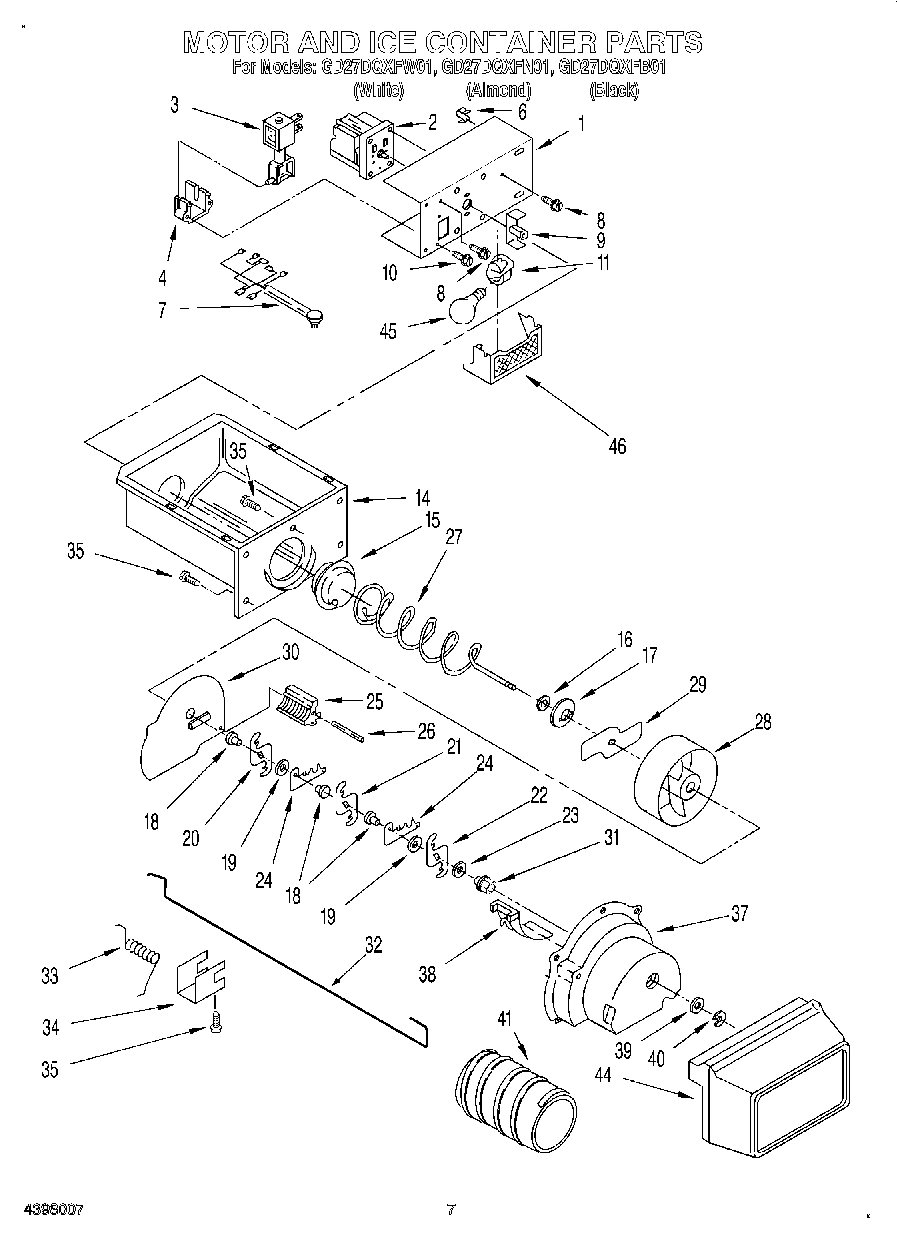

05 - MOTOR AND ICE CONTAINER

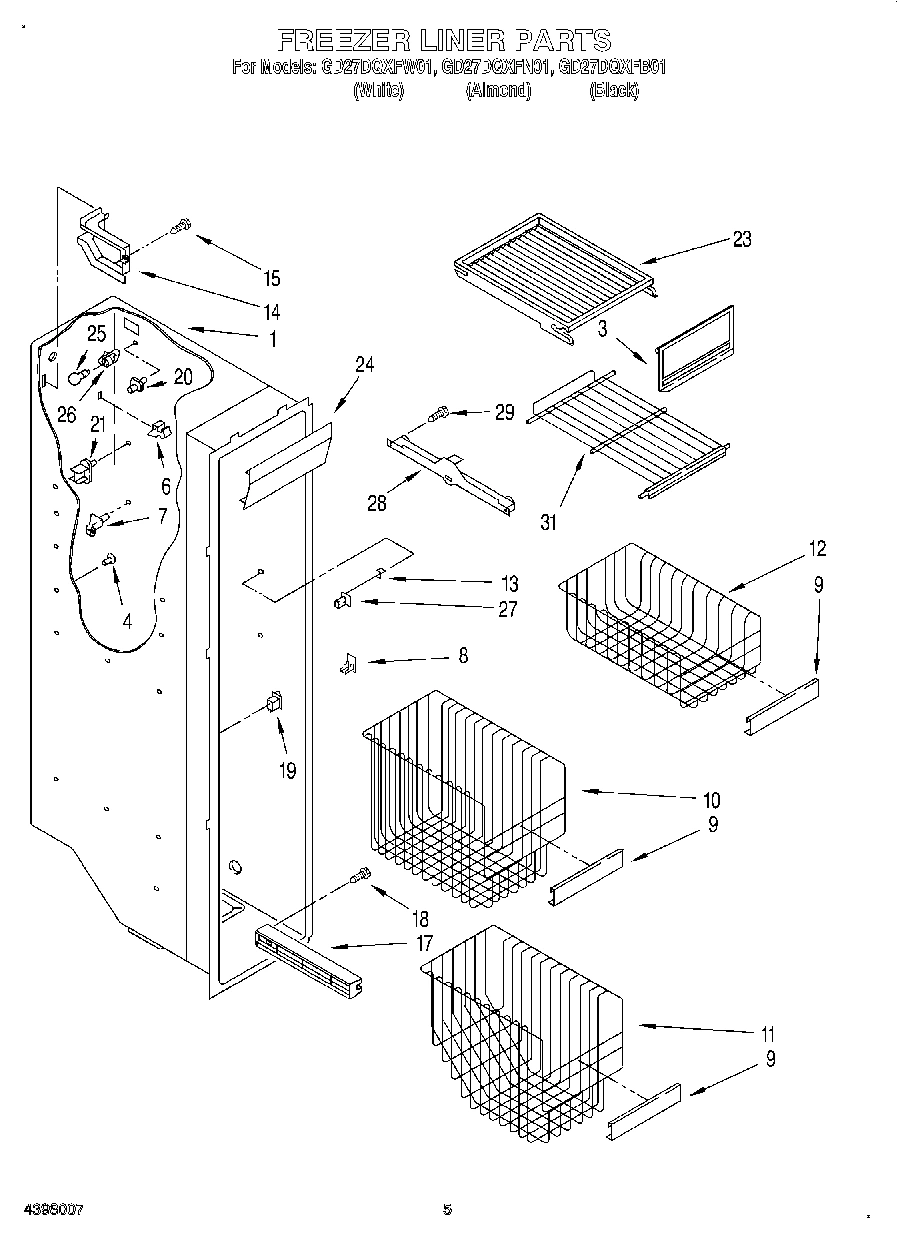

04 - FREEZER LINER

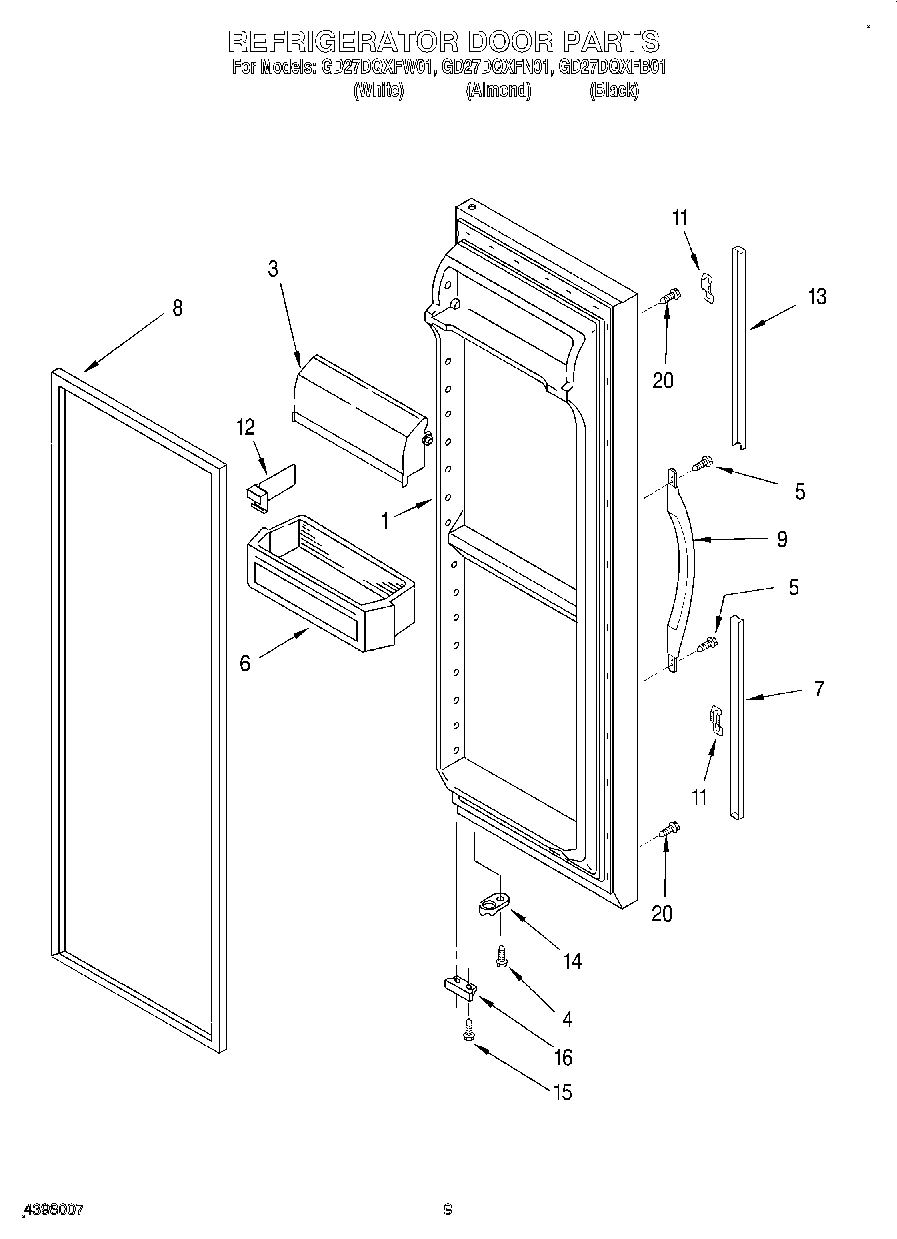

06 - REFRIGERATOR DOOR

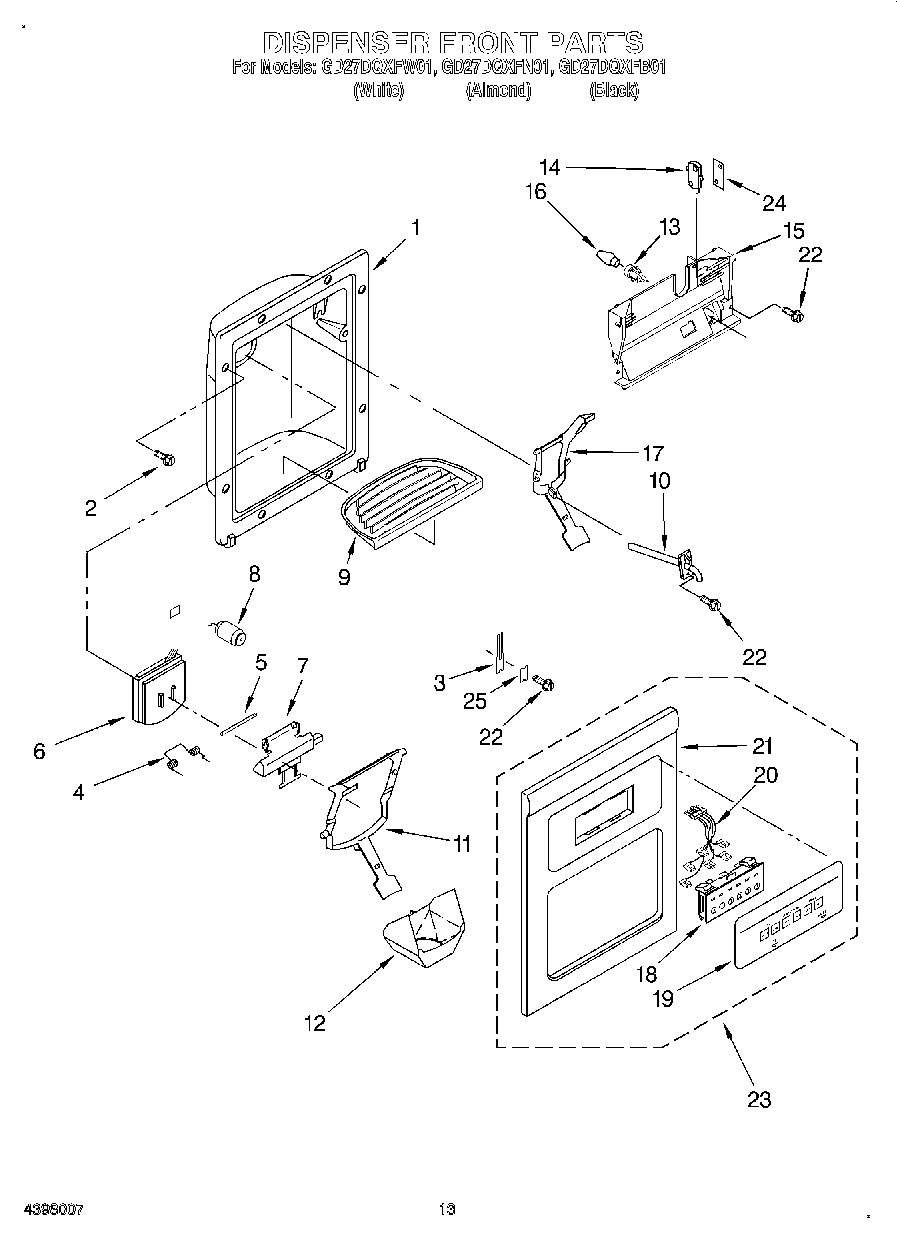

08 - DISPENSER FRONT

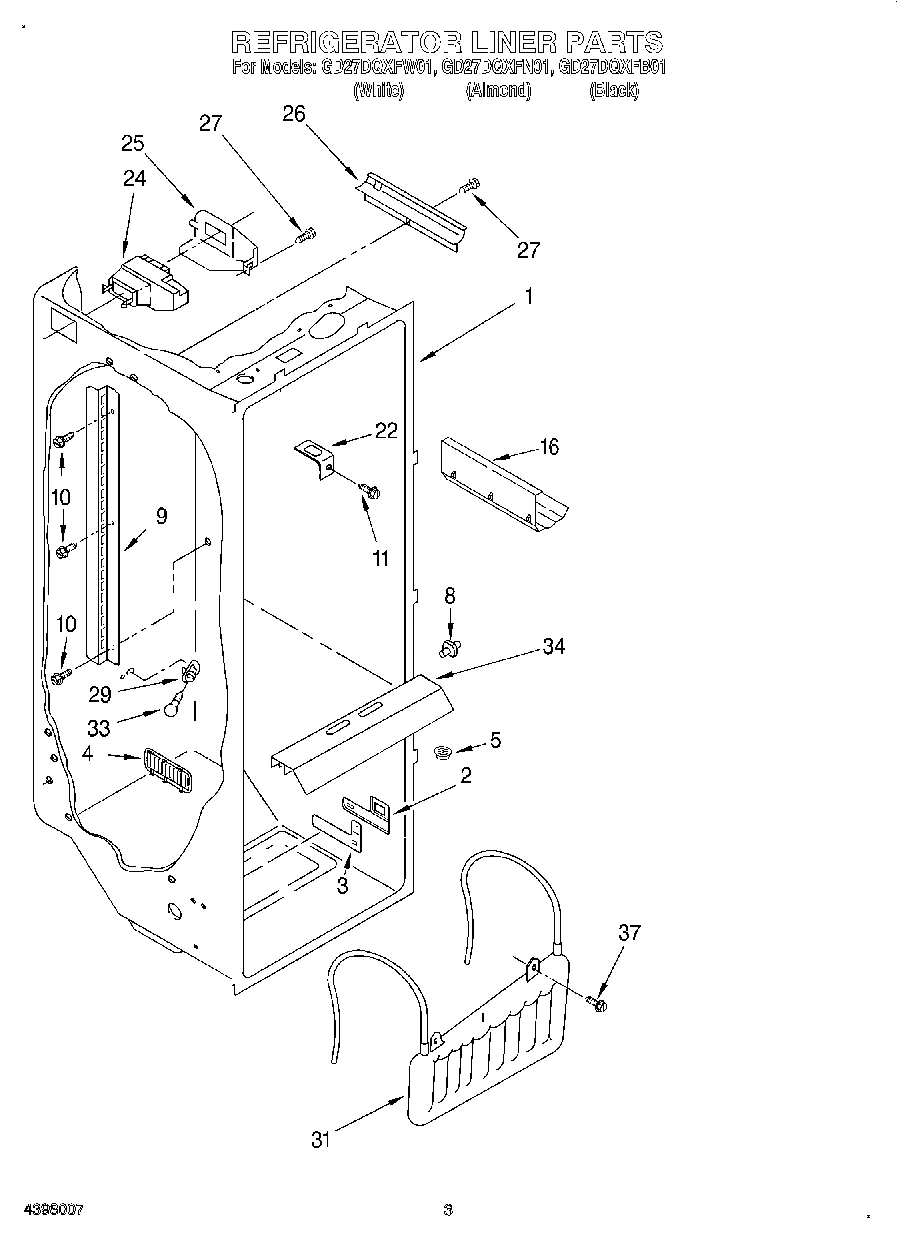

02 - REFRIGERATOR LINER
10 - AIR FLOW

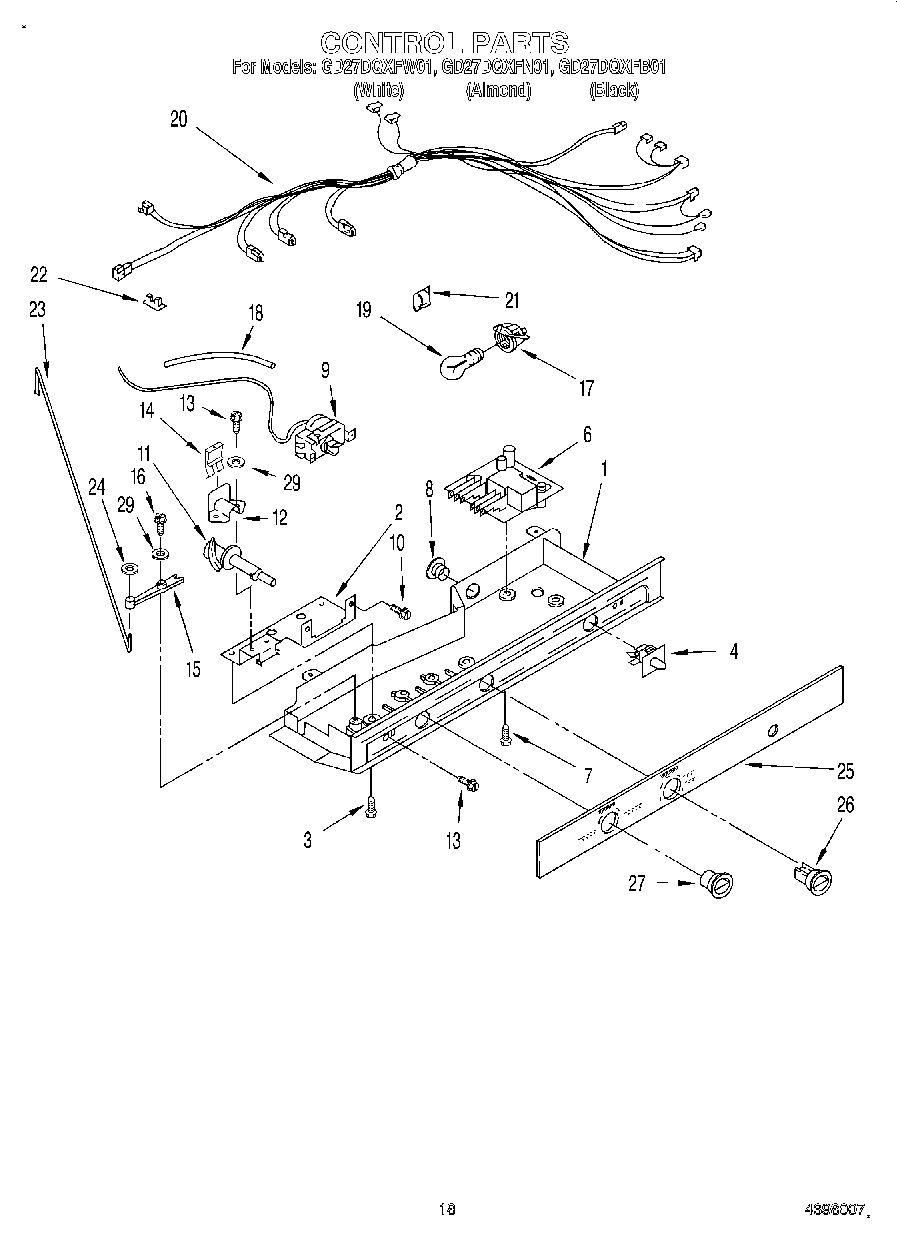

11 - CONTROL
Common parts from model Whirlpool GD27DQXFB01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194514B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194514N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194514W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI62191A5 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI62189A1 Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Shelf Bin (4) WPL 2179608 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Handle, Center (Black) WPL 2186649B Contact Us For Availability
9
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
9
Handle, Center (White) WPL 2186649W Contact Us For Availability
9
Trim, Basket WPL 2195905 Contact Us For Availability
9
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180242 Contact Us For Availability
9
Grille, Overflow (Black) WPL 2180243 Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
10
Basket, Tall WPL 2181765 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180256 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2180257 Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2180258 Contact Us For Availability
12
Basket WPL 2181763 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Extension, Top (Black) WPL 2194973B Contact Us For Availability
13
Extension, Top (Almond) WPL 2194973N Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2155329 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability
17
Slide, Basket (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (3)) WPL 2181760 Contact Us For Availability
17
Lever, Water Dispenser (Almond) WPL 2180266 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2180237 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2180238 Contact Us For Availability
19
Plaque, Front Cover (Black) WPL 2180239 Contact Us For Availability
20
Control Box Harness WPL 2195015 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI62192A5 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2194297 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180381 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180382 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180383 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Lens, Light WPL 2171705 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
49
Hinge Cover (White) WPL 1119787 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
× ![]()
