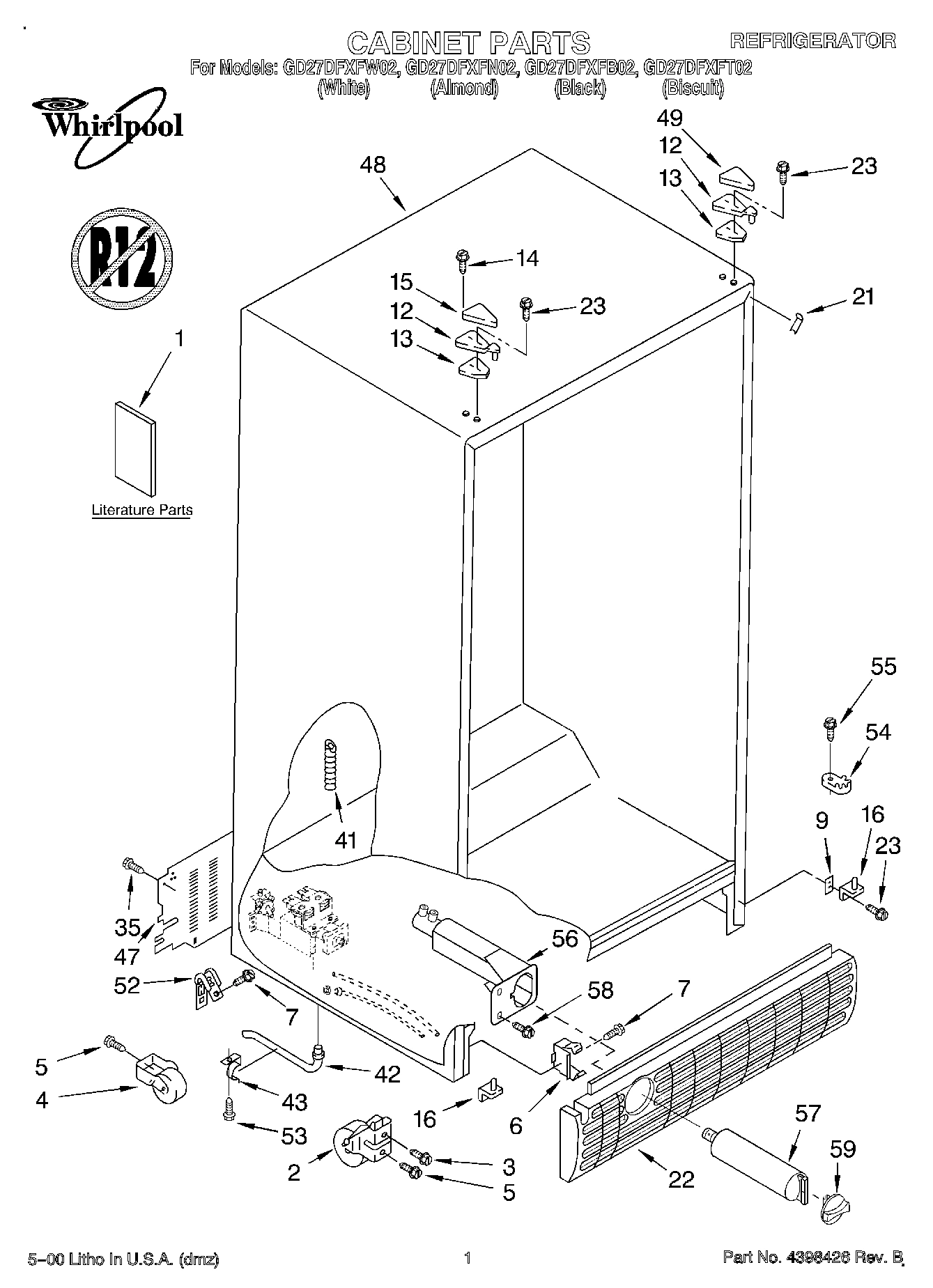

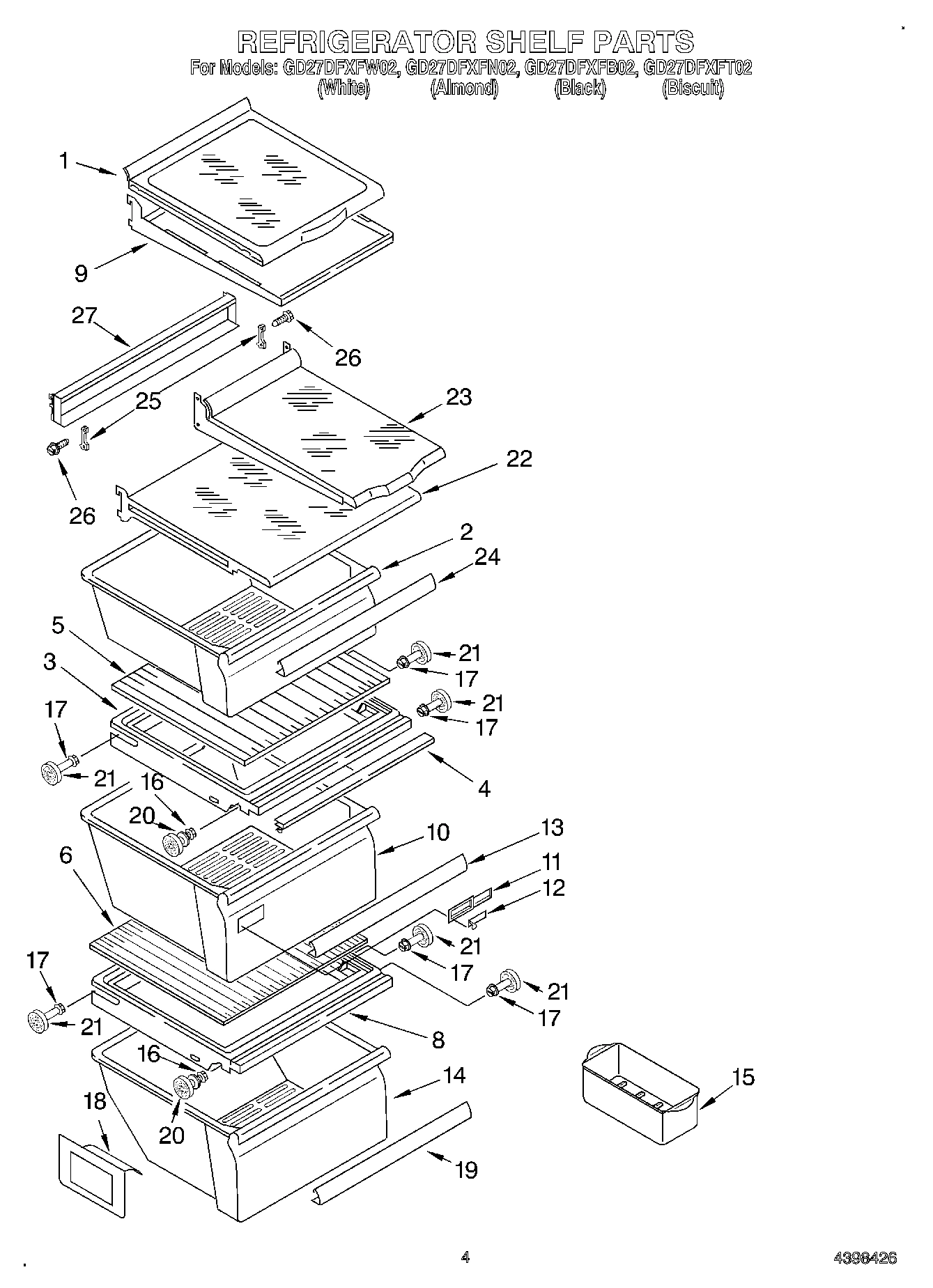

Model Whirlpool GD27DFXFB02 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI62064A4 Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (Black WPL 2194514B Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (Almon WPL 2194514N Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (Biscu WPL 2194514T Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (White WPL 2194514W Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI62063A1 Contact Us For Availability

1

Control Box WPL 2200137 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Bracket, Fill Tube WPL 2209674 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet WPL 2176134 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2203872 Whirlpool Refrigerator Cantilever B Backorder WPL WP2203872 $45.99

6

Adaptive Defrost Control WPL 2176648 Contact Us For Availability

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

7

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

7

Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability

7

Extension, Bottom (Biscuit) WPL 2194969T Contact Us For Availability

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

8

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

9

WP2186649B Whirlpool Refrigerator Handle Backorder WPL WP2186649B $79.24

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

Grille, Overflow (White) WPL 2180241 Contact Us For Availability

9

Handle, Center (White) WPL 2186649W Contact Us For Availability

9

Trim, Basket WPL 2195905 Contact Us For Availability

9

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

9

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

9

Ladder, Shelf WPL 2181796 Contact Us For Availability

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $51.73

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Basket, Tall WPL 2181765 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Basket, Slope WPL 2181764 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

Basket WPL 2181763 Contact Us For Availability

Divider, Bin WPL 2195496 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2186800 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.62

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

Extension, Top (Black) WPL 2194973B Contact Us For Availability

Extension, Top (Almond) WPL 2194973N Contact Us For Availability

Extension, Top (Biscuit) WPL 2194973T Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Cover, Wiring WPL 2155572 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Pivot Arm WPL 1110559 Contact Us For Availability

Backorder WPL 2179404 $8.47

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $53.75

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

Slide, Basket (Left Side (3)) WPL 2181759 Contact Us For Availability

Slide, Basket (Right Side (3)) WPL 2181760 Contact Us For Availability

Cover, Evaporator WPL 2203841 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

19

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Control Box Harness WPL 2200439 Contact Us For Availability

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Grille (Biscuit) WPL 2198468T Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clamp WPL 2161324 Contact Us For Availability

Shelf, Top Compartment WPL 2194297 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

WPL 625834 WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Escutcheon, Control Box WPL 2200100 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Knob, Air Control WPL 2197871 Contact Us For Availability

Stud, Rear WPL 2196207 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Retainer, Light Lens WPL 2200097 Contact Us For Availability

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

37

Screw WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

40

Nut, Compression WPL 1129179 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

49

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

56

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

58

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

59

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

59

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

59

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $219.89

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
