Model Whirlpool GCG2901XSW0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.89

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

PAINT, BUL WPL 799344 Contact Us For Availability

1

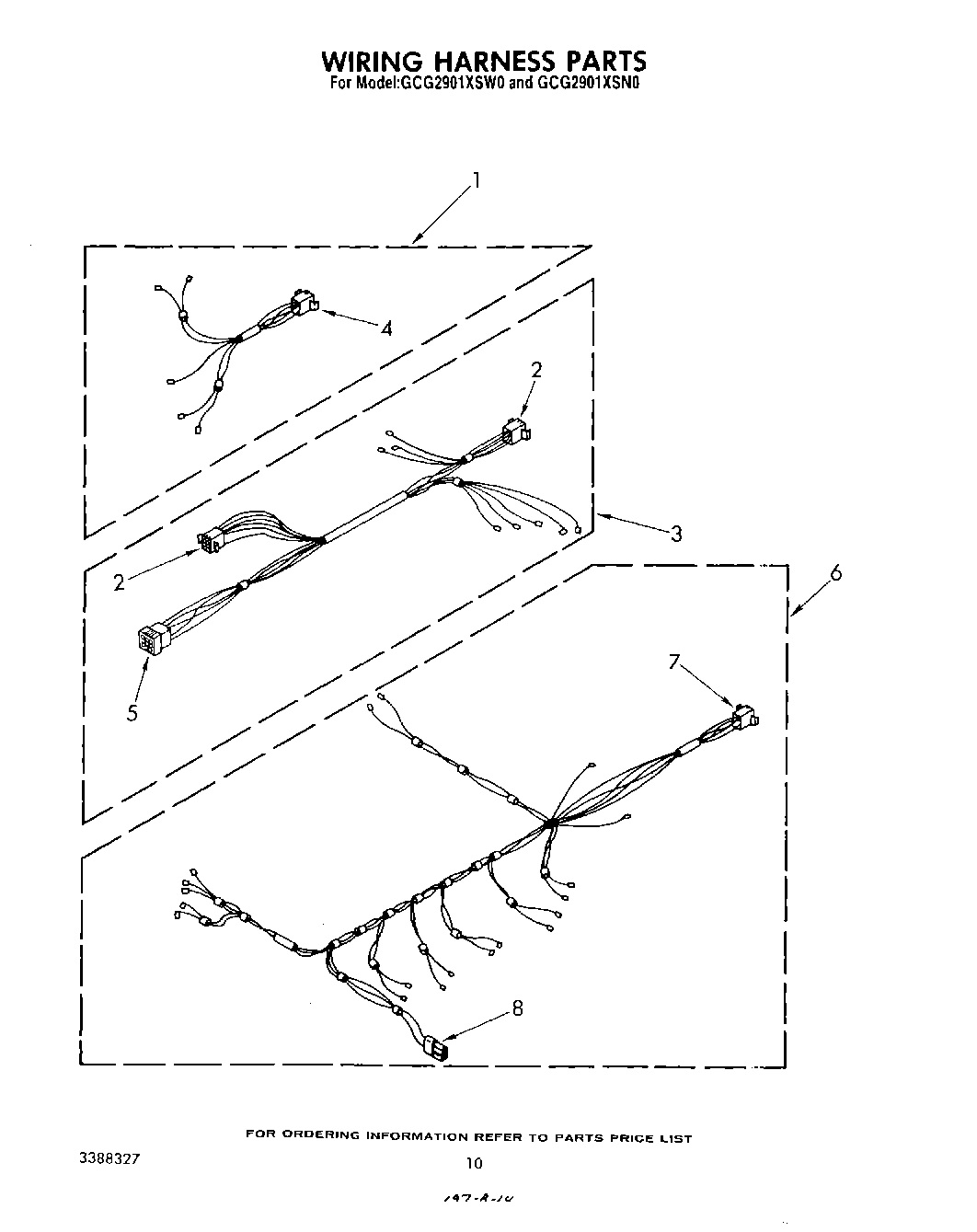

Harness, Timer WPL 3388748 Contact Us For Availability

1

Clip, Toe Panel WPL 341776 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

2

Plug, Terminal (6 Way) WPL 352457 Contact Us For Availability

2

Wire, Ground (Motor) WPL 690236 Contact Us For Availability

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

Button (4) WPL 3348587 Contact Us For Availability

3

Harness, Wiring (Upper) WPL 3388749 Contact Us For Availability

4

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $71.57

4

Cap, Terminal (6-Way) (Uses Terminal 94614) WPL 352458 Contact Us For Availability

5

Cap, Terminal (9-Way) WPL 94612 Contact Us For Availability

5

Clip, Harness Retainer WPL 688412 Contact Us For Availability

6

Harness, Wiring (Lower) WPL 3388750 Contact Us For Availability

7

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.33

7

Base, Burner WPL 693986 Contact Us For Availability

7

Plug, Terminal (Uses Terminal 94614) WPL 355410 Contact Us For Availability

8

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

8

Cap, Terminal (Uses Terminal 94614) WPL 691707 Contact Us For Availability

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.90

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.33

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

10

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $18.21

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

Housing, Blower WPL 695081 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $6.20

12

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.40

Thermostat, High Limit 205~F (96~C) (Alt.) WPL 341196 Contact Us For Availability

Thermostat, High Limit 205~F (96~C) WPL 660036 Contact Us For Availability

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

WP8066217 Whirlpool Hinge Backorder WPL WP8066217 $3.70

16

Support, Heater Box (2) WPL 337445 Contact Us For Availability

17

279900 Whirlpool Box O/S1 Backorder WPL 279900 $130.12

17

WP691581 Whirlpool Actuator In Stock WPL WP691581 $4.70

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $107.10

18

Panel, Rear WPL 347736 Contact Us For Availability

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

WP3348109 Whirlpool Light Lens In Stock WPL WP3348109 $6.13

Seal, Blower WPL 694630 Contact Us For Availability

Clip, Harness WPL 694510 Contact Us For Availability

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

Heater, Thermostat WPL 61894 Contact Us For Availability

Locator, Top (1) WPL 356837 Contact Us For Availability

Locator, Top (2) WPL 98669 Contact Us For Availability

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.60

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $54.79

22

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

22

Valve & Union, Shut-Off WPL 345062 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

23

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $3.33

23

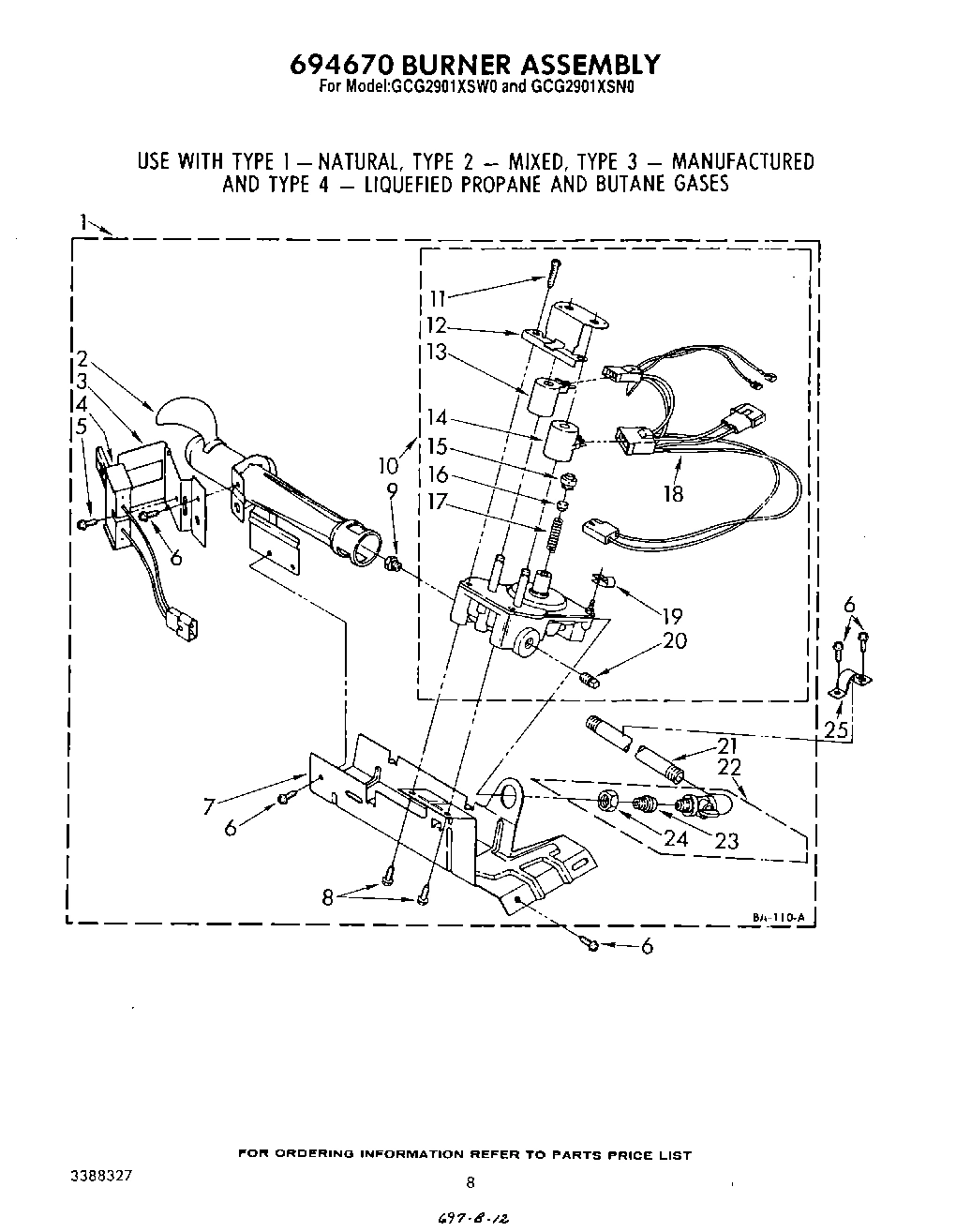

Burner Assembly (60 Hz.) (Refer to Pages 8 & WPL 694670 Contact Us For Availability

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Front Panel Assembly (White) WPL 693202 Contact Us For Availability

24

Front Panel Assembly (Almond) WPL 693203 Contact Us For Availability

25

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $17.60

25

49621 Whirlpool Leveling Feet In Stock WPL 49621 $3.22

25

Conversion Kit Type 1 (Natural) To Type 3 (Ma WPL 279243 Contact Us For Availability

26

Panel, Toe (White) WPL 697095 Contact Us For Availability

26

Panel, Toe (Almond) WPL 697096 Contact Us For Availability

27

Clip, Toe Panel (2) WPL 342601 Contact Us For Availability

28

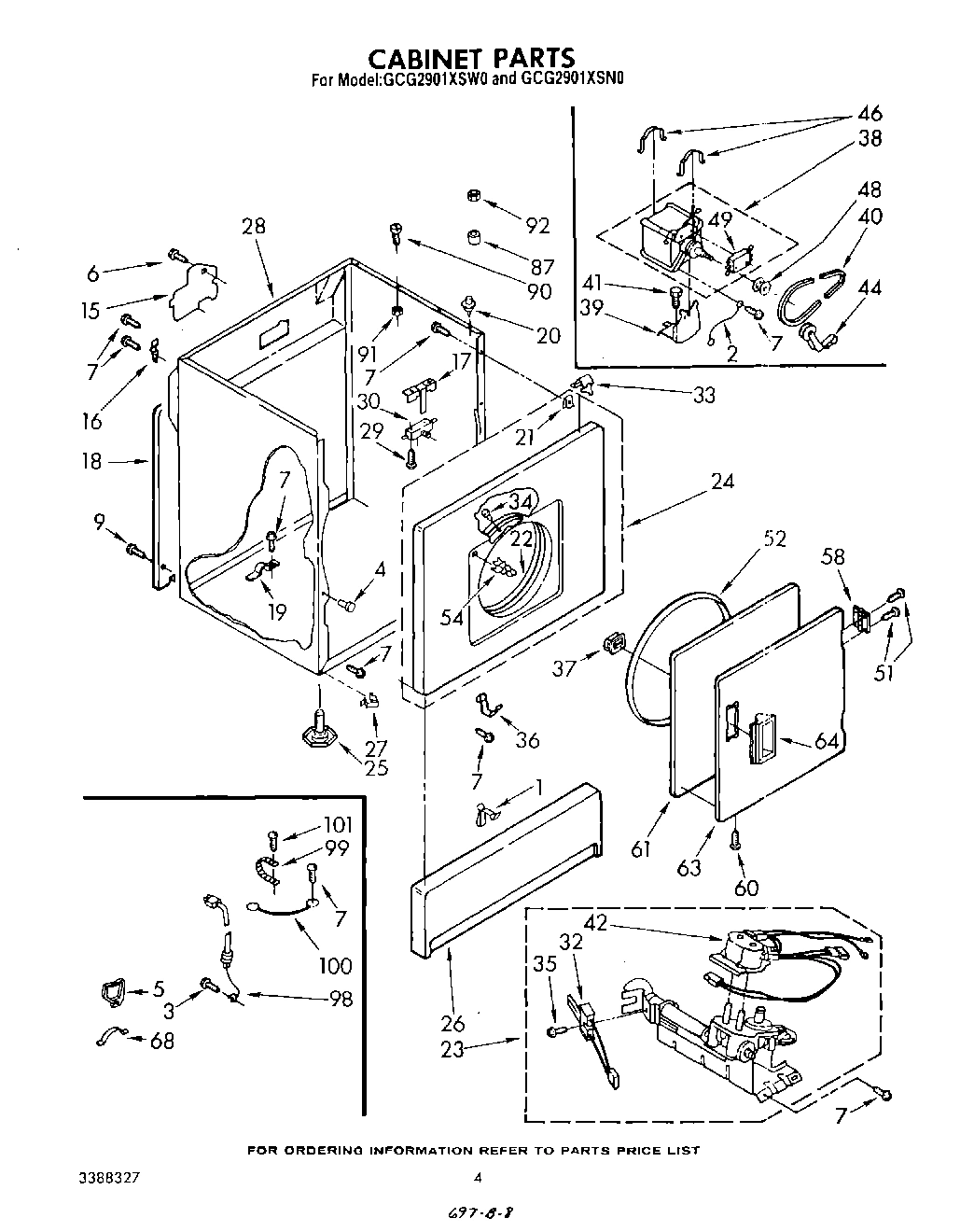

Cabinet (White) WPL 690847 Contact Us For Availability

28

Cabinet (Almond) WPL 690848 Contact Us For Availability

29

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

30

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $20.22

32

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

33

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.20

34

279220 Whirlpool Clip In Stock WPL 279220 $12.76

34

NUT, PUSH IN WPL 689559 Contact Us For Availability

35

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $3.33

36

WP297092 Whirlpool Clip In Stock WPL WP297092 $4.52

37

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $4.52

39

WP348780 Whirlpool Base In Stock WPL WP348780 $38.94

40

341241 Whirlpool Dryer Drum Belt In Stock WPL 341241 $9.64

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

WP3387974 Whirlpool Cam In Stock WPL WP3387974 $5.37

WP339855 Whirlpool Cam Backorder WPL WP339855 $2.51

WP343777 Whirlpool Cam Backorder WPL WP343777 $3.70

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.34

42

279923 Whirlpool Gas Valve In Stock WPL 279923 $151.32

42

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $44.50

43

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.12

43

Nut, Push-In WPL 358473 Contact Us For Availability

44

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $17.40

44

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $6.71

46

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

46

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

47

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

48

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $23.68

48

Bulkhead WPL 685775 Contact Us For Availability

49

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

49

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

52

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $21.52

54

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $3.10

58

WP348023 Whirlpool Hinge Backorder WPL WP348023 $3.70

60

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

61

280077 Whirlpool Door Backorder WPL 280077 $122.39

62

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $43.76

63

WP348205 Whirlpool Door Backorder WPL WP348205 $58.63

63

Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability

63

Door, Front (Almond) WPL 689314 Contact Us For Availability

64

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $4.70

64

Handle, Door (Almond) WPL 689308 Contact Us For Availability

66

239087 Whirlpool Dryer Rear Drum Seal Green S In Stock WPL 239087 $30.40

67

3396775 Whirlpool Drum Assembly Backorder WPL 3396775 $213.22

68

8528351 Whirlpool Clip Backorder WPL 8528351 $27.52

68

WP342847 Whirlpool Drum Baffle Backorder WPL WP342847 $52.08

73

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $4.70

74

Bracket, Support Shaft WPL 348945 Contact Us For Availability

75

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

77

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

87

Wedge, Cone WPL 356674 Contact Us For Availability

90

Screw, WPL 427190 Contact Us For Availability

91

WP487939 Whirlpool Refrigerator Nut In Stock WPL WP487939 $2.51

92

90984 Whirlpool Nut Backorder WPL 90984 $9.13

98

W11222083 Whirlpool Power Cord Backorder WPL W11222083 $39.98

99

WPL 22965 WPL 22965 Contact Us For Availability

100

WPL 364089 WPL 364089 Contact Us For Availability

101

WPL 132848 WPL 132848 Contact Us For Availability
