Model Whirlpool ET18GKXGN02 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

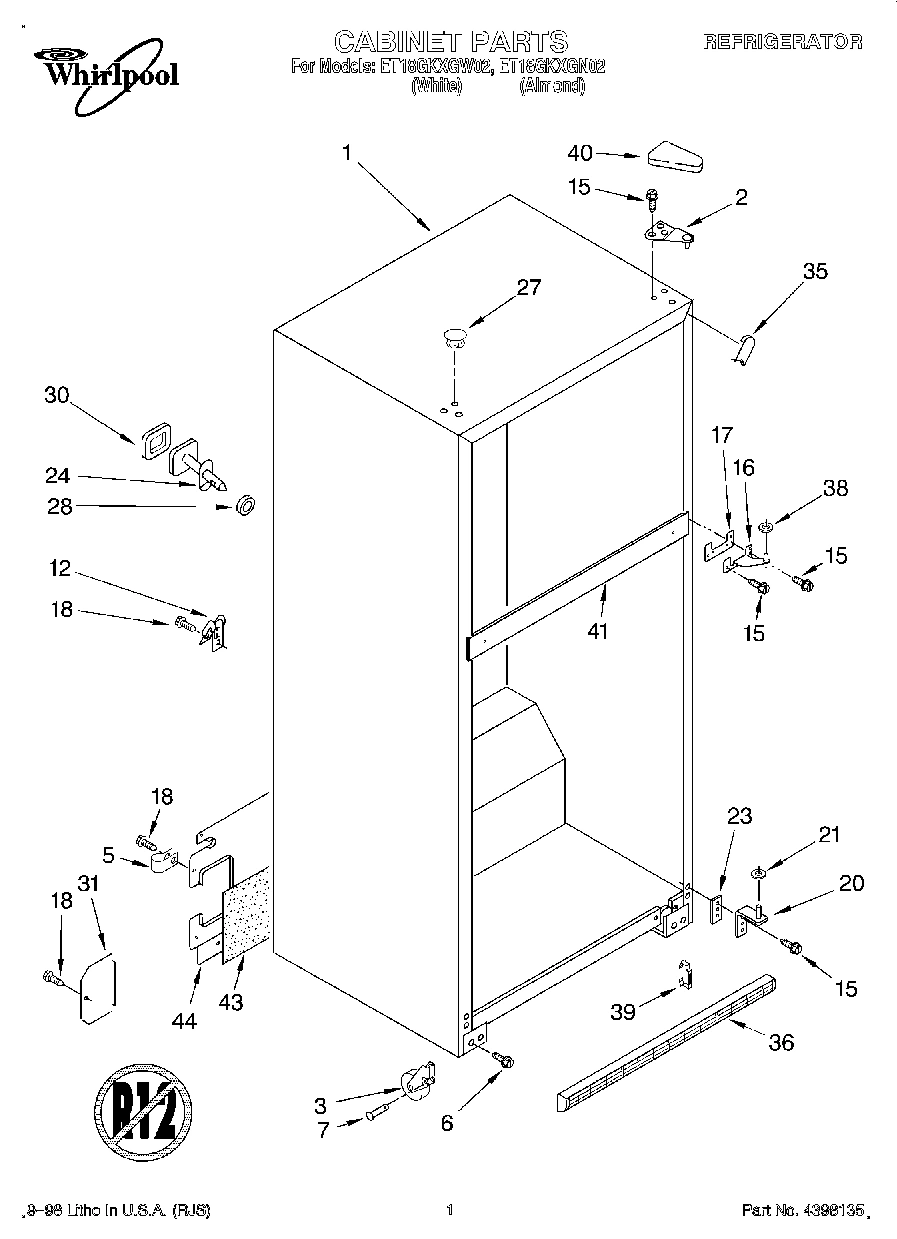

01 - CABINET

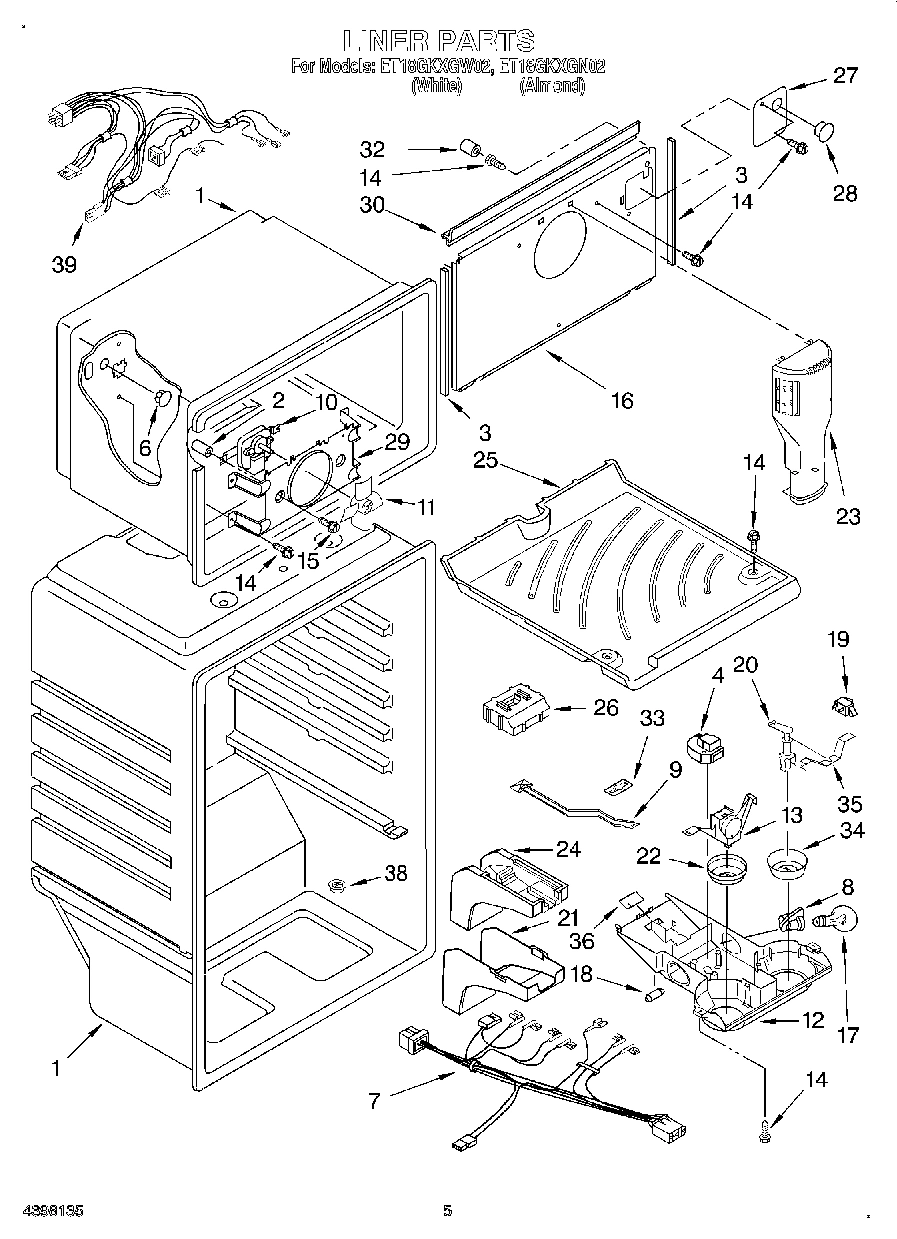

03 - LINER

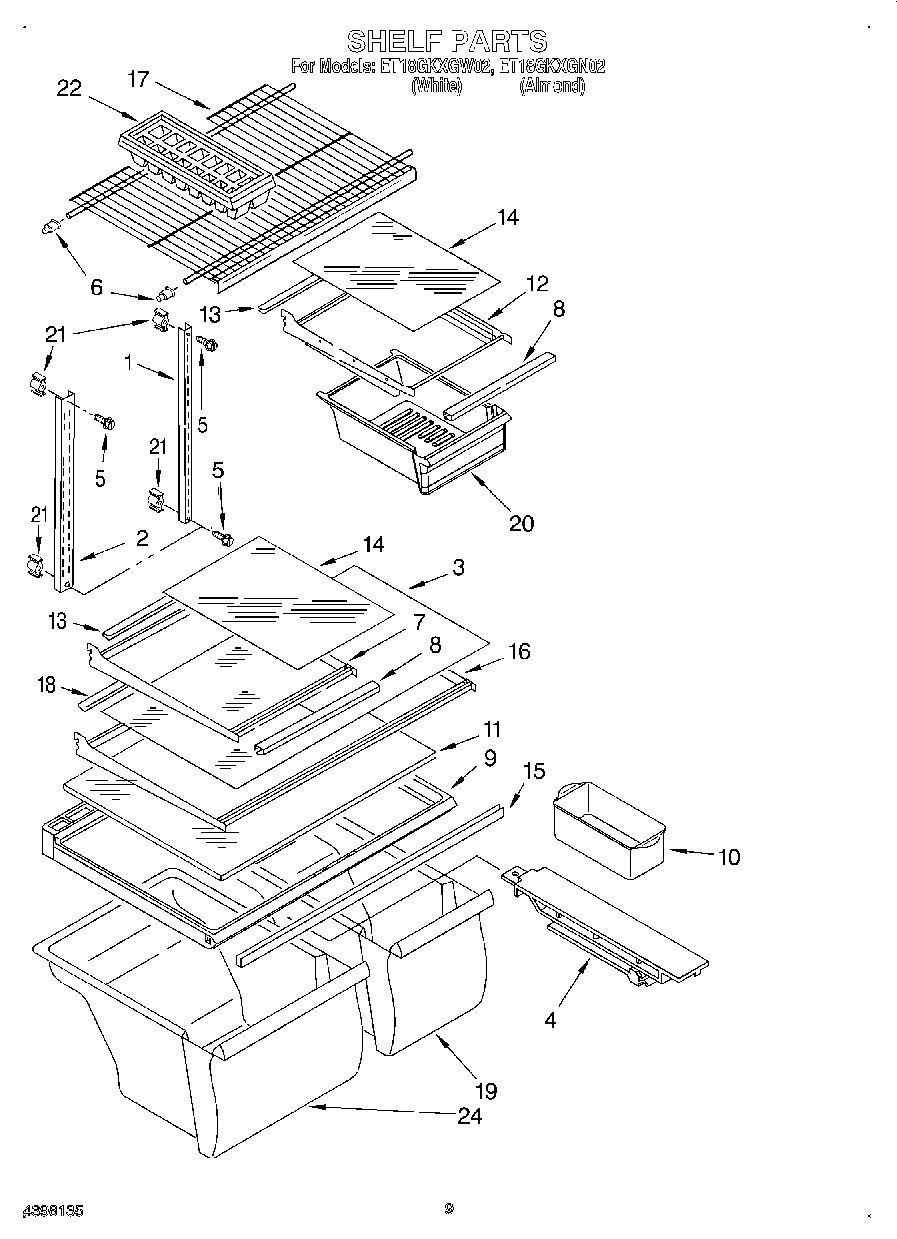

05 - SHELF, LIT/OPTIONAL

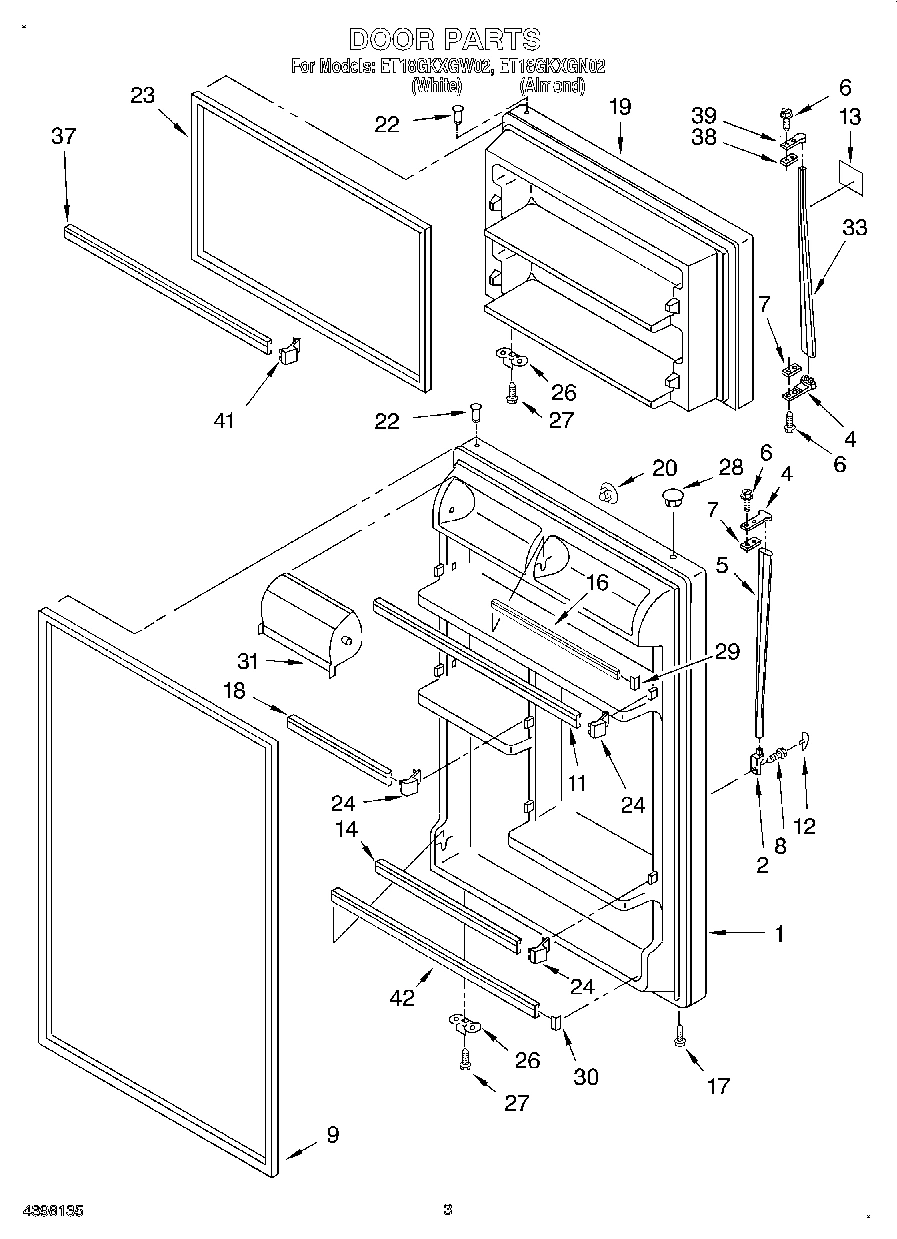

02 - DOOR

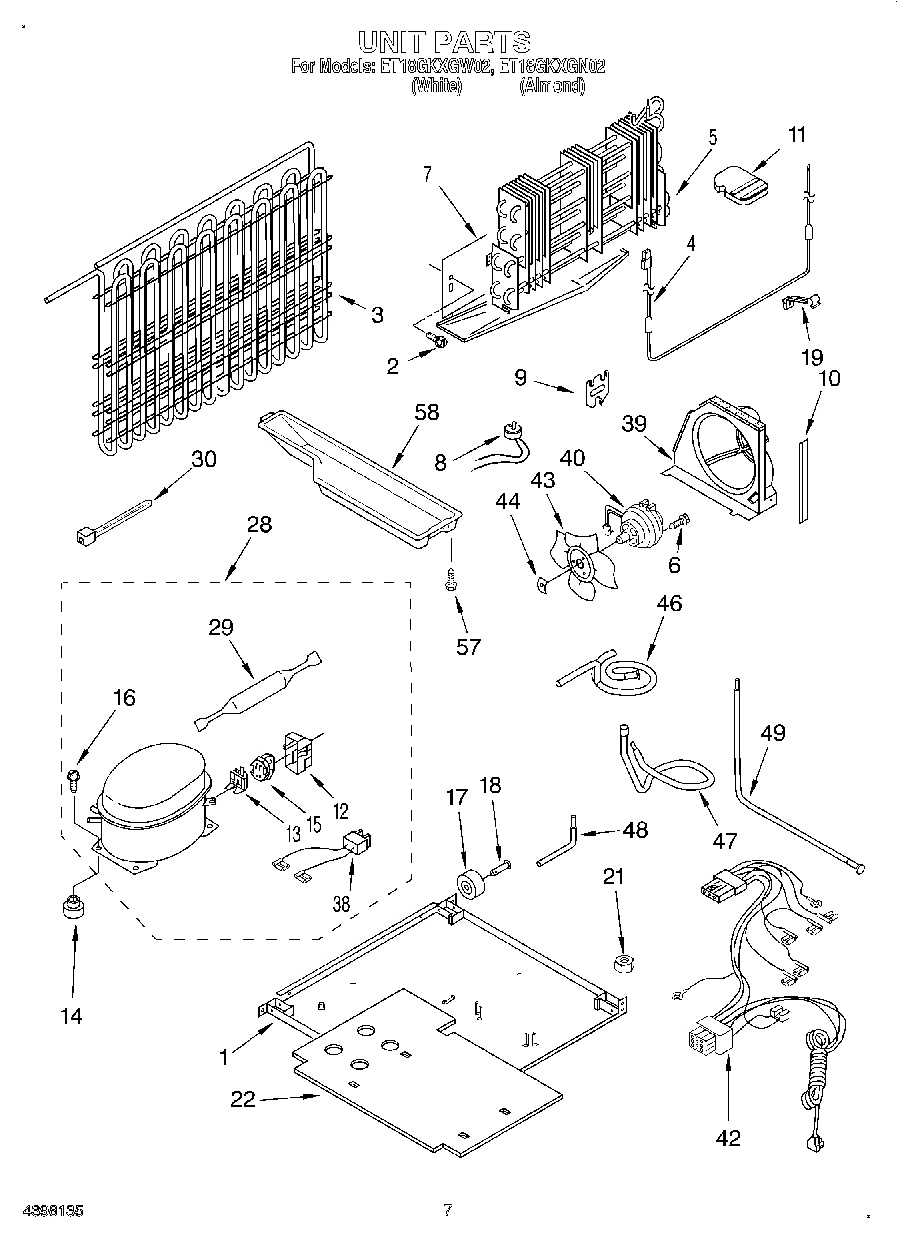

04 - UNIT
Common parts from model Whirlpool ET18GKXGN02 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.22) (Wh WPL 2183948 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.22) (Al WPL 2183949 Contact Us For Availability
1
Plate, Unit Mounting WPL 2188168 Contact Us For Availability
3
Glass, Full Shelf WPL 2177824 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Trim, Door Shelf WPL 2195941 Contact Us For Availability
11
Support Block WPL 2176302 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
13
Nameplate (White Model) WPL 2175383 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2175384 Contact Us For Availability
15
Relay (See Overload) WPL ARI43507A2 Contact Us For Availability
16
Screw WPL 489473 Contact Us For Availability
18
Trim, Door WPL 2195942 Contact Us For Availability
18
Trim, Shelf Rear WPL 2193394 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.22 & No.23) (White) WPL 2182487 Contact Us For Availability
19
Freezer Door (Includes No.22 & No.23) (Almond WPL 2182491 Contact Us For Availability
20
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Support, Screw WPL 2189314 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI43508A8 Contact Us For Availability
22
Cover, Unit WPL 2198740 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
37
Trim-Door (2) WPL 2195946 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
42
Wire Assy. Unit WPL 2199117 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
47
Tube, Suction WPL 2189161 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Door Reversal Instructions WPL 2172516 Contact Us For Availability
100
FeaturePak (Includes 11,14, 16,18,24,29,30,31 WPL 2199040 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
