Model Whirlpool ET18GKXGN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
04 - UNIT

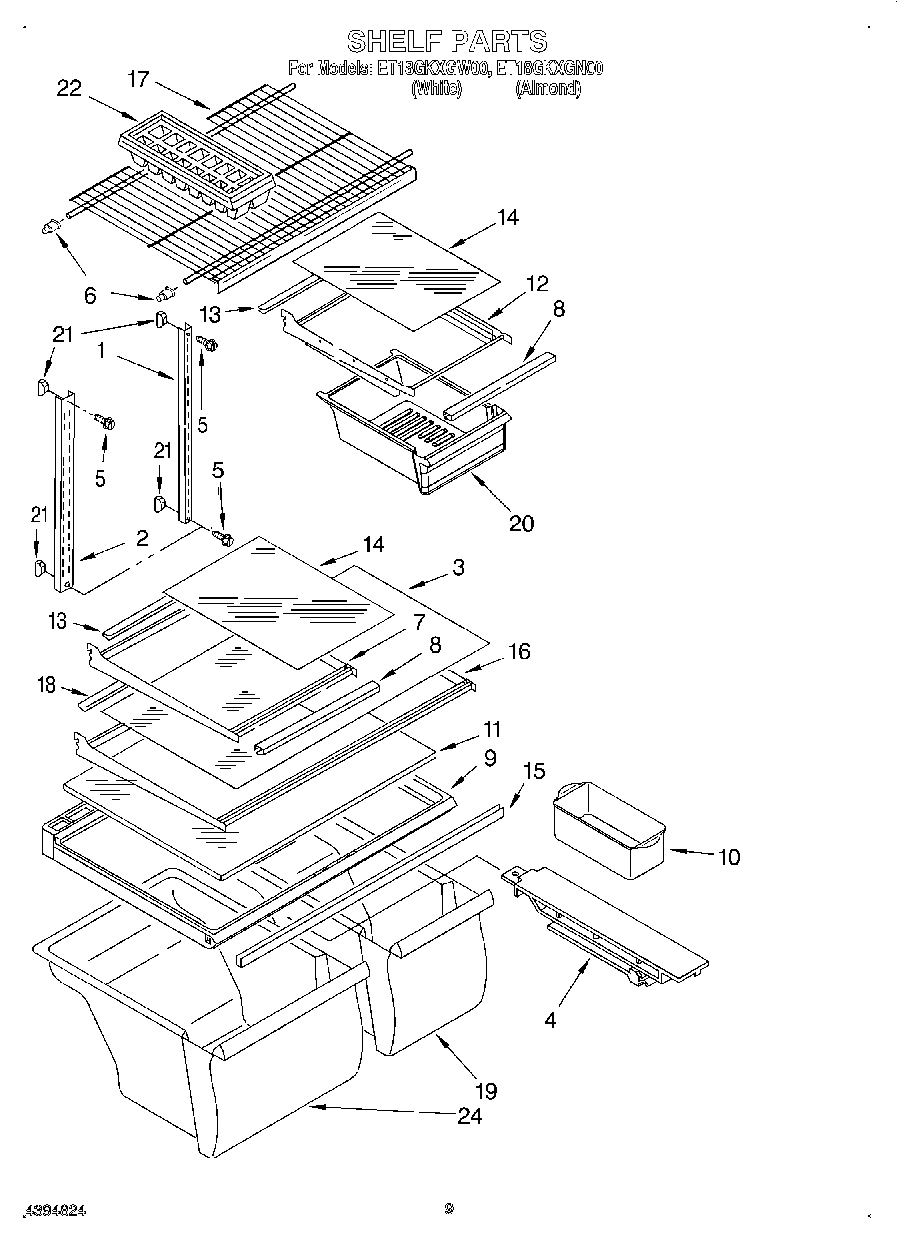

05 - SHELF, LIT/OPTIONAL

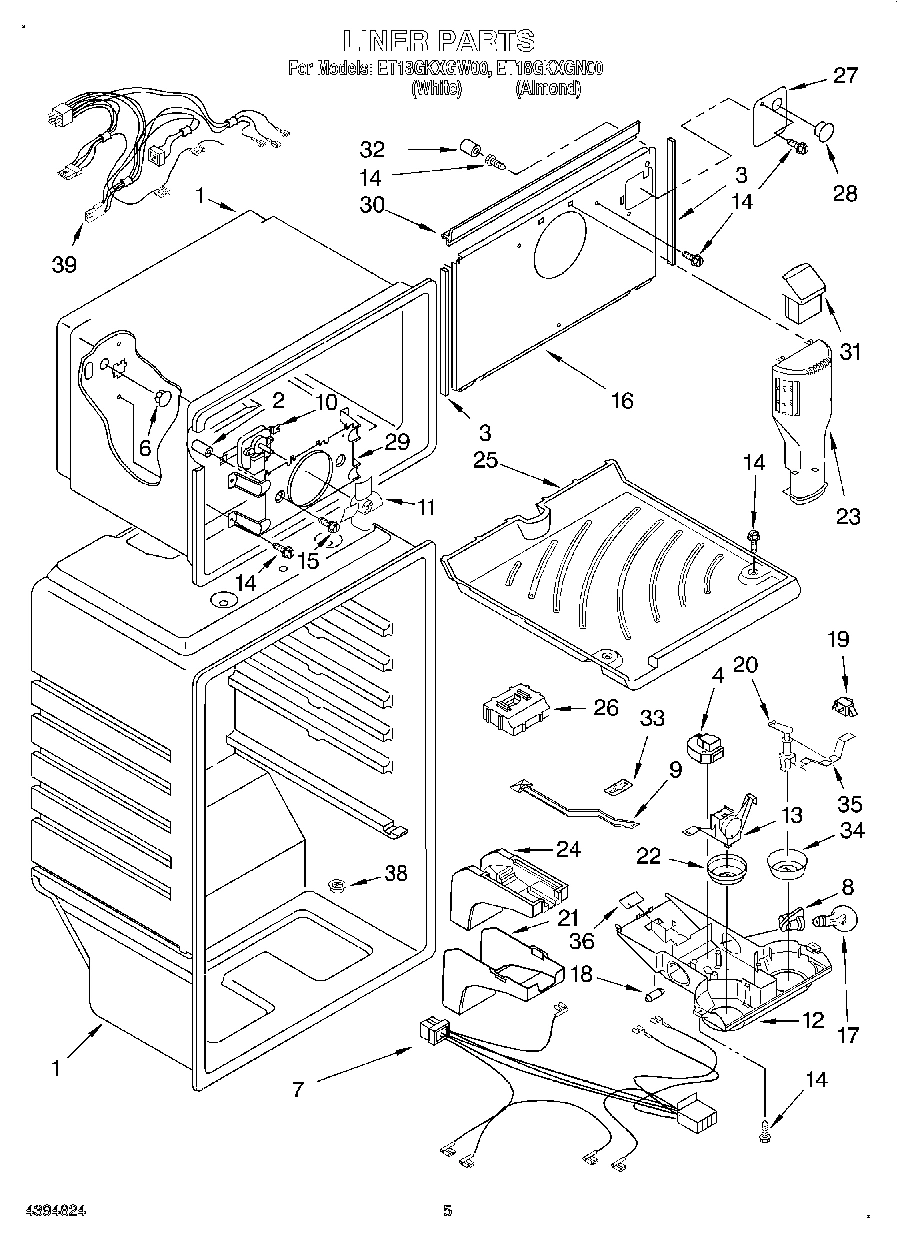

03 - LINER
02 - DOOR
Common parts from model Whirlpool ET18GKXGN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI43490A3 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.22) (Wh WPL 2183948 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.22) (Al WPL 2183949 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
3
Glass, Full Shelf WPL 2177824 Contact Us For Availability
4
Timer, Defrost WPL 2193084 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2193493 Contact Us For Availability
9
Damper, Air WPL 2195603 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
11
Trim, Door Shelf WPL 2195941 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Retainer, Glass WPL 2193313 Contact Us For Availability
13
Nameplate (White Model) WPL 2175383 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2175384 Contact Us For Availability
14
Glass, Meat Cover WPL 2169917 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163862 Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
18
Trim, Door WPL 2195942 Contact Us For Availability
18
Trim, Shelf Rear WPL 2193394 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.22 & No.23) (White) WPL 2182487 Contact Us For Availability
19
Freezer Door (Includes No.22 & No.23) (Almond WPL 2182491 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
20
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Support, Screw WPL 2189314 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
37
Trim-Door (2) WPL 2195946 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Wire Assembly, F.C. WPL 2195656 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Door Reversal Instructions WPL 2172516 Contact Us For Availability
100
FeaturePak (Includes 11,14, 16,18,24,29,30,31 WPL 2199040 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
