Model Whirlpool ET18GKXEW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
04 - UNIT

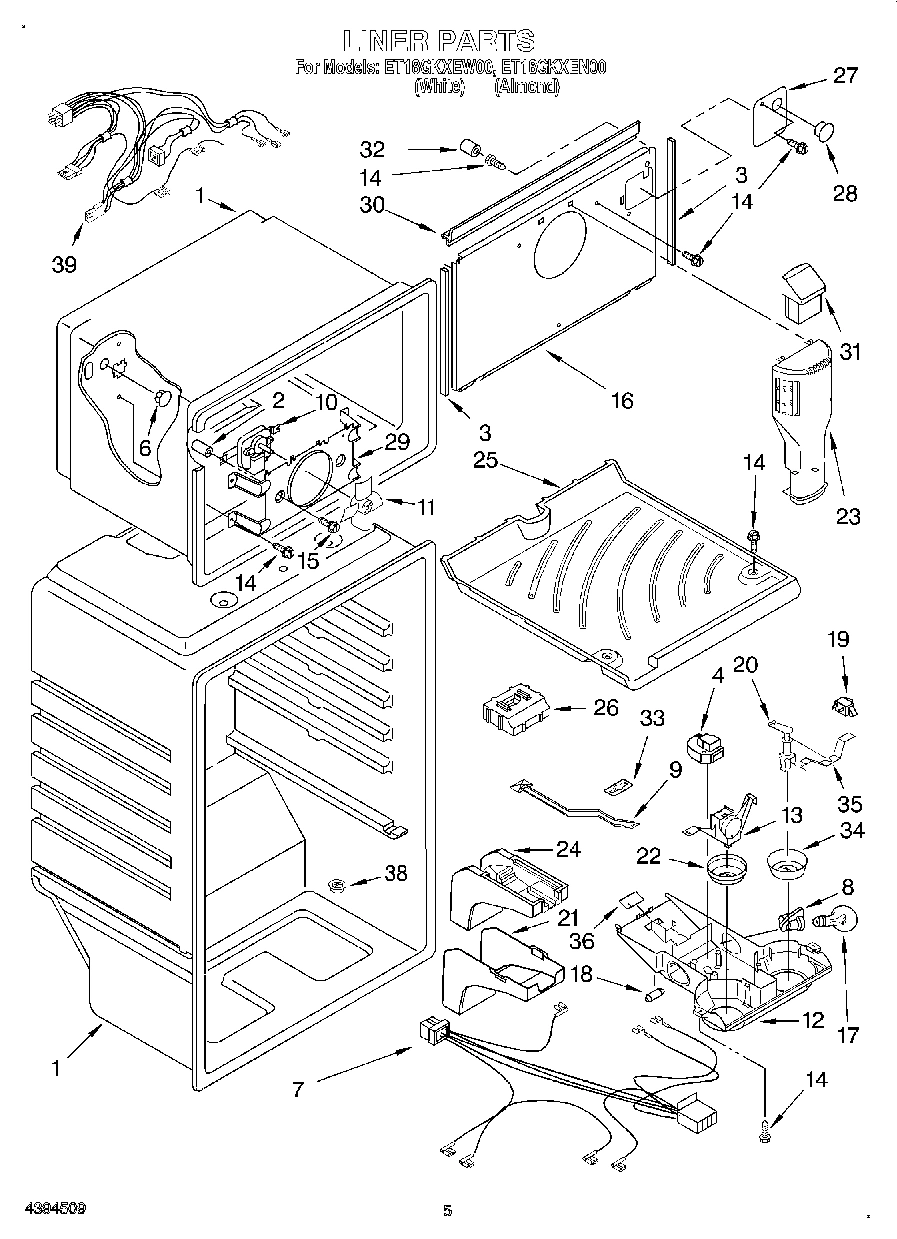

03 - LINER

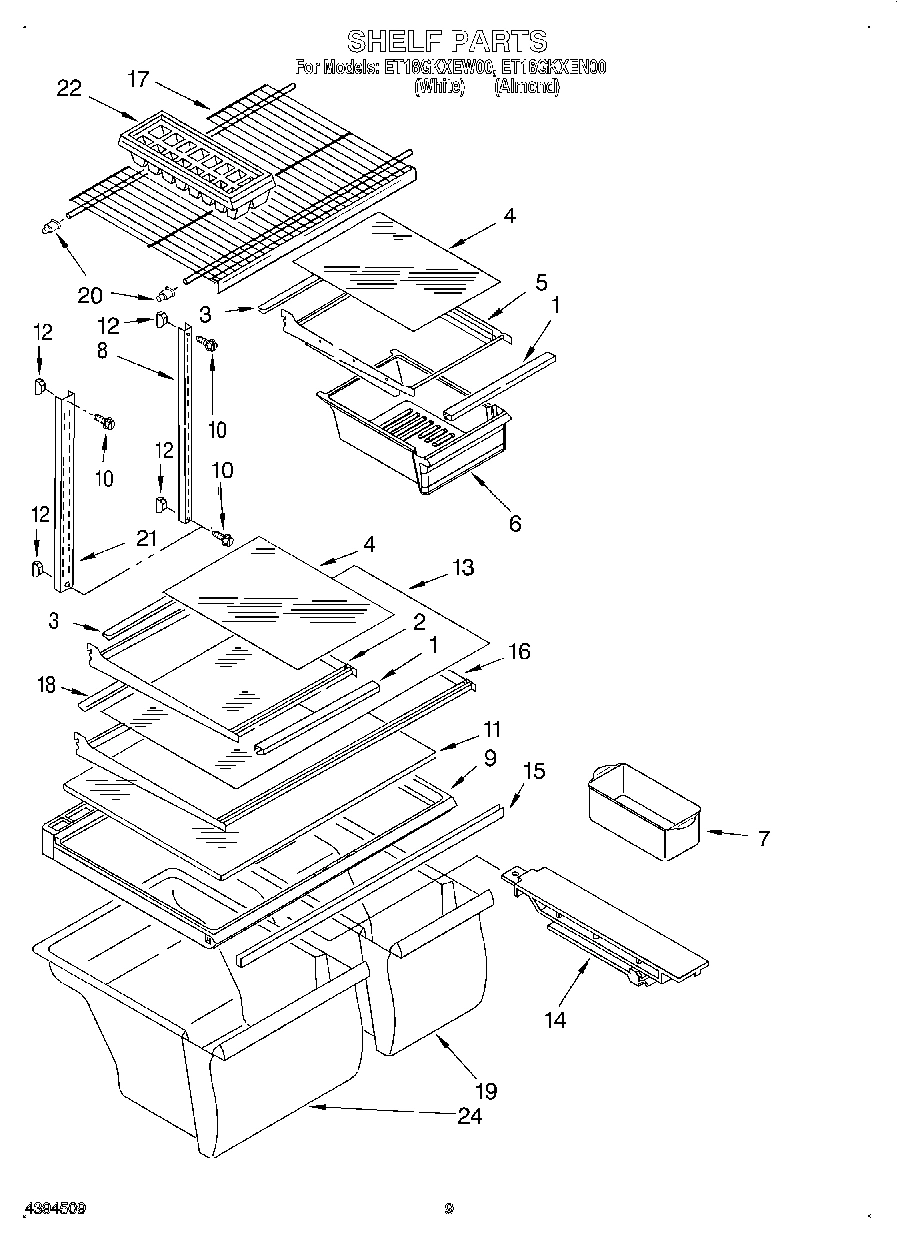

05 - SHELF, LIT/OPTIONAL

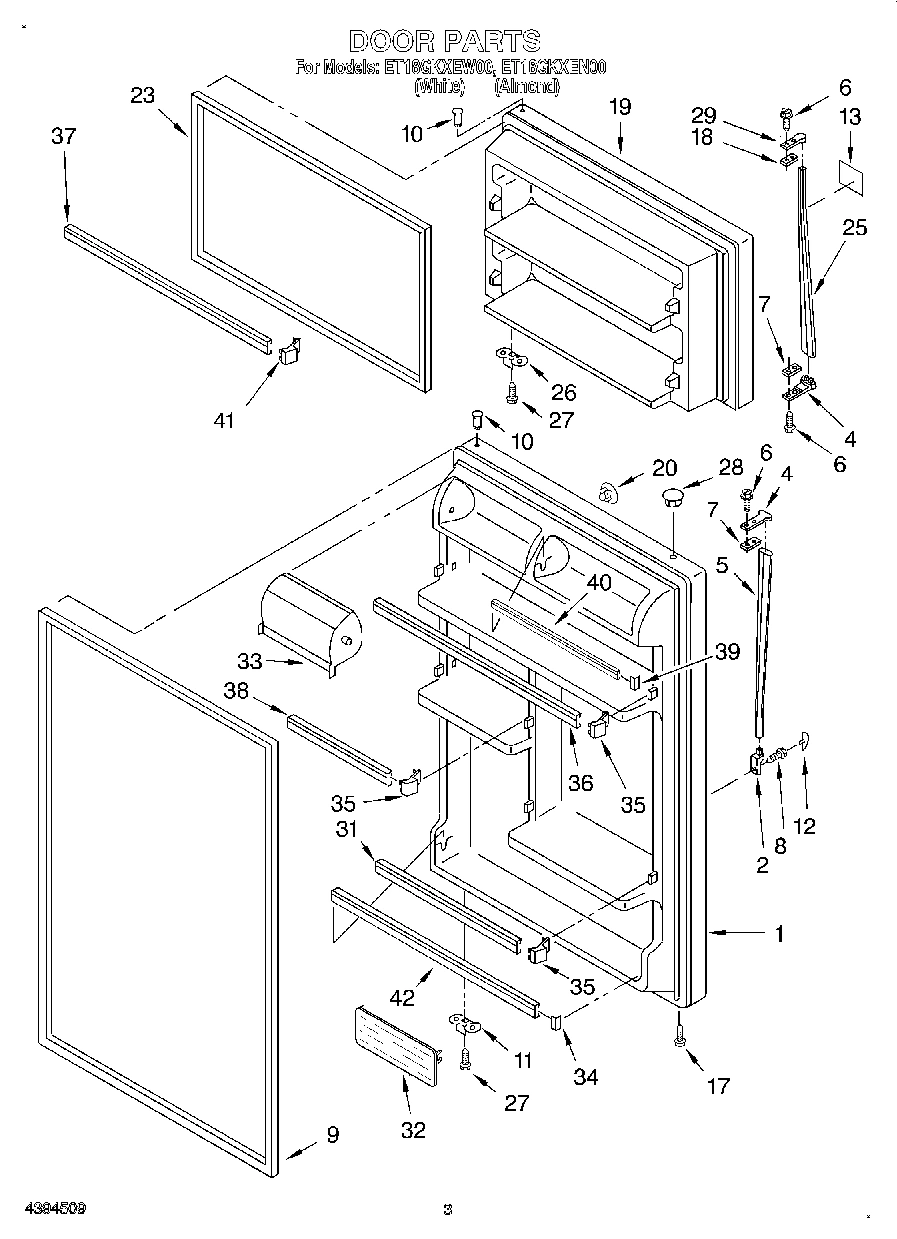

02 - DOOR
Common parts from model Whirlpool ET18GKXEW00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2172667 WPL LIT2172667 Contact Us For Availability
WPL LIT2193495 WPL LIT2193495 Contact Us For Availability
WPL LIT2195314 WPL LIT2195314 Contact Us For Availability
WPL LIT677969 WPL LIT677969 Contact Us For Availability
WPL LIT677971 WPL LIT677971 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI43450A9 Contact Us For Availability
1
Trim, Shelf WPL 2176262 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.10) (Wh WPL 2171029 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.10) (Al WPL 2171030 Contact Us For Availability
2
Grommet (2) WPL 531933 Contact Us For Availability
2
Shelf, Cantilever WPL 2163859 Contact Us For Availability
3
Retainer, Glass WPL 2163882 Contact Us For Availability
4
Glass, Meat Cover WPL 2166216 Contact Us For Availability
5
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
6
Pan, Meat WPL 2190681 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Wire Assy. Control Box WPL 2172542 Contact Us For Availability
8
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
9
Damper, Air WPL 2179858 Contact Us For Availability
10
Fan Motor WPL 2183833 Contact Us For Availability
11
Insert, Crisper Cover WPL 2166149 Contact Us For Availability
11
Bracket, Door Stop WPL 944035 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Control Box WPL 2179790 Contact Us For Availability
13
Glass, Full Shelf WPL 2166215 Contact Us For Availability
13
Nameplate (White Model) WPL 2175383 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2175384 Contact Us For Availability
15
Screw WPL 489412 Contact Us For Availability
16
Cover, Evaporator WPL 2183154 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2163862 Contact Us For Availability
18
Shim WPL 943187 Contact Us For Availability
18
Weight, Thermal WPL 2163802 Contact Us For Availability
18
Trim, Shelf Rear WPL 2163884 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.10 & No.23) (White) WPL 2182487 Contact Us For Availability
19
Freezer Door (Includes No.10 & No.23) (Almond WPL 2182491 Contact Us For Availability
20
Post, Damper WPL 2179859 Contact Us For Availability
20
Hole Plug (Almond) WPL 1122654 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Shelf, Ladder Center WPL 2163826 Contact Us For Availability
22
Knob, Thermostat WPL 2193455 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
25
Freezer Floor WPL 2172565 Contact Us For Availability
25
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
26
Air Diffuser, Top WPL 2179877 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
29
Bracket, Fan Motor WPL 2163827 Contact Us For Availability
31
Trim Door WPL 2177291 Contact Us For Availability
33
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
34
Knob, Damper WPL 2176297 Contact Us For Availability
35
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
36
Trim, Door Shelf WPL 2171038 Contact Us For Availability
37
Trim-Door (2) WPL 2171037 Contact Us For Availability
38
Trim, Door WPL 2171039 Contact Us For Availability
39
Wire Assembly, F.C. WPL 2179823 Contact Us For Availability
40
Trim, Door WPL 2171040 Contact Us For Availability
42
Trim, Door WPL 2184570 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
KIT, FOAM SLAB (30 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Door Reversal Instructions WPL 2172516 Contact Us For Availability
100
Interior Kit, (Includes 31-42) WPL 2182571 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
