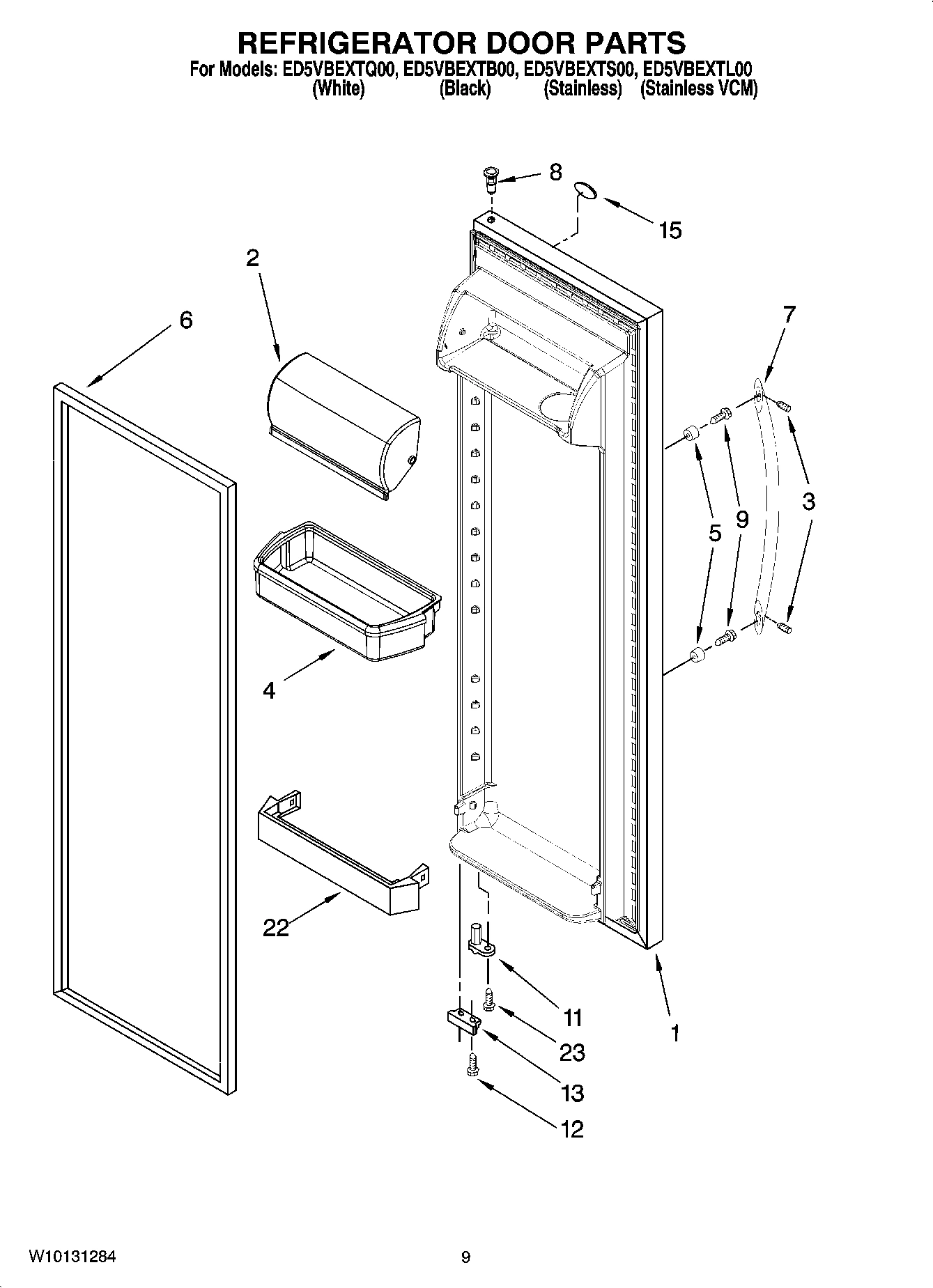

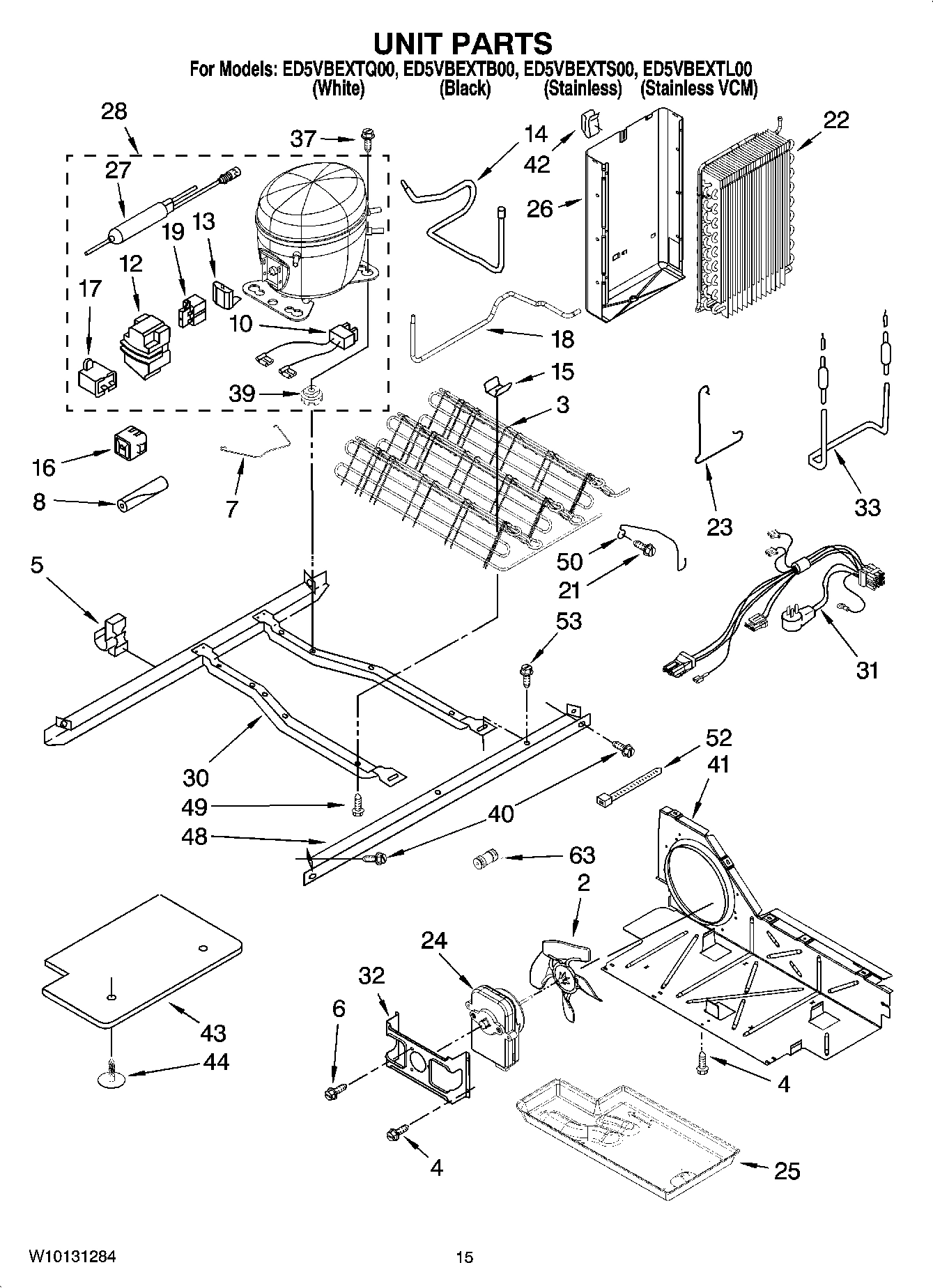

Model Whirlpool ED5VBEXTL00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $135.64

1

Liner (Not A Serviceable Part) WPL ARI38446A6 Contact Us For Availability

1

INSTRUCTION SHEET (DOOR REMOVAL) WPL 2261037 Contact Us For Availability

1

Use & Care Guide WPL 2309541 Contact Us For Availability

1

Energy Label WPL 2311449 Contact Us For Availability

1

Service & Wiring Sheet WPL 2311817 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability

2

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2257741 Contact Us For Availability

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

5

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $37.62

7

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $113.83

7

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $27.12

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $36.29

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $37.83

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $70.03

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $50.03

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $46.04

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

16

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

16

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $35.90

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $35.94

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

WP2309517 Whirlpool Crisper Snack Pan In Stock WPL WP2309517 $73.49

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

WPW10276348 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276348 $117.02

Block, Housing Support WPL 2260519 Contact Us For Availability

20

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $28.80

20

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

20

W10853301 Whirlpool Refrigerator Screw Backorder WPL W10853301 $4.48

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $58.37

WPW10311033 Whirlpool Refrigerator Grille Backorder WPL WPW10311033 $74.68

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Front Cover Assembly (Includes Items 18, 19, WPL 2311694B Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Spacer, Switch (2) WPL 625834 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

27

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

27

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

27

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

28

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

30

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

32

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2209769 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $47.93

37

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $39.91

37

Screw (2) WPL 488280 Contact Us For Availability

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

47

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $67.78

48

Cabinet, (Not A Serviceable Part) WPL ARI38445A5 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

50

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
