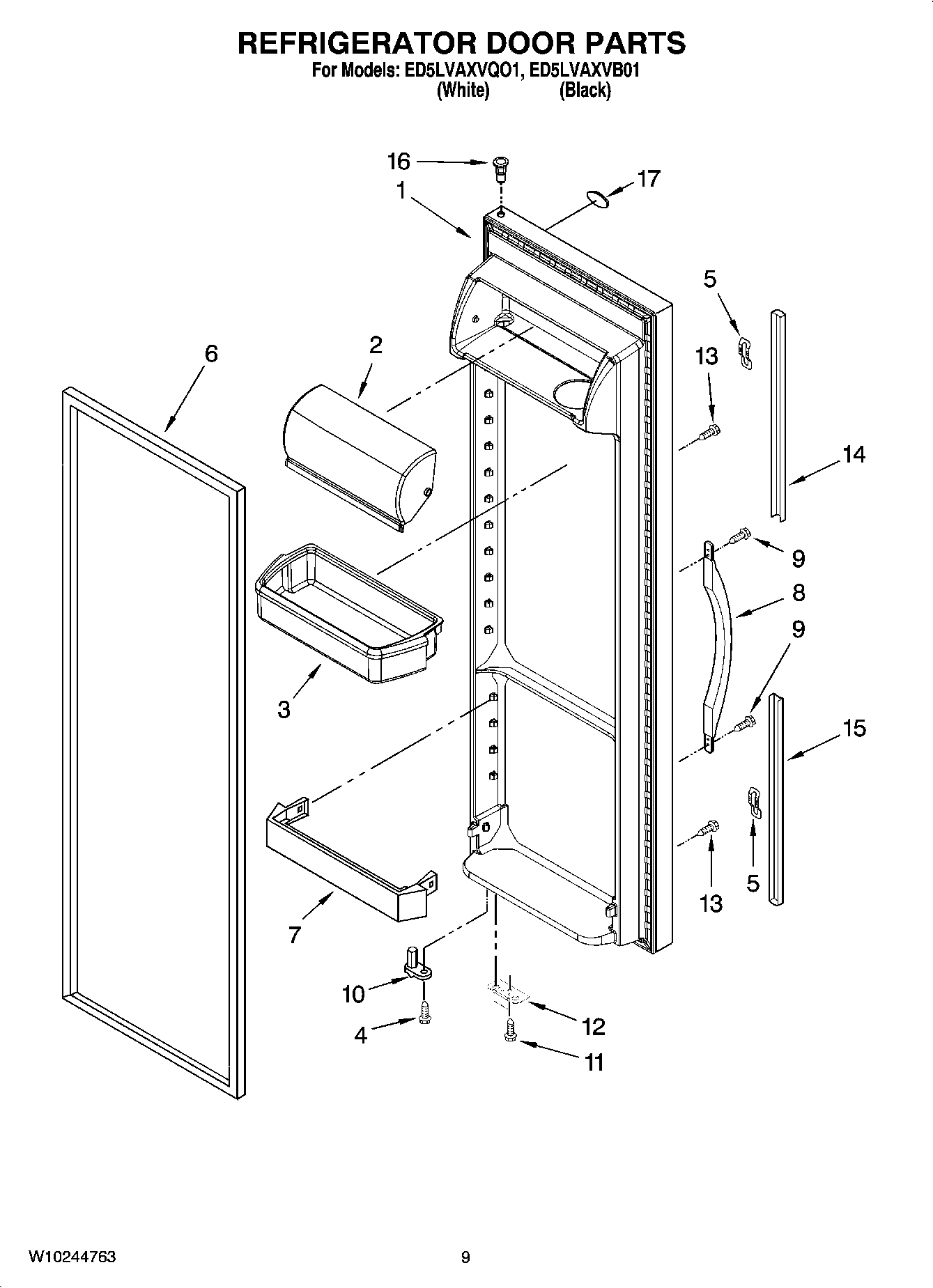

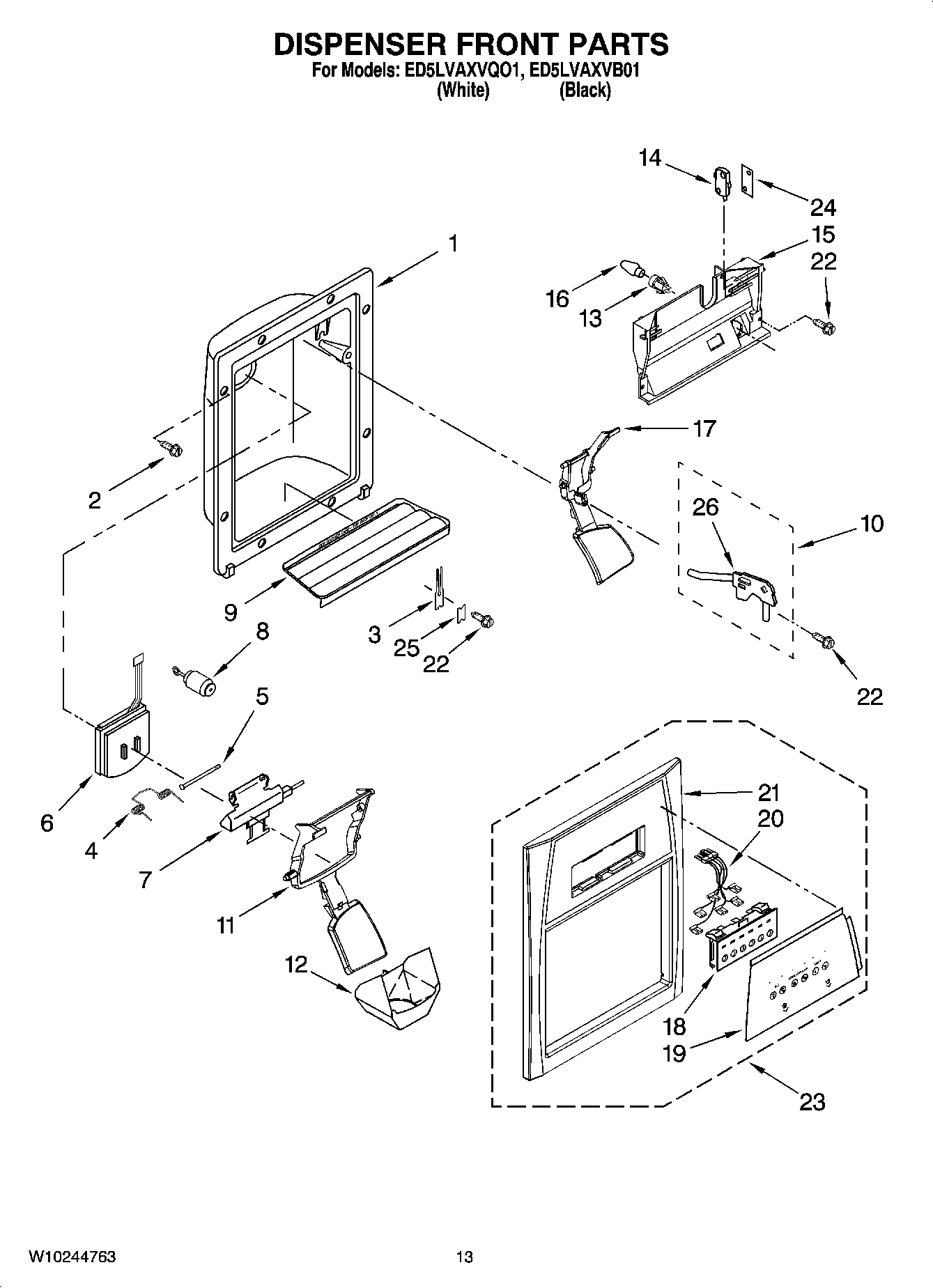

Model Whirlpool ED5LVAXVB01 Refrigerator – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $130.88

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

3

WP2203828 Whirlpool Door Shelf Bin In Stock WPL WP2203828 $54.30

3

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $37.62

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $57.58

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $28.80

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

5

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $53.09

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

6

W10210786 Whirlpool Refrigerator Tube Backorder WPL W10210786 $31.71

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $134.84

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $53.71

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

9

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $49.85

9

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

9

Blade, Fixed WPL 2257020 Contact Us For Availability

10

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $37.83

10

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $72.87

10

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $42.25

13

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

13

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

Light Bar (RC) WPL 2179920 Contact Us For Availability

Extension, Top (White) WPL 2194707W Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.50

Extension, Bottom (White) WPL 2194705W Contact Us For Availability

16

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

16

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

16

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $35.94

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $41.05

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2198621 Whirlpool Refrigerator Switch Backorder WPL 2198621 $88.60

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

Extension, Drain Fitting WPL 2304937 Contact Us For Availability

Latch, Bin WPL 2317277 Contact Us For Availability

20

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

20

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

20

Clip WPL 2161324 Contact Us For Availability

21

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

21

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

22

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $28.80

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

Cover, Receiver WPL W10173569 Contact Us For Availability

26

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

27

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

27

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

28

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

28

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

29

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

30

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

30

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

31

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

31

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $26.70

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

33

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

33

Air Baffle WPL W10163483 Contact Us For Availability

34

Clip, Heat WPL 2155547 Contact Us For Availability

35

WPW10196323 Whirlpool Refrigerator Rail Assem Backorder WPL WPW10196323 $51.83

36

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

37

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $26.21

38

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17
