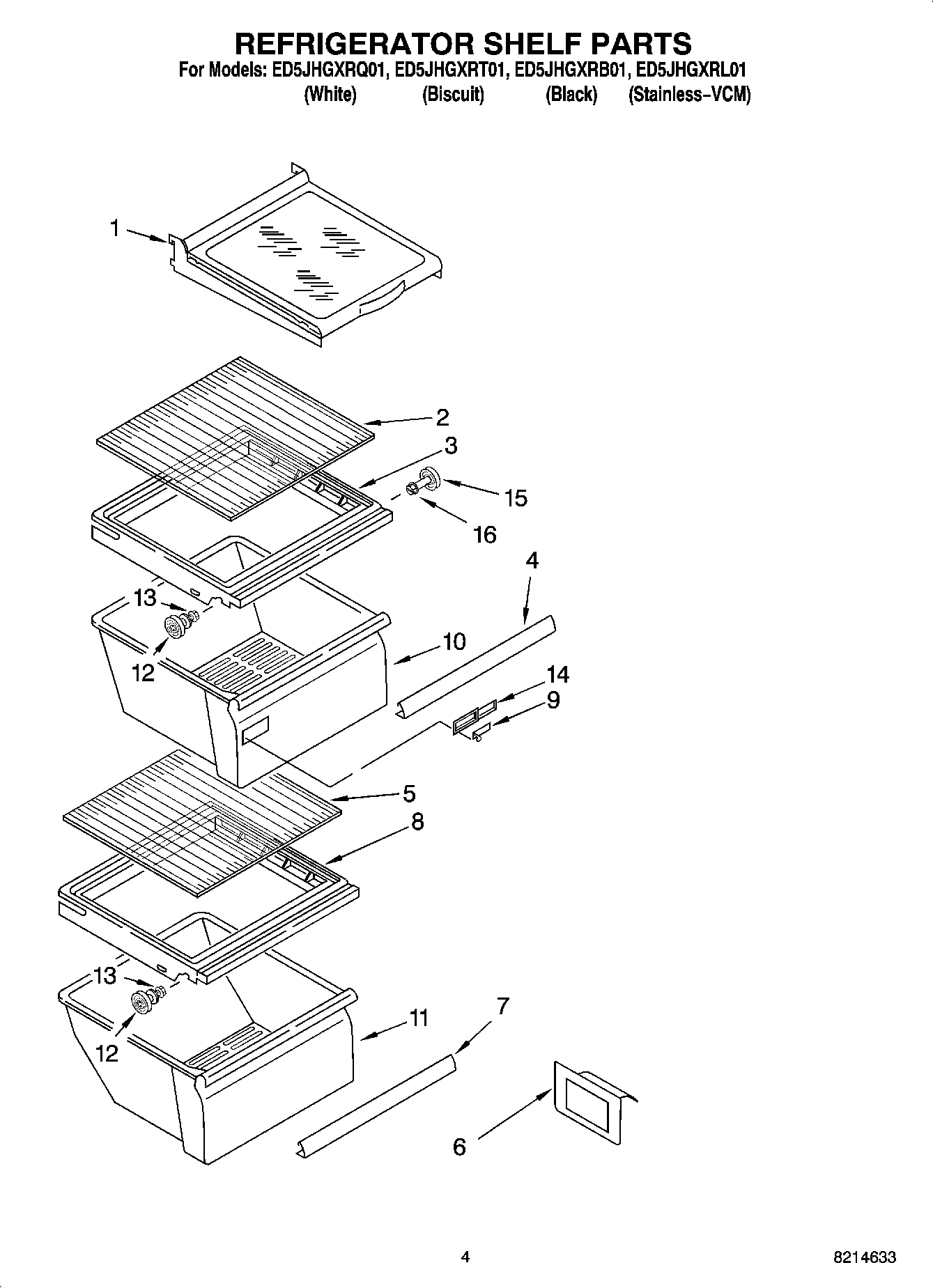

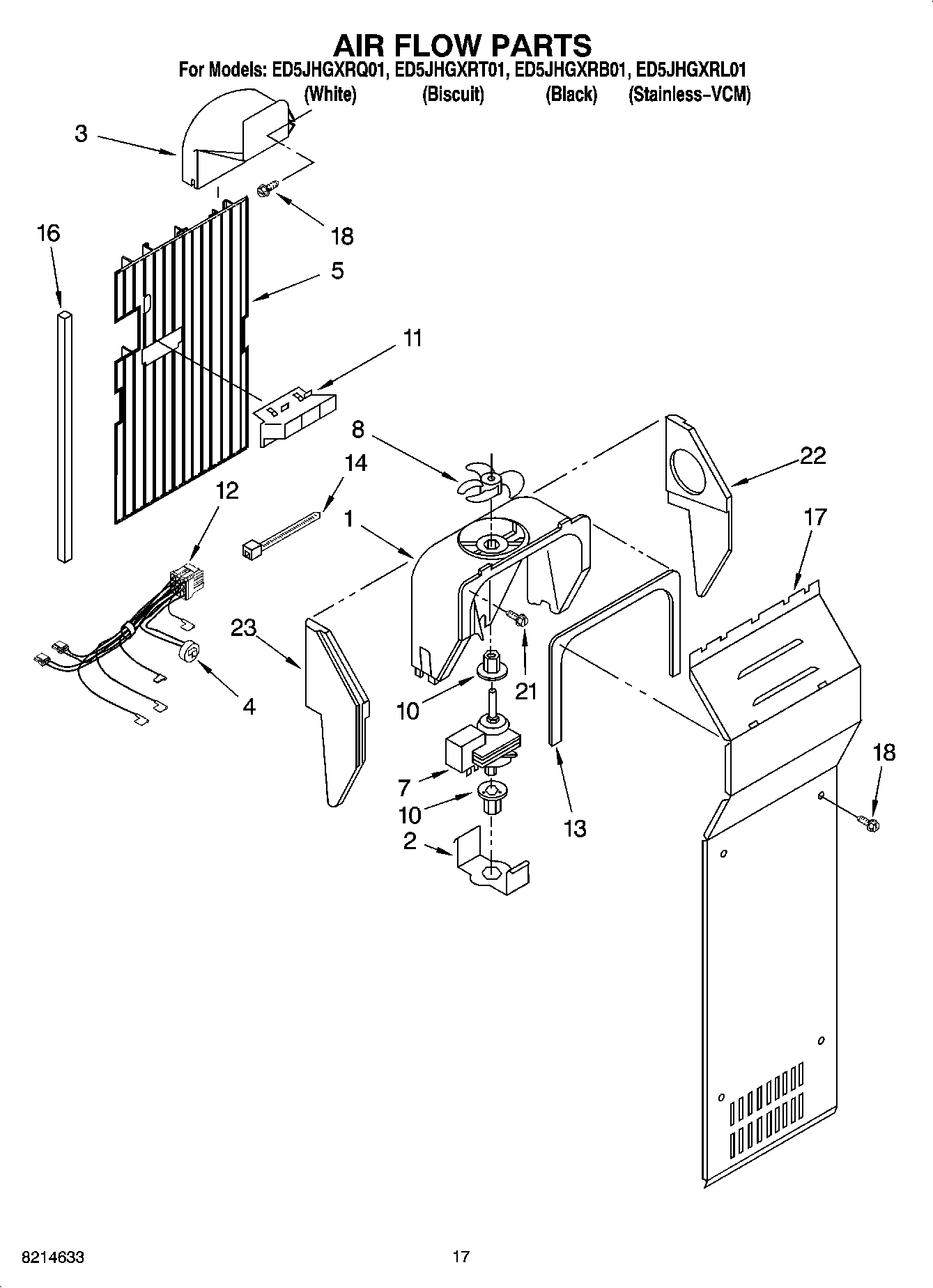

Model Whirlpool ED5JHGXRL01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2`` WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

Refrigerator Door (Includes Item 6) (Black) WPL 2206682B Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2206682L Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2206682T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2206682W Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI35923A3 Contact Us For Availability

1

Control Box WPL 2200136 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $25.24

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Extension, Handle (Biscuit) WPL 2194969T Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

6

2313199 Whirlpool Refrigerator Door Trim Backorder WPL 2313199 $33.27

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $139.55

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2186649B Whirlpool Refrigerator Handle Backorder WPL WP2186649B $79.24

7

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $36.29

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.62

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Grommet WPL 2176134 Contact Us For Availability

Extension, Handle (Black) WPL 2194973B Contact Us For Availability

Extension, Handle (Biscuit) WPL 2194973T Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $71.88

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

13

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $46.04

13

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

Pivot Arm WPL 1110559 Contact Us For Availability

16

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

16

WP2195917K Whirlpool Refrigerator Endcap Backorder WPL WP2195917K $6.79

16

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $53.75

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $35.90

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $35.94

Extension, Handle (White) WPL 2194969W Contact Us For Availability

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

Switch Assembly (Not Available Order 23) WPL ARI35924A4 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Not Available, Order 23 WPL ARI35925A5 Contact Us For Availability

20

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $28.80

20

Control Box Harness WPL 2206511 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI35926A4 Contact Us For Availability

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2301463B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2301463T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2301463W Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

Escutcheon, Control Box WPL 2308385 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Stud, Rear WPL 2196207 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

28

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

Shelf (2) WPL 2174268K Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $47.93

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

50

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $26.21

50

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL ARI35927A9 Contact Us For Availability

and Optional Parts Not Incl WPL ARI35928A6 Contact Us For Availability

WPL ARI35929A4 WPL ARI35929A4 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
