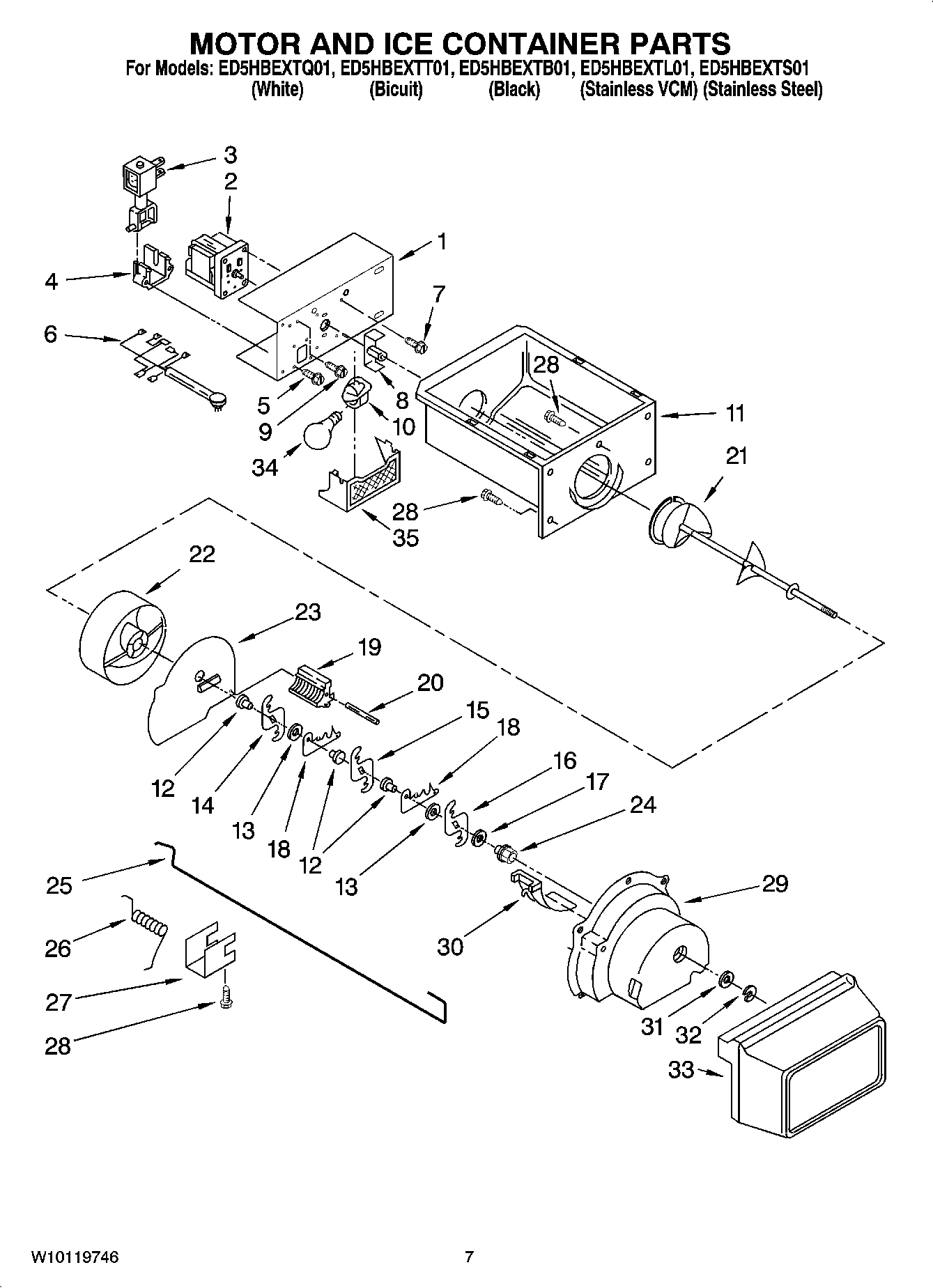

Model Whirlpool ED5HBEXTL01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

Refrigerator Door (Includes Item 5) (Black) WPL 2311658B Contact Us For Availability

1

Refrigerator Door (Includes Item 5) (Stainles WPL 2311658L Contact Us For Availability

1

Refrigerator Door (Includes Item 5) (Stainles WPL 2311658S Contact Us For Availability

1

Refrigerator Door (Includes Item 5) (Biscuit) WPL 2311658T Contact Us For Availability

1

Refrigerator Door (Includes Item 5) (White) WPL 2311658W Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI35129A4 Contact Us For Availability

1

Control Box WPL 2311721 Contact Us For Availability

2

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $3.33

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $101.23

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $33.21

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $27.32

4

SCREW WPL 8533920 Contact Us For Availability

5

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

5

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

6

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $119.53

6

W10187086 Whirlpool Refrigerator Handle Backorder WPL W10187086 $233.11

6

W10187087 Whirlpool Refrigerator Handle Backorder WPL W10187087 $238.78

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $40.33

6

WPW10366605-includeCORE Whirlpool WPW10366605 Backorder WPL WPW10366605-includeCORE $228.95

6

Handle (White) WPL 2313345W Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

9

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $38.10

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

Shim WPL 2209697 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.92

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.98

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

NLA:SCREW Backorder WPL WPW10141645 $3.70

TUBE, SUCTION WPL 2205765 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.66

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $37.70

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $17.09

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Cap, Water Filter (Biscuit) WPL 2260518T Contact Us For Availability

18

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

18

Switch Assembly (Not Available Order 23) WPL ARI35130A4 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.71

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Overlay, Front Cover (Not Available, Order 23 WPL ARI35131A3 Contact Us For Availability

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $87.84

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $30.25

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $13.14

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $4.52

Clamp WPL 2161324 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI35132A1 Contact Us For Availability

22

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

22

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

22

CLIP, WIRING WPL 1115375 Contact Us For Availability

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $47.56

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

Front Cover Assembly (Includes Items 18, 19, WPL 2311694B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2311694W Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489391 Contact Us For Availability

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.94

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

Front Cover, Control Box WPL 2311803 Contact Us For Availability

26

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

26

Light Bar (FC) WPL 2179921 Contact Us For Availability

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

Window WPL 2175513 Contact Us For Availability

28

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

30

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

31

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

32

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

32

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

35

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

35

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

36

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

37

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

38

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

39

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

40

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $27.52

41

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

42

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $24.61

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI35133A9 Contact Us For Availability

WPL ARI35134A7 WPL ARI35134A7 Contact Us For Availability
