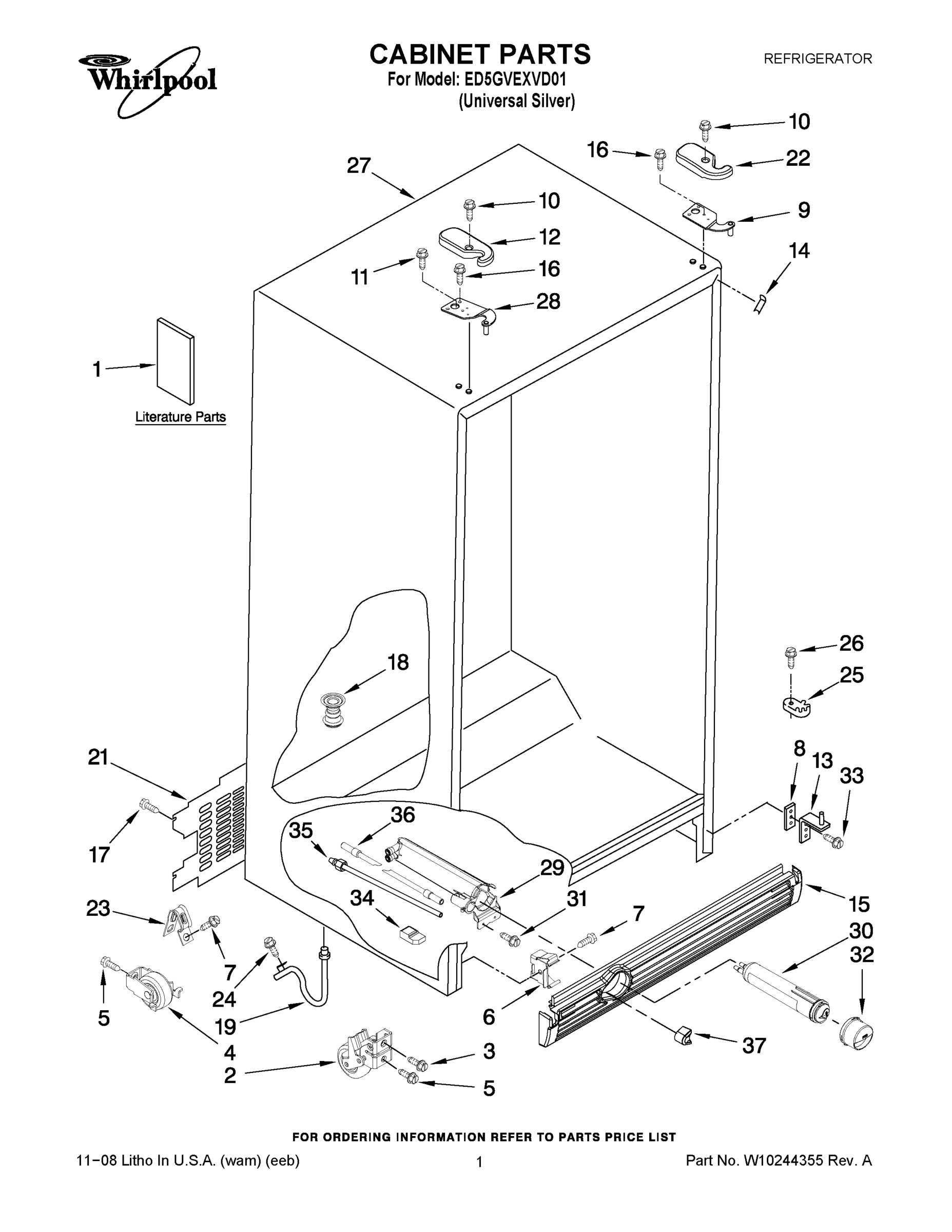

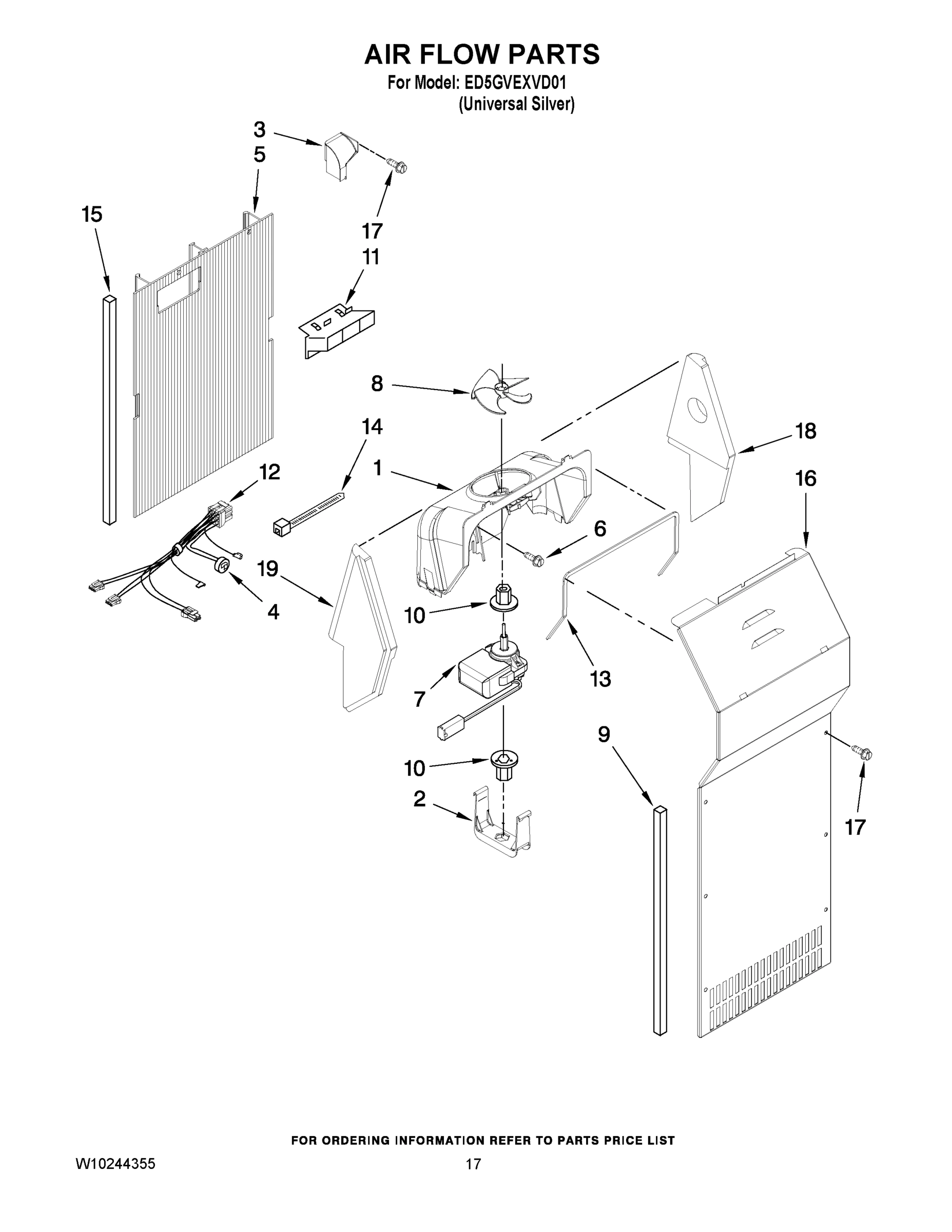

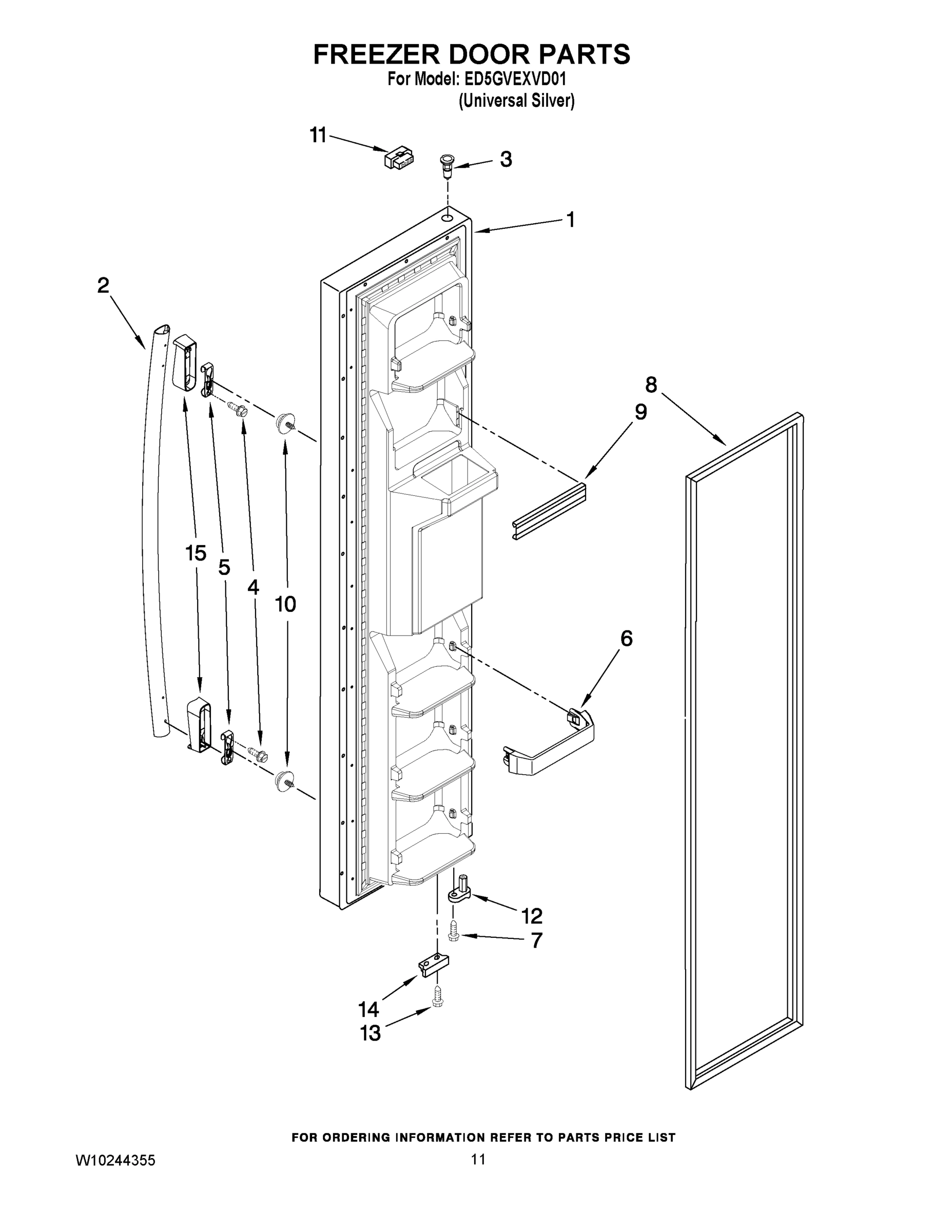

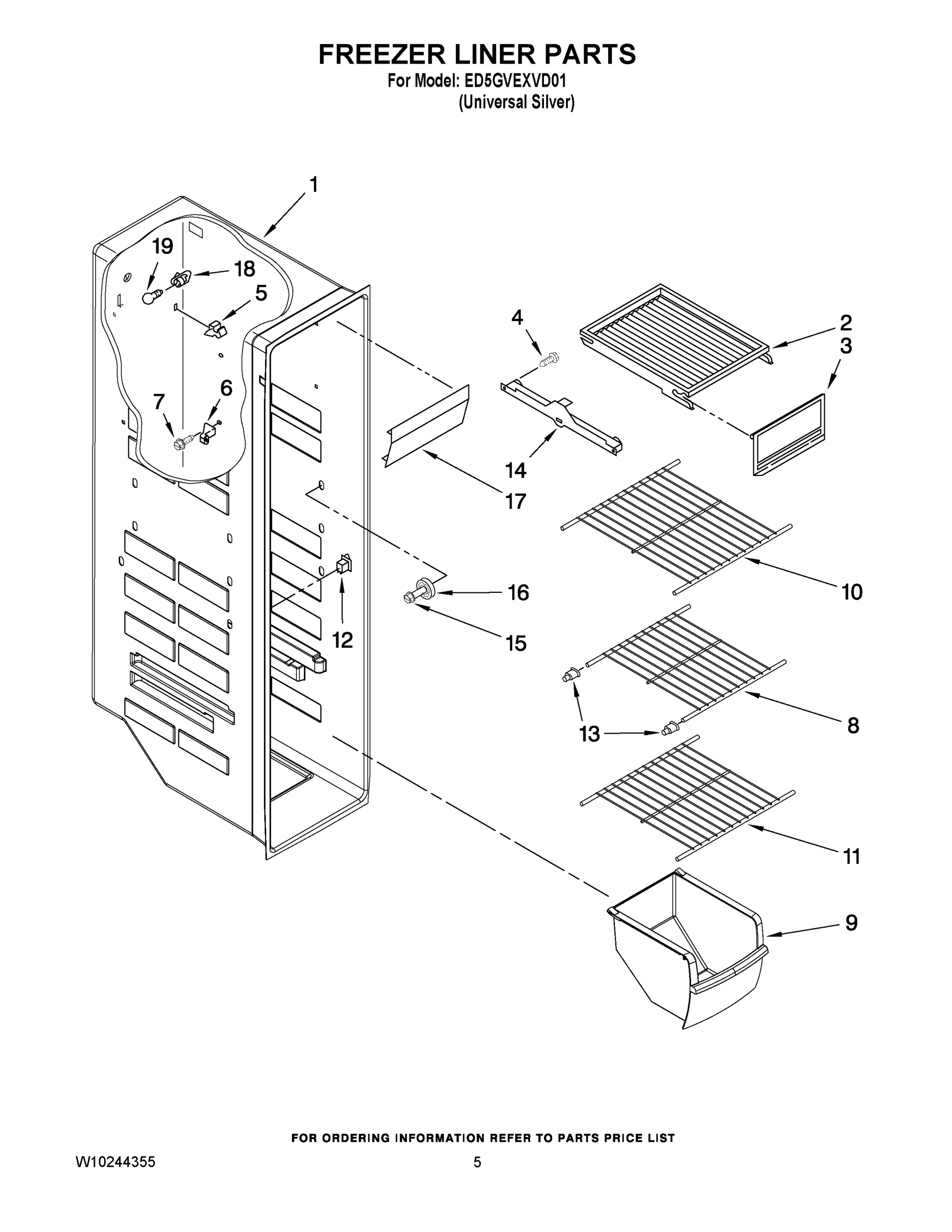

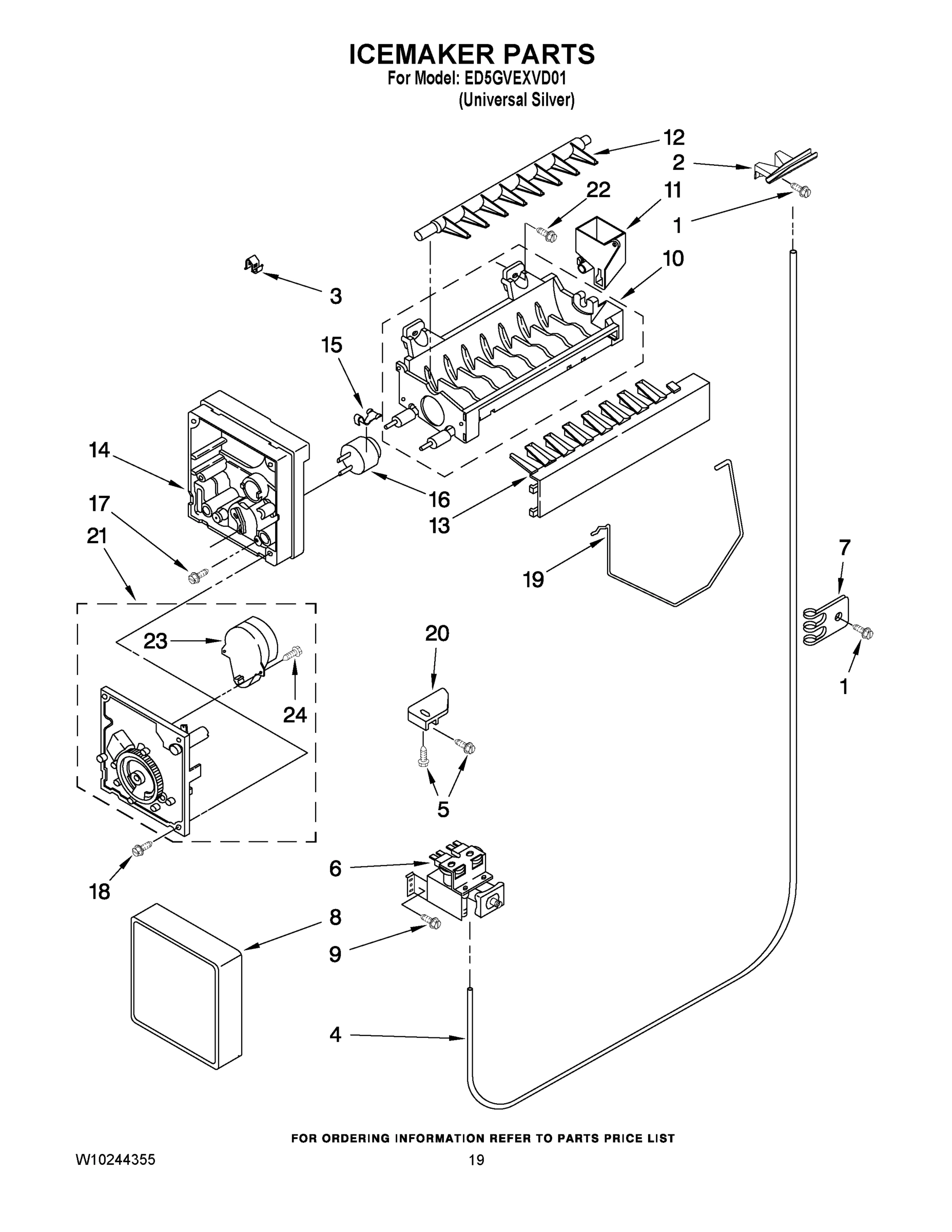

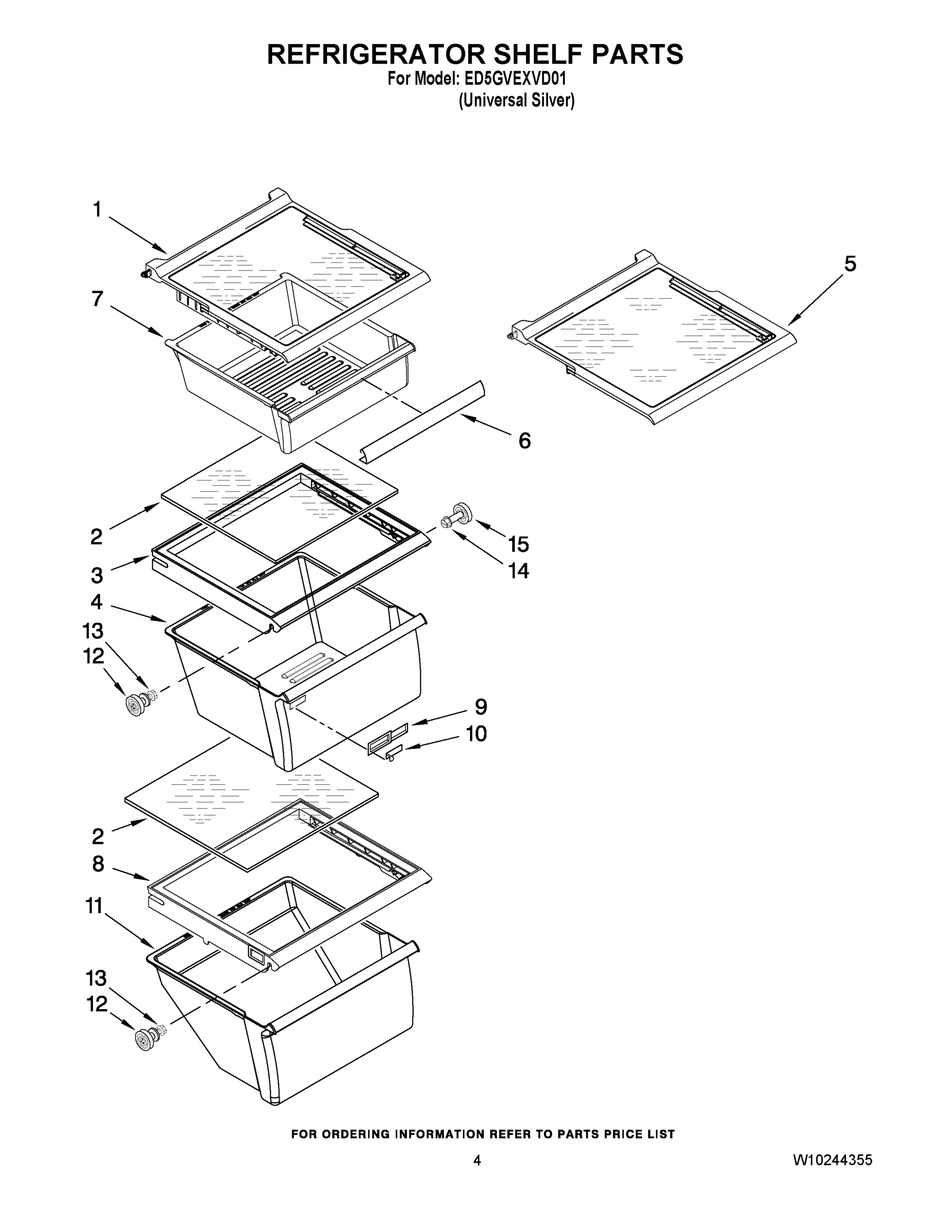

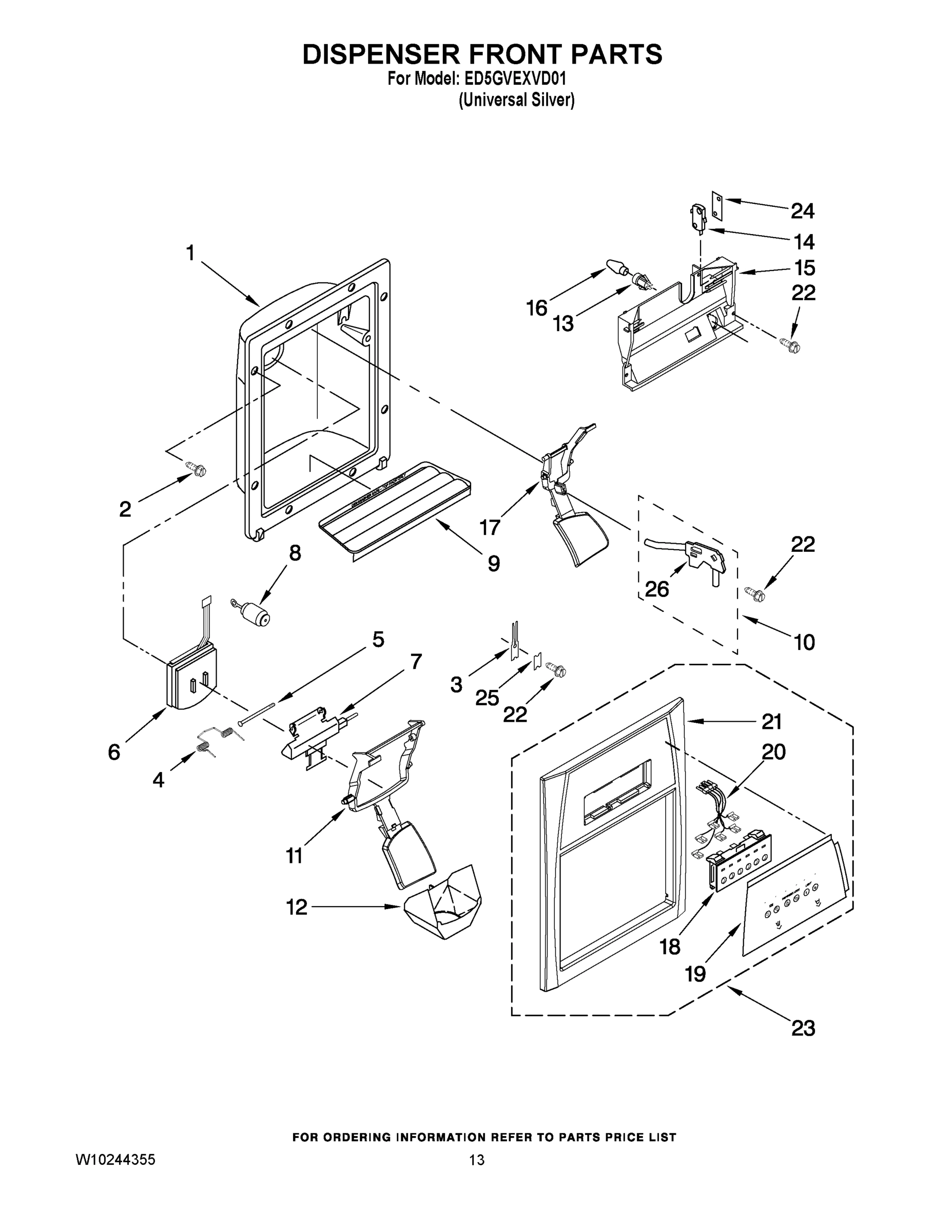

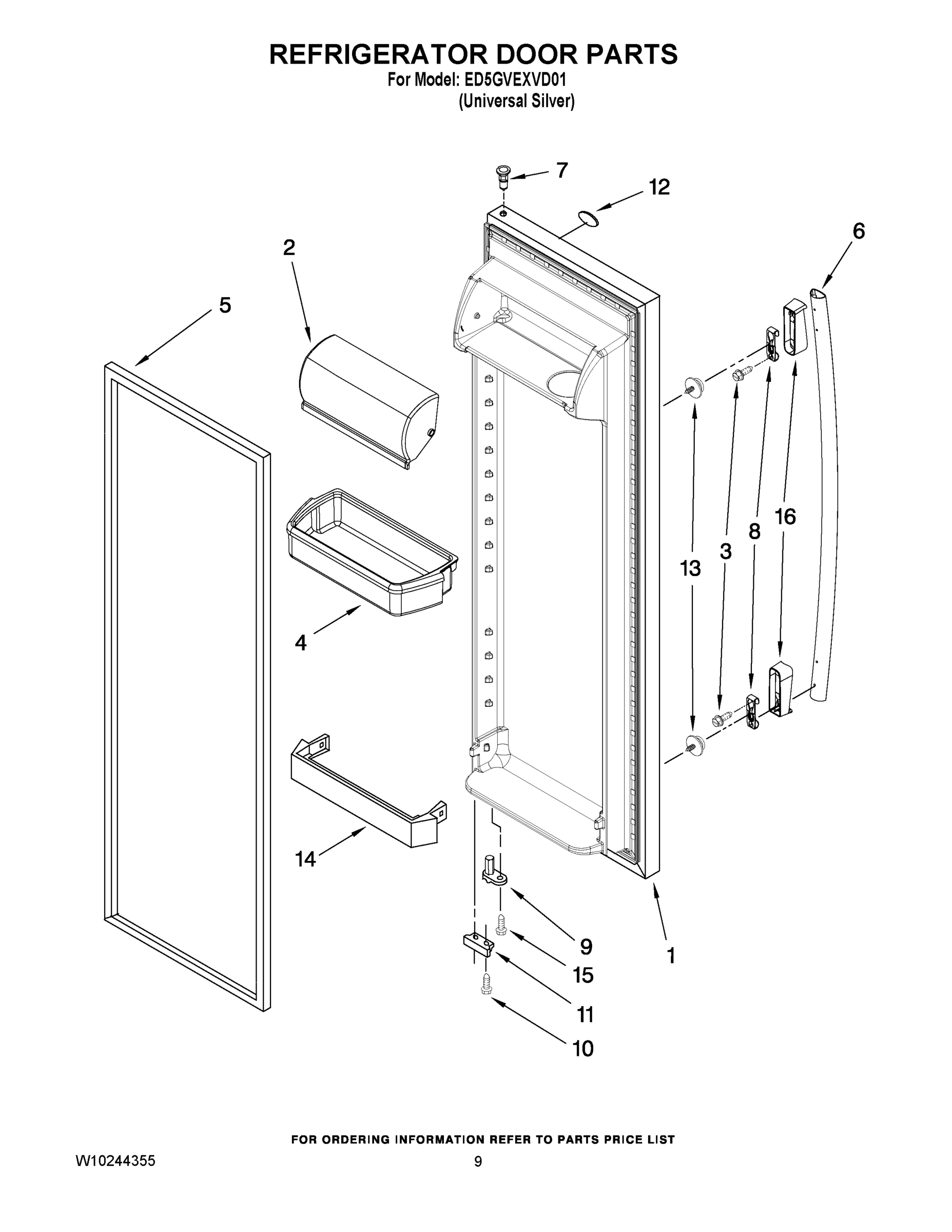

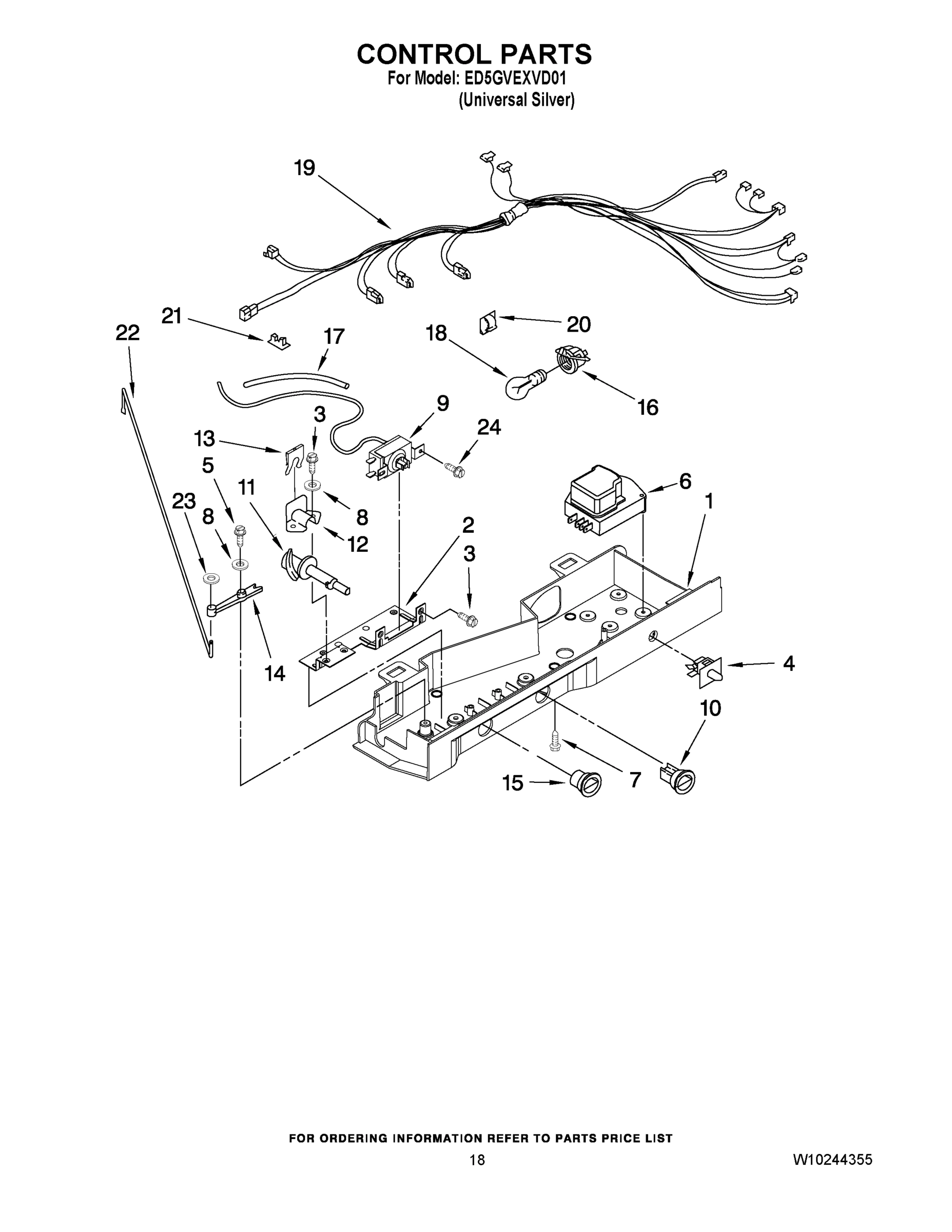

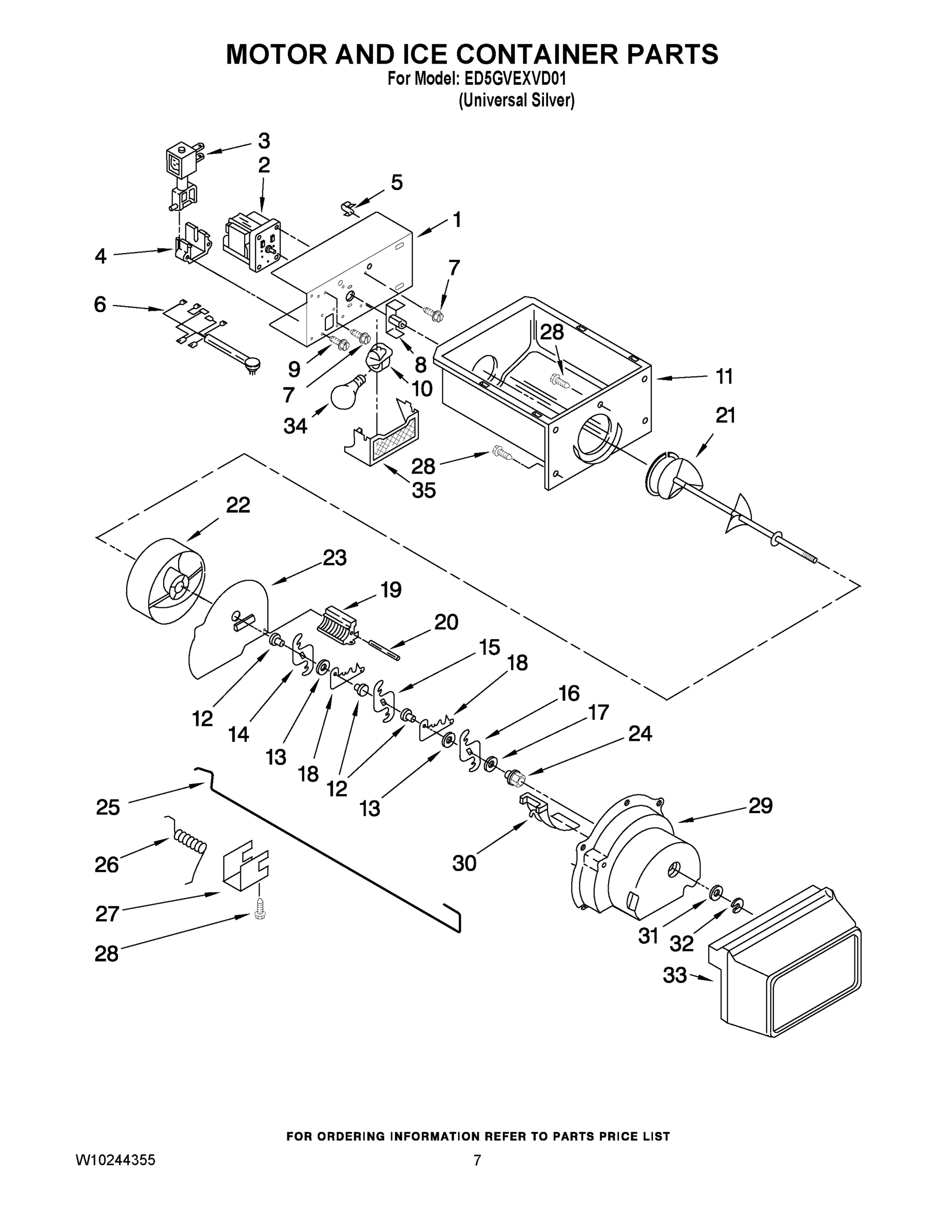

Model Whirlpool ED5GVEXVD01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $135.64

1

Use & Care Guide WPL 2309541 Contact Us For Availability

1

Instruction Sheet, Door Removal WPL 2311720 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability

1

Service & Wiring Sheet WPL W10158909 Contact Us For Availability

1

Energy Guide WPL W10207901 Contact Us For Availability

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $32.87

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

4

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $70.03

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WPW10276348 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276348 $117.02

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $37.62

6

WPW10127762 Whirlpool Refrigerator Handle Backorder WPL WPW10127762 $93.38

7

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

WP2309517 Whirlpool Crisper Snack Pan In Stock WPL WP2309517 $73.49

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

8

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

8

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

8

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

8

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

9

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

9

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $67.53

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.50

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.02

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $43.04

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Pivot Arm WPL 1110559 Contact Us For Availability

2311615 Whirlpool Refrigerator Knob Backorder WPL 2311615 $30.73

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WPW10311033 Whirlpool Refrigerator Grille Backorder WPL WPW10311033 $74.68

16

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

16

ENDCAP WPL W10127770 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

18

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $53.71

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

Extension Tube WPL 2304937 Contact Us For Availability

20

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

20

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

21

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $67.78

22

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

22

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

Front Cover Assembly (Includes Items 18, 19, WPL 2311694B Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

26

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

26

Clip WPL 2161324 Contact Us For Availability

27

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

27

Cabinet, (Not A Serviceable Part) WPL ARI35082A6 Contact Us For Availability

28

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

29

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

30

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

30

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

32

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

33

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

33

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

34

W10196313 Whirlpool Refrigerator Rail Unit Backorder WPL W10196313 $49.54

34

Block, Housing Support WPL 2260519 Contact Us For Availability

35

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

35

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $39.91

36

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $25.33

37

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

37

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
