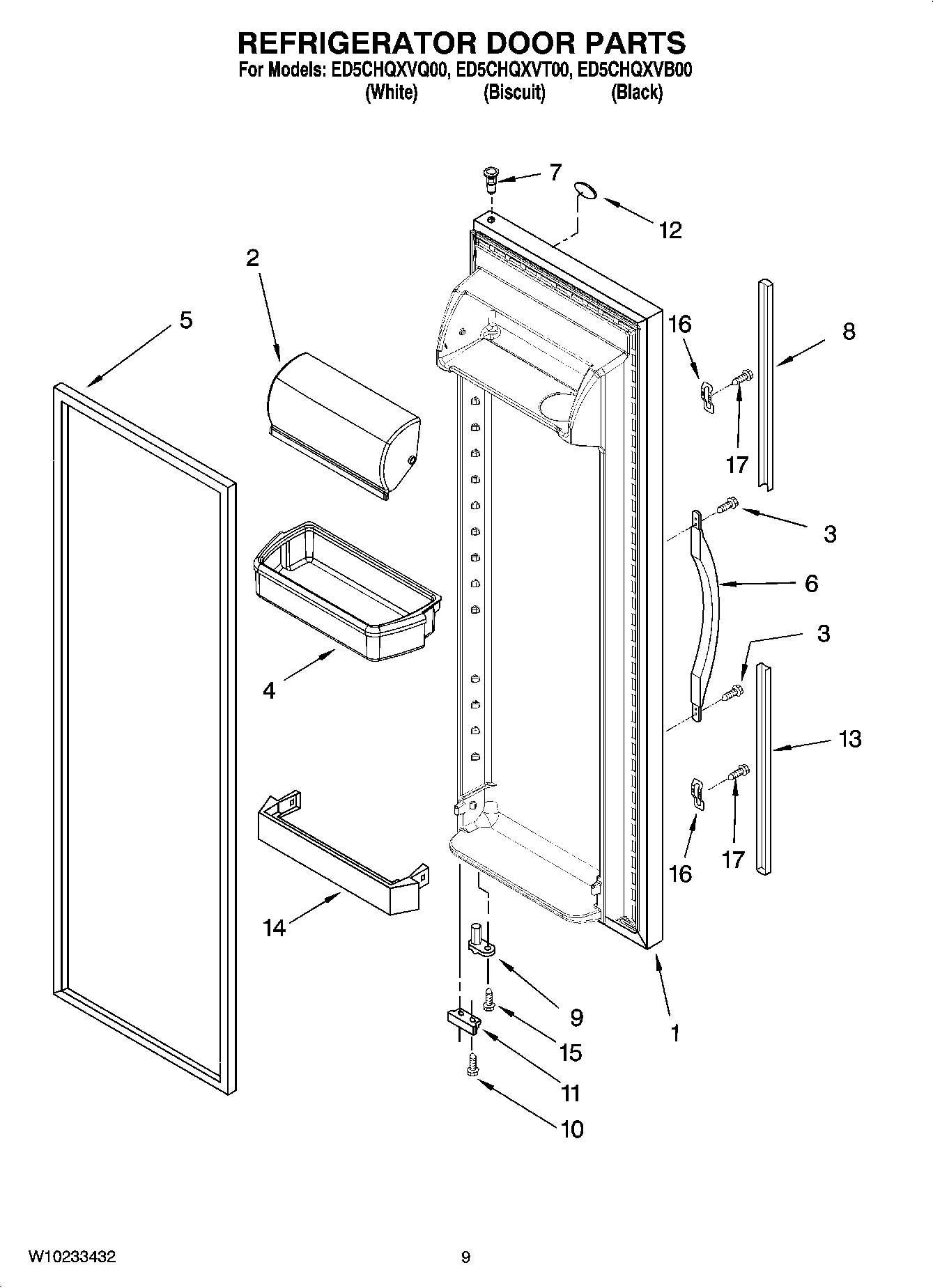

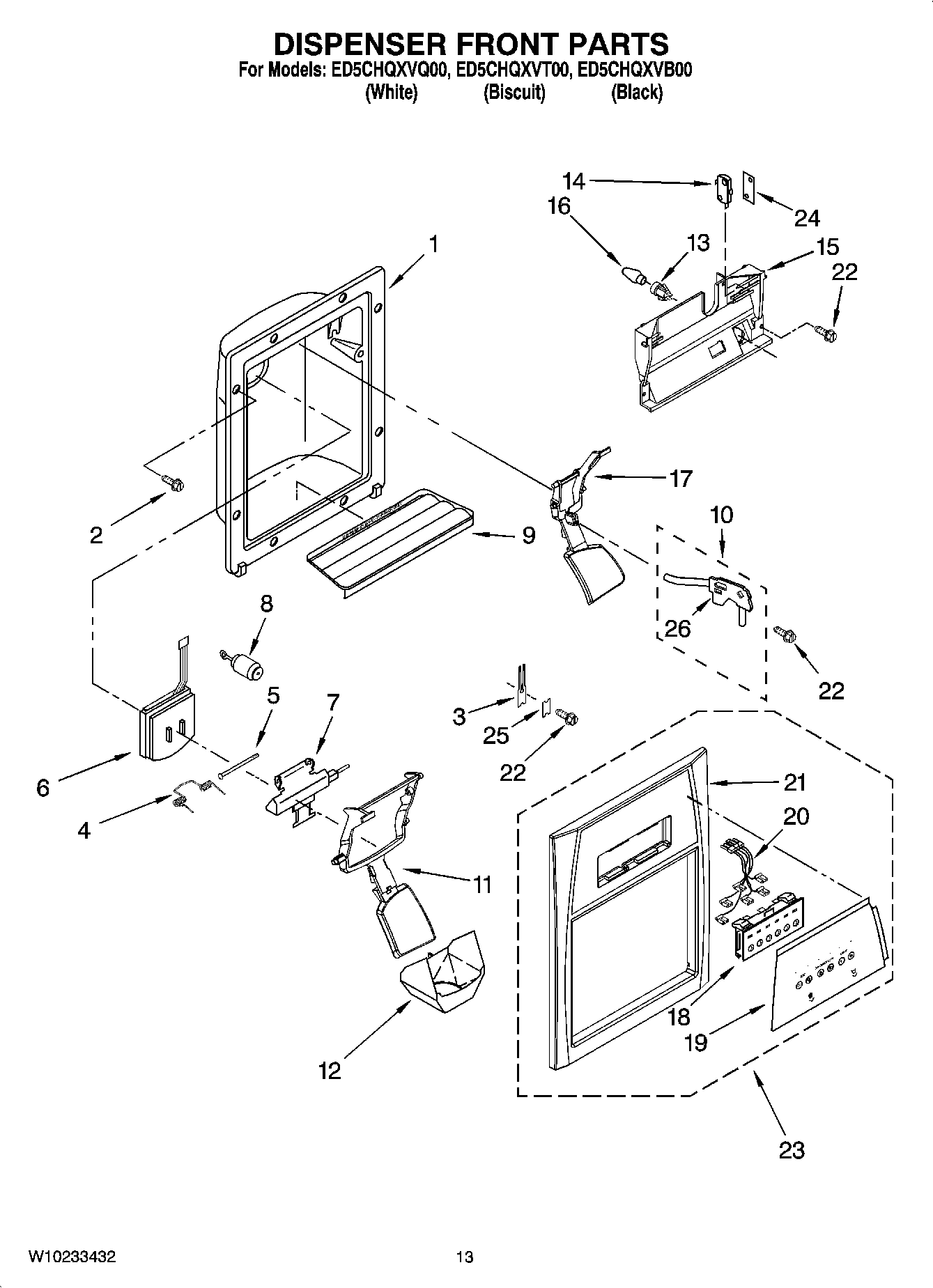

Model Whirlpool ED5CHQXVT00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

Liner (Not A Serviceable Part) WPL ARI32906A5 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI32907A3 Contact Us For Availability

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W10175967 Whirlpool Refrigerator Escutcheon Backorder WPL W10175967 $30.25

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $34.51

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $101.23

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

WPW10318948 Whirlpool Wire Shelf Backorder WPL WPW10318948 $117.48

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

4

WP2203828 Whirlpool Door Shelf Bin In Stock WPL WP2203828 $62.04

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2257741 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.41

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

6

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $30.23

6

W10853654 Whirlpool Water Inlet Valve In Stock WPL W10853654 $107.35

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $46.16

6

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $40.33

6

WPW10144409 Whirlpool Refrigerator Freezer Bi In Stock WPL WPW10144409 $90.57

6

Handle (Includes 3) (Black) WPL 2186649B Contact Us For Availability

6

Handle (Includes 3) (White) WPL 2186649W Contact Us For Availability

7

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $15.68

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

7

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

8

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

8

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $70.92

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

8

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $3.33

8

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

8

Shim (2) WPL 2209697 Contact Us For Availability

9

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $38.10

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $145.60

WPW10318947 Whirlpool Wire Shelf Backorder WPL WPW10318947 $39.73

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.21

W10152855 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152855 $35.56

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $36.65

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.52

Pivot Arm WPL 1110559 Contact Us For Availability

Shelf, Top Compartment WPL 2171714 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

Trim, Lower (White) WPL 2194969W Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $63.59

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

2311636 Whirlpool Refrigerator Wire Harness Backorder WPL 2311636 $130.51

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $4.52

Light Lens WPL 2209769 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

W10152860 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152860 $34.31

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $34.13

Screw (2) WPL 488280 Contact Us For Availability

18

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $55.82

18

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

18

Shelf, Wire WPL 2309522 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

Air Baffle WPL W10163483 Contact Us For Availability

20

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

20

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $13.14

20

Fastener, Push-On WPL 489285 Contact Us For Availability

21

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

21

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

2311615 Whirlpool Refrigerator Knob In Stock WPL 2311615 $32.26

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

Extension Tube WPL 2304937 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2311694B Contact Us For Availability

Motor (Not Serviced, Order 21) WPL ARI32915A1 Contact Us For Availability

24

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

24

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

24

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.94

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

27

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

27

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

31

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

34

Clip (2) WPL 2161324 Contact Us For Availability

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

100

WPW10190965 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10190965 $70.55
