Model Whirlpool ED2KHAXVB00 REFRIGERATOR – Common Parts &amp; Diagrams

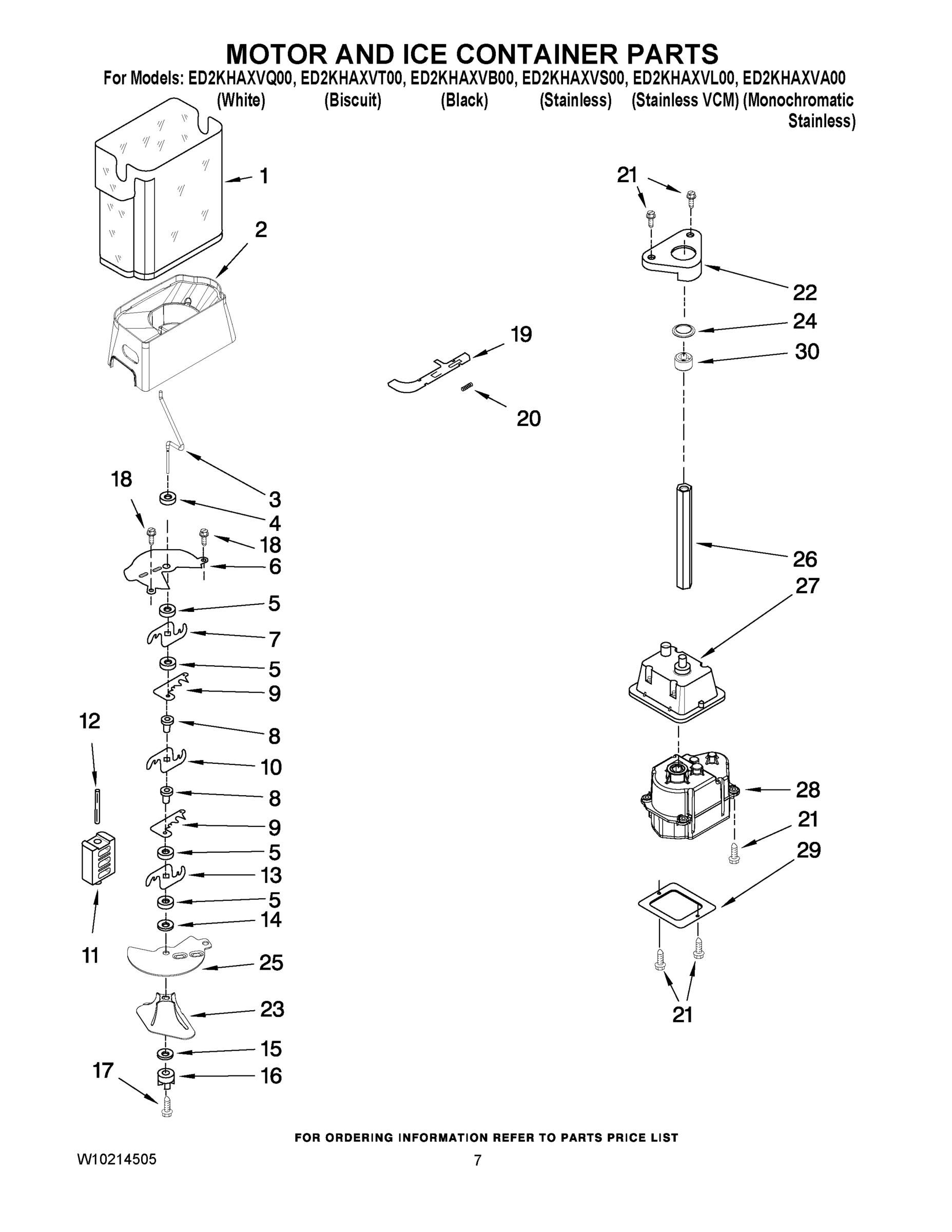

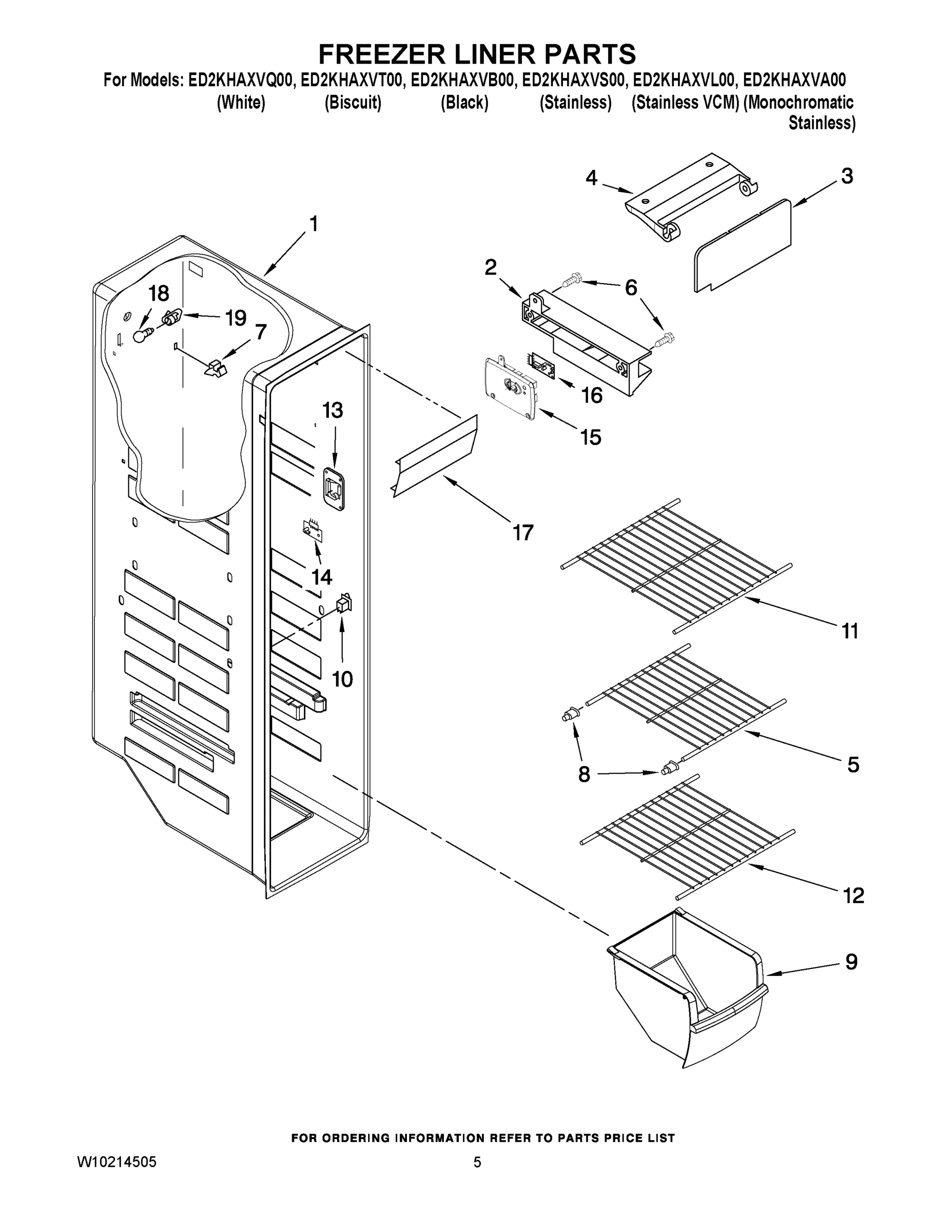

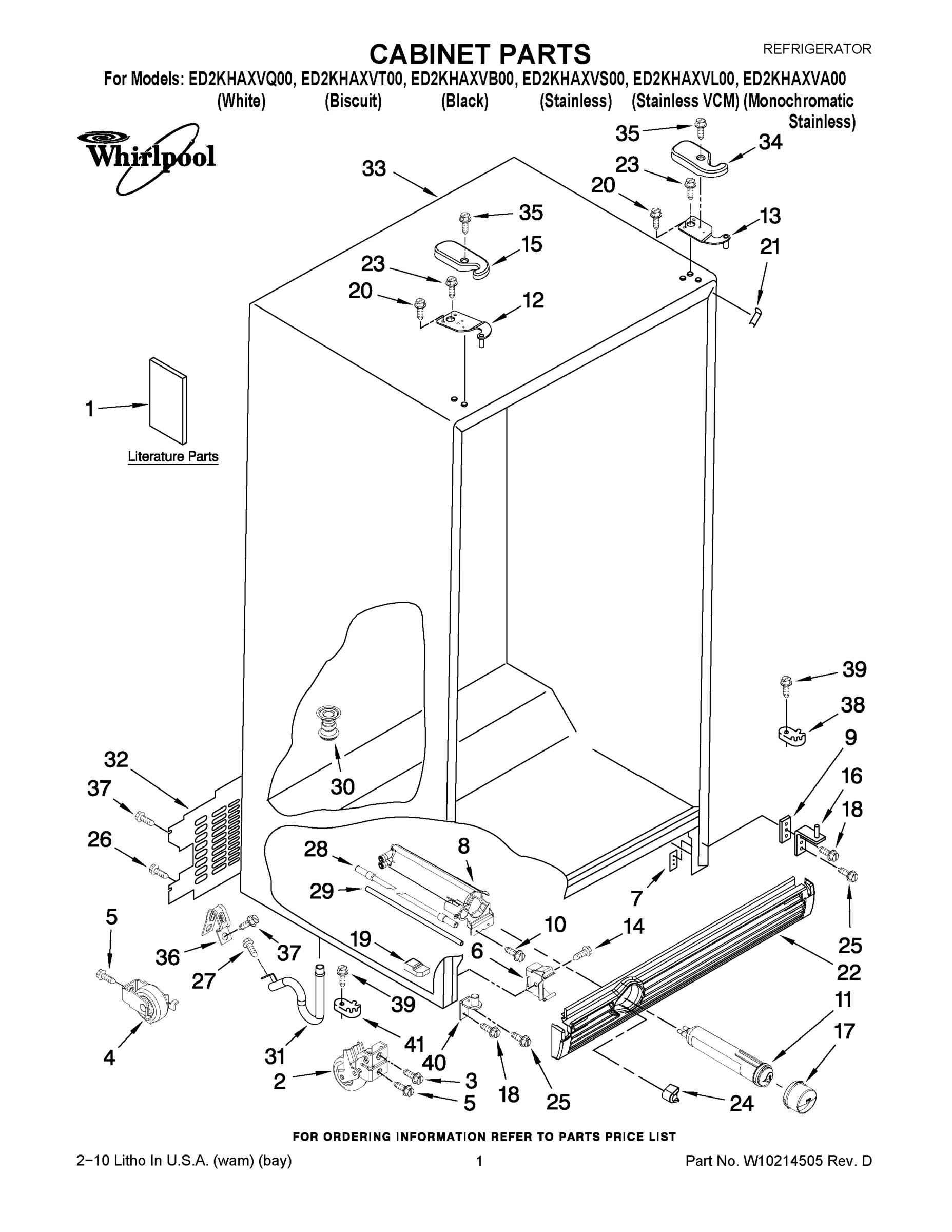

1

L2263189W Whirlpool Refrigerator DOR-FIP WH Backorder WPL L2263189W $742.59

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

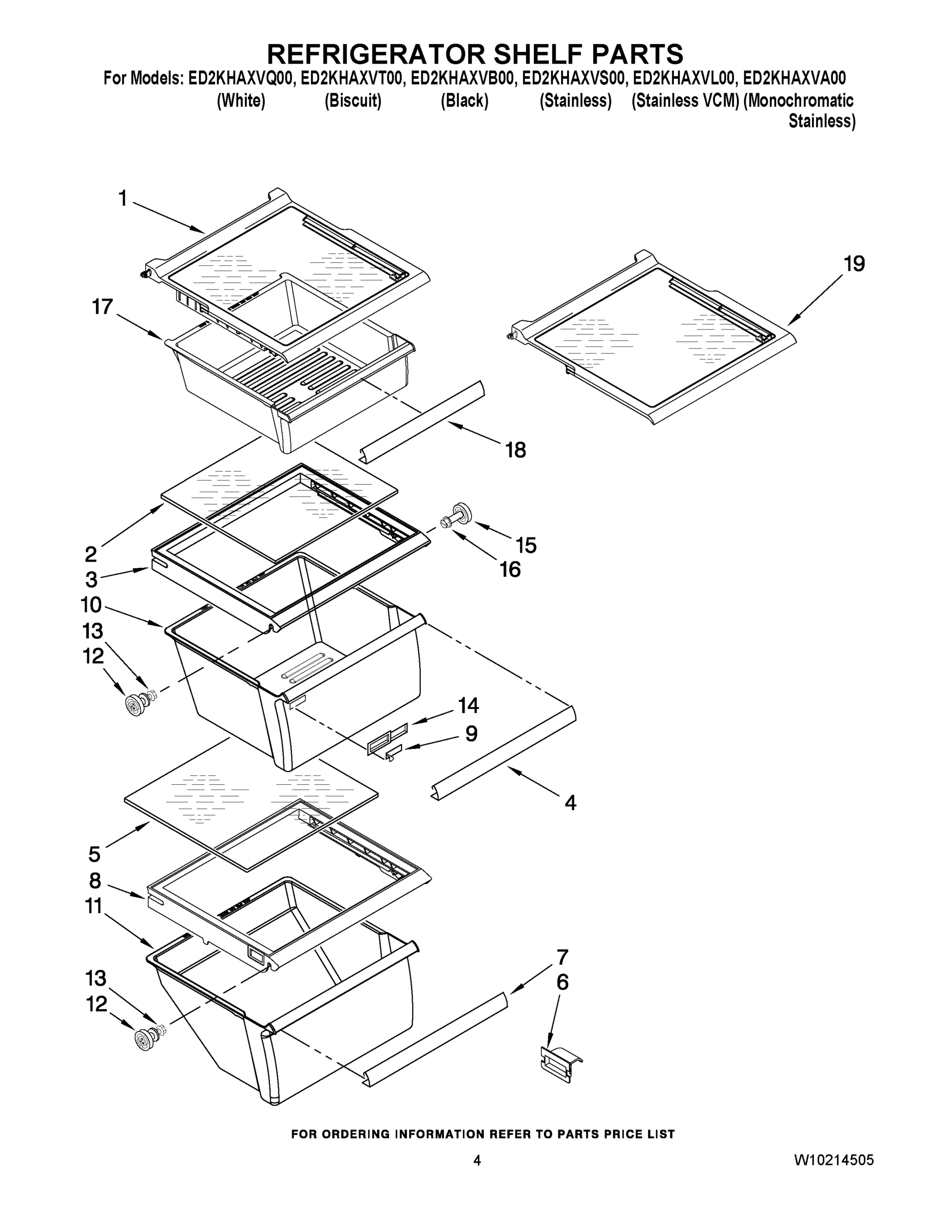

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $143.17

1

Ice Bin WPL 2317246 Contact Us For Availability

1

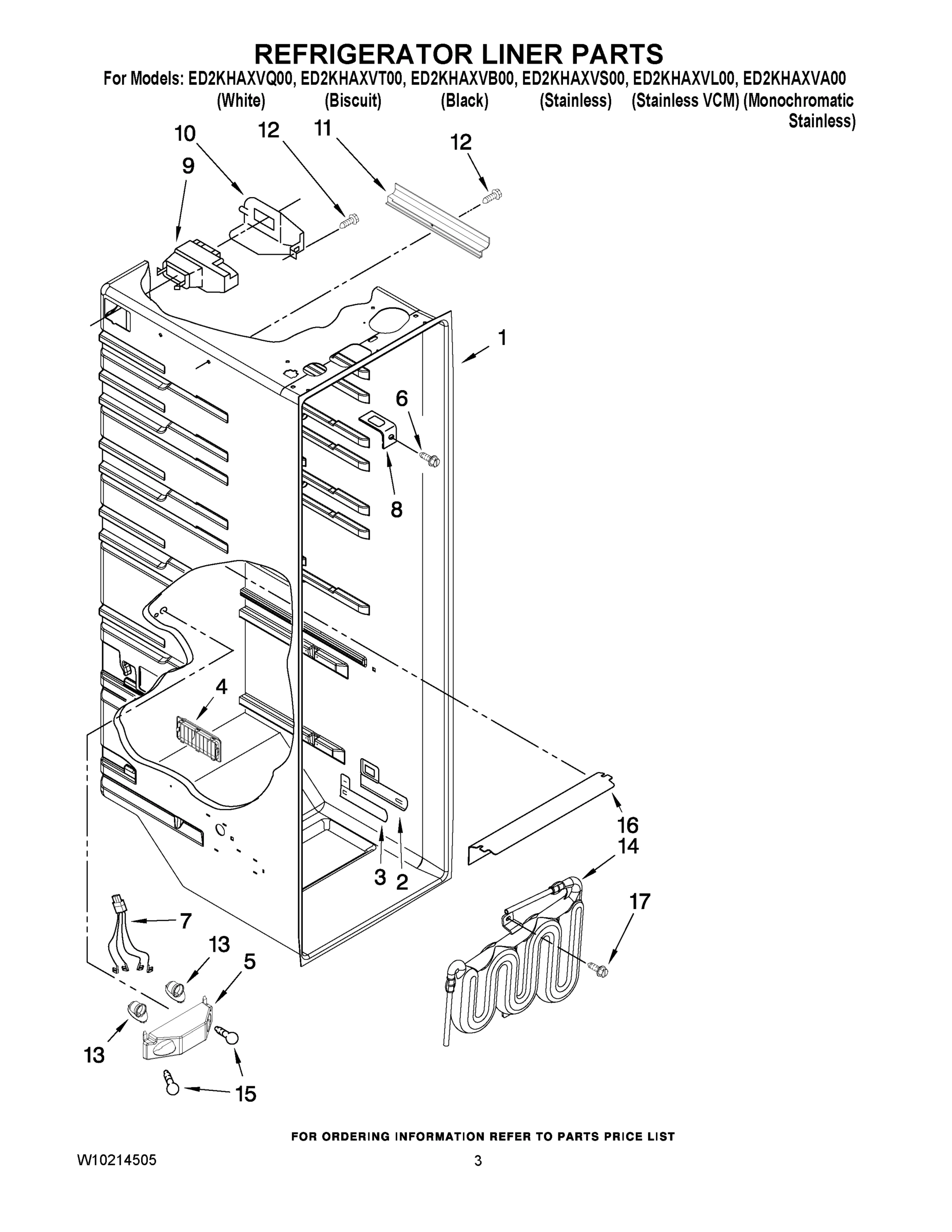

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

1

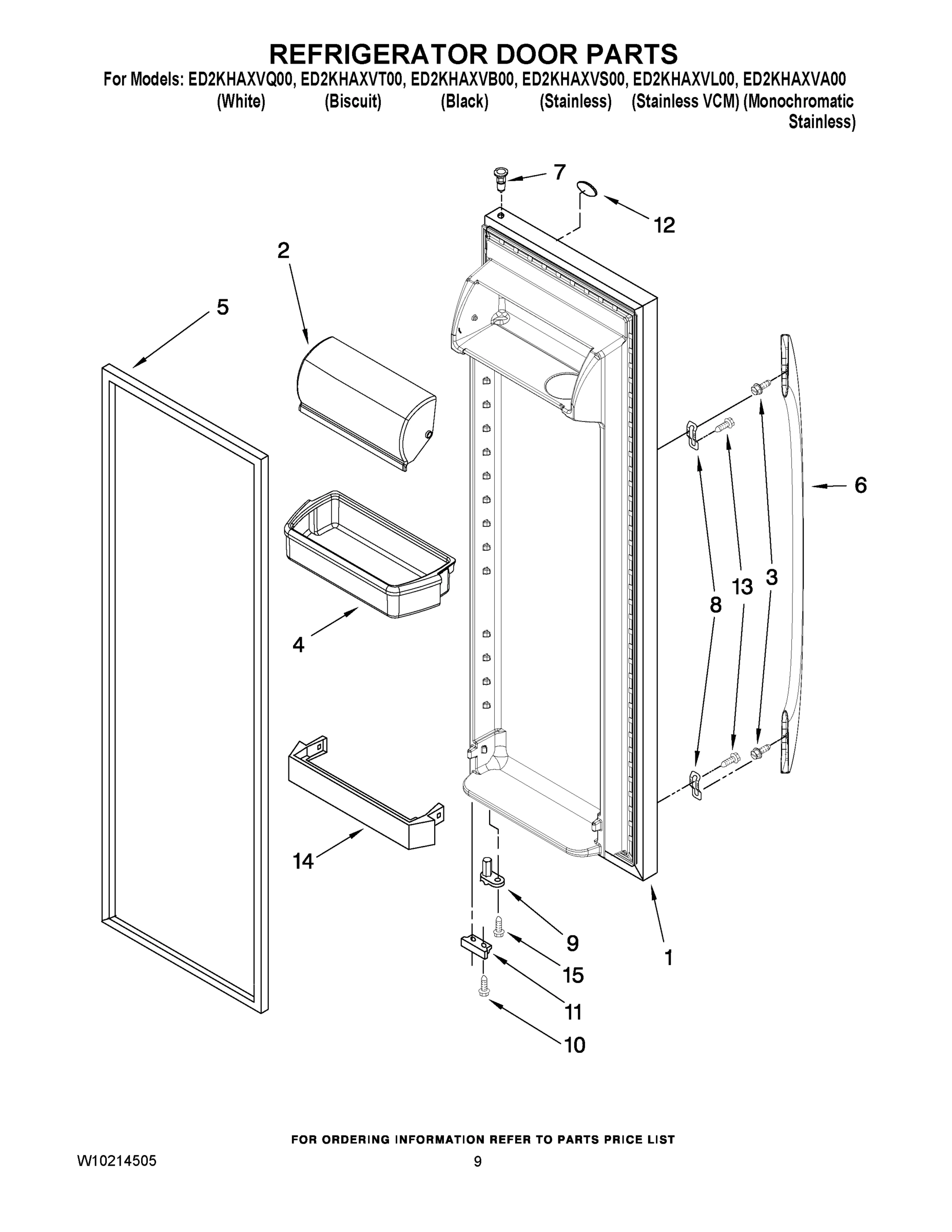

Refrigerator Door (Includes Item 5) (Stainles WPL 2219033L Contact Us For Availability

1

Refrigerator Door (Includes Item 5) (Monochro WPL 2219033LA Contact Us For Availability

1

Refrigerator Door (Includes Item 5) (Stainles WPL 2219033S Contact Us For Availability

1

Refrigerator Door (Includes Item 5) (Biscuit) WPL 2263189T Contact Us For Availability

2

W10175967 Whirlpool Refrigerator Escutcheon Backorder WPL W10175967 $30.25

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

Slide, Ice Maker WPL 2212321 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Crusher Bin WPL W10176384 Contact Us For Availability

3

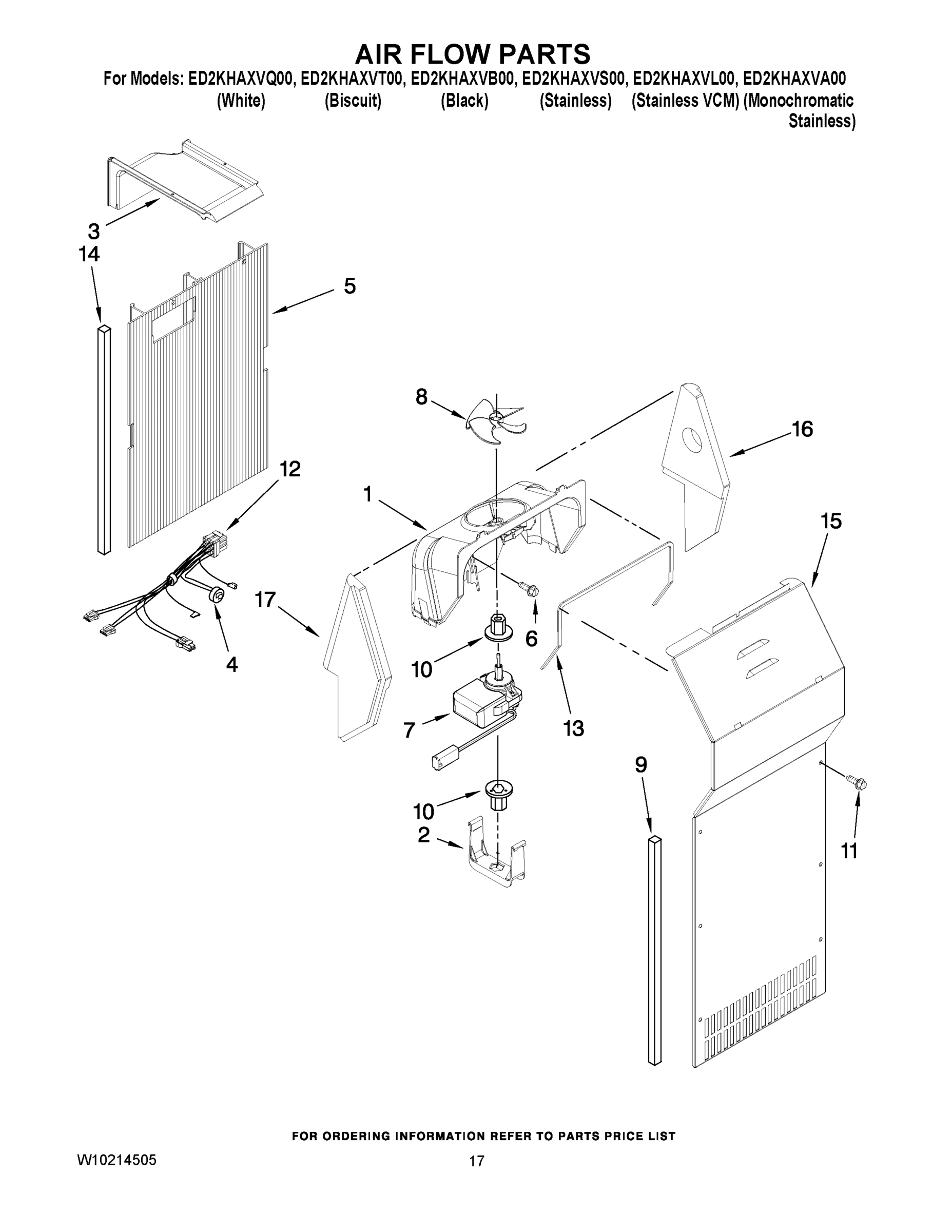

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

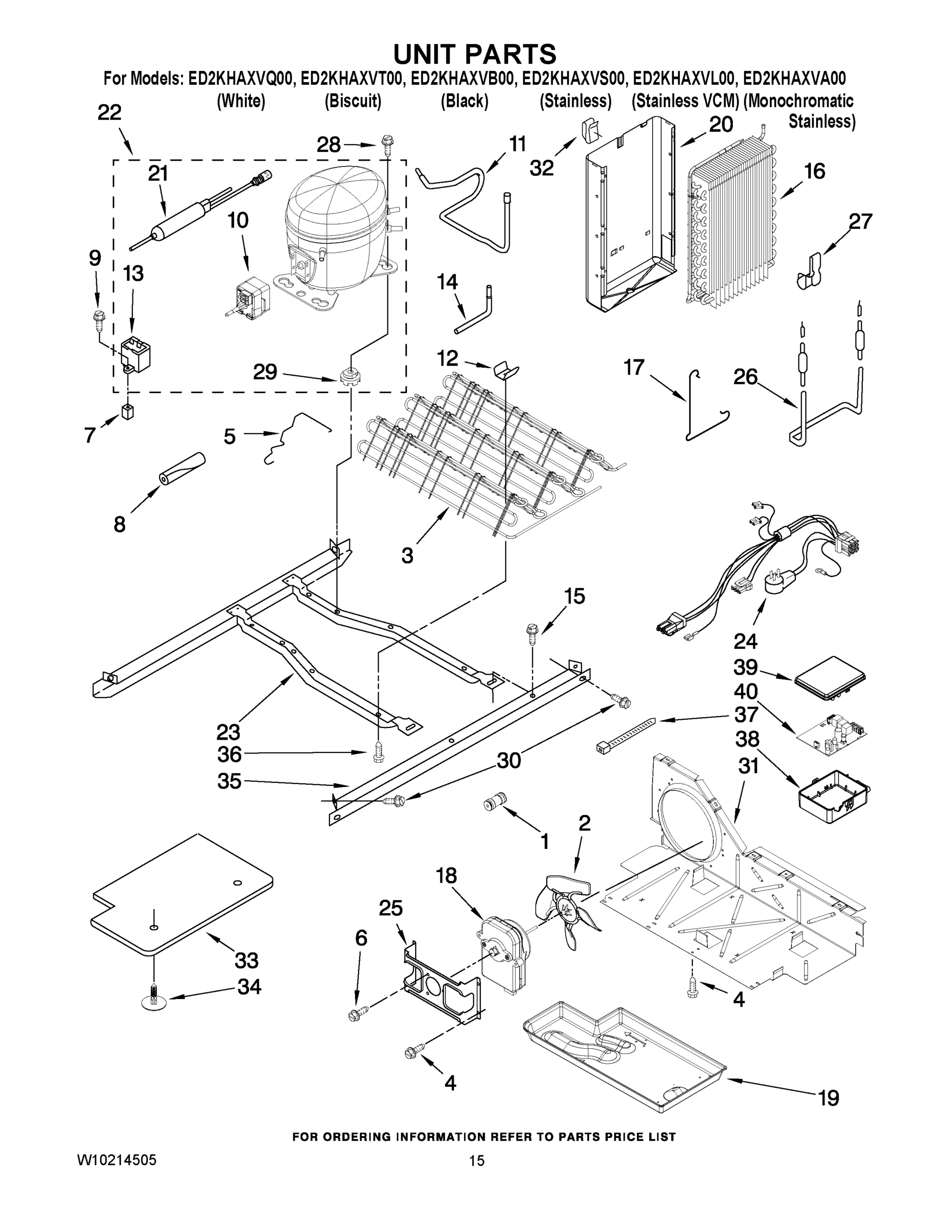

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10180062 Whirlpool Refrigerator Ice Door Backorder WPL W10180062 $40.10

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $120.22

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WPW10140630 Whirlpool Refrigerator Fitting Backorder WPL WPW10140630 $44.49

3

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.02

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

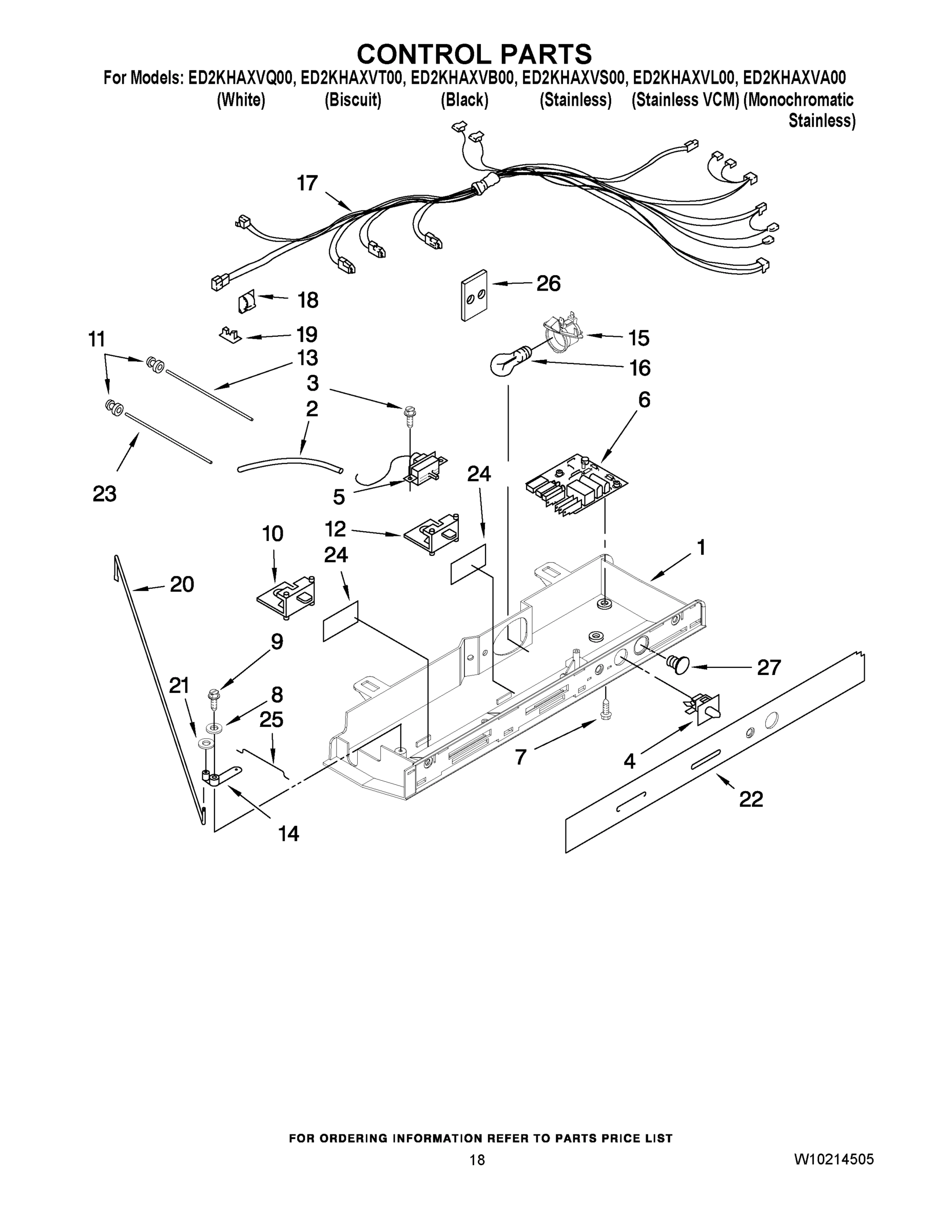

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $26.50

4

Washer WPL 2258220 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

5

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.09

5

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

5

W10136732 Whirlpool Refrigerator FIP Gasket In Stock WPL W10136732 $123.23

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

5

WPW10318953 Whirlpool Wire Shelf Backorder WPL WPW10318953 $47.54

5

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

6

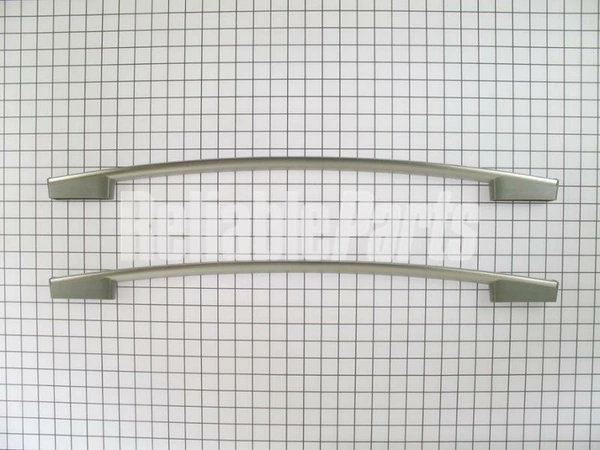

W10273555 Whirlpool Refrigerator Handle Backorder WPL W10273555 $124.42

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

6

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

6

WPW10127761K Whirlpool Refrigerator Handle Backorder WPL WPW10127761K $96.02

6

WPW10127762 Whirlpool Refrigerator Handle Backorder WPL WPW10127762 $98.05

6

WPW10127763 Whirlpool Refrigerator Handle Backorder WPL WPW10127763 $136.81

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

7

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

7

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $28.47

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $141.58

8

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

8

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

9

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $38.84

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.90

9

WP2309758 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2309758 $58.93

9

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $98.08

9

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $44.36

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $81.31

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

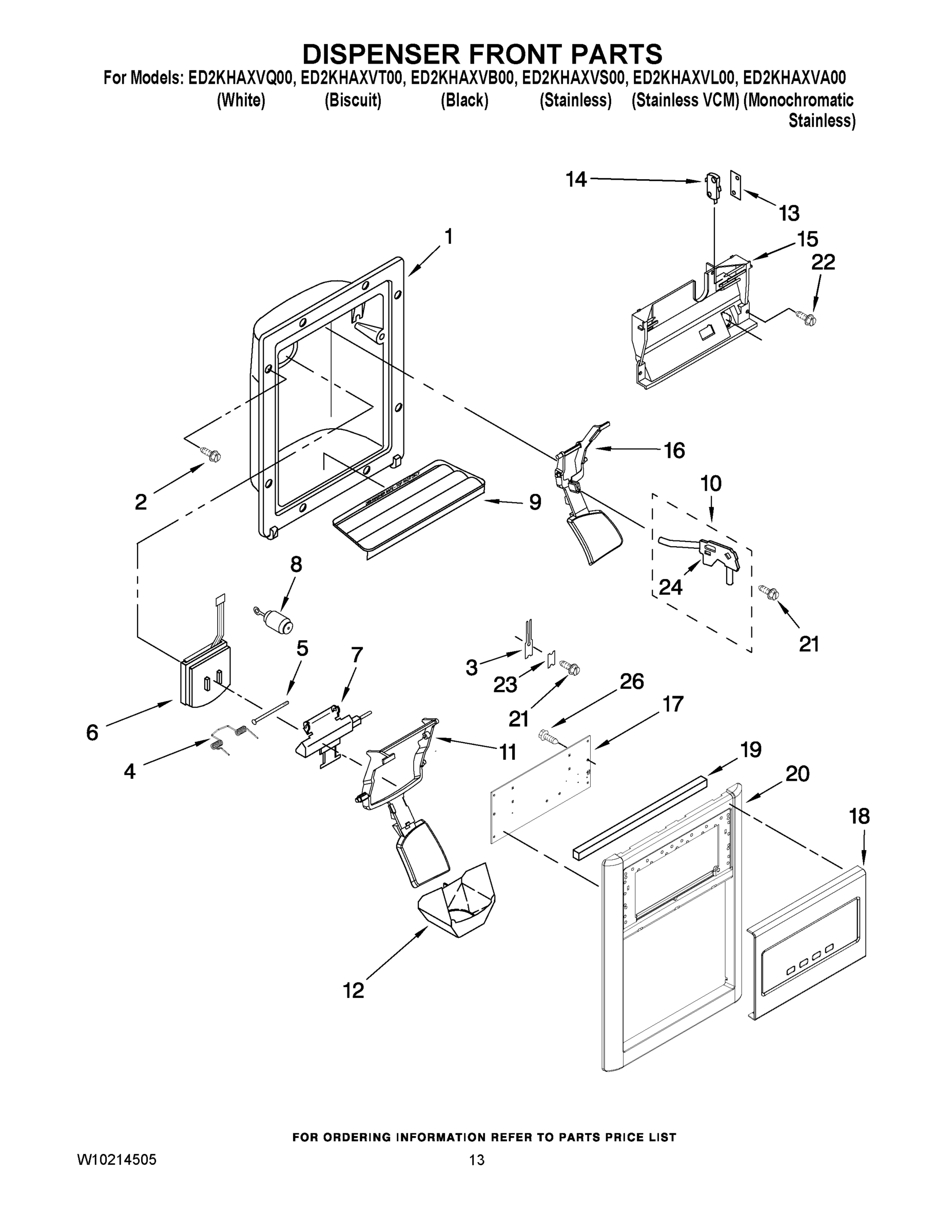

W10152855 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152855 $35.56

W10155161 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10155161 $59.15

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $59.81

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $35.83

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.52

WPW10318952 Whirlpool Wire Shelf Backorder WPL WPW10318952 $49.14

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $76.51

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WPW10318960 Whirlpool Wire Shelf In Stock WPL WPW10318960 $52.28

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP8533988 Whirlpool Screw Fastener In Stock WPL WP8533988 $2.51

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $227.62

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $62.77

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

Cover, Receiver WPL 2255558 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10152860 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152860 $34.31

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $34.13

Light Lens WPL 2209769 Contact Us For Availability

2212376 Whirlpool Light Lens Backorder WPL 2212376 $30.25

2310533 Whirlpool Refrigerator Wire Harness Backorder WPL 2310533 $121.88

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

WP2309517 Whirlpool Crisper Snack Pan In Stock WPL WP2309517 $84.79

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

CONTROL BOARD, LCD WPL 2321748 Contact Us For Availability

Screw (2) WPL 488280 Contact Us For Availability

18

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

18

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

18

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

19

2317274 Whirlpool Refrigerator Bin Latch Backorder WPL 2317274 $33.01

19

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

19

WPW10276354 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276354 $142.03

20

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

22

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

22

Grille (White) WPL W10184869 Contact Us For Availability

22

Grille (Black) WPL W10184880 Contact Us For Availability

23

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

23

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

26

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

27

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

27

Enclosure, Motor WPL 2322488 Contact Us For Availability

27

Clip (2) WPL 2161324 Contact Us For Availability

30

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

30

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

31

Extension Tube WPL 2304937 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

Hinge Cover, RC (White) WPL W10138576 Contact Us For Availability

HINGE COVER, RC WPL W10138577 Contact Us For Availability

WPL W10138578 WPL W10138578 Contact Us For Availability

WPL W10138579 WPL W10138579 Contact Us For Availability

35

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

36

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

36

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

37

NLA:SCREW Backorder WPL WPW10141645 $3.70

38

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

40

WPL 2323833 WPL 2323833 Contact Us For Availability

41

WPL 2223751 WPL 2223751 Contact Us For Availability

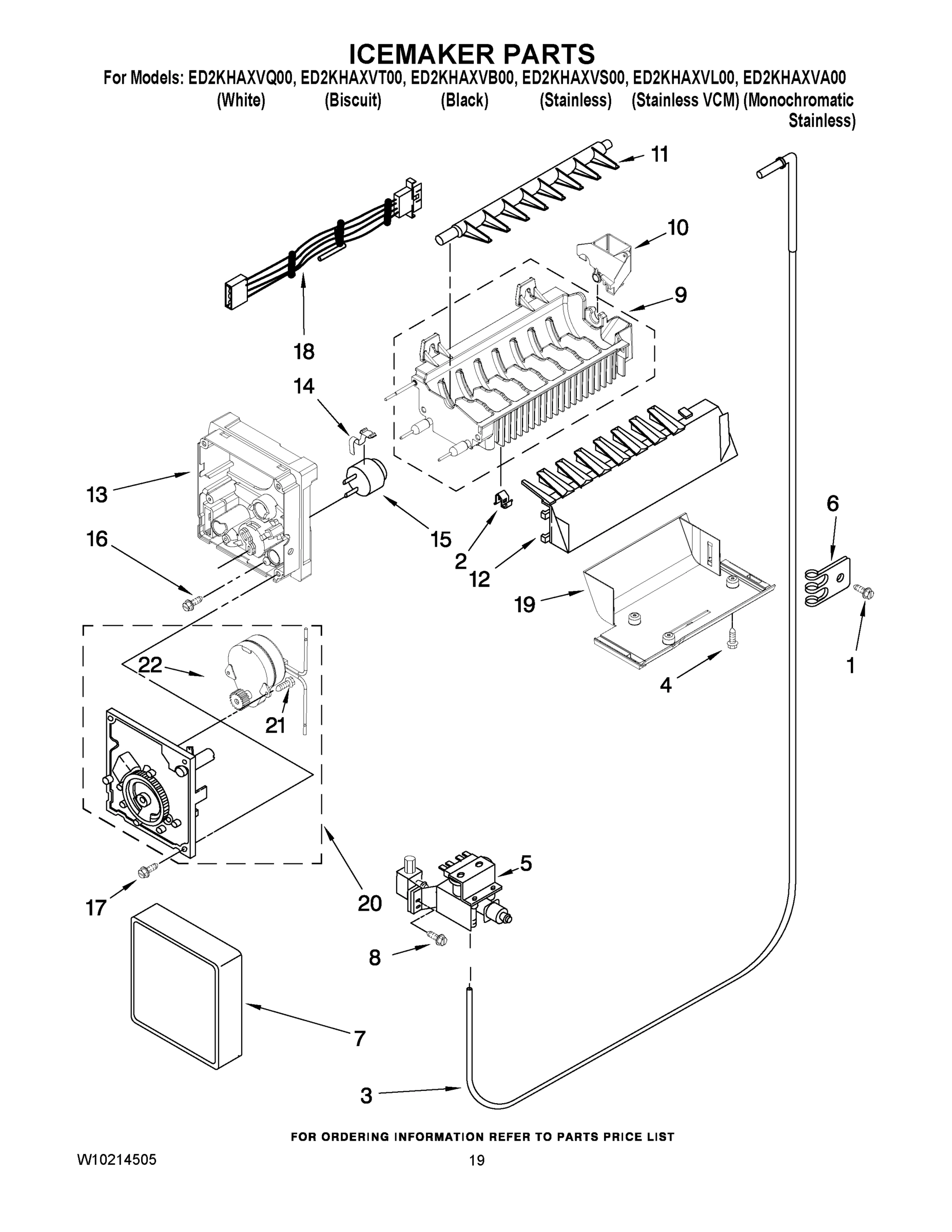

100

WPW10190961 Whirlpool Ice Maker In Stock WPL WPW10190961 $85.90

100

Ice Container (Complete) WPL W10204457 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
