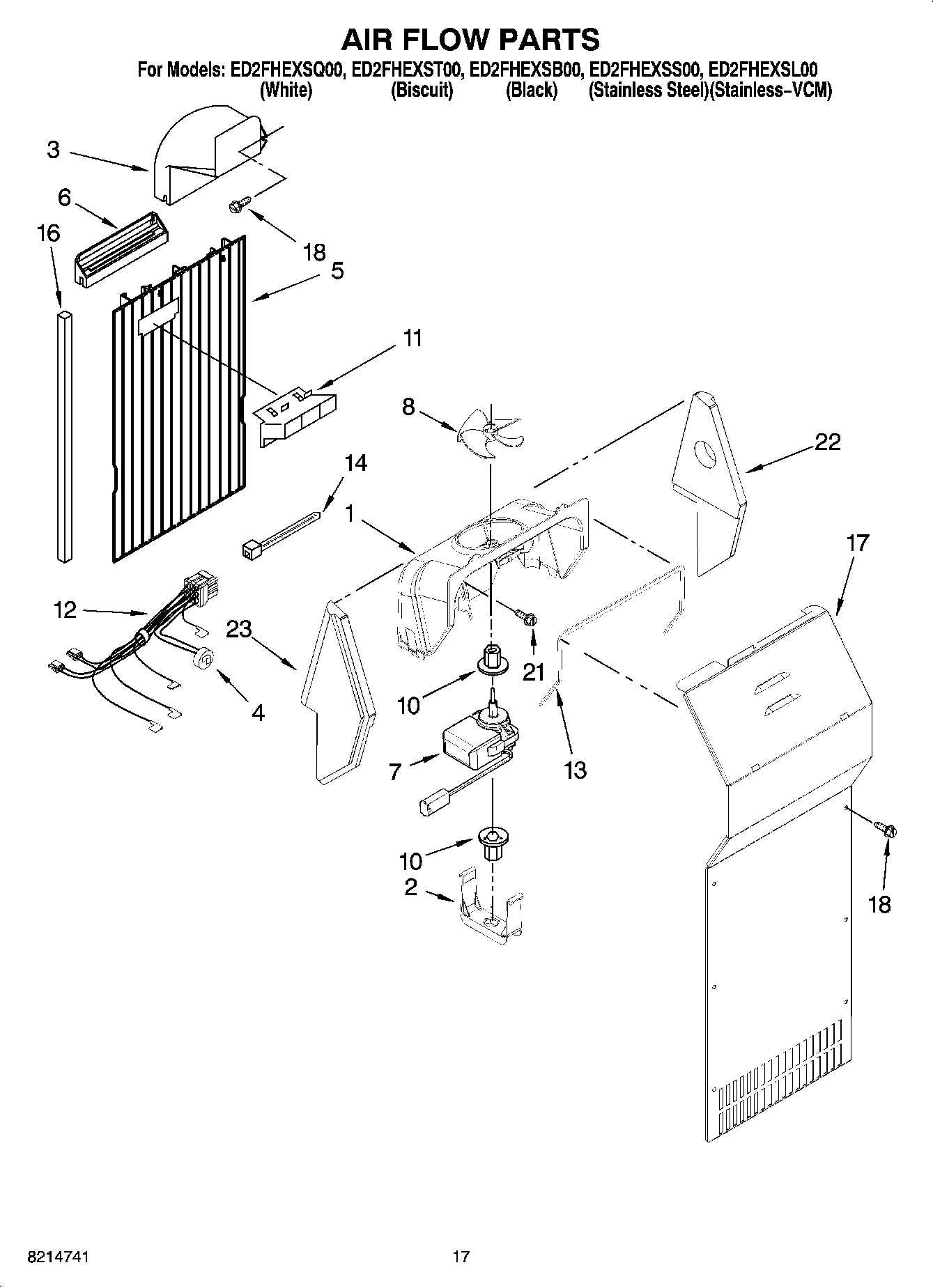

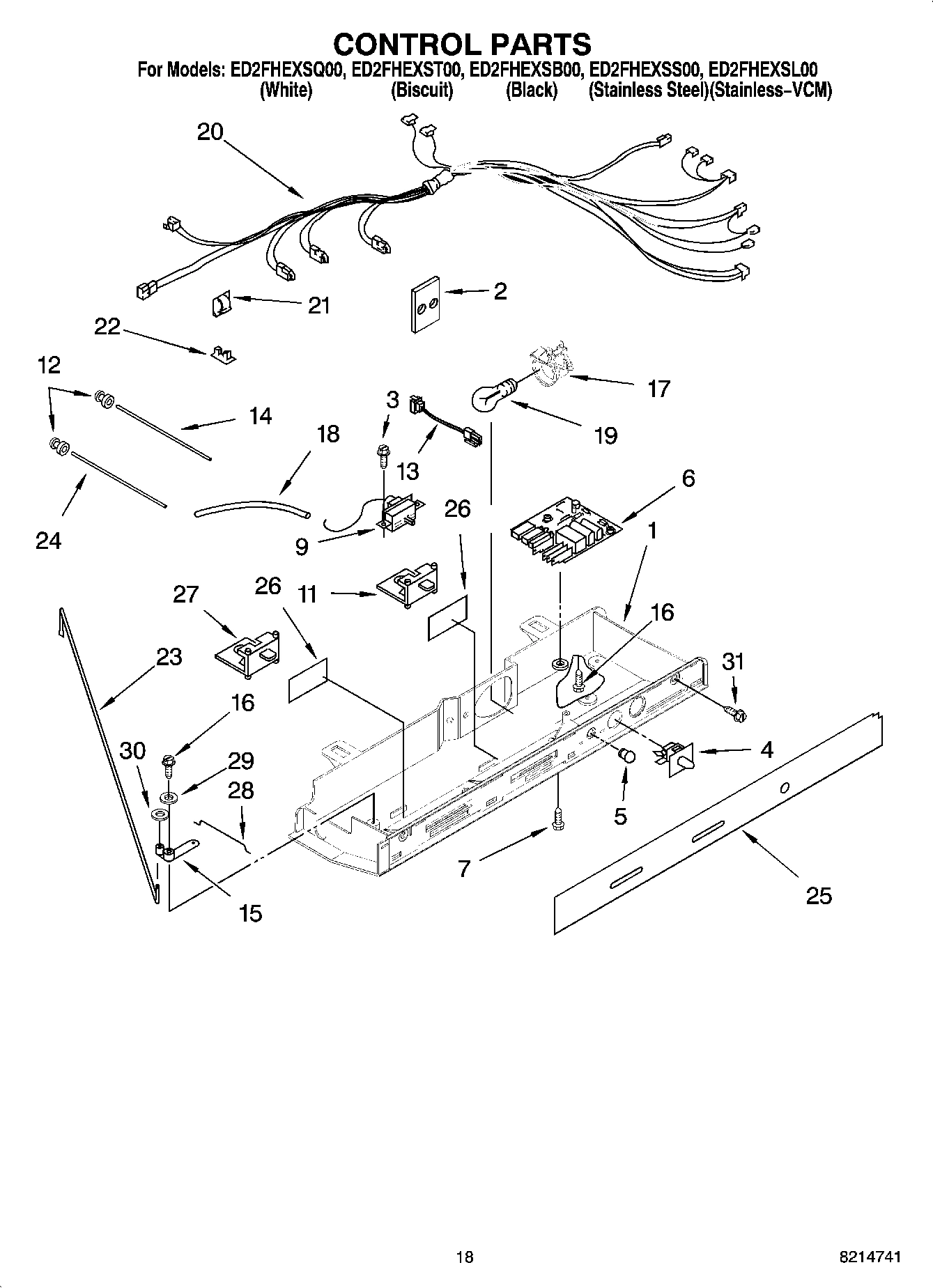

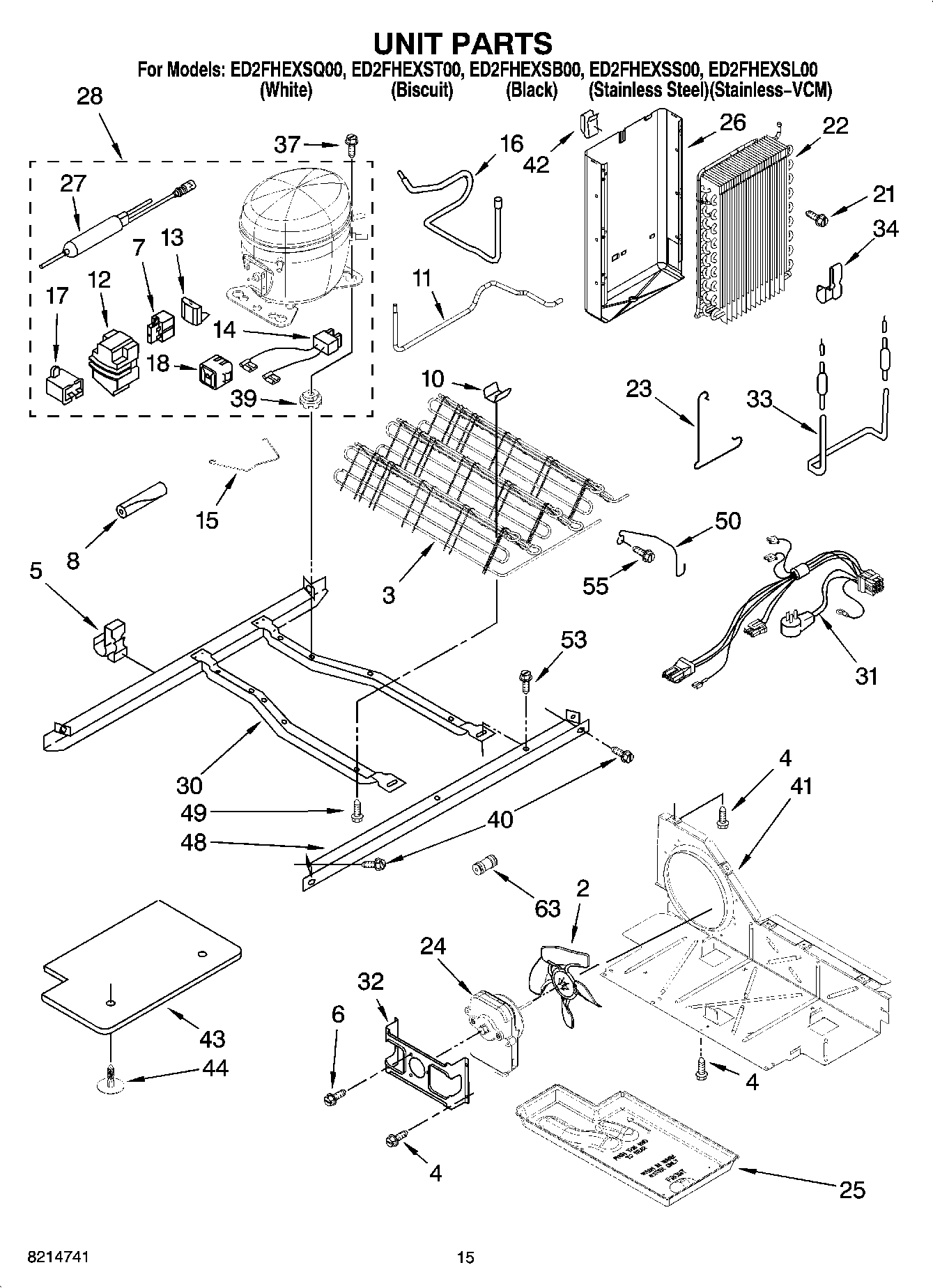

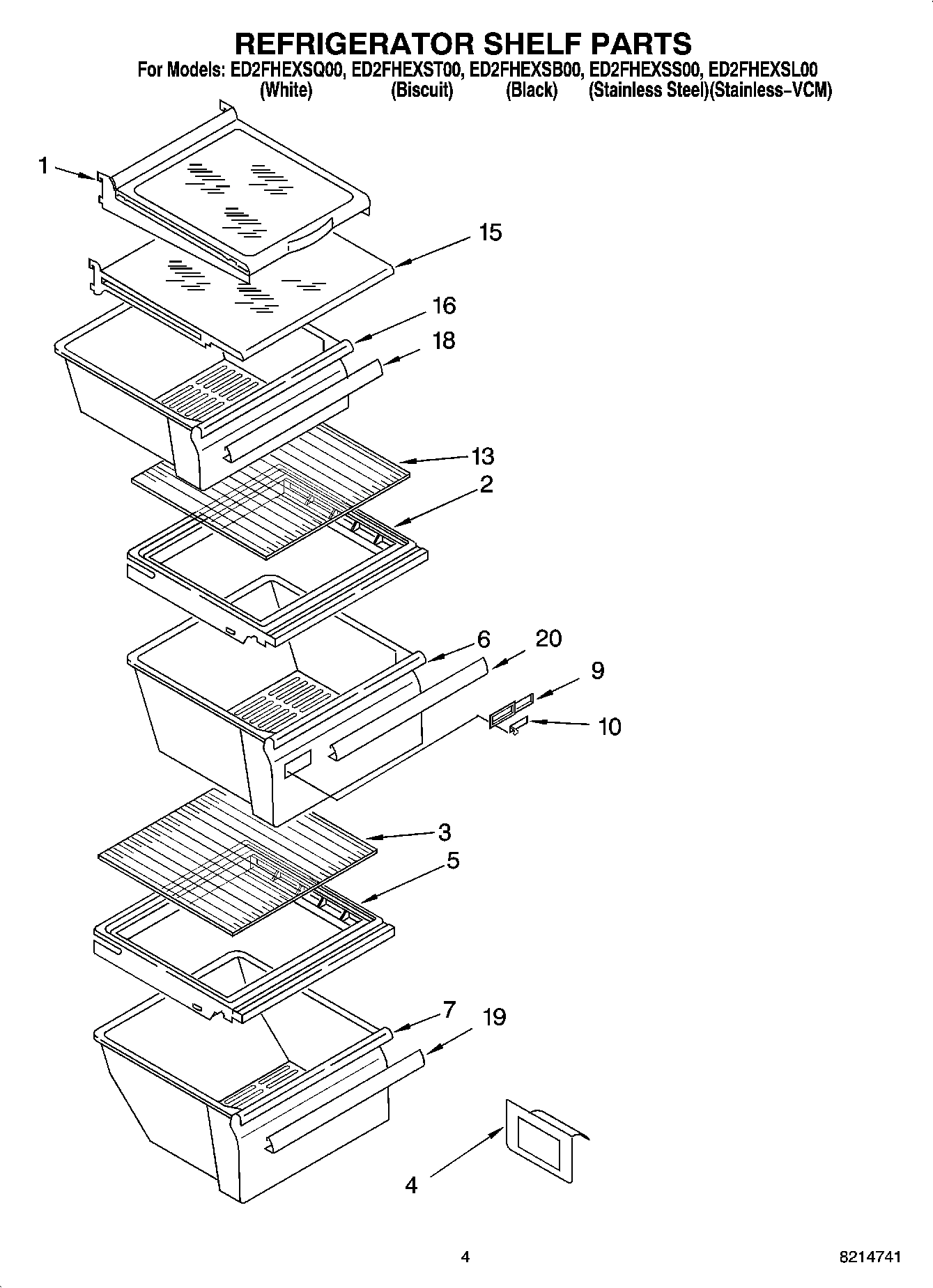

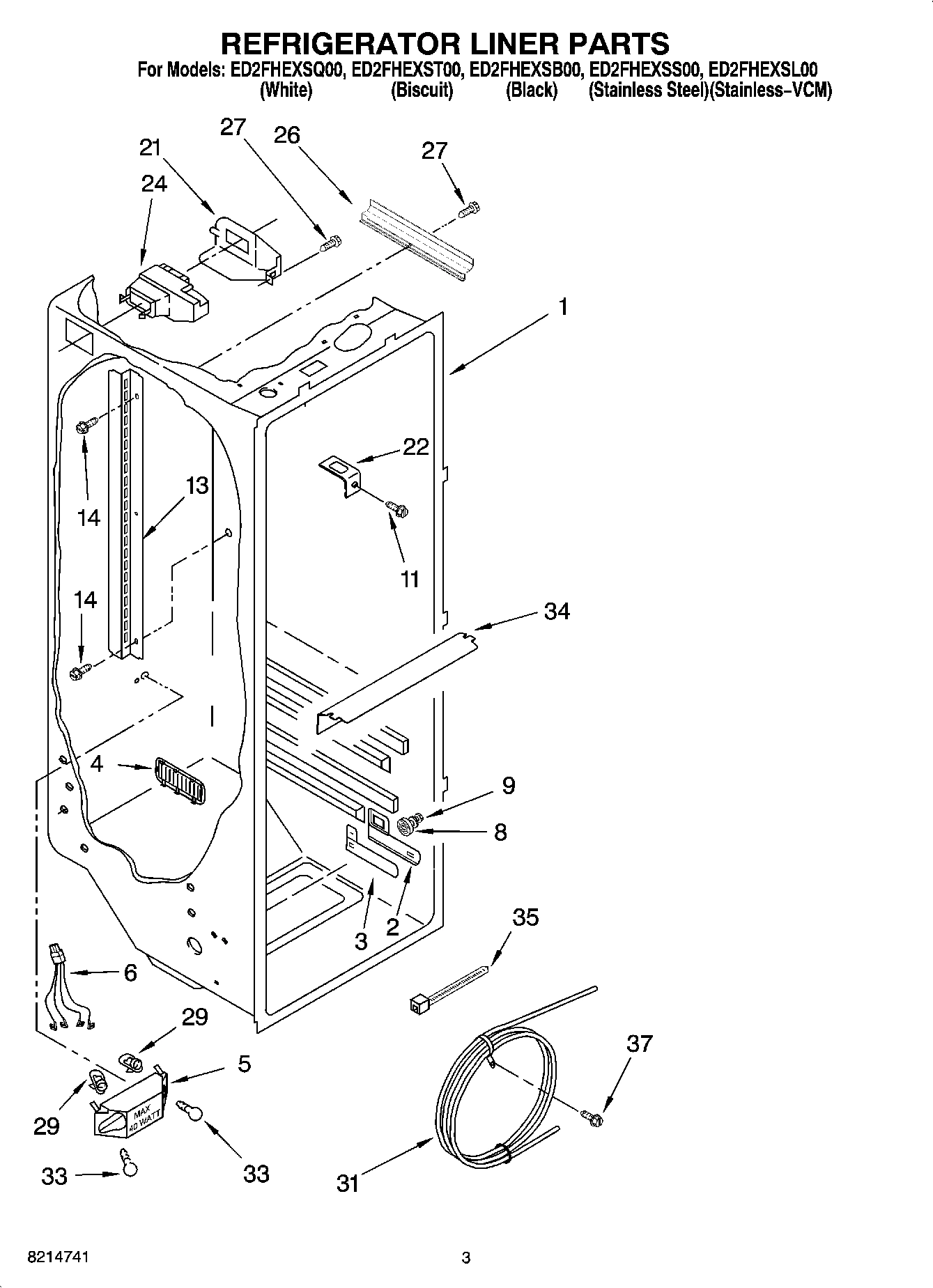

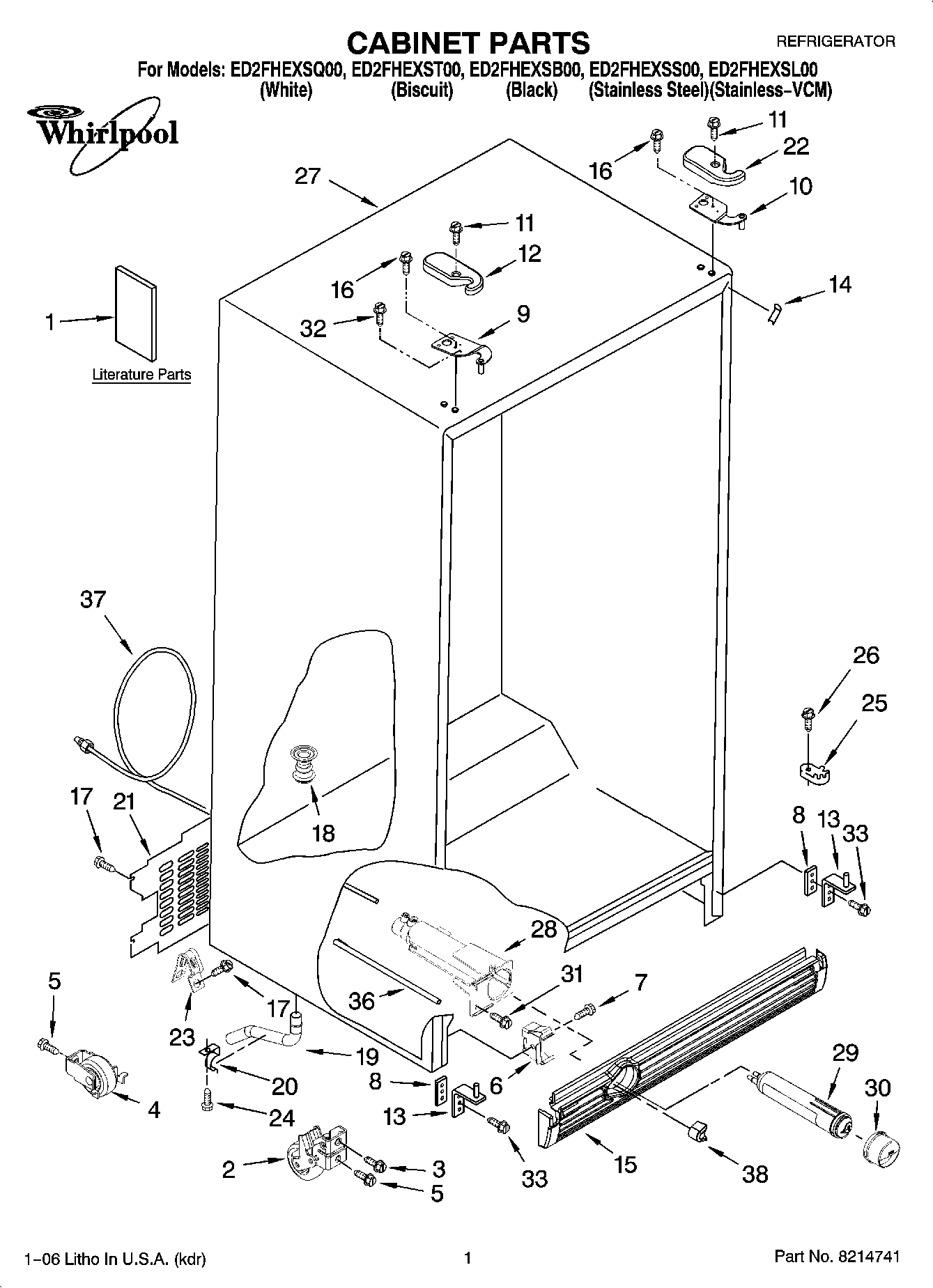

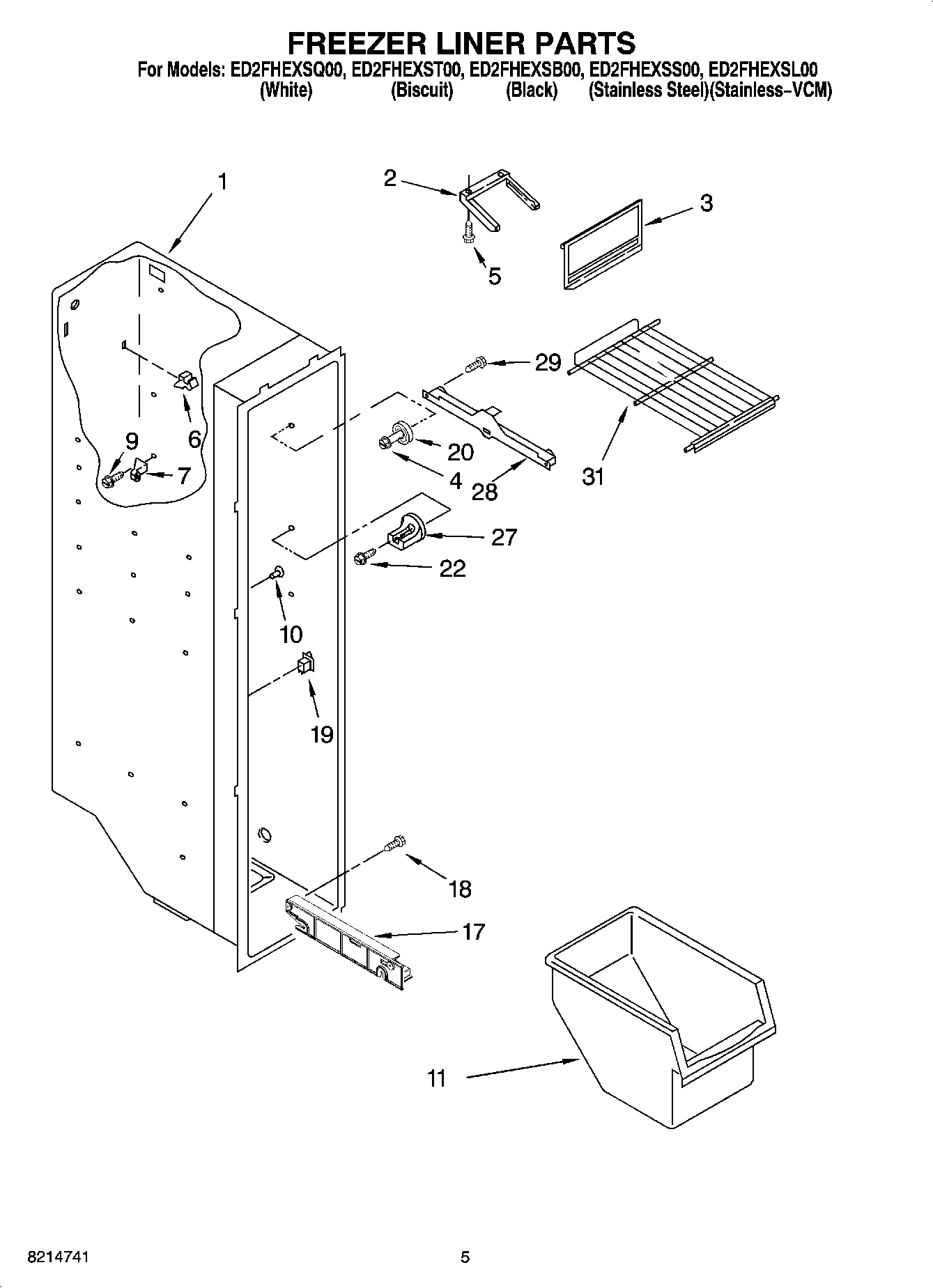

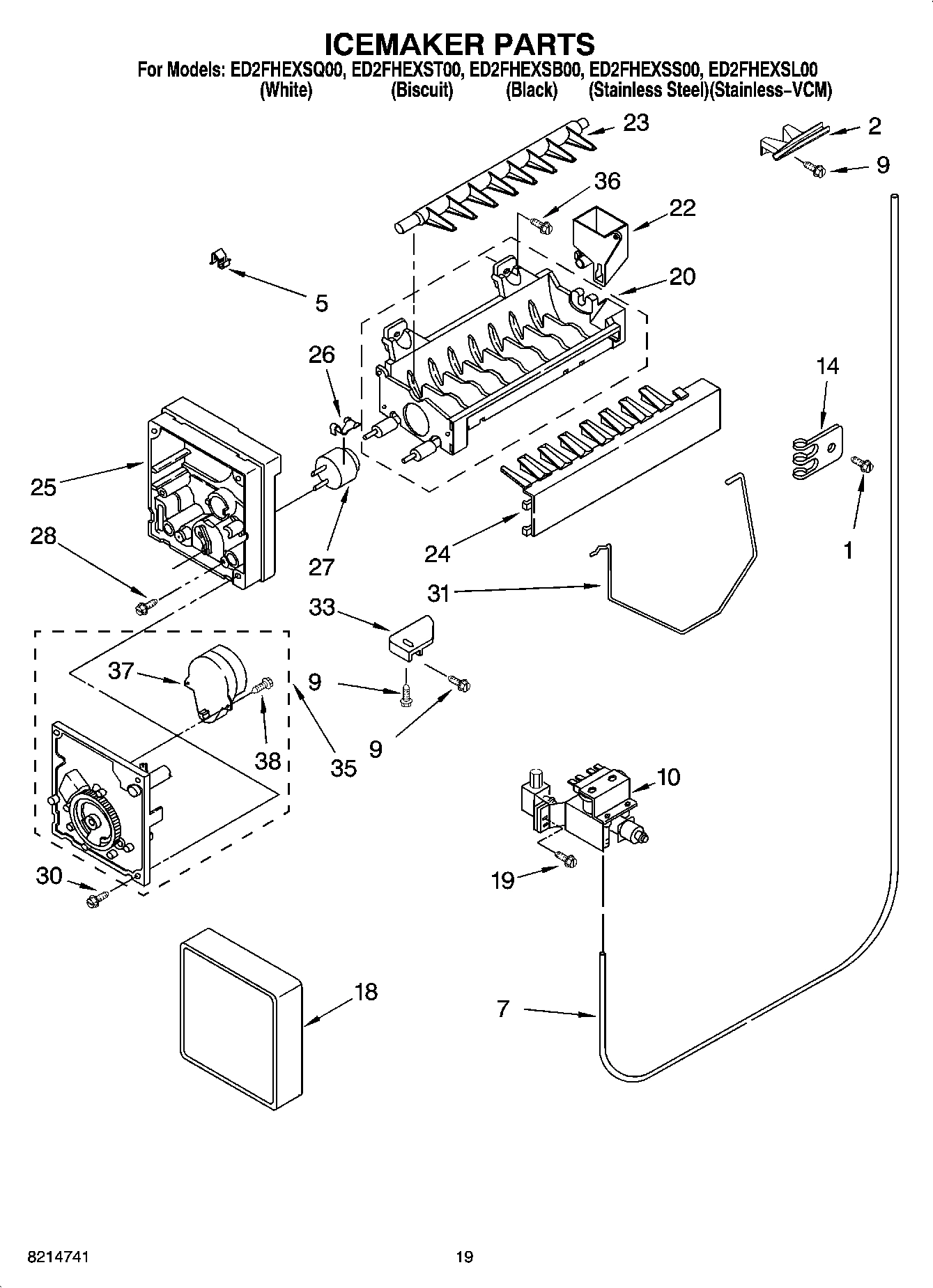

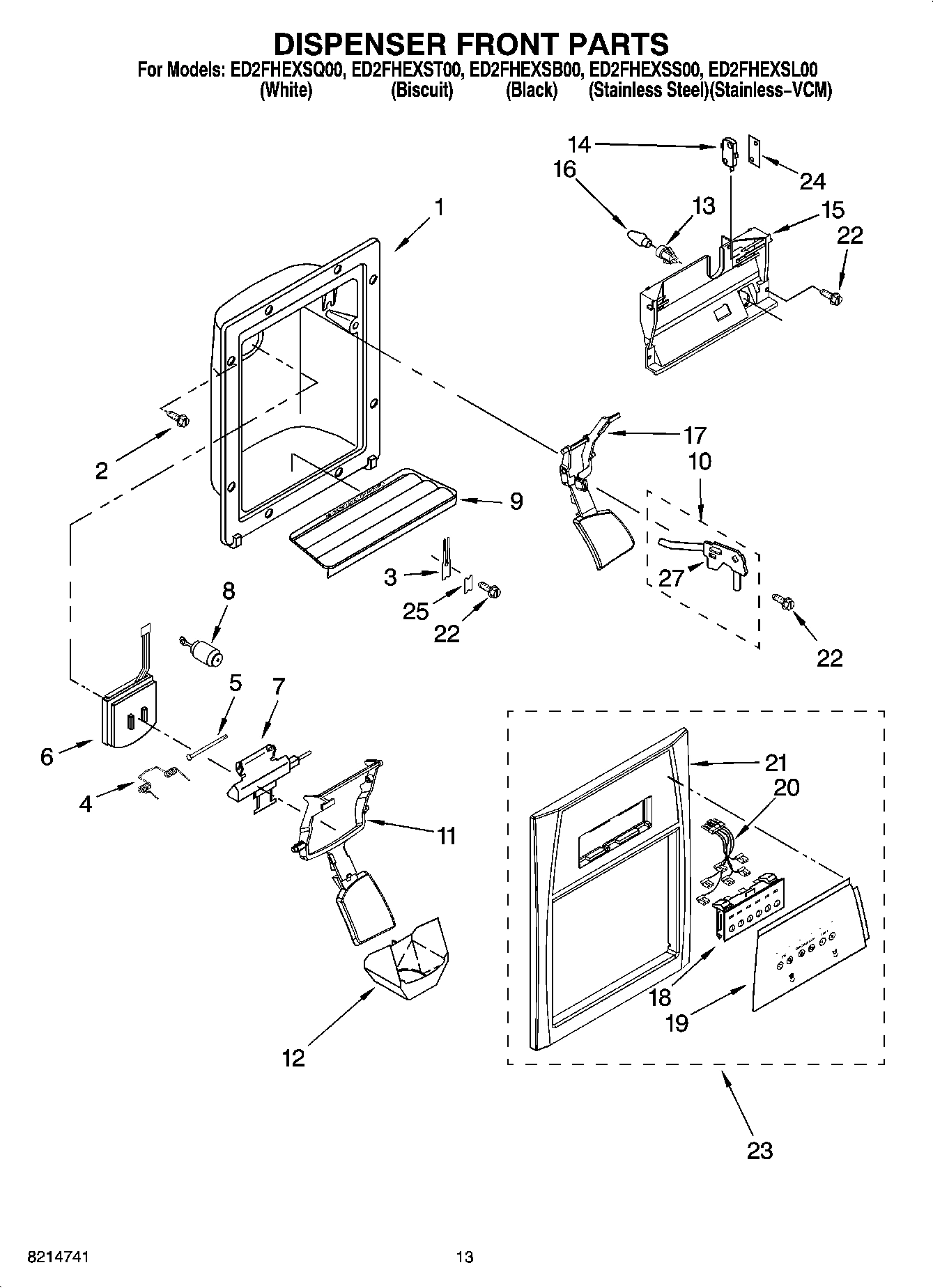

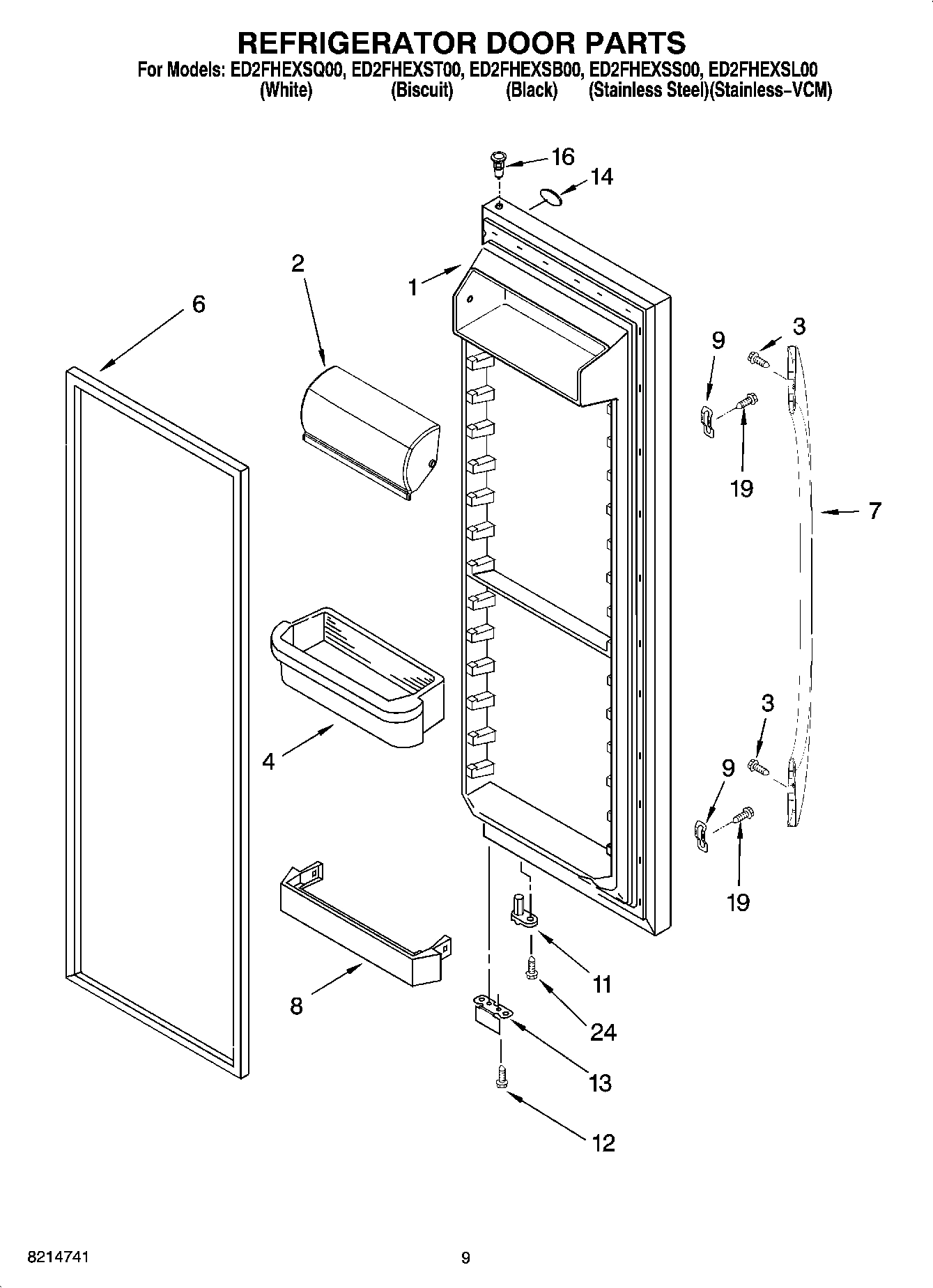

Model Whirlpool ED2FHEXST00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

2

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $101.23

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

SCREW WPL 8533920 Contact Us For Availability

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $38.71

7

Relay (Service Only) WPL 2183454 Contact Us For Availability

8

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

8

Shim WPL 2209697 Contact Us For Availability

9

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $38.84

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.90

9

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

Grommet WPL 2176134 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.98

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Freezer Bin WPL 2216111 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $54.68

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $79.24

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

Light Bar (RC) WPL 2179920 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

15

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

15

2255009 Whirlpool Retainer Backorder WPL 2255009 $7.32

16

2220642 Whirlpool Refrigerator Tube Backorder WPL 2220642 $126.88

16

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

16

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $37.70

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $41.86

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $29.06

Thimble-Top (For Stainless Steel Model) WPL 2301049 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2188831 Whirlpool Refrigerator Start Device In Stock WPL WP2188831 $64.15

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

20

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

21

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

21

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $195.78

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clamp WPL 2161324 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

Window WPL 2175513 Contact Us For Availability

Heat Shield WPL 2304288 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Stud, Rear WPL 2196207 Contact Us For Availability

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

30

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

Fastener, Push-On WPL 489391 Contact Us For Availability

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $113.37

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

NLA:SCREW Backorder WPL WPW10141645 $3.70

WPW10309395 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309395 $139.29

Shelf (2) WPL 2174265K Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.94

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $13.14

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

37

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

38

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2260516 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $24.61

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated WPL ARI29747A6 Contact Us For Availability

and Optional Parts Not Included WPL ARI29748A6 Contact Us For Availability

REFRIGERA WPL ARI29749A6 Contact Us For Availability
